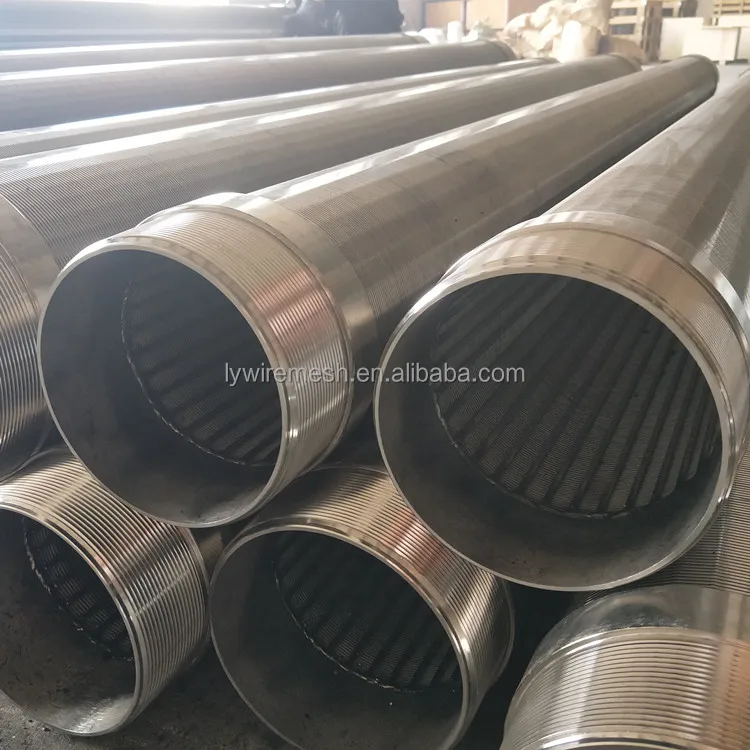

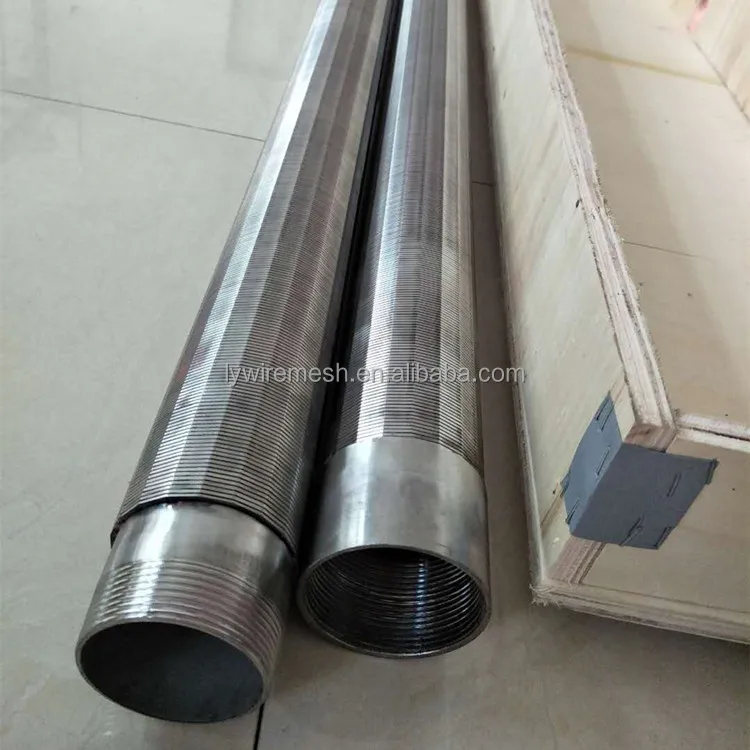

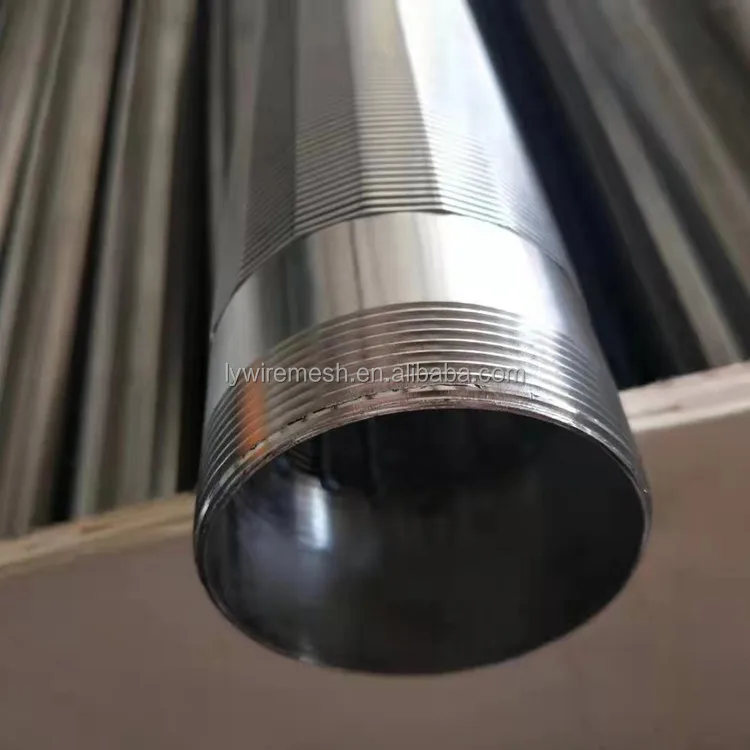

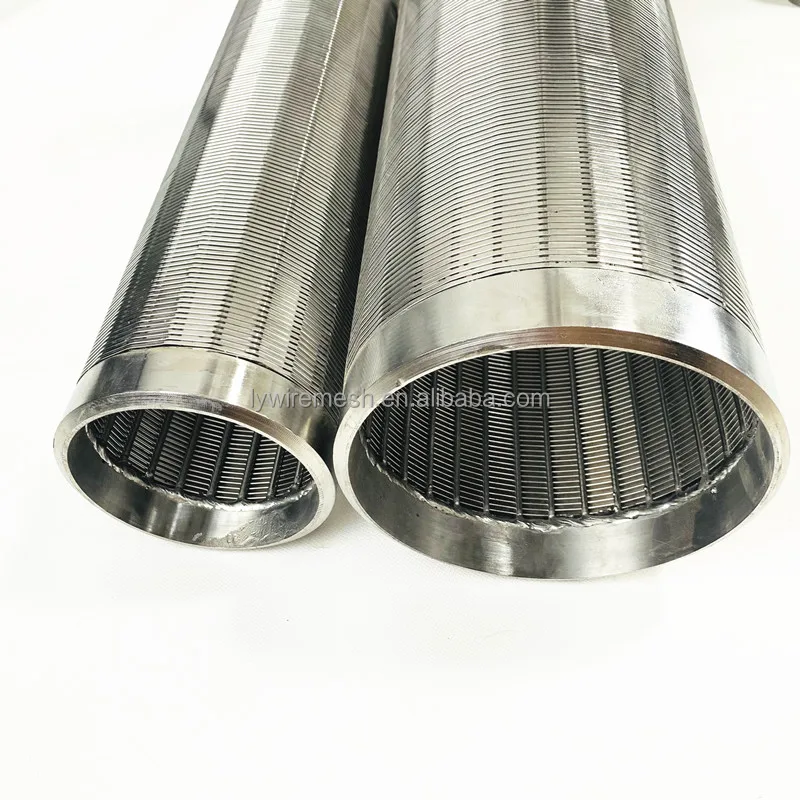

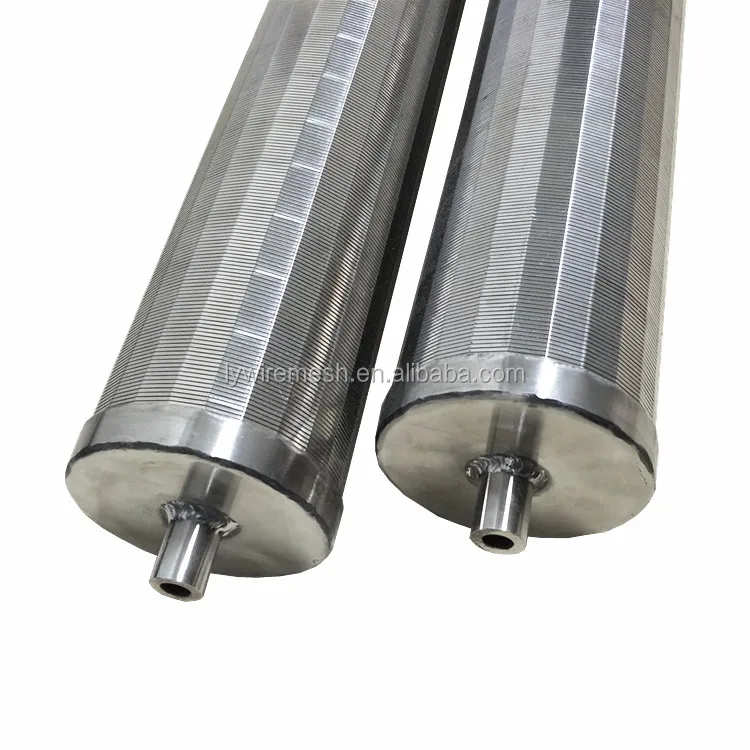

Round wedge screen OD830mm 0.15 0.2mm slotted wedge Johnson screen pipe

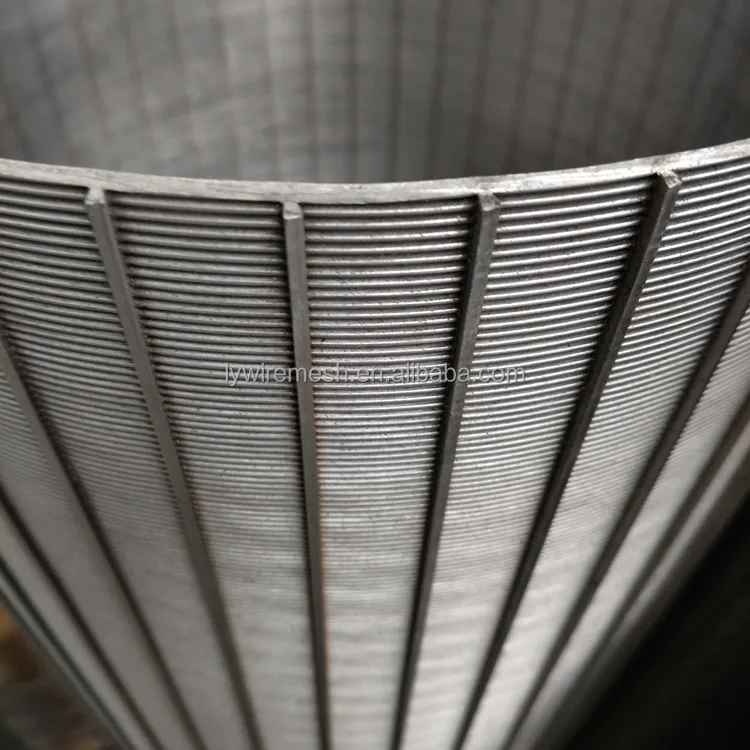

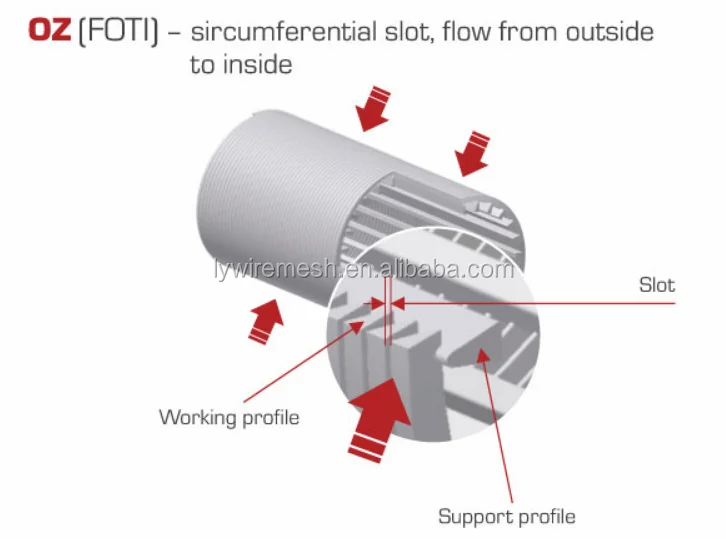

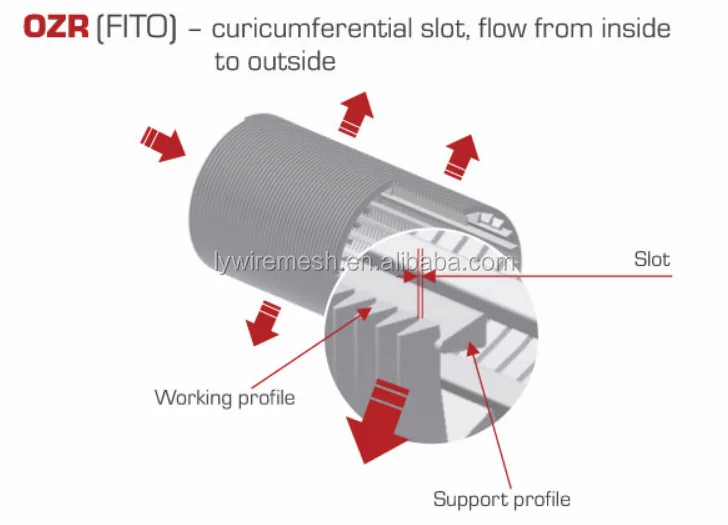

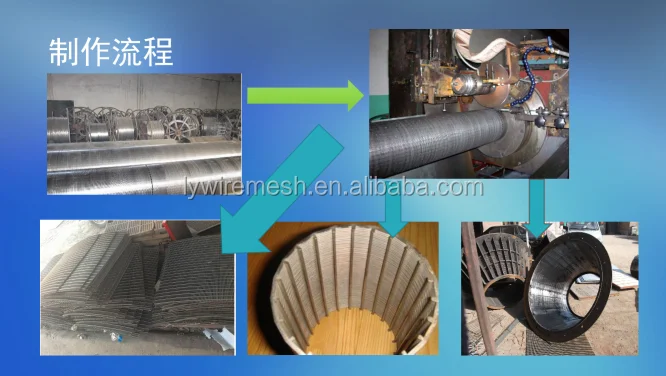

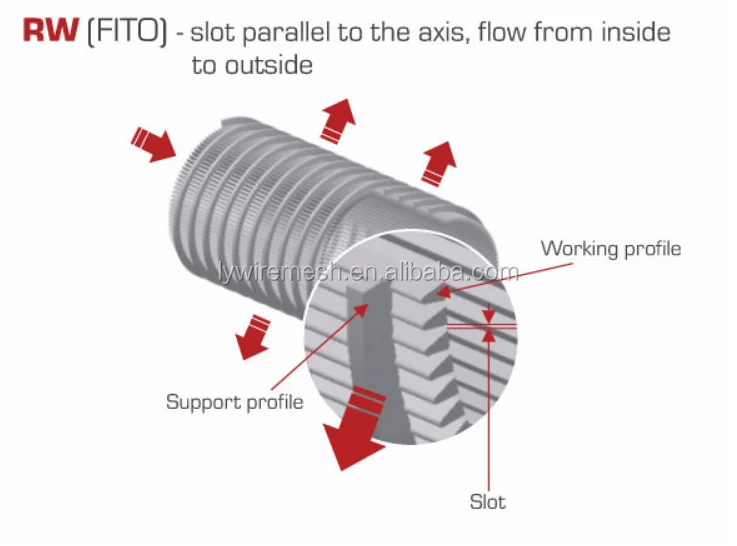

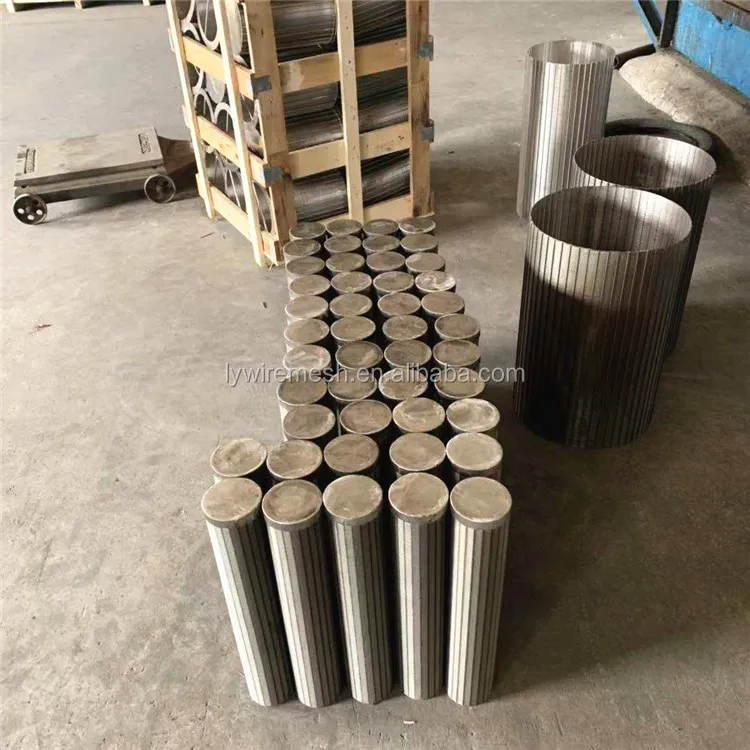

The wedge-shaped tube is made during the process of simultaneously winding a specially formed working line on a spiral and welding them to a load line placed along the tube. This technology allows the production of wedge screens when very high gap precision and shielding resistance are required. Thanks to the latest welding technology, we are able to obtain a wide range of distances between the load-bearing lines, with very precise and repeatable clearances, so that the screen can be produced according to the customer's specific requirements.

Specifications

Usage:Liquid Filter
Type:Filter Elements
Material:Metal Fiber
Hole Shape:Squar
Filter Rating:99%
Thickness:80-1000um
Length:Customize Length
Width:Require
Material:stainless steel 314,316,316L
Application:Mine applicatipn
Top diameter:1meter
botoom diameter:0.9meter
slot size:0.35mm
height:0.5meter
Wedge wire:1.5*2mm,2*3mm,1.5*2.5mm,2*4mm,
Support bar:2*3mm,3*5mm,4*6mm
Distance of support bar:10-30mm
Connection:flange or other

Company Name: Anping County Longyi Mesh Manufacture Co., Ltd.
Register Money: more than 20,000,000RMB
Factory Area: 8000sqm
Staff: 100 people
Daily output: 50000 sqm/day
ADD: Heping Street, Anping County, Hebei Province, PR China.

OEM service is welcome.
-We will provide all the details to you during the mass production.
-Customize your mould according to your need.
-Your requirements and complaints are highly respected.
-Necessary test and certification can be obtained as your request.
