Product Overview
Description

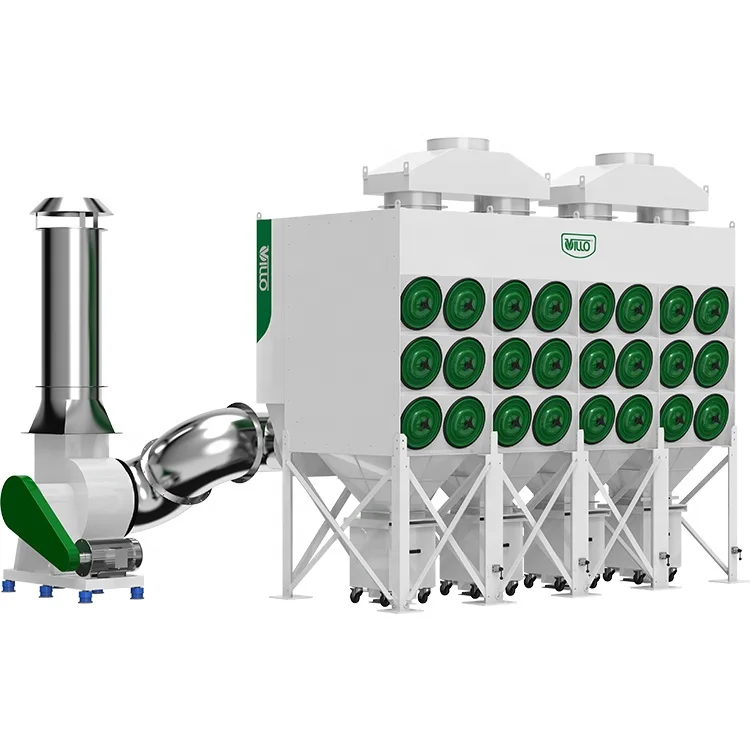

VFO Series Declined Module Structure Industrial Dust Collector System
Product description
VFO Series is a central dust collection system. It has the characteristics of large air volume, stable structure and convenient cartridge installation and ejection mechanism. It is suitable to deal with the production and processing of a large amount of dust.
Applications
Suitable for woodworking, grinding, cutting, feeding and other applications with a large amount of dust in the centralized
multi-station dust collection system.
Features
* Modular combination structure
Only requires a small changes to the original equipment and piping systems，modular dust collector unit can achieve rapid expansion to increase productivity and expand production scale, reduce expansion cost.
* PTFE coated filter cartridge
The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
* Easy installation & ejection of declined insertion type filter, can reduce the time to replace the filter.
* Pulse jet cleaning method for the filter makes machine to work continuously. User can set the pulse frequency depending upon the requirements.
* PTFE coated filter cartridge
The filter material is polyester with PTFE coated, which can filter 99.9% dust at 0.3 microns.
* Easy installation & ejection of declined insertion type filter, can reduce the time to replace the filter.
* Pulse jet cleaning method for the filter makes machine to work continuously. User can set the pulse frequency depending upon the requirements.
Right elevation
Left elevation
Front elevation
Technology Parameters
Model | VFO 3-12 | VFO 3-24 | VFO 3-36 | VFO 3-48 | VFO 3-60 | VFO 3-72 | ||||||
Voltage (V/Hz) | 380 / 50 | |||||||||||
Air flow (m³/h) /(CFM) | 9000~15000/ 5300~8800 | 18000~30000/ 10600~17700 | 27000~45000 / 15900~26500 | 36000~60000 / 21200~35300 | 45000~75000 / 26500~44100 | 54000~90000 / 32000~53000 | ||||||
Power | Calculate the total pressure/static pressure according to the total resistance of the system, and then select the appropriate fan power | |||||||||||
Filter area (m²)/ ( sq.ft ) | 144 / 1550 | 288 / 3100 | 432 / 4650 | 576 / 6200 | 720 / 7750 | 864 / 9300 | ||||||
Filter efficiency | 99% | |||||||||||
Capacity of the dust container (L) / (gal) | 100 / 26.4 (1pcs) | 200 / 52.8 (2pcs) | 300 / 79.2 (pcs) | 400 / 105.6 (4pcs) | 500 / 132 (5pcs) | 600 / 158.4 (6pcs) | ||||||
Noise dB (A) | 82±2 | 83±2 | 85±2 | 85±2 | 88±2 | 90±2 | ||||||
Filter cleaning method | pulse jet cleaning+holder on dust collecting box | |||||||||||
Dimension (Excluding the Blower) [L*W*H] (mm) / (in) | 1120*1910*3100 / 44.1*75.2*122.0 | 2240*1910*3640 / 88.2*75.2*143.3 | 3360*1910*3640 / 132.3*75.2*143.3 | 4480*1910*3640 / 176.4*75.2*143.3 | 5600*1910*3640 / 220.5*75.2*143.3 | 6720*1910*3640 / 264.6*75.2*143.3 | ||||||
Weight (kg) / (lb) | 400 / 882 | 800 / 1764 | 1200 / 2646 | 1600 / 3528 | 2000 / 4410 | 2400 / 5290 | ||||||
※ The air flow and Negative pressure can be calculated according to the actual condition, and then choose the bigger or more suitable power machine. | ||||||||||||
Product Configuration
Modular combination structure filter cartridge
Air pulse jet cleaning device
Easy installation & ejection of declined insertion type filter
Optional Configuration
Tuning Fork Level Switch
Multi Tower Light
Siemens PLC

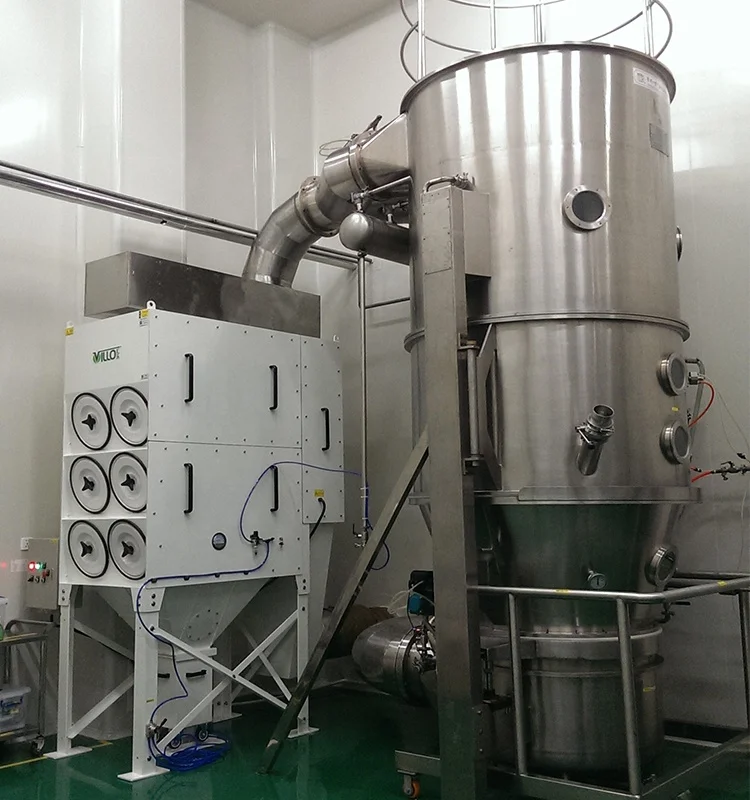

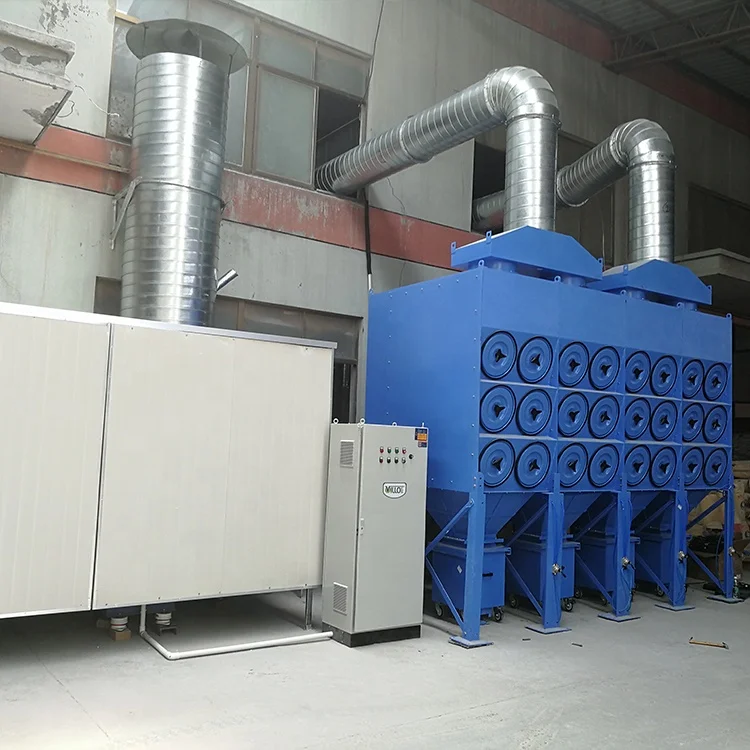

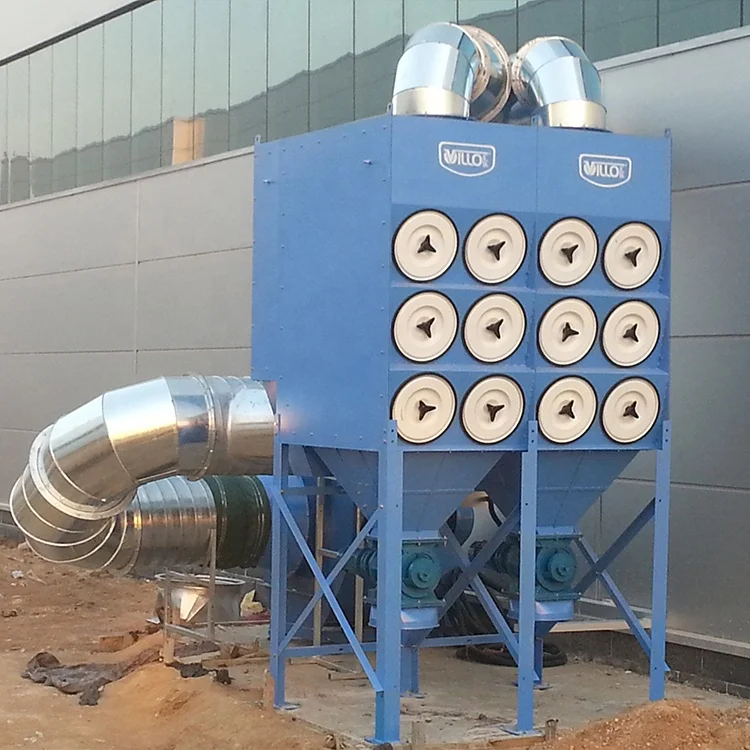

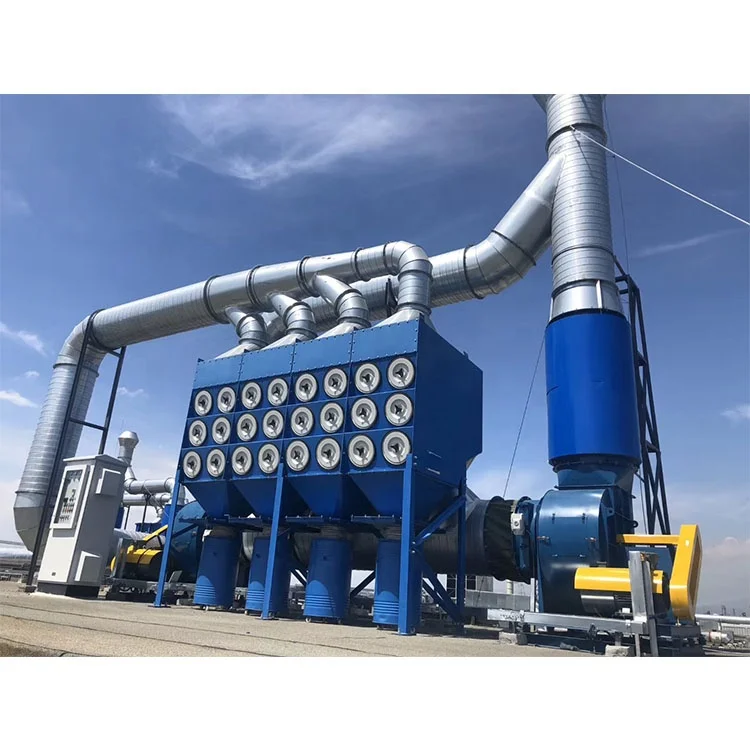

Successful Project
