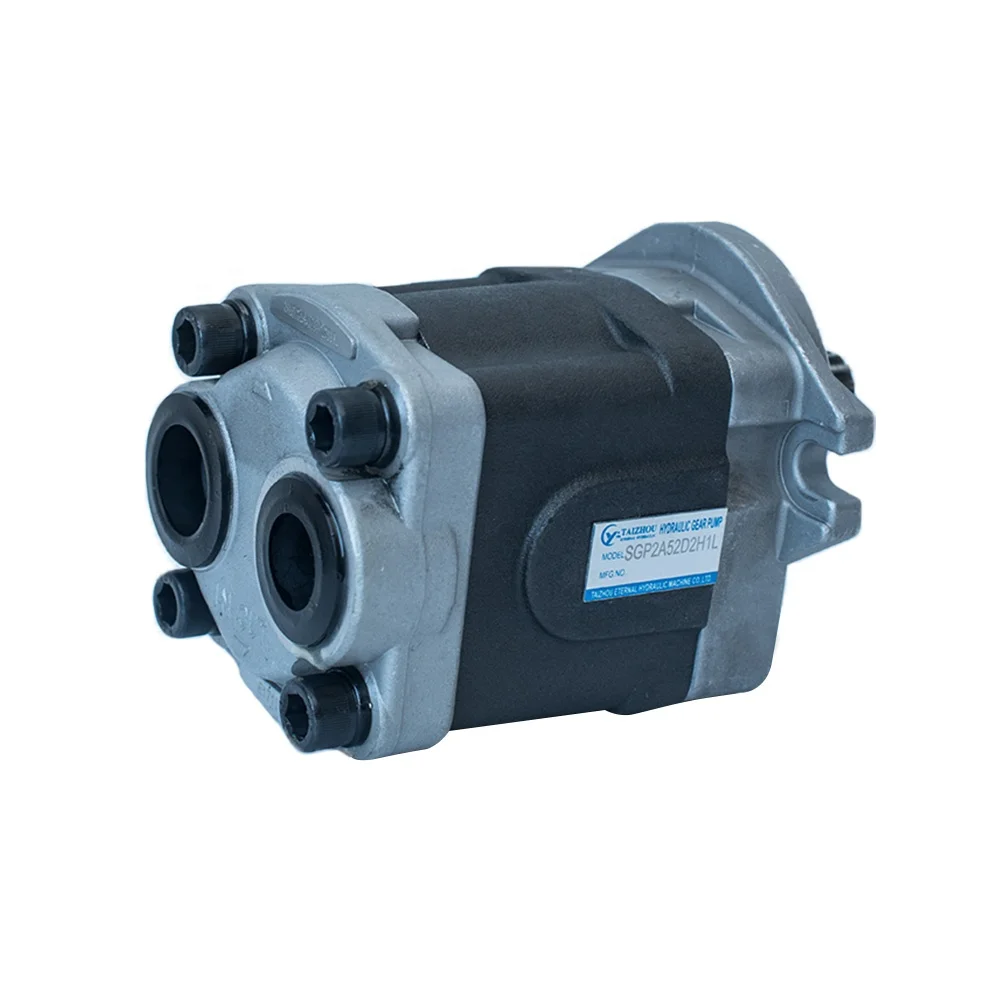

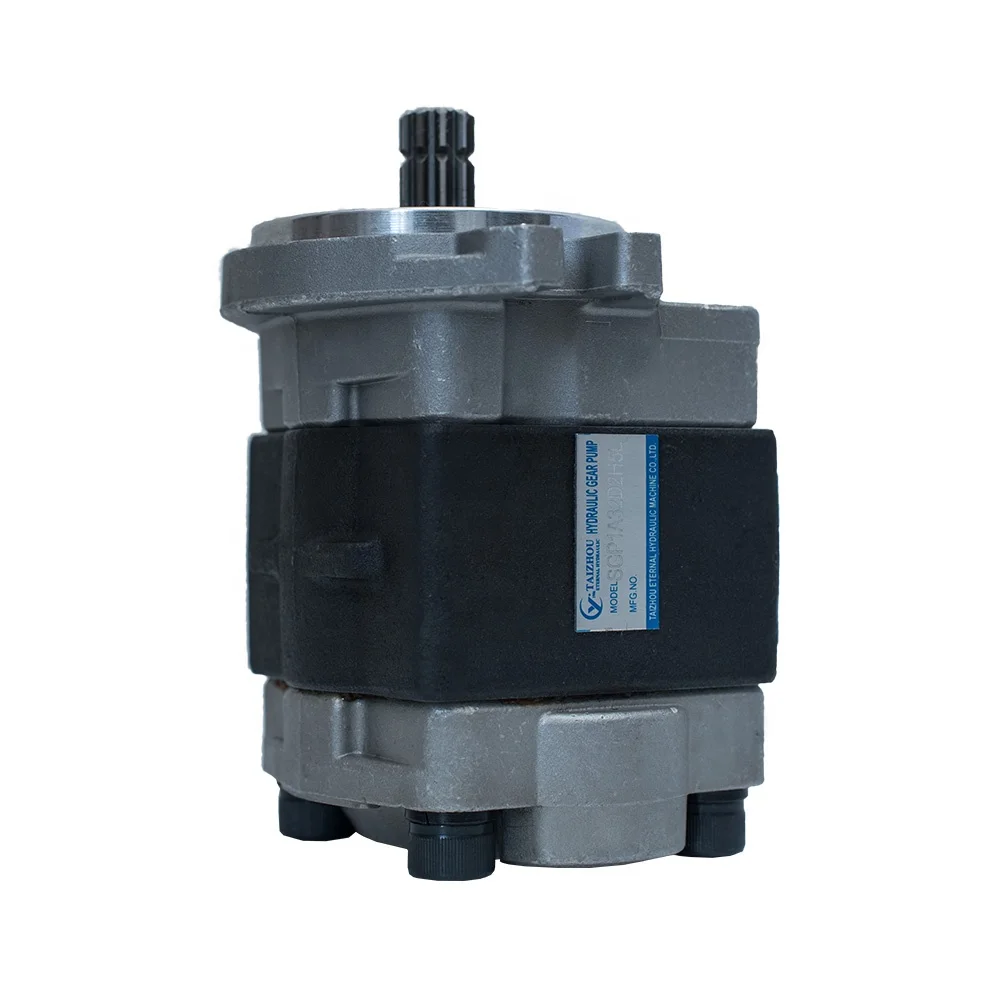

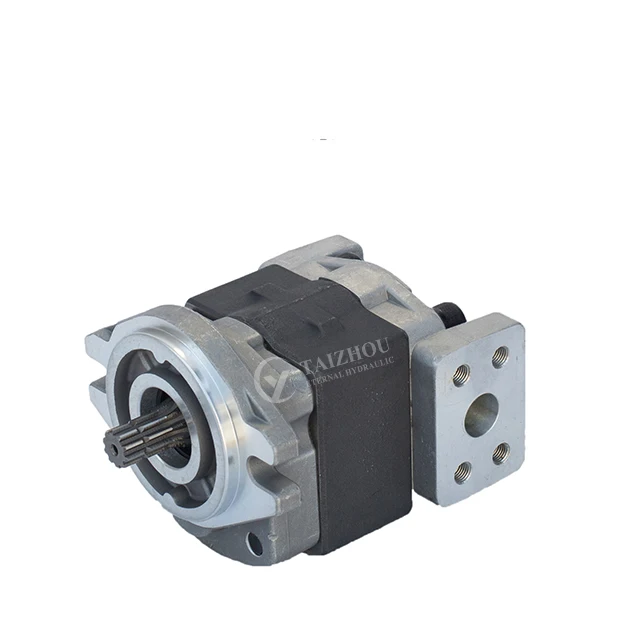

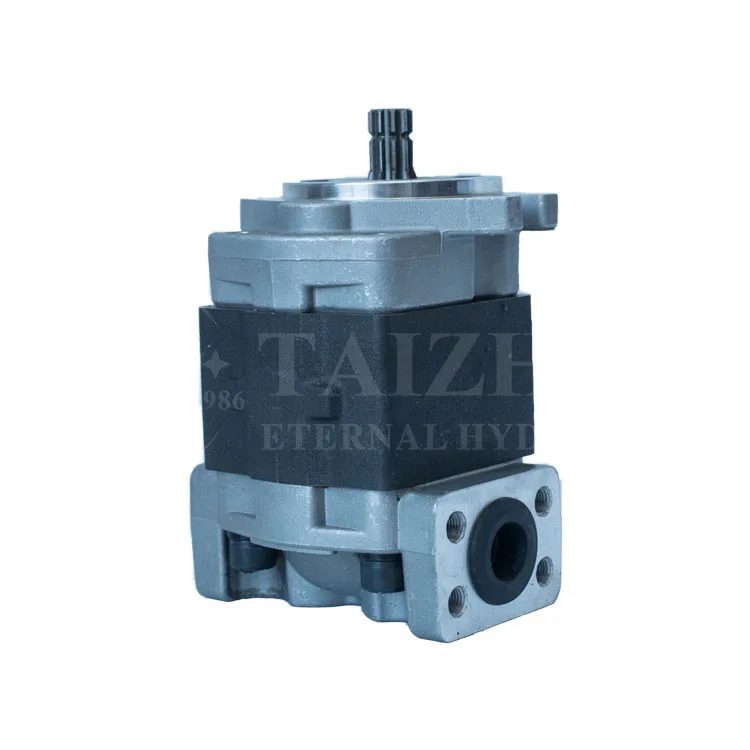

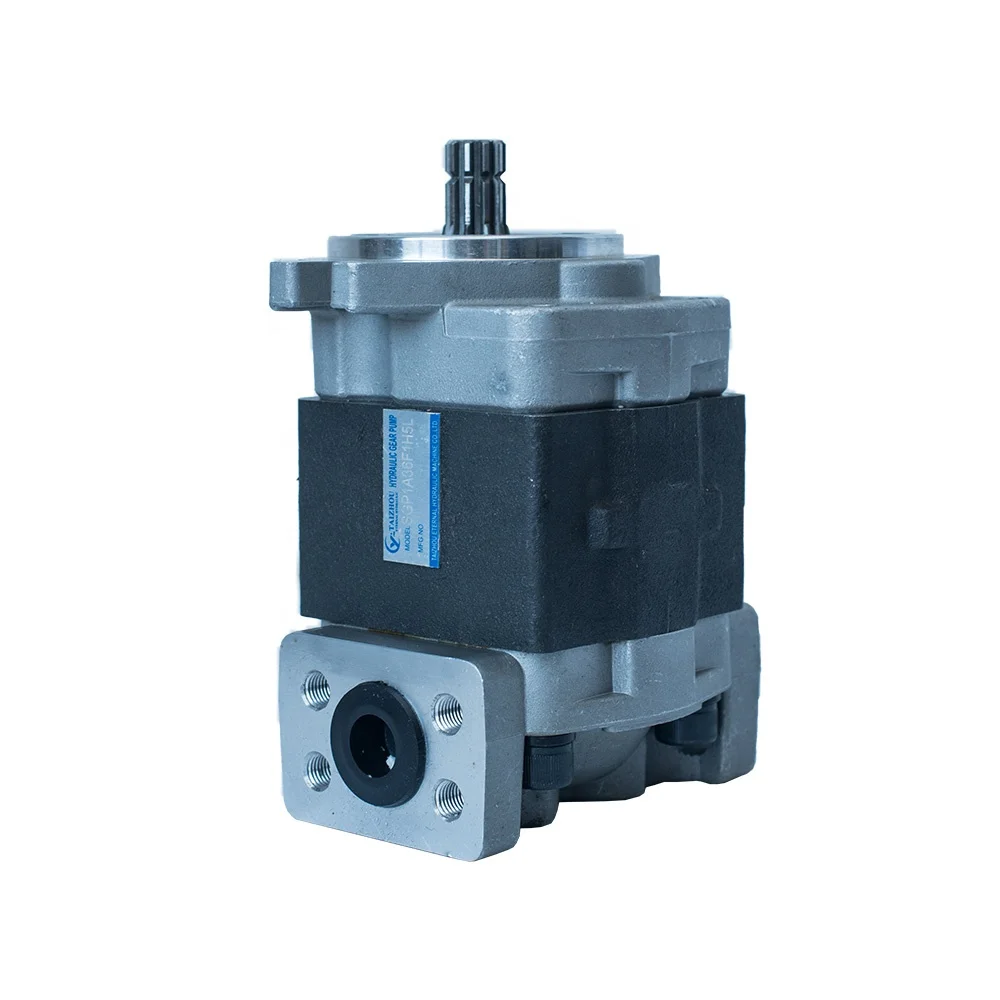

body aluminum alloy high flow 245 bar gear pump hydraulic, shimadzu SGP1 25 SGP1 27 SGP1 36 for forklift hydraulic oil gear pump
- Category: >>>
- Supplier: Taizhou Eternal Hydraulic Machine Co. Ltd.
Share on (1600617530694):
Product Overview
Description
Products Show
Eternal Hydraulic SGP series Hydraulic Gear Pump:
Eternal Hydraulic SGP1 series gear pump are environmental friendly products with the features of low noise, smart structure and easy installation. The pumps are widely applied in the industries of hoisting and conveying machinery, road machinery,environmental protection machinery, light industry machinery,etc. The pump has been the first option accessory parts for variety of environmental friendly main equipment.
Features:
• Compact structure, body aluminum alloy, precise and detailed structural design, same as the original. Eternal Hydraulic’s SGP/KZP4 Series Gear Pump can interchange Shimadzu type. High volumetric efciency at high temperature.
• High efficiency: precise and detailed structural design, this series of gear pumps with high volume rate and high mechanical efficiency
• Low noise, with high volume rate and high mechanical efficiency.
• Stable operation and long working life
• Brand Guarantee. Every product of Eternal Hydraulic will be systematically tested before leaving the factory. And there we have a 12-month warranty with professional after-sales team.
• High efficiency: precise and detailed structural design, this series of gear pumps with high volume rate and high mechanical efficiency
• Low noise, with high volume rate and high mechanical efficiency.
• Stable operation and long working life
• Brand Guarantee. Every product of Eternal Hydraulic will be systematically tested before leaving the factory. And there we have a 12-month warranty with professional after-sales team.
Model | Nominal displacement (m/r ) | Pressure (Mpa) | Rotation speed(r/min) | Inlet pressure (Mpa) | Weight (kg) | ||||
Rated | Max | Min | Max | ||||||
SGP2-32 | 32 | 24.5 | 29.4 | 400 | 3000 | -0.02~0.2 | 5.7(5.1) | ||
SGP2-36 | 36 | 3000(2500) | 5.9(5.3) | ||||||
SGP2-40 | 40 | 22.6 | 27.5 | 6.1(5.4) | |||||
SGP2-44 | 44 | 20.6 | 24.5 | 6.3(5.6) | |||||
SGP2-48 | 48 | 18.6 | 22.6 | 3000(2500) | 6.6 (5.9) | ||||
SGP2-52 | 52 | 17.2 | 20.6 | 6.8 (6.1) | |||||
Model | Nominal displacement (m/r ) | Pressure (Mpa) | Rotation speed(r/min) | Volumetric Effciency(≥%) | Weight (kg) | ||||||
Rated | Max | Min | Rated | Max | |||||||
SGP1-19 | 19 | 20 | 25 | 600 | 2500 | 3000 | 92 | 3.5 | |||
SGP1-23 | 22 | 3.7 | |||||||||
SGP1-25 | 25 | 4 | |||||||||
SGP1-27 | 27 | 4 | |||||||||
SGP1-30 | 30 | 4.1 | |||||||||
SGP1-32 | 32 | 4.3 | |||||||||
SGP1-34 | 34 | 4.5 | |||||||||
SGP1-36 | 36 | 4.5 | |||||||||
Product Description
Production &packaging
Company Profile
About Eternal Hydraulic
Eternal Hydraulic is a professional Manufacturer of Hydraulic Components with more than 10 years experiences, is also a One-Stop Mall in Hydraulic Filed, with 40+ distributors and 1000+ regular customers , 160+ Suppliers. CE/ISO/SGS/TUV certificate.
Our products including Piston Pump, Vane Pump, Gear Pump, Hydraulic Valve, Hydraulic
Motor, Electric Motor, Oil Cooler, Accumulator, Servo System, Power Pack Unit and other hydraulic accessories etc.
Motor, Electric Motor, Oil Cooler, Accumulator, Servo System, Power Pack Unit and other hydraulic accessories etc.
