25T125 5E4 5A 125/250VAC 30VDC 1mm Travel 3 Pin PCB Snap Action Limi Tact Mini Right Angle Micro Switch
- Category: >>>
- Supplier: Huizhou Grandye Industrial Co. Ltd.
Share on (1600617543781):
Product Overview
Description
Our Advantages
1.Zing Ear factory with high standard in product quality control;
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.One-stop Service for Customers
2.We are certificated by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
3.Our customers from all over the world, like US, UK, Japan, Germany, Argentina, Mexico, Singapore
4.One-stop Service for Customers
Products Description
Rating - P1/P11/P12 | ENEC:0.1A,125/250V 48VDC 5EA ULcul:0.1A,125/250V 48VDC Gold Plated Contact Optional | ||||||
Rating - 05/051/052 | ENEC:5A,125/250VAC ULcul:5A, 1/8HP 125/250VAC | ||||||
Rating - 10/101 | ENEC:10(2)A,125/250VAC U 25T125 ULcul:10.1A,1/4HP 125/250VAC Note:250gf/Only with "OF "over "250gf" | ||||||
Rating - 12 | ENEC: 12(6) A,125/250VAC U 40T125 ULcul:12A,125/250VAC Note:350gf/Only with 350gf OF | ||||||
Operating Frequency - Electrical | 10-30 cycles/minute | ||||||
Operating Frequency - Mechanical | 120 cycles/minute | ||||||
Contact Resistance(Initiative) | 100mΩ Max | ||||||
Insulation Resistance (at500VDC) | 100mΩ Min | ||||||
Dielectric strength | AC ,1,000 RMS (50-60HZ) | ||||||
Storage Temperature | -25℃~+125℃ | ||||||
Storage Humidity | 85%RH Max | ||||||
Service Life - Electrical | 10,000-50,000 cycles(Depend on part No.) | ||||||
Service Life - Mechanical | 1,000,000 cycles | ||||||

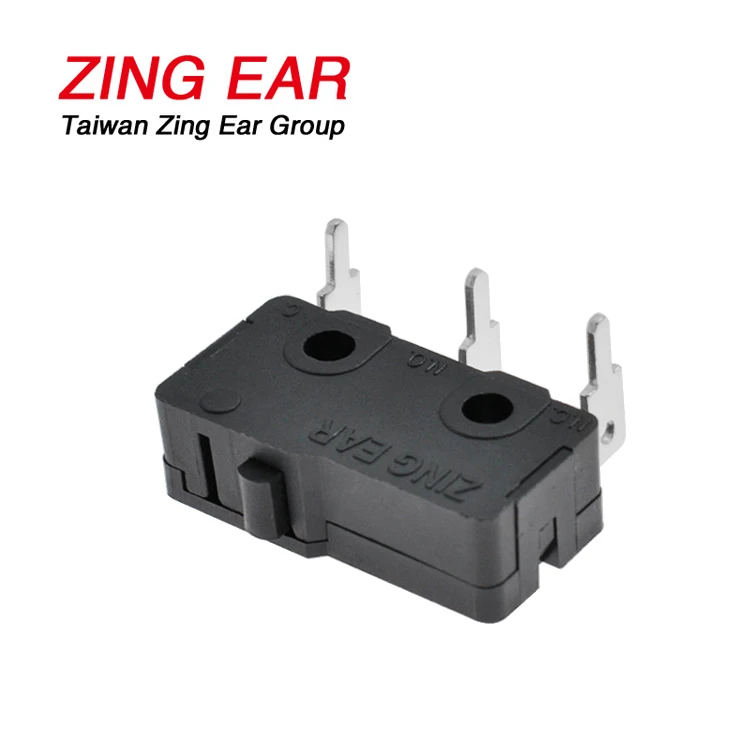

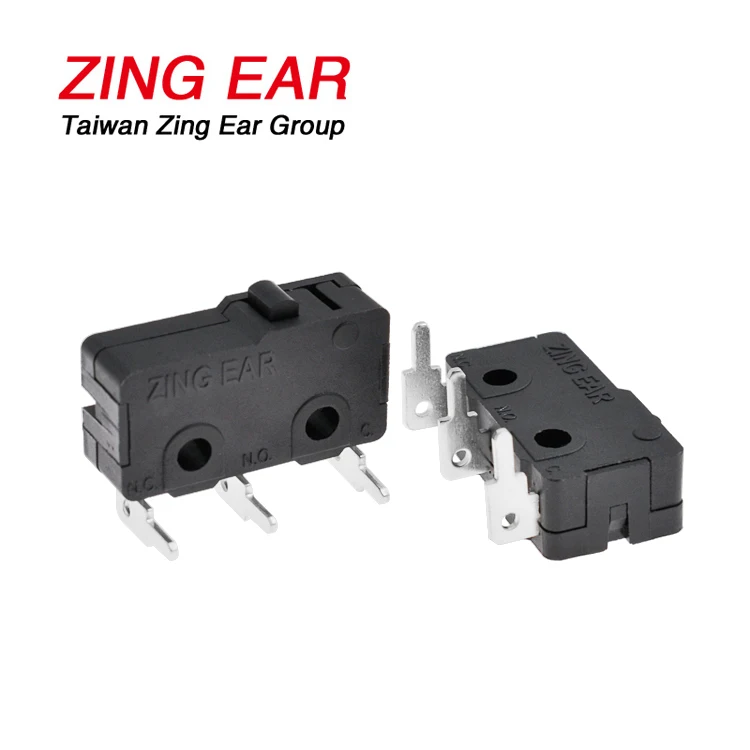

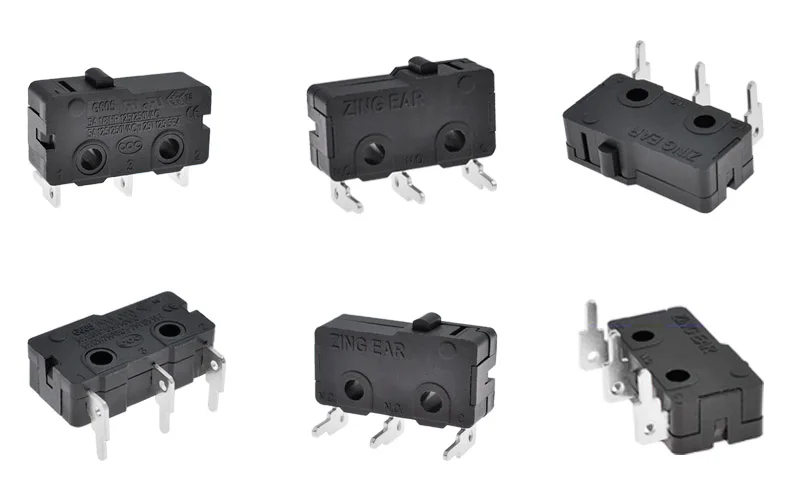

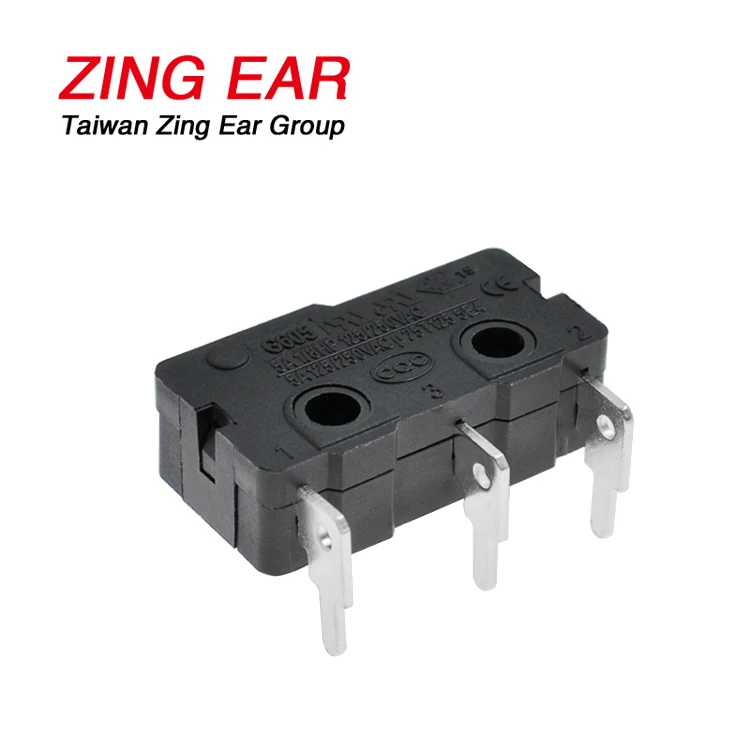

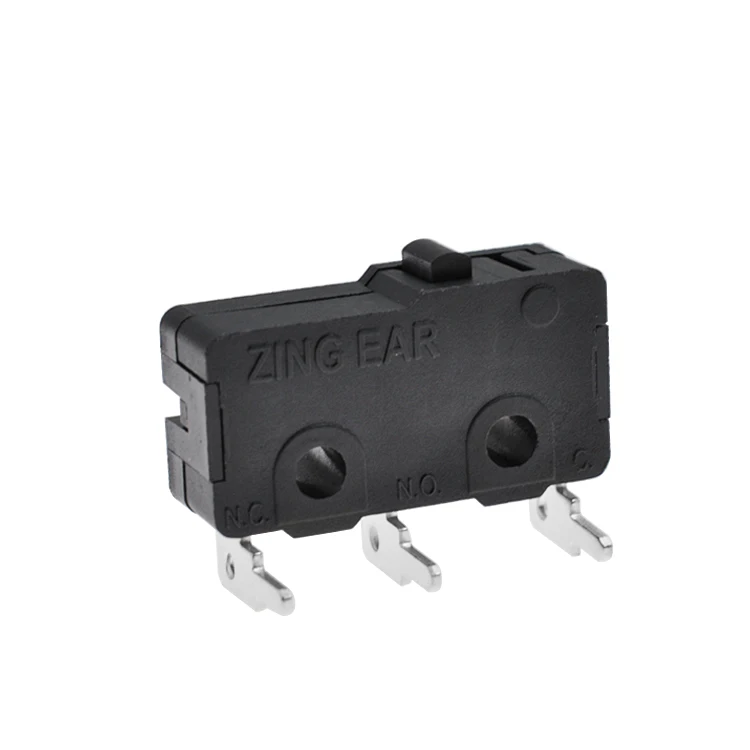

G605-150R00A Right Angle Microswitch Picutures
Features
- Small compact size
- Global safety approvals
- Long life and high reliability
- Variety of actuator and terminals
- High rating to 10(2)A, 1/4HP
- Customized Designs
- Widely used in Auto control, Appliance control, Industrial Control, Home Appliance and Game Controller
- Small compact size
- Global safety approvals
- Long life and high reliability
- Variety of actuator and terminals
- High rating to 10(2)A, 1/4HP
- Customized Designs
- Widely used in Auto control, Appliance control, Industrial Control, Home Appliance and Game Controller

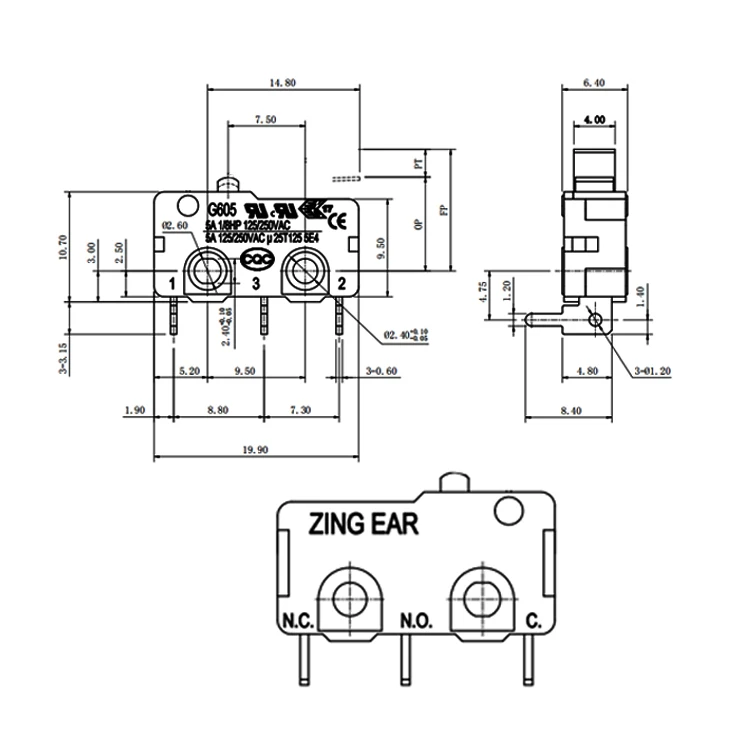

G605-150R00A Drawing
Our Main Products
Company Information
R&D Team
Production Line
Our Advantage
1.30 years manufacture experience
2.OEM is available: material,size and other requirements are customized
3.Our laboratory is certified by SGS,TUV
4.ALL of our goods have acquired TUV,CE,SEMKO,ENEC,CQC certification
5.We use 3D software UG to design and develop our products
2.OEM is available: material,size and other requirements are customized
3.Our laboratory is certified by SGS,TUV
4.ALL of our goods have acquired TUV,CE,SEMKO,ENEC,CQC certification
5.We use 3D software UG to design and develop our products
Package & Shipment
About Package:
1. Color box inside with foam and carton outside, which can protect goods;
2. Special package is available；
About Shipment:
1. By air, By sea, By land
2. By Express, like DHL, TNT, UPS, Fedx
3. By post or other carrier, this type of shipment will be slow but more cheaper
Certificates
ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc.
