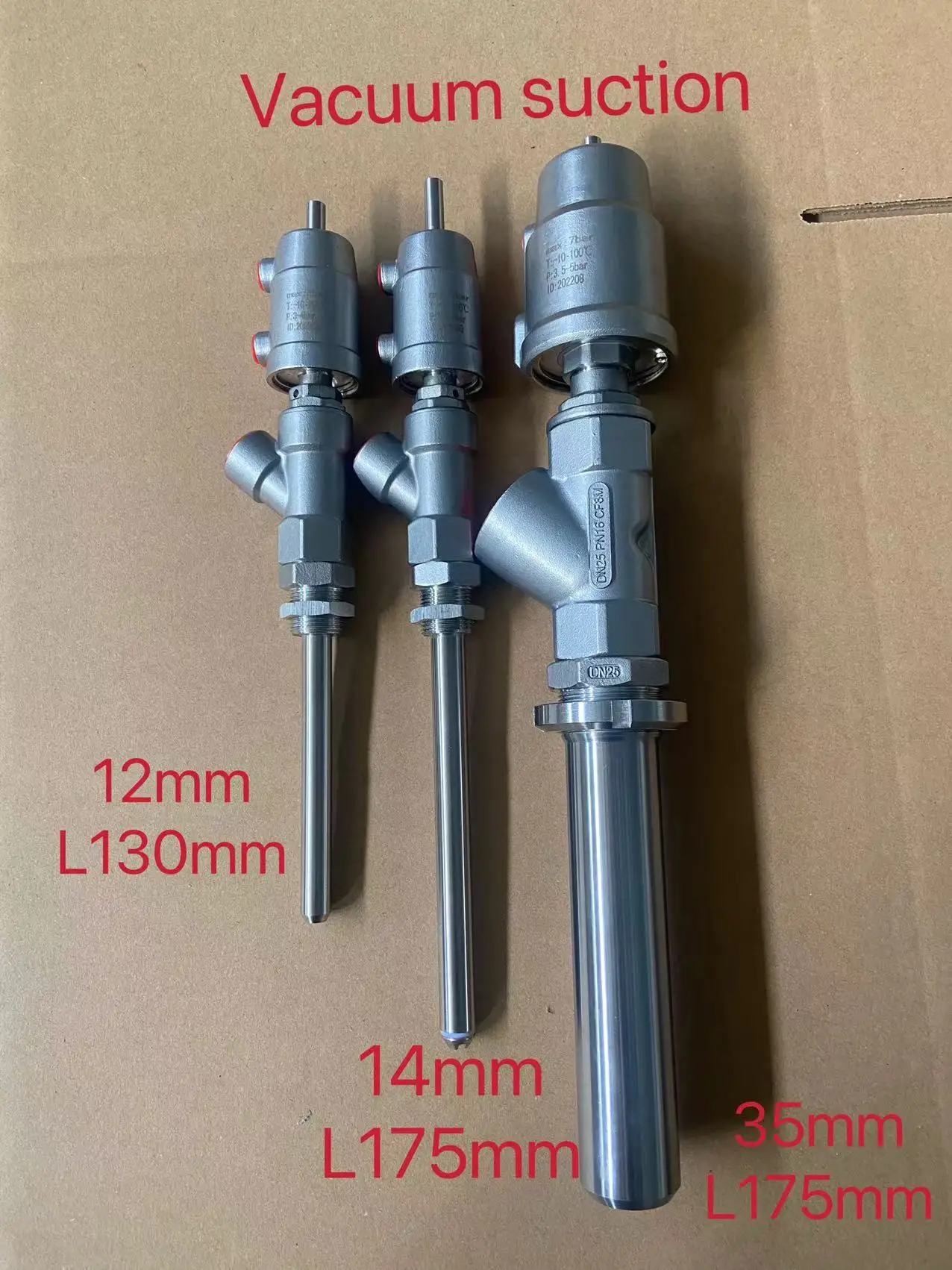

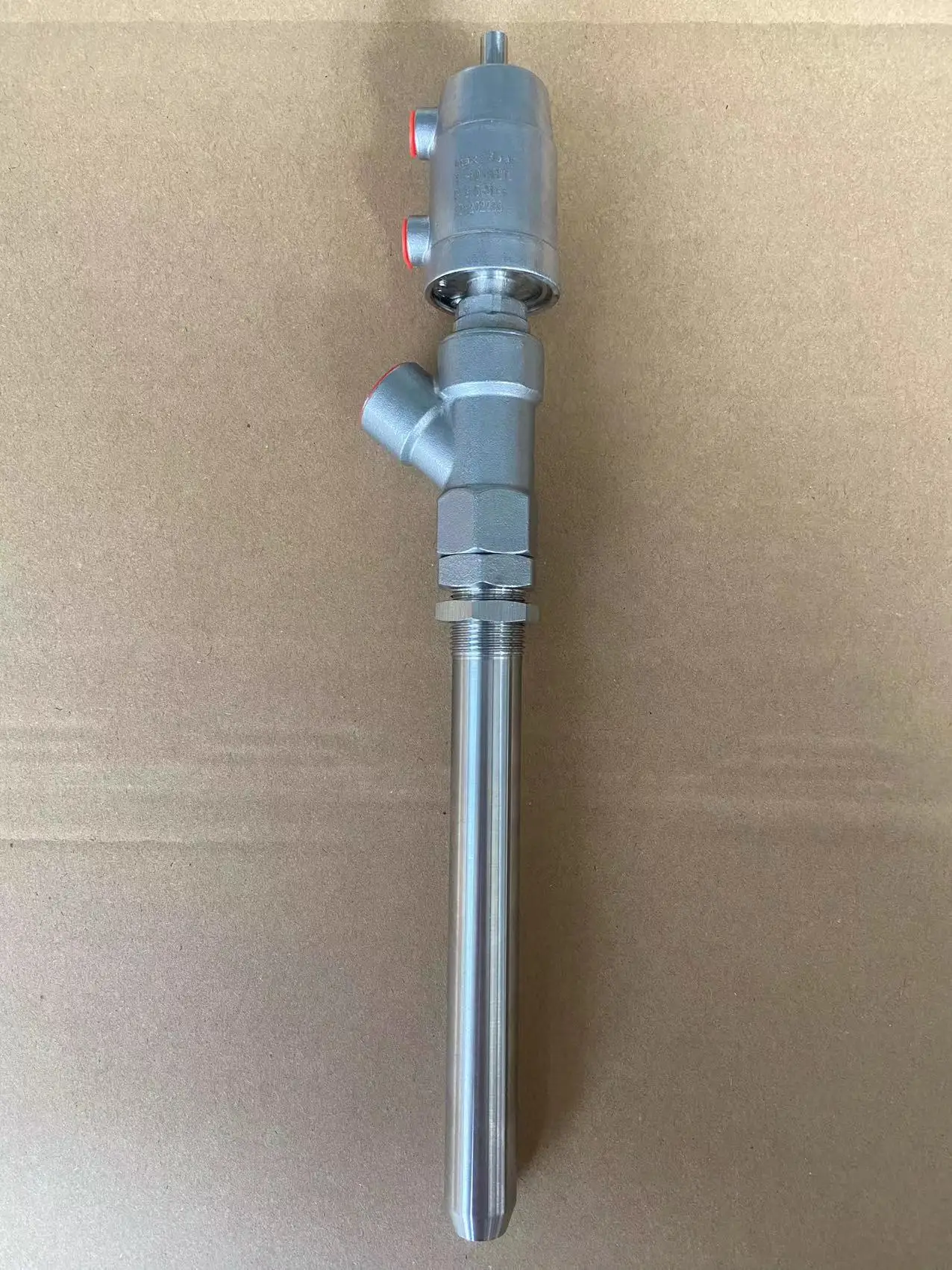

Vacuum back suction filling nozzle stainless steel material for all bottle filling

Advantages:

1. Easy installation, maintenance-free, super long life;

2. Self-adjusting stem seals, reliable operation, , cylinder can be 360 rotated free;

3. Anti-corrosive, high flow rate, low fluid resistance, no water-hammer;

4. Low control air consumption. Optical position indication,

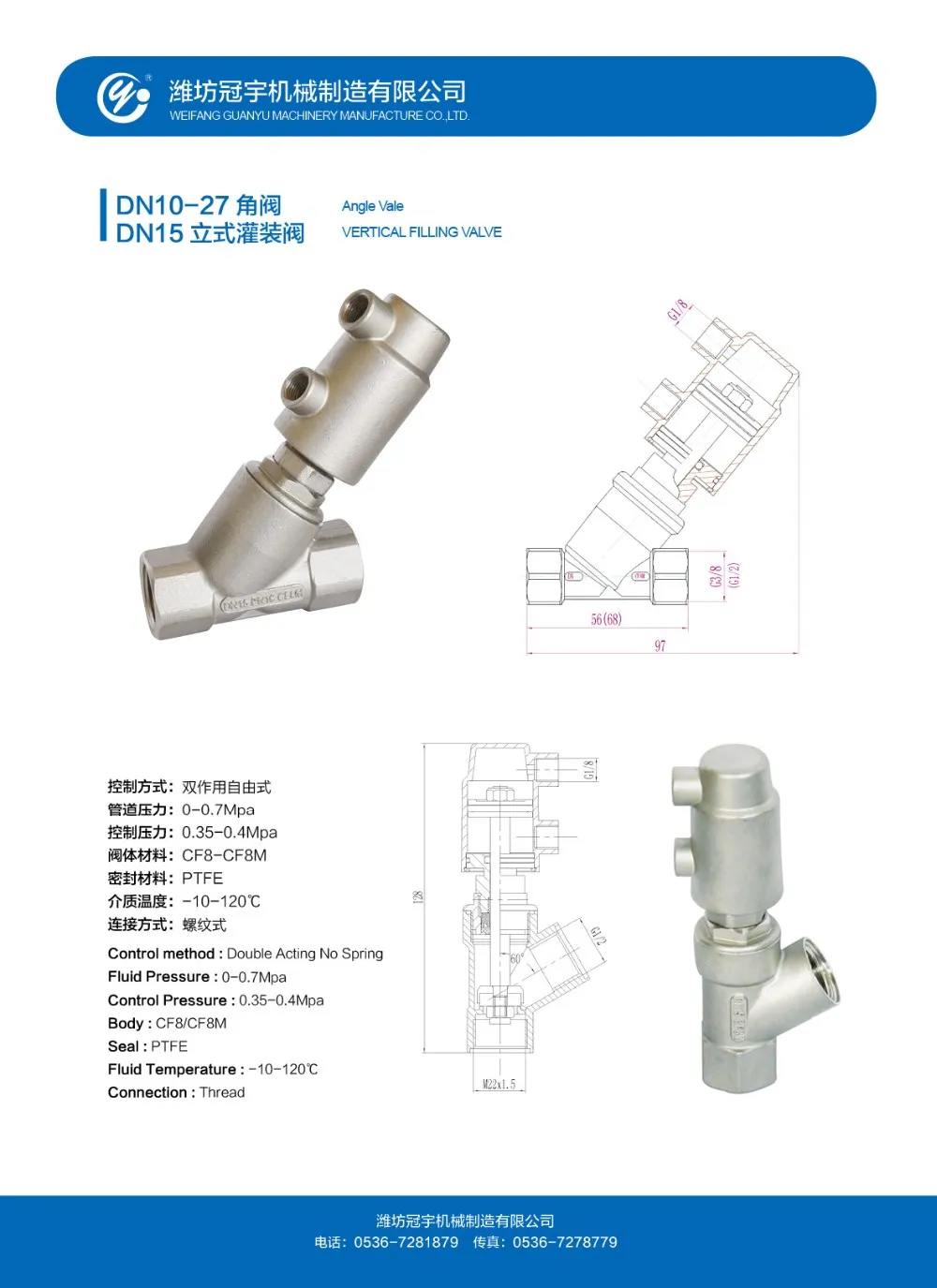

Control type: Double acting no spring

Size: DN10 ~ DN15

Contact way:thread (NPT, BSP)

Actuator size: 27mm

Body material: Cf8m (aisi316) or cf8 (aisi304)

Actuator: Cf8 (aisi304)

Seat: Teflon (PTFE)

Applicable fluid: Water, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid and lye

Fluid pressure: Max.0 .7 mpa

Fluid temperature: -10c-- --+200c

Max. Viscosity: 300 mm2/s

Control fluid: Neutral gas, air

Control pressure: 0.35-0.4 mpa

Environment temperature: -10c---+120c

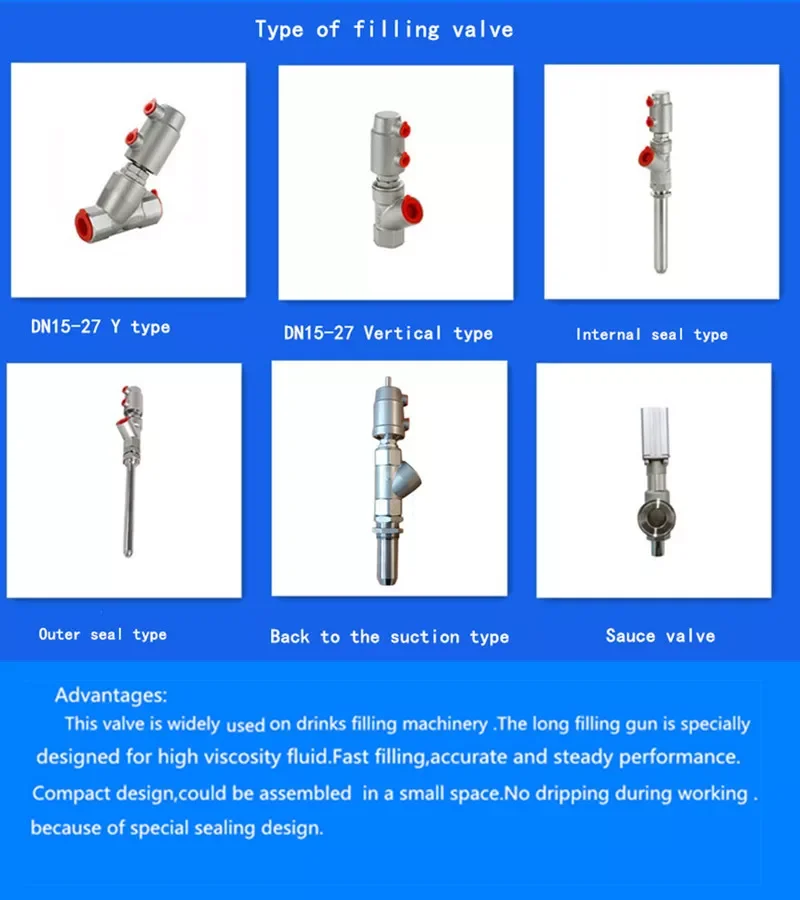

There are 3 types of filling valves for filling.

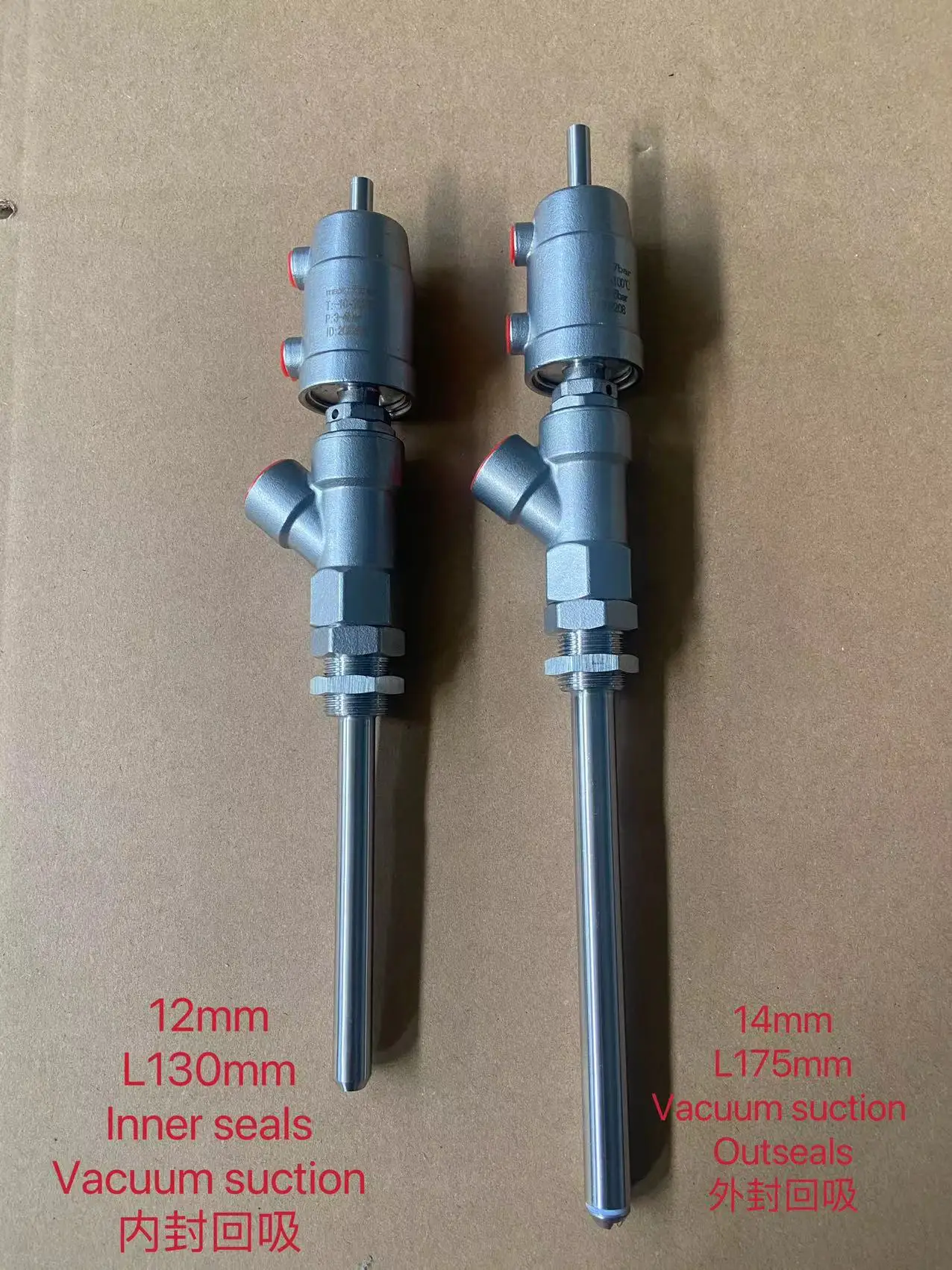

1. Outseals, the filling rods are inserted into the bottom of the bottle and the liquid is discharged in a spraying state.

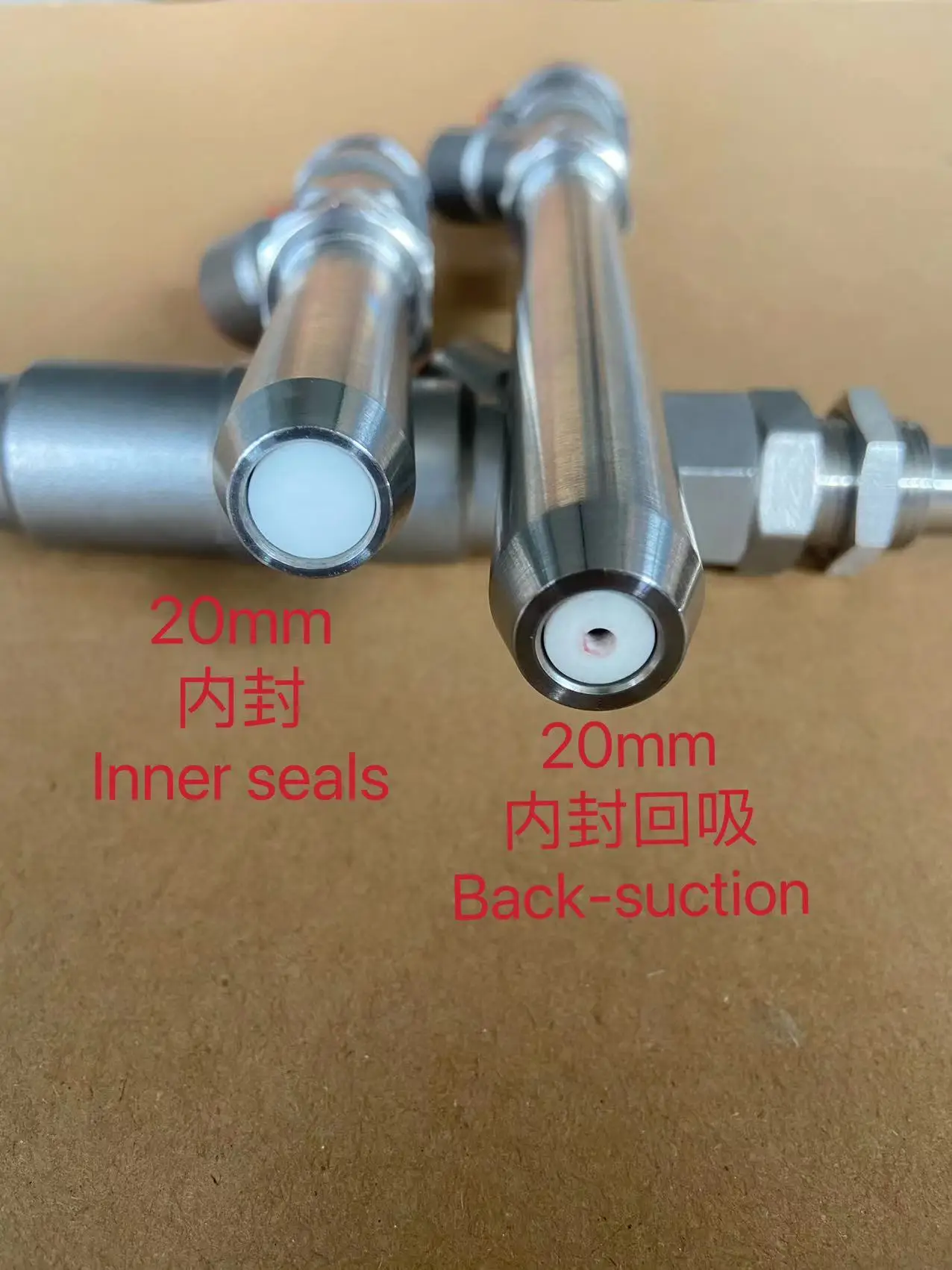

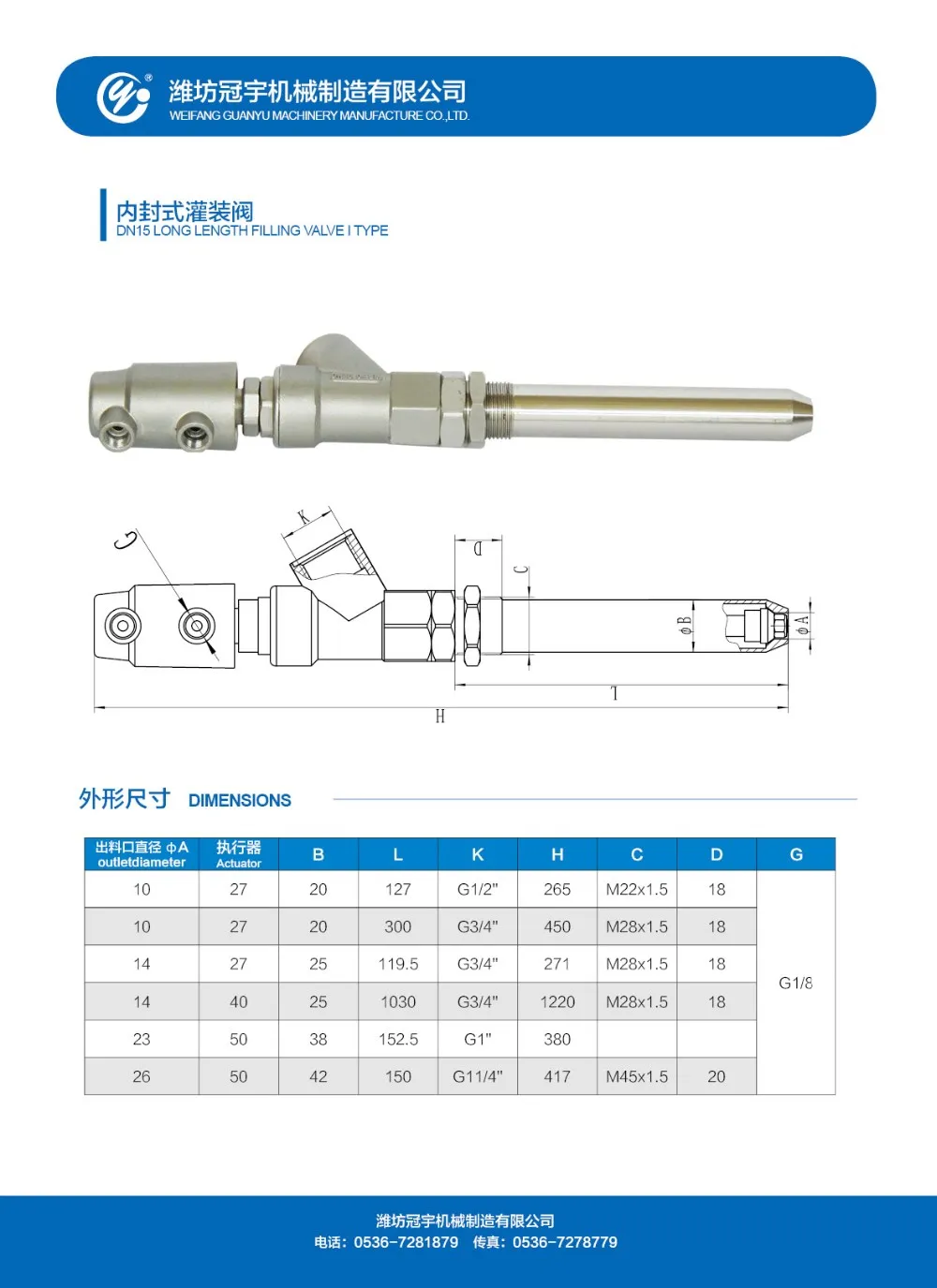

2. Inner seal type: the filling lever can be placed at the lower part of the bottle mouth, and the liquid is discharged in a direct state.

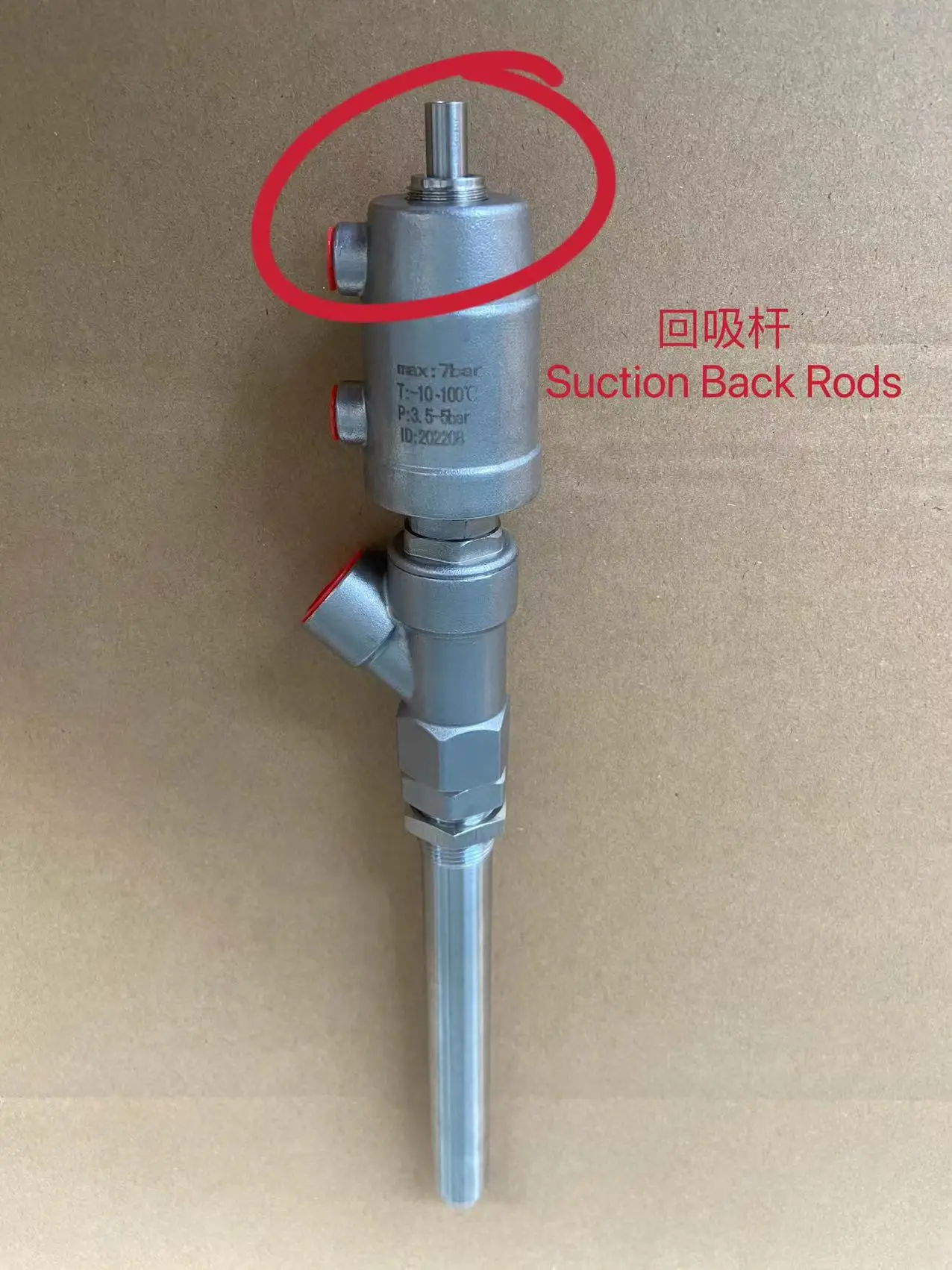

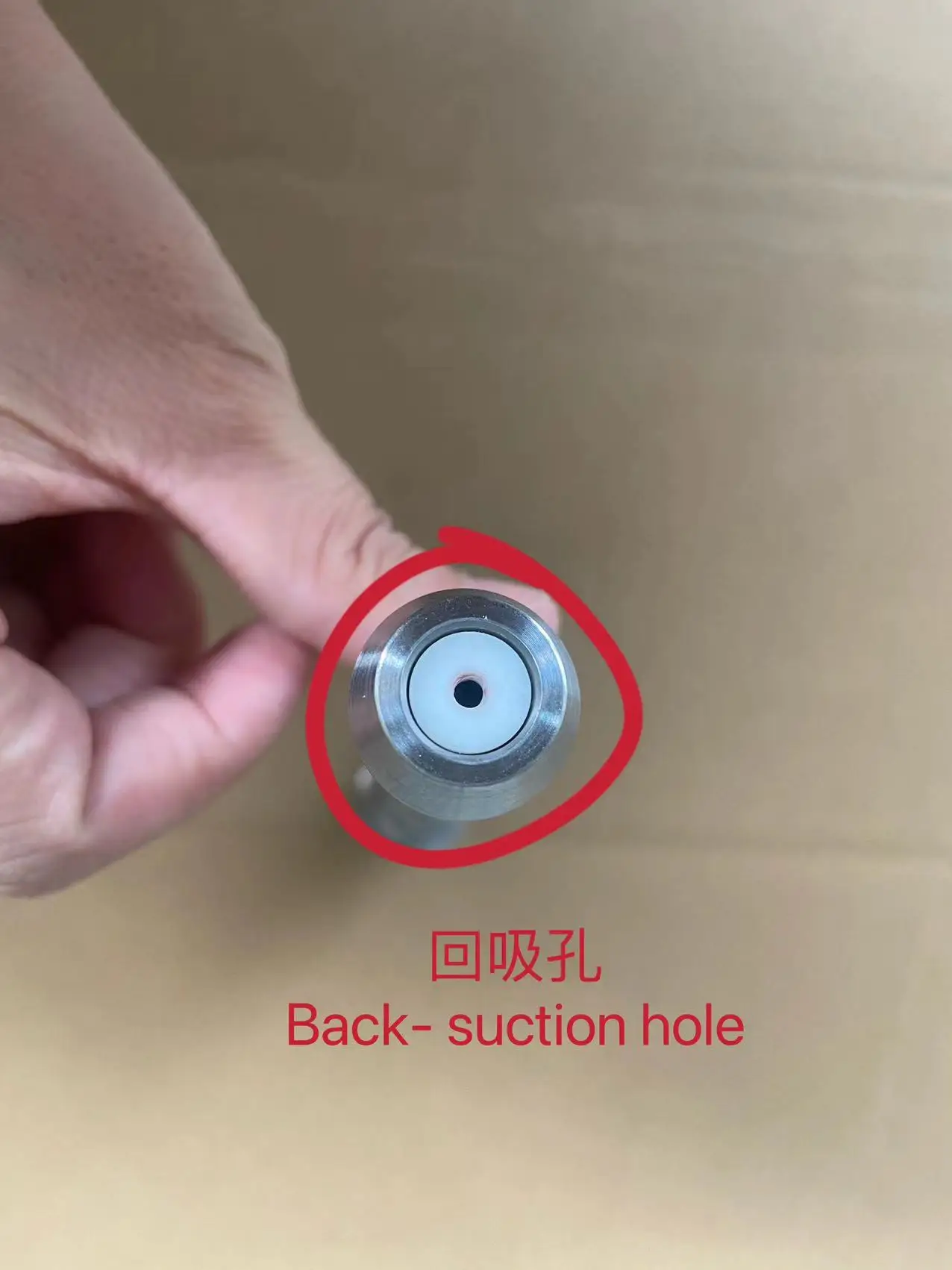

3. Suction back type: the valve inner rod is hollow, better to suck foam and viscous media back into the wall, better to achieve the effect of anti-drip.

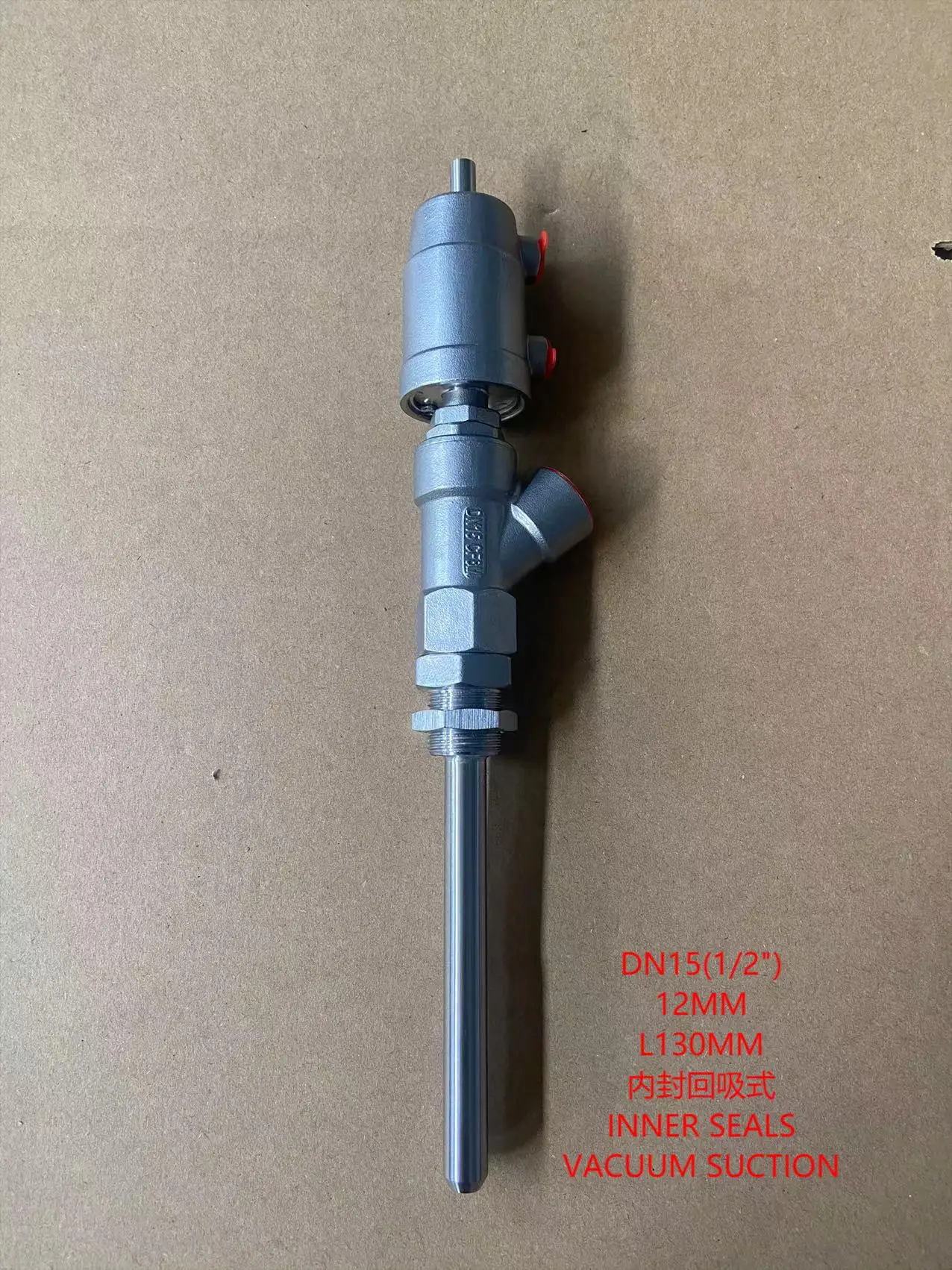

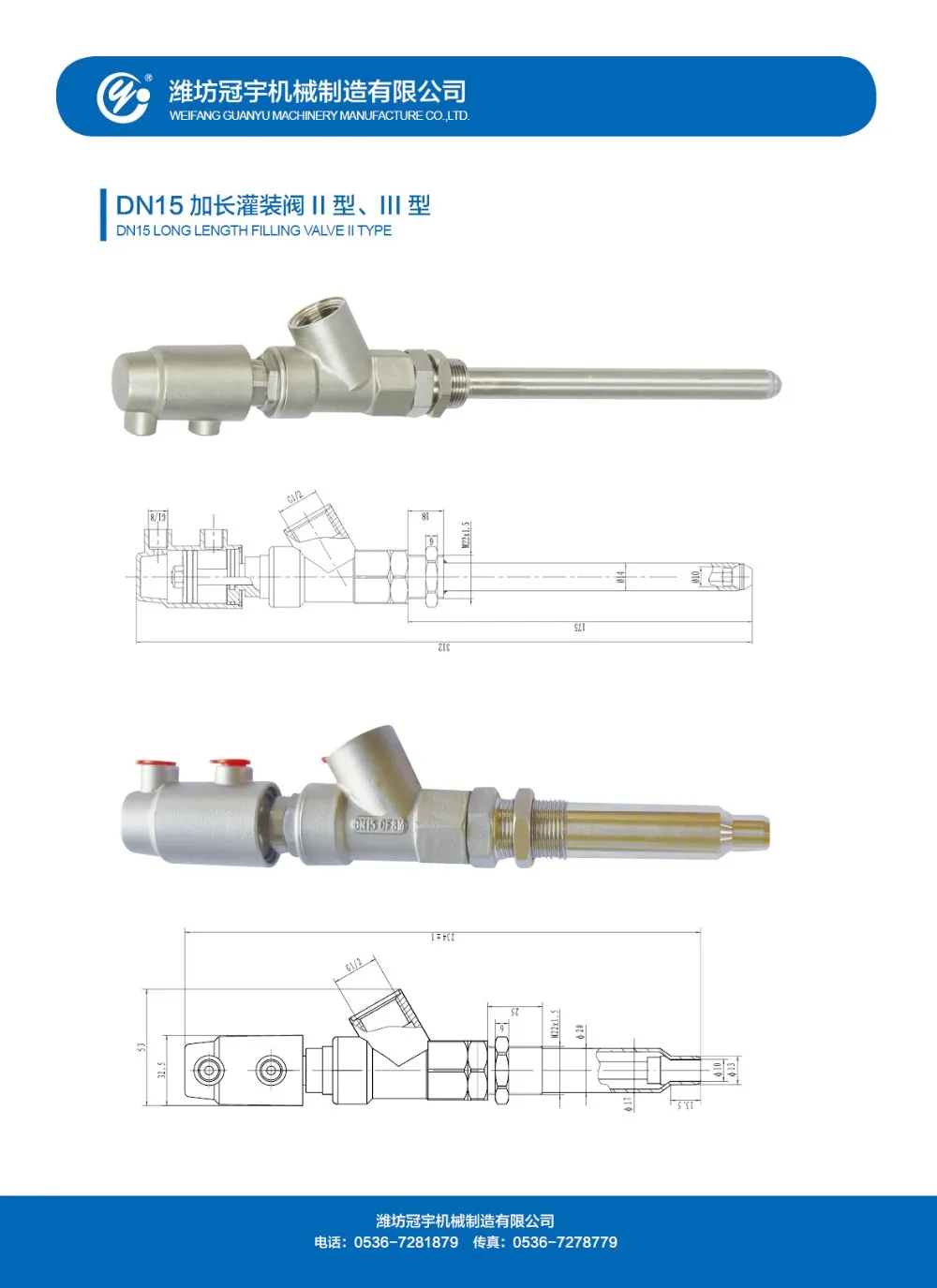

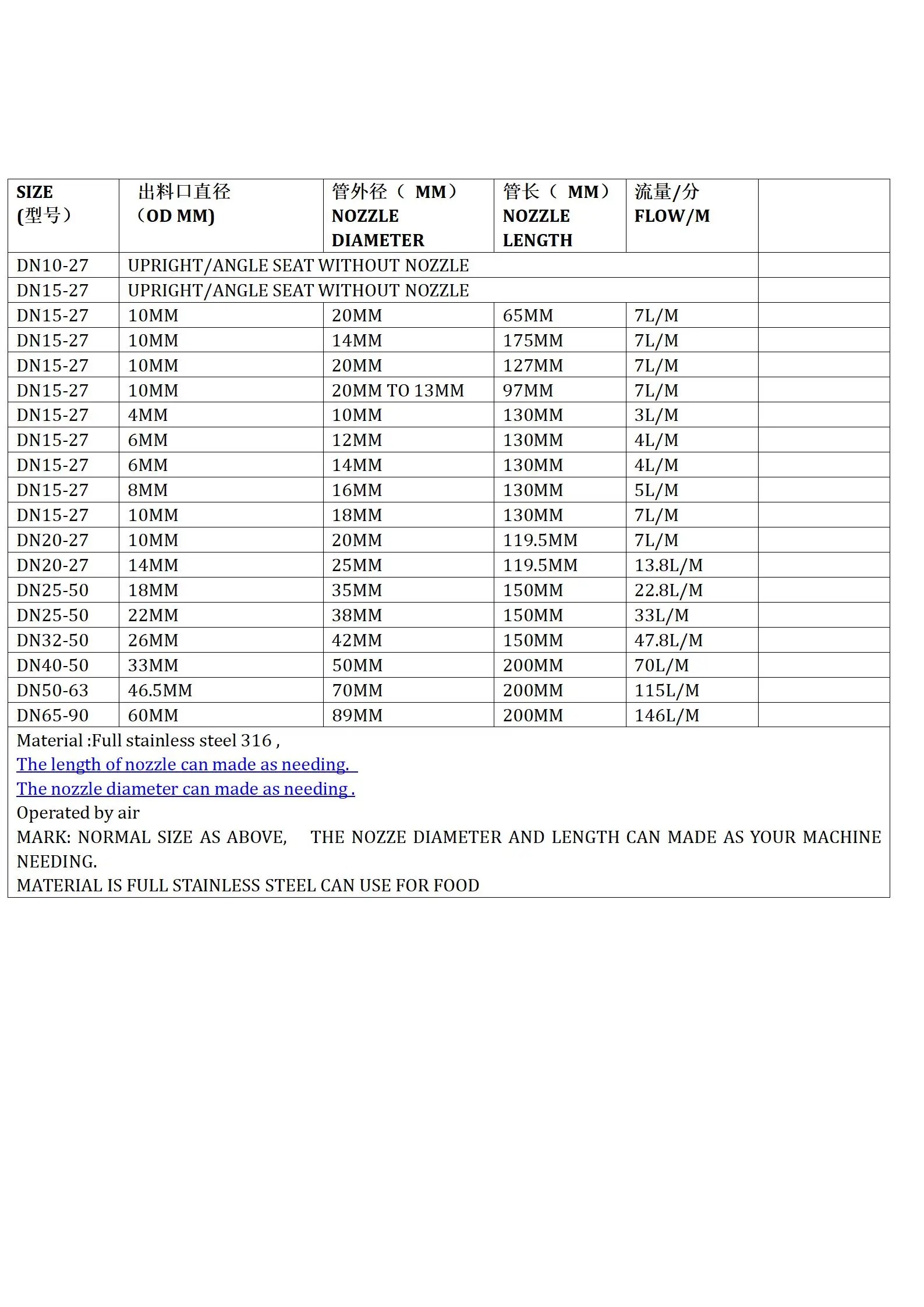

DN15, can make nozzle diameter from 10mm ~20mm

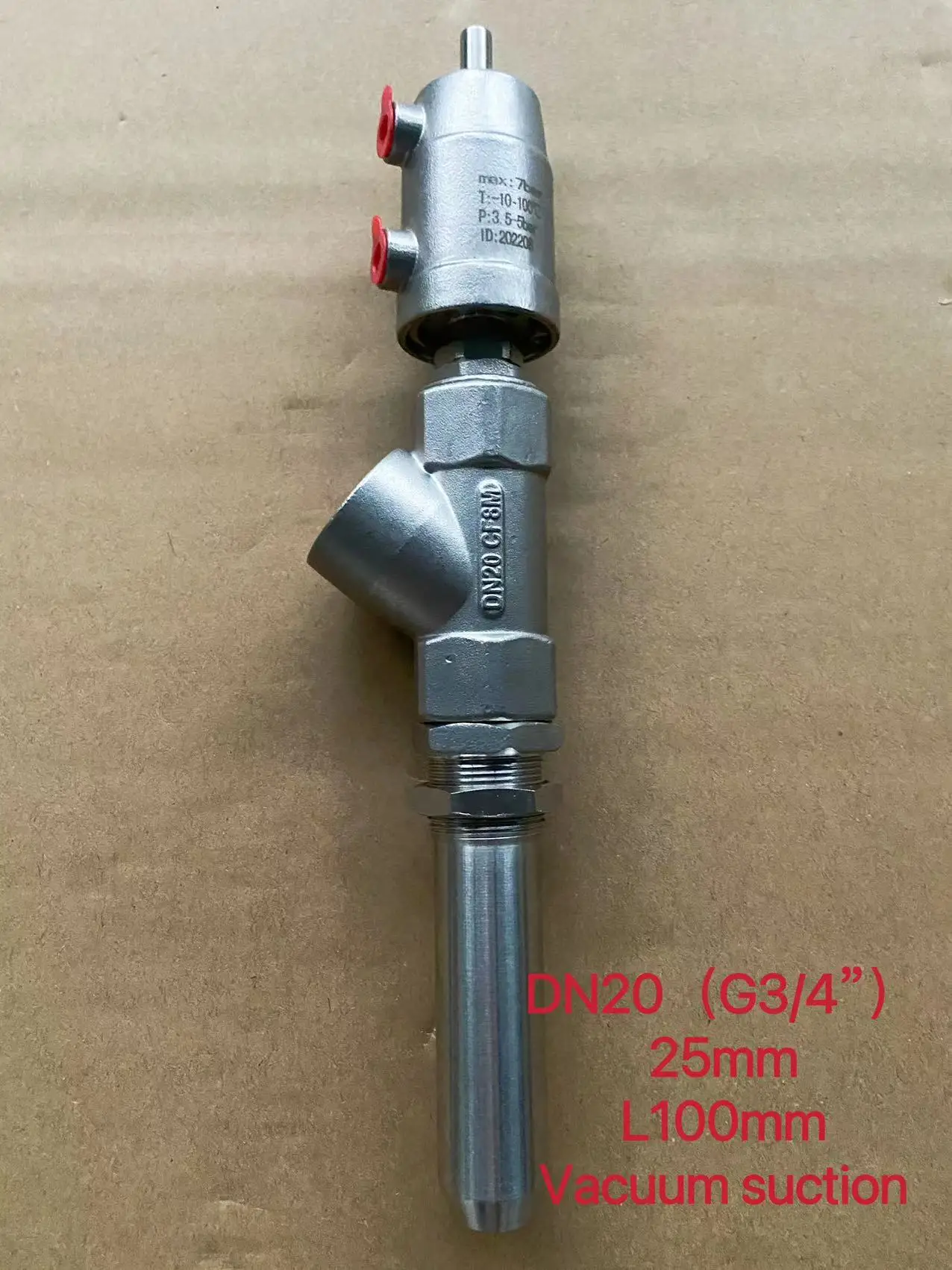

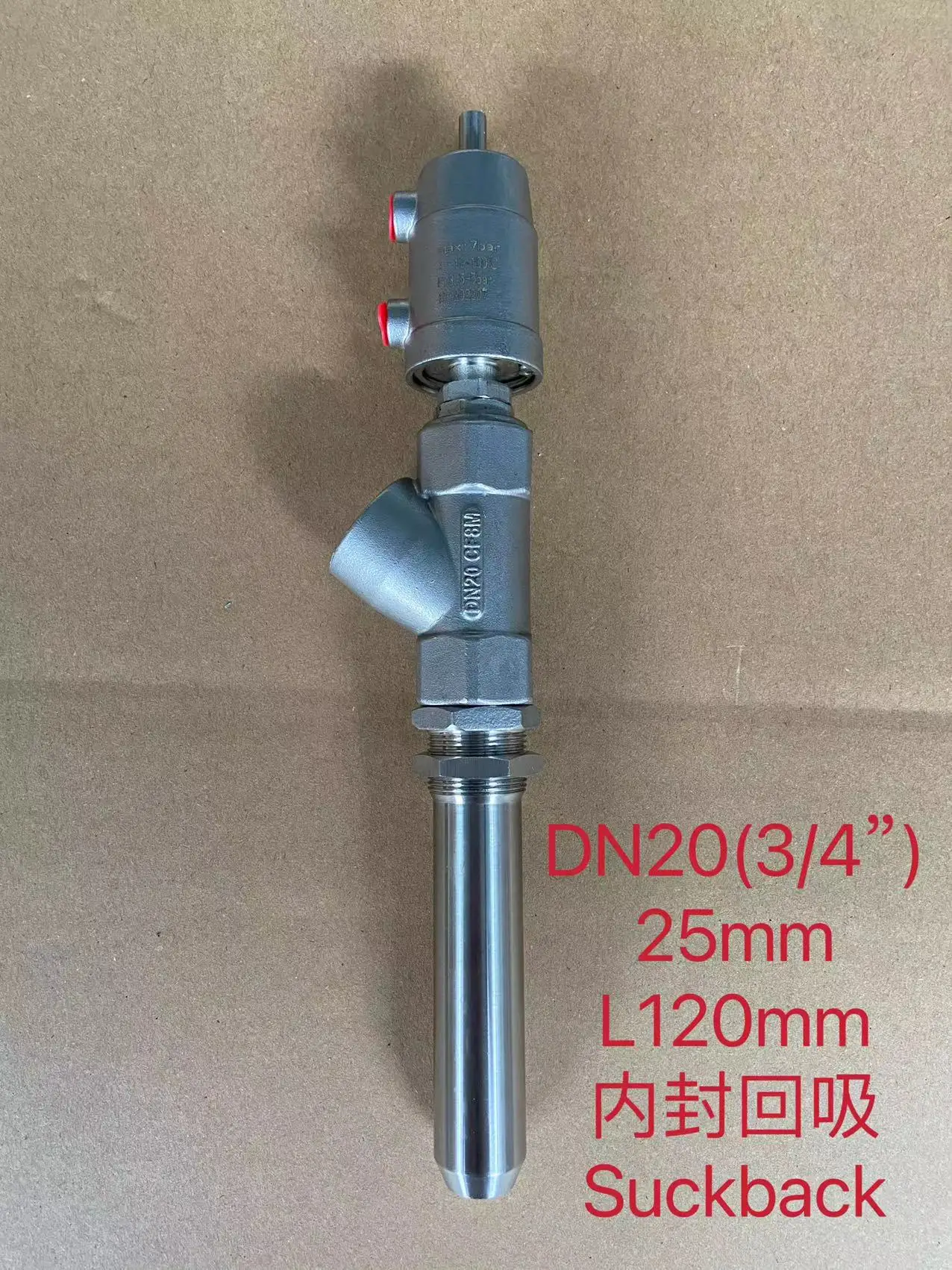

DN20 with nozzle diamter 25mm ,nozzle length 120mm.

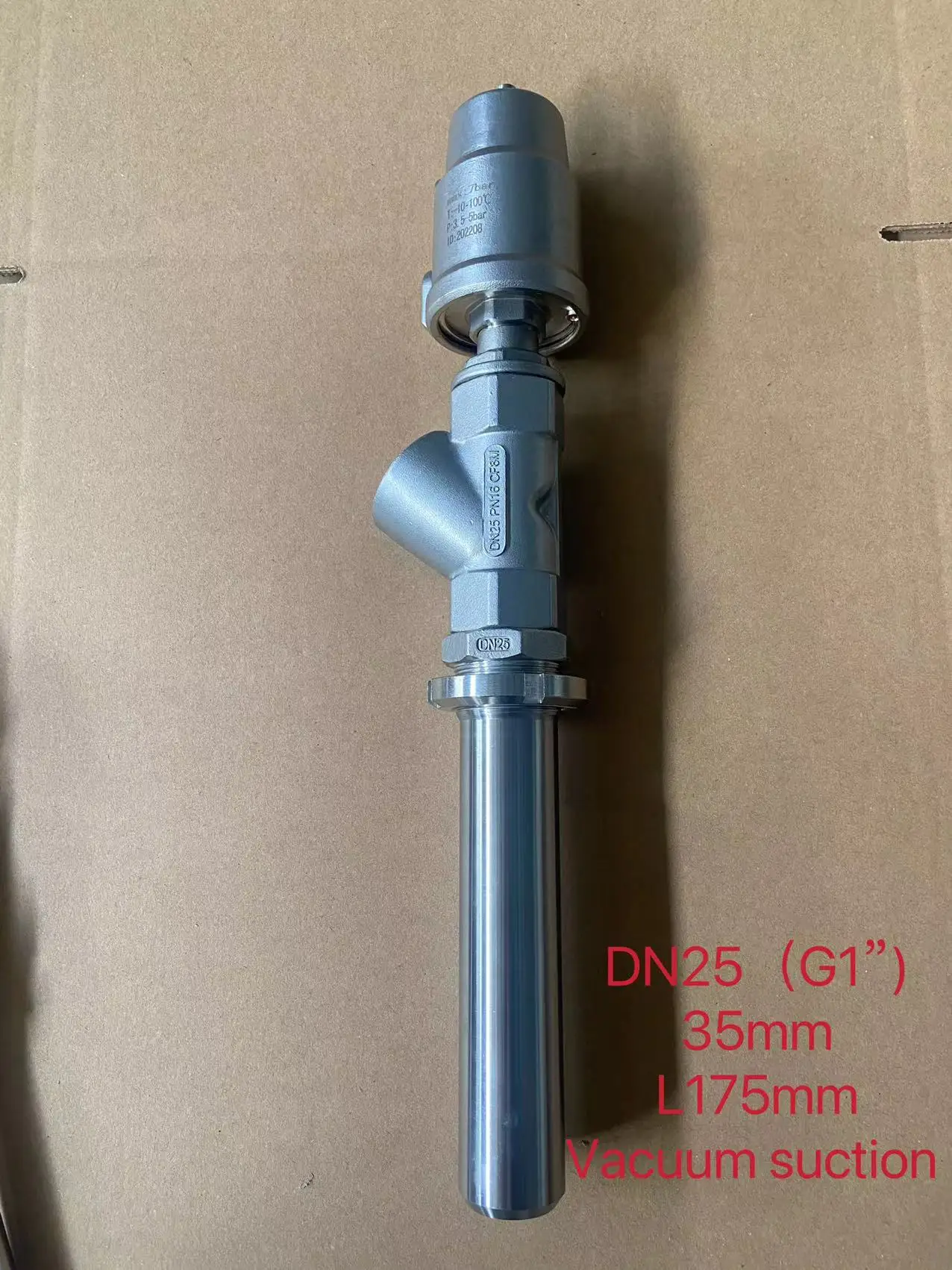

DN25 with nozzle diameter 35mm,nozzle length 150mm or 180mm

DN32 with nozzle diameter 42mm,nozzle length 150mm

DN40 with nozzle diameter 50mm, nozzle length 150mm

DN50 with nozzle diameter 70mm, nozzle length 150mm

NOZZLE DIAMETER CAN CHOOSE AS NEEDING.

NOZZLE DIAMETER AND LENGTH CAN MAKE AS NEEDING

CONTACT ME ~

Can choose as your needing, we have different size and length filling valve

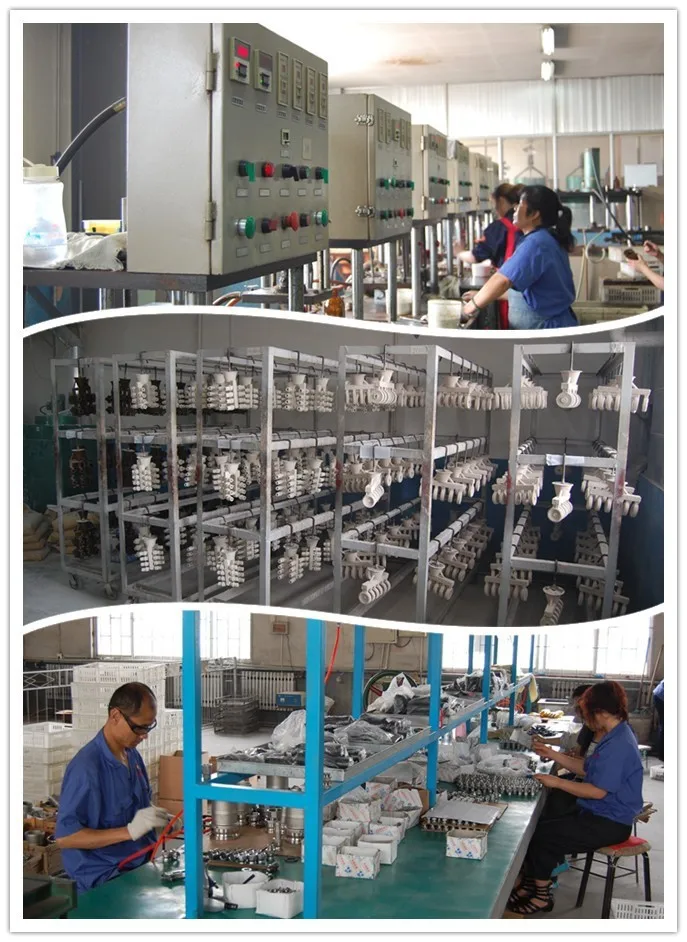

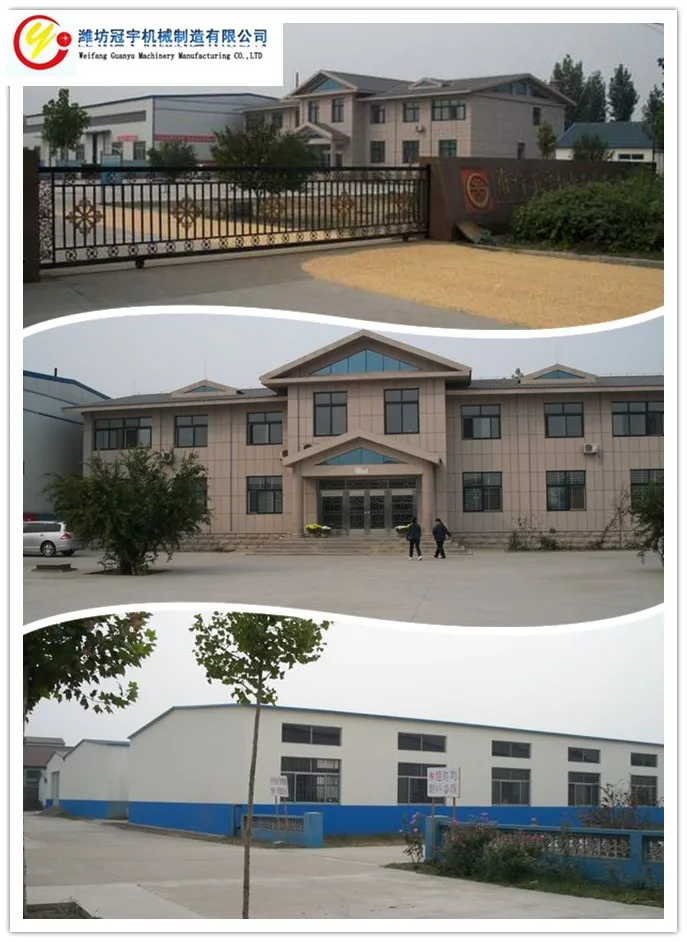

Weifang Guanyu Machinery Manufacture Co., Ltd founded in May 2004. We are a collection of scientific research, design, the casting process, production sales, technical services and the import and export in the integration of hightech enterprise.Weifang Guanyu Machinery Manufacture Co., Ltd founded in May 2004. We are a collection of

scientific research, design, the casting process, production sales, technical services and the import and export in the integration of high-tech enterprise.

Excellent quality products are popular in the world, and “Guanyu Machinery, March on World” is well known by people. We will continue to follow with the rule “Quality First, Customer Supreme”, building our owner brand, providing best service for our clients.

certificate

We have two large warehouse, most products have stock to short

the delivery time. we transport the goods with wooden case by ship.

1) Can you supply sample for free?

    yes, we can.

 2 )How about payment?

    usually TT, LC, D/P

 3)can accept the OEM?

    Yes, we can and we have 15 professional research engineers.

4) How long does the delivery?

    we have body and spare in stock, usually 25 days upon deposit.

5) How about the quality guarantee period?

    1 year.

6) Are you manufacturer or trading company?

    Manufacturer in Shandong Province, you can visit our factory.
