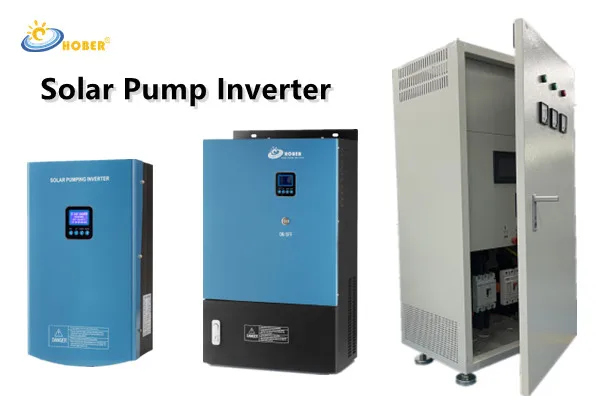

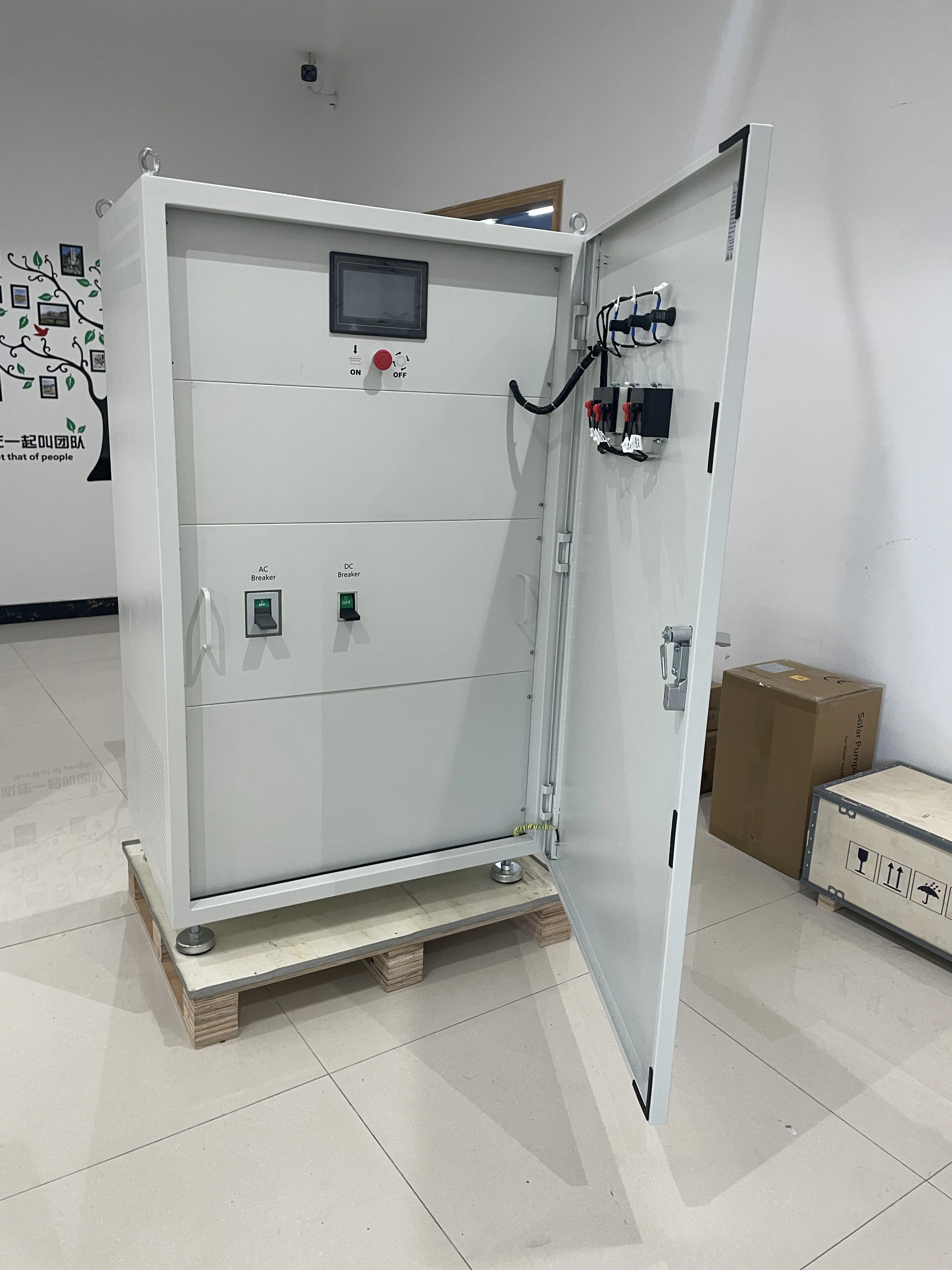

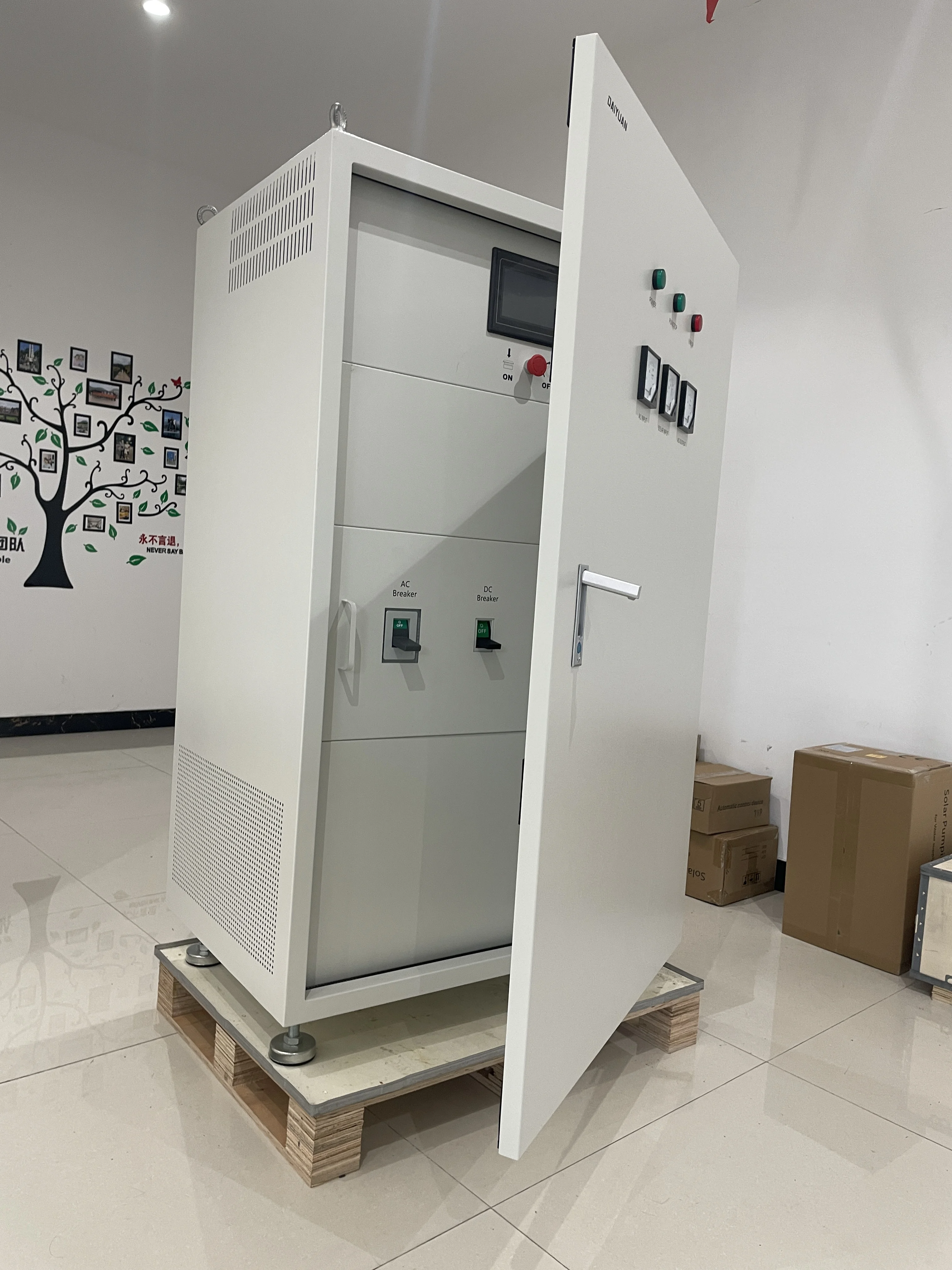

3 Phase Solar power Design 100KW Solar Pump Inverter for agricultural
- Category: >>>
- Supplier: Foshan Hober Electric Co. Ltd.
Share on (1600617664451):
Product Overview
Description
Products Description
Wholesale Solar pump inverter for water pump
Solar pump inverter converts solar power (DC power) into AC power to drive AC water pump directly without solar panel
Solar pump inverter converts solar power (DC power) into AC power to drive AC water pump directly without solar panel
Features:
Smart:
Full automatic operation, no need programming, user-friendly
Modular design, easy install , operate & maintain
GPRS or SPMCS remote control for option
Efficient:
1:1 match to AC pumps with strong overload capacity
30% more water output with advanced inverter control algorithm
Maximum power point tracking (MPPT) efficiency reach 99% with advanced MPPT algorithm
Good ROI (Return on Investment) against diesel powered pumping
Reliable:
Hybrid function – support solar power, grid power/generator input.
Multi power sources work as complementary to achieve system working 24 hours per day
IP65 design, continuous full-load operation between -10℃ to +60℃
Compatible with all AC pump types
Comprehensive Protections:
Soft start
DC Input Anti-reverse
AC Input/Output Phase lost(3Phase)
AC Output Short Circuit
AC Output Unbalance (3Phase)
Pump Dry run protection By sensor/ software
Water Over Flow of Tank
Solar Low power
Over Load
AC Output Over Current
Smart:
Full automatic operation, no need programming, user-friendly
Modular design, easy install , operate & maintain
GPRS or SPMCS remote control for option
Efficient:
1:1 match to AC pumps with strong overload capacity
30% more water output with advanced inverter control algorithm
Maximum power point tracking (MPPT) efficiency reach 99% with advanced MPPT algorithm
Good ROI (Return on Investment) against diesel powered pumping
Reliable:
Hybrid function – support solar power, grid power/generator input.
Multi power sources work as complementary to achieve system working 24 hours per day
IP65 design, continuous full-load operation between -10℃ to +60℃
Compatible with all AC pump types
Comprehensive Protections:
Soft start
DC Input Anti-reverse
AC Input/Output Phase lost(3Phase)
AC Output Short Circuit
AC Output Unbalance (3Phase)
Pump Dry run protection By sensor/ software
Water Over Flow of Tank
Solar Low power
Over Load
AC Output Over Current
Pump Datasheet
Model | HSPH15KH | ||
Solar Panel DC Input | Max Voc Voltage | 900V | |
Min Vmp Voltage | 400V | ||
Recommend Vmp Voltage | ≥500V (Only Solar), ≥560 V (Hybrid Power) | ||
Max MPPT Efficiency | 99% | ||
Max Input Current | 51 A | ||
Number Of Strings | 2 | ||
Over load Power | 25.5KW | ||
Note | Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel,without programming | ||
Hybrid AC/Generator Input | Voltage | 3 Phase 380/400/440V | |
Max Input Current | 39 A | ||
Hybrid Mode | Automatic .AC supplement automatic while solar is in low power mode and AC disconnect automatic while solar power recovery | ||
AC Output (For Pump, Rerator, Fan Parameters) | Max Adapted AC Pump Horse Power | 20 HP | |
Max Adapted AC Pump Power | 15KW | ||
Drive Mode | 3Phase Variable Frequency Drive | ||
Max Output voltage | 380/400/440V | ||
Max Output frequency | 50 ~ 60 Hz (support program range 15 to 60Hz) | ||
Max Output Current | 48 A | ||
Max Efficiency | 97% | ||
Water Level Sensor(Borehole / Tank) | Yes | ||
GPRS SMS Monitor&Controller | YES(Optional) | ||
Support Remote Monitoring & Control System (SPMCS) | YES(Optional) | ||
Display | LCD display | ||
Waterproof | IP65 | ||
Noise | < 50dB | ||
Cooling Method | Force Cooling by Fan (IP68) | ||
Operating Enviornment | Operating Environment Temperature | -10 to 60℃, Above 60℃ need to derate load | |
Max Humidity | 95%RH | ||
Using Altitude | < 3000m, Above 3000m need to derate load | ||
Others | Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid.etc | ||
Package | Size | 550*350*285 MM | |
Weight | 16KG | ||

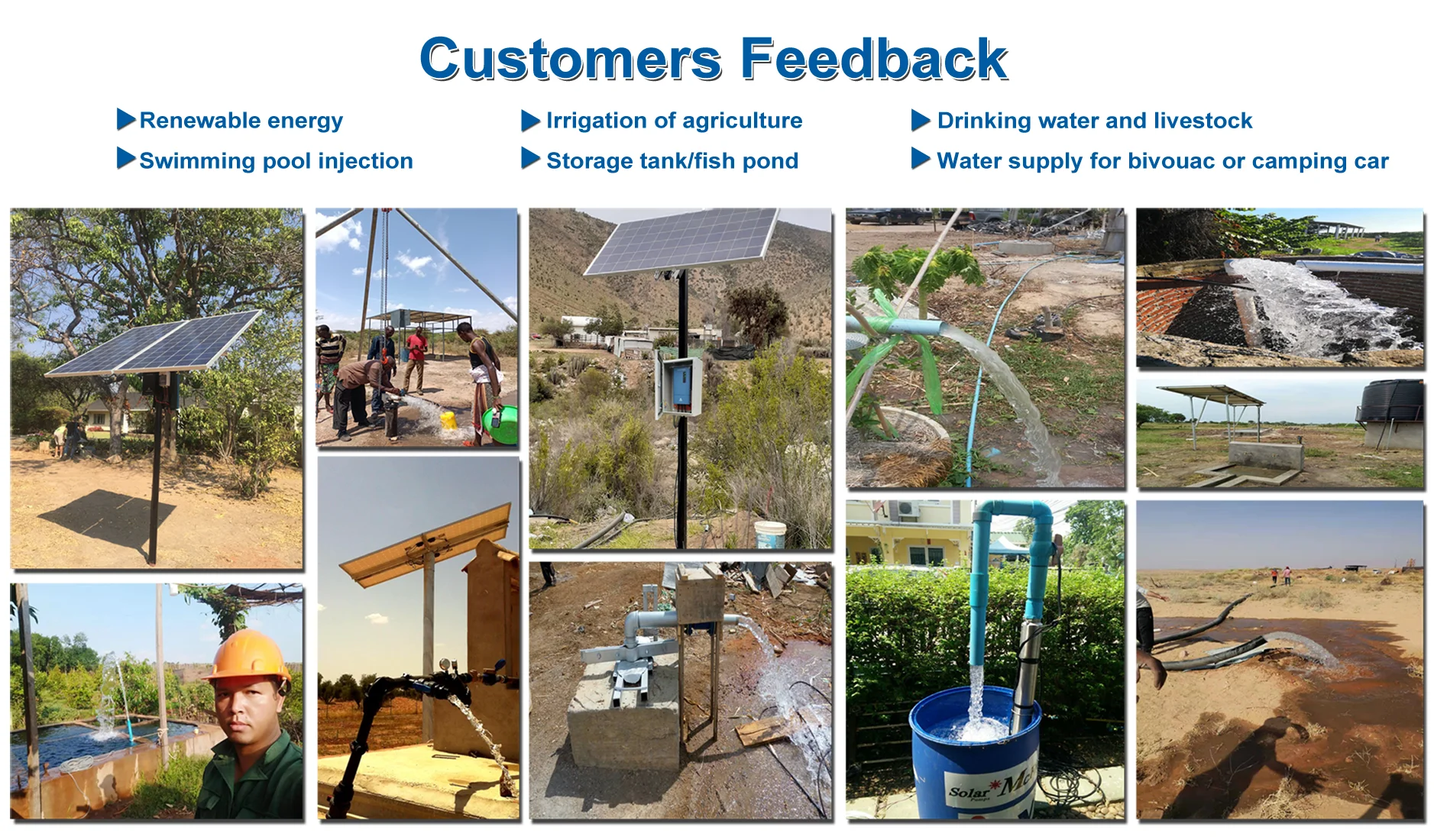

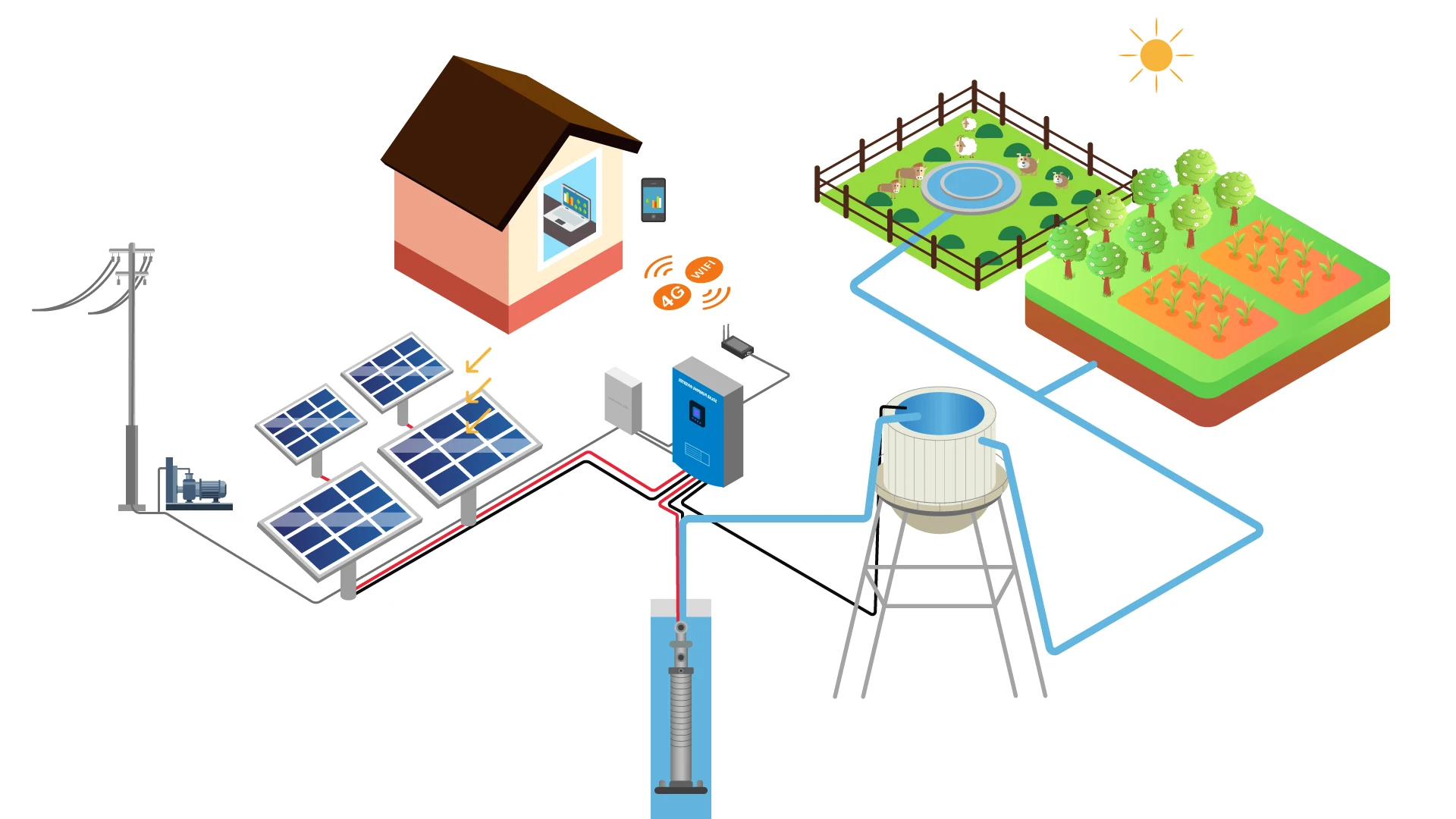

Application
Projects
Company Profile
Contact us
Packaging & Delivery
By land | Arrive in 7 days |
By sea | Arrive in 30 days |
FAQ
Q1: Are you trading company or manufacturer?
We are a professional manufacturer in China and we provide OEM service
Q2:What is the warranty of solar panel、solar pump inverter and others?
Standard warranty for solar panel 10 years, solar pump inverter 2 years, others 1 year.
Q3:What is your main market?
Our brands are well known in Africa, Middle East, Southeast Asia and South America.
Q4 : How about the delivery time?
3-5 days for sample order;7-15 days for bulk order.
Q5 : What's your payment terms for sample?
We accept T/T, Western Union, Paypal, Ali online payment...etc
We are a professional manufacturer in China and we provide OEM service
Q2:What is the warranty of solar panel、solar pump inverter and others?
Standard warranty for solar panel 10 years, solar pump inverter 2 years, others 1 year.
Q3:What is your main market?
Our brands are well known in Africa, Middle East, Southeast Asia and South America.
Q4 : How about the delivery time?
3-5 days for sample order;7-15 days for bulk order.
Q5 : What's your payment terms for sample?
We accept T/T, Western Union, Paypal, Ali online payment...etc
