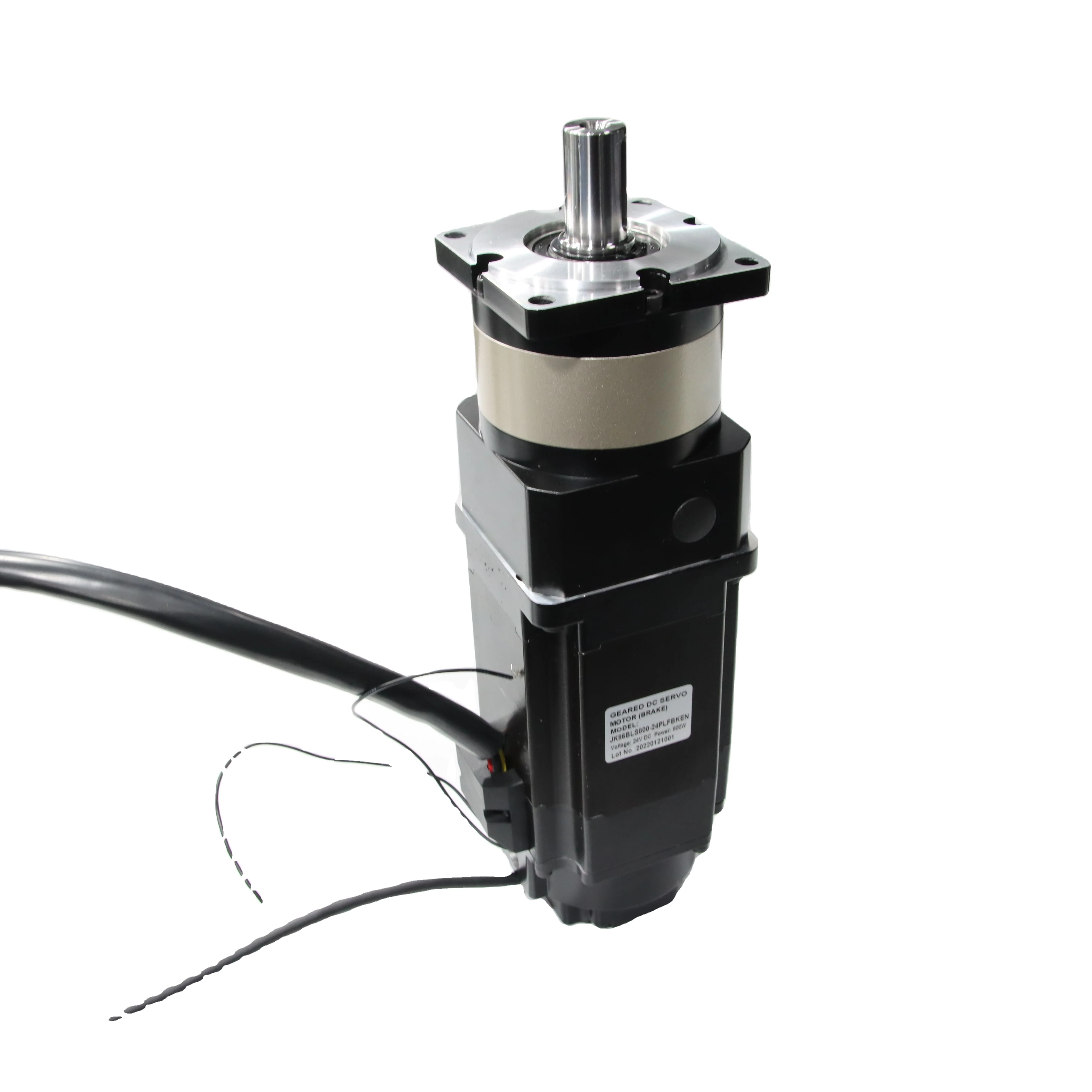

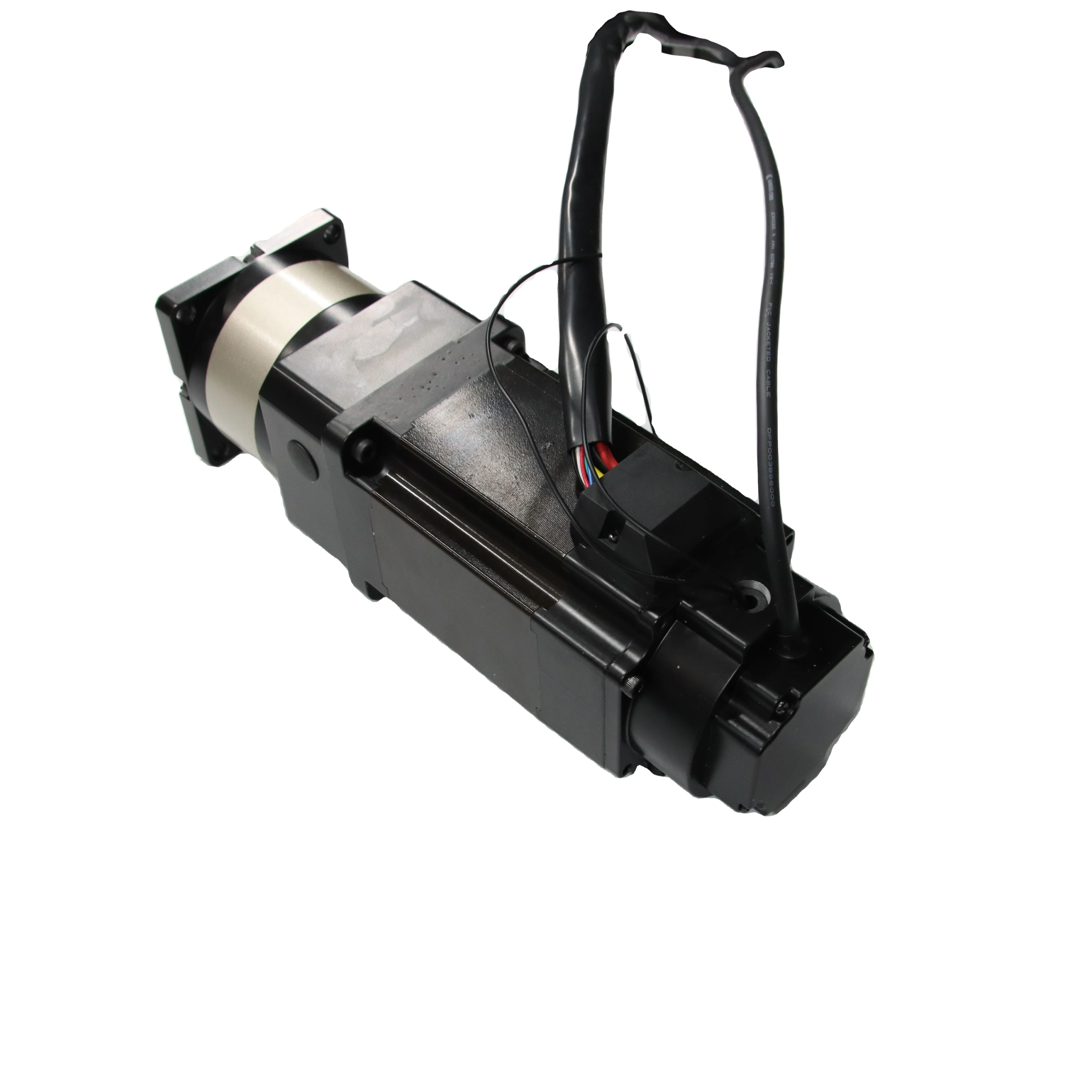

Geared reducer bldc motor 3 phase 8 poles 48v 3000rpm 0.35 2.1N.m 110w 660w 86BLS brushless dc motor with GU gearbox
- Category: >>>
- Supplier: Changzhou Jkongmotor Co. Ltd.
Share on (1600617690932):
Product Overview
Description
Product Paramenters
Specifications of brushless motor :
Hall effect angle： 120 degree electrical angle
Shaft run out： 0.025mm
Radial play： 0.025mm@460g
End play： 0.025mm@4000g
Max. radial force： 75N @ 20mm from the flange
Max. axial force： 15N
Insulation class： Class B
Dielectric strength： 500VDC for one minute
Insulation resistance： 100MΩMin., 500VDC
Product Name: 86mm Brushless DC Motor
Number of Phase: 3 Phase
Number of Poles: 8 Poles
Rated Voltage: 48v
Rated Speed: 3000rpm
Rated Torque: 0.35N.m ~ 2.1N.m
Rated Power: 110w ~ 660w
Number of Poles: 8 Poles
Rated Voltage: 48v
Rated Speed: 3000rpm
Rated Torque: 0.35N.m ~ 2.1N.m
Rated Power: 110w ~ 660w
Product Series | Poles No. | Rated Voltage | Rated Speed | Rated Torque | Rated Power | Motor Length | ||||||
42mm BLDC Motor | 8 | 24v | 4000rpm | 0.0625~0.25N.m | 26~105w | 41~100mm | ||||||
57mm BLDC Motor | 4 | 36v | 4000rpm | 0.055~0.44N.m | 23~184w | 37~107mm | ||||||
60mm BLDC Motor | 8 | 48v | 3000rpm | 0.3~1.2N.m | 94~377w | 78~120mm | ||||||
80mm BLDC Motor | 4 | 48v | 3000rpm | 0.35~1.4N.m | 110~440w | 78~138mm | ||||||
86mm BLDC Motor | 8 | 48v | 3000rpm | 0.35~2.1N.m | 110~660w | 71~138.5mm | ||||||
110mm BLDC Motor | 8 | 310v | 3000rpm | 1.65~6.6N.m | 518~2073w | 83~173mm | ||||||
130mm BLDC Motor | 10 | 310v | 3000rpm | 2.39~11.94N.m | 750~2500w | 115~190mm | ||||||

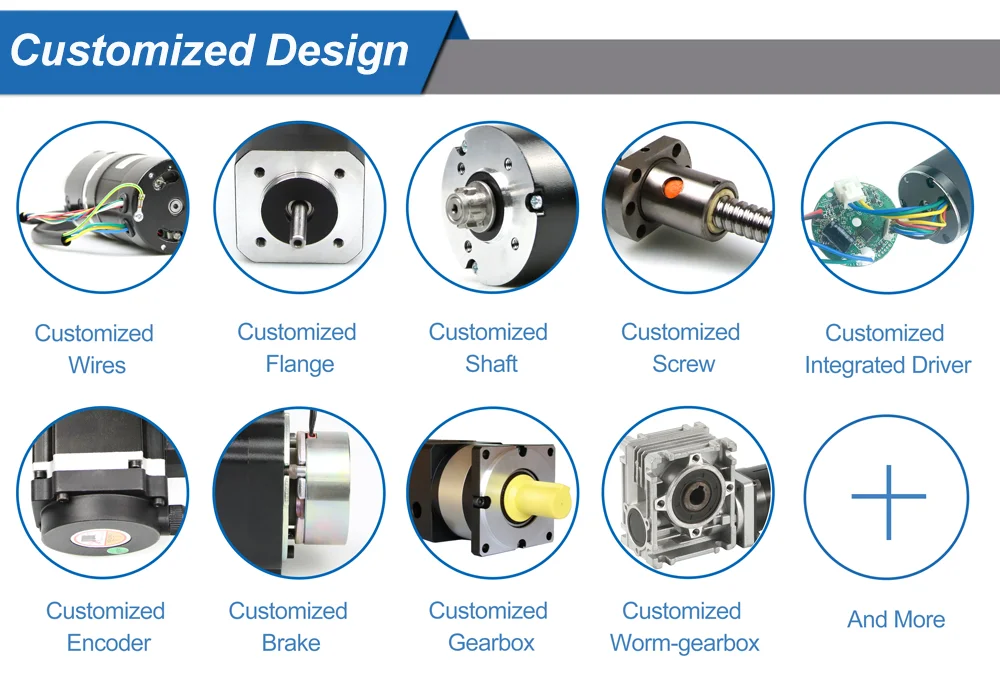

Above only for representative products, products of special request can be made according to the customer request. | ||||||||||||
Specification | Unit | Model | |||||||||
JK86BLS58 | JK86BLS71 | JK86BLS84 | JK86BLS98 | JK86BLS125 | |||||||
Number Of Phase | Phase | 3 | |||||||||
Number Of Poles | Poles | 8 | |||||||||
Rated Voltage | VDC | 48 | |||||||||
Rated Speed | Rpm | 3000 | |||||||||
Rated Torque | N.m | 0.35 | 0.7 | 1.05 | 1.4 | 2.1 | |||||
Rated Current | Amps | 3 | 6.3 | 9 | 11.5 | 18 | |||||
Rated Power | W | 110 | 220 | 330 | 440 | 660 | |||||
Peak Torque | N.m | 1.05 | 2.1 | 3.15 | 4.2 | 6.3 | |||||
Peak Current | Amps | 9 | 19 | 27 | 35 | 54 | |||||
Back E.M.F | V/Krpm | 13.7 | 13 | 13.5 | 13.7 | 13.5 | |||||
Torque Constant | N.m/A | 0.13 | 0.12 | 0.13 | 0.13 | 0.13 | |||||
Rotor Inertia | g.c㎡ | 400 | 800 | 1200 | 1600 | 2400 | |||||
Body Length | mm | 71 | 84.5 | 98 | 111.5 | 138.5 | |||||
Weight | Kg | 1.5 | 1.9 | 2.3 | 2.7 | 4 | |||||
Sensor | Honeywell | ||||||||||
Insulation Class | B | ||||||||||
Degree of Protection | IP30 | ||||||||||
Storage Temperature | -25～+70℃ | ||||||||||
Operating Temperature | -15～+50℃ | ||||||||||
Working Humidity | ≤85% RH | ||||||||||
Working Environment | Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust | ||||||||||
Altitude | 1000 meters or less | ||||||||||

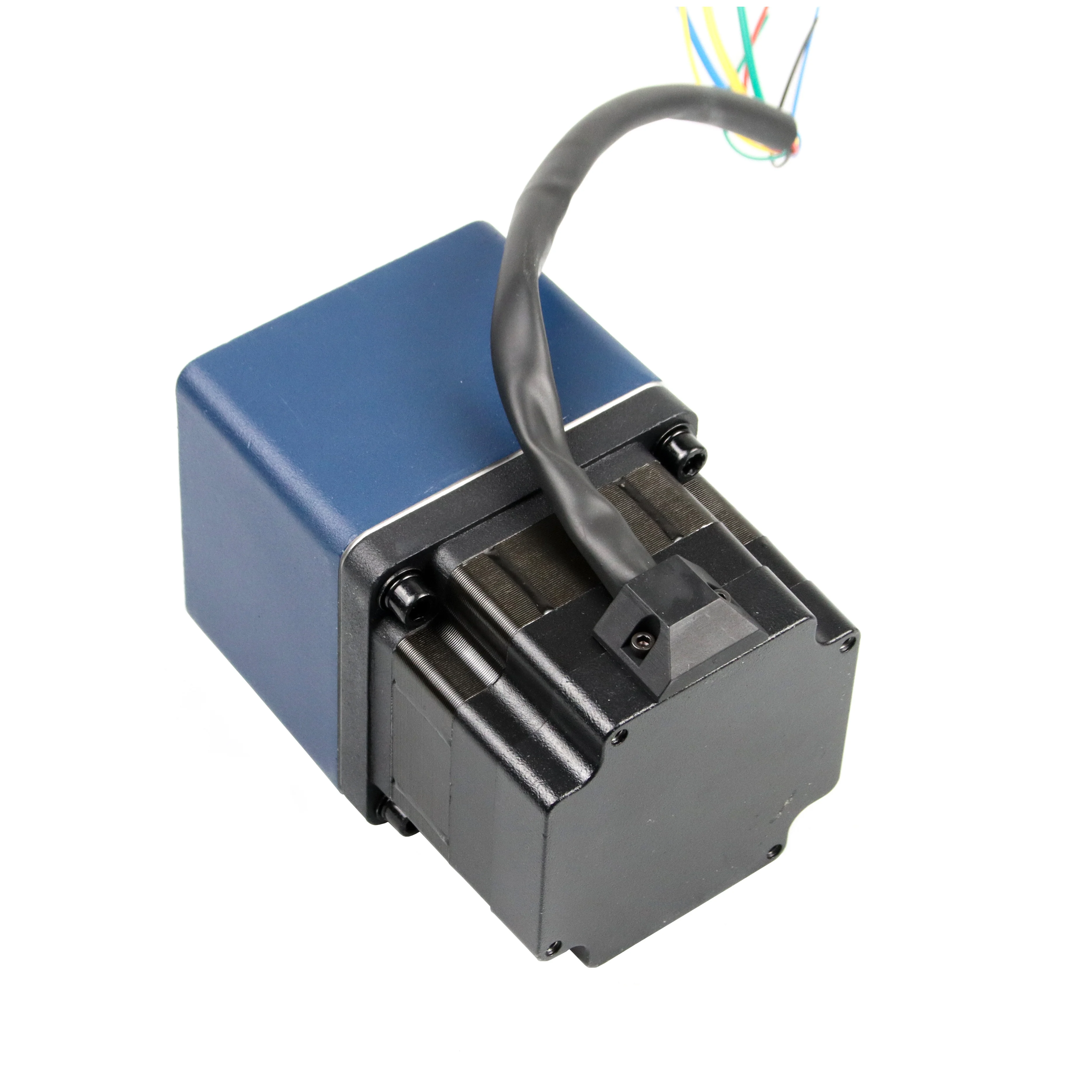

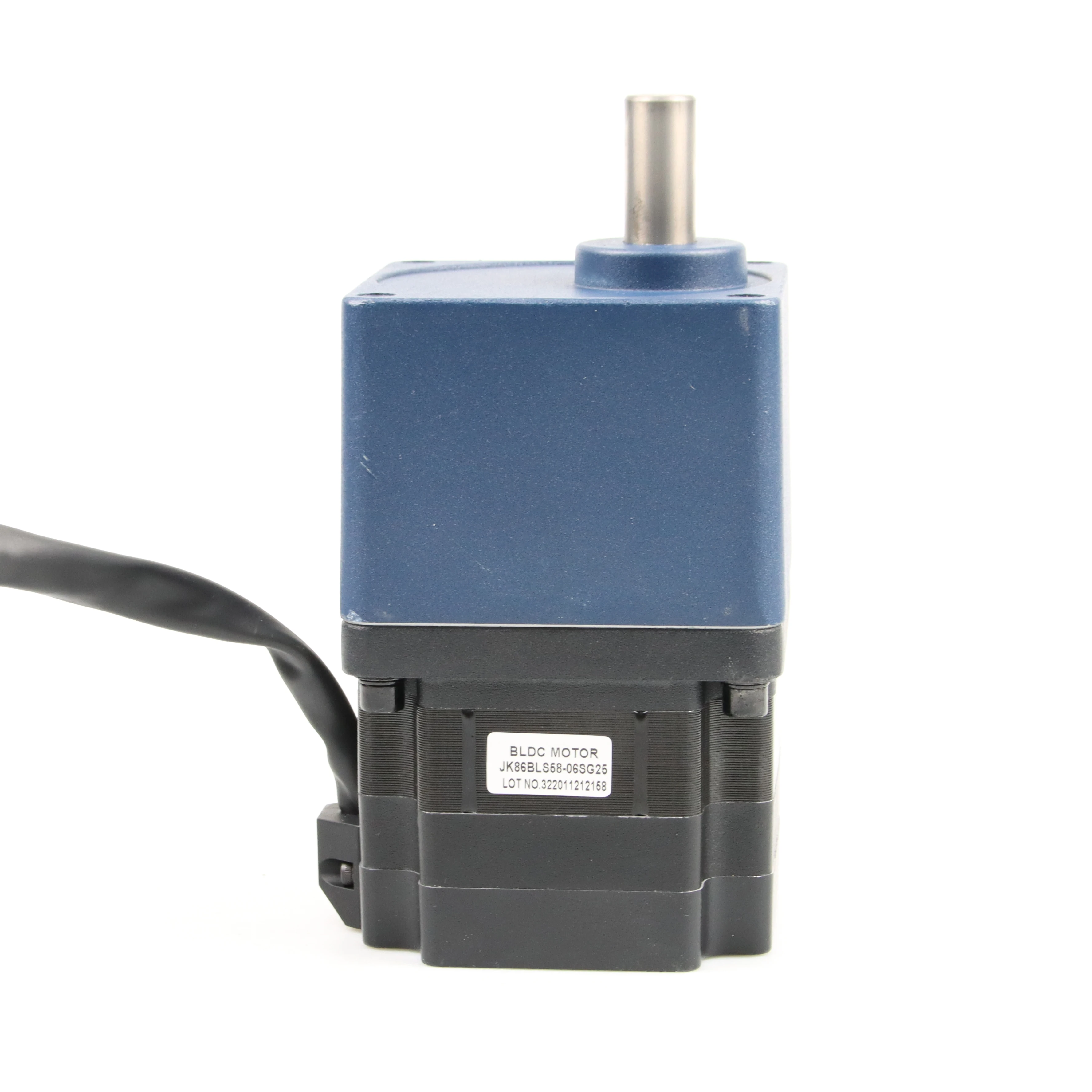

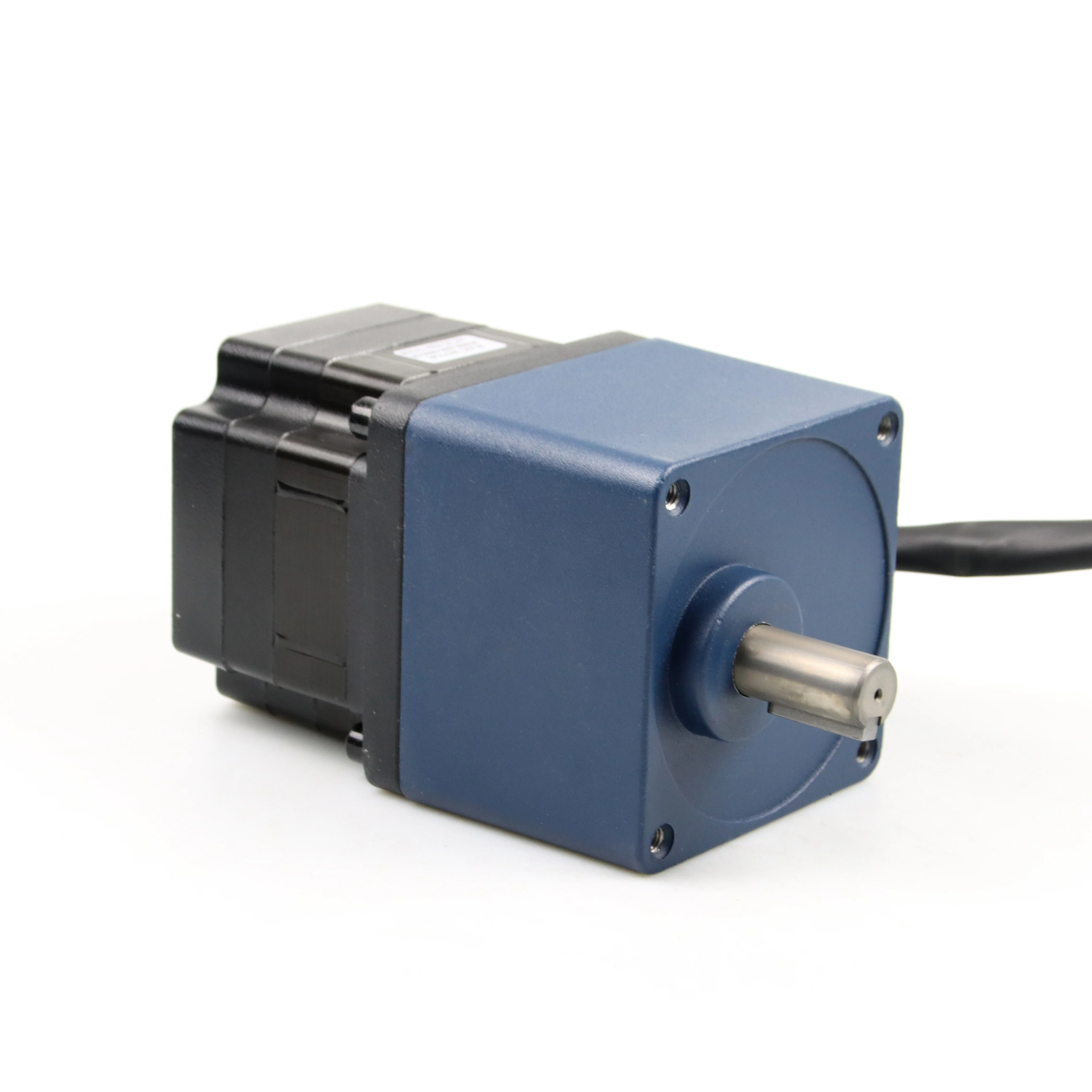

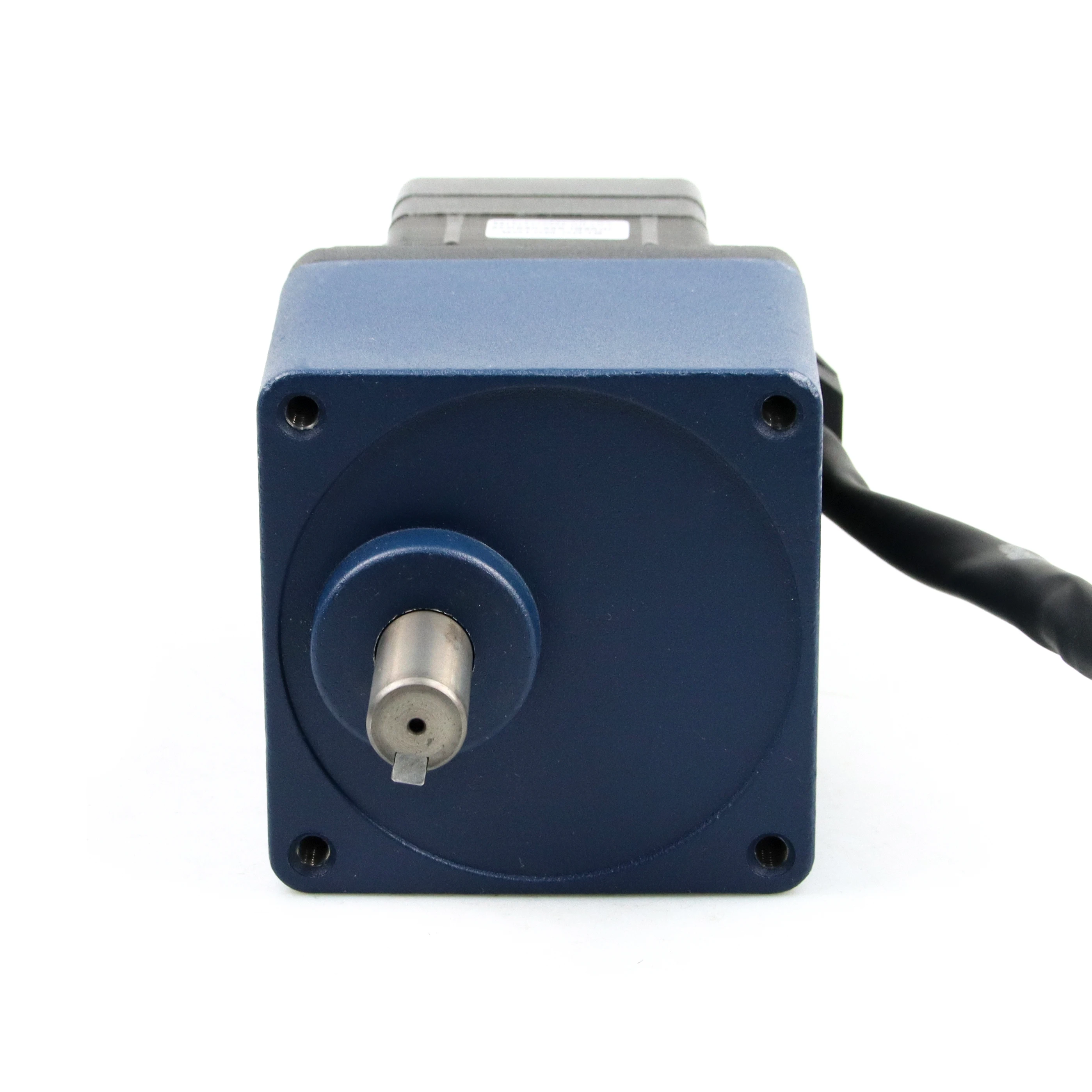

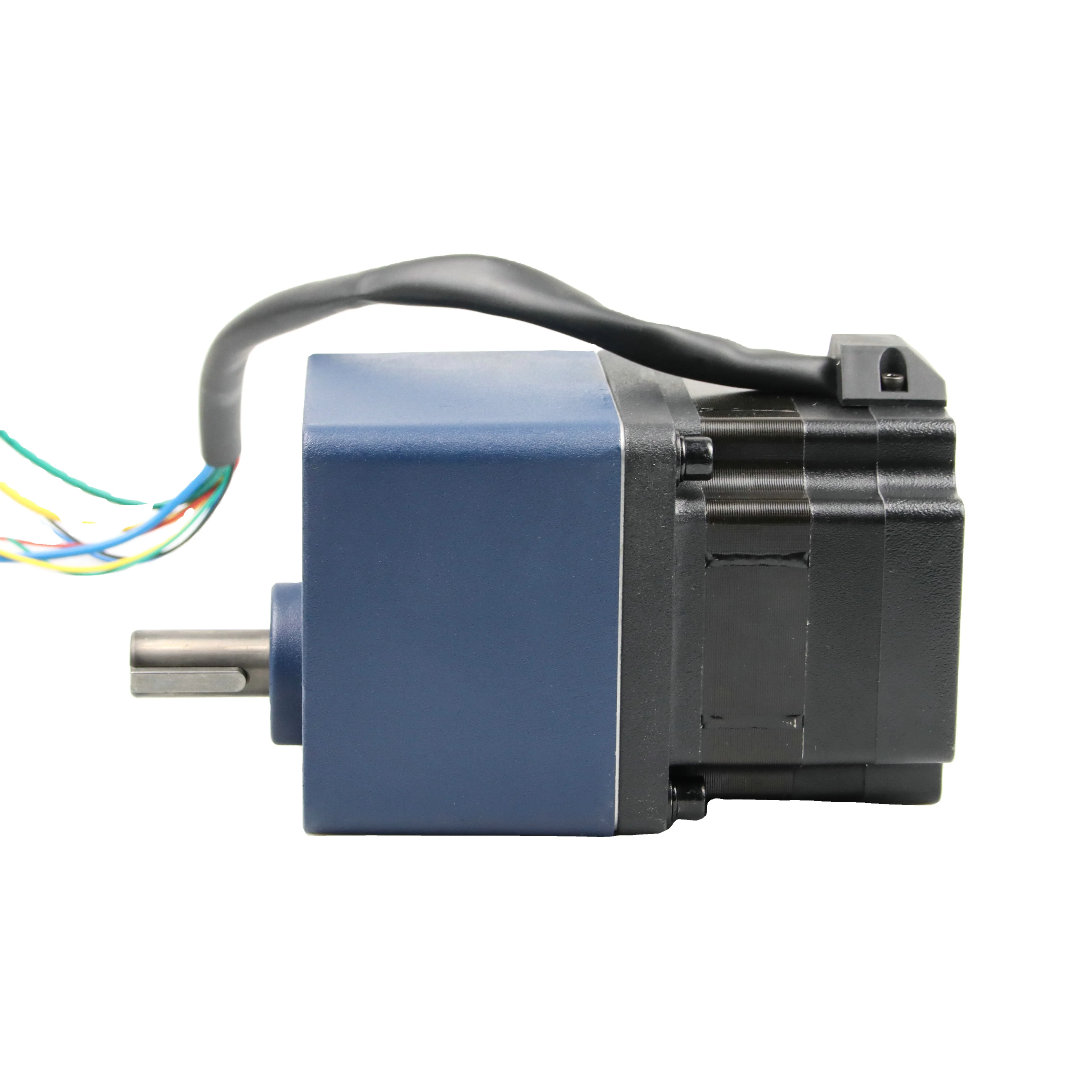

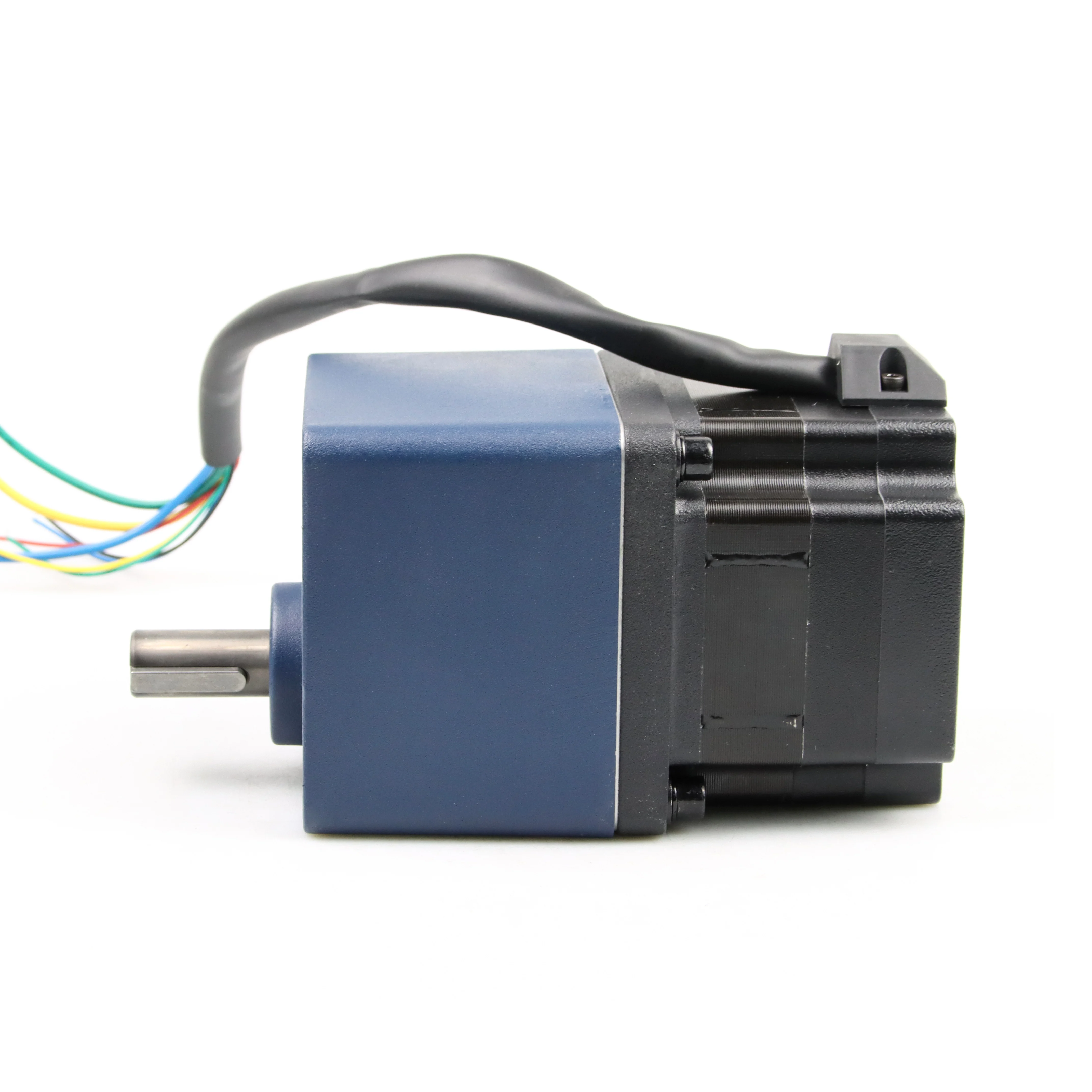

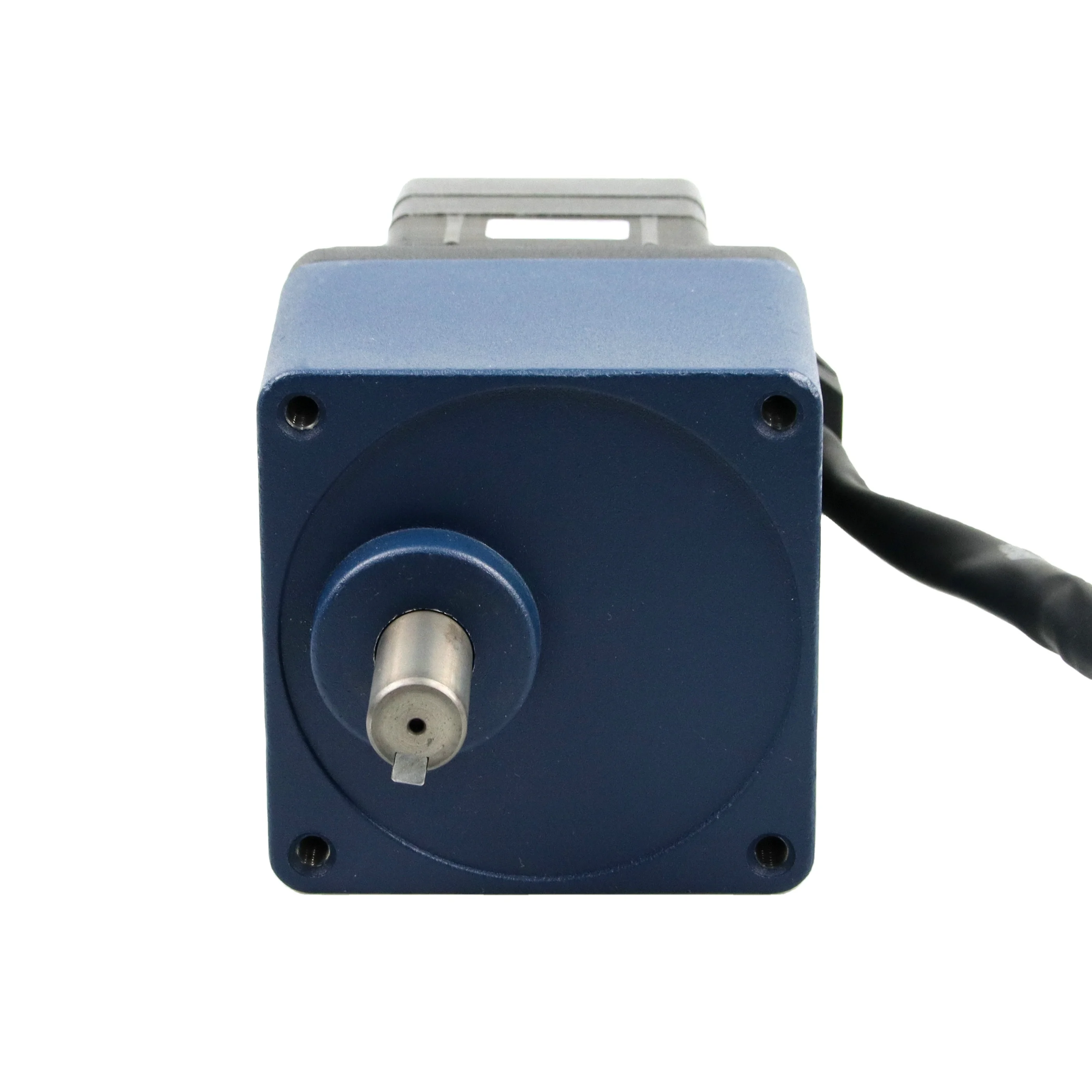

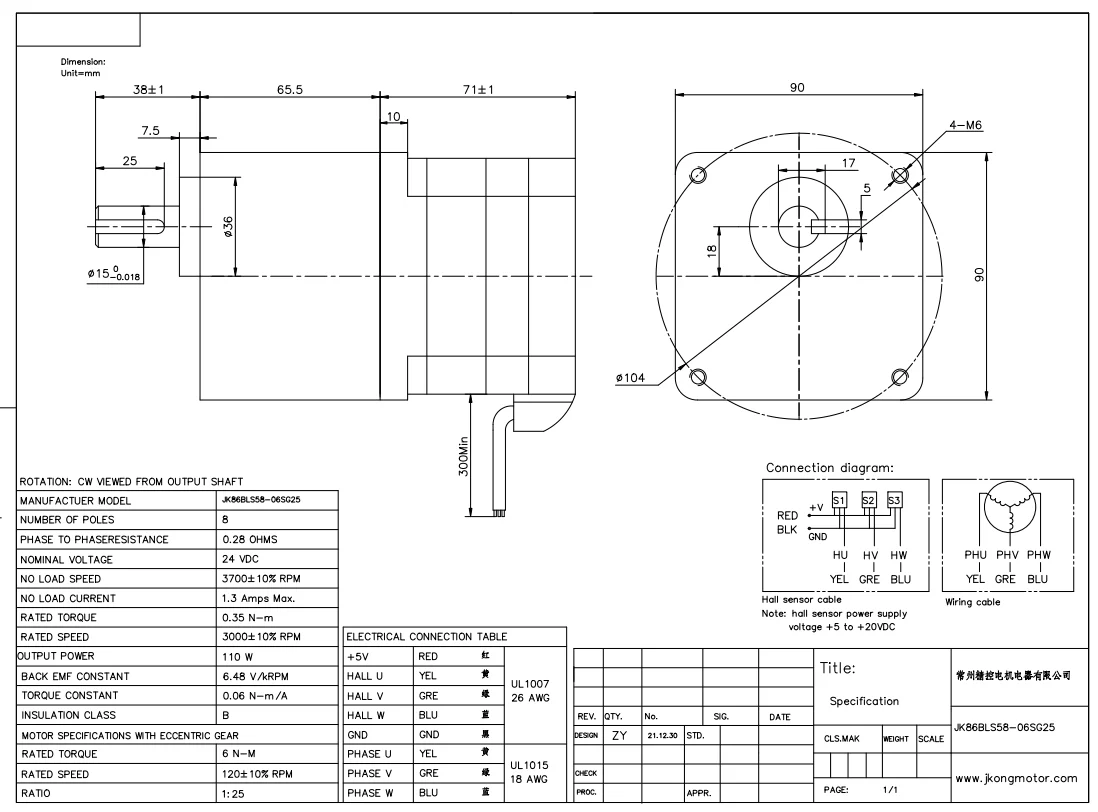

Details Images

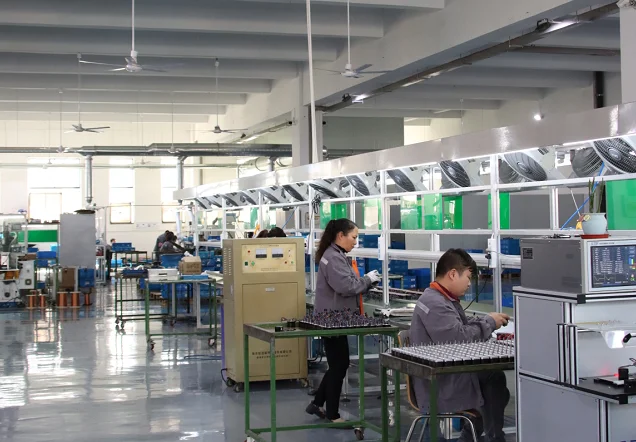

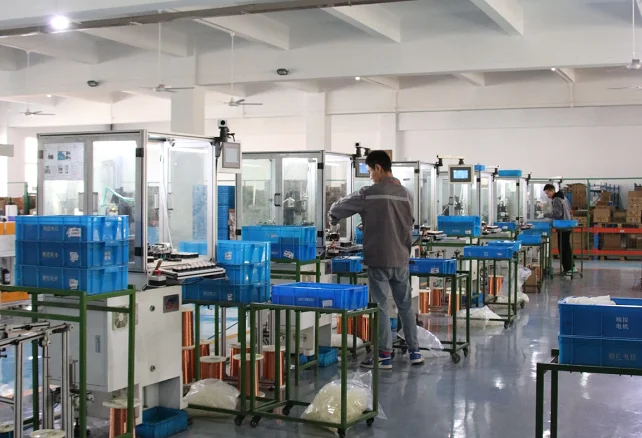

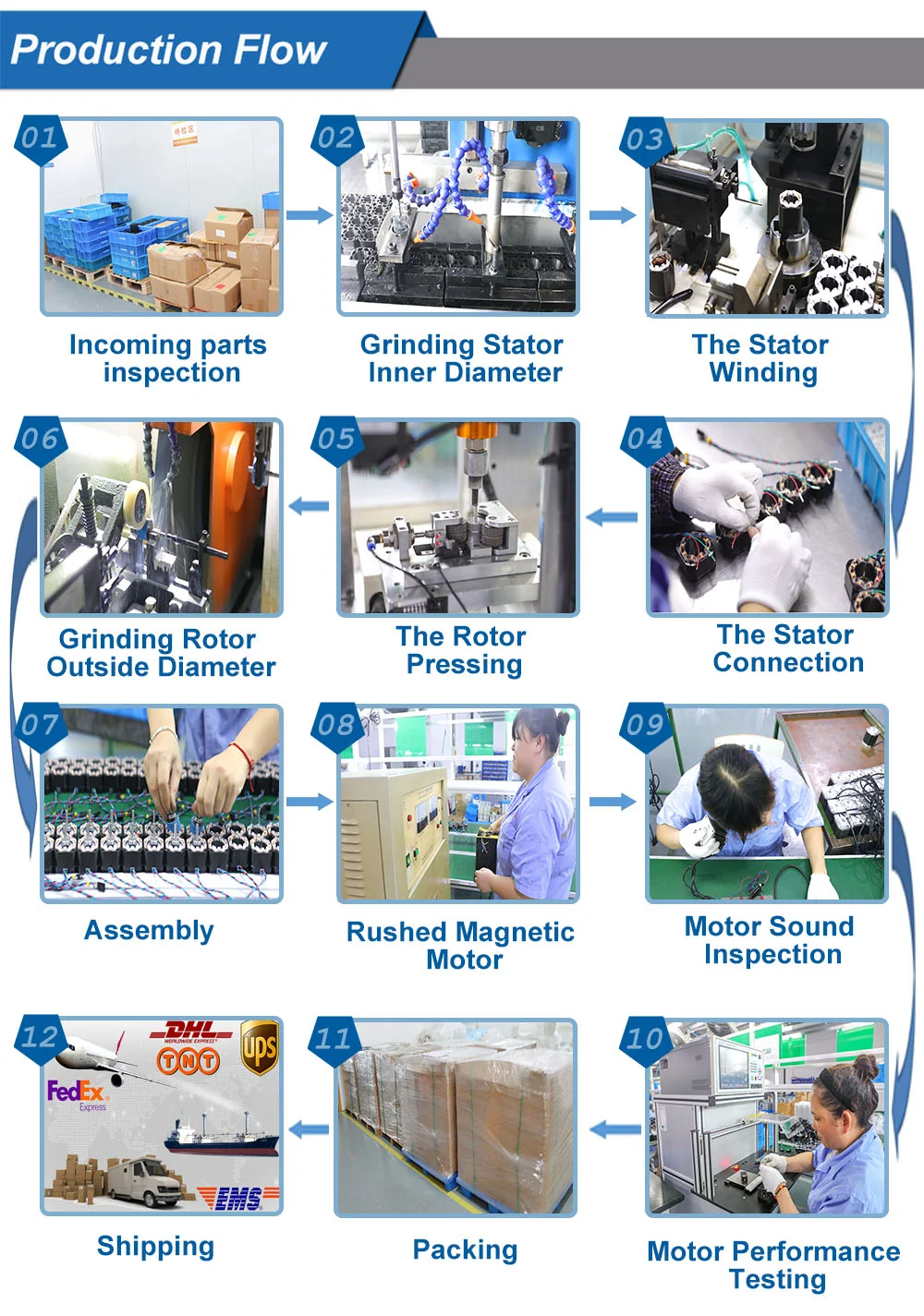

Production process

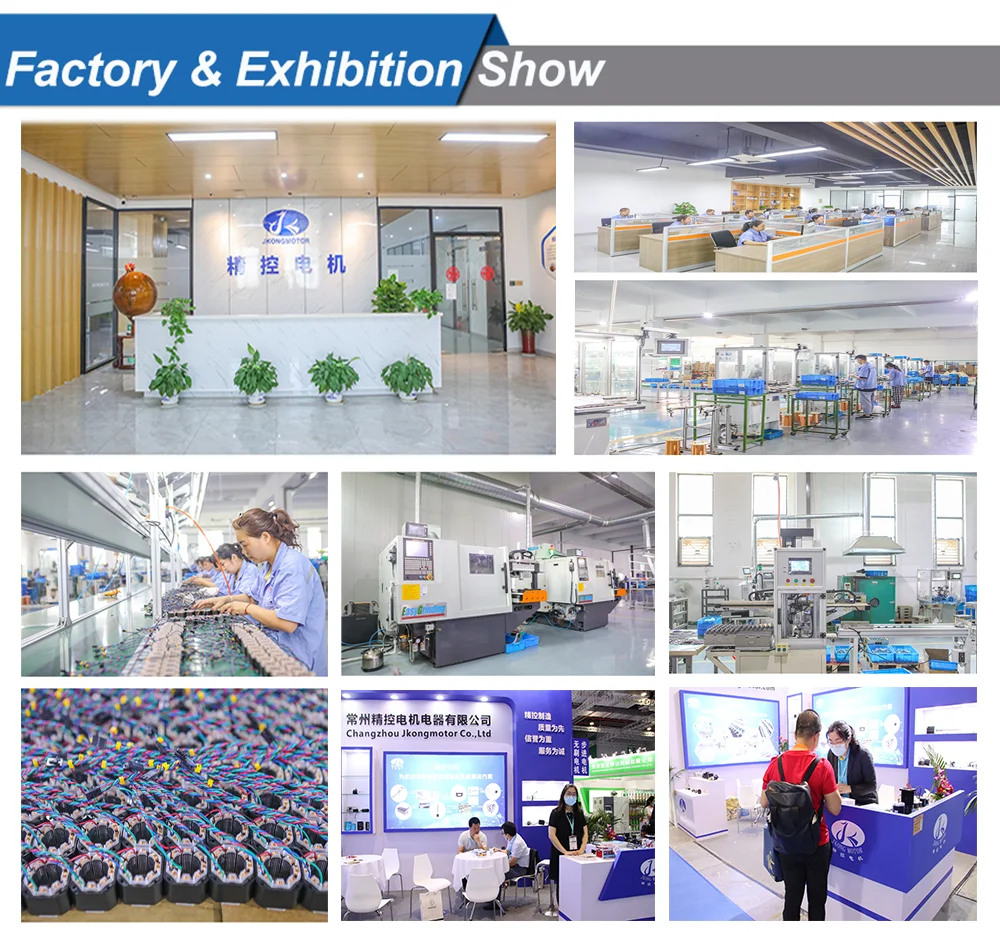

Company Profile
Certifications
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a manufacturer with 8 years of professional production experience.
Q2: Do you provide OEM or ODM service?
A2: Yes, JKONGMOTOR company warmly welcome OEM or ODM corporrations and other companies to establish long-term cooperation with
us.
us.
Q3: What's the MOQ?
A3: Our MOQ is 3 units.
Q4: What about your warranty?
A4: We guarantee is 12 months, for sea order is 15 months.
Q5: Are your delivery dates on time?
A5: Yes of course.We have our own factory so can ensure timely delivery.
