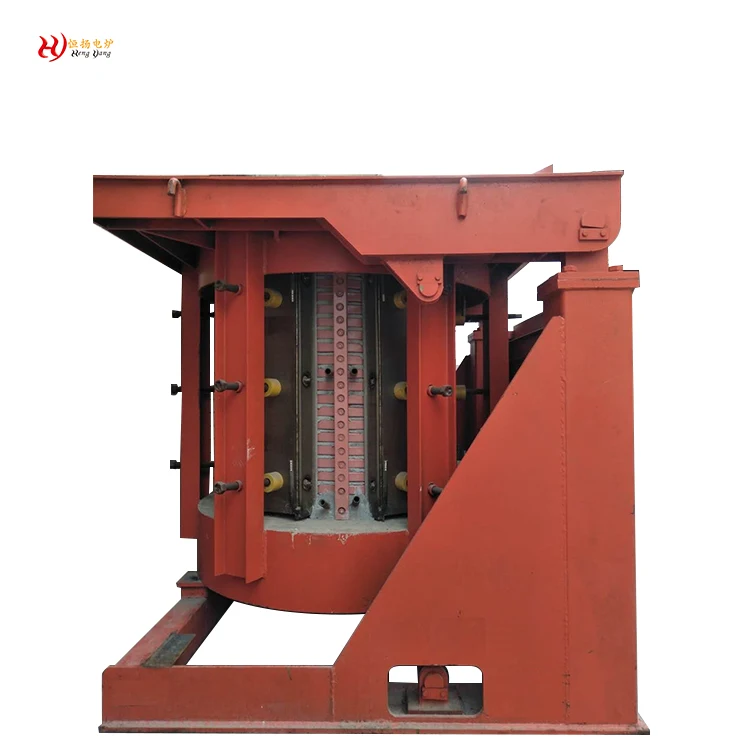

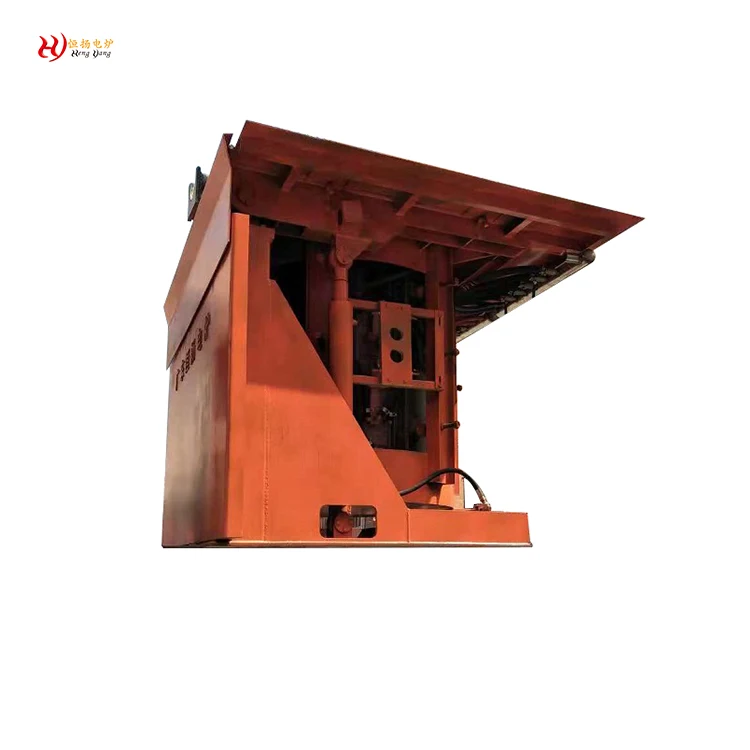

Indotherm Manufactured Electric Resistance Furnace used in Die Casting of Vacuum Induction Melting Furnace
- Category: >>>
- Supplier: Foshan Nanhai Hengyang Electric Furnace Co. Ltd.
Share on (1600617703003):
Product Overview
Description
What we can provide?
Provide melting furnace of superior performance and outstanding durability for your melting workshop. Various models are available to meet special requirements about investment casters, specialty foundries and the precious metals industry. The heavy steel shell furnaces are designed to provide furnaces with maximum rigidity and strength for capacities up to 30MT.
Furnace Feacture
1. Electric fuel, various capacity 0.05T-30T
2. Rapid melting speed,40-60 minutes /pot, 24 hours continuously working
3. Zero-voltage scaning soft start, can start or stop anytime;
4. Low energy consumption, cast iron less than 550KW.H/T
5. Less burning loss,less slag,save raw material.
6. Precise temperature control to ensure the quality and capacity.
7. Environmental friendl.No harmful gases and bright light.
8. Easy to maintain,safe and stability, long working life.
3. Zero-voltage scaning soft start, can start or stop anytime;
4. Low energy consumption, cast iron less than 550KW.H/T
5. Less burning loss,less slag,save raw material.
6. Precise temperature control to ensure the quality and capacity.
7. Environmental friendl.No harmful gases and bright light.
8. Easy to maintain,safe and stability, long working life.
Main parameters
Parameters | Unite | Datas | Specification | ||
Furnace body | rated capacity | t | 2 | copper | |
max capacity | t | 2.4 | copper | ||
working temperature | ºC | 0-1100 | / | ||
highest temperature | ºC | 1800 | / | ||
KGPS power supply | power factor | 0.9 | 0.9 | / | |
KGPS IF power supply | rated power | KW | 1400 | / | |
rated input current | A | 540 | / | ||
rated input voltage | V | 750 | / | ||
IF voltage | V | 1500 | / | ||
startup success rate | % | 100 | / | ||
rated working frequency | KHZ | 0.5-1 | / | ||
working noise | db | ≤75 | / | ||
Comprehensive parameters | melting rate | T/h | 2 | copper | |
power consumption | KW.h/T | 430 | / | ||
Water cooling system | water consumption | T/h | 50 | / | |
Remark
There are three kinds of power supply to meet your need. (KGPS, KGCL, IGBT)
If you have more requirement about the power factor and power consumption, please contact us for KGCL and IGBT power supply.
OPERATIONAL CASES
Model (Furnace capacity) | Input power 50Hz | ||||||
(Furnace capacity) | Rated Power ( KW ) | Rated Voltage ( V ) | Rated Current ( A ) | Transformer capacity ( KVA ) | |||
GW-0.05T | 50 | 380 | 80 | 65 | |||
GW-0.1T | 100 | 380 | 160 | 120 | |||
GW-0.15T | 160 | 380 | 256 | 250 | |||
GW-0.2T | 160 | 380 | 256 | 250 | |||
GW-0.25T | 200 | 380 | 320 | 250 | |||
GW-0.35T | 250 | 380 | 400 | 315 | |||
GW-0.5T | 300 | 380 | 480 | 400 | |||
GW-0.75T | 400 | 380 | 640 | 630 | |||
GW-1T | 750 | 380 | 1200 | 1000 | |||
GW-1.5T | 1000 | 380 | 1600 | 1250 | |||
GW-2T | 1400 | 750 | 1078 | 1600 | |||
GW-3T | 2000 | 750 | 770*2 | 2500 | |||
GW-5T | 3000 | 950 | 912*2 | 4000 | |||
GW-10T | 5000 | 1000 | 1443*2 | 6300 | |||
GW-15T | 8000 | 1000 | 1154*4 | 10000 | |||
GW-20T | 10000 | 1000 | 1443*4 | 12600 | |||
GW-30T | 15000 | 1000 | 2165*4 | 16000 | |||
Remark
1. Furnace capacity is designed based on the density of 7.8g/cm³;
2.The above data is about standard furnaces. Furnaces can be customized in different power and capacity according to customer's need.
2.The above data is about standard furnaces. Furnaces can be customized in different power and capacity according to customer's need.
DETAILS DISPLAY

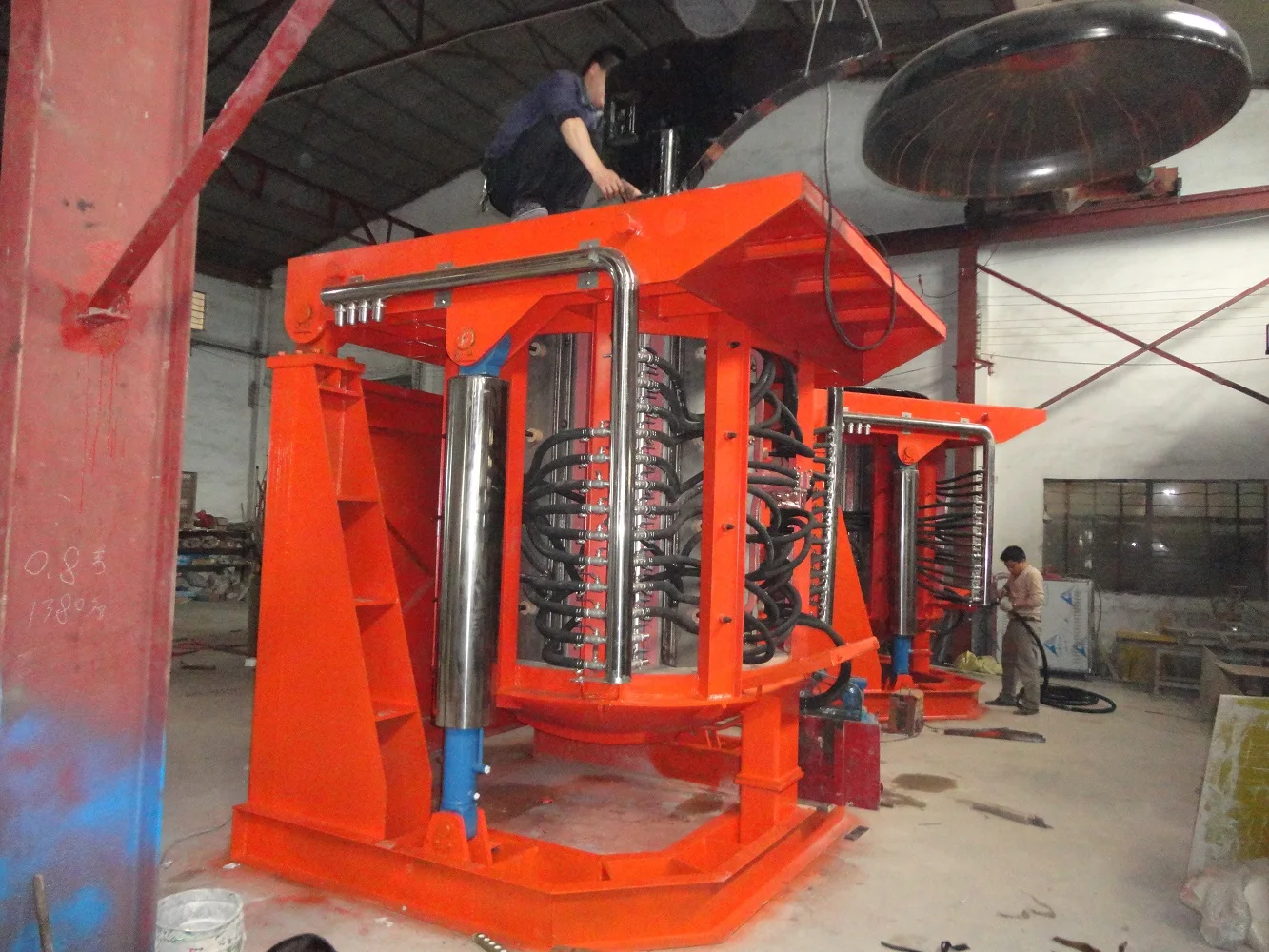

Furnace basicly includes: steel frame, induction coil, magnetic yoke
Configuration includes: anti-falling device, dust collector,furnace linning release device, weighing system, leakage-alarm device, slag reclining system, etc.
Steel frame
1. Stong enough to used for 15 years. Welded by two cylinder with thick seamless rectangular steel tube;
2. Its tilting maximum angle is over than 95 degrees,

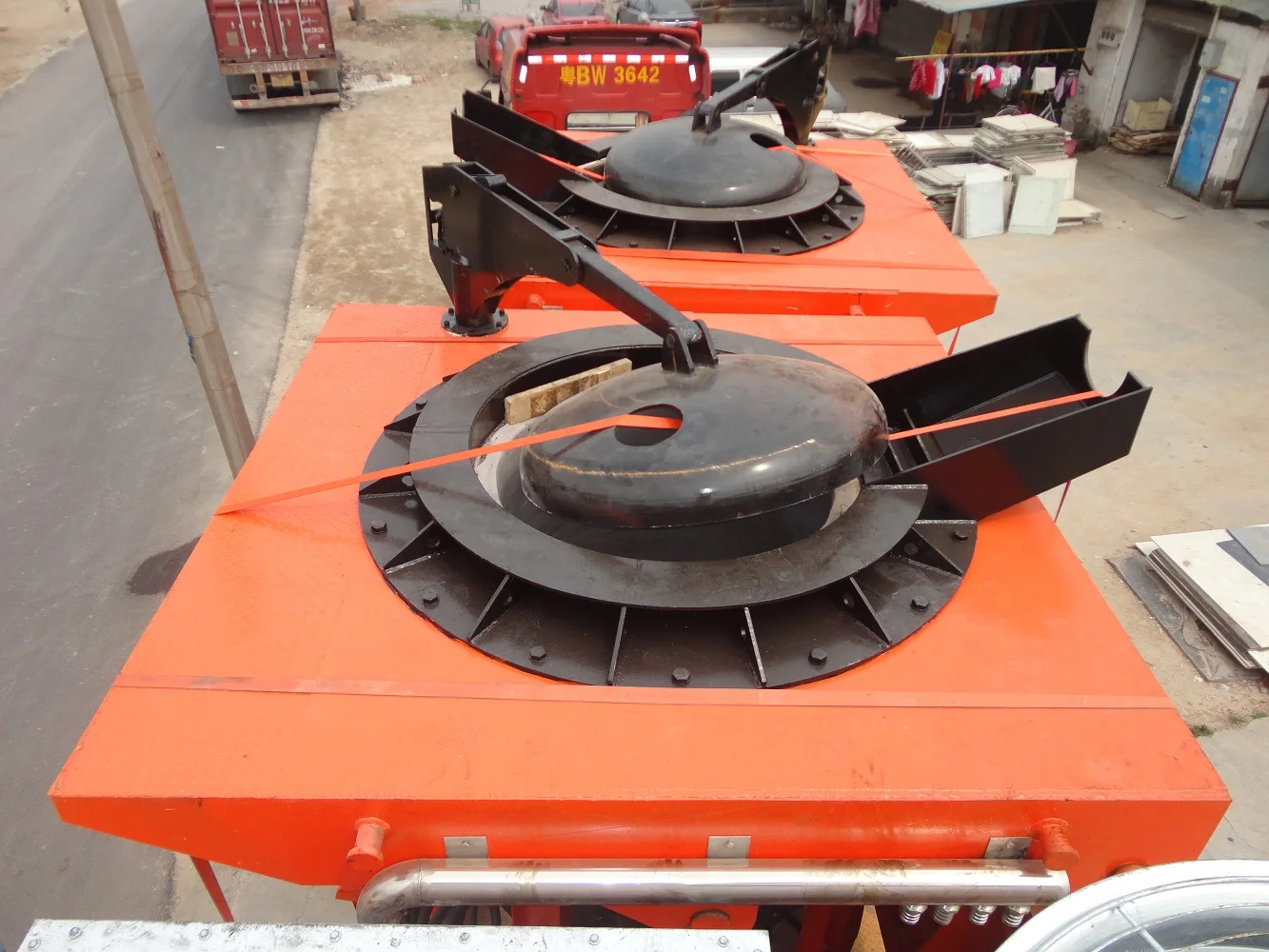

3. with vacuum cover(heat preservation cover), the upper components can be disassembled to facilitate the repalcement of the coil.
3. with vacuum cover(heat preservation cover), the upper components can be disassembled to facilitate the repalcement of the coil.
Magnetic yoke
1. The induction coil is surrounded by a solid oriented yoke. This design eliminated heating from outside.
2. The yoke greatly support the induction coil to engsure long working life of the lining;
3. There are flow display, temperature display and temperaure pretection for the water circle of the yoke;
4. The yoke covers over more than 70% area, case least magnetic flux leakage, can save about 5% electricity.

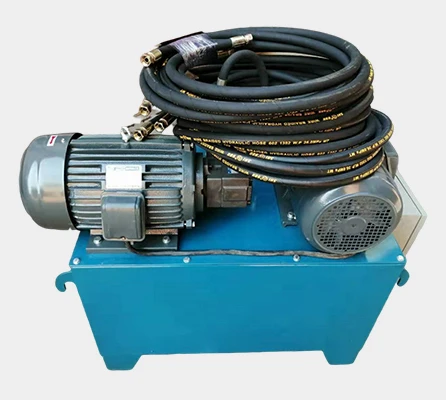

Hydraulic station
1. Technical control. Just need to control the buttons and the handle to achieve tilting, stop, and reset.
2.Furnace can be tilted in 95 degrees to pour out all the metal liquid;
3. Furnace can be controled to stay in any position to pour；
4. Easily to control the tilting speed of the furnace
3. Furnace can be controled to stay in any position to pour；
4. Easily to control the tilting speed of the furnace
