Solar Lithium Battery SRNE New Design 100ah 200ah Wall Mounted Solar Lithium Battery Price
- Category: >>>
- Supplier: Srne Solar Co. Ltd.
Share on (1600617733965):
Product Overview
Description
Products Description

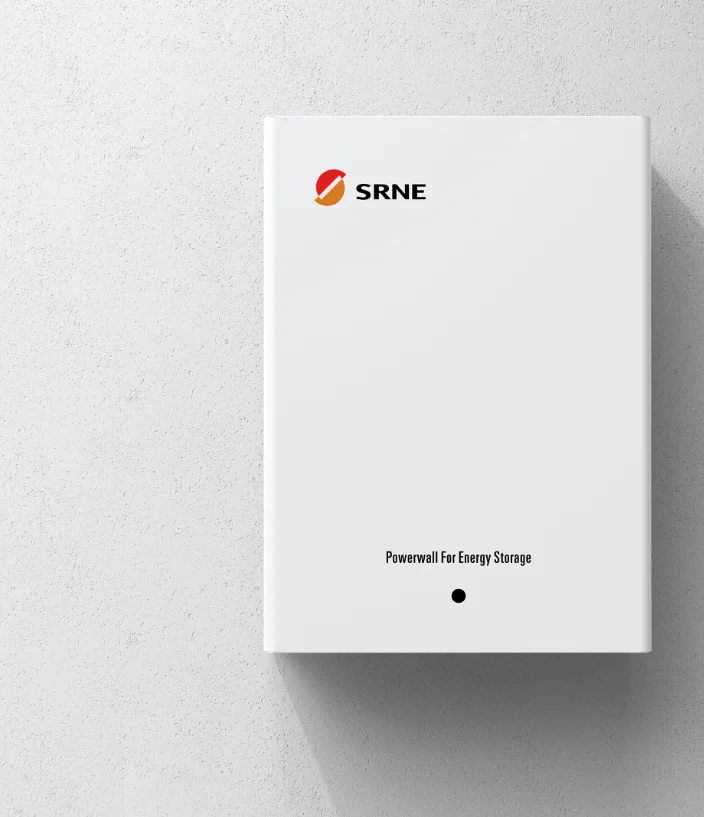

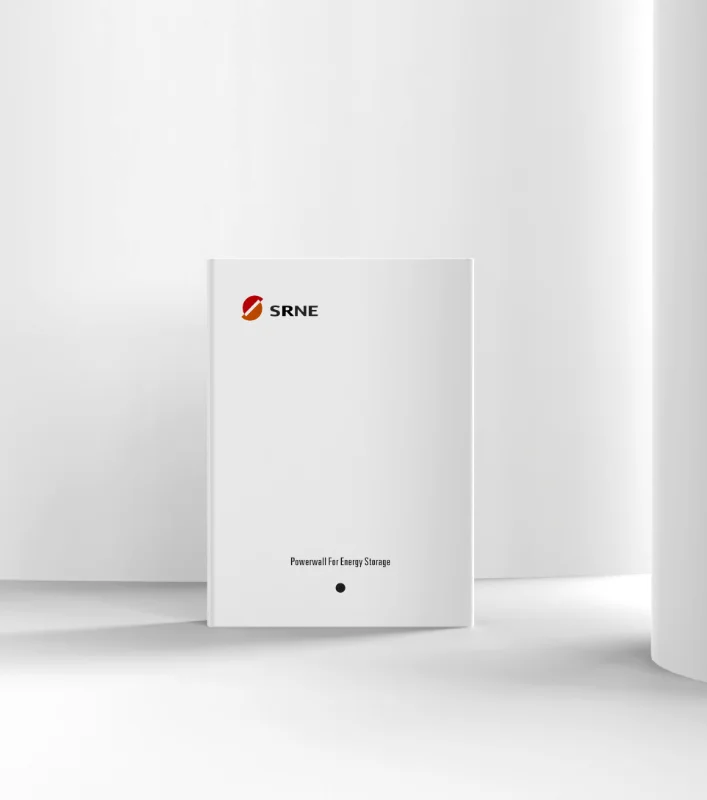

SR-EOS Energy Storage Battery
Powerwall For Energy Storage
EOS Series
SR-EOS48-5.0A-E0/SR-EOS48-10.0A-EO
Long life and safety
Vertical industry integration ensures more than6000 cycles with 80%DoD
Vertical industry integration ensures more than6000 cycles with 80%DoD
Easy to install and use
Small size, minimizing installation time and cost Compact and stylish design suitable for your sweet home environment.
Small size, minimizing installation time and cost Compact and stylish design suitable for your sweet home environment.
Intelligent
Each battery with independent BMS system manages power output smartly and effectively.
Each battery with independent BMS system manages power output smartly and effectively.
Scalability
You can use 4 batteries in parallel at the same time and can provide a maximum of 20kwh for your use.
You can use 4 batteries in parallel at the same time and can provide a maximum of 20kwh for your use.
Compatiblity
Compatible with most of the available Hybrid inverters.
Compatible with most of the available Hybrid inverters.
Specification
Product model | SR-EOS48-5.0A-E0 | SR-EOS48-10.0A-E0 | |
Rated voltage | 51.2V | 51.2V | |
Rated capacity | 100Ah | 200Ah | |
Rated energy | 5.12kWh | 10.24kWh | |
Weight | 46kg | 80kg | |
Dimentions(L*W*H) | 620*450*140mm | 830*515*140mm | |
Battery type | LFP | ||
Life time(25℃） | 20 Years | ||
Life cycles(80% DOD25℃) | 6000 Cycles | ||
Max.charging voltage | 57.6V | ||
Over discharge voltage | 44.8V | ||
Constant charging current | 100A | ||
Constant discharging current | 100A | ||
Peak charging current | 110A(3S) | ||
Peak discharging current | 110A(3S) | ||
Max.Number of parallel | 4 | ||
Communication interfaces | CAN/RS232/RS485 | ||
Lithium Battery Standard | UN38.3MSDSEN55032EN55024EN61000-3-2EN61000-3-3 | ||
Storage time/temperature | 6 months @25℃:3months @35C1months @45℃ | ||
Charging temperature range | 0~45℃ | ||
Discharging temperature range | -10~45℃ | ||
Cooling method | Natural cooling | ||
Enclosure protection rating | IP54 | ||
Operation Environment | Indoor | ||
Details Images

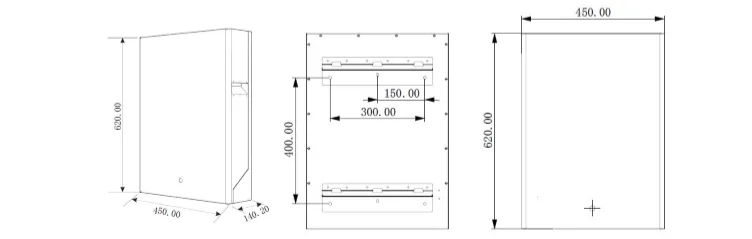

Overall dimensions（L*W*H）:620*450*140.2mm Mounting dimensions（L*W）:400*300mm

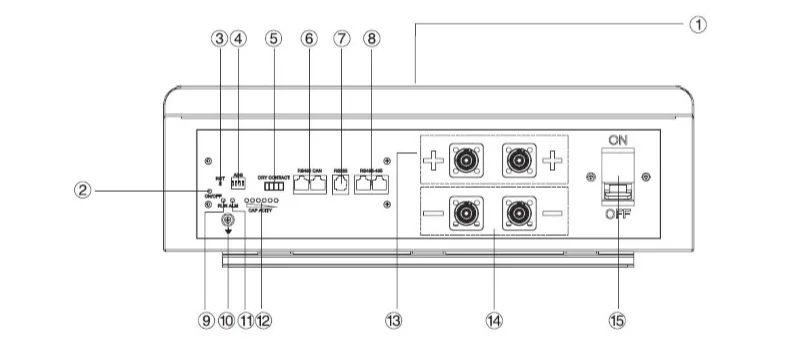

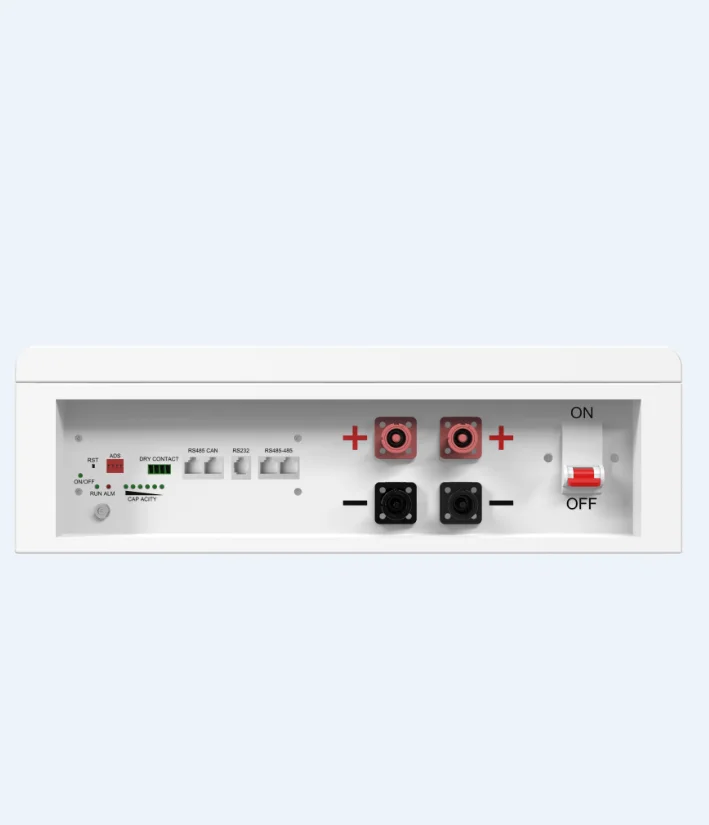

① Turn On/Off | ② LED( ON/OFF) | ③ Reset | ④ Address |
⑤ Dry contact | ⑥ RS485/CAN (Connect inverter) | ⑦ RS232 | ⑧ RS485/RS485 (Connect other battery) |
⑨ LED(RUM) | ⑩ Grounding screw | ⑪ LED(ALM) | ⑫ LED( CAPACITY) |
⑬ Battery Positive | ⑭ Battery Negative | ⑮ Breaker switch |
Application Scenarios
The lithium iron phosphate batteries with high performance and long service life are used in the energy storage module. Meanwhile, the modular structure design is adopted. Each energy storage module is internally integrated with the intelligent BMS system, which can be easily expanded and can be combined into 20Kwh battery pack at most.
The battery storage can be combined with SRNE brand inverter to form an off-grid photovoltaic system, which can solve the problem of electricity consumption in areas without electricity.
Our Advantages
Company Profile
Certifications
Packaging & Shipping

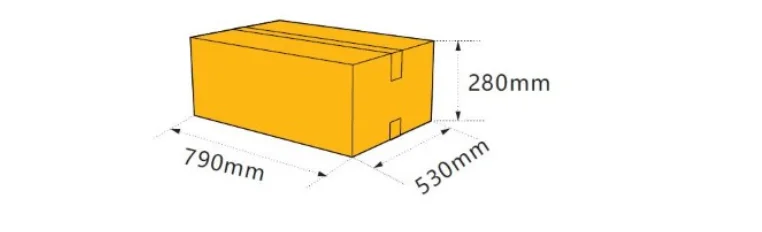

The packaging size of a single energy storage battery module and PCS module is 790*530*280.
FAQ
Q1.What kind of certificates you have for your inverters?
A1:CE(IEC/EN62109-1,-2),ROHS2.0,cETL 2021
Q2.Are u a manufacturer or trading company?
A2:We are a state-level high-tech enterprise that integrates pluralism,R&D and manufacturing solar charge controller ,solar inverter charger
Q3.Can I buy one sample for testing?
A3:Sure,we have a 10 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
Q4.How is the delivery?
A4:Sample:1-2 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
A1:CE(IEC/EN62109-1,-2),ROHS2.0,cETL 2021
Q2.Are u a manufacturer or trading company?
A2:We are a state-level high-tech enterprise that integrates pluralism,R&D and manufacturing solar charge controller ,solar inverter charger
Q3.Can I buy one sample for testing?
A3:Sure,we have a 10 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
Q4.How is the delivery?
A4:Sample:1-2 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
