DN15 6000mm TUF 2000H цифровой расходомер бесконтактный датчик ультразвукового расходомера портативный расходомер

Product Overview

Description

The TUF-TUF-2000H 2000H Ultrasonic Flow meter is ideal for flow surveys and closed pipe applications where noninvasive measurement of liquids is required. Benefited from our advanced digital signal processing technology the handheld flow meter works reliable in both clan and opaque liquid flow .




*Features



        •Wide flow measurement range, from 0 m/s to 32 m/s

        •Bi-directional measurement, totalize for net, positive and negative flow. with large screen



        •High accuracy, better than K 1 % of velocity
        •Wide pipe size range, from DN 15 to DN 6000 mm
        •Suitable for all commonly used pipe materials

        •Rechargeable battery with 12 hours of operation

        •Built – in data logger,or SD card (if you want large data store Capacity ,there have 4 G,8 G ,16 G  SD Card can optional )

        •Self –explanatory user interface.
        •Windows PC software for data down-load and real time data display ,RS232 interface can connect with computer ,you can read all data at computer if you like .



        •Can also be deployed as a remote RTU for long –term flow monitoring application
        •Easy and economical installation
        •Non invasive. No pipe disturbance. no moving parts. no pressure drop.
        •Ideal for both clean and opaque liquid flows.





* Packages

*Features

Item	Technical Features
Measuring Accuracy	Flowmeter/Calorimeter: Better than 1% ; Water meter: Better than 2%; Heat Meter:  EN1434 Standard
Repeatability	Better than 0.2% or 0.5%
Velocity	±0.03~±105ft/s(±0.01~±32m/s),bi-ditectional
Flow Type	Water,sea water,industrial water ,oil liquid,sewage and single liquid available  for ultrasonic
Pipe Material	Steel,stainless steel,cast iron,copper,PVC,aluminum,glass reinforced plastics  or other compact pipe and lined pipe allowed
Liquid Temp	32 F~320 F (0 C~160 C)
Output Interface	OCT,RS232
Battery and Power	3AAA Ni-H built-in batteries, when fully recharged , it will last over 12 hours of operation. 90V-230VAC for the charger
Pipe Size	1/2”~240”(DN15mm~6000mm)

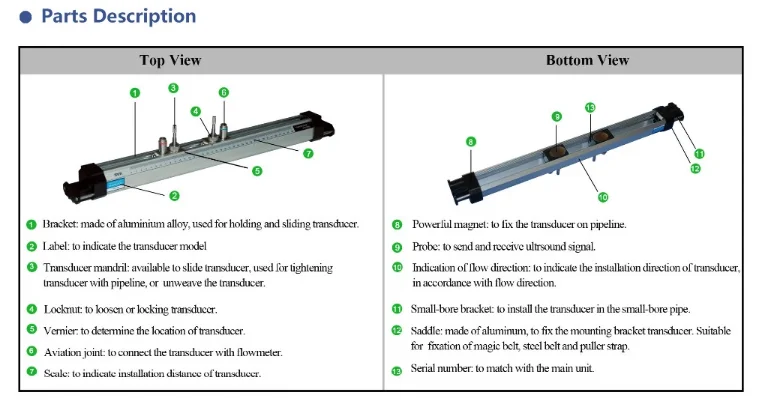

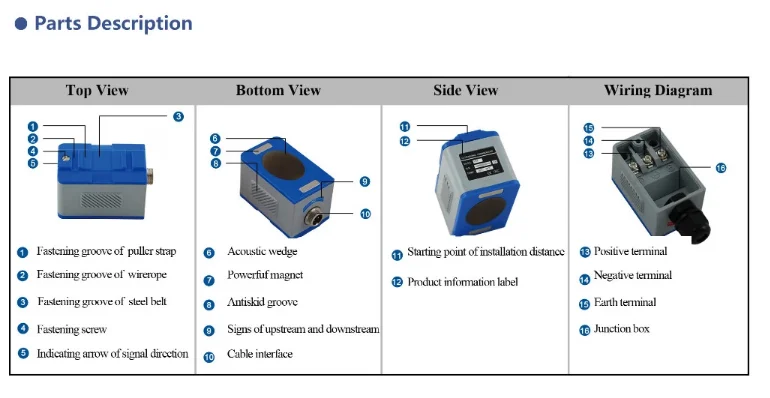

Transducers Optional :



How to install the ultrasonic flow meter

Clamp-on Transducer Usager Method



  Usage Method:

• Install first transducer after choosing install point;Clean up pipe surface(include oil paint,rust etc).According to instructions,fix clamp near by install point.


• Smear couplant on transducer surface,fix the transduceer on install point.


• Fix another transducer according to install distance.


• Note:The transmitting direction of transducers is opposite;The clamps' matrial is 304stainless stell .

  With more than 8 years os experience in producring and exportting ,we can supply the ultrasonic flow meter with high quality and reasonable price ,if any of the item shown above interented you ,ple feel free to let me know ,and I will provide the best solution in the first time .





*Shipping partner

The DTI-200H can be applied to a wide range of measurement. The range of pipe dimensions is from 15 to 6000mm (from 0,5 to 200 inches) and the liquids can be: ultra-pure, potable water, chemicals, raw sewage,cooling water, river water, plant effluent ecc. As the instrument and the transducers are non-contacting and have no moving parts, the flow meter cannot be affected by system pressure, fouling or wear.

Standard transducers are rated to: S1/M1/L1/SIF/M1F 0÷70°C; S1H/M1H 0÷160°C



Pre-sale	After-sale
Confirm basic informations(liquid type , pipe DN,pressure,temp,output etc.)	12months' quality guarantee
Choose the best option	All life maintain
OEM(Design and print your brand)	Technical support
Send you invitation	On time software upgrading
View factory with our free accompany	On time US
Ship chartering and space booking	24 Hours online services



 *1.  How to choose a suitable flowmeter ?

You can confirm us the following informations,believe we will give you best suggestions and competitive price .

--The medium liquid or gas to be measured .

--The maximum temperature of medium liquid or gas .

--The pipe size or pipe diameter range .

--The pipe material .

--The minimum and maximum flow rate range and the maximum pressure .

--Others you'd like to share with us .

*2.  How to intensify the signal display of transducers ?

Put coupling agent into transducers .

Because air shipping is not allowed to ship liquid or something like that, so coupling agent can not ship to you. You can use vaseline or butter to replace.

 *3. Accessorice

1 * Ultrasonic Flowmeter

1 * Carring Case(Aluminum alloy protective case)



 4.  How to order ?



 In order to help you get the exact model, pls offer the following necessary info:

 1. The pipe size is DN___mm or ___inch .

 2. The medium is _____.

 3. Temperature is _____ °C.

 4. The material of the pipe is _____.

 5. Other requirements :_____.

 If you have any query, pls feel free to contact me.
