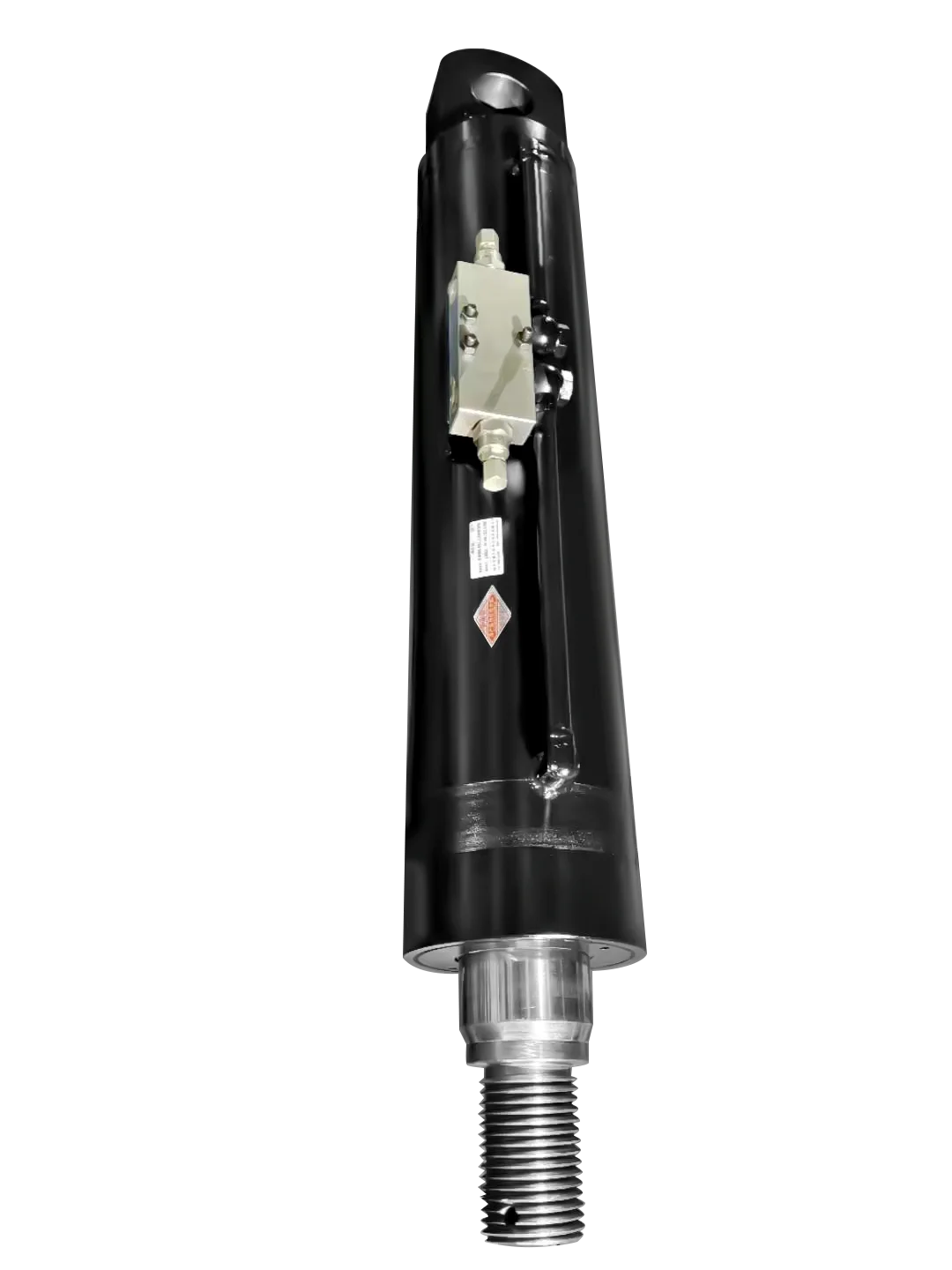

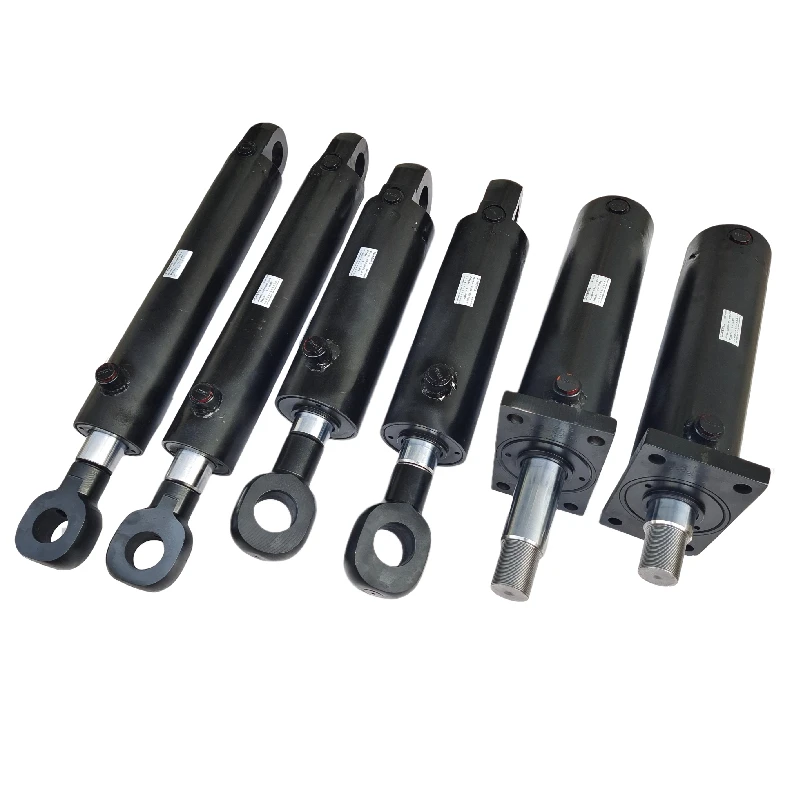

HSG series cheap long stroke double acting hydraulic cylinders with pin flange mounting
- Category: >>>
- Supplier: Shandong Kewill Automation Equipment Co. Ltd.
Share on (1600617810642):
Product Overview
Description
HSG series double-acting single-rod piston hydraulic cylinder is an actuator for reciprocating linear motion in hydraulic system.
It has simple structure, reliable operation, convenient assembly and disassembly, easy maintenance, various installation and connection methods, and buffering.
HSG Hydraulic Cylinder Features.
Outstanding Advantages:
The piston rod is quenched and tempered by HB260-280, then rough and finely machined, and then plated with 0.03-0.05mm hard chrome after polishing.
The surface can reach a finish of 0.2.
The inner hole of the cylinder barrel is roughed and finished by deep hole boring, rolling, the inner surface roughness can reach 0.4, and a uniform grid honing is formed grains, forming the inner surface of the hardened layer.
Cylinder seals are imported polyurethane materials, large dust rings, O-rings, Gree rings, and Sri Lankan
Special seal and V-shaped combination seal.
Various connection methods, easy to install and easy to use
There are the connection methods of the cylinder bottom and the cylinder barrel as well as the connection method of the cylinder bottom and the cylinder barrel to ensure the configuration of multi-environment and multi-mechanical equipment.
Sleeve installation
It has simple structure, reliable operation, convenient assembly and disassembly, easy maintenance, various installation and connection methods, and buffering.
HSG Hydraulic Cylinder Features.
According to the different connection methods of the piston rod, there are 4 categories and 45 types of specifications and models.
Pressure level: 0-16MPa, 16-21mpa, 21-25mpa, 25-40MPa
Cylinder diameter range: Φ40~Φ1500mm,
Ambient temperature: -20℃~+80℃, +80℃~+260℃
Travel range: 0-≤15m,
Working media: anti-wear hydraulic oil, water-glycol fire-resistant hydraulic oil
Pressure level: 0-16MPa, 16-21mpa, 21-25mpa, 25-40MPa
Cylinder diameter range: Φ40~Φ1500mm,
Ambient temperature: -20℃~+80℃, +80℃~+260℃
Travel range: 0-≤15m,
Working media: anti-wear hydraulic oil, water-glycol fire-resistant hydraulic oil
Outstanding Advantages:
The piston rod is quenched and tempered by HB260-280, then rough and finely machined, and then plated with 0.03-0.05mm hard chrome after polishing.
The surface can reach a finish of 0.2.
The inner hole of the cylinder barrel is roughed and finished by deep hole boring, rolling, the inner surface roughness can reach 0.4, and a uniform grid honing is formed grains, forming the inner surface of the hardened layer.
Cylinder seals are imported polyurethane materials, large dust rings, O-rings, Gree rings, and Sri Lankan
Special seal and V-shaped combination seal.
Various connection methods, easy to install and easy to use
There are the connection methods of the cylinder bottom and the cylinder barrel as well as the connection method of the cylinder bottom and the cylinder barrel to ensure the configuration of multi-environment and multi-mechanical equipment.
Sleeve installation
Bore/mm | Piston rod diameter/mm | Working pressure 16MPa | ||||||||||
Speed ratio φ | Push force | Pull/N | ||||||||||
1.33 | 1.46 | 2 | ф=1.33 | ф=1.46 | φ =2 | |||||||
40 | 20 ▲ | 22 | 25 | 20110 | 15080 | 14020 | 12250 | |||||
50 | 25▲ | 28 | 32* | 31420 | 23560 | 21560 | 18550 | |||||
63 | 32 | (35) | 45 | 49880 | 37010 | 34480 | 24430 | |||||
80 | 40 | 45 | (55) | 80430 | 60320 | 54980 | 42410 | |||||
90 | 45 | 50 | 63 | 101790 | 76340 | 70370 | 51910 | |||||
100 | 50 | (55) | 70 | 125660 | 94250 | 87650 | 64090 | |||||
110 | (55) | 63 | 80 | 152050 | 114040 | 102180 | 71630 | |||||
125 | 63 | 70 | 90 | 196350 | 146470 | 134770 | 94560 | |||||
(140) | 70 | 80 | 100 | 246300 | 184730 | 165880 | 120640 | |||||
150 | (75) | (85) | (105) | 282740 | 212060 | 191950 | 144200 | |||||
160 | 80 | 90 | 110 | 321700 | 241270 | 219910 | 169650 | |||||
(180) | 90 | 100 | 125 | 407150 | 305360 | 281490 | 210800 | |||||
200 | 100 | 110 | 140 | 502660 | 376990 | 350600 | 256350 | |||||
(220) | 110 | 125 | 160 | 608210 | 456160 | 411860 | 286510 | |||||
250 | 125 | 140 | 180 | 785400 | 589050 | 539100 | 378250 | |||||
320 | - | 180 | 220 | 1286800 | - | 879650 | 678590 | |||||
1 steel mill 2 Metallurgy 3 Coal mines 4 Mining
5 Construction machinery 6 Industrial Robots 7 Machine tools 8 Papermaking
Shandong KEWILL Automation Equipment Co., Ltd, established in 2019, located in the beautiful spring city of Jinan. A professional manufacturer of hydraulic and pneumatic solutions integrating R&D, production, sales, technical support and service. It is committed to high-quality pneumatic cylinders, hydraulic cylinders, hydraulic systems, Pneumatic&Hydraulic components. Widely used in manufacturing Plant, construction works , Energy & Mining,Steel plant, metallurgy machinery, marine engineering, engineering machinery, intelligent machinery production lines, agricultural machinery, environmental protection machinery, paper making machinery, lifting and transportation machinery, electric power and other industries.
