Product Overview
Description
Product Description
Bia bioelectrical impedance analysis body analysis segmental fat analysis height weight scale

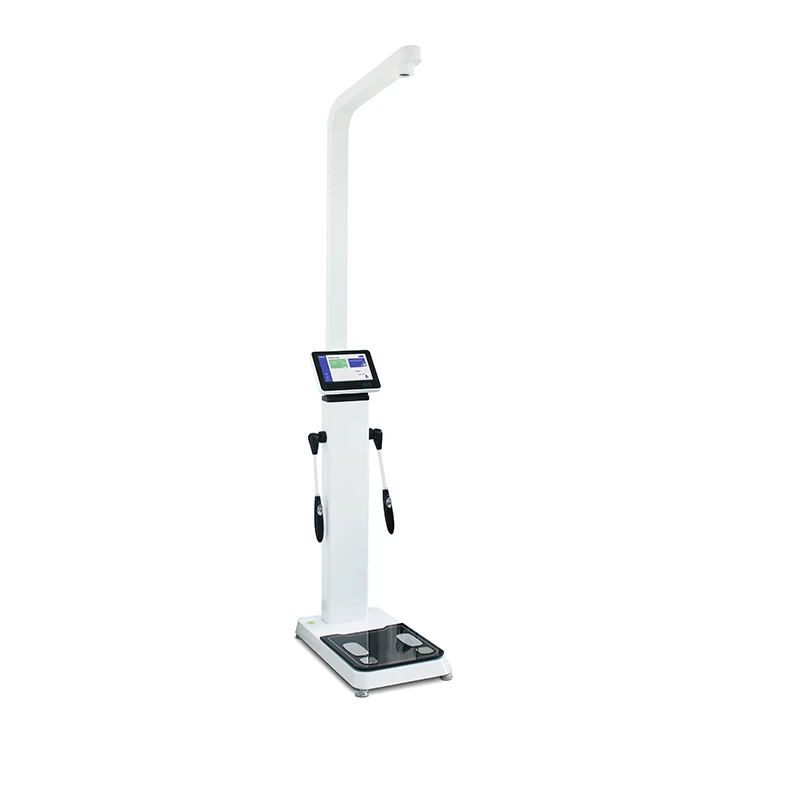

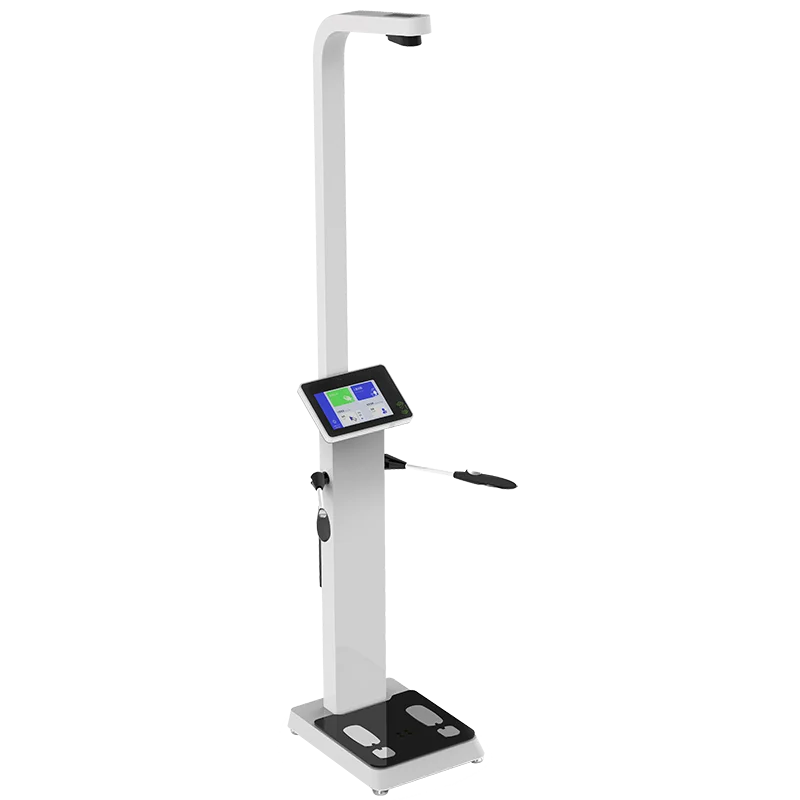

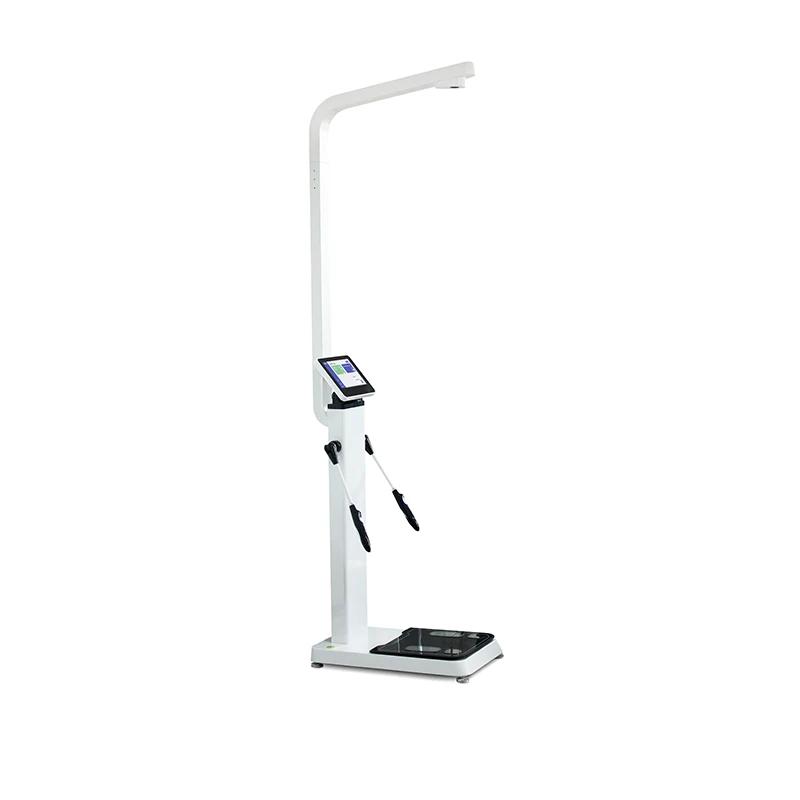

DSM-BIA professional human body composition analyzer,more than 50 sets of testing data to build a human data model, advanced IOT intelligent technology and IAP remote gateway technology, to meet various applications of Internet smart devices, with membership system and visitor Face recognition system, IC card and other usage system, easily and widely used in other places.
Specification
Technical parameter
|
Test Range
|
Gender:Male/Female (18-99Years ord)
|
Login Method
|
Swipe IC card/face recognition login
|
Display
|
Led300 nit 10.1inch,resolution:1280*800
|
|
Measuring range:Weight 0.1~400KG Maximum weight: Less than 500KG Measurement accuracy ~0.1KG
|
|
Test range: 70~210cm, Measurement accuracy:~0.5cm
|
|
Measuring system:8 electrodes Measuring frequency:10kHz/50kHz/100kHz
|
Analysis Project:Body fat,visceral fat,body water, muscle,bone quality
|
Material:Plating materials Measuring current:below 90uA
|
Resistance:75.0~1,500.00Ω(0.1ΩUnit)
|
Measuring: Body,right leg, let leg,right arm, left arm
|
Data Transmission
|
Elthernet
|
API
|
Provided
|
OEM/ODM
|
Yes
|
Voltage
|
110V-120V
|
Rated Power
|
50-60HZ
|
Detailed Image




Instructions

Measuring Steps.
Step 1: Wipe hands, feet and electrodes with a wet tissue. The wet tissues help increase
the conductivity of the current.
Step 2: Stand on the instrument to measure weight and make sure the heel is flush with the foot electrode.
Step 3: When prompted, enter your profile. After confirming that your profile is correct, click Start Test.
Step 4: Follow the boot prompts, grab the handle, and place your thumb on the elliptical electrode.
Step 5: Follow the instructions and keep your arms straight and do not touch the rest of your body. Stay relaxed until the test is
complete. After the test is complete, you can get a report to your email address or print a A4 printing.
Installation Steps
Step 1: Connect the instrument power cord and press the switch on the back of the instrument. Step 2: Wait for the instrument built-in software to start. Step 3: Connect to Wi-Fi and log in to your accounts. Step 4: You can use the Swipe IC card/face recognition login .
Advantage
*Storage :Instore 500000 groups of data.
*Performance:Can log in both by face recognition and Swipe IC card.
report can be sent out directly to your email address or Copy to your computer with USB
Can connect with a printer & printing a A4 report.
*Certificate: CE certificates for Europe market passed .
*Rolling Stock to keep short delivery schedule for General model:F500 Delivery Schedule is keep 15days delivery.
*Multiple Languages Choice
Product Packing

Usage Notice

APPLICABLE PEOPLE
1.Gym,body management center.
2.Confinement Center,postpartum repair center.
3.Medical centers and other medical insitutions
4.Diabetics,etc,need to pay close attention to the physical data family.
Certificates
