Lab XFD II Single Groove Flotation \ Mixing Flotation Machine \ Quartz Sand Flotation Machine
- Category: >>>
- Supplier: Jiangxi Victor International Mining Equipment Co. Ltd.
Share on (1600617814688):
Product Overview
Description
Product Description

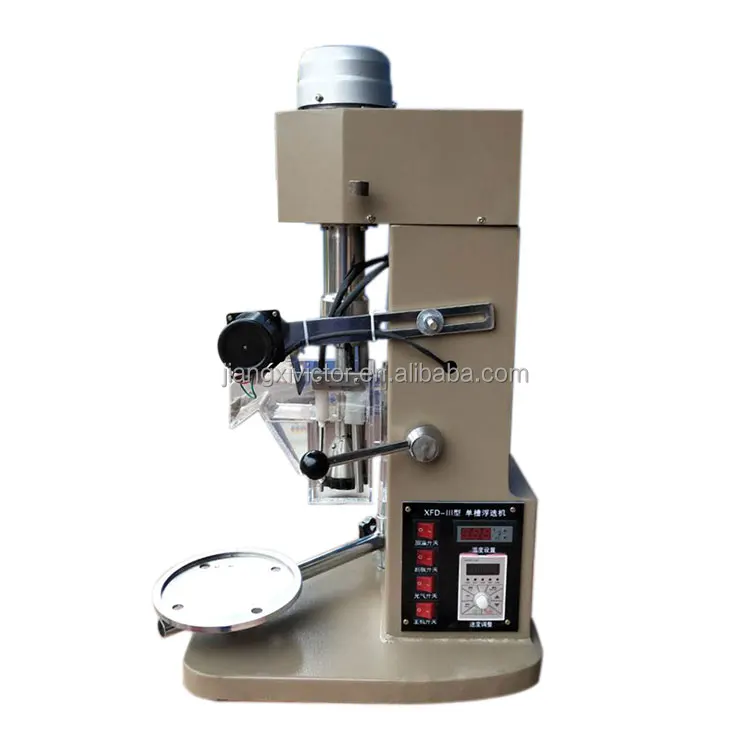

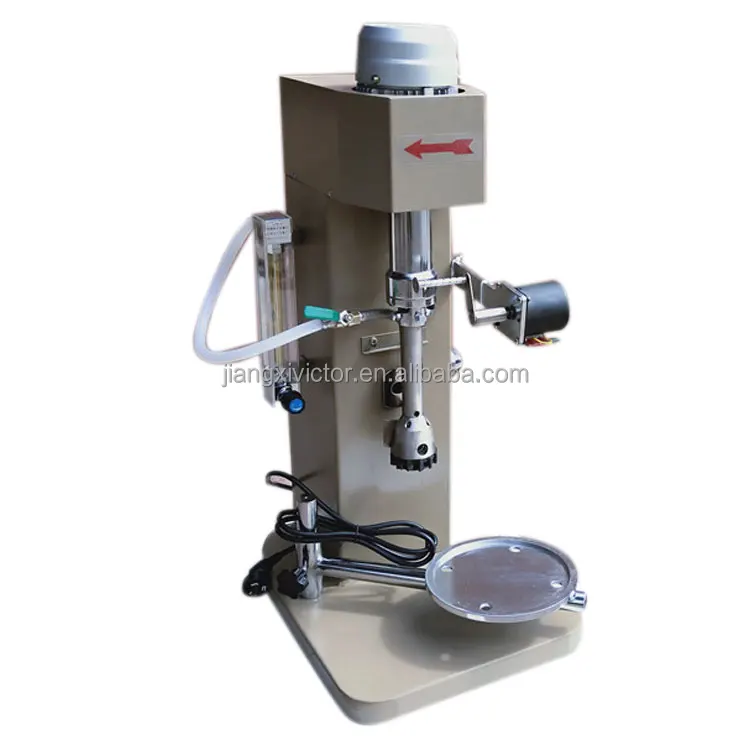

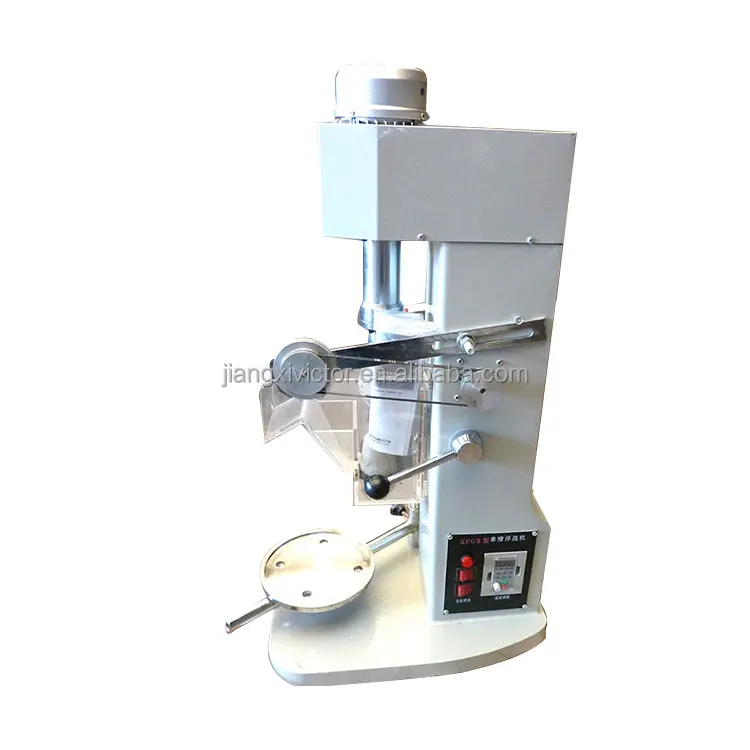

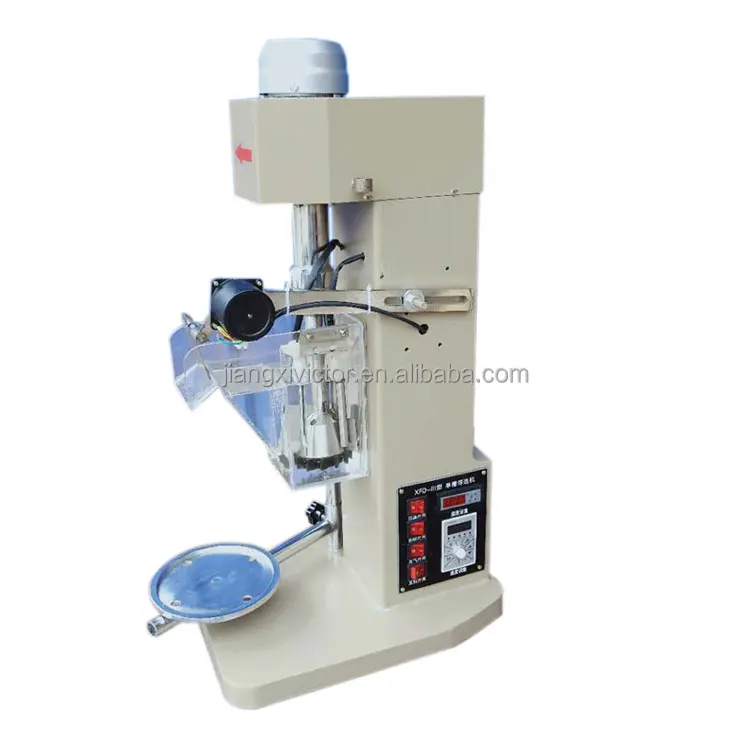

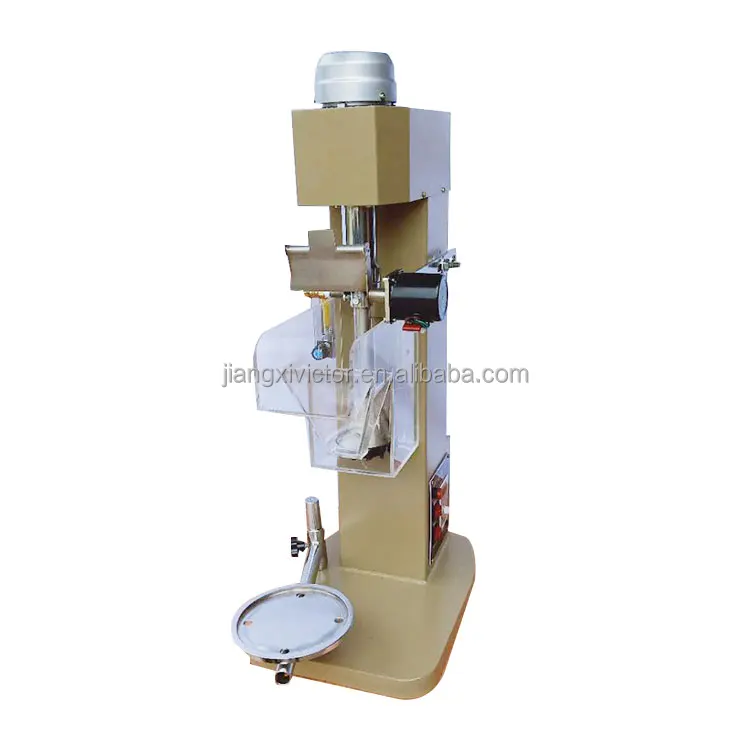

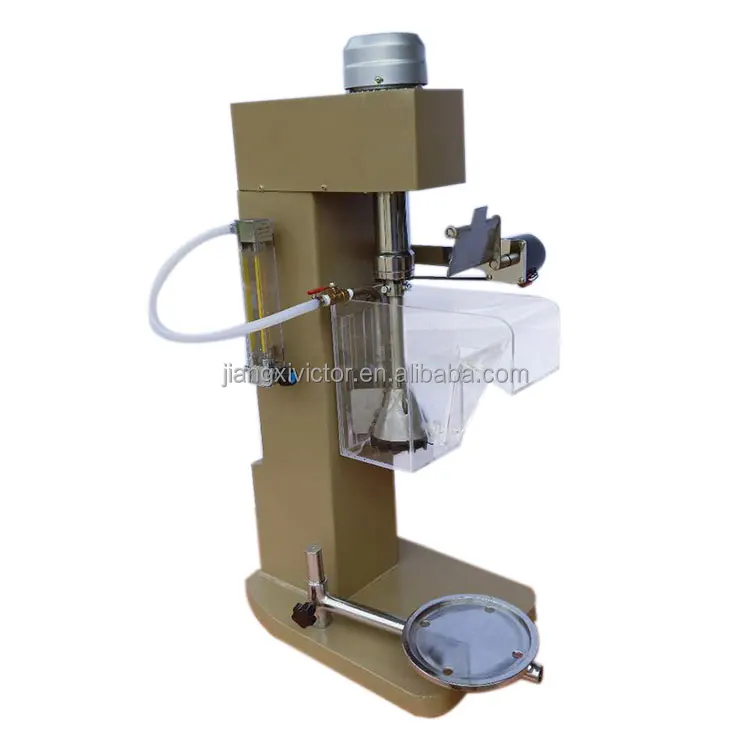

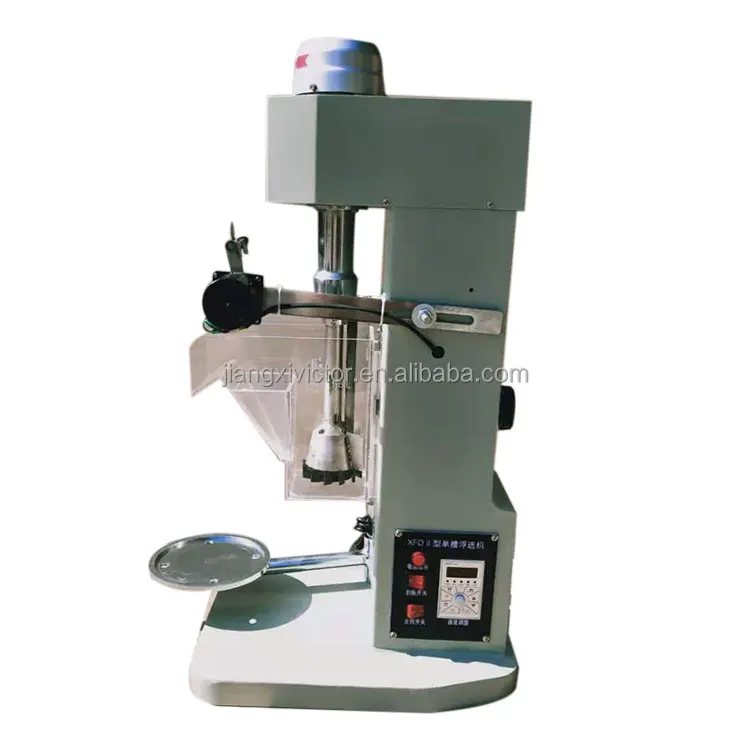

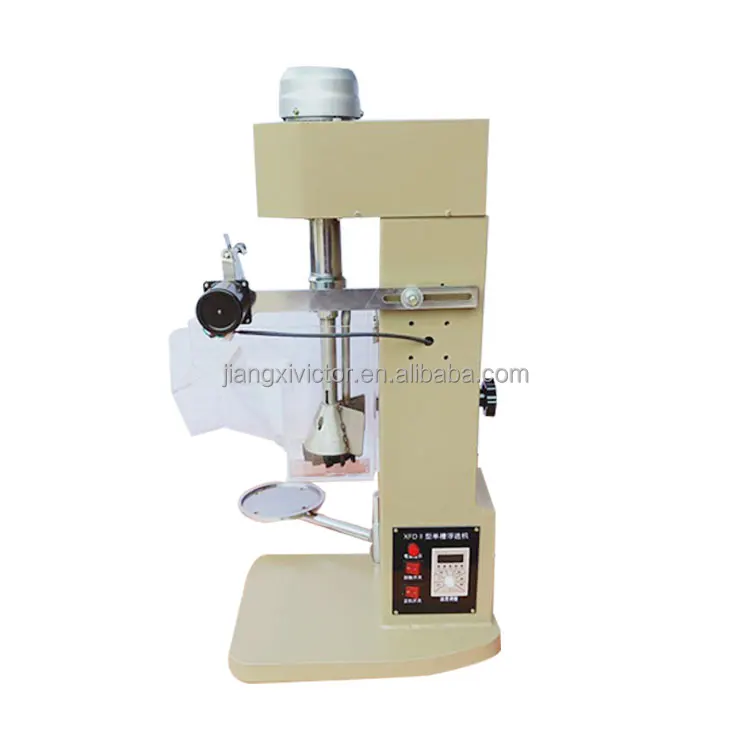

Lab Sing Groove Flotation Machine Introduction
Employing frequency conversation technology,continuously viable of vane wheel,digital display and accurate adjustment,the hanging slot laboratory flotation machine of XFG series is applicable to stirring,scrubbing,separation and selection of all small amounts of sample ore in labs research institutes and mining bodies involving geology,geology,metallurgy,building materials and chemical industry.
Working Principle
The flotation machine is driving by the driving band operated by the motor and this mill bring the centrifugation and negative pressure .in this condition ,enough ,air will mix with the slurry and at the same time the slurry and chemical will mix very well to make the mineral adhesion to the bubble.the height of shutter can be adjustment to scapte the usful bubble.
Technical Parameter
Technical parameters | Models | ||||||||||
WXFD-II-0.5 | WXFD-II-0.75 | XFD-II-1.0 | XFD-II-1.5 | XFD-II-3.0 | XFD-II-8 | ||||||
Capacity(L) | 0.5 | 0.75 | 1 | 1.5 | 3 | 8 | |||||
Rotary speed of impeller(r/min) | 0-2800 | 0-2800 | 10-2800 | 0-2800 | 0-1400 | ||||||
Impeller diameter (mm) | 45 | 55 | 60 | 70 | 100 | ||||||
Rotary speed of scraper(r/min) | 30 | 20 | |||||||||
Size of feeding(mm) | -0.2 | ||||||||||
Motor power(w) | 120 | 250 | |||||||||
Overall size(mm) | 400*320*740 | 400*320*830 | 650*400*900 | ||||||||
Weight(kg) | 30 | 32 | 38 | 80 | |||||||
Package & shipment
Package: FCL & LCL export standard container 20GP/40GP/40HQ.
FCL: main machinery gold shaking table in nude package and bulk in container, spare parts in wooden box or as your special requirement
LCL: machinery are packed in steel frame, base and deck are separately packed.
Shipping: by sea shipment, by air shipment or by courier express, it depends on you.
Payment Terms:
T/T or L/C is preferable.
T/T: 30% deposit and the balance before delivery
we will take photos for your products when finished and show you before delivery. Also keep you informed for any updated information including shipping before you receive it, to let you rest assured
Delivery time: shipped in 15 days after payment
Company Information
Victor is a large mineral processing manufacturer for 15 years history, with covering an area of 48,000 square meters and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installation team.
With 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.
Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc..
We are expert especially at mining separating and lab mining plant, main products as below:
Gold trommel wash plant
Shaking table
Spiral chute separator

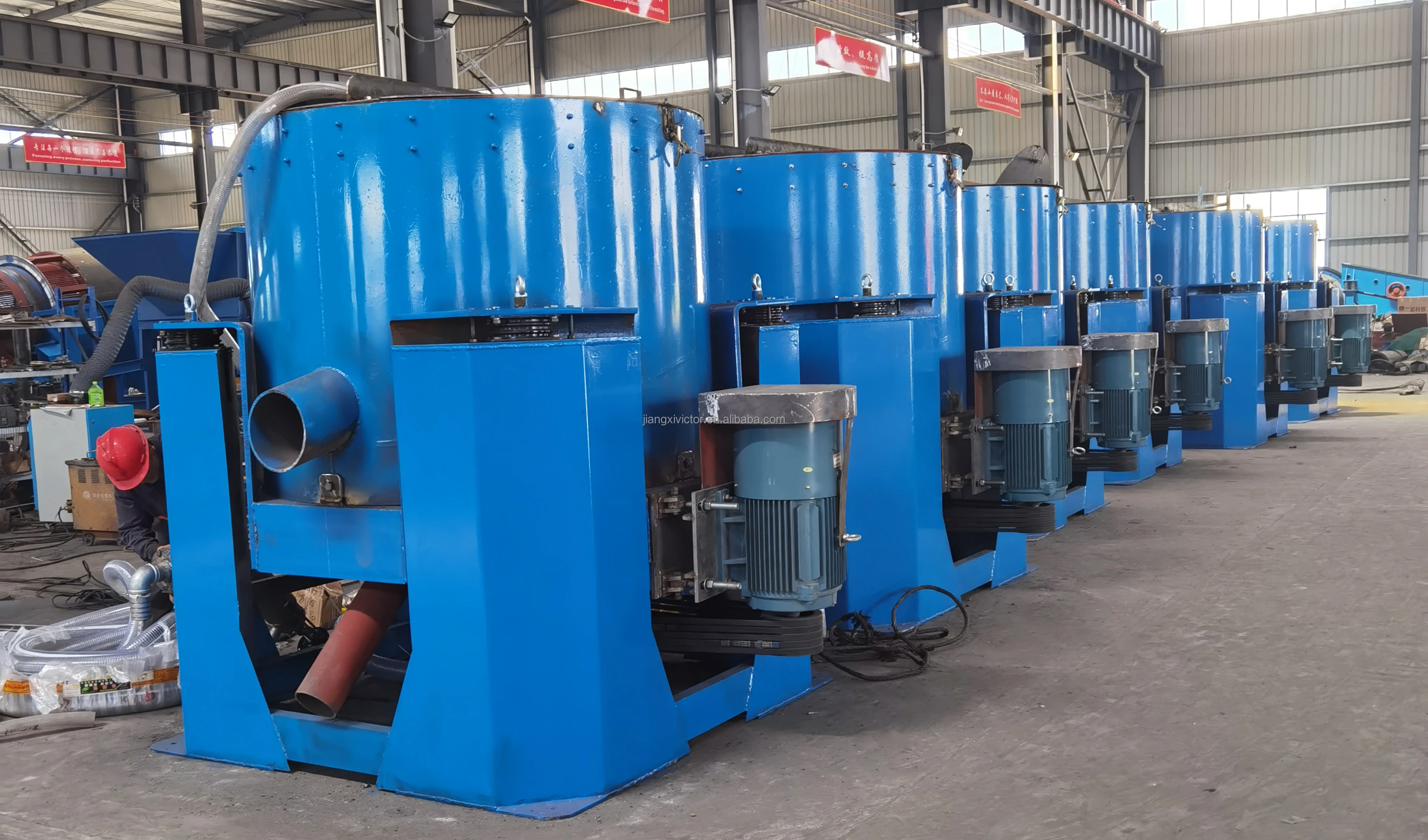

Centrifugal gold concentrator

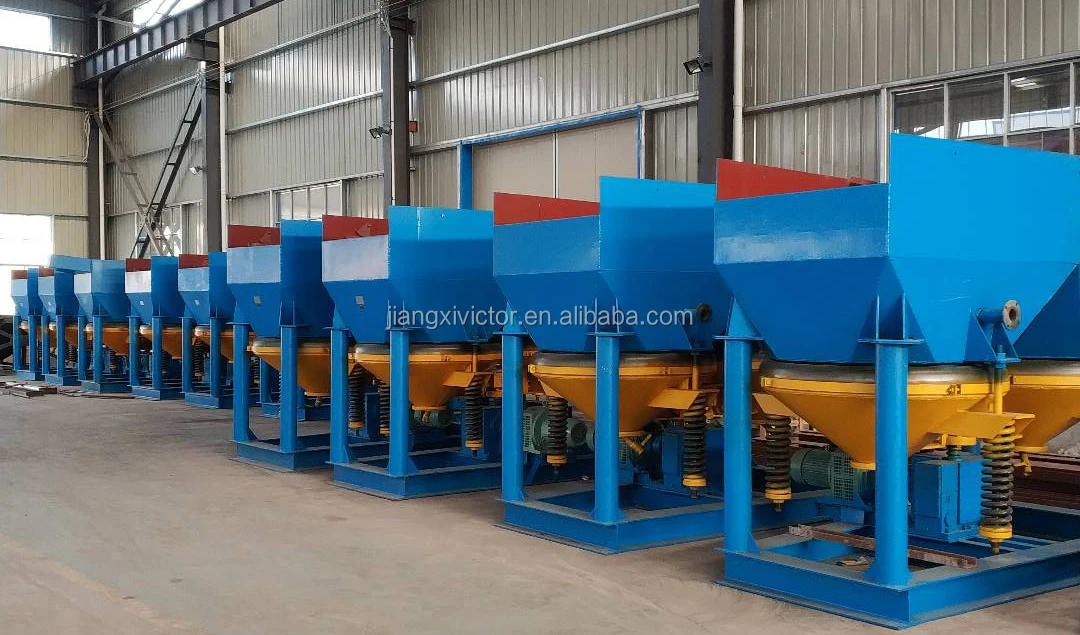

Jig separator machines
Waste recycling machine
Grinding and mill crusher

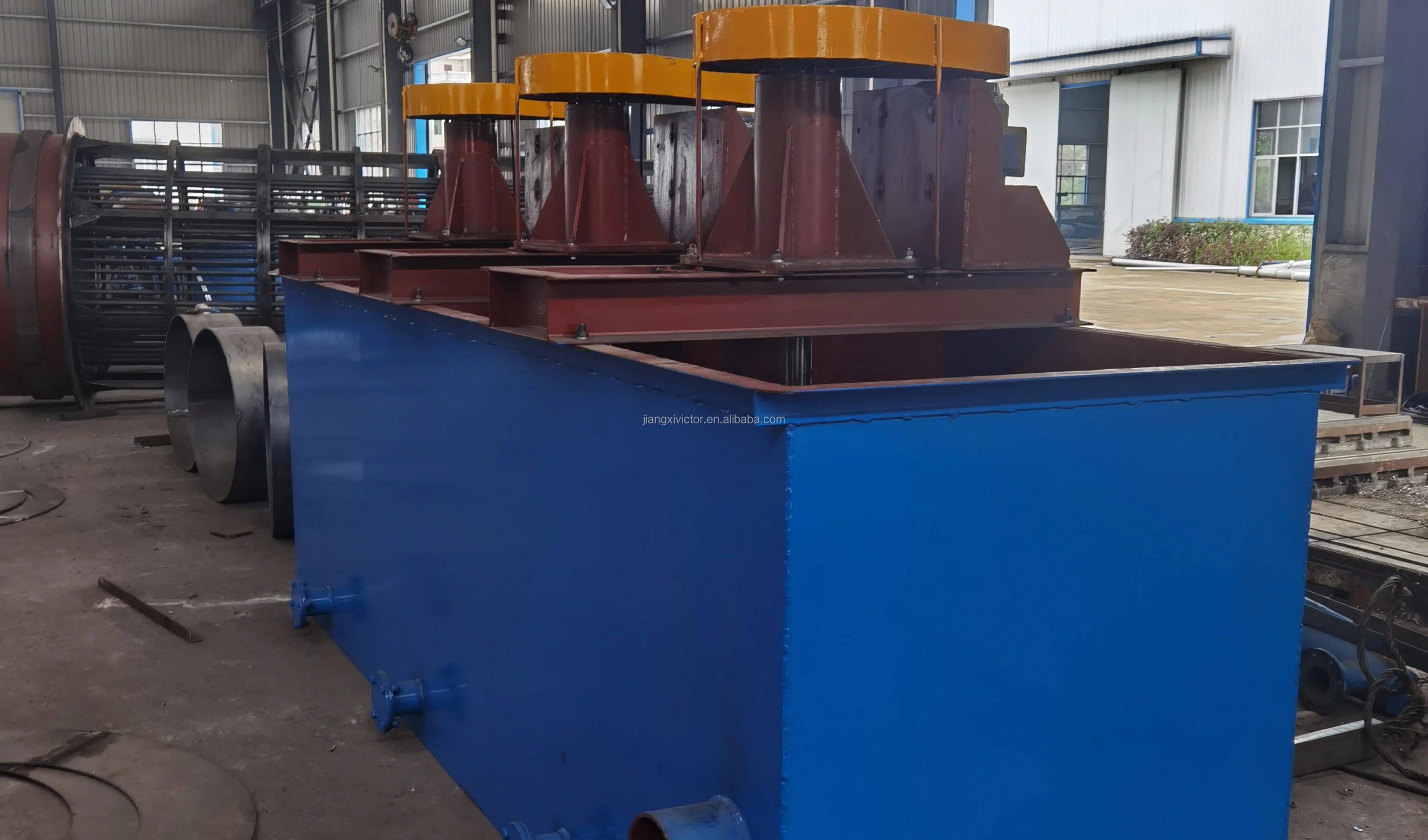

Flotation cell machine
Magnetic separator
Laboratory mining plant
TO VIEW MORE
\t\t\t\t\t\t\t\t\tOur service \t\t\t\t\t\t\t
Our service
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available at any time if you need.
