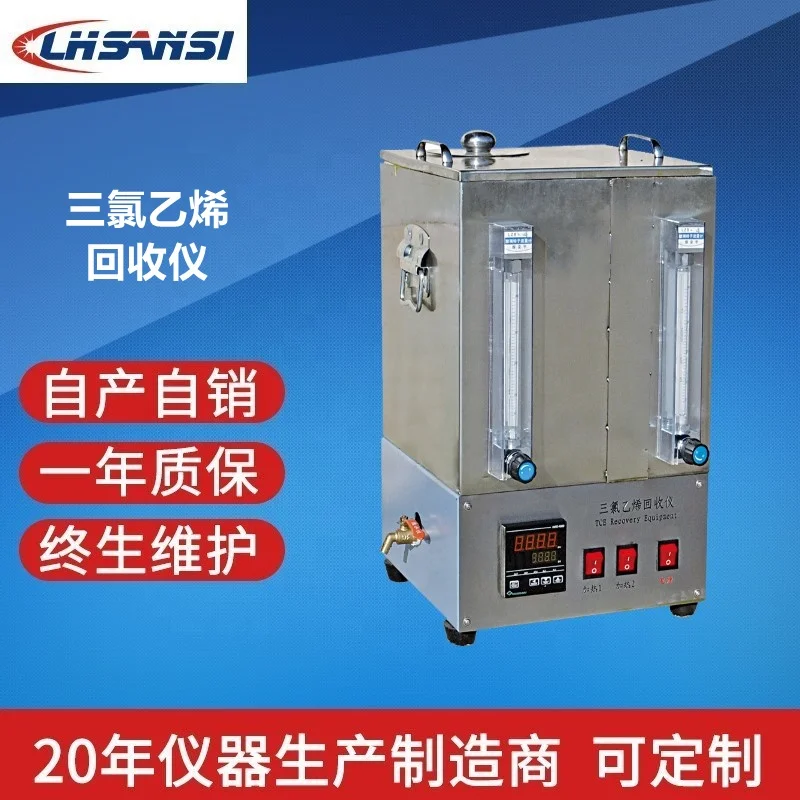

Asphalt/bituminous mixture Solvent recovery unit Asphalt Solvent Recycling Machine
- Category: >>>
- Supplier: Beijing Linghang Sansi Instrument And Equipment Co. Ltd.
Share on (1600617815892):
Product Overview
Description

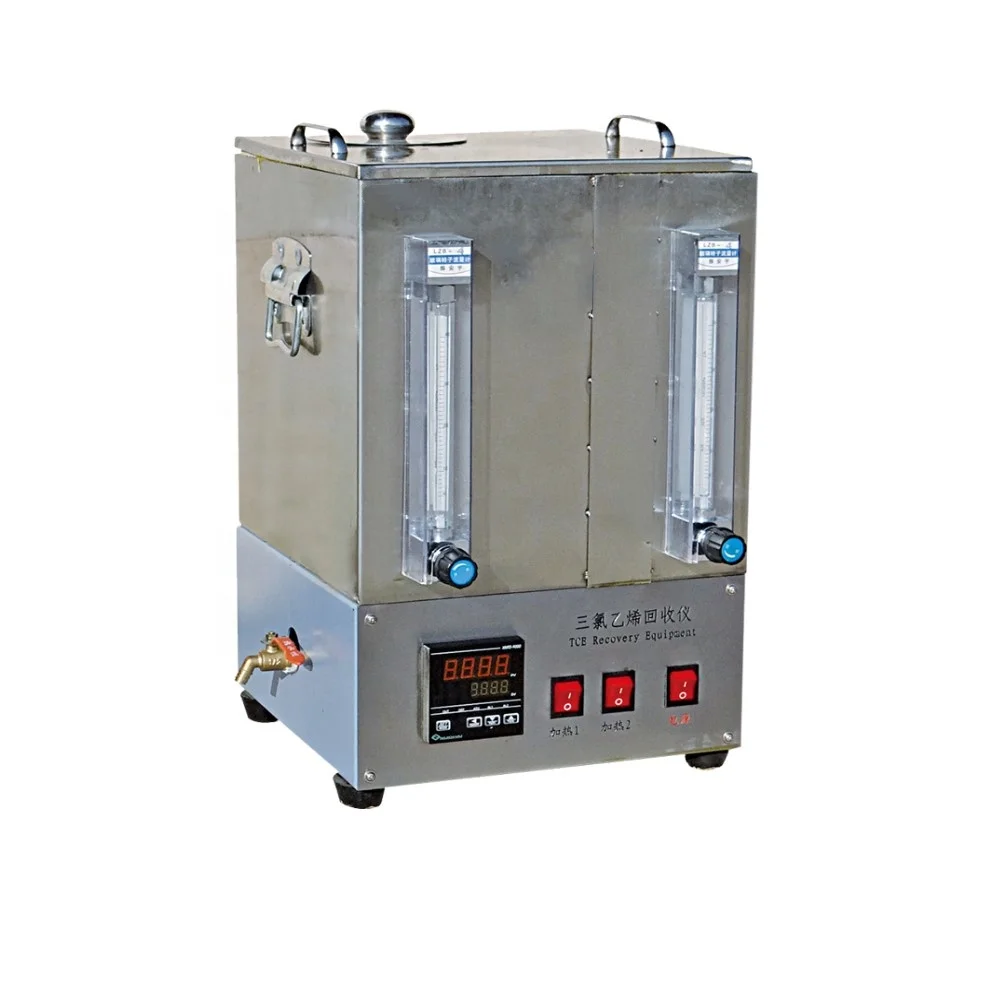

The trichloroethylene recovery instrument is used to recover the contaminated combustible soluble agent. It can be used together with the centrifugal asphalt mixture separator as a recovery device for trichloroethylene or benzene.
Main features of trichloroethylene recovery instrument:
This instrument has the characteristics of reasonable layout, compact structure, light weight, strong integrity, beautiful appearance, simple operation, high degree of automation. It can be applied to teaching, scientific research, road engineering construction supervision and other departments.
This instrument has the characteristics of reasonable layout, compact structure, light weight, strong integrity, beautiful appearance, simple operation, high degree of automation. It can be applied to teaching, scientific research, road engineering construction supervision and other departments.
1. Temperature control range: | 50 ~ 200 ℃ |
2. Power supply voltage: | AC220V / 50Hz |
3. Power: | 1000W*2 |
4. Recovery capacity: | 10L/h |
5. Overall weight: | 23.5kg |
6. Overall dimension: | 560×460×610mm |
7. Ambient temperature: | ≤ 35 ℃ |
8. Relative humidity: | ≤ 85% |
Operation method:
1. Turn on the power supply and connect the incoming and outgoing water with the distiller with a hose.
2. Pour the solution to be recovered into the distillation chamber, with a maximum capacity of about 10 liters at a time.
3. Close the main power switch through the cooling water, and the red power indicator lights up. Press the heating button, and the heating indicator lights up. The instrument starts to work and enters the heating state.
4. When the distillation of the instrument is completed, the main power supply should be cut off in time.
5. The operator shall observe the liquid level in the glass tube through the liquid level gauge. If he sees the asphalt liquid level, he shall open the shut-off door of the right water nozzle and drain the asphalt liquid completely. When the liquid level of the liquid level gauge on the left side reaches the upper limit, the water nozzle shall be opened in time to discharge the recovered solution.
6. The temperature switch in the temperature controller can be set according to the different boiling points of different solvents. The control temperature of this instrument has been adjusted (86 °) according to the temperature of trichloroethylene before leaving the factory. Do not change it at will. When making other asphalt solvents, you should first master and adjust the boiling point temperature.
Package delivery photoes
Careful packaging, eliminate transportation may cause problems
Specification
Q: How to choose the most suitable products?
A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-30 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change.
Q: How to install and use the product?
A: The product is shipped with an operating instructions and video of English version.
A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-30 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
Q: Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
Q: How about your warranty?
A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change.
Q: How to install and use the product?
A: The product is shipped with an operating instructions and video of English version.
