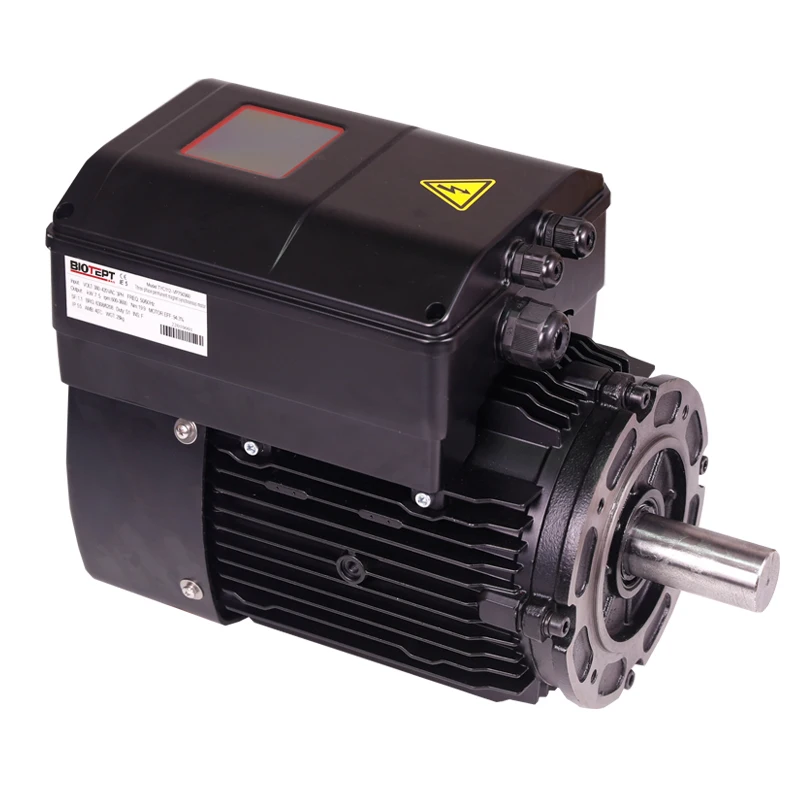

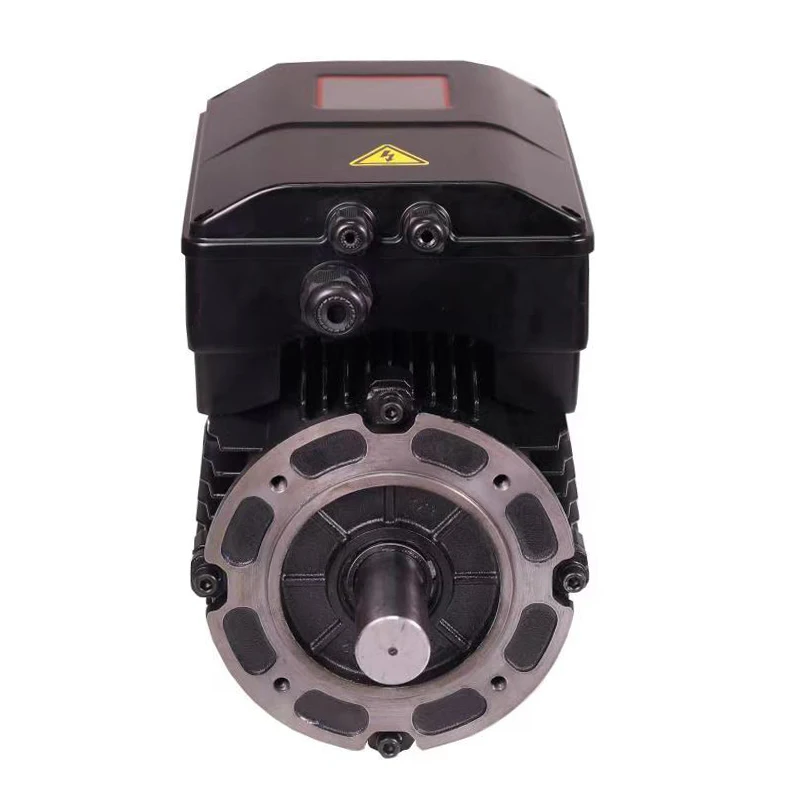

3 phase high efficiency Stainless Steel Vertical Multi stage Pumps permanent magnet AC motor
- Category: >>>
- Supplier: Ningbo Biote Mechanical Electrical Co. Ltd
Share on (1600617818870):
Product Overview
Description
PMAC motor for Stainless Steel Vertical Multistage Centrifugal Pump
BIOTE Permanent Magnet Motor for Vertical Stainless Pump series that integrates permanent magnet with sensorless vector drive is invented for pump industry. The features are as follows：
* High efficient design, motor ontology efficiency exceeds IE5, hight performance.
* High efficient design, motor ontology efficiency exceeds IE5, hight performance.
* Sensorless FOC vector drive technique, full closed loop control (pressure loop, speed loop, current loop) is stable and reliable.
* IP55 high protection level design, dustproof and waterproof.
* Integrate commonly used various interface ports of pump field, easy to replace.
* Customize pump special control panel, easy to use.
* Support panel, computer, App / Applet to set parameters, easy to operate.
* Support pump-pump or pump-motor to work together; offer parameterization pump-linking plan customized function.
* Integrative design, cmpact structure, light weight, nice appearance.
* Integrative design, cmpact structure, light weight, nice appearance.
Special motors for stainless pump
Dedicated to stainless steel vertical horizontal multistage centrifugal pumps for conveying tap water pump products for various media such as industrial liquids
Product Details
Item | Standards |
Input Voltage | Single-phase 200～240V, 50/60Hz |
Three-phase 380～415V, 50/60Hz | |
Power Range | Single-phase 0.25～3.2kw |
Three-phase 0.75～18.5kw | |
Rotation Rate Range | Rated 3600rpm, range 900～3600rpm |
Rated 3000rpm, range 900～3000rpm | |
Overload Capacity | 25℃, 1.1 times rated output long-time running |
25℃, 1.5 times rated output for one minute will overload | |
Service Temperature | -20℃～40℃ (If above 40℃, decrease by 1％ rated output for every 1℃.) |
Altitude | Lower then 1000m (If above 1000m, decrease by 1％ rated output for every 100m.) |
Protection | IP55 |
Integrated Pump Functions
* Customized pump special panel and control functions, all chinese display. * Integrate constant voltage, sleep, timing, constant speed and other operation modes.
* Support a variety of pressure sensors including voltage / current type.
* Common faults such as undervoltage / overvoltage, overheating, abnormal water pressure, water shortage, water leakage and other faults are directly displayed for viewing. Other faults are displayed through codes.

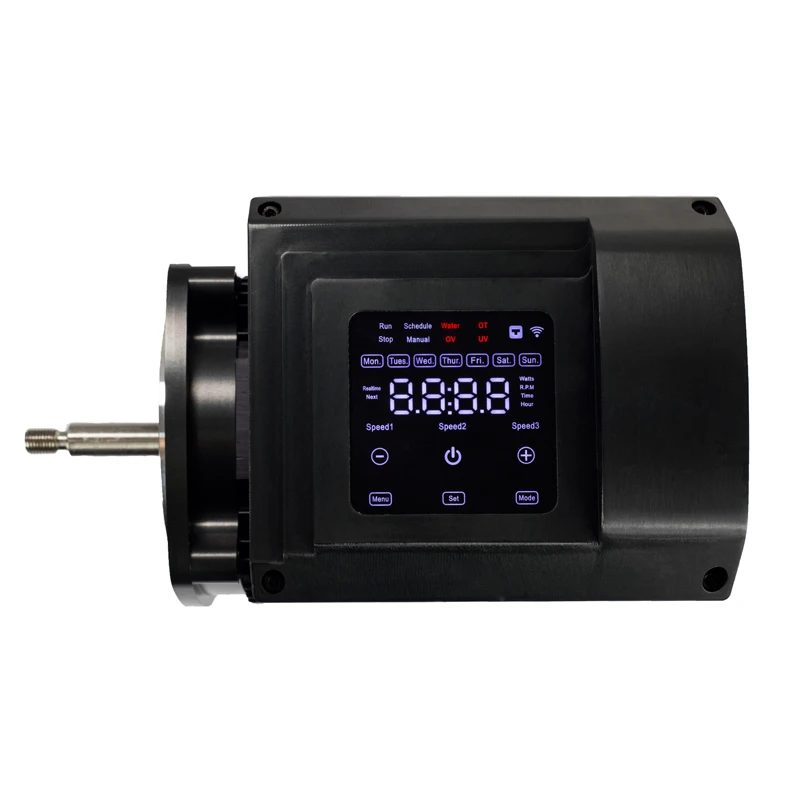

* Voltage, current, power, motor rotation rate and other information can be viewed directly on the panel.

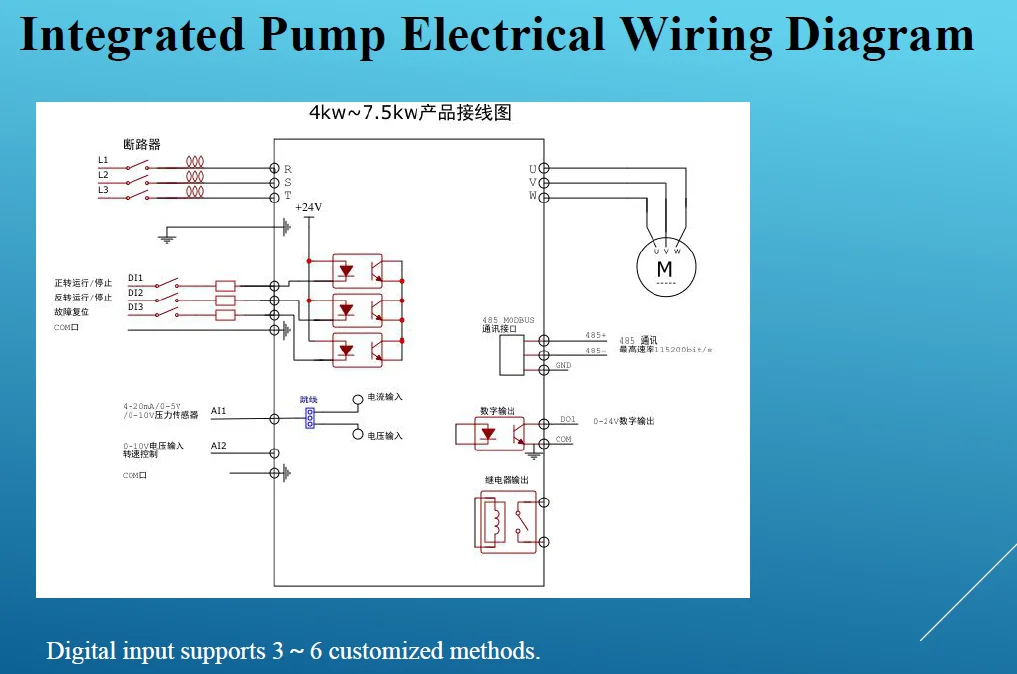

* WiFi / Bluetooth module can be selected; view the operation state and configure pump parameters through App / Applet. * Integrate digital input, relay output, RS485 / CAN and other interface ports.
* Support multi-pump, pump-pump to run together.
* Support manual / automatic screen lock function to prevent accidental touch.
FEATURES AT A GLANCE
High efficiency PMAC Motor. Customize pump special control panel, Support panel, computer, App / Applet to set parameters, easy to operate. Voltage, current, power, motor rotation rate can be viewed
The PM AC Motor features a powerful and super-efficient IE5 and IP55 electric motor. The motor adopts a pure copper motor to achieve stable performance and ensure a long lifespan.

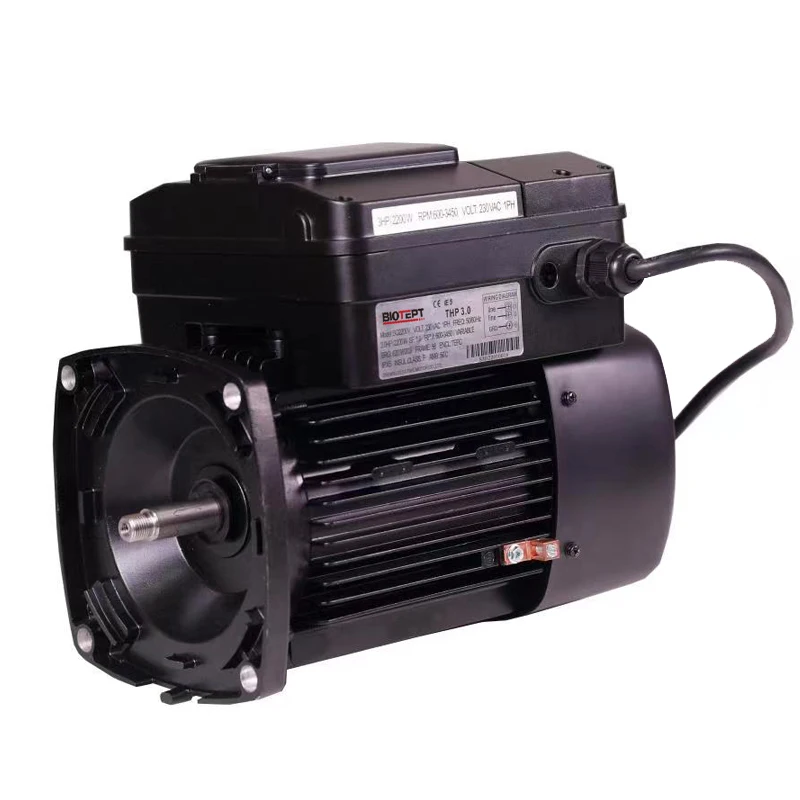

Single and three phase motor
High strength Alumimium housing frame

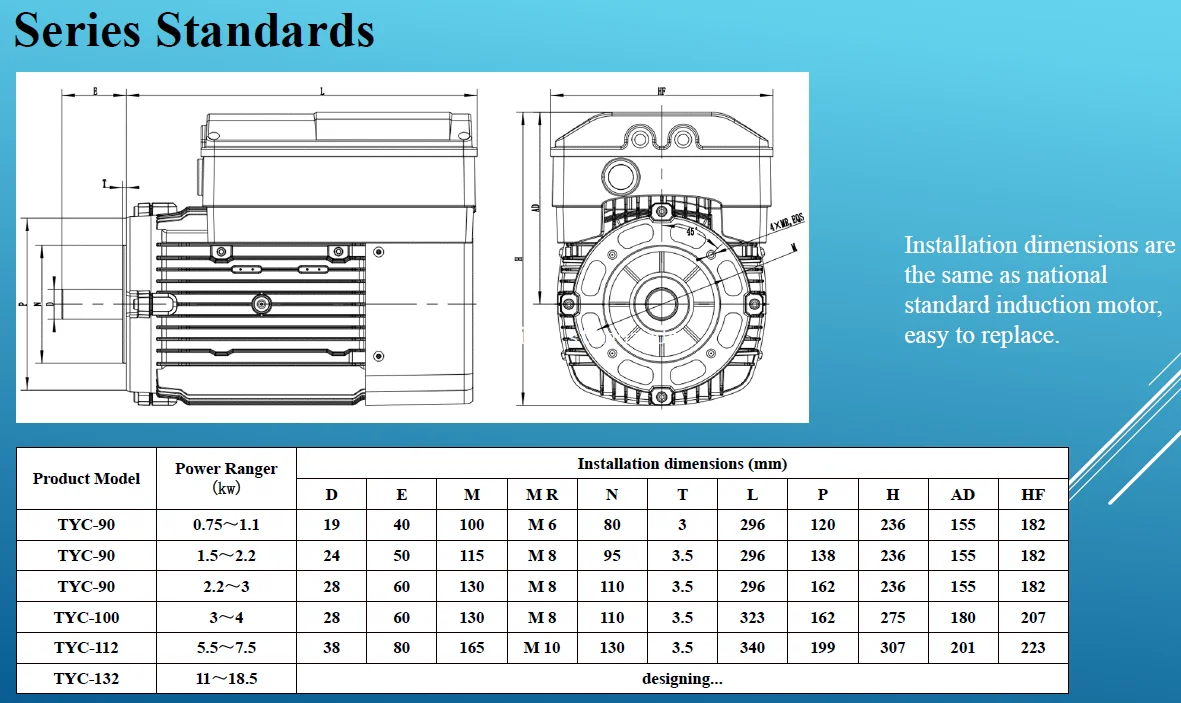

Installation dimensions are the same as national standard induction motor
High strength Alumimium housing frame
Installation dimensions are the same as national standard induction motor
Support pump-pump or pump-motor to work together, pump-linking plan customized function. Common faults such as undervoltage / overvoltage, overheating, abnormal water pressure, water shortage, water leakage and other faults are directly displayed for viewing. Other faults are displayed through codes.
Parametric Model + Time Stepping Finite Element + Full Parameter Optimization, Permanent Magnet Motor Design Method, Based on FEA Harmonic, Cogging Torque, Torque Ripple, Electromagnetic Force Wave Analysis and optimization
The protection modes combine software and hardware, including overvoltage, undervoltage, overcurrent, overtemperature, communication fault, etc, Small harmonic of current waveform and stable three-phase balance are conducive
Company Information
Our company was founded in 2007, and possesses advanced production equipment and automated assembly lines. Our main products include AC motors, DC motors and other accessories, electronic components, plastic product materials, and hardware products. We have more than 50 Professional and technical personnel of various projects, have strong motor design and production & processing capacity.
Our annual production of motor is 250,000 units, and of motors is 200,000 sets, under a reliable quality guarantee system.Our sophisticated products are praised by the majority of domestic and overseas customers, enjoying a good reputation.
"Quality first, customer first" is our purpose. We sincerely welcome friends from all over the world to cooperate with us andbuild a better future together!
Our annual production of motor is 250,000 units, and of motors is 200,000 sets, under a reliable quality guarantee system.Our sophisticated products are praised by the majority of domestic and overseas customers, enjoying a good reputation.
"Quality first, customer first" is our purpose. We sincerely welcome friends from all over the world to cooperate with us andbuild a better future together!
