Product Overview

Description



Product Description

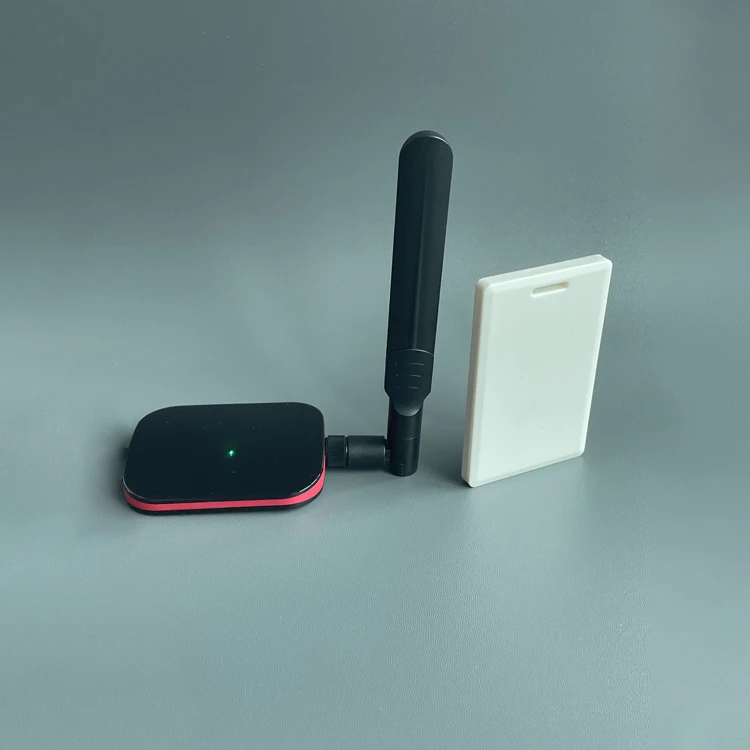

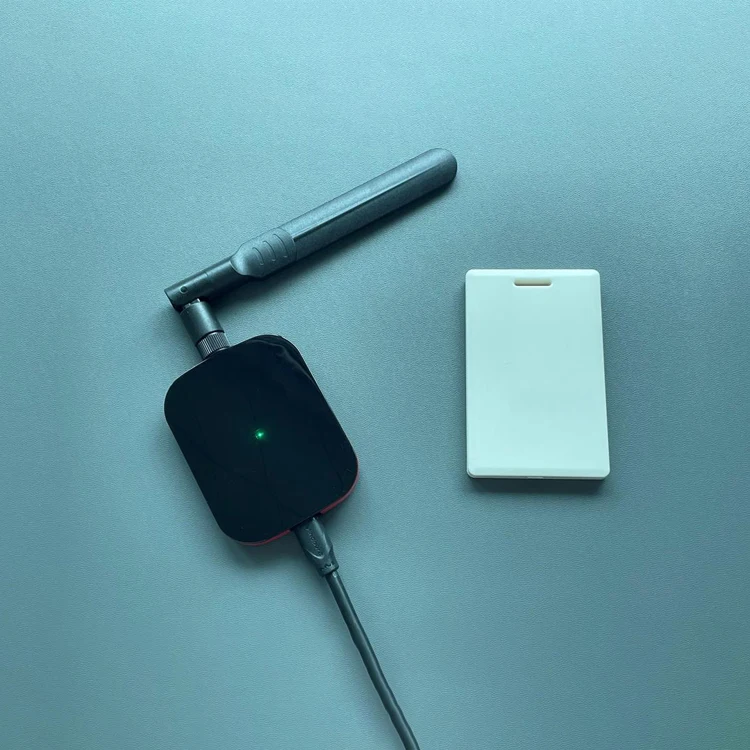

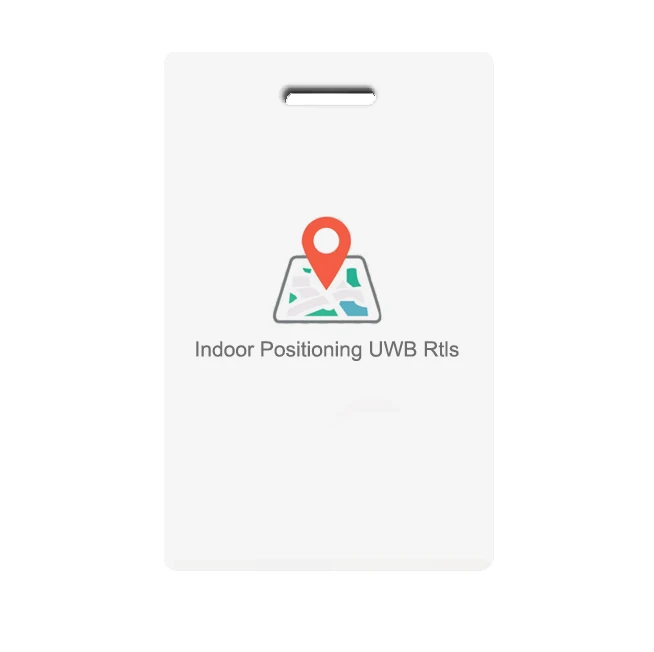

UWB Tag Rtls Positioning System AOA Ble Beacon for Assets Tracking

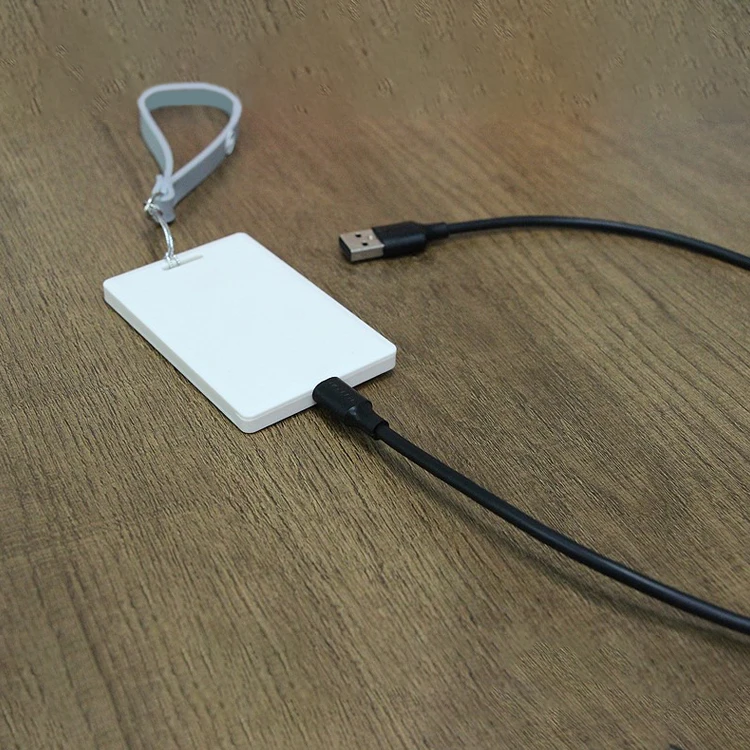

UWB Tag Beacon looks just like a company ID card, can be worn around neck by employees and workers in workplace. Our indoor positioning system is a low energy beacon and low cost,with UUID,Major,Minor programmable. The error can be within only 1 m in open space. UWB enables it with high performance in distance accuracy and BLE makes it work in super battery saving mode.


UWB Tag integrates two parts, Bluetooth 5.0 and UWB. Through Bluetooth 5.0, some parameters of the product can be set and modified, and it also supports adjusting the frequency of positioning to reduce the power consumption and increase the service life of the product. Under the default settings, it can be used for about 200 days after a single full charge.


Details Images






Product Paramenters


Item
Values
BLE chip
Nordic 52832
BLE Version

BLE 5.0
UWB chip
DW1000 chip
BLE range
80 meters(262 feet)
UWB range
50meters

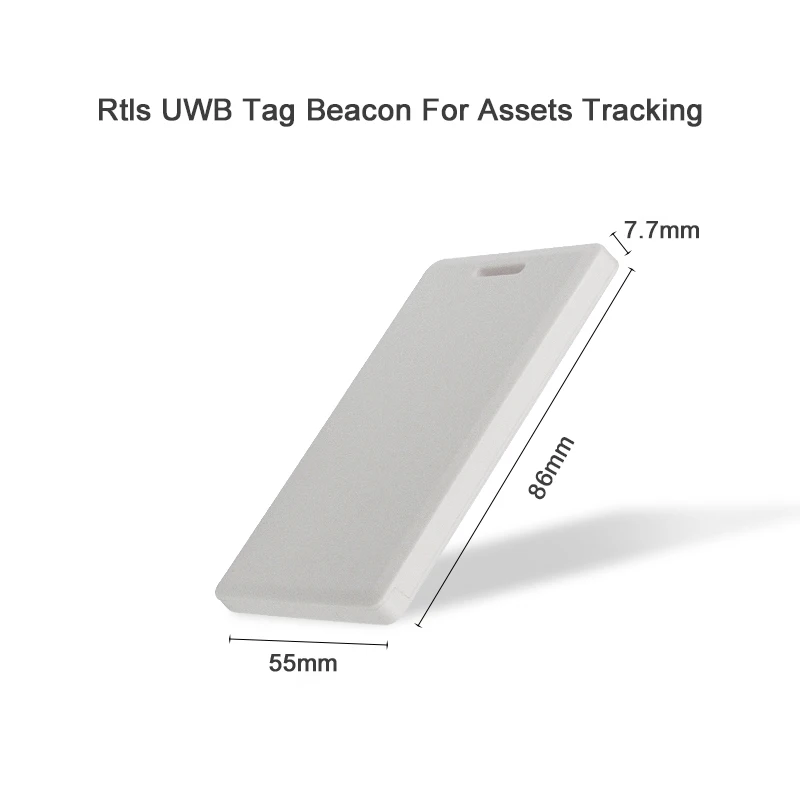

Size
86 mm* 55 mm* 7.7mm
Battery type
Rechargeable battery 1000mAh
Battery life
about 6 months based on locate every 10 second
Sensor
Accelerometer
Features
LED, Button，Buzzer
Color
White
Operation temperature
-30 to 60℃
Storage temperature
-30 to 60℃
Frequency range
2.402GHz-2480GHz
Tx power(max)
4DB
Rx sensitivity
+1.1dBi
Antenna gain

+1.1dBi
LED

RGB
Weight
81g
Water/dust proof
N/A
Type approval
FCC, CE, RoHS, TELEC
Tx power range
 -40DB to 4DB
Battery level notification
Yes
Custom Data
Yes
Optional
N/A


working flow




There are some points need to be pointed out:
* Each tag can measure the distance from the surrounding Gateway.
* Each Gateway can also get the distance between each Tag and itself.
* Gateway can transmit the distance information to the Server through the WIFI network.
* Tag’s position calculation will be done on the server side.


Product Application




It is designed for real-time positioning of people, equipment and materials. It can be used for indoor map navigation in airports, indoor navigation in shopping malls, providing consumers with finding stores, etc. In terms of service and personnel management, you can view the real-time location of the positioning object, which is convenient for scheduling management, post management and workflow optimization.



Features:

* BLE & UWB technology enabled.

*1m distance accuracy .

* LED and sound alarm.

* Add/Delete white list.

* ON/OFF button.
