Product Overview
Description
High quality electric motors IP66 Waterproof 3-25KW power for all Electric vehicle and 3wheel tricycles ejeepney electric vans passenger etrike and passenger vehicles electric cars

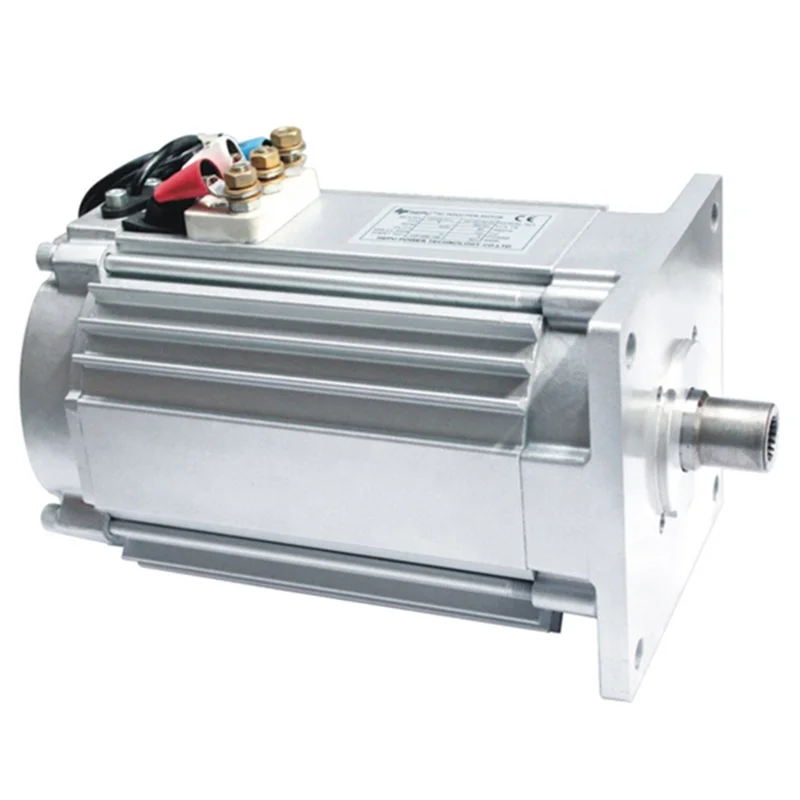

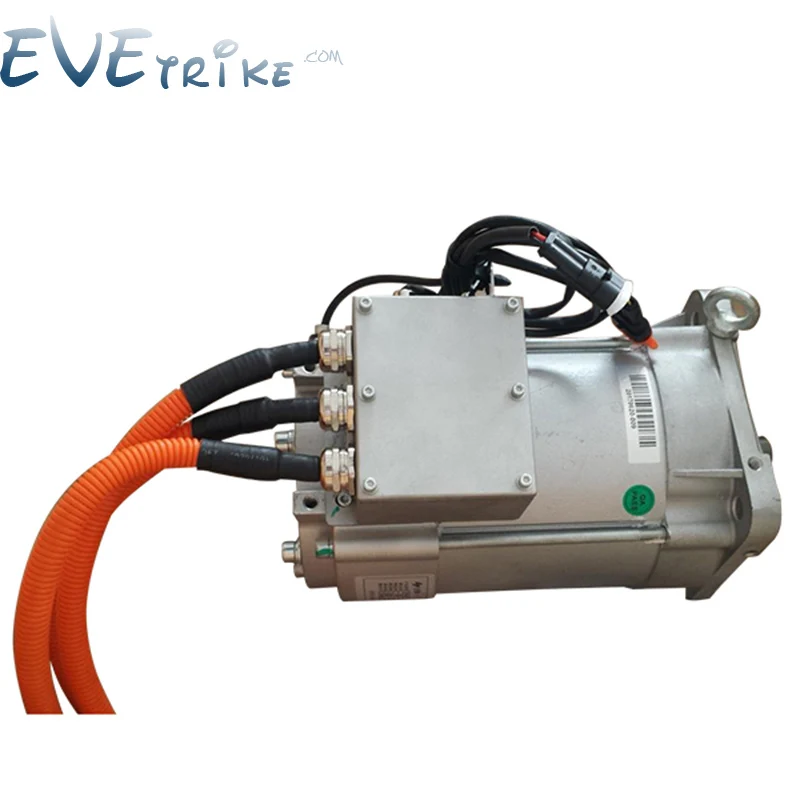

AC induction motor,
Rated power: 5KW
Max power: 10KW
Support vol.: 48V/60V/72V
Rated speed: 3000rpm
Max speed: 6800rpm
Rated current: 130A
Waterproof: IP66
Ambient temperature: -15 degrees to 55 degrees
Cooling method: wind natural cooling
Connection mode: 18teeth internal spline with 140*140mm square flange
-------------------------------------------------------------------------------------

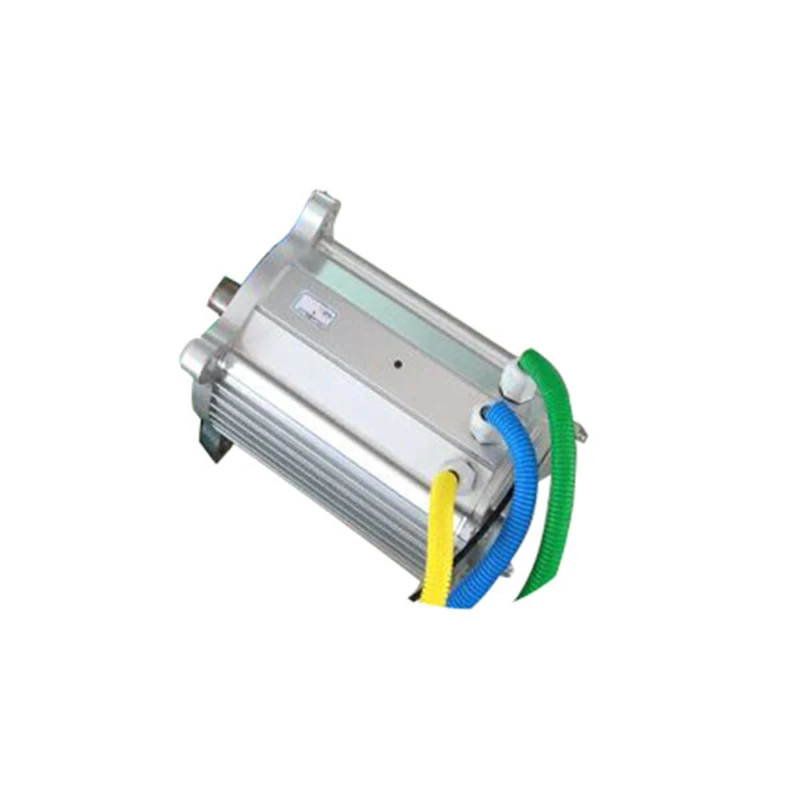

New Generation PMSM synchronous motor,
Rated power: 4KW/5KW
Max power: 8KW/10.2KW
Support vol.: 48V/60V/72V
Rated speed: 3000rpm
Max speed: 6500rpm
Rated current: 90A/120A
Waterproof: IP66
Ambient temperature: -15 degrees to 55 degrees
Cooling method: wind natural cooling
Connection mode: 18teeth internal spline with 140*140mm square flange
----------------------------------------------------------------------------------------------------------------------------------------------------------

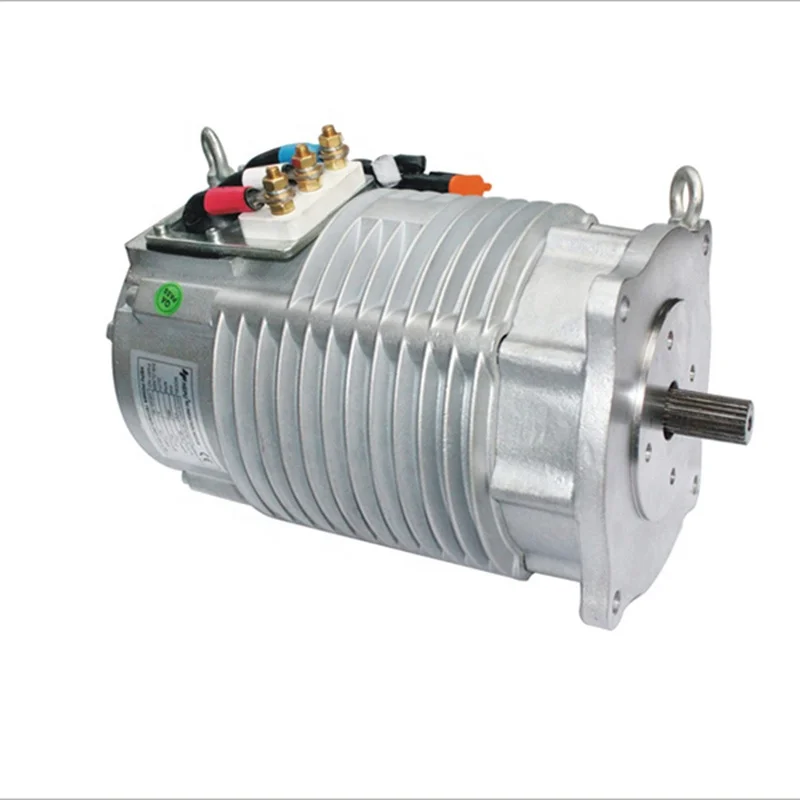

AC induction motor,
Rated power: 3KW
Max power: 6KW
Support vol.: 48V/60V
Rated speed: 3000rpm
Max speed: 6800rpm
Rated current: 85A
Waterproof: IP66
Ambient temperature: -15 degrees to 55 degrees
Cooling method: wind natural cooling
Connection mode: 18teeth internal spline with 140*140mm square flange
