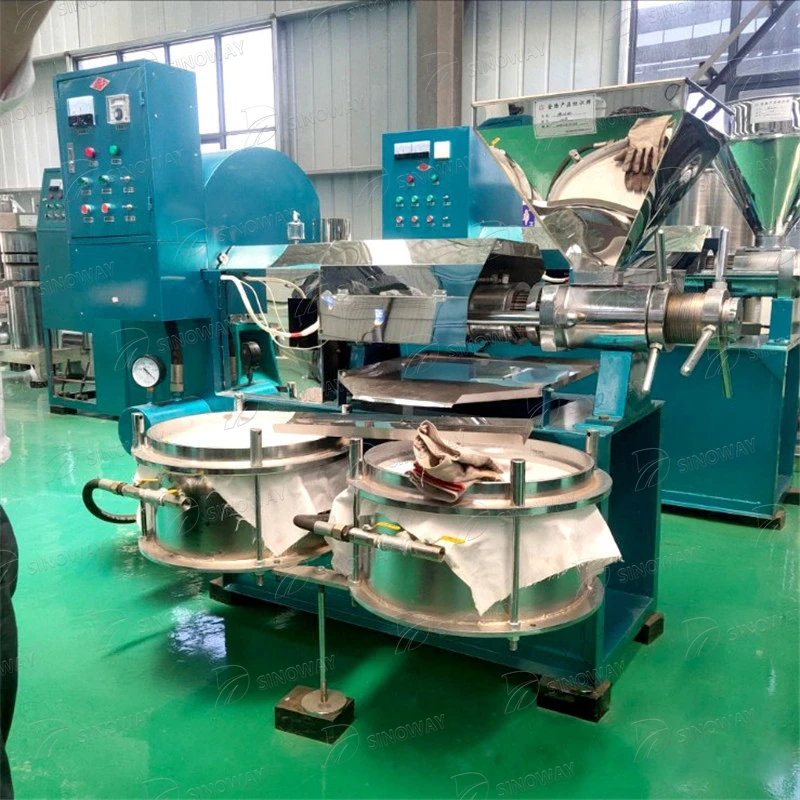

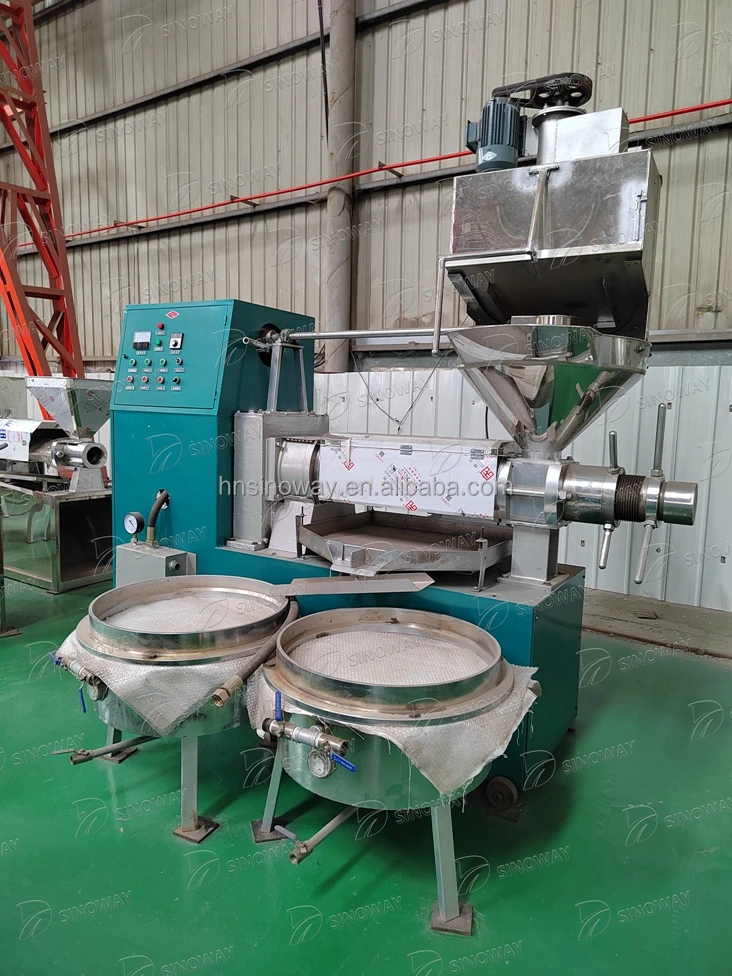

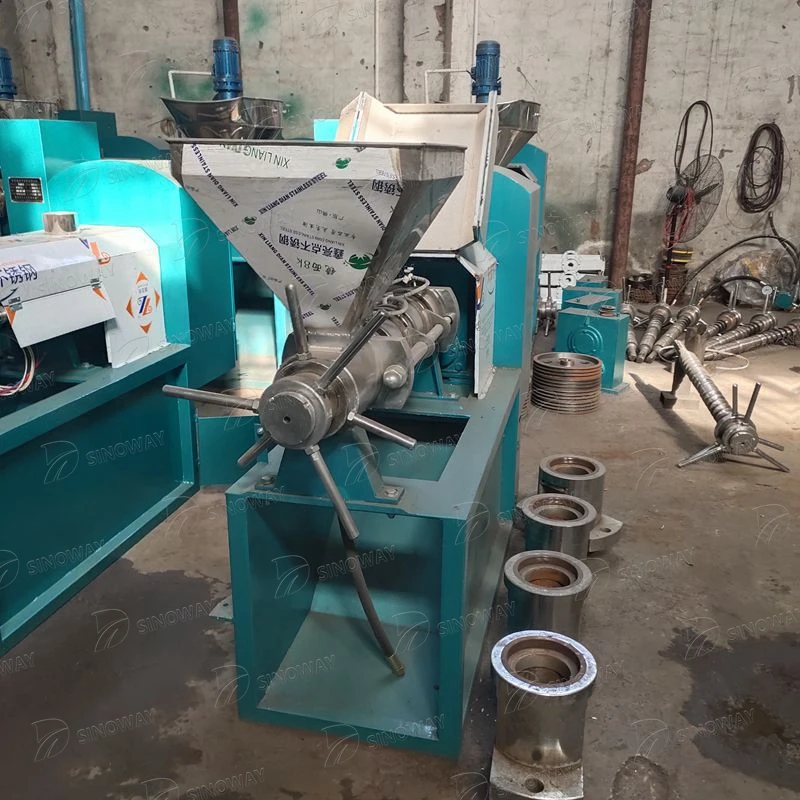

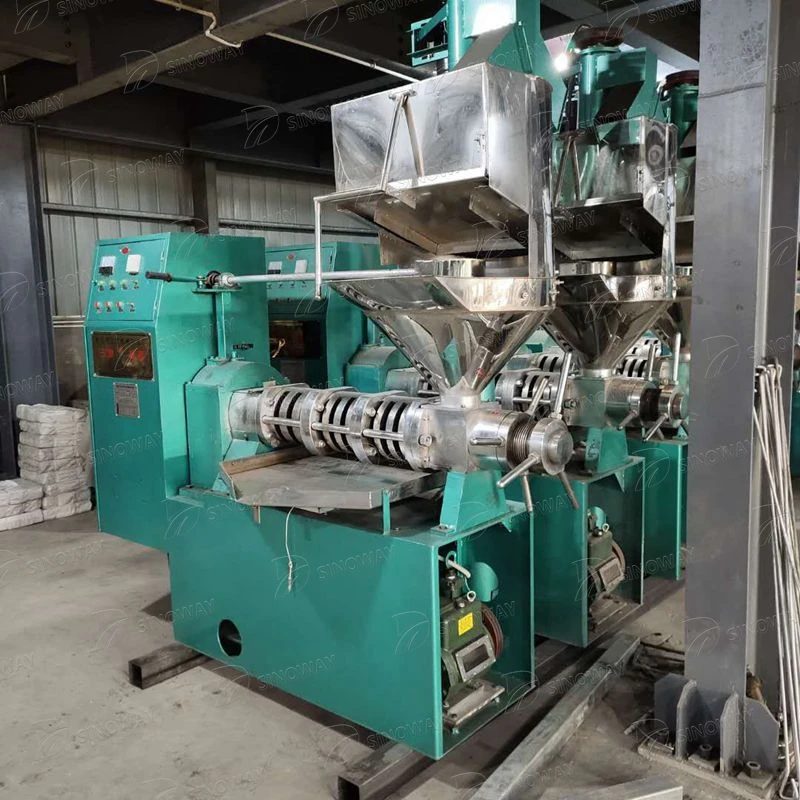

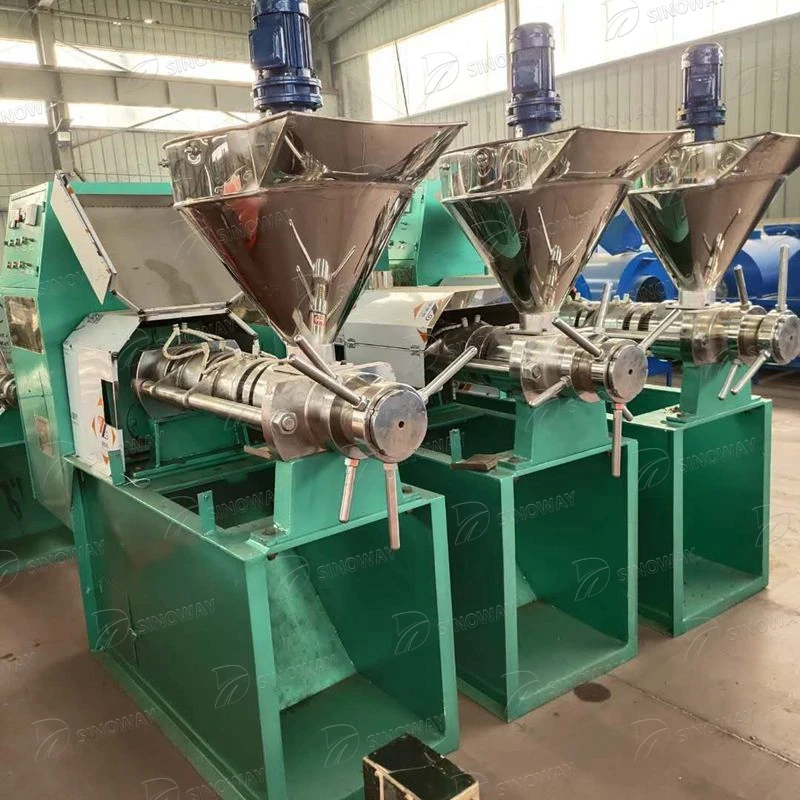

Mini 6yl 100 350kg/h palm thresher sunflower mustard peanut oil mill cold press oil machine for sale
- Category: >>>
- Supplier: Henan Sinoway Trading Co. Ltd.
Share on (1600617838690):
Product Overview
Description
The full set of oil press equipment is suitable for the oil pressing work of soybean and rapeseed, the oil extracted can be squeezed out of low cholesterol edible oil, the grain seed can be squeezed out of oil, oil residue (also known as "grain cake") can be used as protein feed. Sunflower tray and straw can also be used accordingly.
Product Description

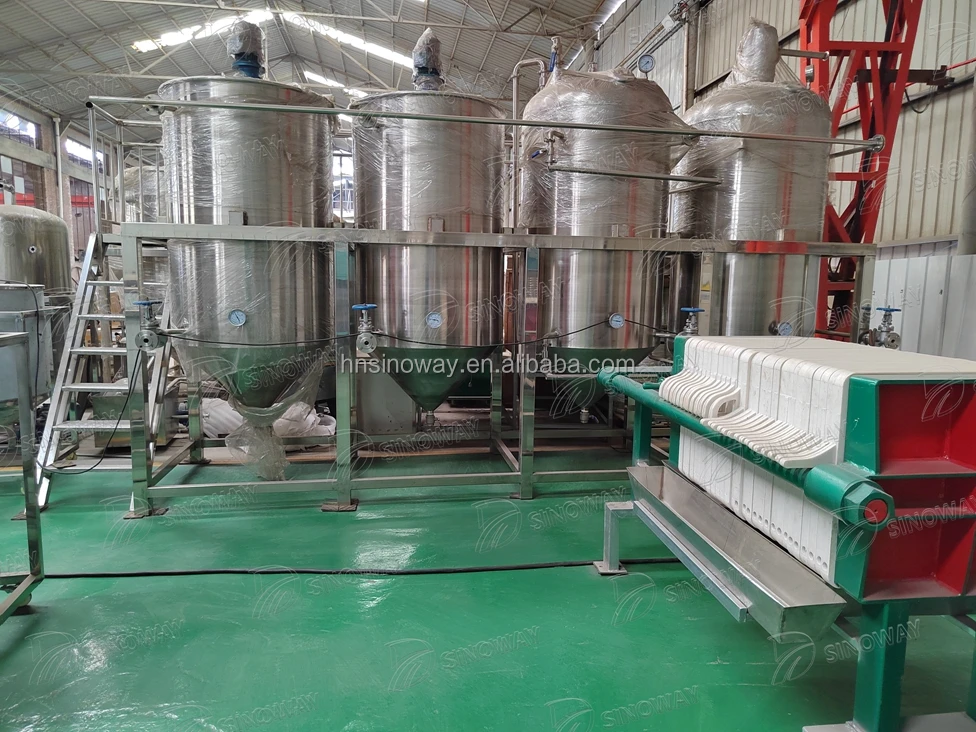

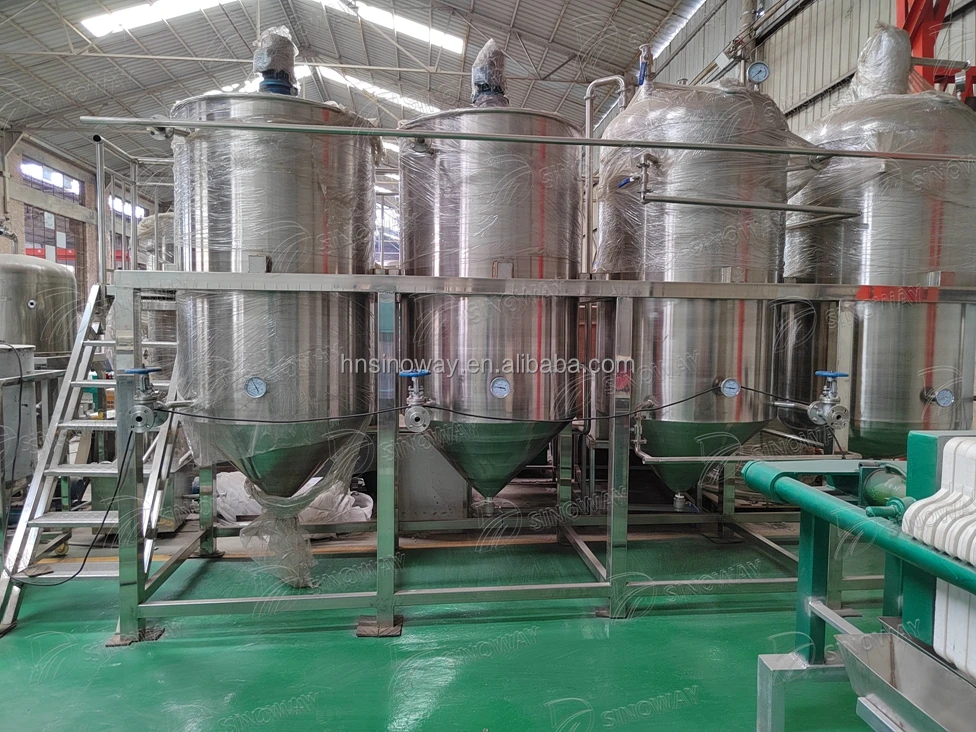

Small 200kg/h sunflower mustard palm kernel cooking oil milling oil refining oil expeller extraction line machine
Product details

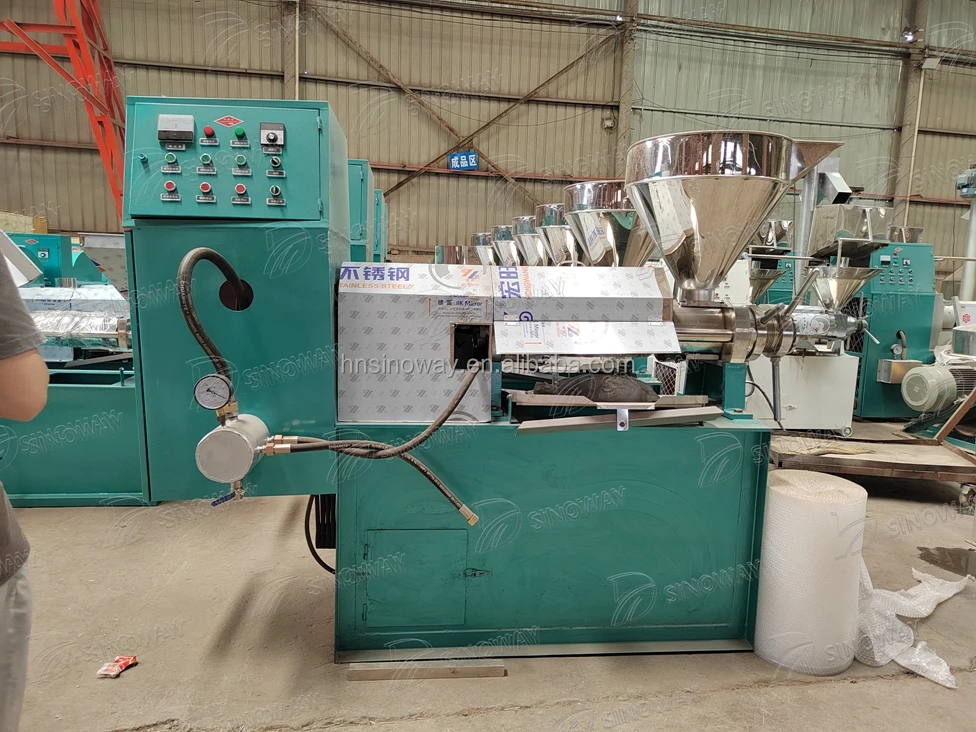

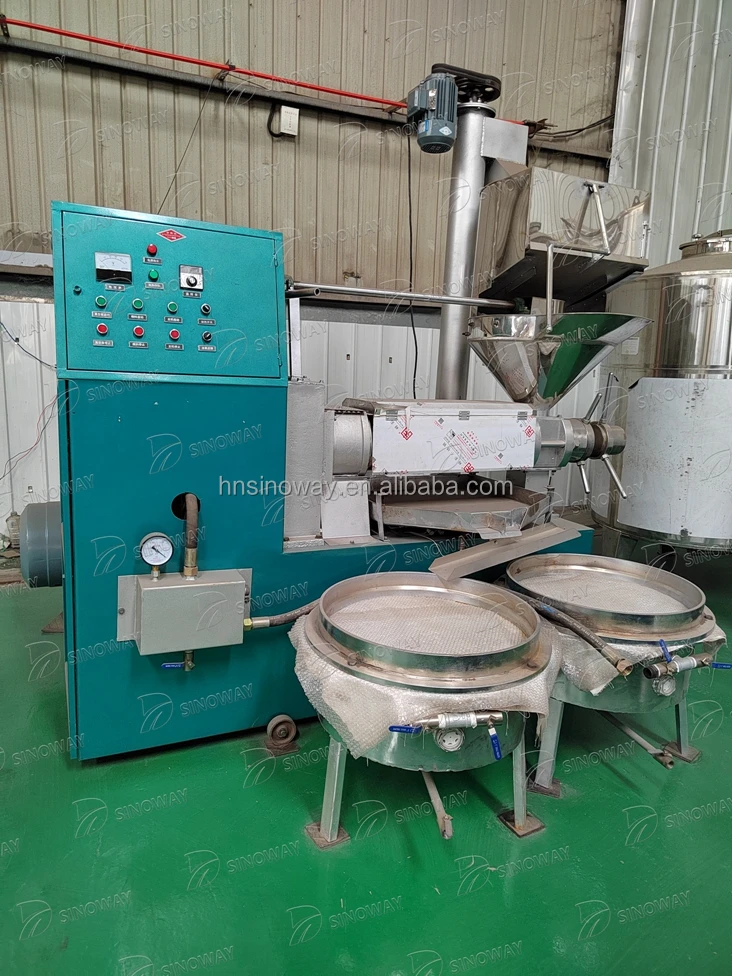

working principle
When the oil press is running, the processed oil enters the press chamber from the hopper. By pressing the spiral to make the material embryo continuously pushed in, press. Because the material embryo is in motion in the press chamber of the oil press, under the condition of high pressure in the press chamber, there is a great friction resistance between the material embryo and the press screw, and between the material embryo and the press chamber so that the friction
between the material embryo and the micro material can be generated, resulting in relative motion.On the other hand, because the root garden of the squeeze screw diameter is gradually thickening, pitch is gradually reduced, so when the squeeze screw rotation, thread hard material embryo can advance forward, and can turn outward, at the same time close to the squeeze screw thread surface material layer also with the squeeze shaft rotation.In this way, each particle of the material embryo in the press chamber
does not move in the same direction with the same velocity, but there is also arelative motion between the particles.Squeezed oil produced by friction heat and to satisfy the operation on calories, helps to material in the embryo protein denaturation, destroyed the colloid, increased the plastic, but also reduces some oil viscosity easy exhalation, thus increasing the spiral oil press, to squeeze out the oil from material, and article from
row gap and the discharge gap flow out.
row gap and the discharge gap flow out.
Specification
model | SYLX-70 | SYLX-100 | SYLX-125 | ||
Squeezer diameter | 70mm | 100mm | 125mm | ||
Squeezer speed | 35r/min | 37r/min | 35r/min | ||
diameter of the circle | 72mm | 102mm | 128mm | ||
power | The host | 3kw | 7.5kw | 15kw | |
Vacuum pump | 0.75kw | 1.1kw | 2.2kw | ||
The heater | 2.4kw | 2.4kw | 3kw | ||
Handling capacity (sesame) | 45-70kw/h | 150-230kw/h | 300-400kw/h | ||
The weight | 320kg | 1100kg | 1500kg | ||
Installation dimensions | 1450 x 870 x 1180mm | 1800 x 1200 x 1550mm | 2300x 1300 x2200mm | ||
Processing materials
Automatic oil press is suitable for rapeseed, peanut, soybean, canopy, rapeseed, sesame, tea seed, sesame, olive, walnut meat, corn germ, rice bran, tea seed, safflower, seabuckthorn seed, neem seed, rubber seed, Chinese prickly ash seed, tomato seed, -, grape seed, flax seed, evening primrose, chilli seed, castor, citrus seeds, cocoa, coffee beans, basil, almond, peach kernel , rose fruit and other plant oils.
Company Profile
Henan Sinoway Trading Co., Ltd is specialized in the R&D and production of the machines, Such as Food Machine, Agriculture Machine, Construction machine, Crusher and so on. We have good sales markets in Africa, North America, East Europe, East and South Asia and other countries and regions. We have professional engineers and salesmen to serve all of our customs. We have the advantage to make the best solution to meet clients' specific requirements. We focus in good quality and good service to built up and maintain long term business relationship with worldwide clients. Based on strong technical force,we are able to grow and develop well. We wholeheartedly welcome customers from both at home and abroad to visit us to discuss cooperation and seek common development. We believe our company is your most reliable partner and friend.
warehouse unloading
Hnsinoway Machinery International Exhibition Hall, located in Nairobi, the capital of Kenya, is equipped with customized booths,professional sales and after-sales teams, covering construction machinery, agricultural machinery, food machinery and other categories. It is a comprehensive machinery exhibition hall; Committed to serving machinery enterprises in Africa and machinery enterprises or factories that intend to develop the African market.
FAQ
Q1: Are you factory or trade company?
A1: We are factory with CE. You can buy our machine from our warehouse directly.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
(such as China, Kenya,Tanzania, Zambia, Sudan and other countries in Africa.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
