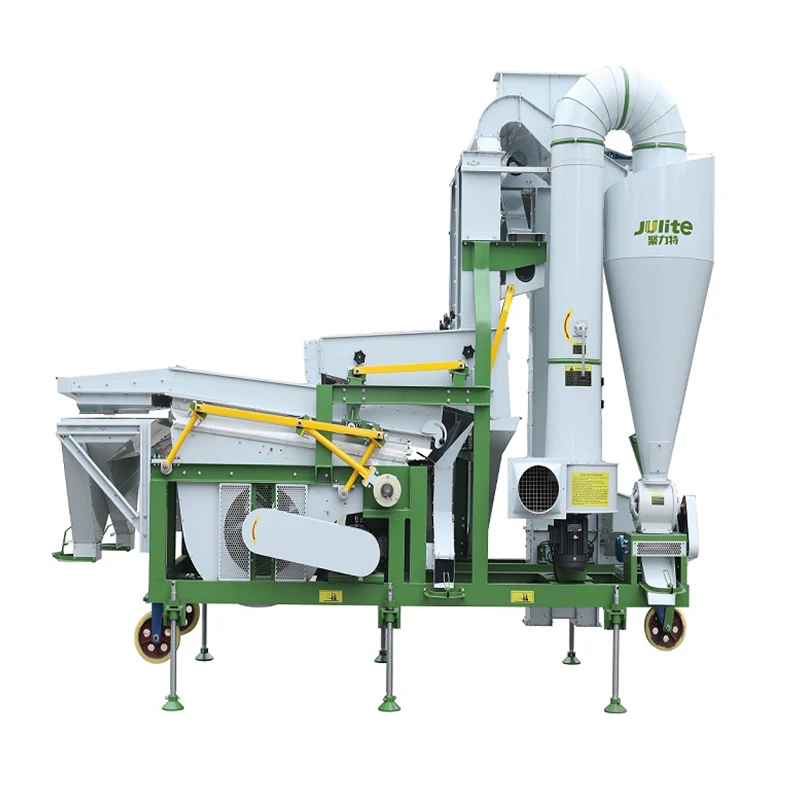

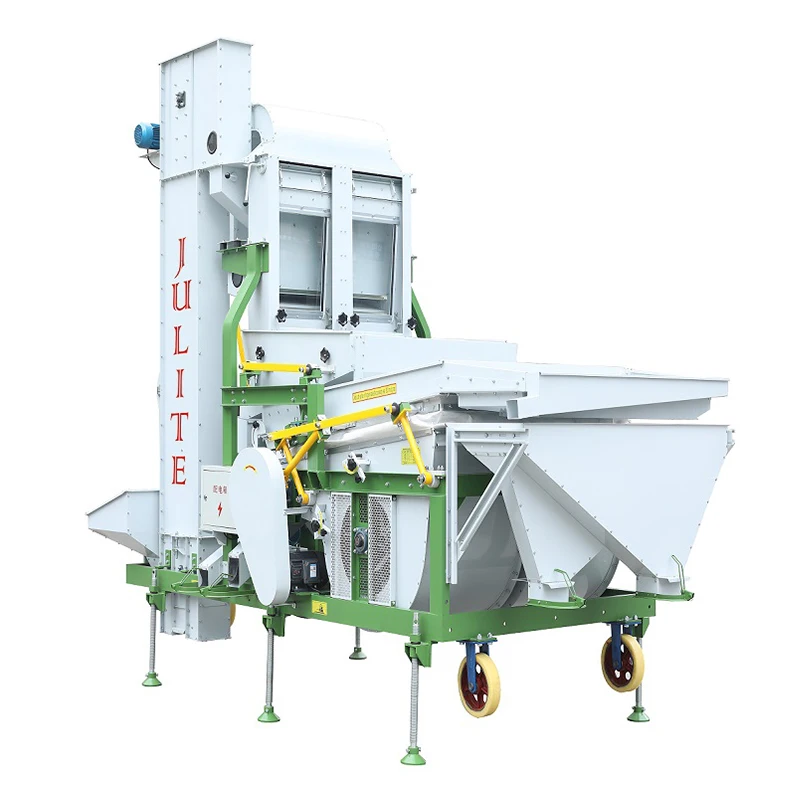

Big Capacity Grain Red Bean Air Screen Seed Cleaner And Grain Grader With Gravity Table
Big Capacity Grain Red Bean Air Screen Seed Cleaner And Grain Grader With Gravity Table
Big Capacity Grain Red Bean Air Screen Seed Cleaner And Grain Grader With Gravity Table
Big Capacity Grain Red Bean Air Screen Seed Cleaner And Grain Grader With Gravity Table
Big Capacity Grain Red Bean Air Screen Seed Cleaner And Grain Grader With Gravity Table
Big Capacity Grain Red Bean Air Screen Seed Cleaner And Grain Grader With Gravity Table
Big Capacity Grain Red Bean Air Screen Seed Cleaner And Grain Grader With Gravity Table

Big Capacity Grain Red Bean Air Screen Seed Cleaner And Grain Grader With Gravity Table

Share on (1600617860481):


Price:

Quantity:


Product Overview

Description







Feature

1.This machine can replace gravity separator, reduce the load of gravity table and increase production further.
2.For the processing of wheat, rice, corn, soybean, sorghum and other commodity grains,can remove more than 90% kinds of light impurities from grain.
3.Complete wind selection, gravity selection, screening and grading, which can save energy and reduce consumption and labor.
4.Environmental cyclone duster system and without a lot of dust leakage.
5.It can be equipped with elevator, screw conveyor and belt conveyor.


Specification


Model

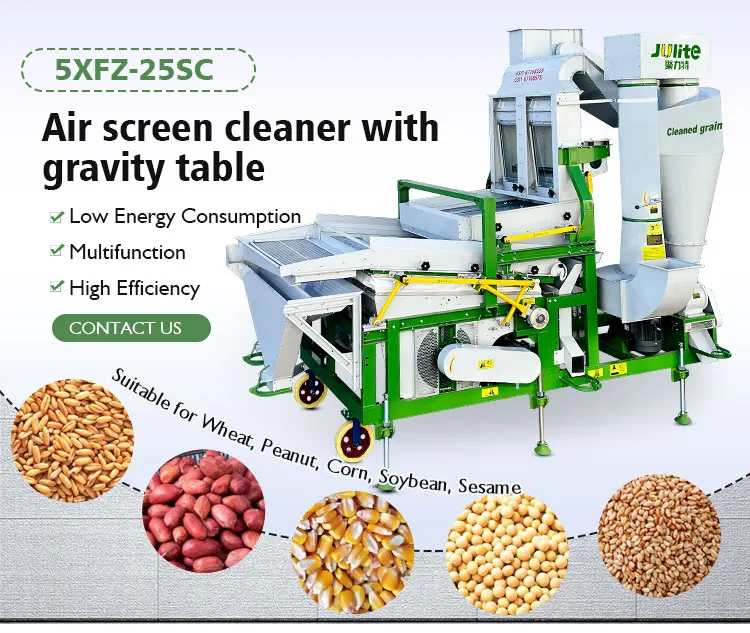

5XFZ-25SC
Purity
90%
Gravity sieve Size(mm)
1700 x 1600
Front sieve Size(mm)
1250 x 1200
Power(kw)
12.3
Capacity(t/h)
seed: 7-10    commodity grain:10-15
Weight(T)
2.25
Overall size L x W x H(mm)
4330 x 2400 x 3740




Application

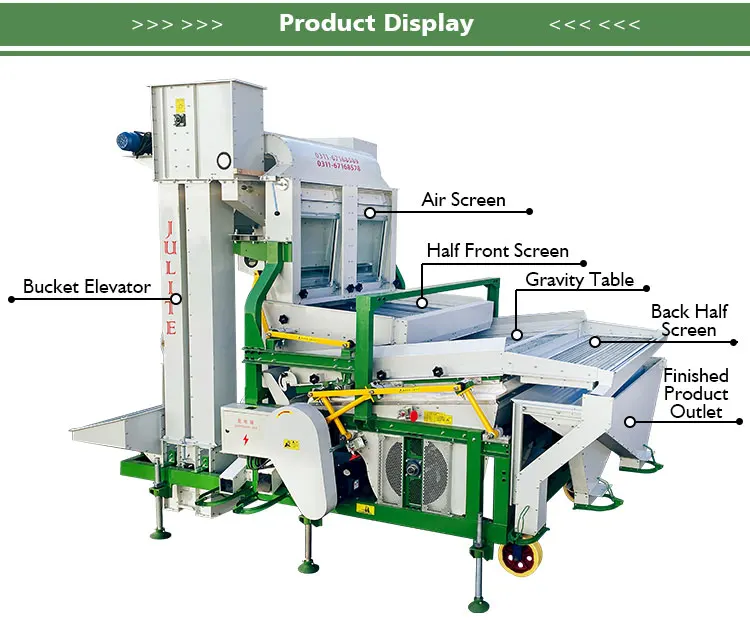

Product Display




Product Details

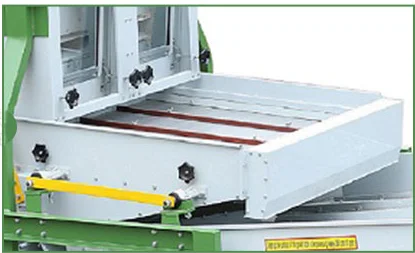

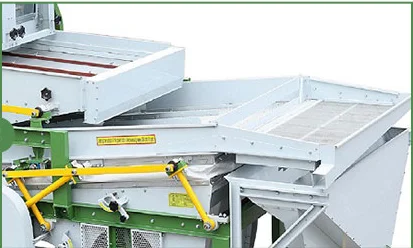

Half Front Screen
It can remove small impurities, which can reduce the load of gravity table and blockage of small particles.Improves the selection of proportion greatly.

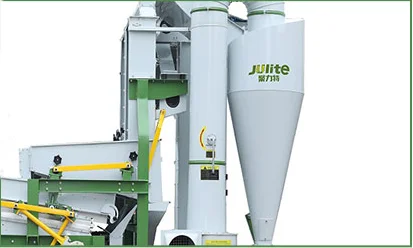

Cyclone
Environmental cyclone duster system and without a lot of dust leakage.



Gravity Table

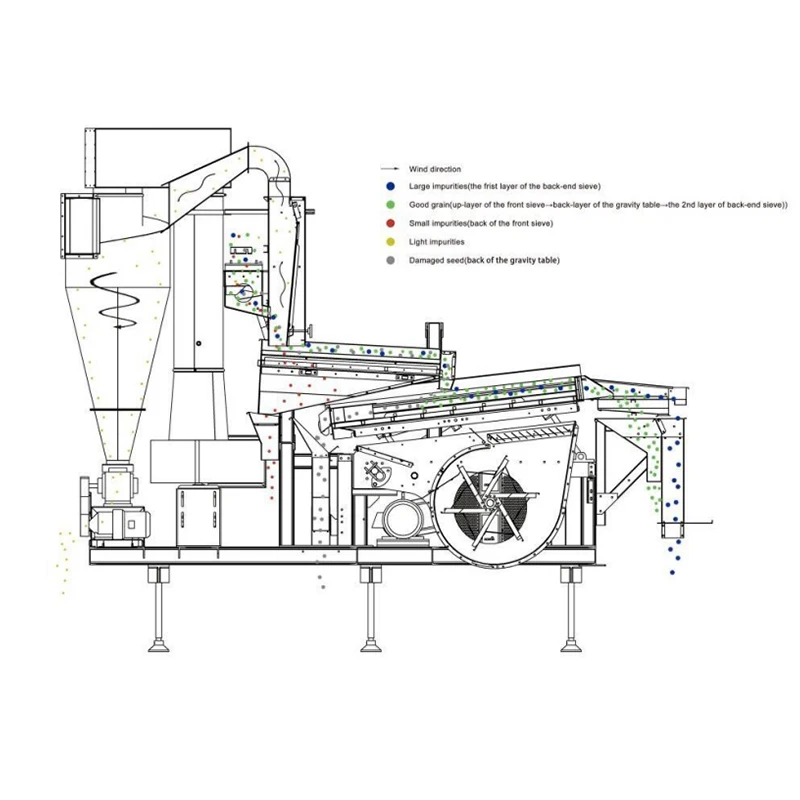

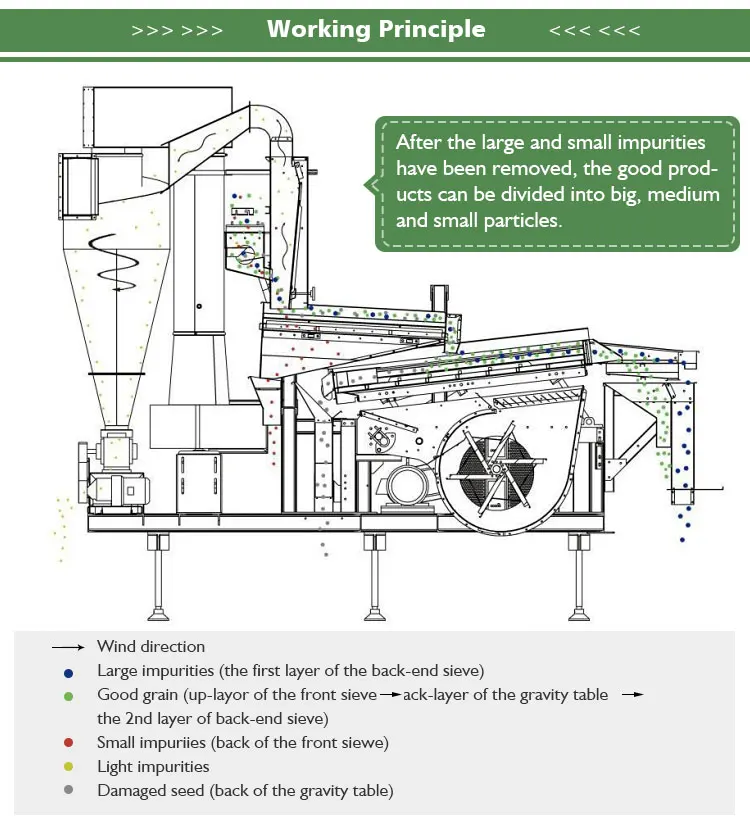

According to the difference in specific gravity of materials and impurities, the good materials are distributed at the bottom and flow to the high end, and are discharged from the material receiving port.

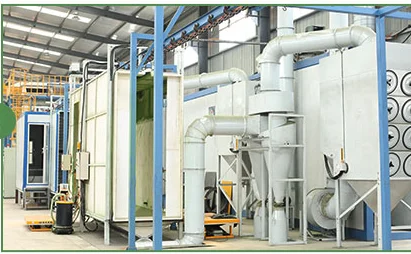

Plastic Spraying
Environmental protection, strong corrosion resistance, anti-skid and anti-wear, ad-hesion thickness is 4-5 times thicker than spray paint.


Why Choose Us


1.COST-EFFECTIVE
High cost performance to meet your needs.
2.CUSTOMIZABLE
Products can be customized according to drawings,with flexibility;
3.GROUPED EQUIPMENT
Provide customers with supporting equipment, achieve customer satisfaction.
4.PROFESSIONAL
Professional team with many years of production experience
5.OUR SERVICE
Provide on-site training,installation and commissioning guidance;
6.FAST
Factory direct sales,fast shipping.

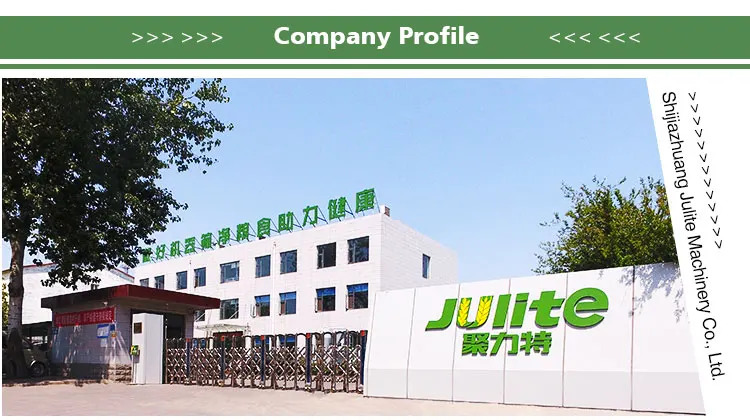

Company Profile




Shijiazhuang Julite Machinery Co. Ltd. was established in 2006 and specializes in research and development of grain cleaning and seeds processing machine, production, sales and service as a whole.

Our company is located in Shijiazhuang,Hebei with an area of nearly 10,000 square meters of research and production base.

Nowadays Julite has successfully developed air screen cleaner, gravity separator, de-stoner, magnetic separator, air screen cleaner with gravity table, huller, double air screen cleaner, polishing machine, vibration grader, seed coating machine, automatic packing machine and various types of elevators.

We firmly believe that, wherever there is seed, wherever there is grain, there is "Julite".






Exhibition








FAQ


Q1:How long is the delivery time？
A1: For 380V 50HZ power requirement, it's 15 days after deposit received. For other kind of power requirement, it's around 45 days.

Q2: Which machine is suitable for my grain/seed?
A2:Please inform us your raw material condition,our engineer will recommend the best machine to you.

Q3:How can I know the machine performance?
A3:We have working videos of all machines for your reference.

Q4:How about is your company after-sales service?
A4:It is one year warranty after the equipment arrived in destination port within a year. We will offer fully guidance on operation questions. Any parts problem happended during the warranty, we will offer the spare parts for free.
