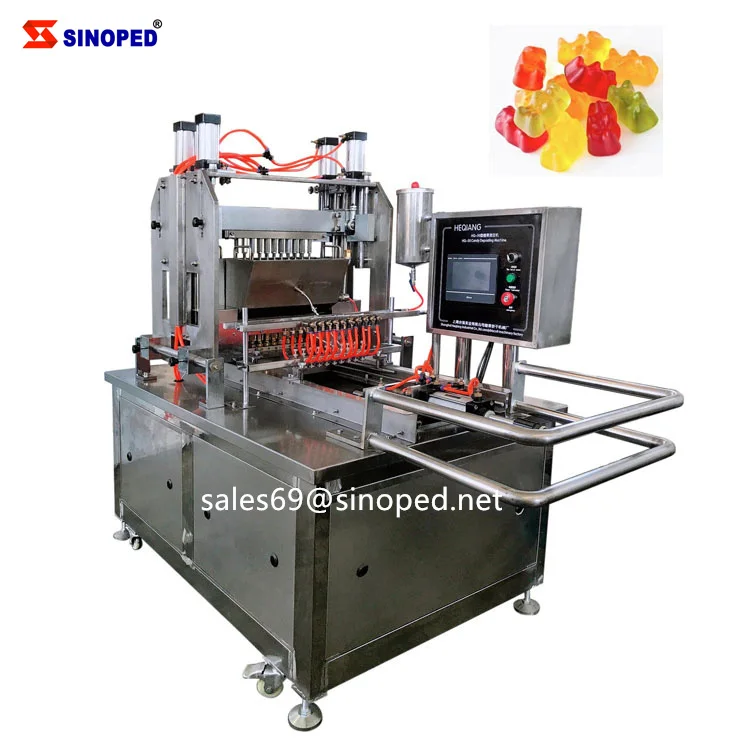

Semi automatic 50 Kg per hour Gummy bear jelly candy pouring production line
- Category: Food & Beverage Machinery >>>
- Supplier: SINOPED,(BEIJING),BIOTECH,CO.,LTD
Share on:
Product Overview
Description
Samples
Main raw materials: white sugar, glucose pulp, gelatin, citric acid, malic acid, sodium citrate, flavor, pigment, etc.
Random gift candy recipe technology
Mould: Aluminum alloy pressing, Teflon appearance Dimensions: 320*75 mm Shape and size can be designed according to customer requirements.
Product Description
Specification
Capacity | 20-50 kg (It depends on the sugar grains) | |
Pouring power | 0.75 kw | |
Pouring sugar quantity | Hard candy: 2-6 g | |
Soft sweets: 2-6 g | ||
pouring time | Hard candy: 25-33 times/min | |
Soft sweets: 25-35 times/min | ||
working air pressure | 0.3-0.5 mpa | |
gas consumption | 0.5 m³/h | |
Hopper heating power | 3kw | |
Voltage | 380 V 50 HZ single phase | |
Dimension | 1900*920*1650 mm | |
Weight | 450 kg | |
Material | The parts in contact with food are made of stainless steel, the rack is made of stainless steel, and the carbon steel of the wall plate is wrapped in stainless steel | |
Function | Indirect quantitative casting | |
Including pneumatic control pouring machine, 20-hole double pouring hopper, 1 set of distribution plate, pneumatic conveying device, PLC program control pouring. | ||
production process

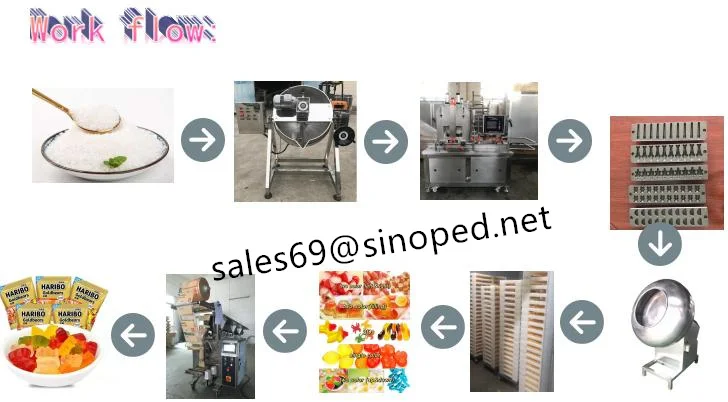

Boil-- Cooling-- Colloid Mixing-- Pouring Cooling-- Demoulding-- Polishing-- Dry-- Packaging

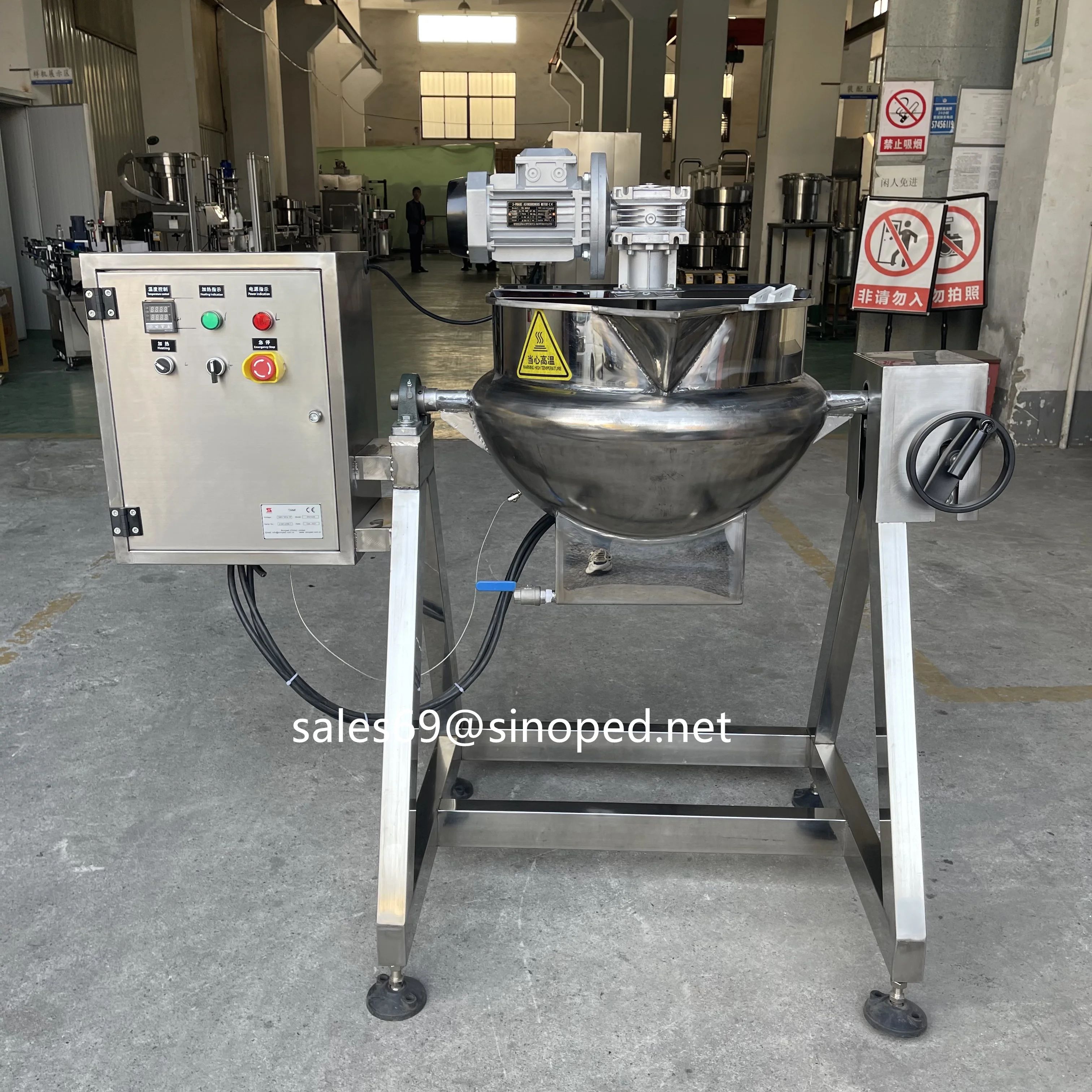

Tiltable cooking pot
Capacity | 50-80 kg |
Stirring motor power | 0.55 kw |
Electric heating power | 24 kw |
Voltage | 380v50hz three phase |
Dimension | 1300*900*1300 mm |
Material | stainless steel |
Function | It is used for cooking syrup, generally boiled to the degree required by the process |
notes | With stirring belt scraper, scraper material PTFE plate |
Pourable sol filling
Capacity | 20-80 kg | |
Stirring motor power | 0.55 kw | |
Electric heating power | 18 kw | |
Voltage | 380V 50HZ three phase | |
Dimension | 1200*800*1250 mm | |
Material | stainless steel | |
Function | For boiling gelatin, usually soak for 25-30 minutes at a time Around, the temperature meets the process requirements. | |
notes | With stirring belt scraper, scraper material PTFE plate | |
Including reducer, motor, stirrer, electric heating tube, control electrical appliances. | ||
Candy depositing machine
Capacity | 20-50 kg (It depends on the sugar grains) | |
Pouring power | 0.75 kw | |
Pouring sugar quantity | Hard candy: 2-6 g | |
Soft sweets: 2-6 g | ||
pouring time | Hard candy: 25-33 times/min | |
Soft sweets: 25-35 times/min | ||
working air pressure | 0.3-0.5 mpa | |
gas consumption | 0.5 m³/h | |
Hopper heating power | 3kw | |
Voltage | 380 V 50 HZ single phase | |
Dimension | 1900*920*1650 mm | |
Weight | 450 kg | |
Material | The parts in contact with food are made of stainless steel, the rack is made of stainless steel, and the carbon steel of the wall plate is wrapped in stainless steel | |
Function | Indirect quantitative casting | |
Including pneumatic control pouring machine, 20-hole double pouring hopper, 1 set of distribution plate, pneumatic conveying device, PLC program control pouring. | ||
Template fuel injection device
Injector width | 350mm | |
Maximum output pressure | 0.3mpa | |
Compressed air consumption | 0.1m³/min | |
Nozzle diameter | 3mm | |
Function | Spray oil on the surface of the mold to make the fondant easier to demould. | |
Including pneumatic spraying machine, template surface spraying, electromagnetic reversing air pressure valve, PLC program control. | ||
Pneumatic stripping machine
Capacity | 20-50 kg (It depends on the sugar grains) | |
Working air pressure | 0.3-0.5 mpa | |
Gas consumption | 0.6 m³/h | |
Power | 0.55 kw | |
Dimension | 1500*680*1200 mm | |
Weight | 180 kg | |
Material | stainless steel | |
Function | After cooling, the mold is automatically demolded by this machine, saving labor. | |
Including standard cylinder, solenoid control reversing valve, air pipe. Control System | ||
Workshop Environment
Company Profile
Finding agent in RCEP country !!!! In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
FAQ
1. Can your machine meet our need well? We will supply you a proposal as to your specific requirement, and each machine is customized to satisfy customer's need well. 2. Are you a factory or a trading company? We are the manufacturer, and have been in industry for more than ten years. 3. What's your payment way? T/T by our bank account directly, or by Alibaba's trade assurance service, or by the West Union, or in cash. 4. How can you ensure the machine's quality after we put the order? Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side. 5. We are afraid you won't deliver us the machine after we pay you the money. Please note our above business license and certificates. And if you don't trust us, you can use Alibaba's trade assurance service or by LC. 6. Why choose your company? We have been engaged in the manufacturing of various packing machines professionally over 10 years, and we can provide better after-sales service.
