Product Overview
Description

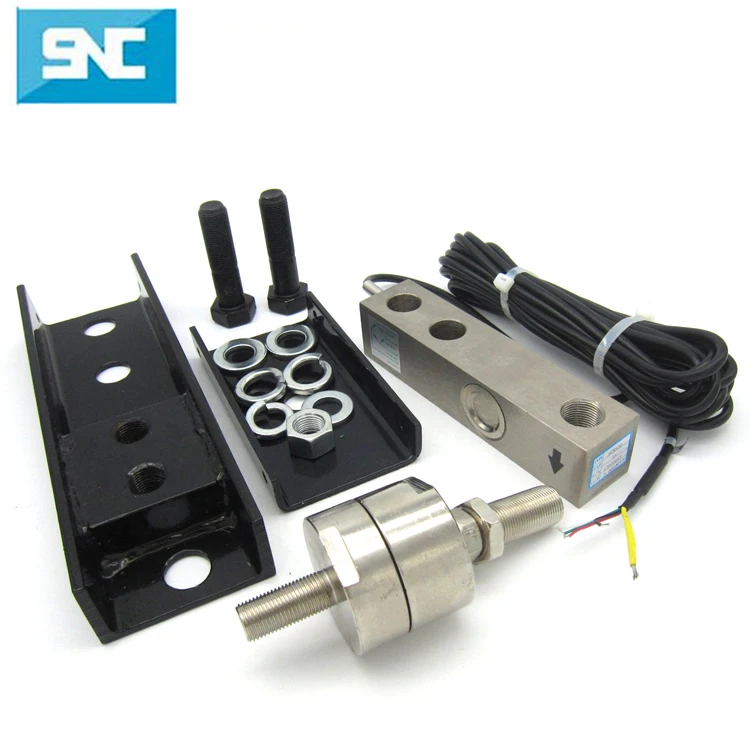

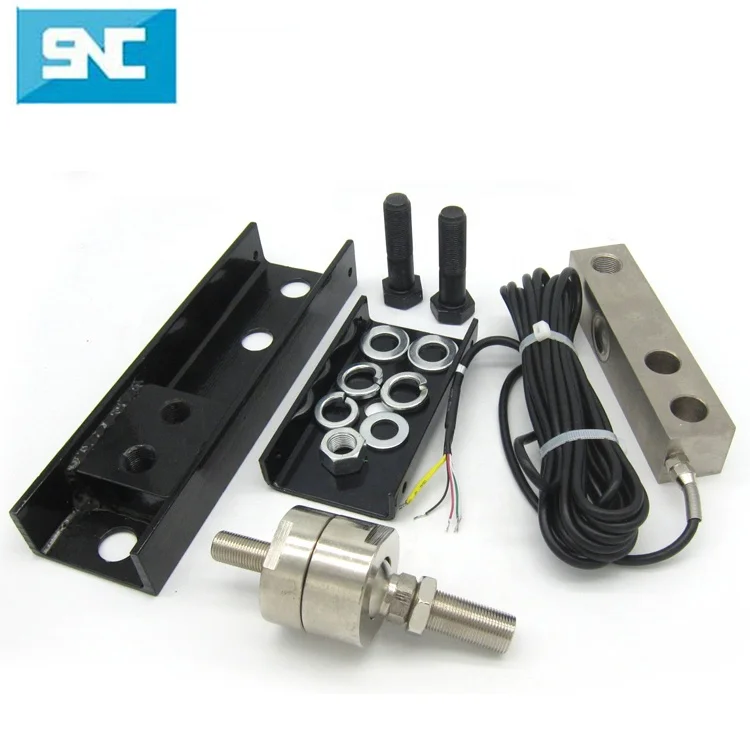

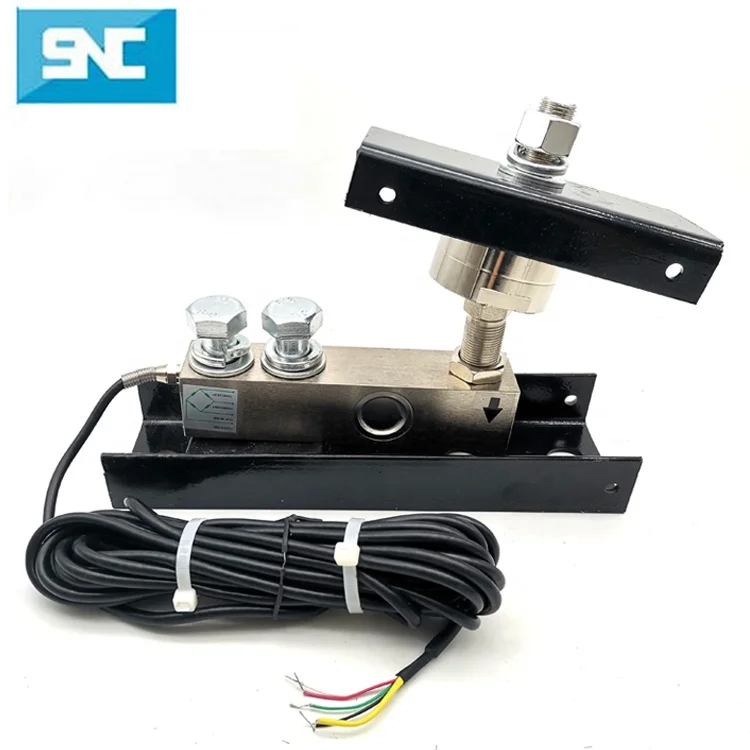

SC8320M load cell 05 ton to 5 ton 10 tons silo load cell for weighing module shear beam
Product List
Product Description
Features:
Model: SC8320M
Capacity range: 3ton, 5ton
Material: Alloy steel
Features: sealed by adhesive, oil proof, waterproof and anti-corrosion. easy installation, high accuracy and low profile.

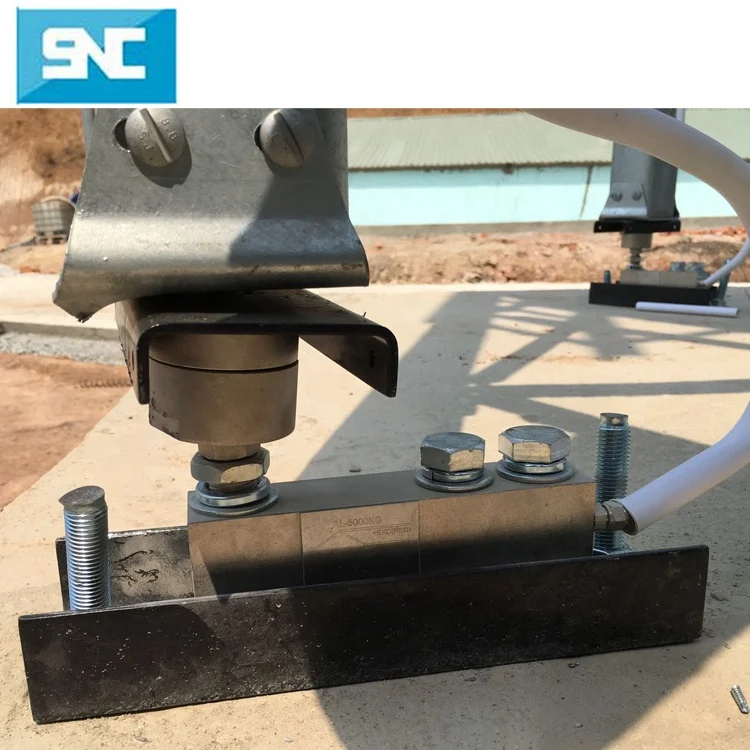

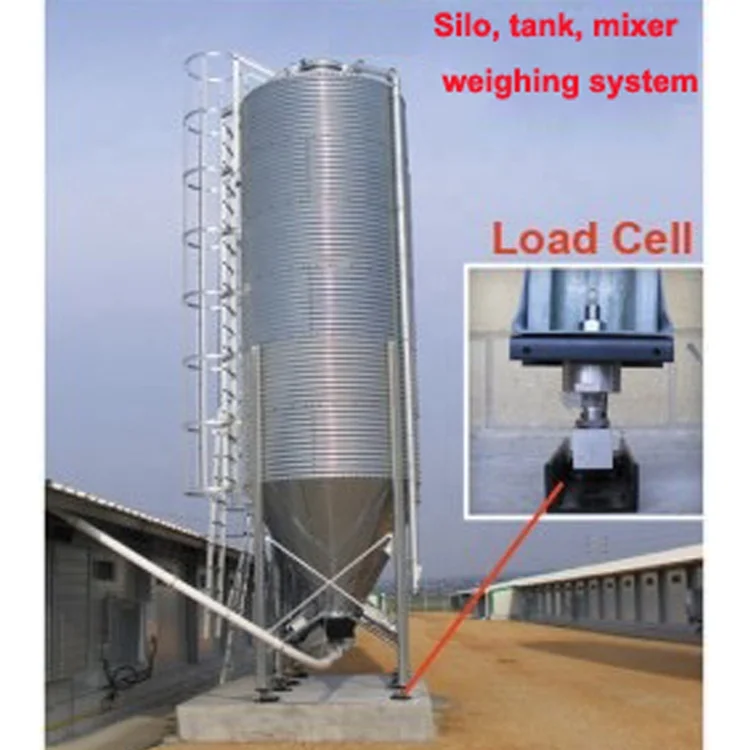

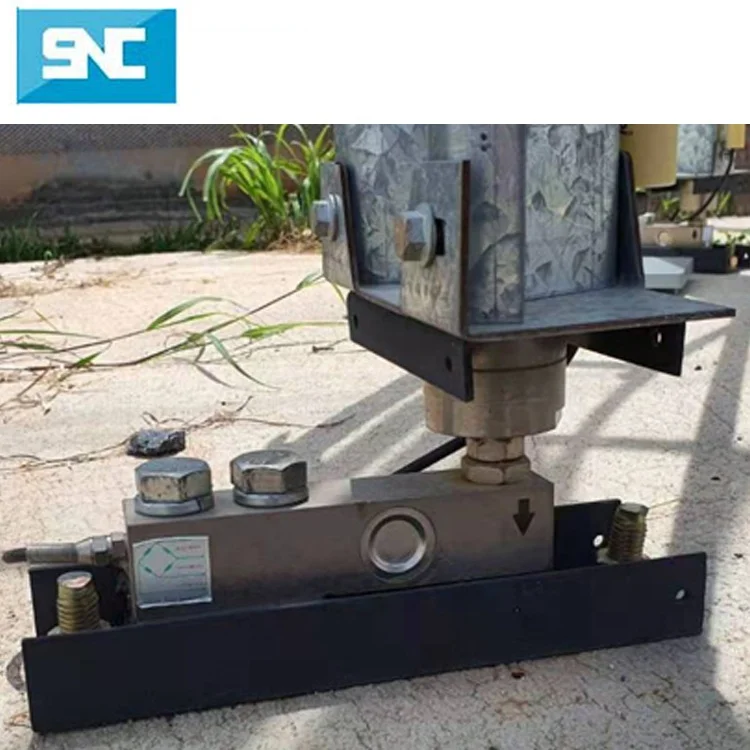

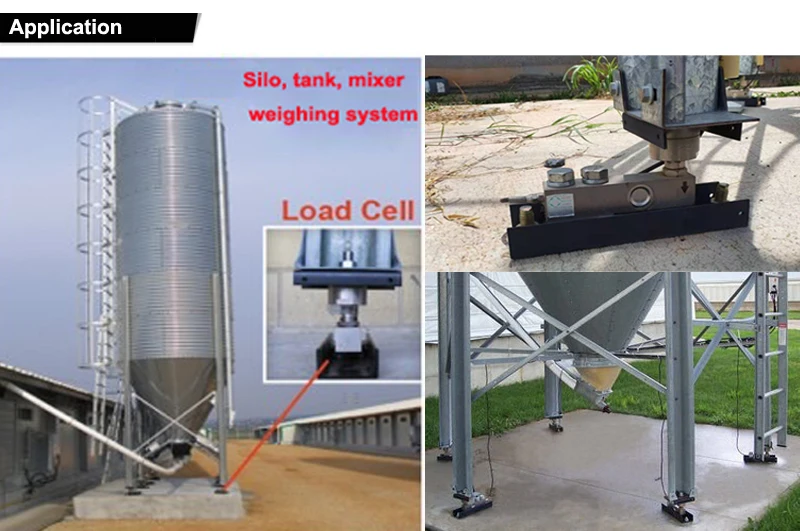

Apply to: Silo, tank, mixer, bin weighing system

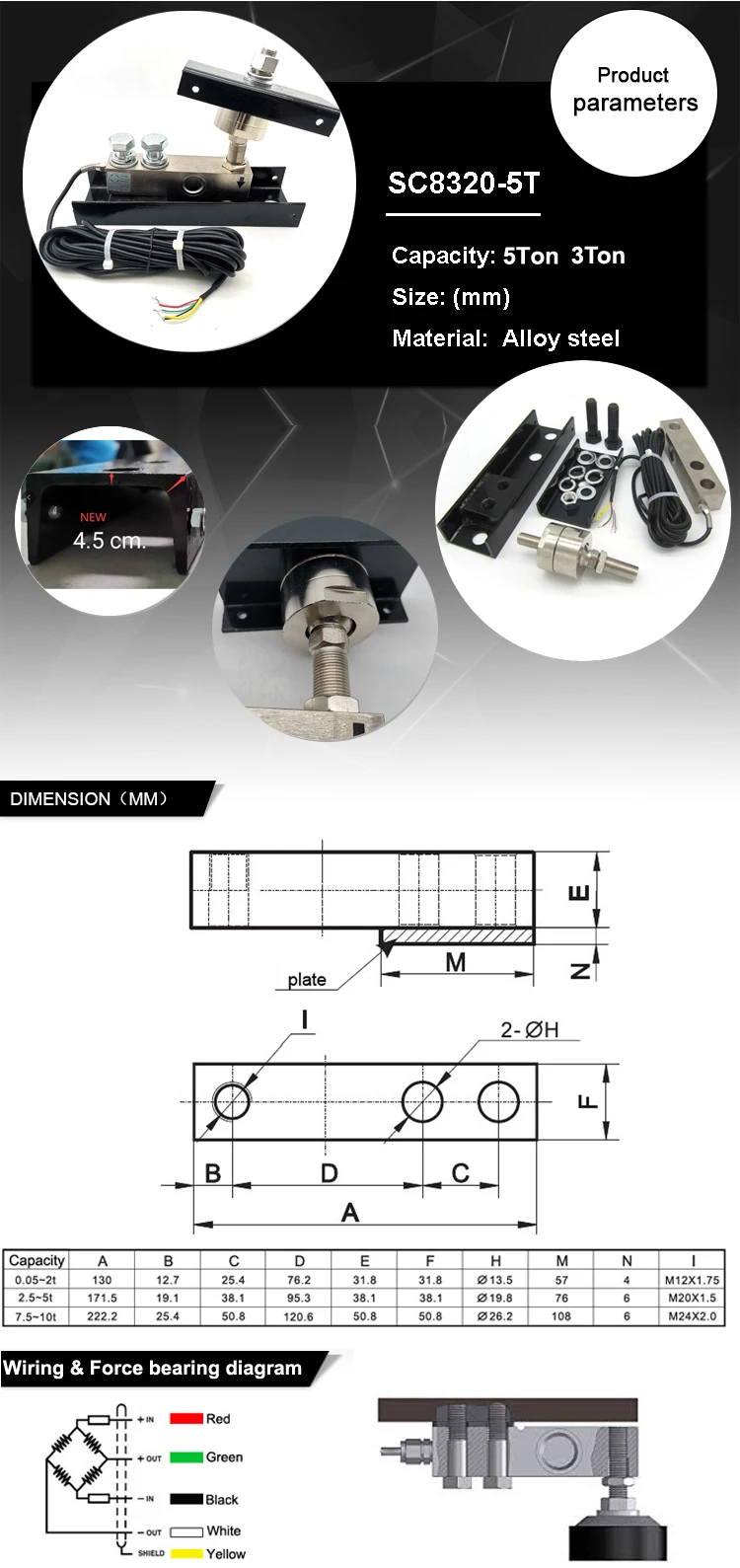

Parameters:
| Application | Tank, silo, mixer , bin weighing system |
| Model | SC8320M |
| Capacity | 3Ton, 5 Ton |
| rated output | 3.0±0.005mV/V |
| Accuracy class | C2 C3 |
| Maxinum number of verification intervals | 2000 Nmax 3000 Nmax |
| Minimum loadcell cerification intervals | Emax/5000Vmin Emax7500 Vmin |
| Combined erro | ≤±0.030 % RO ≤±0.020 % RO |
| Creep | 0.02%RO/30min |
| Temp. effect on sensitivity | 0.0016 %RO/℃ 0.0012 %RO/℃ |
| Temp.effect on zero | 0.003%RO/℃ 0.002%RO/℃ |
| Zero balance | ±1.0 %RO |
| Input resisitance | 365±10ohm |
| Output resistance | 350±3 ohm |
| insulation resistance | 5000 MΩ(50V) |
| Recommended excitation voltage | 10-15V |
| Compensated temperature range | -10-+40℃ |
| operating temperature range | -35-+80 ℃ |
| safe overload | 120 %RO |
| Ultimate overload | 150%RO |
| loadcell material | alloy steel stainless steel |
| Connecting cable | Φ5.7x 5m |
| Maethod of connecting wire | Red- input+, black- Input-. Green- Output+, White- output - |

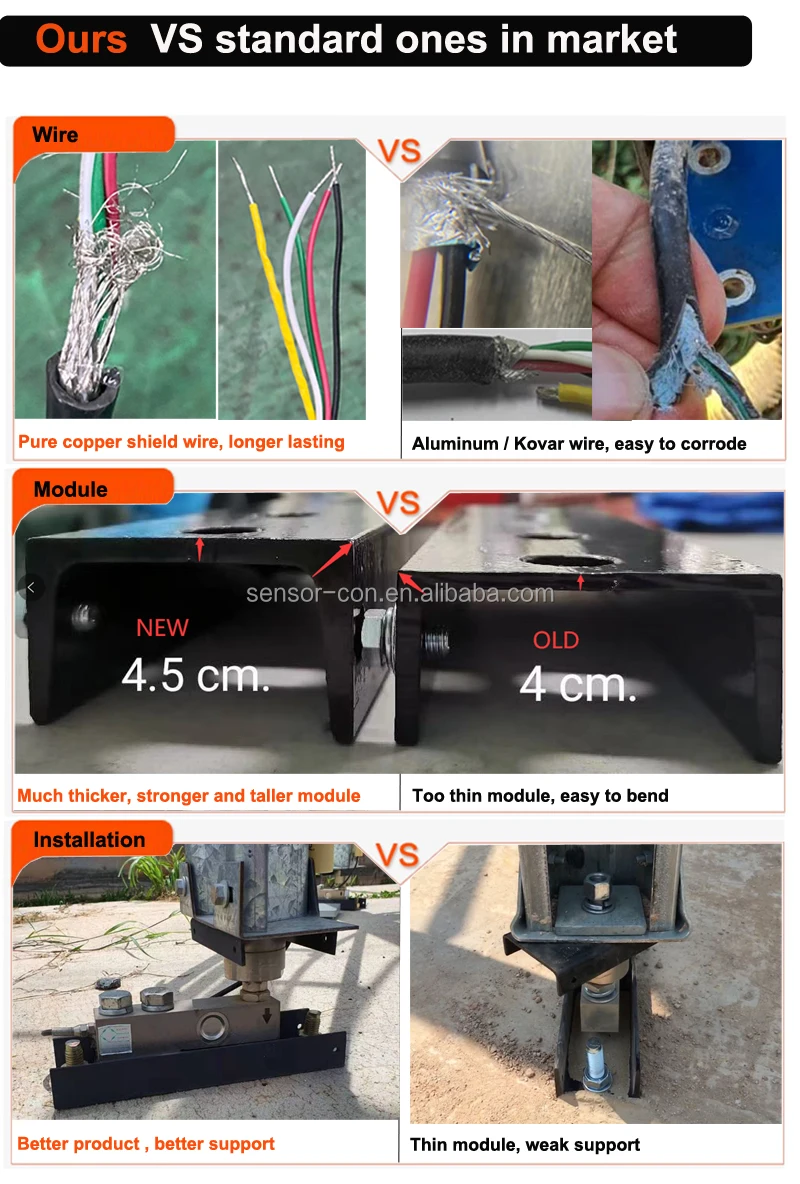

Why choose us ???
1, We use pure copper wire for shield wire for longer useage and better performance.

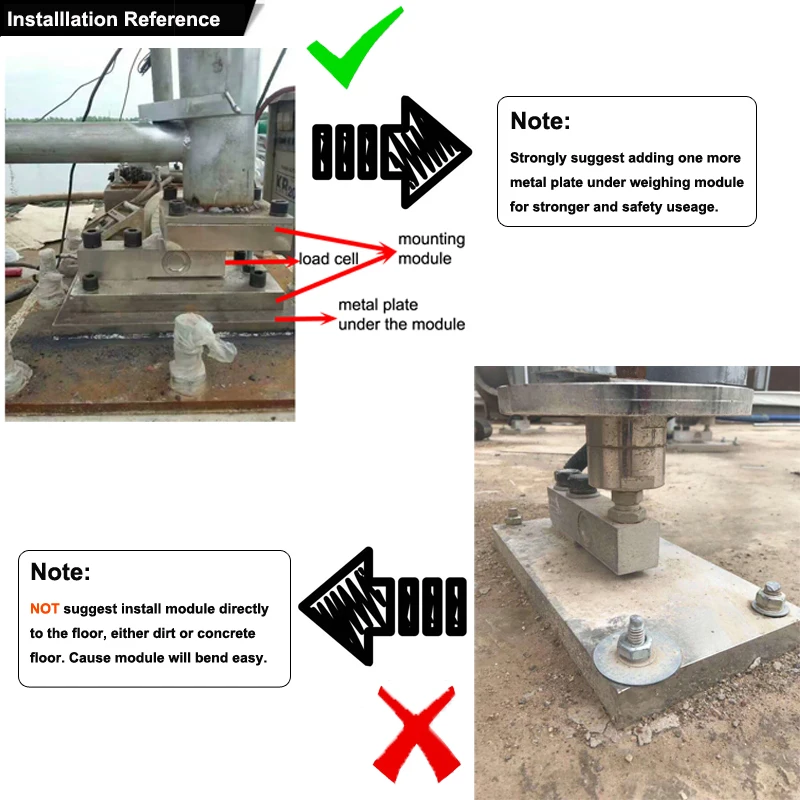

2, Our module is made extra thick comparing to standard ones in the market for better support the tank and silo.
3, We have also accessories display, junction box and cable if you need.
Load cell Accessorie
Related Products
Company Information
Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.
Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.
Packaging & Shipping
FAQ
1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.
2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.
3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.
4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.
5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments
before shipping to our clients.
6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
