HENGXIANG MPN55 SSI Absolute Optical Rotary Encoder 14 Bit Optical Rotary Encoder Sensor 14/15/19/20/24mm Through Hole
HENGXIANG-MPN55 SSI Absolute Optical Rotary Encoder 14 Bit Optical Rotary Encoder Sensor 14/15/19/20/24mm Through Hole
HENGXIANG-MPN55 SSI Absolute Optical Rotary Encoder 14 Bit Optical Rotary Encoder Sensor 14/15/19/20/24mm Through Hole
HENGXIANG-MPN55 SSI Absolute Optical Rotary Encoder 14 Bit Optical Rotary Encoder Sensor 14/15/19/20/24mm Through Hole
HENGXIANG-MPN55 SSI Absolute Optical Rotary Encoder 14 Bit Optical Rotary Encoder Sensor 14/15/19/20/24mm Through Hole
HENGXIANG-MPN55 SSI Absolute Optical Rotary Encoder 14 Bit Optical Rotary Encoder Sensor 14/15/19/20/24mm Through Hole
HENGXIANG-MPN55 SSI Absolute Optical Rotary Encoder 14 Bit Optical Rotary Encoder Sensor 14/15/19/20/24mm Through Hole

HENGXIANG MPN55 SSI Absolute Optical Rotary Encoder 14 Bit Optical Rotary Encoder Sensor 14/15/19/20/24mm Through Hole

Share on (1600617969769):


Price:$136.72 - $175.78

Quantity:


Product Overview

Description



Products Description
















Details Images

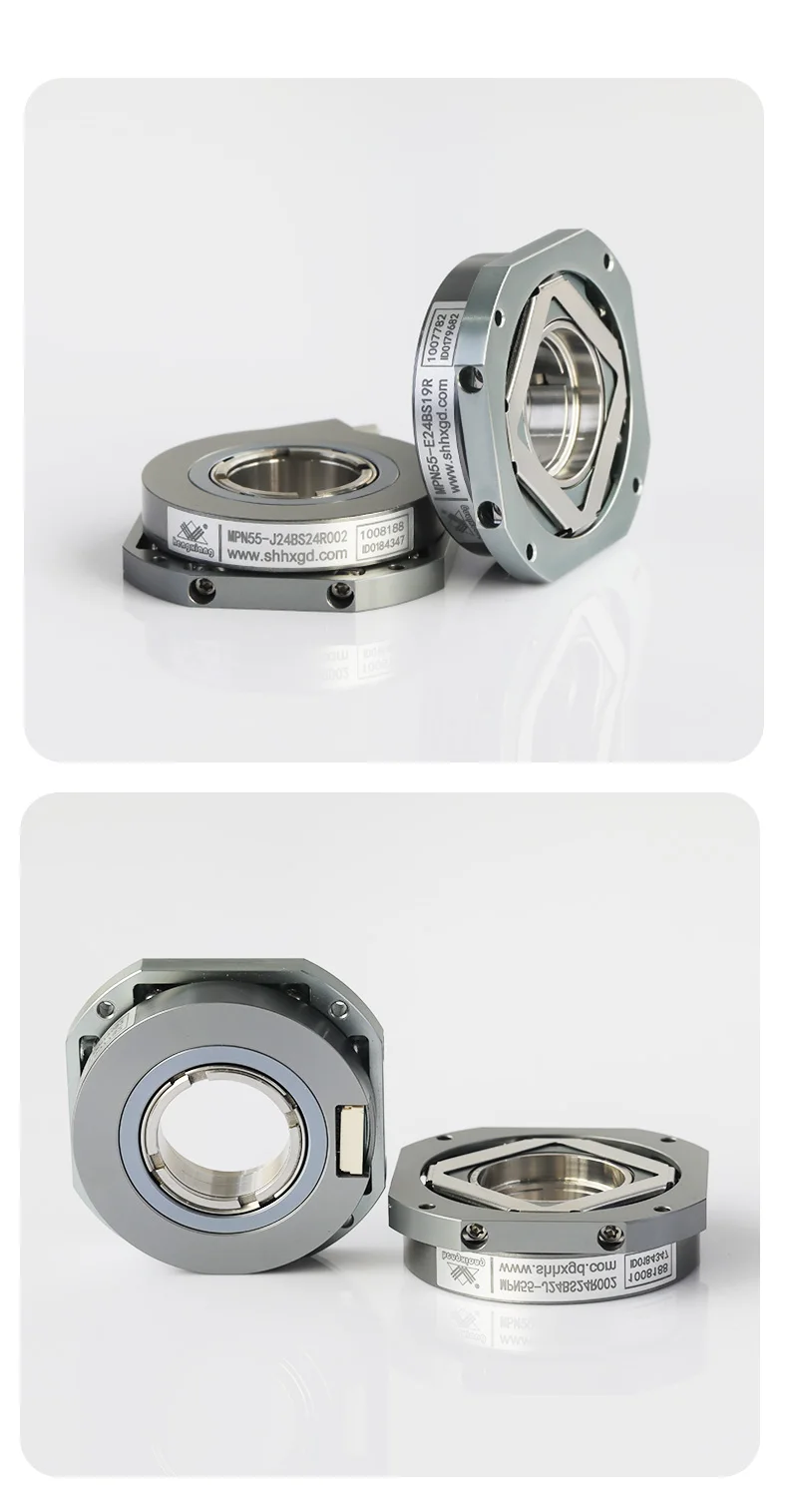

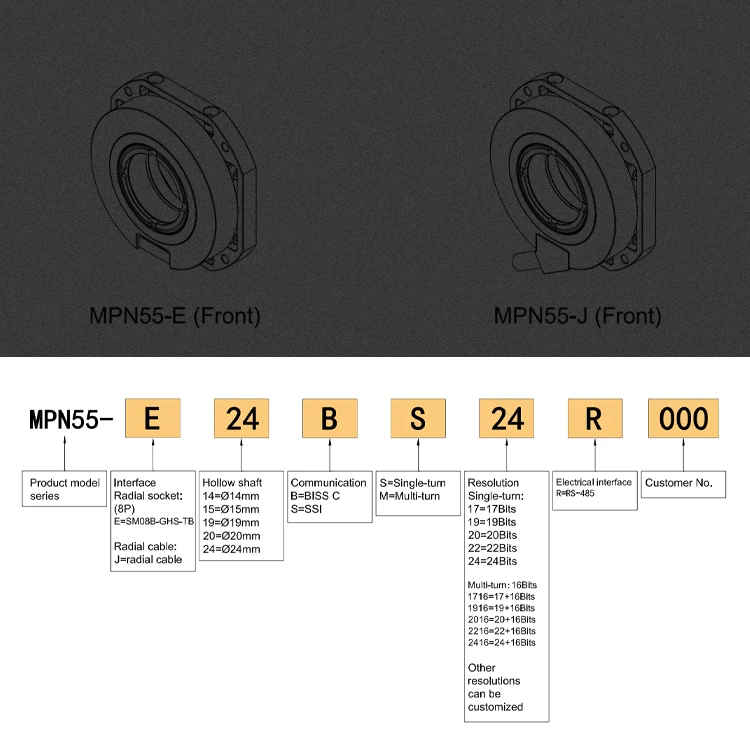

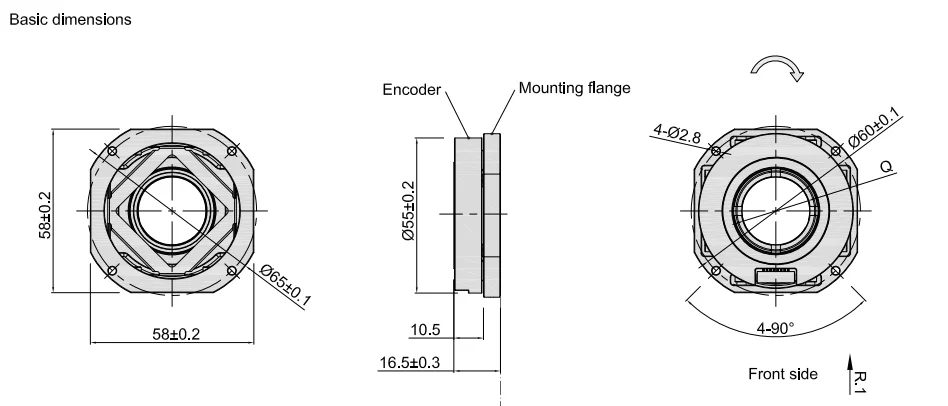

Model Selection Guide






Product Paramenters


Items
Basic parameters
Brand
Hengxiang
Encoder type
Absolute encoder

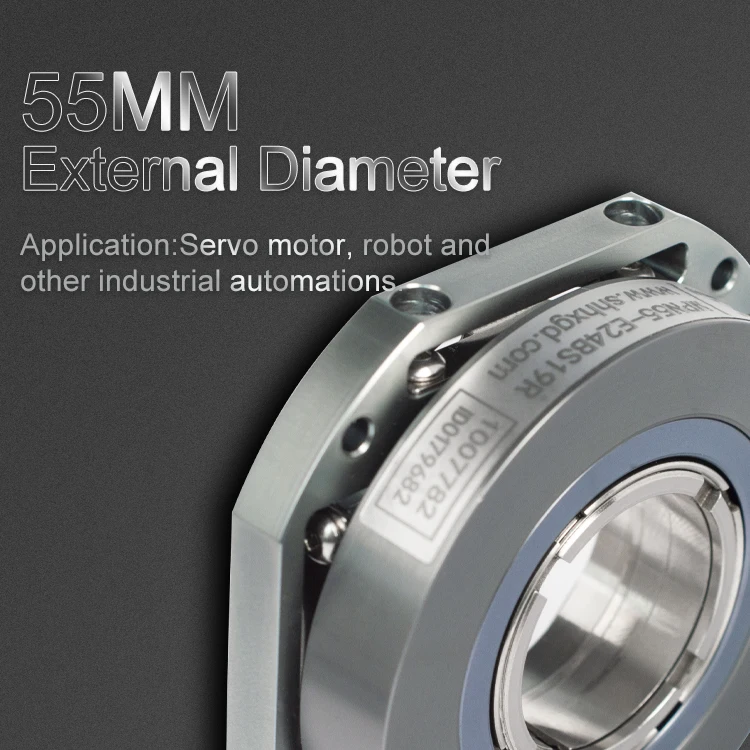

External diameter
55mm（Mounting flange 65mm）
Thickness
15mm
Hollow shaft type
Through hole
Hollow shaft diameter
14mm; 15mm; 19mm; 20mm; 24mm

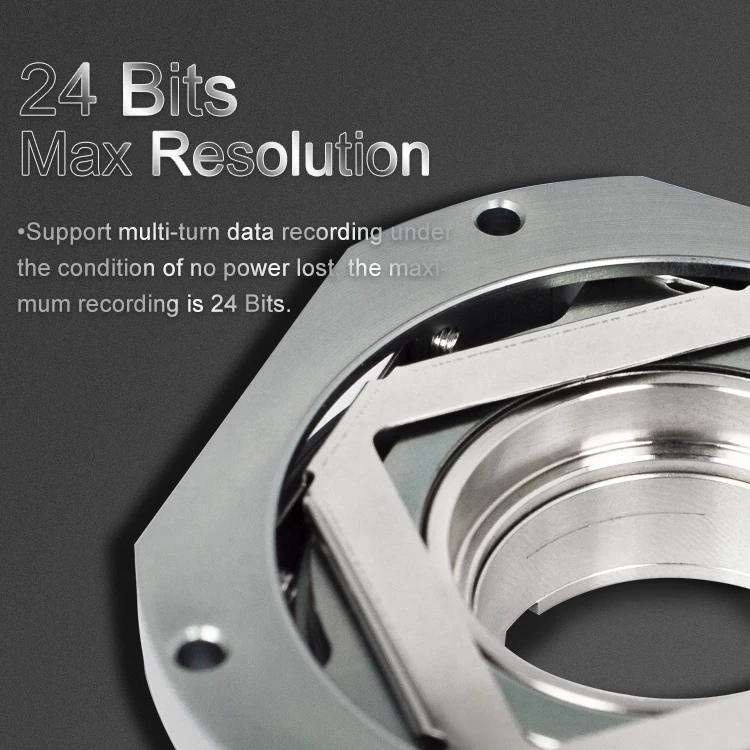

Resolution
single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit
multi-turn: 1716=17+16Bit, 1916=19+16Bit,
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
Interface
E=SM08B-GHS-TB ；J=radial cable

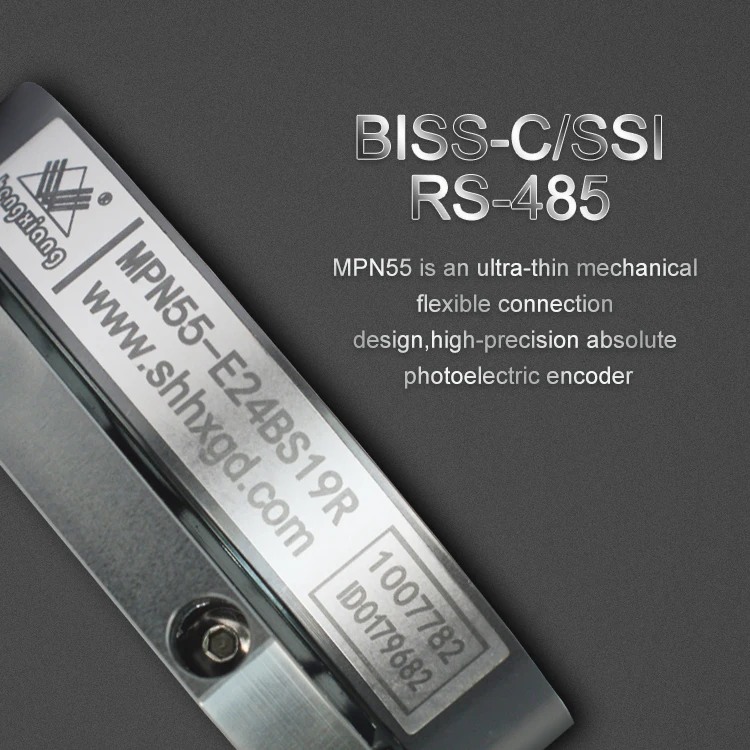

Communication
B=BISS-C; S=SSI
Electrical connection
R=RS-485
Output mode
multi-turn(Binary& Gray)
single-turnBinary& Gray)
Scanning principle
Photoelectric
Accuracy
±80"
Response speed
Normal action: 6000min-1
RMS position signal noise
±2@18 bits/r
Communication clock frequency
≤10MHz(BISS) or ≤ 5MHz(SSI)
Starting time
typical value: 13ms
Absolute position sampling period
≤75 ns
Allowable speed
≤32200 r/min (restricted by mechanical speed limit)
Cable
Differential twisted-paired cable
Cable length
200mm-10000mm
Mechanical Connection
With bearing& encircled locking shaft
Starting Torque
less than 9.8×10-3 N.m
Inertial moment
less than 6.5×10-6 kg.m2
Shaft load
Radial 20N; Axial 10N
Slew speed
≤6000rpm
Shell Material
Aluminum
Environmental temperature
Operating: -20~+95℃; Storage: -25~+95℃
Environmental humidity
Operating and storage: 35~85%RH(Noncondensing)
Vibration
Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually
Shock
980m/s2 11ms, three times for X,Y,Z direction individually
Protection
IP50
Net weight
About 150g
