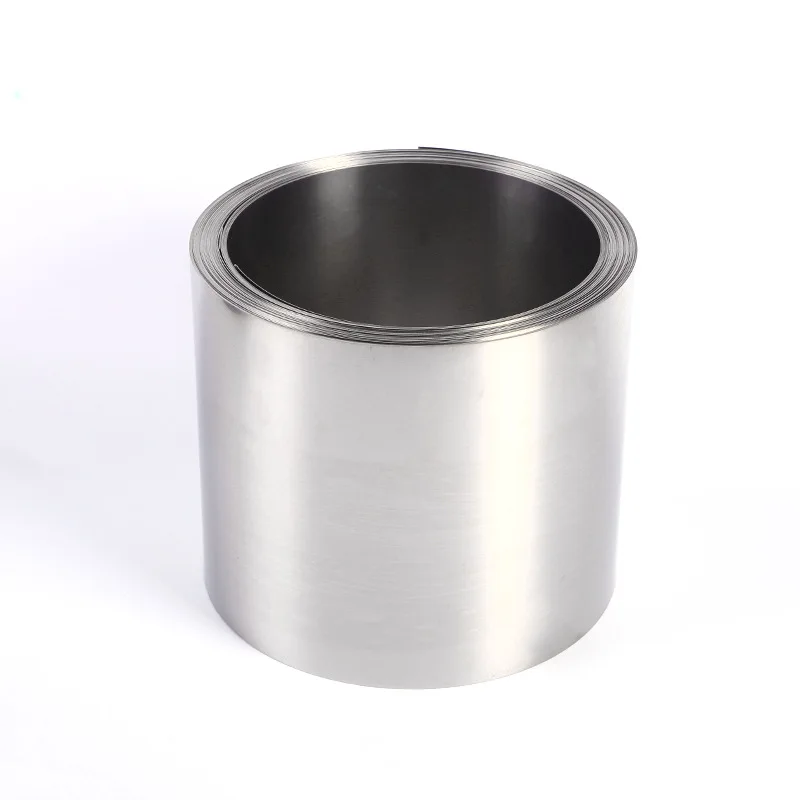

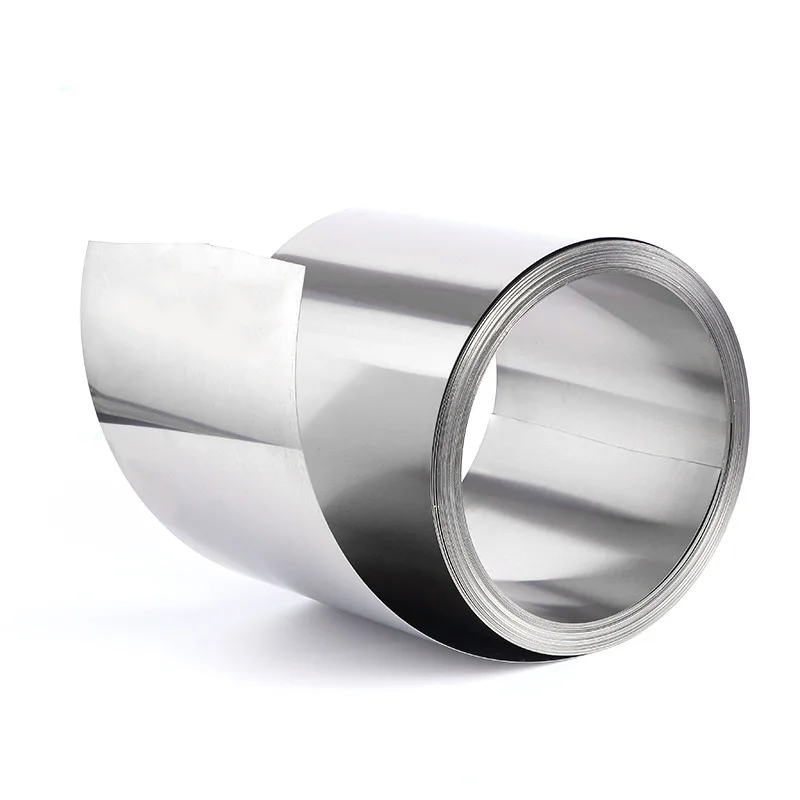

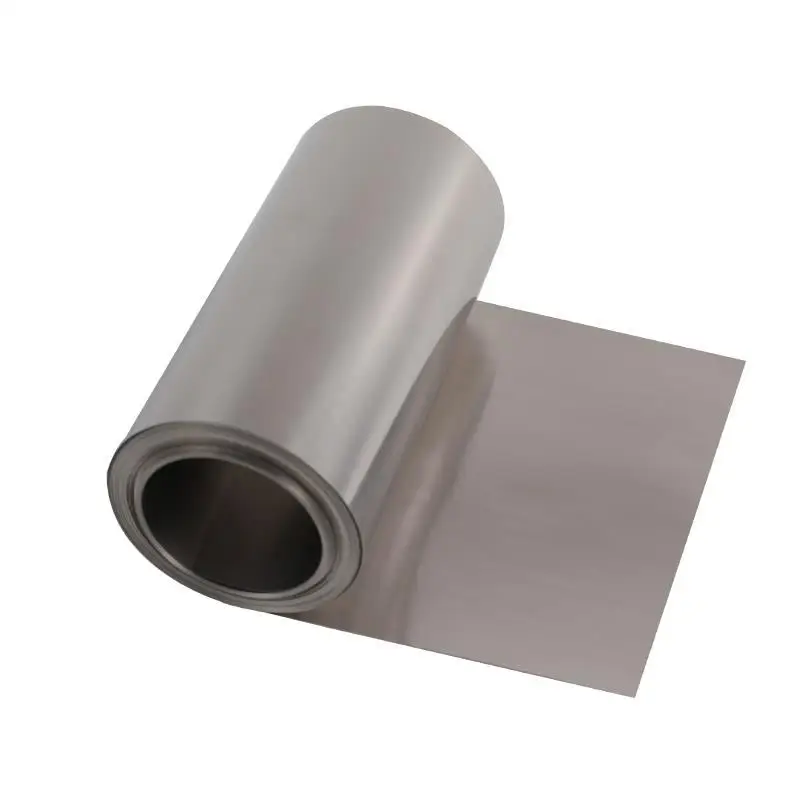

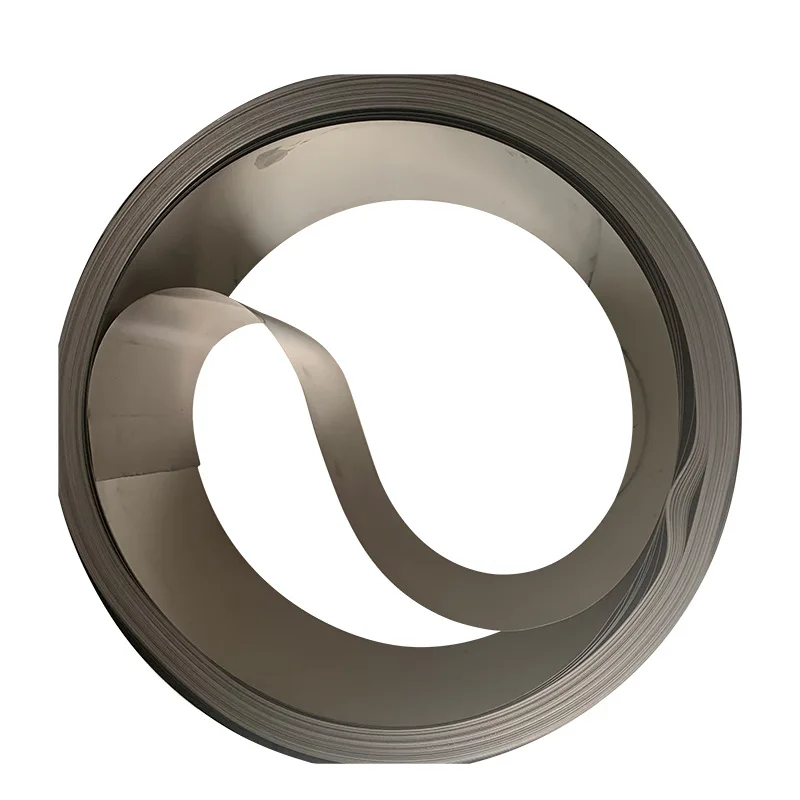

Quality Guaranteed Wholesale Price High Purity Metal 0.05 Pure Titanium Foil
- Category: >>>
- Supplier: Baoji Jiasheng New Titanium Metal Material Co. Ltd.
Share on (1600618022693):
Product Overview
Description
Products Display
Product Introduction
Product name :Titanium foil, titanium belt, titanium foil/belt
Specification :(0.1-0.8) * (50-300) * 1000MM above;
Grades: TA1, TA2, TC4, GR5, etc.;
Implementation standard: GB/T3622-83, delivery status: M (annealing)
Packing: Packing with wooden case with foam paper carton woven bag and other materials in line with transportation safety.
Titanium strip is made of high quality titanium sponge as raw material, with the production of coil titanium plate production. It differs from other specifications of titanium and titanium alloy sheet, mainly in the characteristics of thickness and length (thinner roll is called the foil). Its processing technology mainly includes ingot melting, forging, hot rolling, cold rolling, annealing and crimping.
Titanium belt, titanium foil light weight, high strength, superior mechanical properties, excellent corrosion resistance. Internationally widely used in large passenger aircraft, military aircraft, aerospace vehicles, submarines, nuclear power plants and other high-tech fields.
In May 2007, THE FIRST LARGE-SCALE HEAVY AND WIDE TITANIUM STRIP WAS SUCCESSFULLY ROLLED IN HUALING STEEL, ENDING THE HISTORY THAT China COULD NOT PRODUCE HOT ROLLED TITANIUM STRIP. In November 2008, Jiusteel rolled rolls of cold rolling titanium strip, ending the history of not being able to produce rolls of cold rolling titanium strip in continuous rolling production line. This indicates that Chinese titanium belt production has obtained a major technical breakthrough, and has entered the large-scale and industrial era. With the application of titanium belt and the gradual improvement of application level, titanium belt coil in civil especially in chemical industry, petroleum, automobile, textile, medical, household appliances, watch, computer and other manufacturing fields will be more widely used.
For structural materials. Industrial pure titanium contains the right amount of impurities, has higher strength and plasticity, suitable for the production of structural materials. The thermal conductivity of titanium and titanium alloy is low, and the surface layer and the inner layer will have a great temperature difference during hot extrusion. When the temperature of the extrusion cylinder is 400 degrees, the temperature difference can reach 200~250 degrees. Inspiratory reinforcement and material section also have a large temperature difference under the influence of material surface and the center of the strength of the metal to produce vastly different performance and the plastic performance, can cause very uneven in the extrusion process, the deformation of the big gallas attached stress in the surface layer, forming a crack in the surface of extrusion products and the root cause of the crack. The hot extrusion process of titanium and titanium alloy products is more complex than that of aluminum alloy, copper alloy and even steel, which is determined by the special physical and chemical properties of titanium and titanium alloy.
The extrusion process of titanium hex rod must use lubricant. The main reason is: titanium at 980 degrees and 1030 degrees temperature, and iron or nickel-based alloy mold materials will form fusing co-crystal, so that the mold strong wear. When graphite lubricant is used, deep longitudinal scraping lines can be formed on the surface of the work product, which is the result of the titanium rod and titanium alloy rod sticking to the mold. When extruding profiles with glass lubricants, a new type of defect, "pitting", is caused, that is, cracks in the surface layer of the product. The RESULTS SHOW THAT THE APPEARANCE OF "PITTING" IS DUE TO THE LOW THERMAL CONDUCTIVITY OF TITANIUM and titanium alloy, which makes the surface layer of the returned material cool violently and the plasticity decrease violently.
Specification :(0.1-0.8) * (50-300) * 1000MM above;
Grades: TA1, TA2, TC4, GR5, etc.;
Implementation standard: GB/T3622-83, delivery status: M (annealing)
Packing: Packing with wooden case with foam paper carton woven bag and other materials in line with transportation safety.
Titanium strip is made of high quality titanium sponge as raw material, with the production of coil titanium plate production. It differs from other specifications of titanium and titanium alloy sheet, mainly in the characteristics of thickness and length (thinner roll is called the foil). Its processing technology mainly includes ingot melting, forging, hot rolling, cold rolling, annealing and crimping.
Titanium belt, titanium foil light weight, high strength, superior mechanical properties, excellent corrosion resistance. Internationally widely used in large passenger aircraft, military aircraft, aerospace vehicles, submarines, nuclear power plants and other high-tech fields.
In May 2007, THE FIRST LARGE-SCALE HEAVY AND WIDE TITANIUM STRIP WAS SUCCESSFULLY ROLLED IN HUALING STEEL, ENDING THE HISTORY THAT China COULD NOT PRODUCE HOT ROLLED TITANIUM STRIP. In November 2008, Jiusteel rolled rolls of cold rolling titanium strip, ending the history of not being able to produce rolls of cold rolling titanium strip in continuous rolling production line. This indicates that Chinese titanium belt production has obtained a major technical breakthrough, and has entered the large-scale and industrial era. With the application of titanium belt and the gradual improvement of application level, titanium belt coil in civil especially in chemical industry, petroleum, automobile, textile, medical, household appliances, watch, computer and other manufacturing fields will be more widely used.
For structural materials. Industrial pure titanium contains the right amount of impurities, has higher strength and plasticity, suitable for the production of structural materials. The thermal conductivity of titanium and titanium alloy is low, and the surface layer and the inner layer will have a great temperature difference during hot extrusion. When the temperature of the extrusion cylinder is 400 degrees, the temperature difference can reach 200~250 degrees. Inspiratory reinforcement and material section also have a large temperature difference under the influence of material surface and the center of the strength of the metal to produce vastly different performance and the plastic performance, can cause very uneven in the extrusion process, the deformation of the big gallas attached stress in the surface layer, forming a crack in the surface of extrusion products and the root cause of the crack. The hot extrusion process of titanium and titanium alloy products is more complex than that of aluminum alloy, copper alloy and even steel, which is determined by the special physical and chemical properties of titanium and titanium alloy.
The extrusion process of titanium hex rod must use lubricant. The main reason is: titanium at 980 degrees and 1030 degrees temperature, and iron or nickel-based alloy mold materials will form fusing co-crystal, so that the mold strong wear. When graphite lubricant is used, deep longitudinal scraping lines can be formed on the surface of the work product, which is the result of the titanium rod and titanium alloy rod sticking to the mold. When extruding profiles with glass lubricants, a new type of defect, "pitting", is caused, that is, cracks in the surface layer of the product. The RESULTS SHOW THAT THE APPEARANCE OF "PITTING" IS DUE TO THE LOW THERMAL CONDUCTIVITY OF TITANIUM and titanium alloy, which makes the surface layer of the returned material cool violently and the plasticity decrease violently.
Main Products
Product Detail
Company Profile
Product Line
Package & Transport
FAQ
Q1.Are you trading company or manufacturer? |
A:We are factory. |
Q2.How Can I order? |
A:You can directly place an order on our shop in Alibaba web. Or you can tell us the model no of the products you like, then we will send you the quotation. |
Q3.How does your factory do regarding quality control? |
A:Quality is priority. Our people always attach great importance to quality. Controlling from the production beginning to the end.We have well-trained and professional workers and strict QC system in each production link. And each product has to be 100% inspected before shipment. |
Q4.What are the terms of payments? |
A:We accept L/C、T/T、Western Union、Money Gram etc. |
Q6.What's your delivery time? |
A:In general,the delivery time is within 15-90 days after payment. We'll make the delivery as soon as possiable with the guaranteed quality. |
