STS Standard Prepaid Keypad Smart Wireless GSM/GPRS Module Single Phase Energy Meter with Remote Reading Function
STS Standard Prepaid Keypad Smart Wireless GSM/GPRS Module Single Phase Energy Meter with Remote Reading Function
STS Standard Prepaid Keypad Smart Wireless GSM/GPRS Module Single Phase Energy Meter with Remote Reading Function
STS Standard Prepaid Keypad Smart Wireless GSM/GPRS Module Single Phase Energy Meter with Remote Reading Function
STS Standard Prepaid Keypad Smart Wireless GSM/GPRS Module Single Phase Energy Meter with Remote Reading Function
STS Standard Prepaid Keypad Smart Wireless GSM/GPRS Module Single Phase Energy Meter with Remote Reading Function

STS Standard Prepaid Keypad Smart Wireless GSM/GPRS Module Single Phase Energy Meter with Remote Reading Function

Share on (1600618029646):


Price:$52.00 - $56.00

Quantity:


Product Overview

Description



Product Description

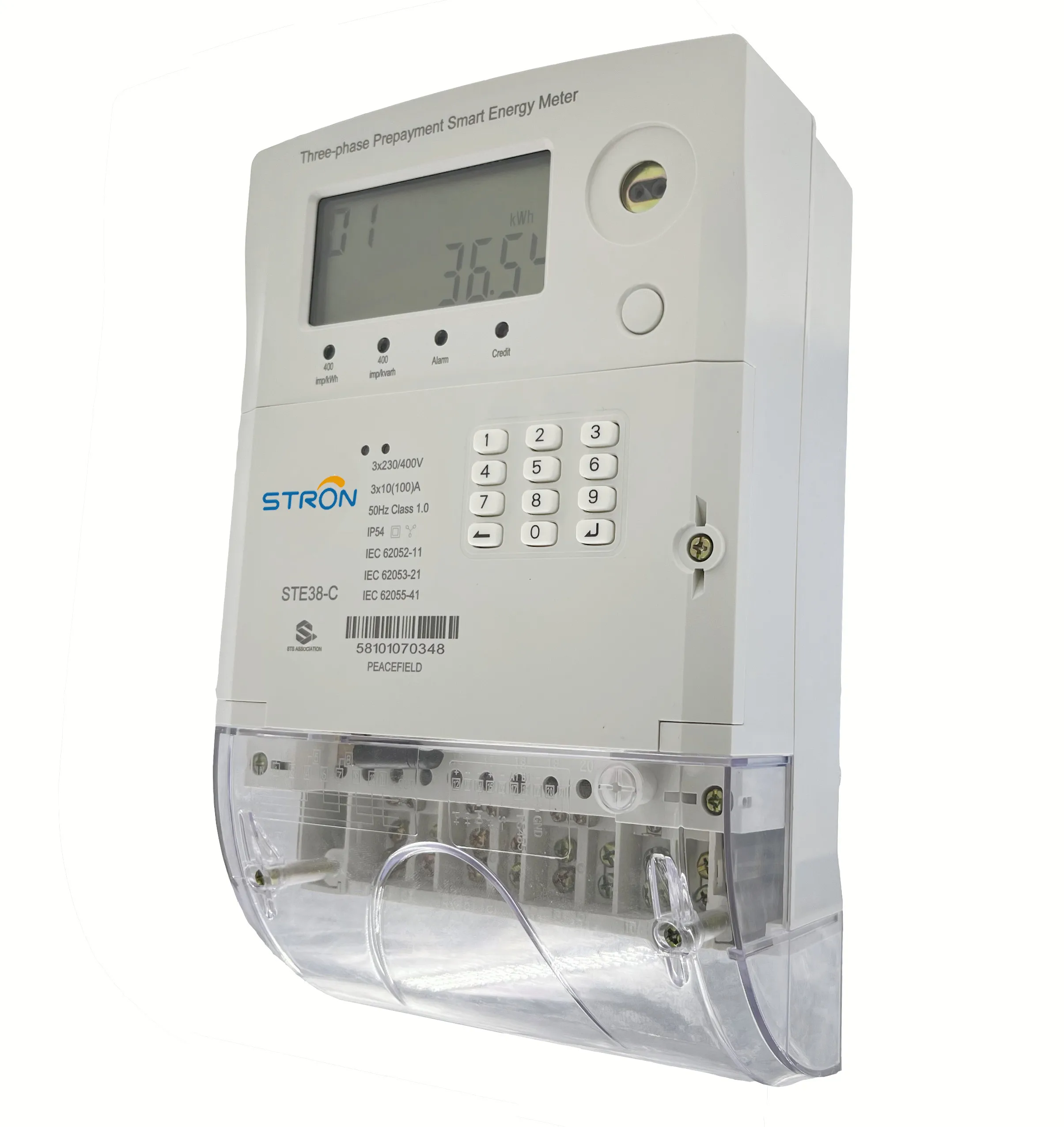

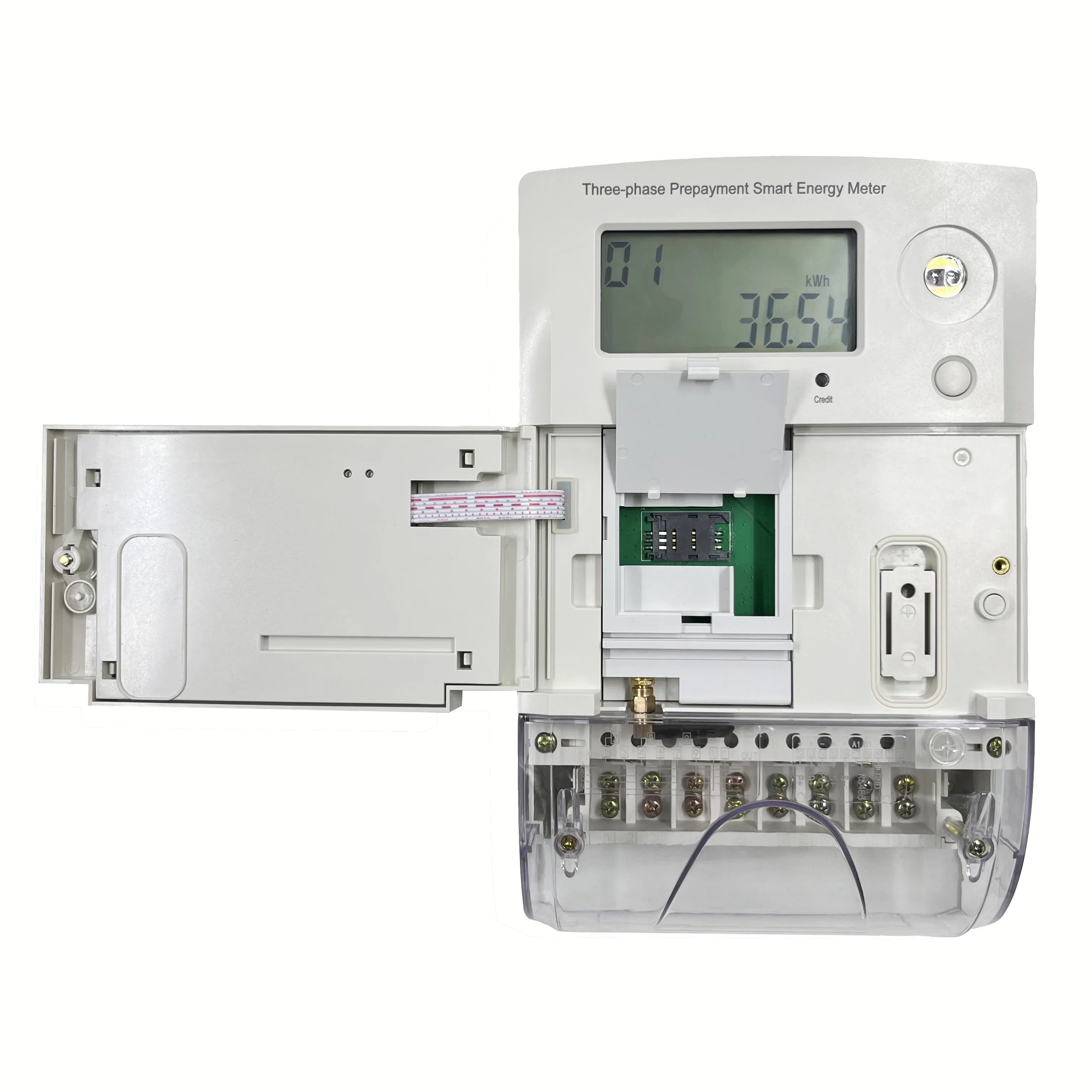

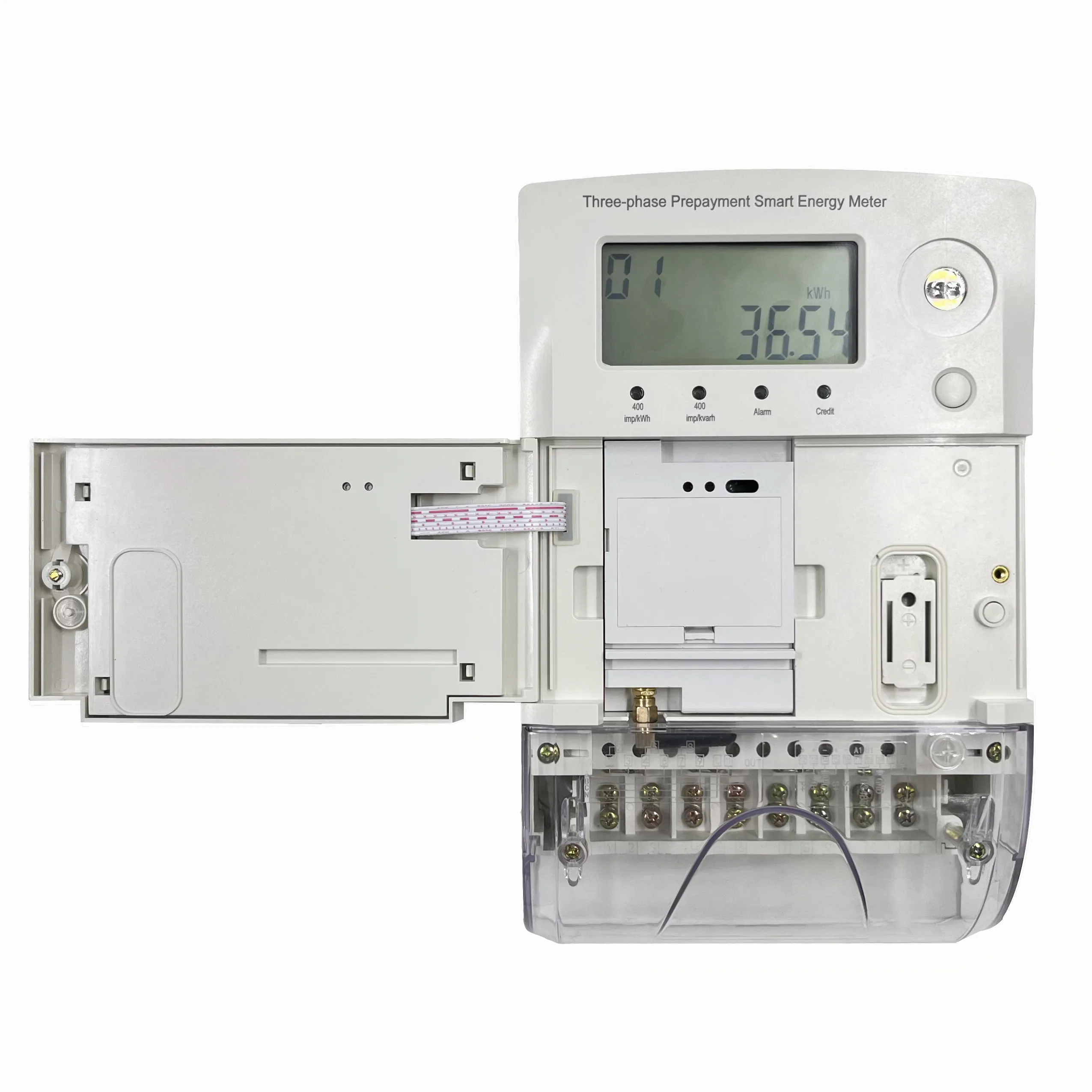

This meter is STS Standard compliant prepaid smart three phase electricity meter. The meter works with a plug-in module for STS compliant data collection and network communications. This modular design enables utility to select from PLC/RF/GPRS 3G and 4G LTE cellular data networks according to local conditions at low cost. Upgrade and maintenance will also become cost-effective by replacing the modules only instead of the entire meter.

It can communicate with AMI system with GPRS module directly to realize remote reading, monitoring and recharging and no distance limit. The waterproof of meter is IP54 rating, allowing it to operate in harsh environments.




Main Features
① 20 digit (Standard Transfer Specification) STS encryption
② Detection of significant reverse energy (SRE)
③ IEC62056-21 compliant port allowing for easy data interrogation
④ Disconnects on overload and no credit
⑤ Programmable load limit and low credit warning
⑥ Detection and record tamper event such as cover open, reversal, black-out, etc.
⑦ Easy access to 12 months historical consumption data and last 5 token entered.


User Benifit
☀ Easy connection to User Interface Unit (UIU) for split type applications.
☀ PLC/ RF / GPRS wireless communication with a head-end AMR/AMI server.
☀ Time of Use (TOU), multi-tariff, holiday setting.
☀ Advanced load control and disconnection features.
☀ Easy access to 12 months historical consumption data and last 5 token entered.
☀ Programmable load limit and low credit warning.
☀ Detection and record tamper event such as cover open, reversal, black-out, etc.
☀ Detailed power information such as phase voltage, current, total active power, reactive power, apparent power, total power factor, power grid frequency.


Technical Parameters
Nominal Voltage
230V
Working Voltage Range
70%~120%Un
Nominal Frequency
50-60Hz
Basic Current (Ib)
10A
Maximum Current (Imax)
100A
Starting Current (Ist)
30mA
Active Energy Constant
400imp/kWh
Measurement Accuracy
Class 1.0
Reactive Energy Accuracy
Class 2.0
Power Consumption in Voltage Circuit
<2W <8VA
Power Consumption in Current Circuit
<1VA
Operation Temperature Range
-25℃-70℃
Storage Temperature Range
-40℃-85℃
Electro Magnetic Compatibility
AC Insulation Strength
4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections
8kV
Electrostatic Discharges
Contact discharge
8kV
Air discharge
16kV
Electromagnetic RF Field
27MHz-500MHz
10V/m
100KHz-1GHz
30V/m
Fast transient burst test
4kV
Mechanical requirements
Meter shell Water proof protection Rate
IP54
Protection
Class II


Basic Functionality
Function
Details
Prepayment
STS Standard, recharge by input 20digits TOKEN
Low credit alarm
Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch
Meter can be switch to prepaid mode or post-paid mode
Load control function
Meter can be programmed for load control threshold, If the current power is more than threshold. The meter will cut off user load.
Event recording
Meter can record the tamper event, open cover event, purchase event and TOKENS.
Self-testing
Meter has a self-test function, it can test LCD and relay etc. and report the result directly
Anti-tamper
Meter will automatically close the valve after detection of magnetic field and open cover event
TOU Tariff
TOU Tariff can be set by inputting corresponding TOKEN
Overdraft Collection
Electricity Overdraft can be collected day by day or month by month
Communication
The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry
Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code
Liquid Crystal Display
999999.99


Stronpay Vending Software

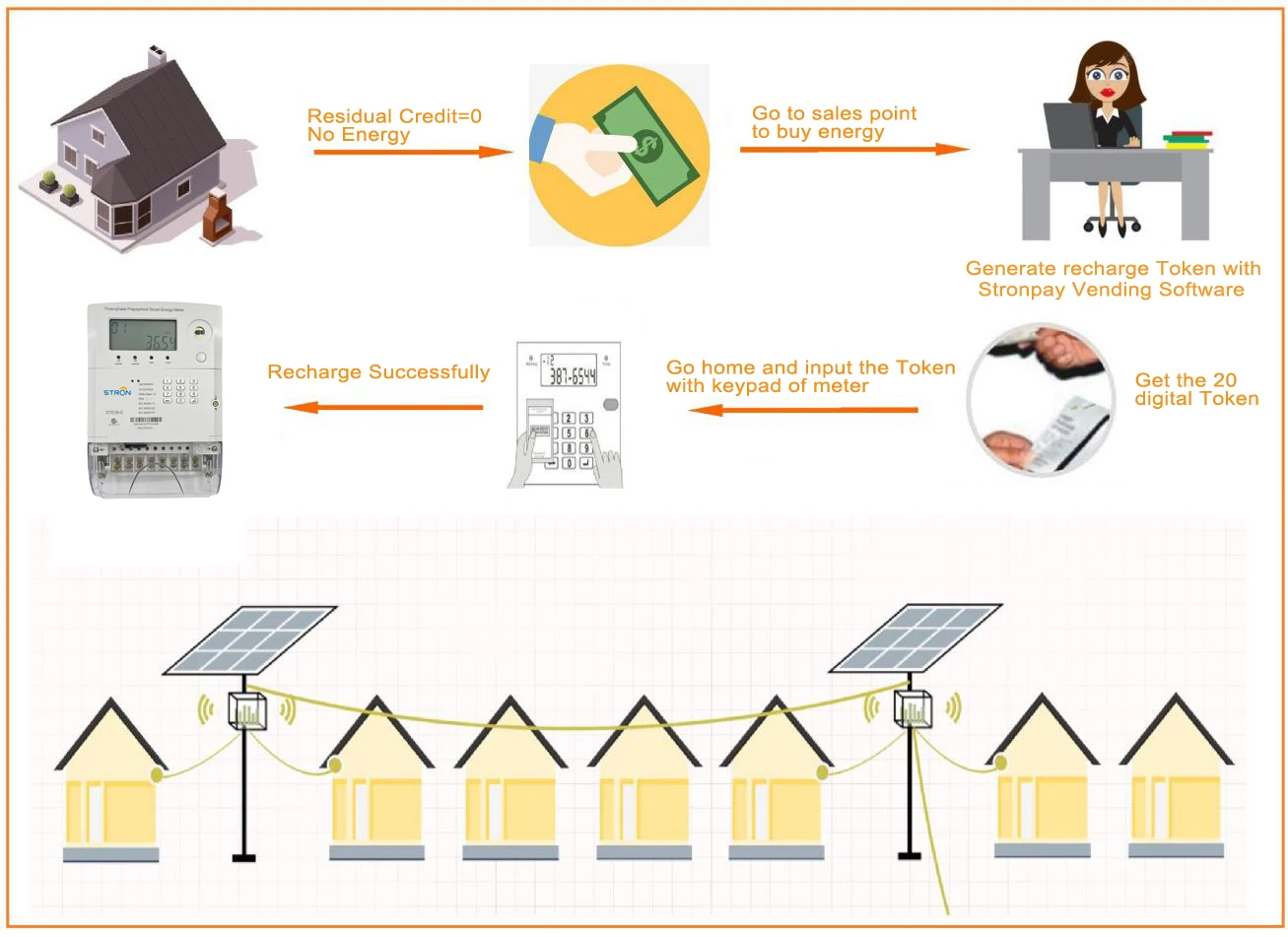

Operation of vending software
1. Login vending system
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully

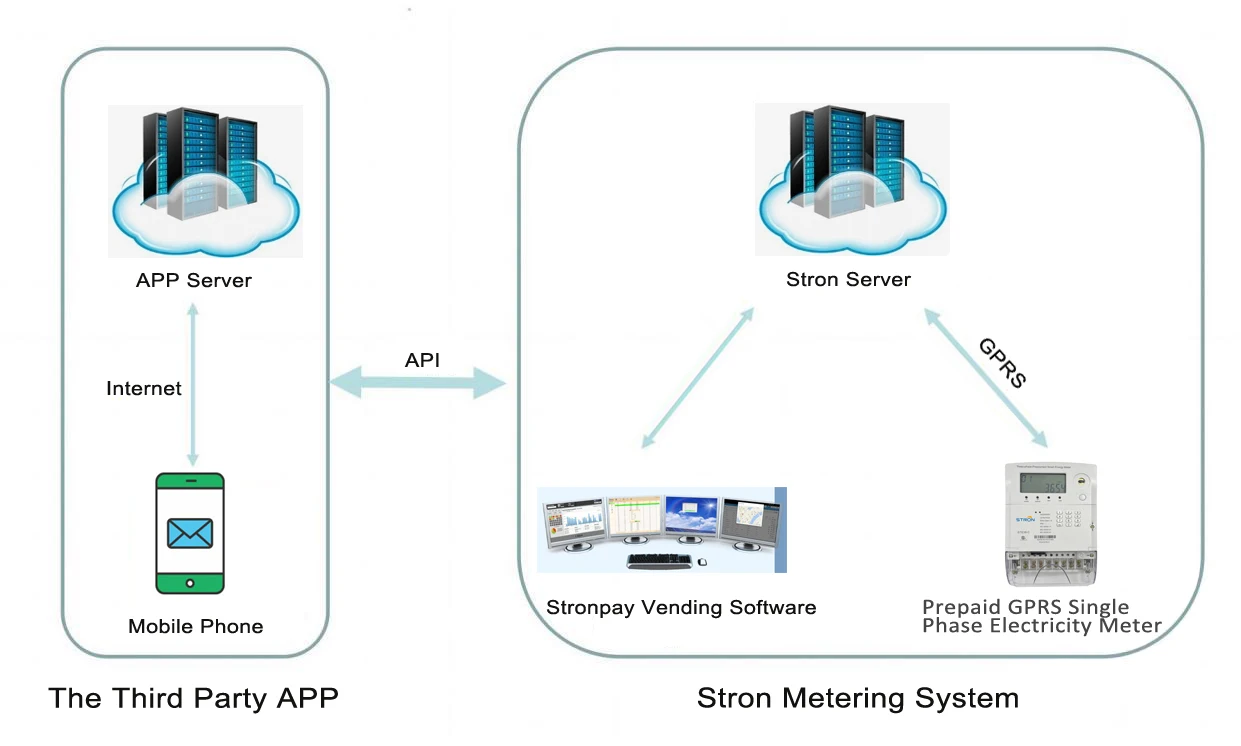

API-Stronpay vending software can easily integrated with local mobile payment via API
People use the mobile payment to recharge for the meter, after they paid, the token will be sent to meter automatically, no need to input the token manually.

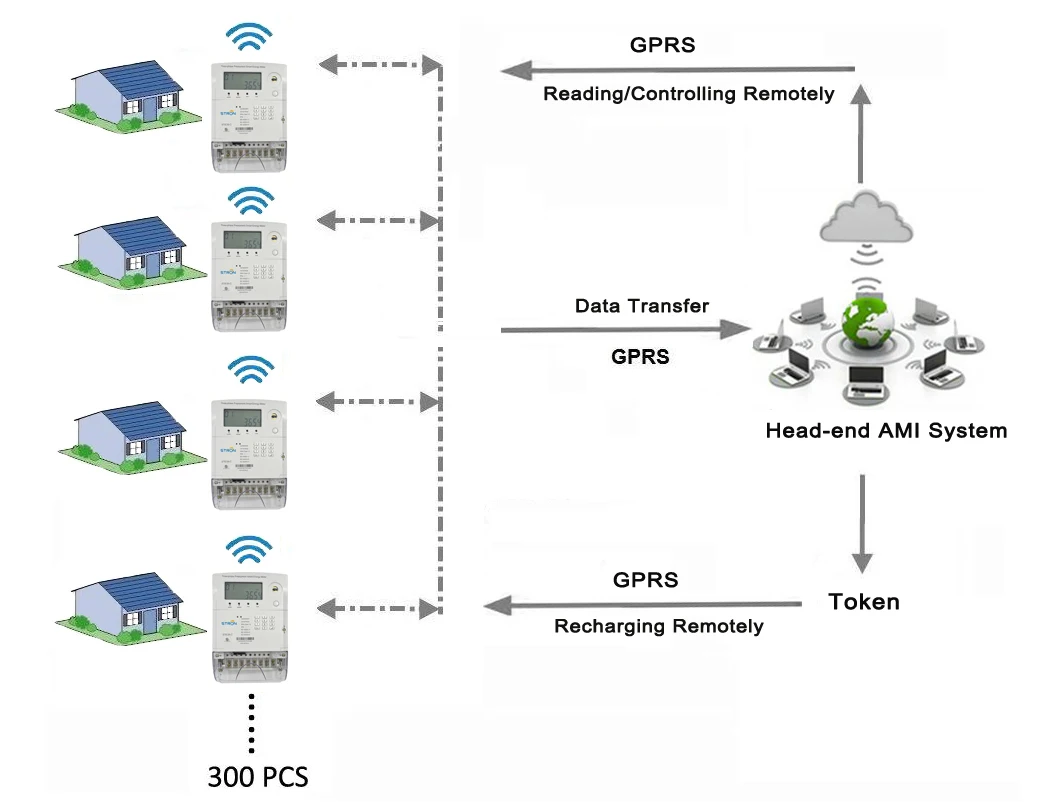

AMI System for Remote Reading, Recharging and Monitoring.
After insert a SIM card into meter, Admin could read, recharge and monitor the meter by AMI system. Send the tokens, read the data, switch on/off the meter without distance limit as long as the GPRS meter has GPRS signal.




Company Introduction


Hunan Stron Smart Co., Ltd is founded in 2007, is the leading supplier of smart meters in China. There are 500 employees in our company including 100 technical engineers, among which 100 people with professional title. We are devoting ourselves to be the intelligent product service provider.












Stron owns a strong technical team comprised of industry professional engineers and eminent experts and has applied for over 100 patents and intellectual property rights, while a number of its products and technologies have won the national, provincial and municipal awards.

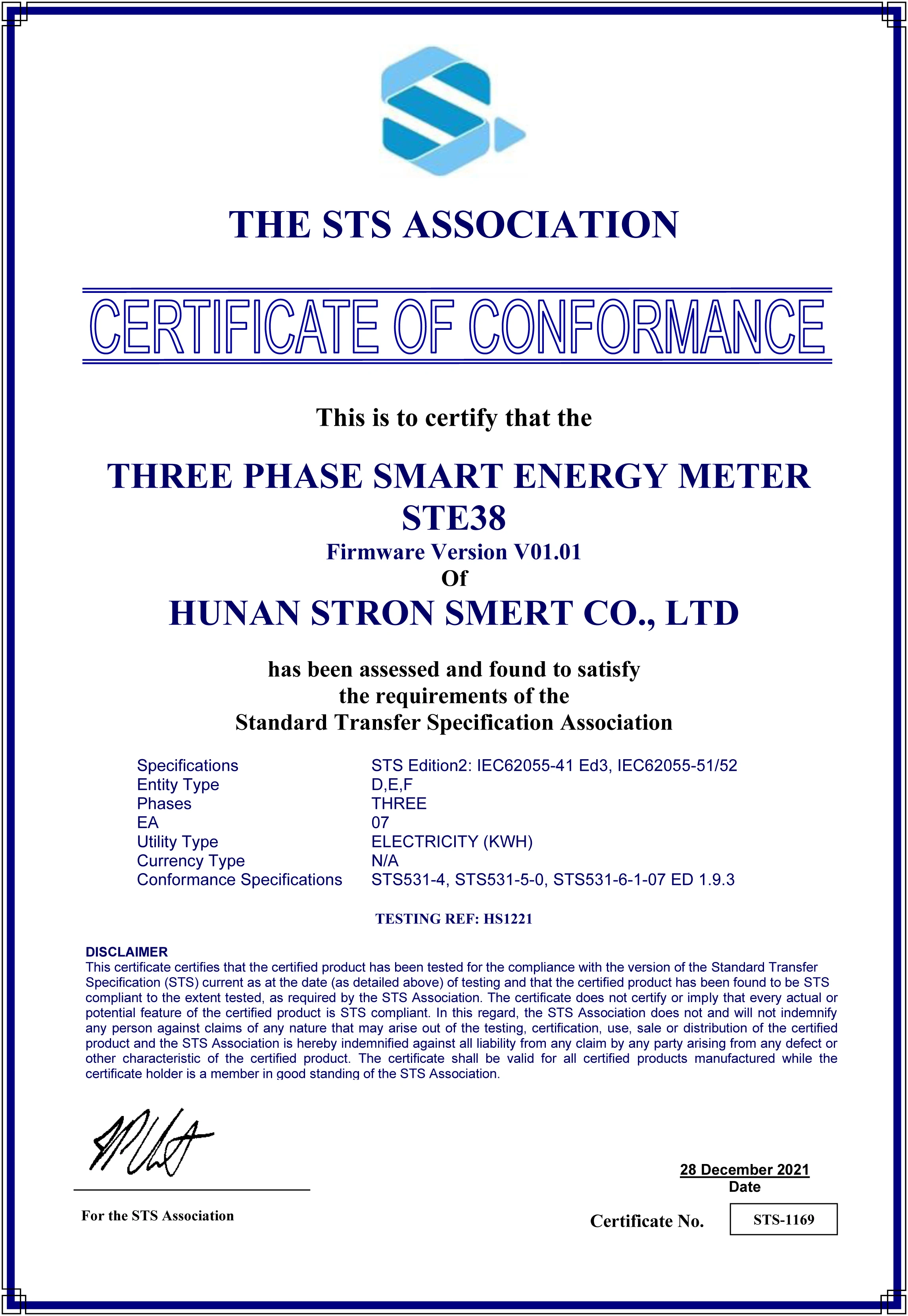

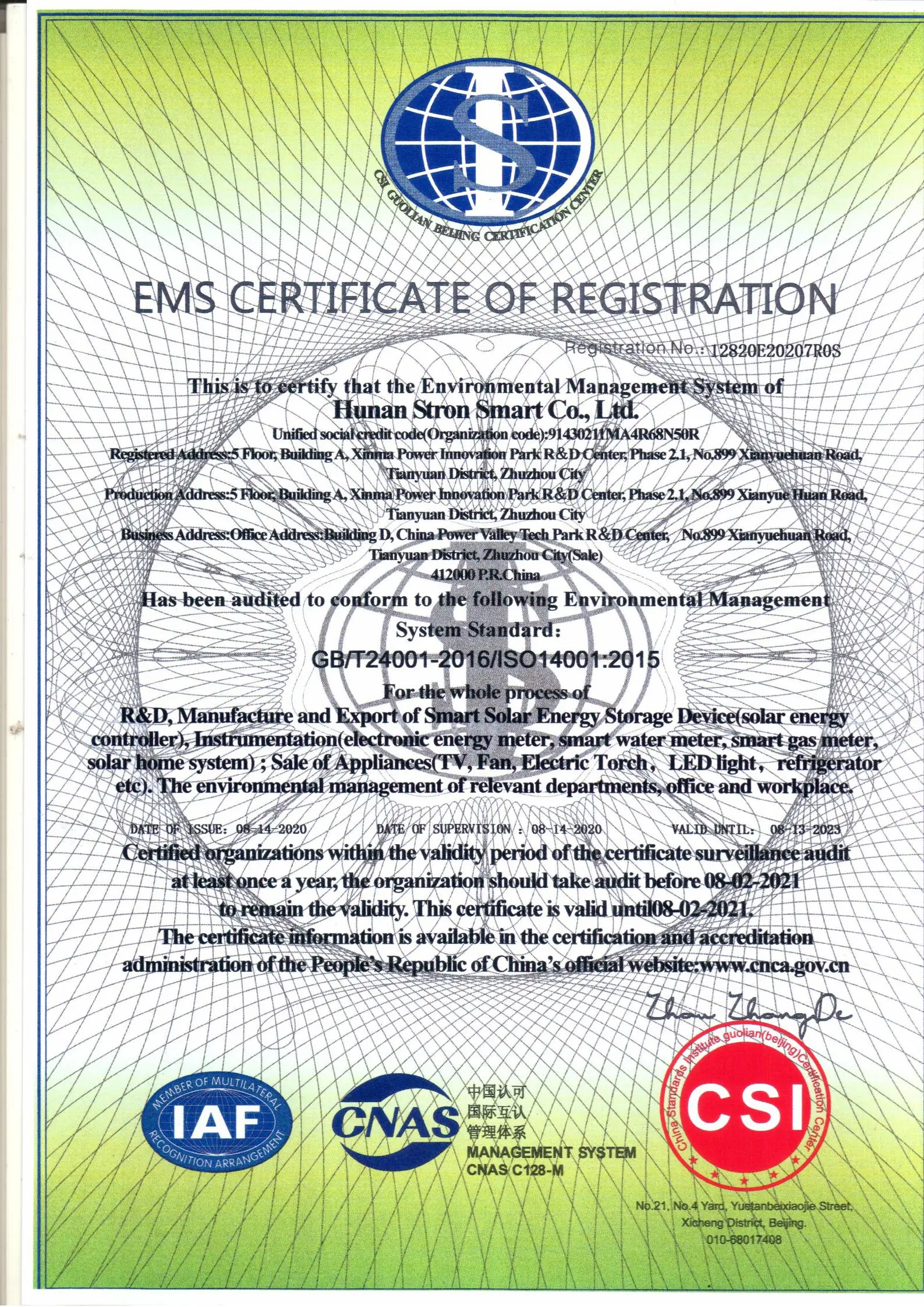

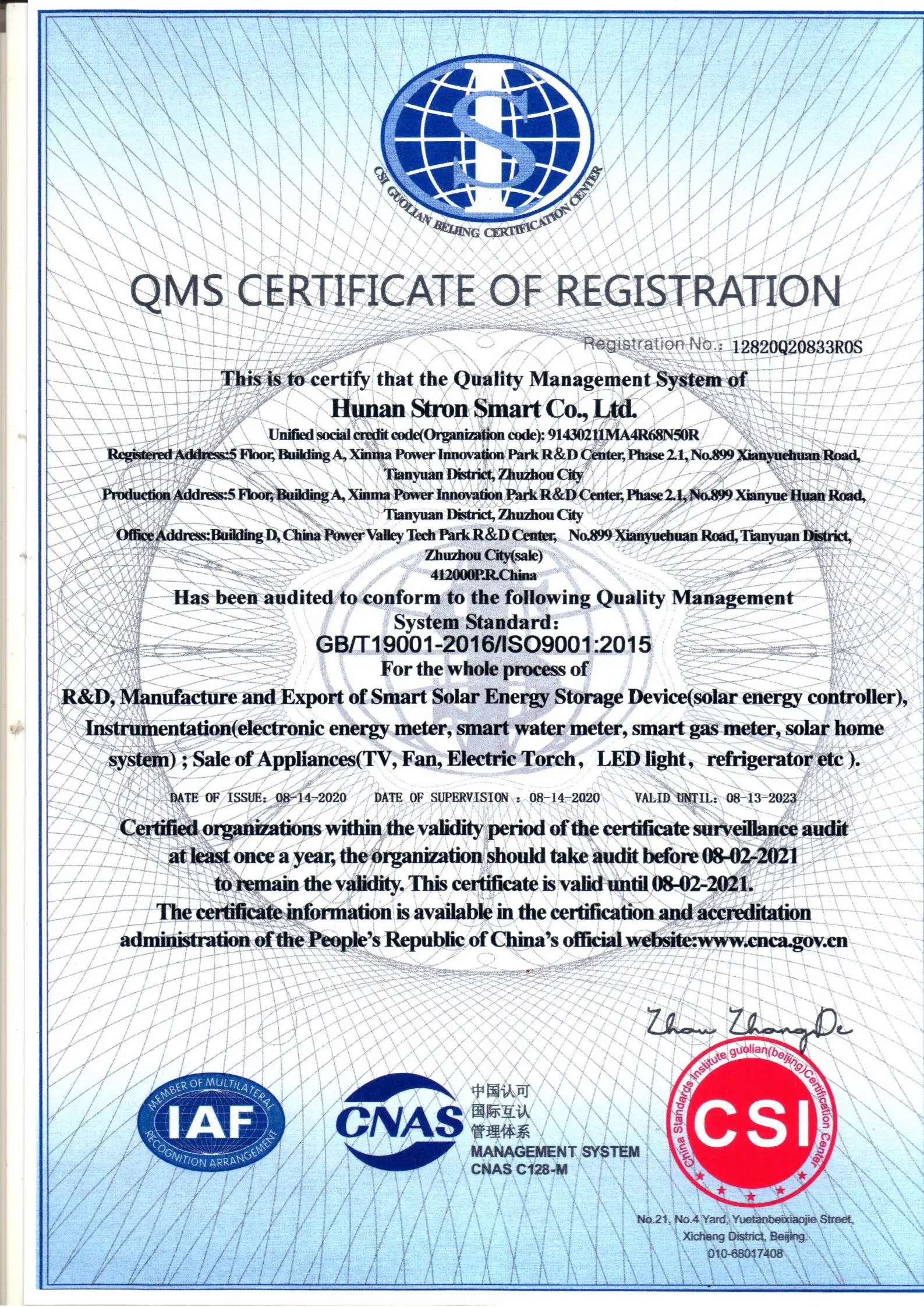

Certificates






Product packaging
