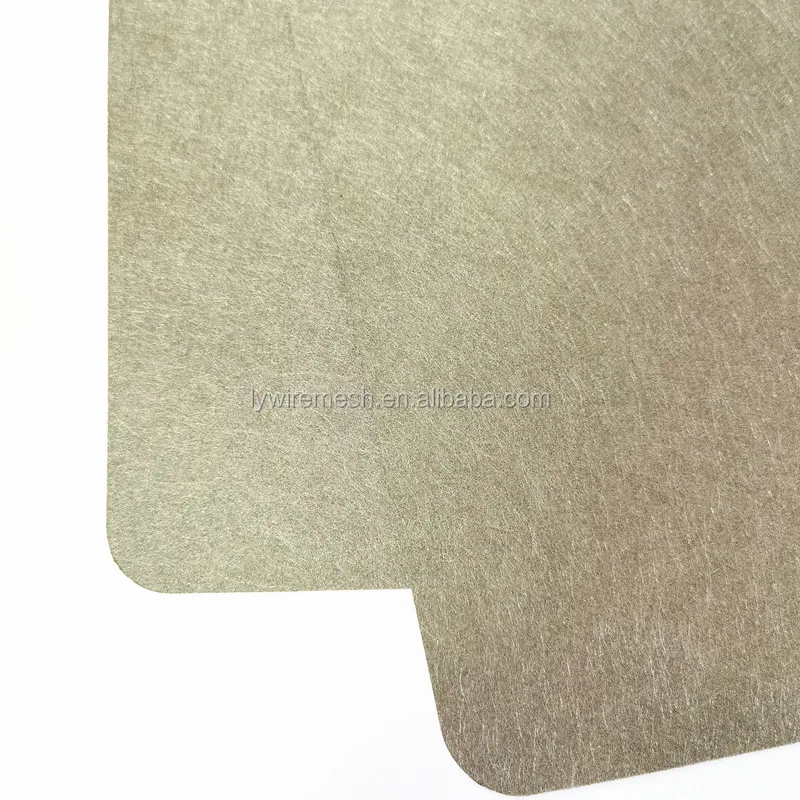

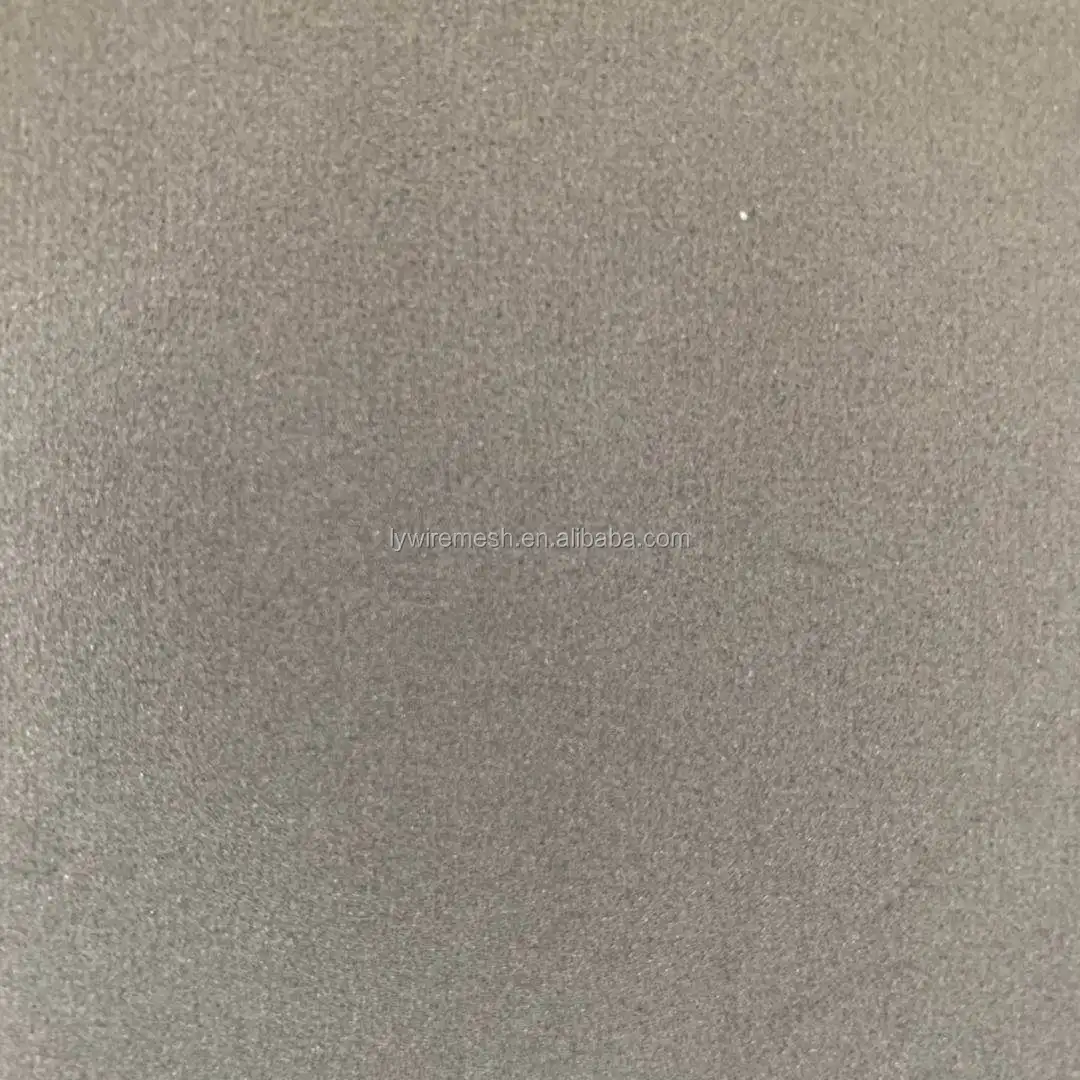

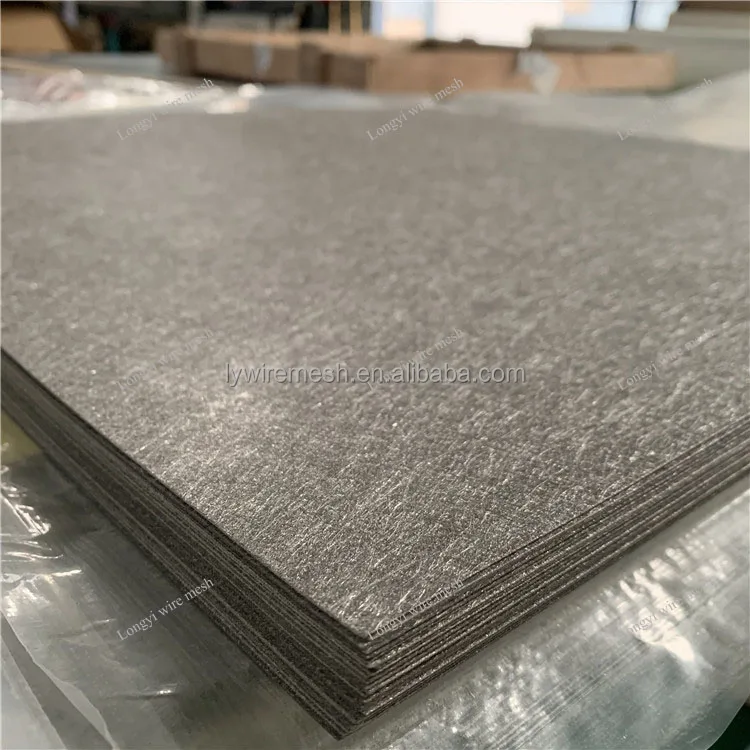

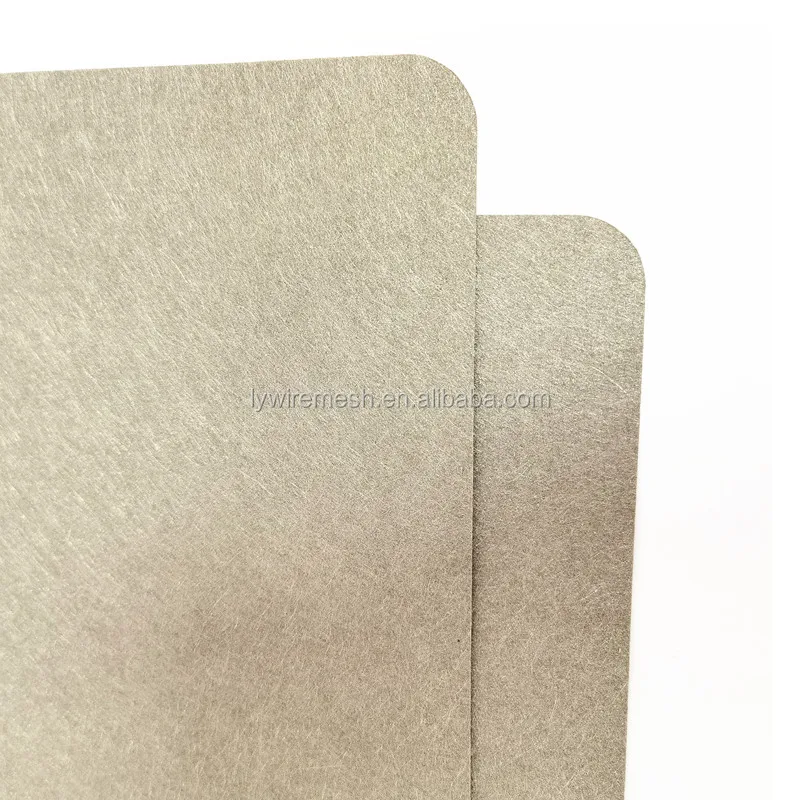

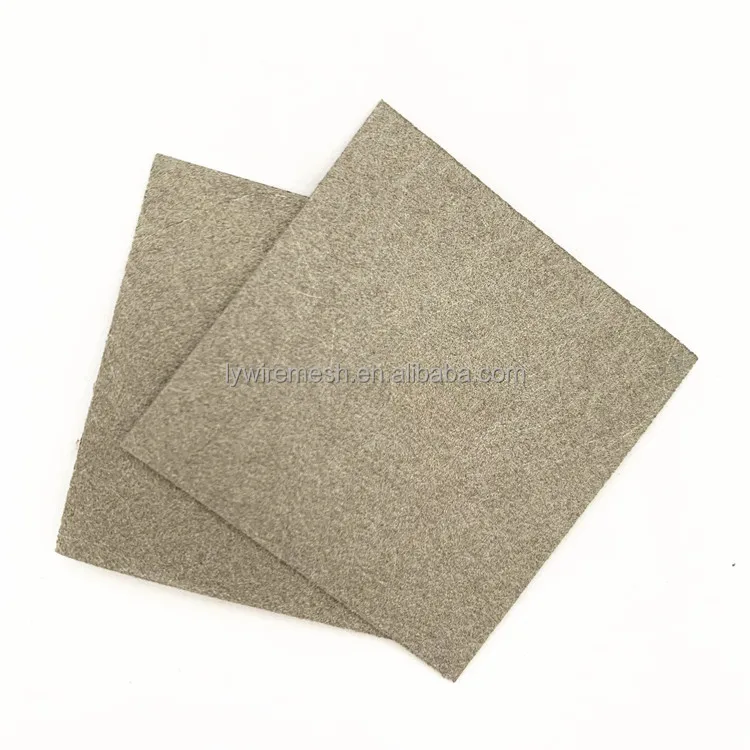

PEM electrolyzer Ti sintered fiber felt 0.6mm 0.5mm 0.4mm 73% porosity titanium felt
- Category: >>>
- Supplier: Anping County Longyi Mesh Manufacture Co. Ltd.
Share on (1600618033973):
Product Overview
Description
Product prices are for reference only, please contact customer service for specific prices.
7x24 hours online service!
PEM electrolyzer Ti sintered fiber felt 0.4mm 73% porosity titanium felt
Product Description
Specification
Product name | 0.5mm thickness 70-80% porosity pure ti Hydrogen electrolyzer sintered titanium felt | ||||||
Material | Grade 1 2 | ||||||
Other material | nickel fiber felt, stainless steel fiber felt, FeCrAl Fiber felt etc. | ||||||
Thickness | 0.25mm, 0.4mm, 0.6mm, 0.8mm etc. | ||||||
Porosity | 50-60%, 60-70%, 70-80% | ||||||

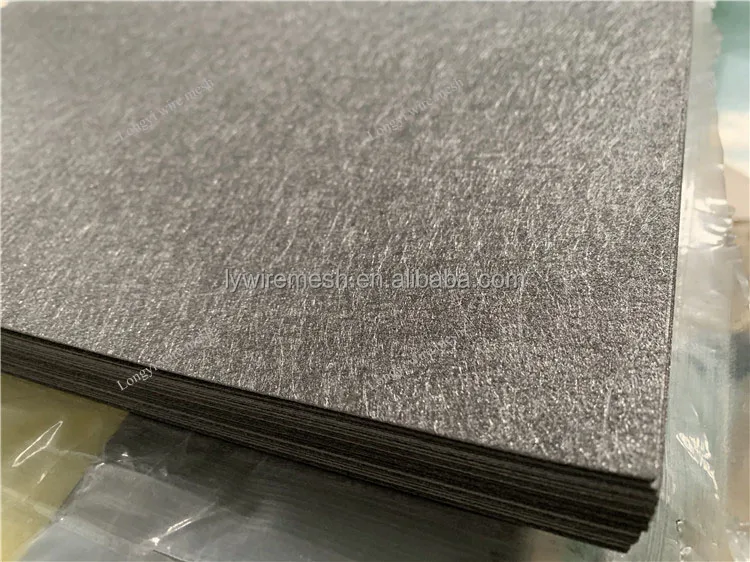

Titanium fiber felt

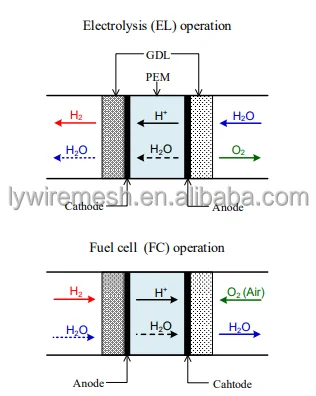

Titanium fiber felts are primarily used in electrolyzer stacks as the flow field or diffuser material, particularly on the oxygen
(anode) side. Since electrolyzer hardwares cannot use carbon-based gas diffusion layers at the oxygen evolution electrode due to
immediate oxidation of carbon to Co2 (if the medium is acidic) or carbonate ions (if the medium is basic) during the electrolysis
reaction, titanium fiber felt becomes an ideal candidate as the diffusion medium and also provide electrical contact between the
anode catalyst layer and bipolar plate or current collector component at the anode side. Our titanium fiber felts are produced

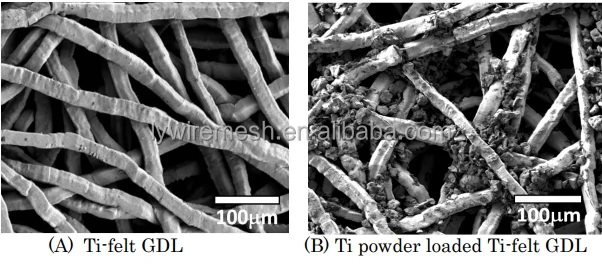

from small-diameter titanium fibers that has been compressed to flattened form and annealed (i.e., sintered), ensuring a smooth,
flat surface suitable for use in electrolyzer. While the most industrial applications operate their electrolyzers in the anode-fed
mode, this product is also an ideal diffusion medium for researchers conducting cathode-fed electrolyzer research.
(anode) side. Since electrolyzer hardwares cannot use carbon-based gas diffusion layers at the oxygen evolution electrode due to
immediate oxidation of carbon to Co2 (if the medium is acidic) or carbonate ions (if the medium is basic) during the electrolysis
reaction, titanium fiber felt becomes an ideal candidate as the diffusion medium and also provide electrical contact between the
anode catalyst layer and bipolar plate or current collector component at the anode side. Our titanium fiber felts are produced
from small-diameter titanium fibers that has been compressed to flattened form and annealed (i.e., sintered), ensuring a smooth,
flat surface suitable for use in electrolyzer. While the most industrial applications operate their electrolyzers in the anode-fed
mode, this product is also an ideal diffusion medium for researchers conducting cathode-fed electrolyzer research.
Application of sintered titanium fiber felt:
1. The field of hydrogen production by electrolysis of water;
2. PEM electrolyzer diffusion layer;
3. Hydrogen fuel;
4. Hydrogen suction machine, hydrogen-rich water dispenser, hydrogen-rich cup;
2. PEM electrolyzer diffusion layer;
3. Hydrogen fuel;
4. Hydrogen suction machine, hydrogen-rich water dispenser, hydrogen-rich cup;
Stock products of titanium fiber felt:
1. 0.25mm thickness: 100x100mm, 100x200mm, 200x200mm, 215x215mm, 240x240mm, 660x500mm
2. 0.4mm thickness: 50x250mm, 100x250mm, 100x200mm, 250x250mm, 250x400mm
3. 0.6mm thickness: 200x200mm
4. 0.8mm thickness: 100x110mm, 276x138mm
Related Products

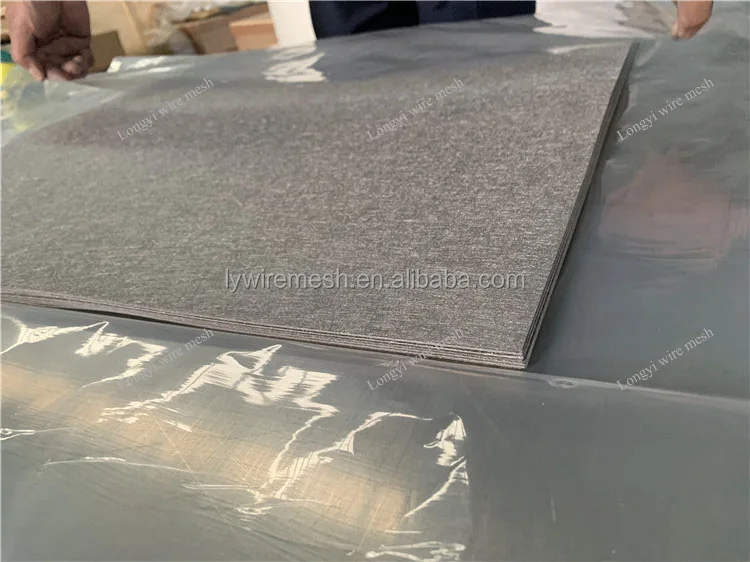

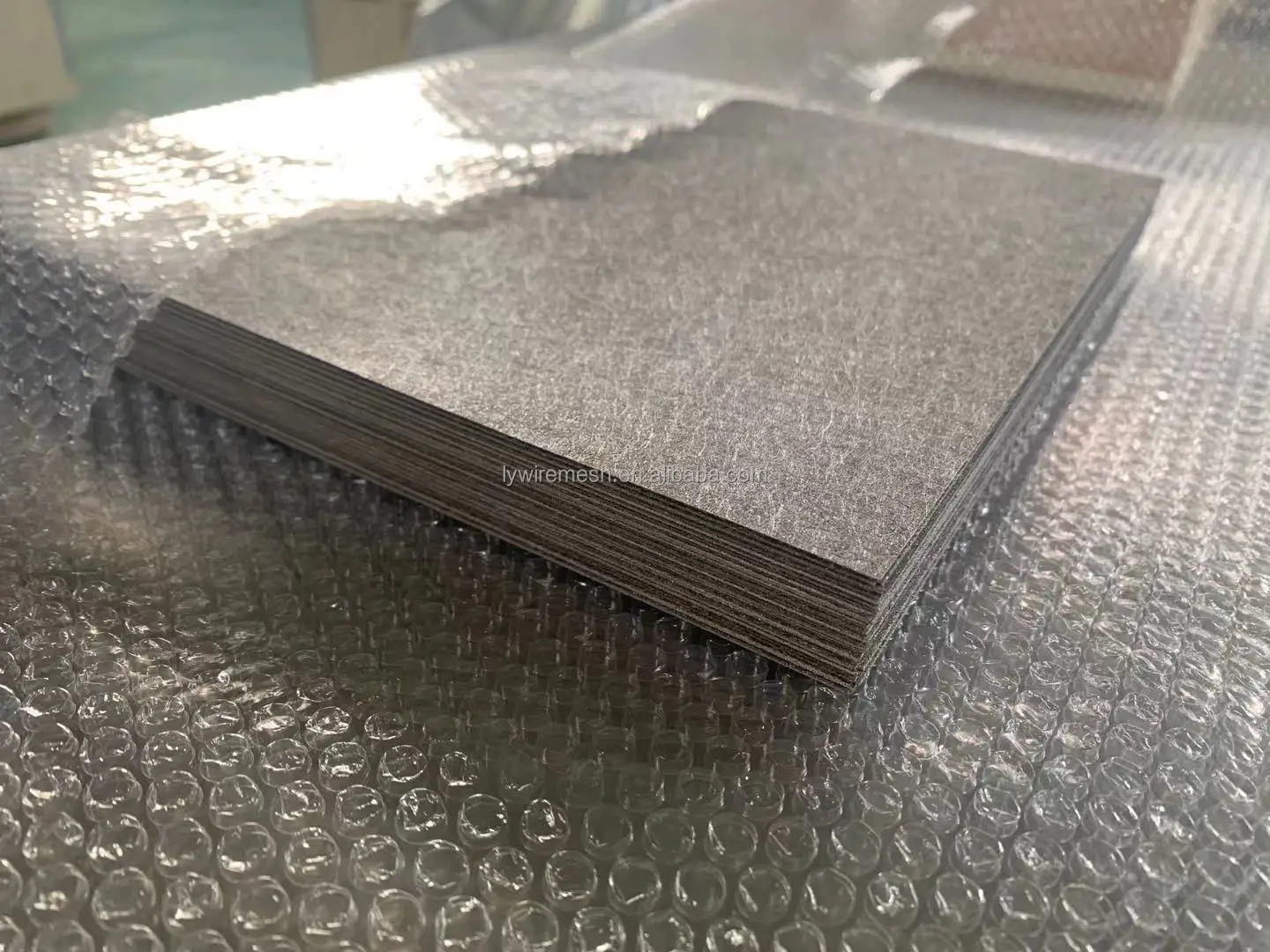

Packing & Delivery

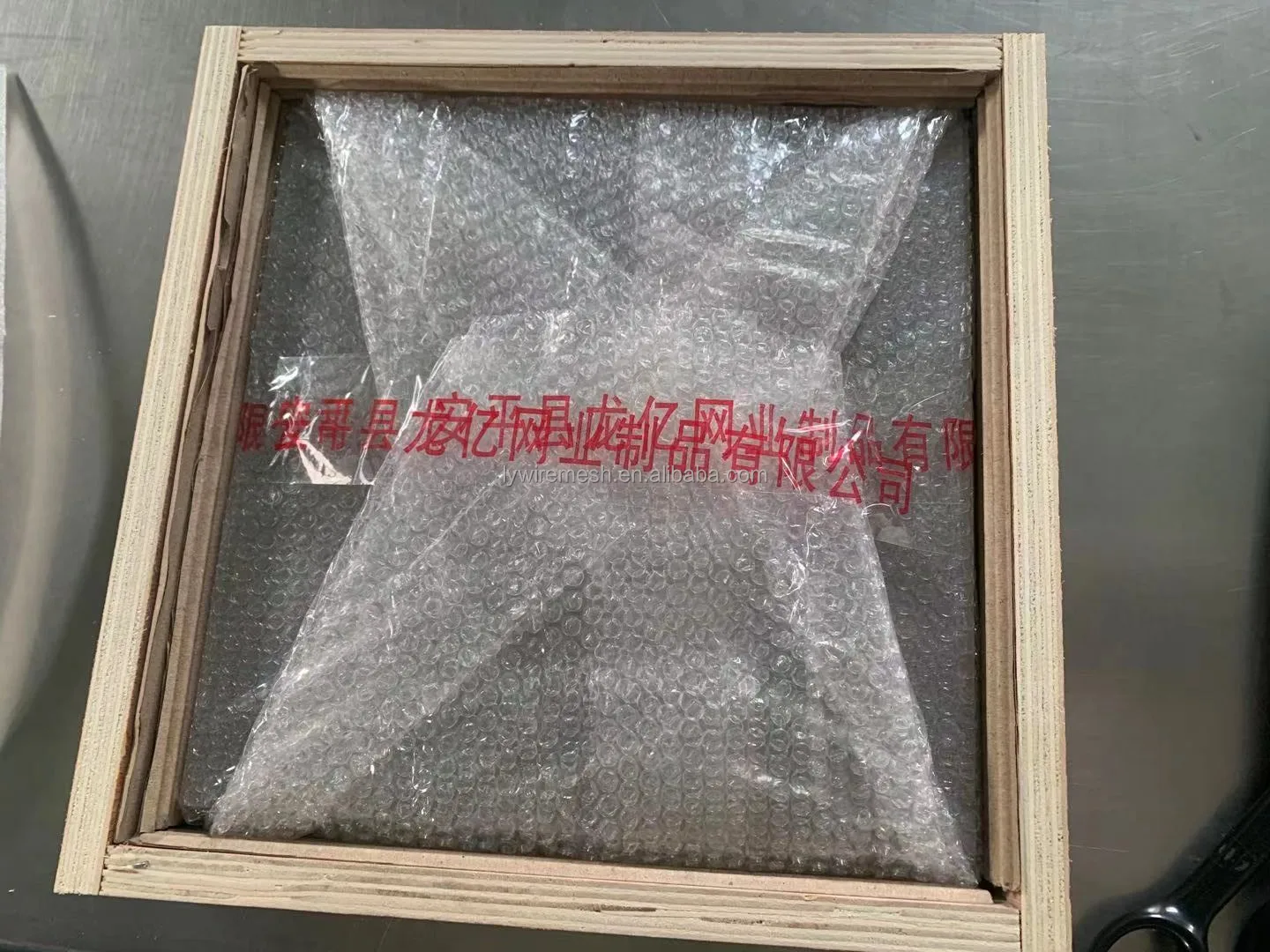

Standard export packing in carton or wooden box.
According to the requirements of the customer.
According to the requirements of the customer.
