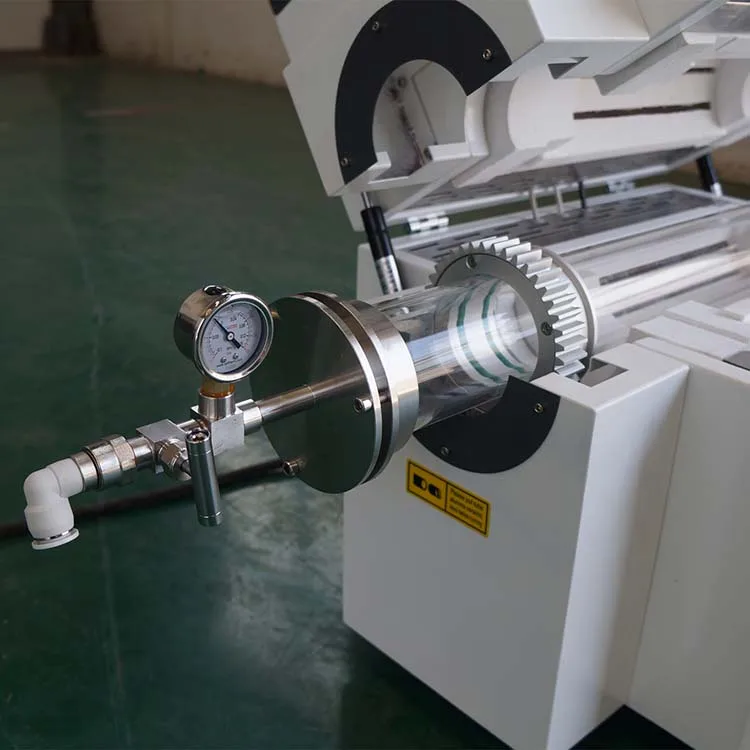

1200c 1300c Quartz Tube For Vacuum Tube Furnace Laboratory Equipment
- Category: >>>
- Supplier: Henan Sante Furnace Technology Co. Ltd.
Share on (1600618042302):
Product Overview
Description

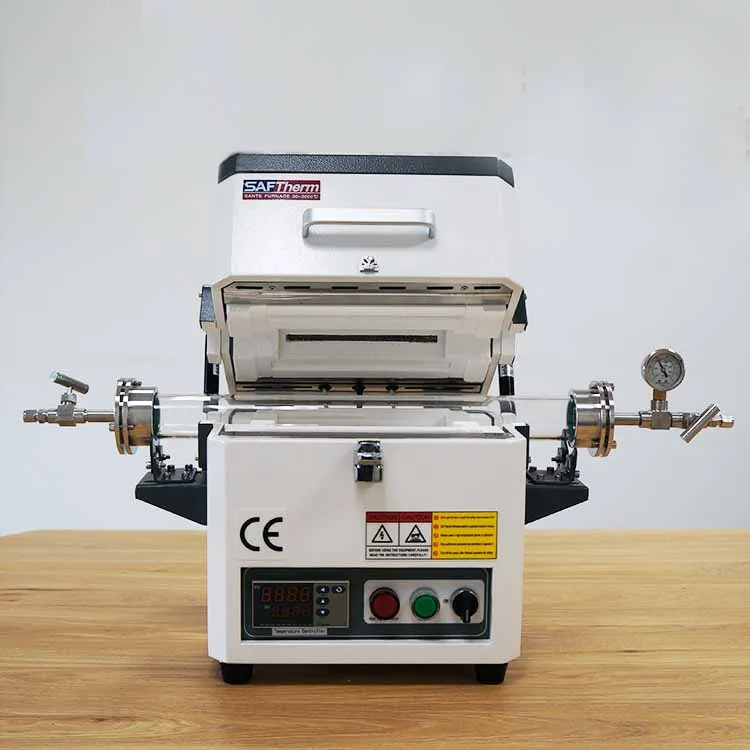

Professional Manufacturer High Temperature Lab Heating Equipment Vacuum Tube Furnace
Tube furnace product is suitable for elemental analysis, measurement and steel hardening, annealing, tempering, heat treatment and heating in laboratory, industrial and mining enterprises, scientific research units, can also be used for sintering of metal, stone, ceramic, dissolution analysis of high-temperature heating.
item | STG-25-12 | STG-40-12 | STG-60-12 | STG-80-12 | STG-100-12 | STG-120-12 | |||||
heating zone length | 200mm | 440mm | 440mm | 440mm | 440mm | 440mm | |||||
Quartz tube size | φ25 | φ40 | φ60 | φ80 | φ100 | φ120 | |||||
Max. Temperature | 1200℃ | OEM | |||||||||
Continue working temp. | 1100℃ | Saftherm | |||||||||
Power supply | 220V/1.8KW | 220V/1.8KW | 220V/2.6KW | 220V/2.6KW | 220V/2.6KW | 220V/4KW | |||||
Heating element | HRE Alloy resistance wire | China | |||||||||
Chamber material | 1500 Type polycrystal alumina ceramic fiber material | ||||||||||
thermocouple | N type | ||||||||||
temp controller | YUDIAN PID controller can program 30 segments | ||||||||||
electronic parts | DELIX electronic brand | ||||||||||
heating rate | 15 ℃/min | ||||||||||
certificate | CE, ISO9001 | ||||||||||
Furnace Chamber Material
High temperature 1800 type Polycrystal alumina ceramic fiber material
Main Features
High standard, high quality
Heating Element
High quality alloy resistance wire,Excellent temperature uniformity;

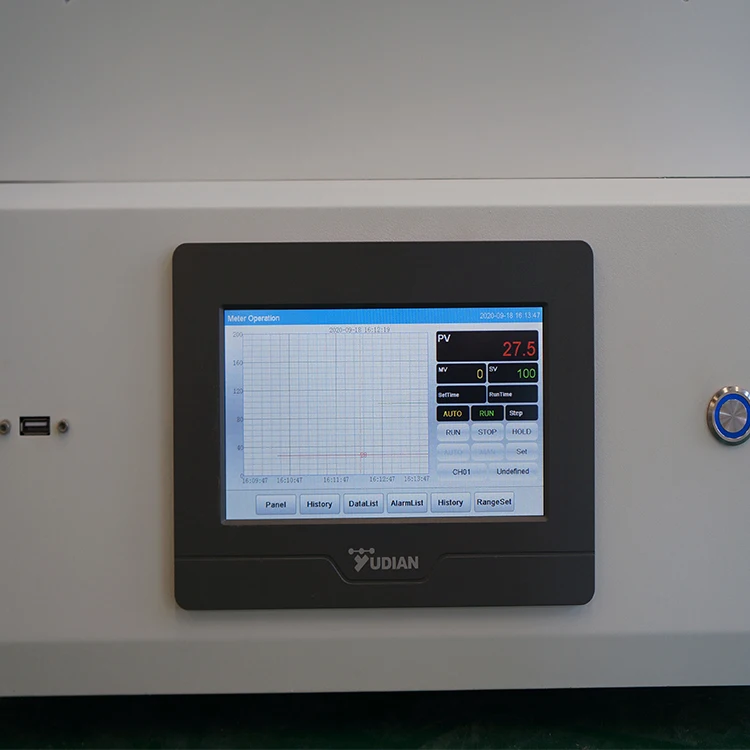

Temp Controller
YUDIAN brand intelligent microcomputer PID Controller Can program 30 segments,double row LED digital display.
Furnace Tube Material
Quartz tube,Maxium temperature1200C;
Gas Flow Meter
This gas meter is connected to hose to measure unidirectional gas flow;
The factors to select a suitable vacuum furnace :
What is the Operate temperature ?
1.SAFTHERM vacuum furnace mainly with range of 1200℃,1400°C,1700°C and OEM 1800℃
2.When real operating lower than 1200°C, we generally use high grade HRE spiral wire coils as heating element.
3.When real operating lower than 1400°℃,we generally use high grade SIC (Silicon Carbide Heaters )heating element.
4.When real operating lower than 1700°C, we generally use high grade MoSi2 ( Molybdenum Disilicide Heaters ).
5. Continuous operating temp will be100"C below the max temp design and right using will extend the furnace service life.
What is the chamber size required ?
1.SAFTHERM defnite and real working chamber side with Width(W), Depth (D)and Height( H) and you will see the specification with: W*D*H (mm).
2.SAFTHERM has wide range of working chamber size also can be customized according to the actual needs of users.
What is the gas system do you need ?
The gas system has two types: Gas float flowmeter control and Mass Flow Control. Mass flow meter can accurately display the gas flow,and can automatically control the flow with variable range but it will be expensive.
Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan﹒China Free Trade Zone.SAFTHERM products cover 1000℃/1200℃/1300℃/1400℃/1600℃/1700℃/1800℃ Box furnace, Tube furnace, Vacuum furnace, High Temperature Furnace, 2000℃ Ultra-High Temperature Furnace, Dental furnace, Industrial chamber furnace, elevator furnace, Intelligent mobile car bottom furnace, Smelting furnace and so on.
Our goal is to continuously meet the various demands for various kinds of high temperature heating treatment lab furnaces and to be the world first-class enterprise with providing excellent service and high-quality products for our cooperation partners!
