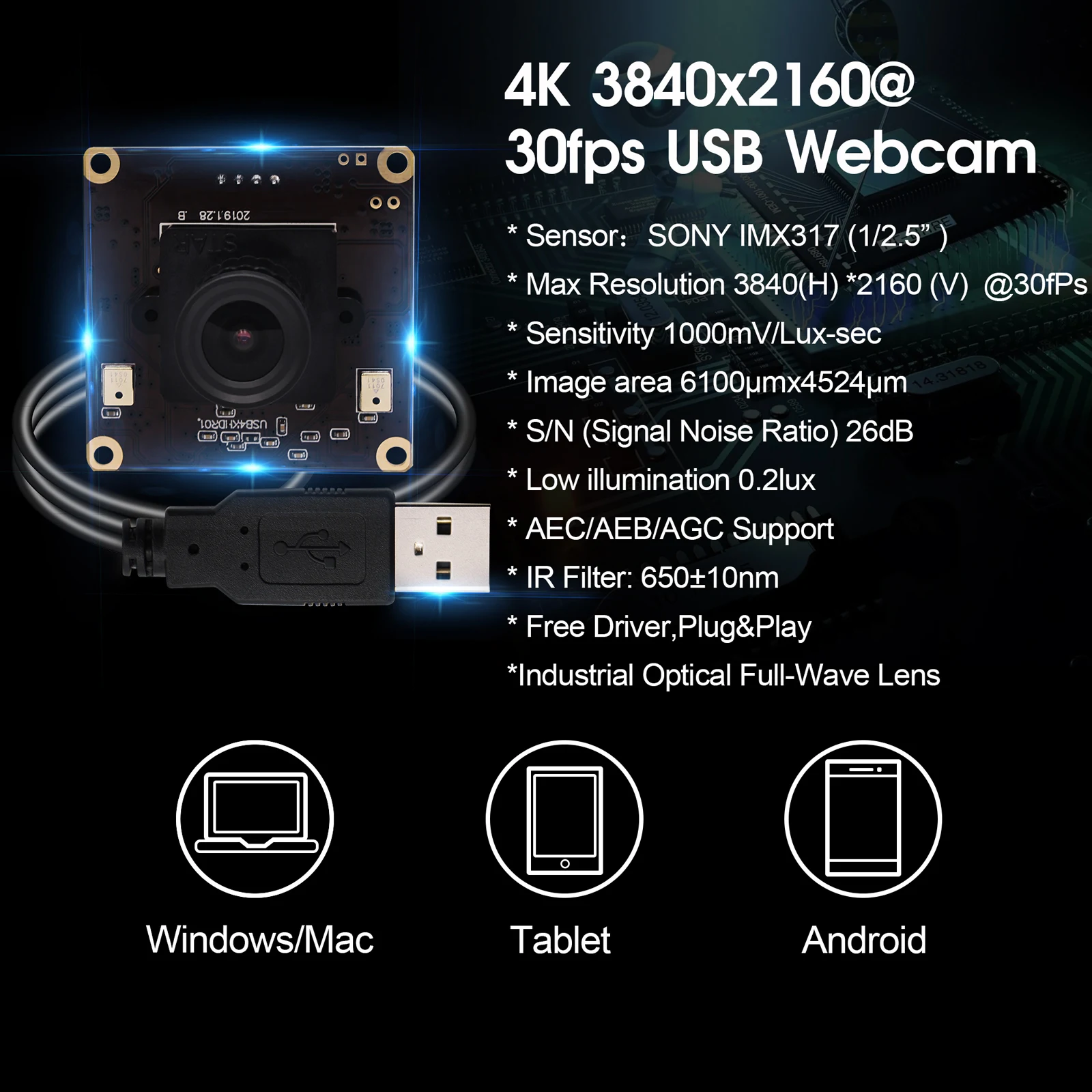

ELP 4K 30fps Camera Sony Sensor High Resolution Video Webcam CCTV Security Mini Board USB Camera Module For Windows Linux Mac
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600618044643):
Product Overview
Description
Product Description

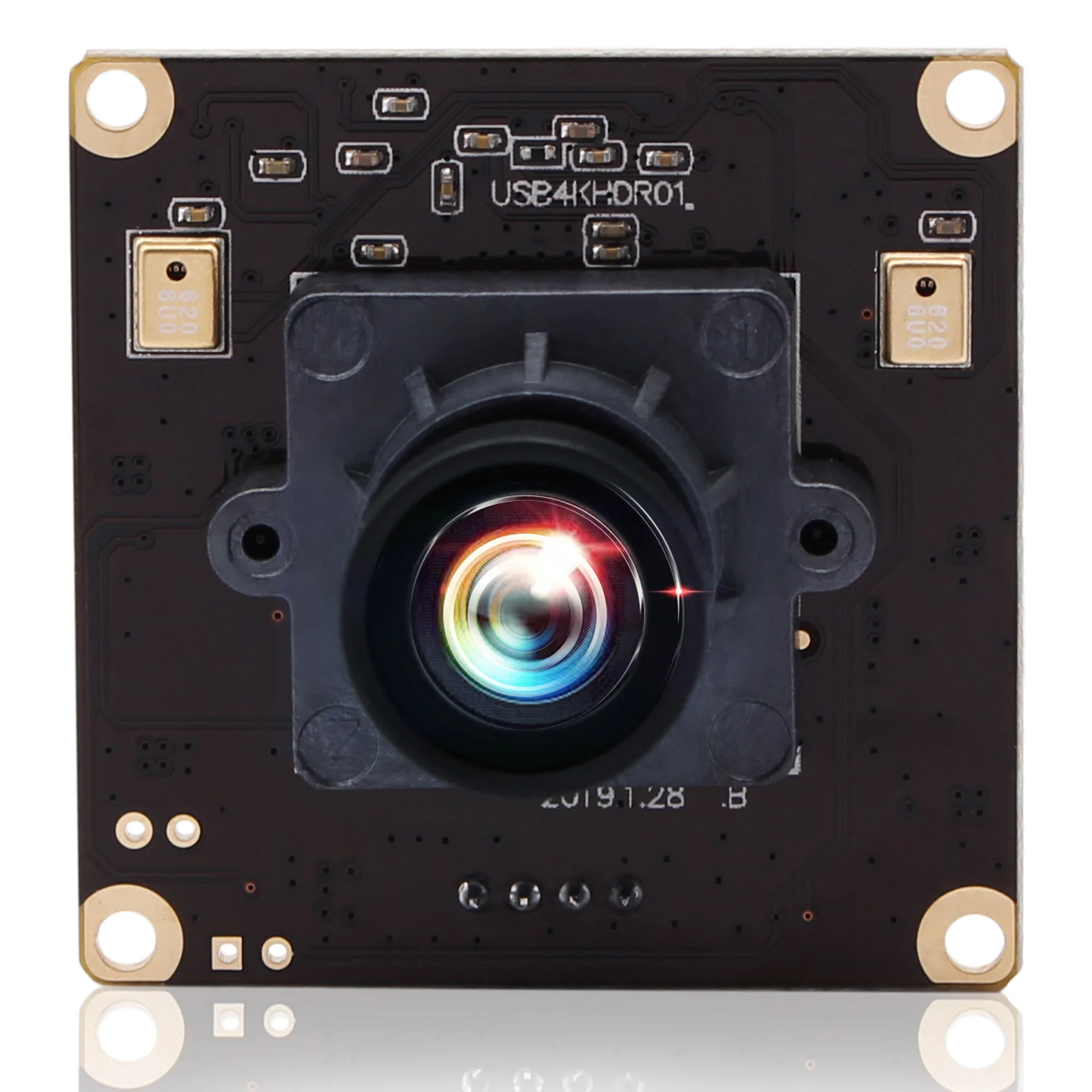

ELP 4K 30fps Camera Sony Sensor High Resolution Video Webcam CCTV Security Mini Board USB Camera Module For Windows Linux Mac
Features:
1) High Resolution 4K 3840*2160 8MP Resolution USB Camera Module

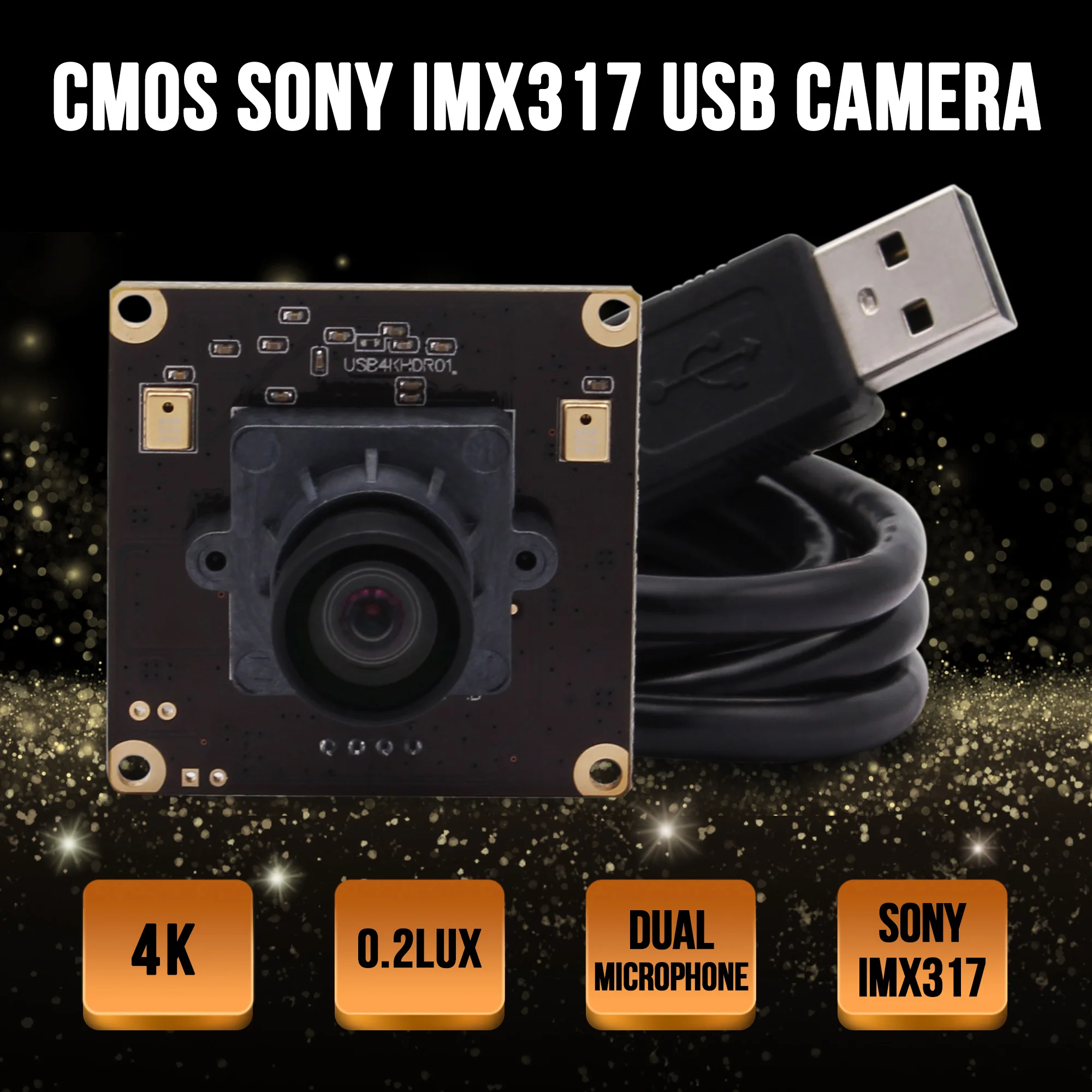

2) Use Highly advanced Sony IMX317 Image Sensor to get very clear image
3) Equiped with high quality 2.8/3.6/6/8/12/16mm lens, 2.8-12mm varifocal lens optional .
4) High frame rate -MJPEG 30fps at 4K resolution.

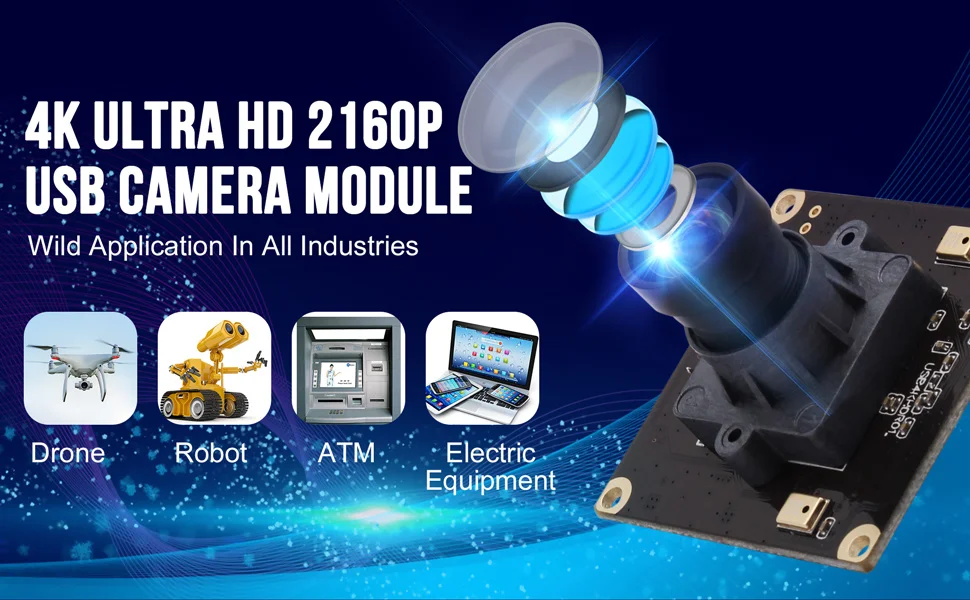

5) Application: HD high-resolution document scanning (A4 paper, invoice, courier, certificate)
, teaching live broadcast, scene shooting, UAV shooting, microscope, industrial camera, etc.
3) Equiped with high quality 2.8/3.6/6/8/12/16mm lens, 2.8-12mm varifocal lens optional .
4) High frame rate -MJPEG 30fps at 4K resolution.
5) Application: HD high-resolution document scanning (A4 paper, invoice, courier, certificate)
, teaching live broadcast, scene shooting, UAV shooting, microscope, industrial camera, etc.

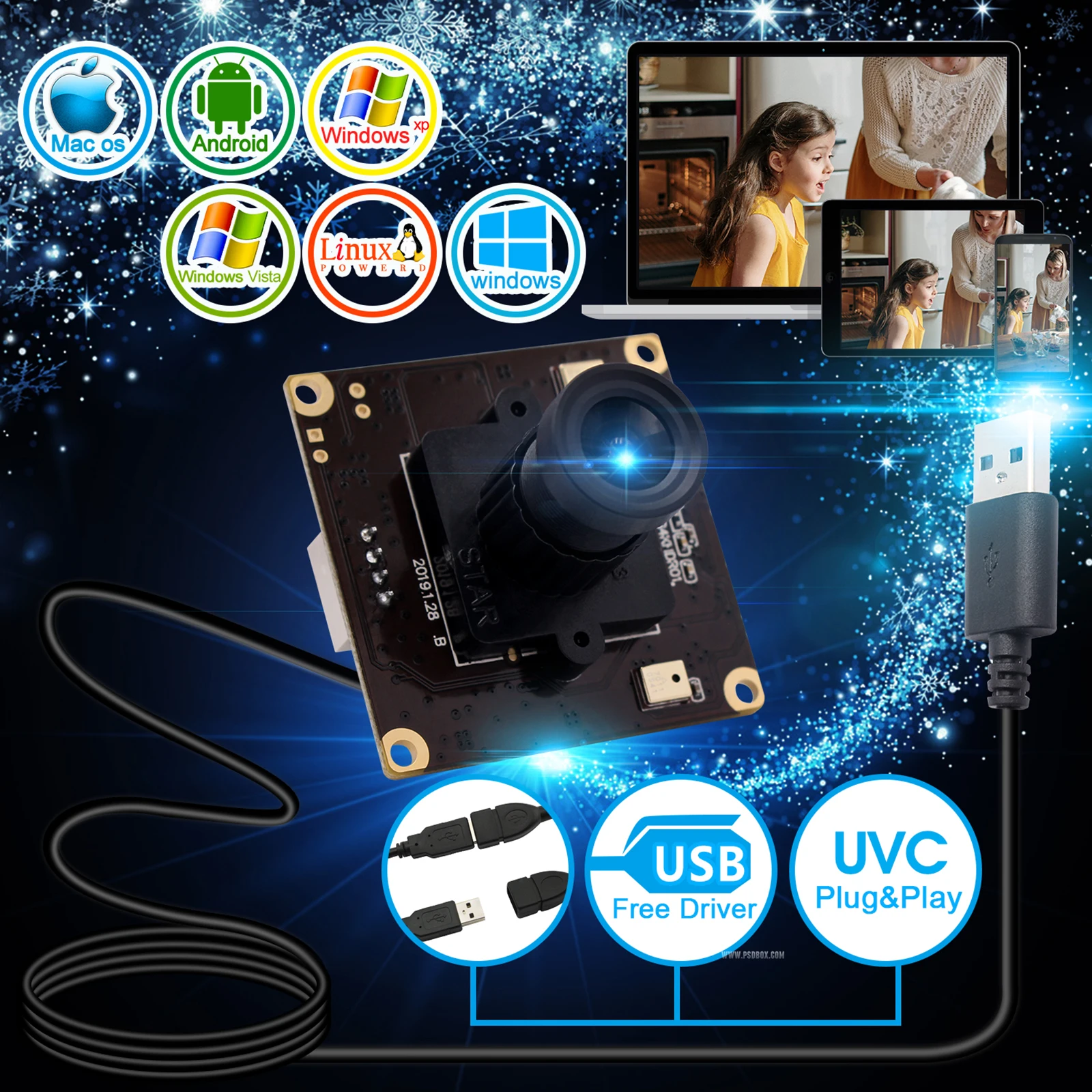

6) UVC for use in Linux, Windows, Android, MAC, SP2 or above.
Specification
Model | ELP-USB4KHDR01-L36 |
Sensor | SONY IMX317 (1/2.5”) |
Max Resolution | 3840(H) *2160 (V) |
Sensitivity | 1000mV/Lux-sec |
Image area | 6100^mx4524^m |
Picture format | MJPEG /YUY2 (YUYV) |
Resolution & FPS | 3840x2160@ 30fps MJPEG/ 2592x1944@ 30fps MJPEG 2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG 1920x1080@ 30fps MJPEG/ 1280x1024@30fps MJPEG 1280x960@30fps MJPEG/1280x720@ 30fps MJPEG 1024 x 768@ 30fps MJPEG/ 800 x 600@ 30fps MJPEG 640x480@ 30fps MJPEG/ 320x240@ 30fps MJPEG 3840x2160@ 1fps YUY2 / 2592x1944@ 1fps YUY2 2048x1536@ 3fps YUY2 /1600x1200@ 3fps YUY2 1920x1080@ 3fps YUY2/ 1280x1024@3fps YUY2 1280x960@5fps YUY2/1280x720@ 5fps YUY2 1024 x 768@ 5fps YUY2/ 800 x 600@ 20fps YUY2 640x480@ 30fps YUY2 / 320x240@ 30fps YUY2 |
Center Definition | 1000LW/PH (Center) |
S/N (Signal Noise Ratio) | 26dB |
Sensitivity | 0.65V/lux-sec@550nm |
Low illumination | 0.2lux |
Shutter | Electronic rolling shutter / Frame exposure |
Interface | USB2.0 High Speed |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable Parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gama, White Balance, Backlight Contrast, Exposure |
Lens | 2.8/3.6/6/8/12/16mm lens optioinal |
Power Supply & Connector | USB BUS POWER 4P-2.0mm socket |
Power | DC5V |
Current | 200mA |

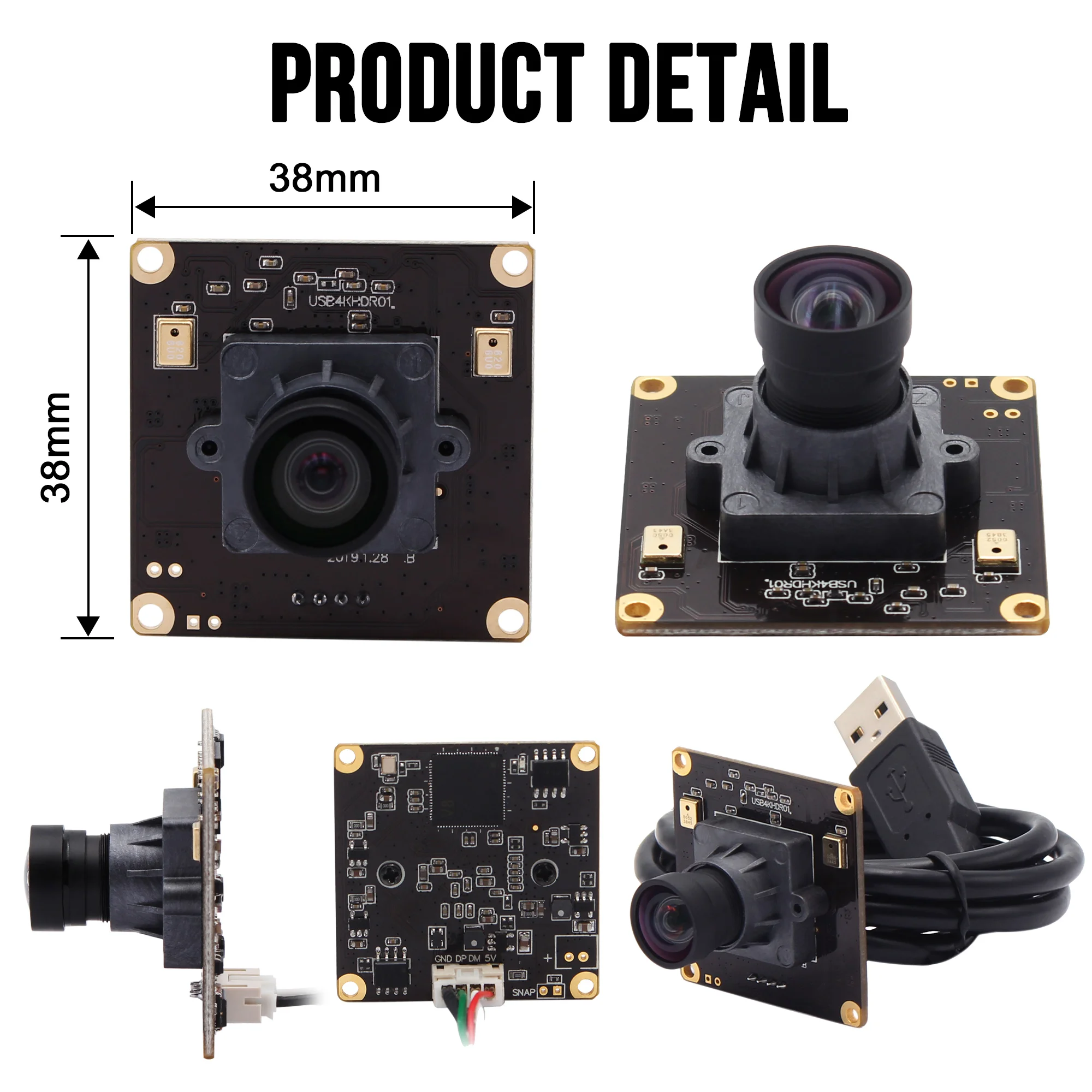

Size | 38mm x 38mm |
Storage Temperature | -20°C to 70°C |
Working Temperature | 0°C to 60°C |
USB Cable | 1M(2M/3M/5M Optional) |
Operating System | Win XP/Vista/Win7/Win8 / Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC |

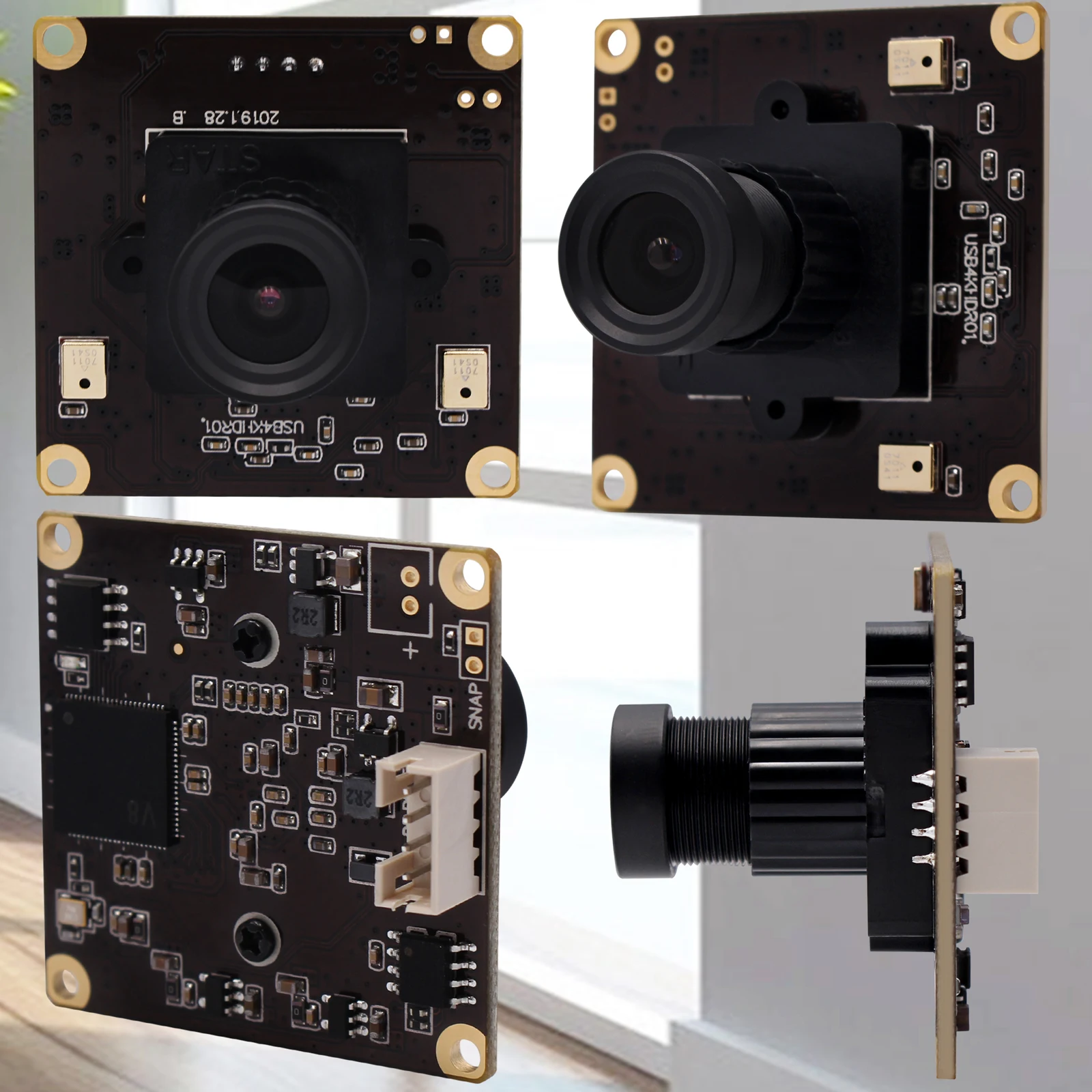

Details Images
Installation Instructions
Packing and delivery
Title goes here.
Package Includes:
1. 1PC 4K usb camera module
2. 1PC 1m usb cable
Company Profile
Shenzhen Ailipu Technology Co.,Ltd, who has 15 years history, is a professional manufacturer of surveillance system . Ailipu has
its own brand ELP, which already well know in security surveillance system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed
into a prefessional video products company integrate with developing, production, sales and also service all together.
its own brand ELP, which already well know in security surveillance system.
With its own unique R&D team as the basic, oriented by dedicated sales team,Shenzhen Ailipu Technology Co., Ltd already developed
into a prefessional video products company integrate with developing, production, sales and also service all together.
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi,
VLC Player
