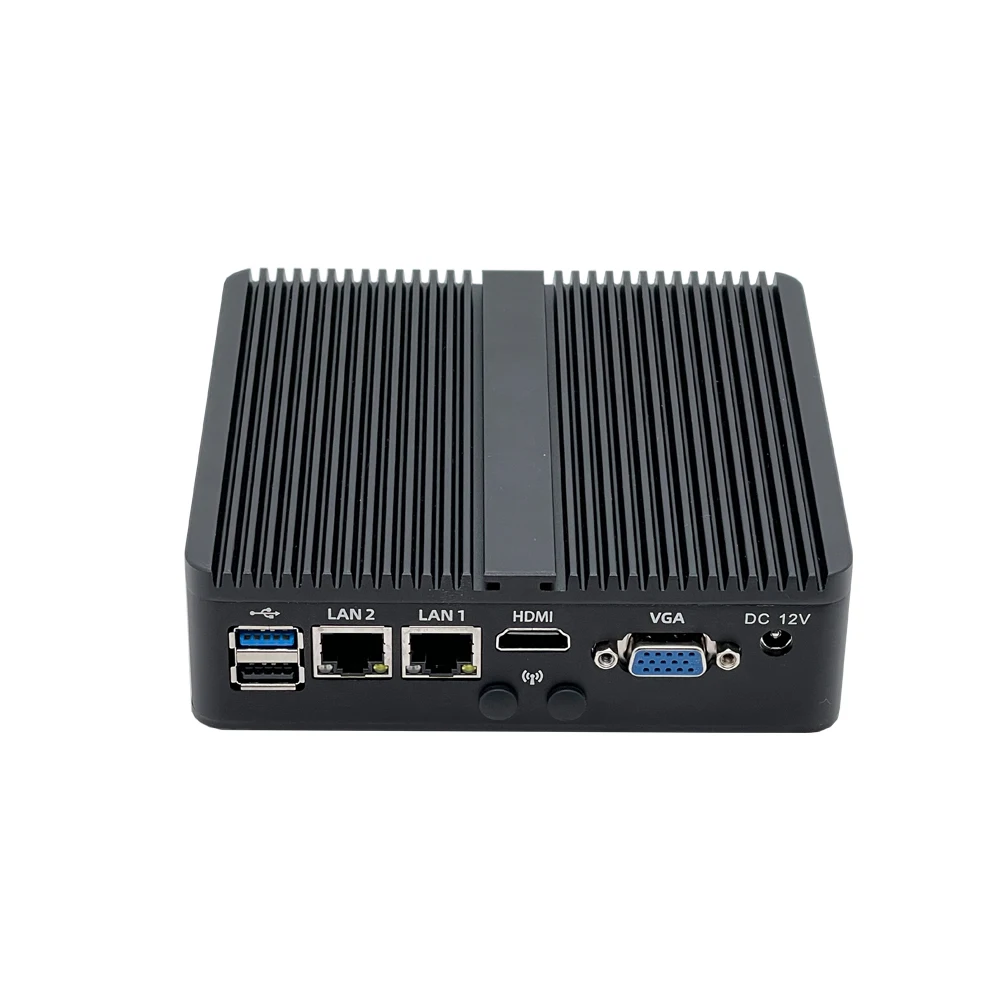

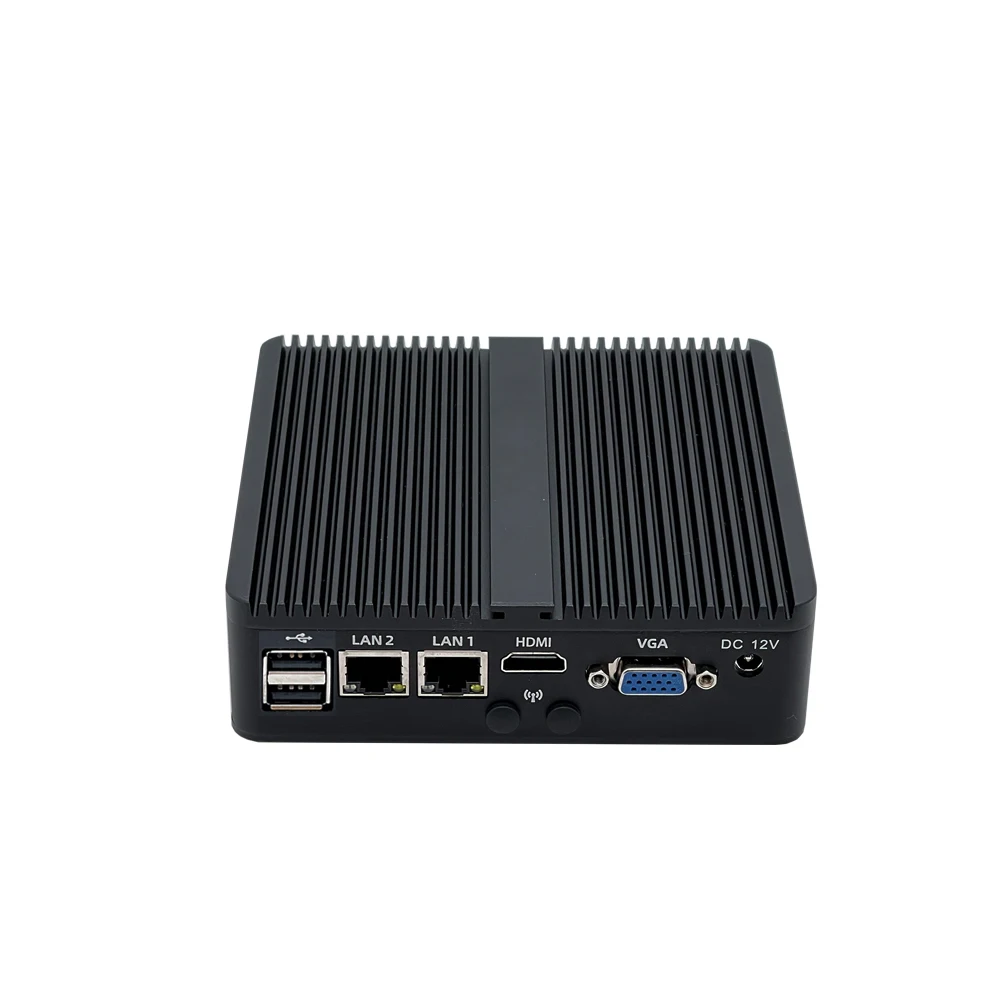

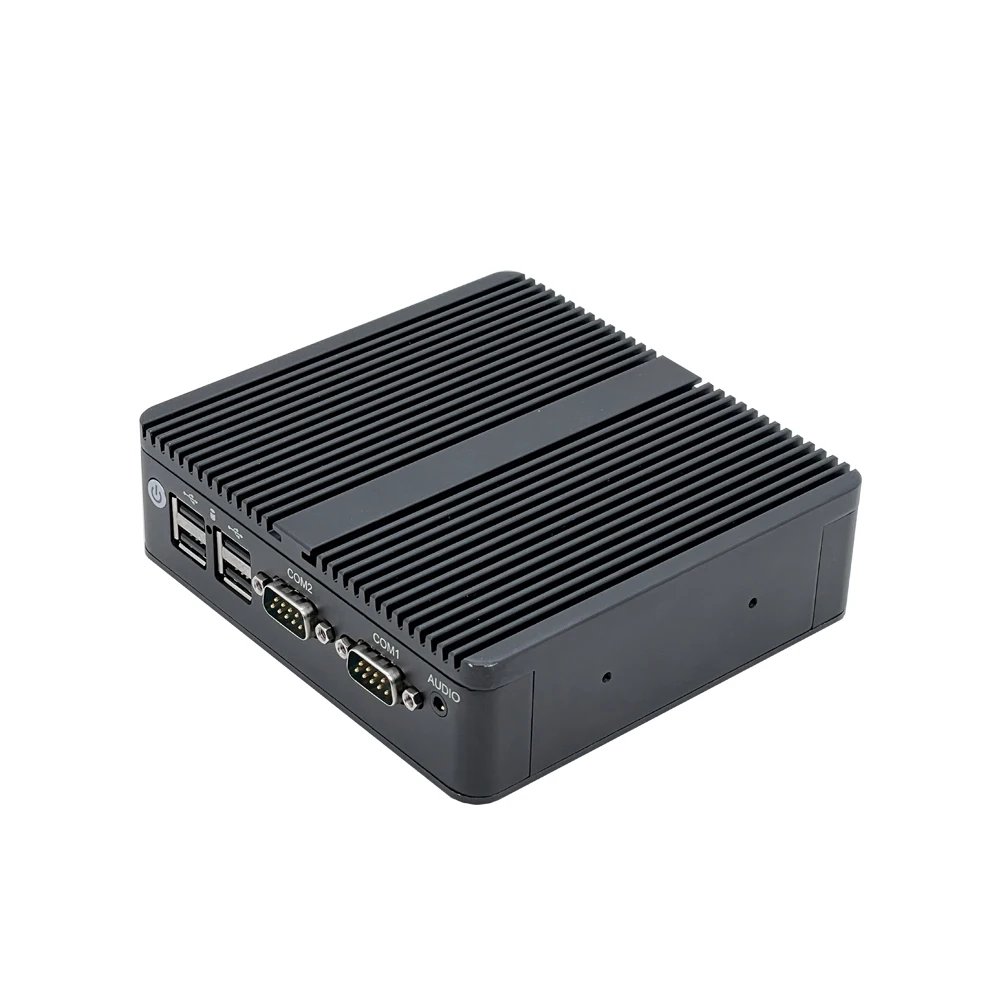

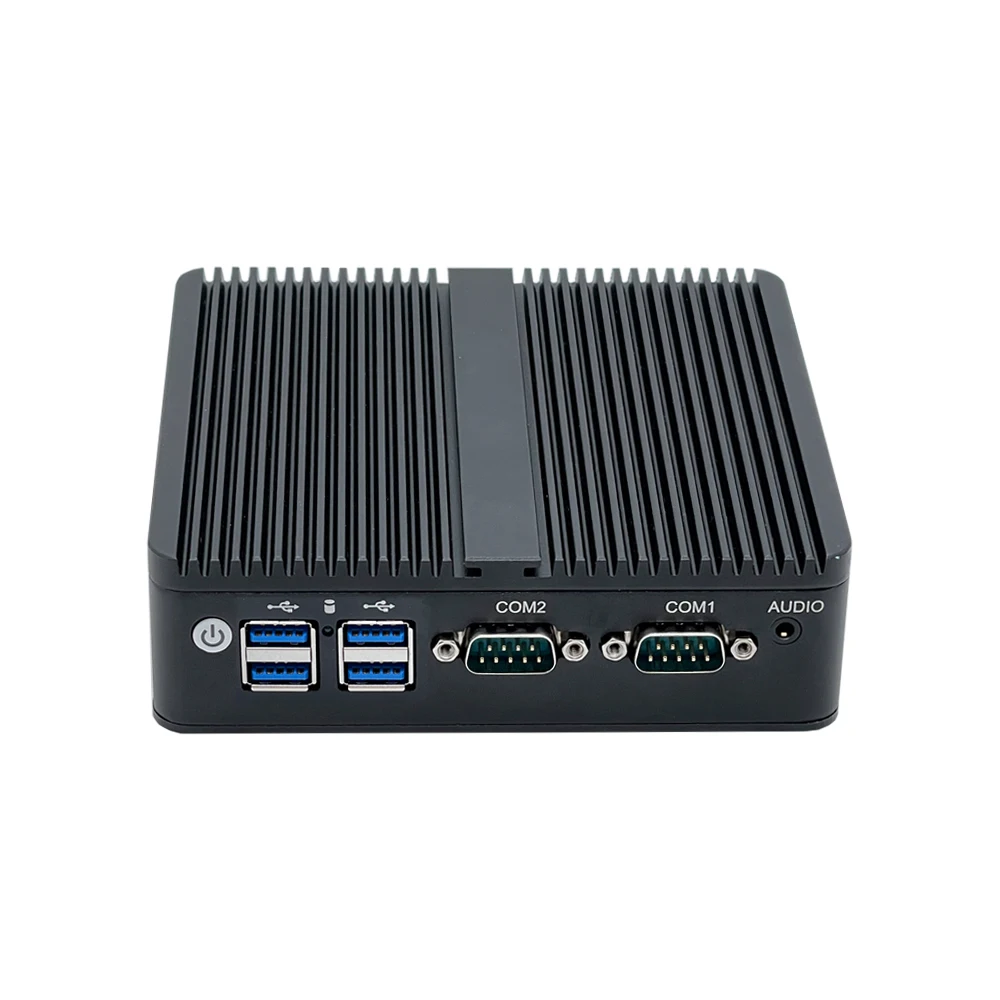

Fully enclosed fanless design mini PC Dual Gigabit Ethernet ports mini PC Support VGA HDMI dual display interface
- Category: >>>
- Supplier: Dongguan Qingwu Electronic Technology Co. Ltd.
Share on (1600618046299):
Product Overview
Description
LB4125 mini host
1. Product Features
* Fully enclosed fanless design
* Support dual Gigabit Ethernet ports
* Support 2 RS232 serial ports, optional support 2 RS485
* Support VGA+ HDMI dual display interface
* There is a Mini-PCIe slot inside, which can expand the module such as WIFI or 4G. The size is small and the use is wide.
1. Product Features
* Fully enclosed fanless design
* Support dual Gigabit Ethernet ports
* Support 2 RS232 serial ports, optional support 2 RS485
* Support VGA+ HDMI dual display interface
* There is a Mini-PCIe slot inside, which can expand the module such as WIFI or 4G. The size is small and the use is wide.
Overall parameters | Model Overall size Features Appearance | LB4125 |
136*127*40mm Fanless All Aluminium Body/Black | ||
Configuration parameters | CPU | Intel® Celeron J1900 4core 2.0G |
Intel® Celeron N2840 4core 2.16G | ||
RAM | 2G/4G/8G | |
ROM | 64G/128G/256G（MSATA ） | |
Net | 2 Gigabit LAN, support Wake-on-LAN/PXE | |
operating system | Win10/Linux | |
connector | 2* network connector / 1*HDMI / 1*VGA / 1*audio port | |
2* serial port(Optional RS485*2 ) /4*USB3.0/2*USB2.0 | ||
4G optional | LTE-TDD/LTE-FDD/TD-SCDMA/EDGE/GPRS/GSM | |
GPS global positioning | ||
power input | 12V DC，outer diameter5.5mm，inside diameter 2.5mm | |
Power Adapter | AC-DC 12V@4A，48W | |
Environmental parameters | Operating temperature | 0~ 50°C |
storage temperature | -10 - 60°C | |
Working humidity | 5%~95% relative humidity, no condensation | |
Other parameters | Cooling method | Fanless cooling design, passive cooling |
Boot method | Switch start, support call to start automatically | |
Other | Support hardware reset function (256 levels, 0~255 seconds) | |
Installation method | Embedded, desktop | |
packing list | 1* machine/ 1*12V 4A power adapter |
serial number | model | CPU |
1 | NUC42D-M8H8 | J4125 |
Number of cores | frequency | Memory | SSD | WIFI | 4G | LAN | USB | COM/485 | POWER |
4 | 2.0G | 8G | 128G | / | / | 2 | 6 | February 2 | 12V |
