Hot Selling Wholesale 48 Volt Lithium Ion Batterie 100ah 200ah LiFePO4 Battery 48V for Home Solar System
- Category: >>>
- Supplier: Jiangsu Elemac Energy Co. Ltd.
Share on (1600618046399):
Product Overview
Description
Recommend Products
Details Images

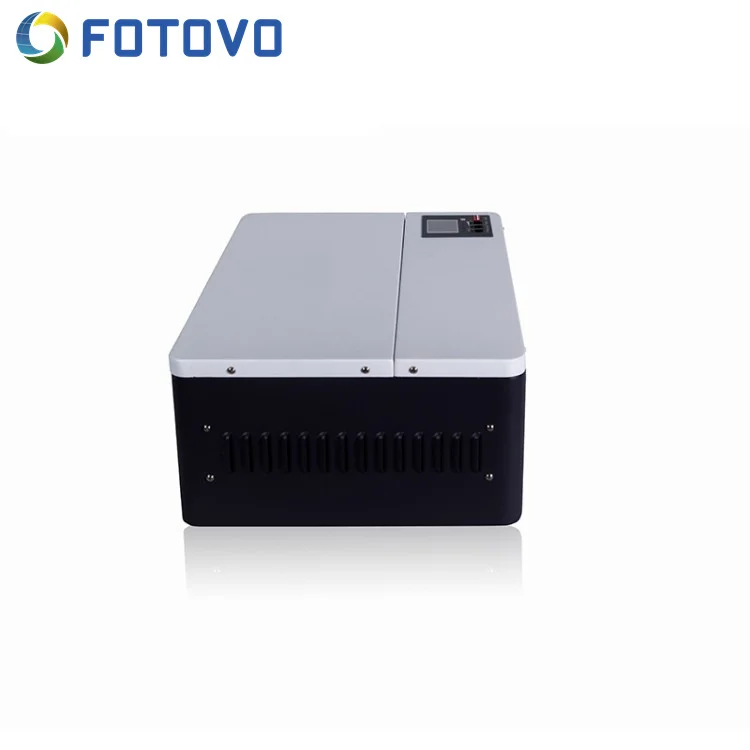

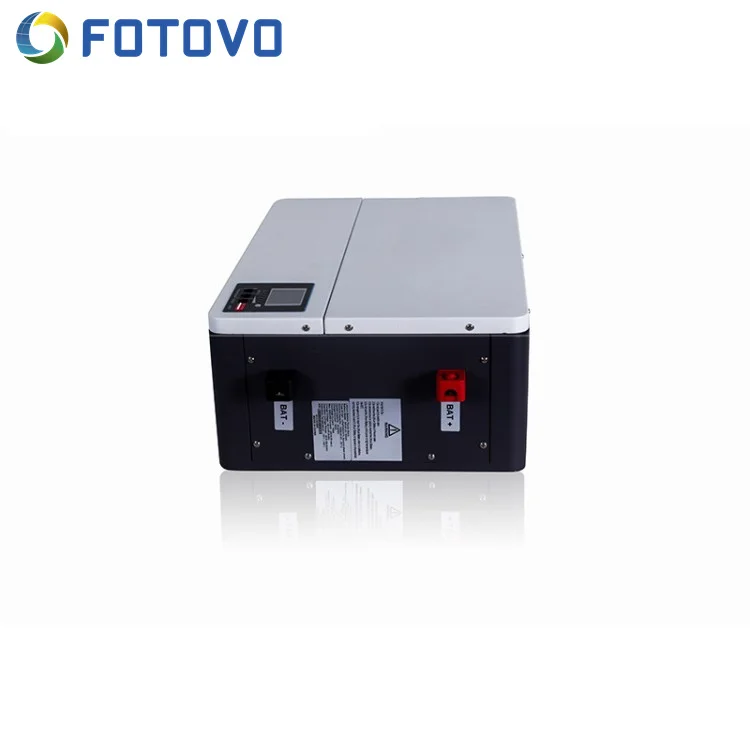

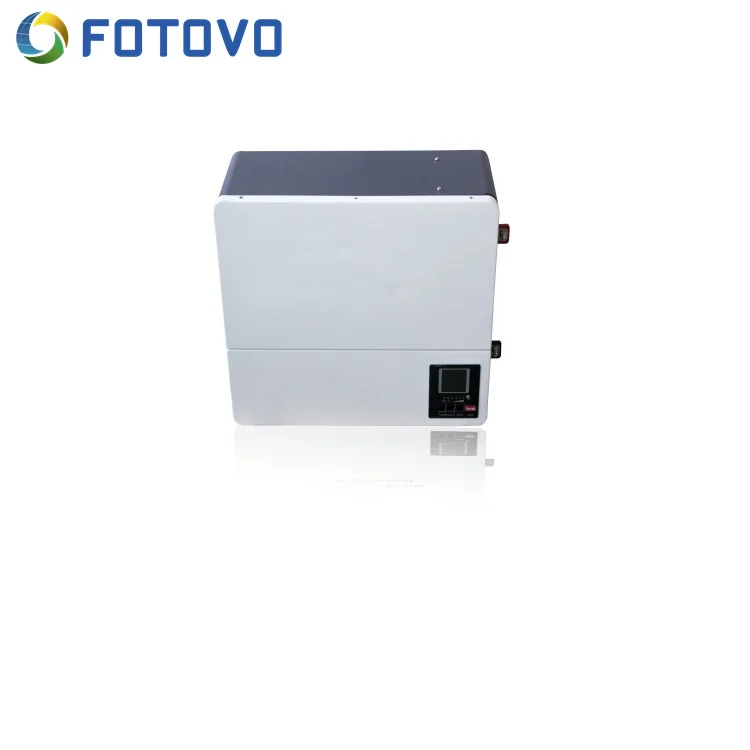

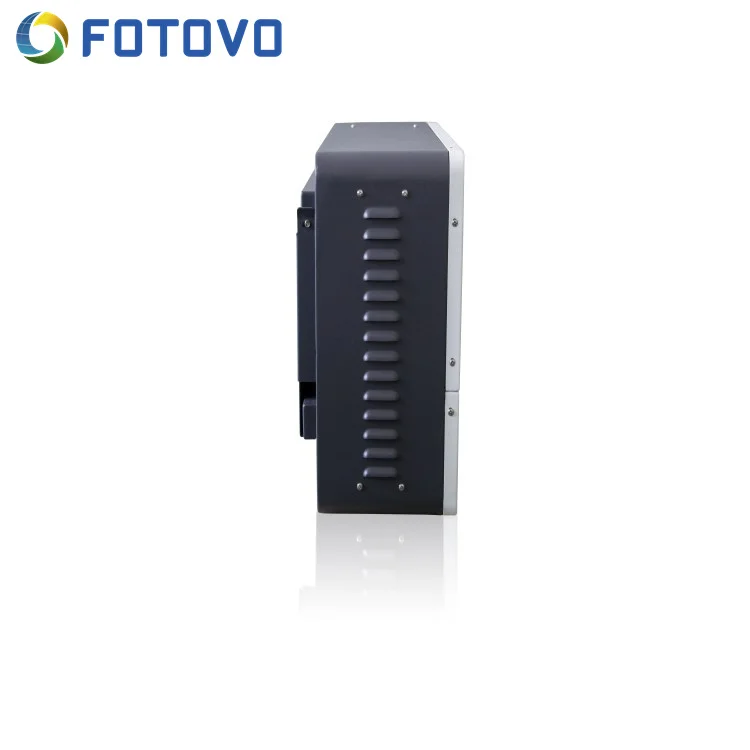

Lithium-ion Battery 48V 100Ah
Main Function:
High safety, none fire or explosion,built in BMS Clean and Green energy, no toxic material contained Powerful battery
Long life cycle, Over 3000 times deep cycle.No memory effect,highly efficient charge anytime
Operation temperature: -20-55C
Small size, light weight
Good performance at high temperature and high temperature resistance
Low self-discharge rate: < 3% monthly
Features

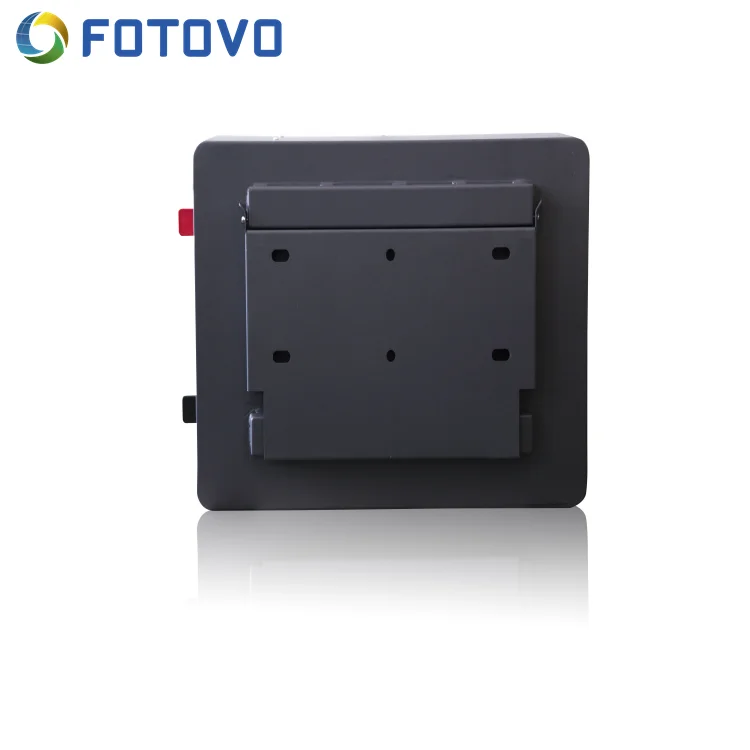

24V 48V LiFePO4 pack,Wall mounted design.
Brand cell CATL, reliable quality
Max discharge current up to 200A,suitable for inverter or solar systemLong life design, cells cycle time up to 3000 cycles, 3 years warranty, 5+ life design
With a smart BMS system for all-around protection
High density, small size, and weight
LCD display with communication port optional(CAN/RS485/RS232)
LCD display with communication port optional(CAN/RS485/RS232)
All-around protection and unattended operation
Product Paramenters

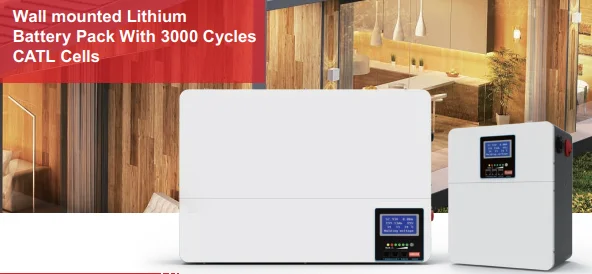

Wall mounted Lithium Battery Pack With 3000 Cycles CATL Cells | ||||||||
MODEL | SK-25.6V100Ah | SK-25.6V200Ah | SK-51.2V100Ah | SK-51.2V200Ah | ||||
Case design | Wall mounted | Wall mounted | Wall mounted | Wall mounted | ||||
Battery Type | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | ||||
Normal Battery Voltage(Vdc) | 25.6V | 25.6V | 51.2V | 51.2V | ||||
Normal Capacity (25℃ 0.2C) (Ah) | 100A | 200A | 100A | 200A | ||||
Normal Capacity (25℃ 0.2C) (WH) | 2560WH | 5120WH | 5120WH | 10240WH | ||||
Folat Charge Voltage(Vdc) | 27.6V | 27.6V | 55.2V | 55.2V | ||||
Operation Voltge range (Vdc) | 22.4 ～ 29.2V | 22.4 ～ 29.2V | 44.8 ～ 58.4V | 44.8 ～ 58.4V | ||||
Max Continuous Discharge Current(A) | 100A | 100A | 100A | 150A | ||||
Max Pulse Discharge Current(A) | 200A 30 Sec. | 200A 30 Sec. | 200A 30 Sec. | 200A 30 Sec. | ||||
Max Continuous Charge Current(A) | 50A | 100A | 50A | 100A | ||||
Cells brand | CATL | CATL | CATL | CATL | ||||
Cycle life (25℃, 0.2C, 100% DOD） | ≧3000 Cycles | |||||||
Cell Equalizer Current(A) | 1~5A Max. | |||||||
Terminal | M8 | |||||||
Storage temperature | 0℃～ 30℃ | |||||||
IP degree | IP 20 | |||||||
Storage duration | 6 months at 25℃ | |||||||
Safety standard | UN38.3,IEC62619,CE | |||||||
Display (Optional) | None or LCD display (Optional | |||||||
Communication Port (Optional) | None or LCD display (Optional | |||||||
PROTECTION | ||||||||
Protection | Overcharge protection、Overdischarge protection、Overcurrent protection、 Shortcircuit protection、Overtemperature protection | |||||||
AMBIENT | ||||||||
Working Temperature | -10℃～ +50℃ | |||||||
Humidity | 0~95% ( no condensation) | |||||||
Sea Level(m) | ≤1500 | |||||||
DIMENSION | ||||||||
L×W×H (products size, mm) | 414*372*227 | 550*375*227 | 550*375*227 | 606*380*265 | ||||
L×W×H (package size, mm) | 496*469*275 | 612*422*259 | 612*422*259 | 672*452*302 | ||||
Weight(NW Kg) | 33.2Kg | 57.0Kg | 57.0Kg | 76.0Kg | ||||
Weight(GW Kg) | 35.4Kg | 59.0Kg | 59.0Kg | 83.0Kg | ||||
Product packaging
Company Profile
Elemac Energy Co., Ltd is focusing on the innovation of solar module and inverter technologies and providing the best LCOE (Levelized Cost Energy) solar products to the customers worldwide. The company’s business covers solar cells, modules, inverters, energy storage systems, batteries and photovoltaic power stations.
Being recognized as an emerging international solar brand, Elemac’s FOTOVO brand adheres to the corporate philosophy of delivering reliability and values to the customers. Through its international network with the global presence of its solar modules in more than 90 countries, Elemac is your ideal partner for reliable solar energy.
Being recognized as an emerging international solar brand, Elemac’s FOTOVO brand adheres to the corporate philosophy of delivering reliability and values to the customers. Through its international network with the global presence of its solar modules in more than 90 countries, Elemac is your ideal partner for reliable solar energy.
Our Advantages
Certifications

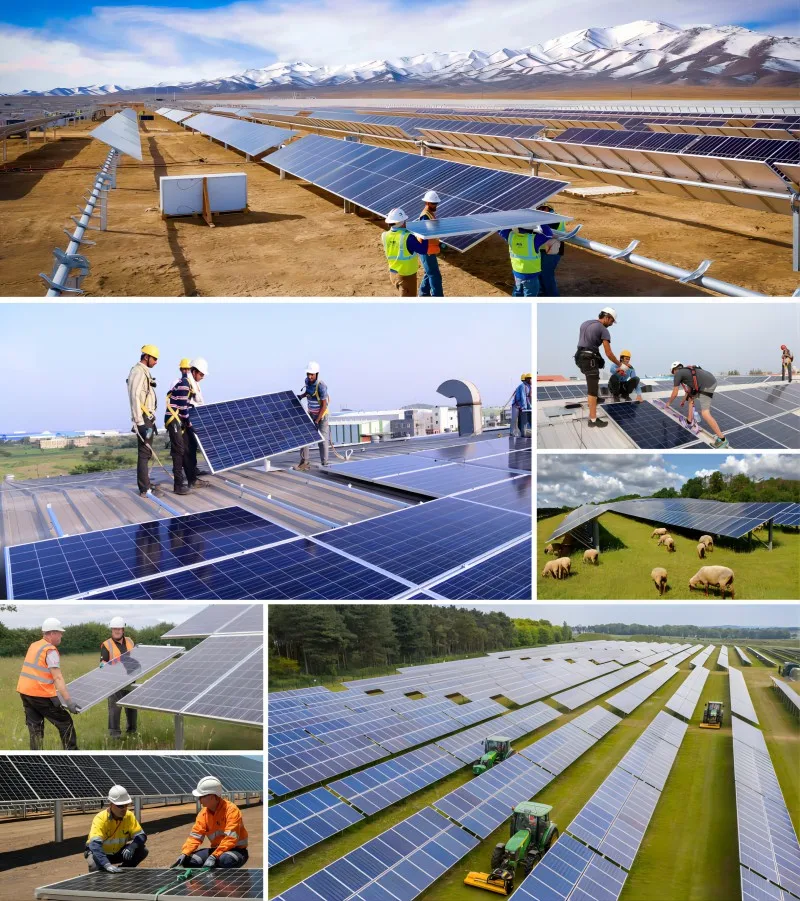

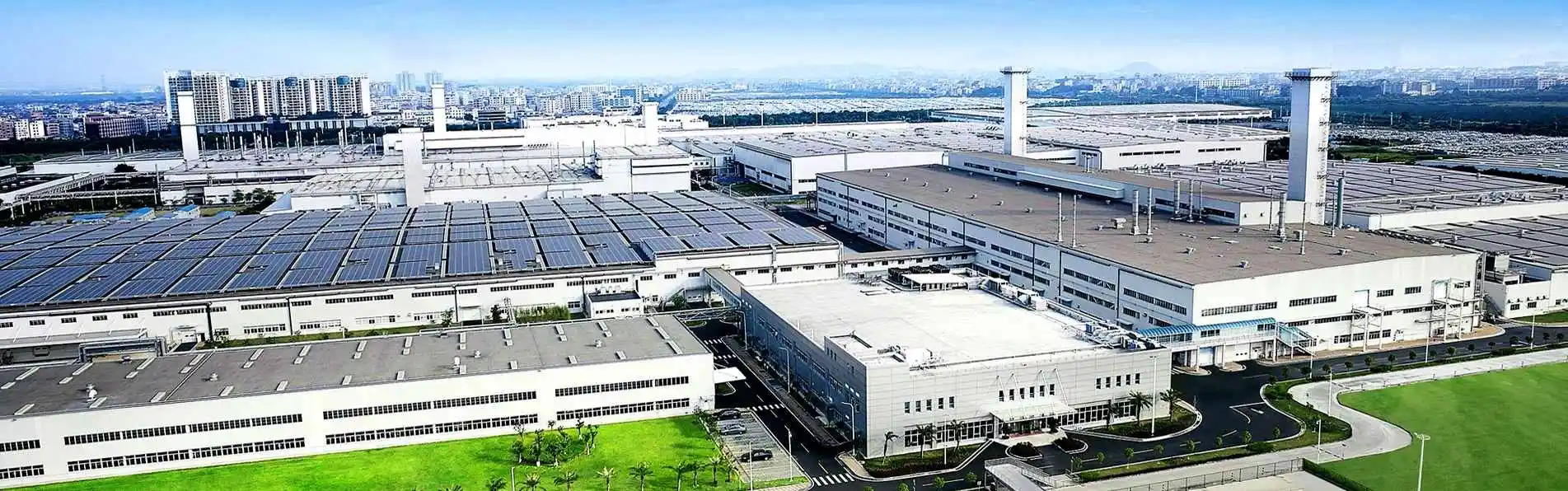

Project Case

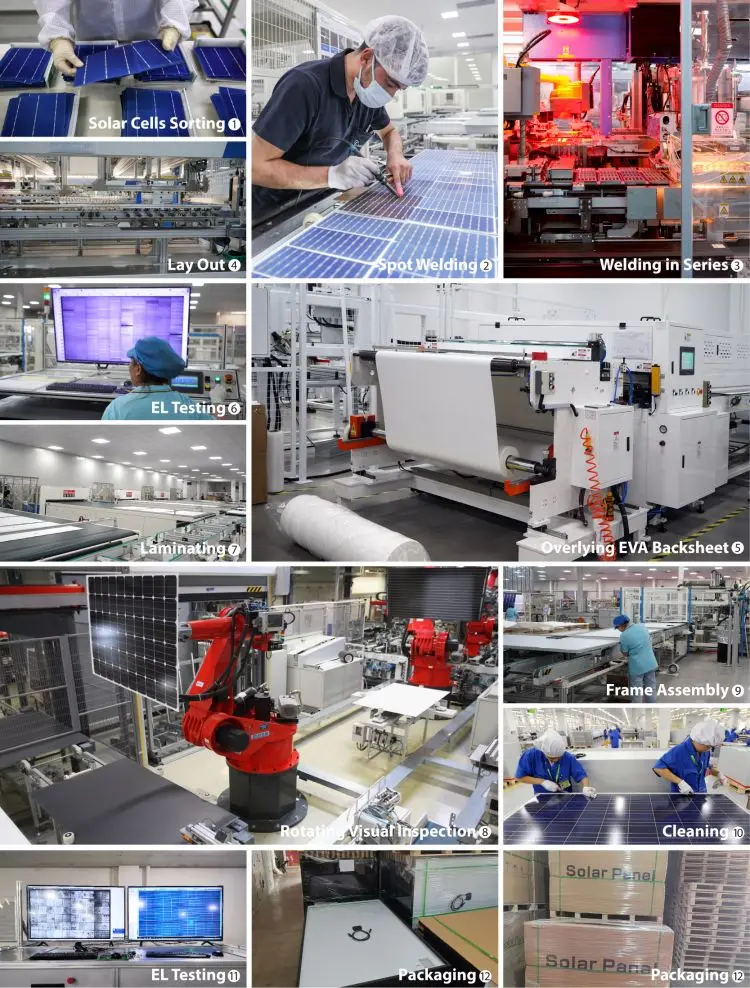

Production Flow
FAQ
Q: Is transportation safe enough?
A: We pack the goods very well, you will get goods on hand with good condition.
Q: What kind of certificates your products have?
A: CE, FCC, RoHS, PSE, UN38.3, MSDS etc, which is able to satisfy most country's importing requirements.
Q: How much life span of the battery？
A: Our batteries are built with grade A lifepo4 cell, cycle life up to 6000+ at 80% DoD.
Q: What brand inverter are your batteries compatible?
A: Our BMS supports the following communications Canbus/RS485/RS232 and can compatible with most of famous inverters.
Q: What is the delivery time? What is your standard packing？
A: Usually delivery in 7-15 days,but could be changed according to the quantity or other things.
A: 1 unit in a CARTON or 1 unit in a WOODEN.
Q: Do you support customization？
A: YES, LOGO/sticker/OEM/ODM welcomed. Please send us the artwork of your design, we have a professional team which is having rich experience on OEM & ODM, but there is a minimum order quantity required.
Q: Why choose us?
A: FOTOVO have been engaged in new energy power generation for more than 16 years. Our products and services cover more than 39 countries. Our R&D team is composed of top experts in various fields. We are committed to providing first-class solutions for you.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily. And we have offices in many countries, if you have problems, we can arrange people to help you solve problem.
Q: What are your terms of payment?
A: The payment term will be 30%T/T for deposit and the balance before shipment.
A: We pack the goods very well, you will get goods on hand with good condition.
Q: What kind of certificates your products have?
A: CE, FCC, RoHS, PSE, UN38.3, MSDS etc, which is able to satisfy most country's importing requirements.
Q: How much life span of the battery？
A: Our batteries are built with grade A lifepo4 cell, cycle life up to 6000+ at 80% DoD.
Q: What brand inverter are your batteries compatible?
A: Our BMS supports the following communications Canbus/RS485/RS232 and can compatible with most of famous inverters.
Q: What is the delivery time? What is your standard packing？
A: Usually delivery in 7-15 days,but could be changed according to the quantity or other things.
A: 1 unit in a CARTON or 1 unit in a WOODEN.
Q: Do you support customization？
A: YES, LOGO/sticker/OEM/ODM welcomed. Please send us the artwork of your design, we have a professional team which is having rich experience on OEM & ODM, but there is a minimum order quantity required.
Q: Why choose us?
A: FOTOVO have been engaged in new energy power generation for more than 16 years. Our products and services cover more than 39 countries. Our R&D team is composed of top experts in various fields. We are committed to providing first-class solutions for you.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily. And we have offices in many countries, if you have problems, we can arrange people to help you solve problem.
Q: What are your terms of payment?
A: The payment term will be 30%T/T for deposit and the balance before shipment.
