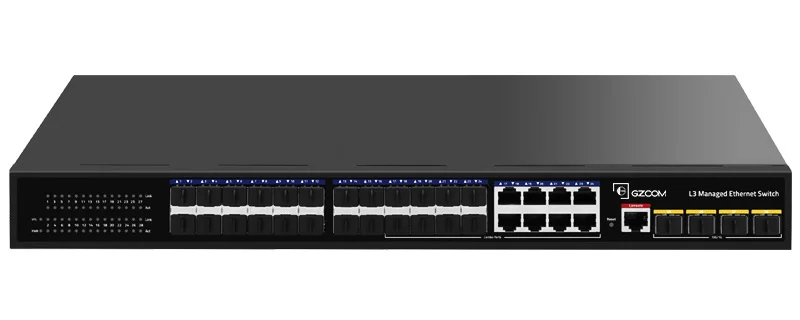

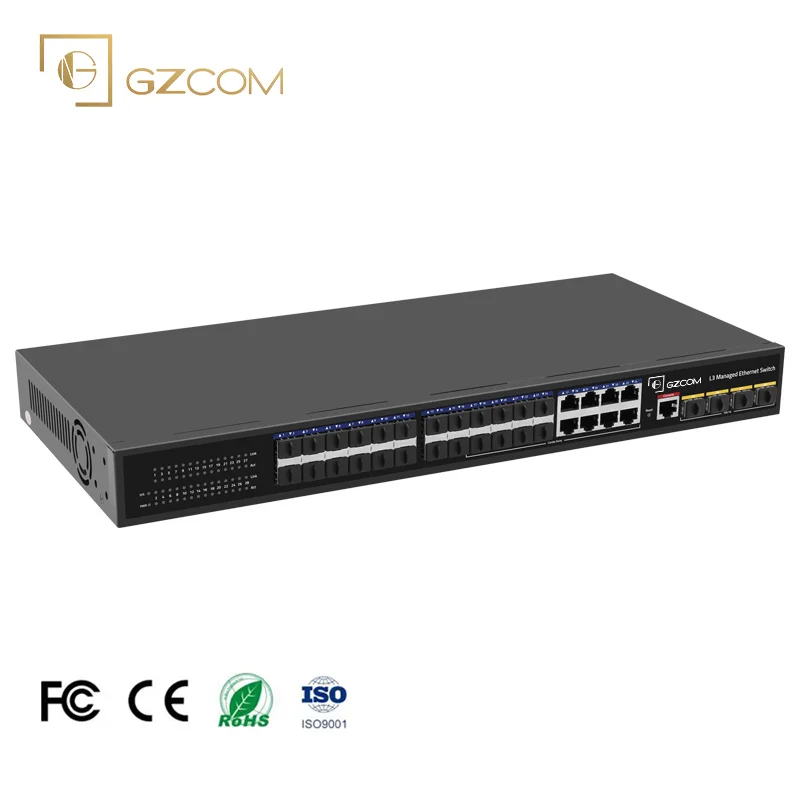

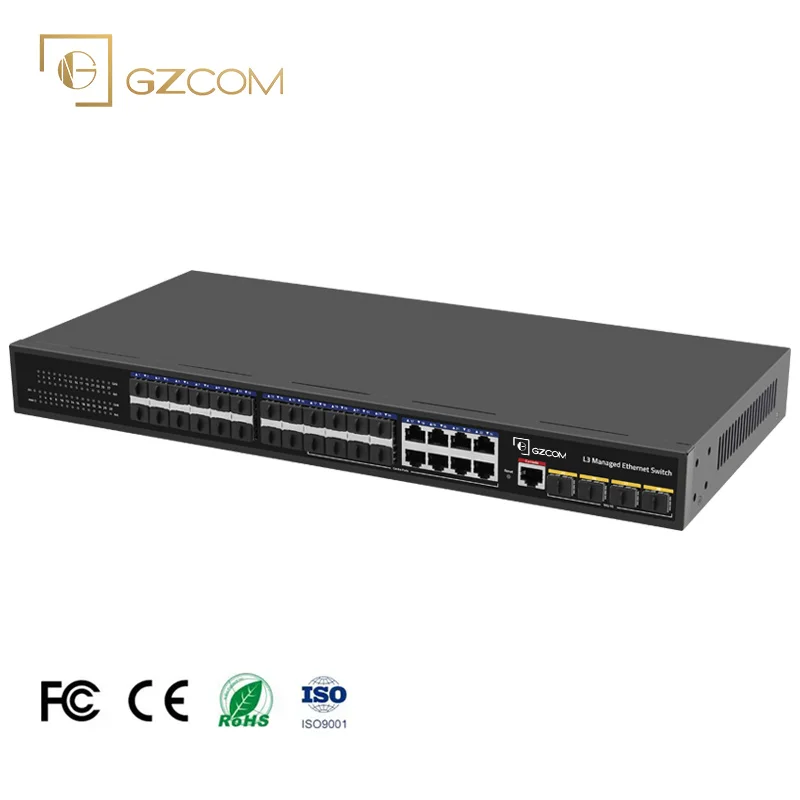

GZCOM 3 layer 24 sfp ports managed 10g Network Ethernet switch

I/O Interface

Power

Input: AC 100-240

Ethernet

24 * 10/100/1000M SFP Slots

Performance

Switching Capacity

128Gbps

Packet Buffer

95.23Mpps

Memory Capacity

128MB

Flash Capacity

256MB

MAC Address

32K

Jumbo Frame

12KB

Transfer Mode

Store and forward

VLANs

4096

MTBF

100,000 hours

Standard

Network Protocol

IEEE 802.3: Ethernet MAC Protocol
IEEE 802.3i:10BASE-T Ethernet
IEEE 802.3u: 100BASE-TX Fast Ethernet
IEEE 802.3ab: 1000BASE-T Gigabit Ethernet
IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae: 10G Ethernet (optical fiber)
IEEE 802.3az: Energy Efficient Ethernet
IEEE 802.3ad: Standard method for performing link aggregation
IEEE 802.3x: Flow control
IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1p: LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)
IEEE 802.1q: VLAN Bridge Operation
IEEE 802.1x: Client/Server Access Control and Authentication Protocol
IEEE 802.1d: STP
IEEE 802.1s: MSTP
IEEE 802.1w: RSTP

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) Class AEMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)

Network Medium

10BASE-T: Cat 3, 4, 5 UTP (≤100 meter)100BASE-TX: Cat5 or above UTP (≤100 meter)

1000Base-TX: Cat5 or above UTP (≤100 meter)

Multi Mode: 850/1310nm (0-2KM)
Single mode: 1310/1550/1490nm(0-120KM)

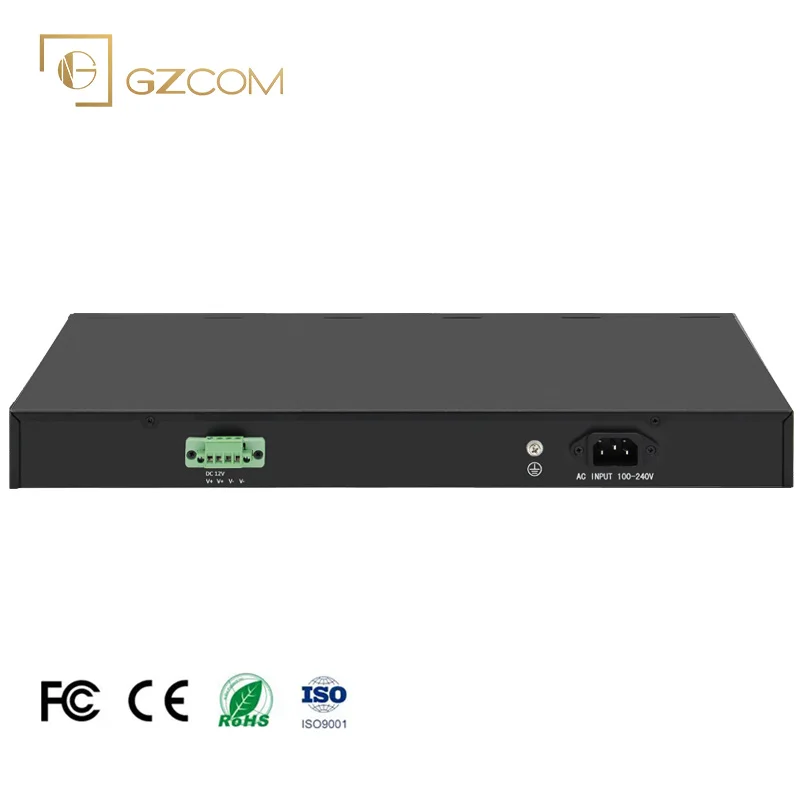

Power Supply

Power Voltage

Input Voltage: AC 100-240VOutput Voltage: 12V8A

Protection

Certificate

CE, FCC, RoHS

Environment

Environment

Working Temperature: -10°C ~ +50°CStorage Temperature: -40~70°C

Working Humidity: 10%~90%, non-condensing

Storage Temperature: 5%~90%,non-condensing

Working Height: Maximum 10,000 feet

Storage Height: Maximum 10,000 feet

Physical Features

Dimension

Product Dimension (L*W*H): 440*280*44 mmPackage Dimension (L*W*H): 500*365*85 mm

N.W: 3.9 KG

G.W: 4.6 KG

Packing Info

Carton Meas: 520*445*385 mmPacking Qty: 5 Units

Packing Weight: 25 KG

Package List

Switch 1 pcsPower cord 1 pcs
User manual 1 pcs
Certification 1 pcs
Serial cable 1 pcs
Hanging-ears 1 pair

Indication

LED Indicators

PWR, SYS, Link, ACT

Software Function

Basic Function

Support hardware watchdog, factory reset, system and port LED

Support global information, statistical information, log information

Support User management, alarm management, configuration management

Support Port rate, duplex, flow control, maximum frame length configuration

Support Port mirroring, port speed limit, port energy saving

Layer 3 Interface

Support Layer 3 interface

Support IPv4, IPv6 address configuration

Support ARP configuration

Support ND configuration

Port Mirroring

Supports both side-way port mirroring

Layer 3 Routing

Support IPv4/IPV6 static routing

DHCP

Support DHCP server

Support DHCP relay

Support DHCP Snooping

VLAN

Support 4K VLAN

Support 802.1Q VLAN，baesd on port VLAN

SupportAccess、Trunk、Hybrid VLAN mode

Support MAC VLAN 、IP VLAN

Voice VLAN

MAC

Support MAC address automatic learning and aging

Support Static, dynamic, filtered address table

Spanning tree

Support STP spanning tree protocol

Supports RSTP Rapid Spanning Tree Protocol

Supports MSTP Rapid Spanning Tree Protocol

Security features

Password protection

Support Restrict user access based on port number, IP address, MAC address

Support HTTPS、SSH V1/V2

Support VLAN-IP-MAC-PORT binding

Support ARP detection, IP source protection, DoS protection

Support DHCP Snooping、DHCP Attack protection

Support 802.1X Certification

SupportAAA (Authentication, Authorization, Accounting), Support RADIUS protocal

Support Port security, port isolation

Access control

Support L2(Layer 2)～L4(Layer 4) Packet filtering function

Support Port mirroring, flow rate limiting, QoS remarking

QoS

Support 8 port queues

Support Port priority, 802.1P priority, DSCP priority

Support SP, WRR Priority scheduling algorithm

Spanning tree

Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocal

Support Multi-instance, Support Aggregate interface

Support BPDU protection

Multicast

Support IGMP v1/v2/v3 Snooping

Support MLD-Snooping

Support v1/2/3 dynamic multicast monitor

Support Layer 2 multicast fast leave mechanism, querier

Support Layer 2 IPv4 /IPv6 static multicast

Storm suppression

Support multicast suppression

Support broadcast storm suppression

Support unknown unicast suppression

Ring protection

Support Ring protection

Link Aggregation

Support Static Aggregation

Support LACP Dynamic Aggregation

Support based on IP, MAC, mixed load-balancing modes

Maximum support 8 aggregation groups (8 ports per aggregation group)

IPv6

Support IPv6 Ping、IPv6 Traceroute、IPv6 Telnet

Support IPv6 SSH

Support IPv6 HTTP 、IPv6 HTTPS

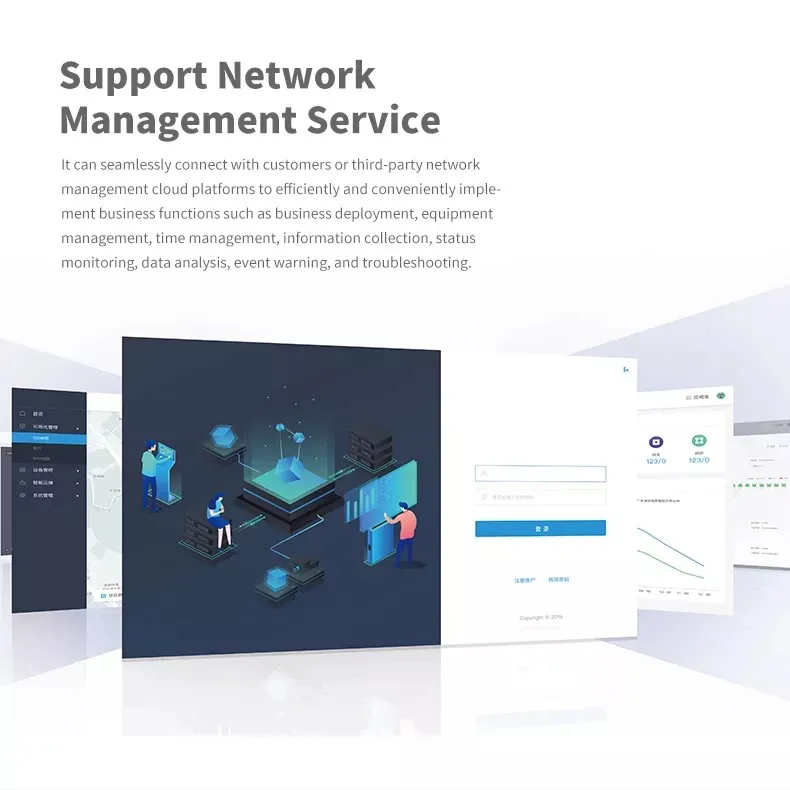

Management and Maintenance

Support WEB Management (HTTP、HTTPS)

Support CLI (Telnet, SSH V1/V2, Local serial port)

Support SNMP V1/V2/V3

Support LLDP Device discovery

Support SNTP Time synchronization

Support CPU Monitoring, Memory Monitoring

Support System log, classification warning

Support Ping, Traceroute detection, cable detection
