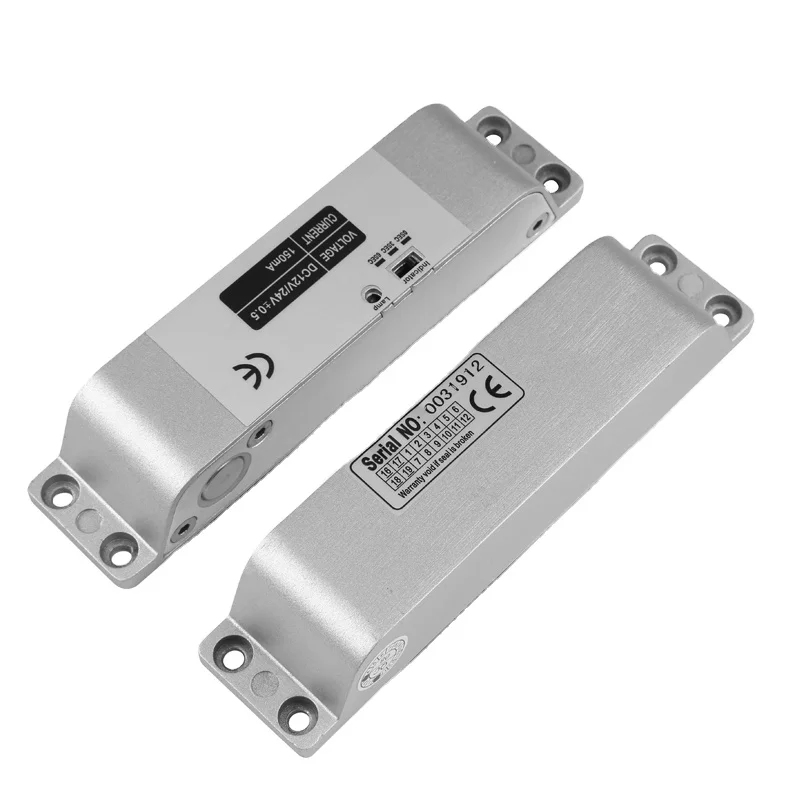

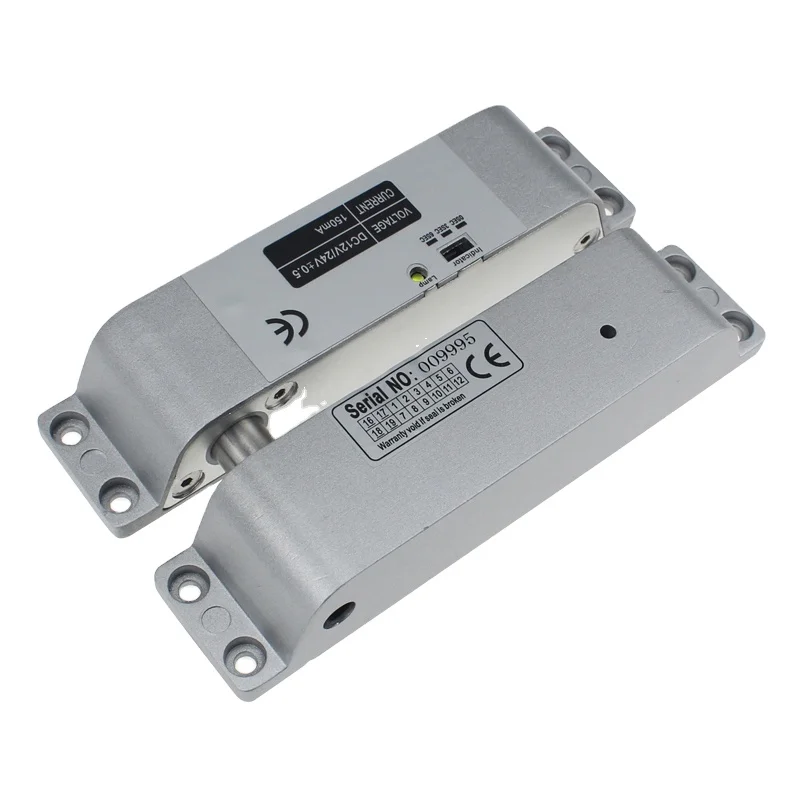

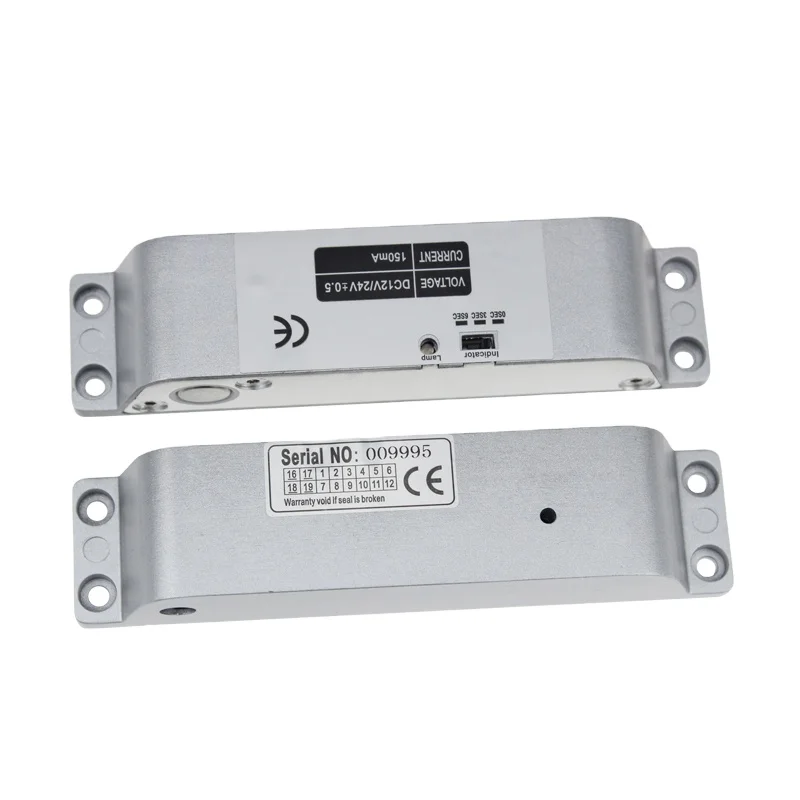

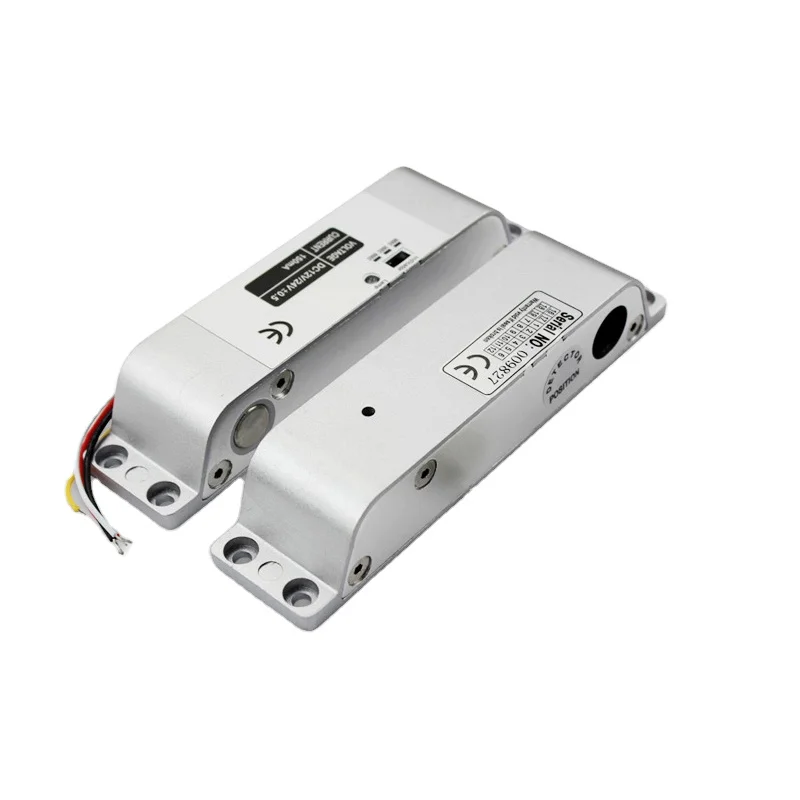

Surface Mounted Fail Safe NC Mode Electronic Door Lock

Share on (1600618077501):


Price:$10.50 - $11.00

Quantity:


Product Overview

Description



Surface Mounted Fail Safe NC Mode Electronic Door Lock for Access Control Security Lock Door with Time Delay



Product Description

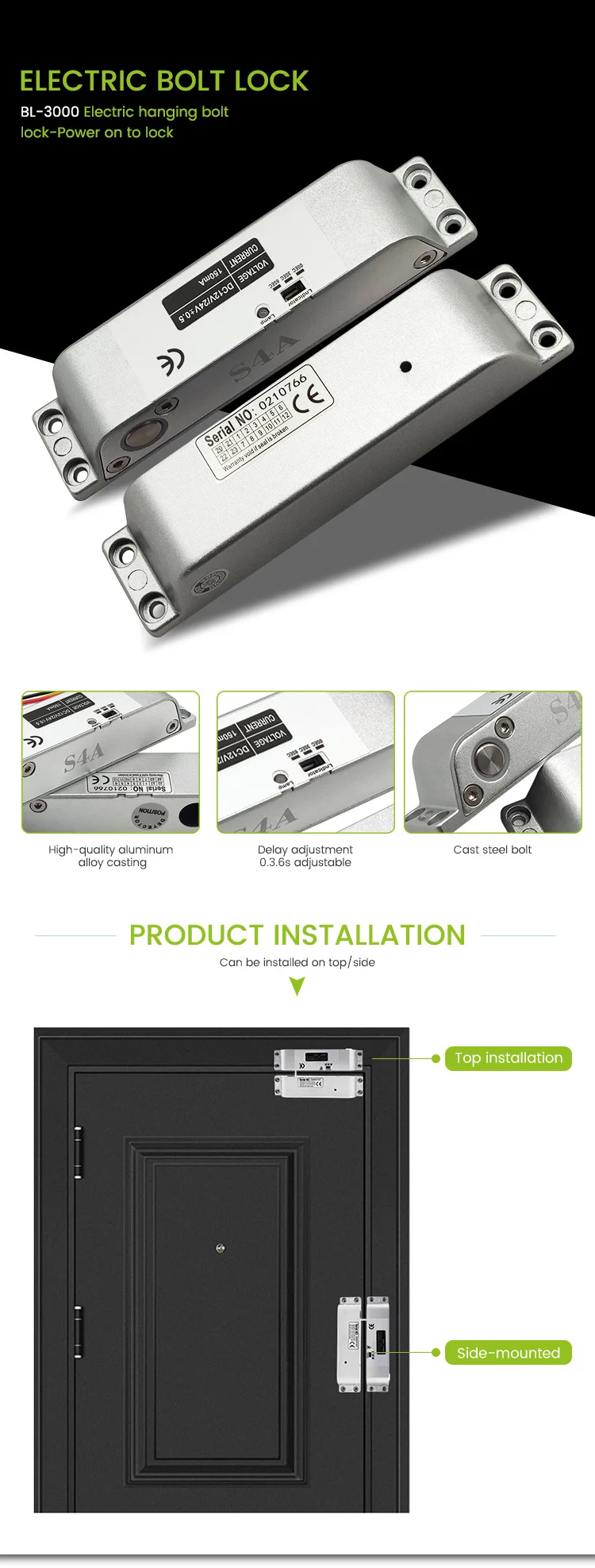

Electric Bolt Lock Hanging with Timer


Model No.: BL-3000





BL-3000 Electric hanging bolt lock-Power on to lock, with 5wires and time delay, 0.3.6seconds


Aluminium alloy material built-in LED indicate.

































Voltage



12V/24V DC



Working current



0.25A



Start current



1.2A



Holding force



800kg



Unlock way



Power off to open

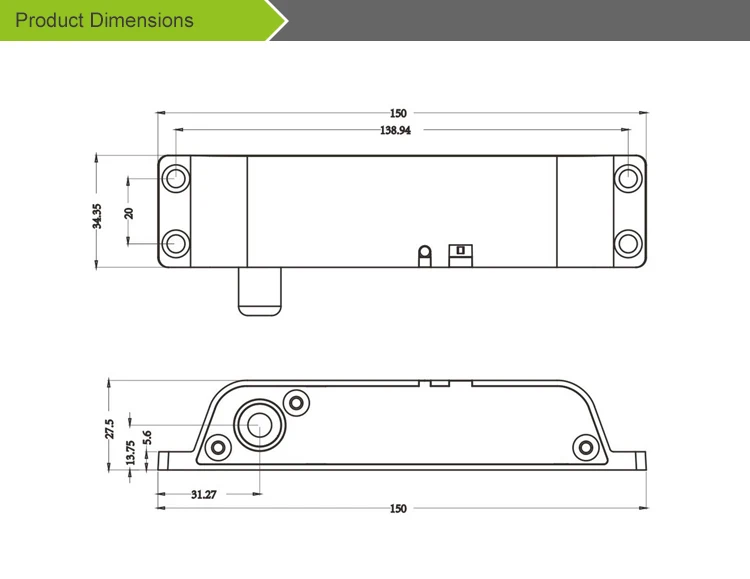

Lock dimension



150x34x27mm

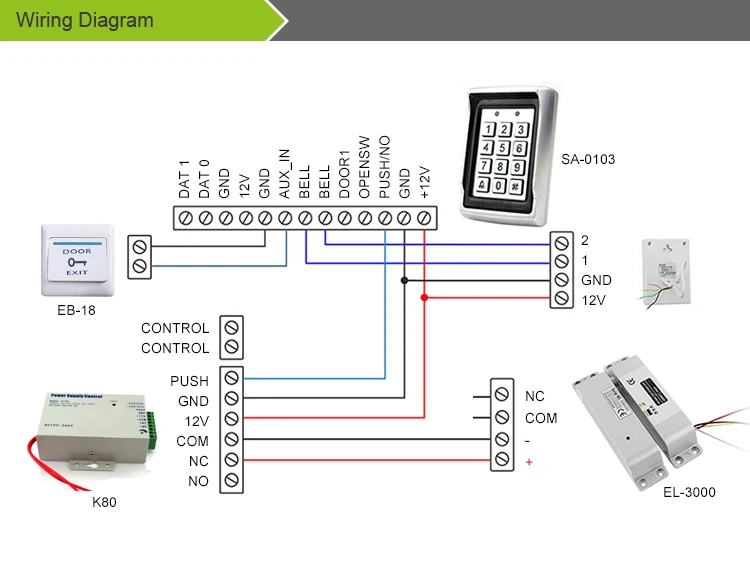

Diagram


























Red



DC 12V



Black



GND



Orange



NC



Green



NO



White



COM
