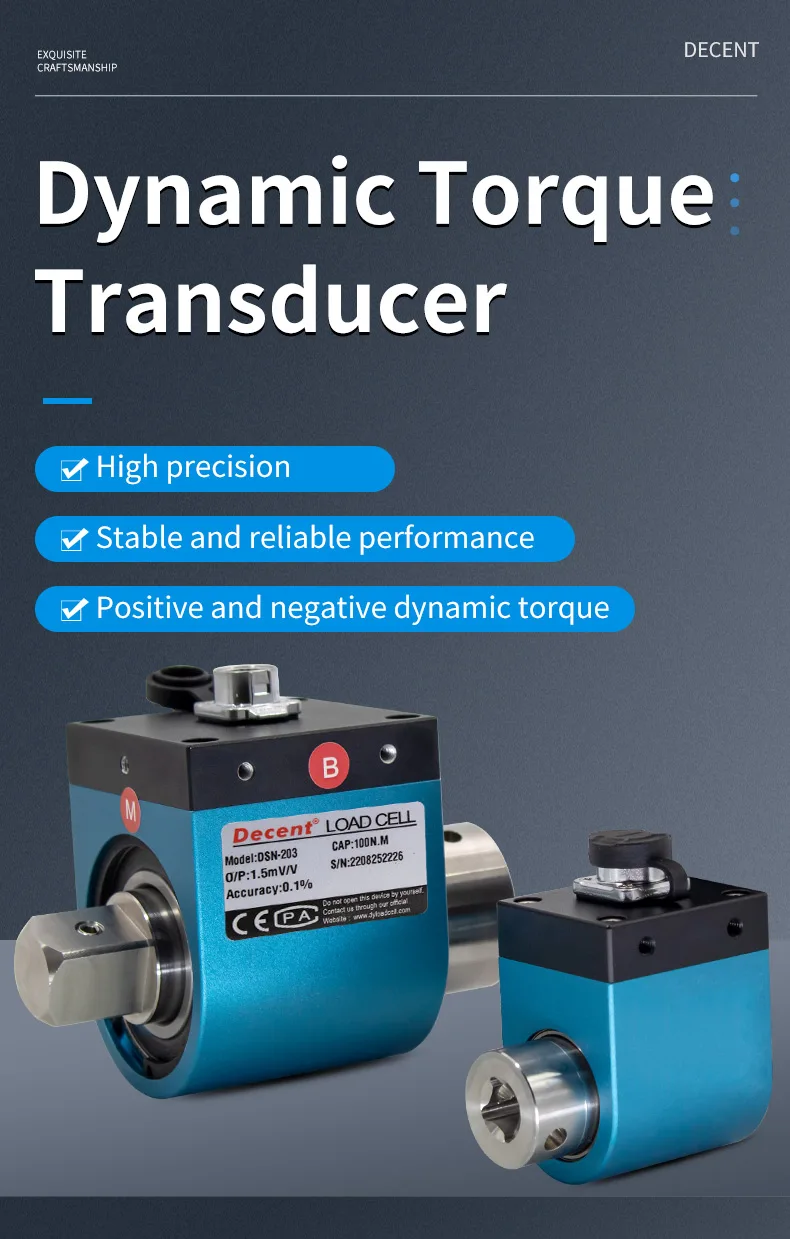

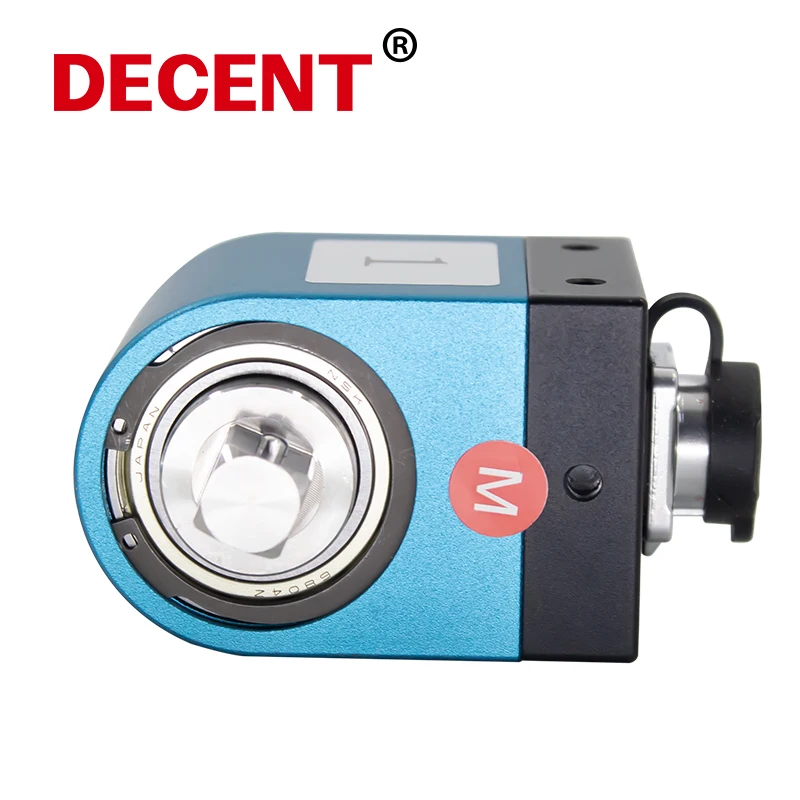

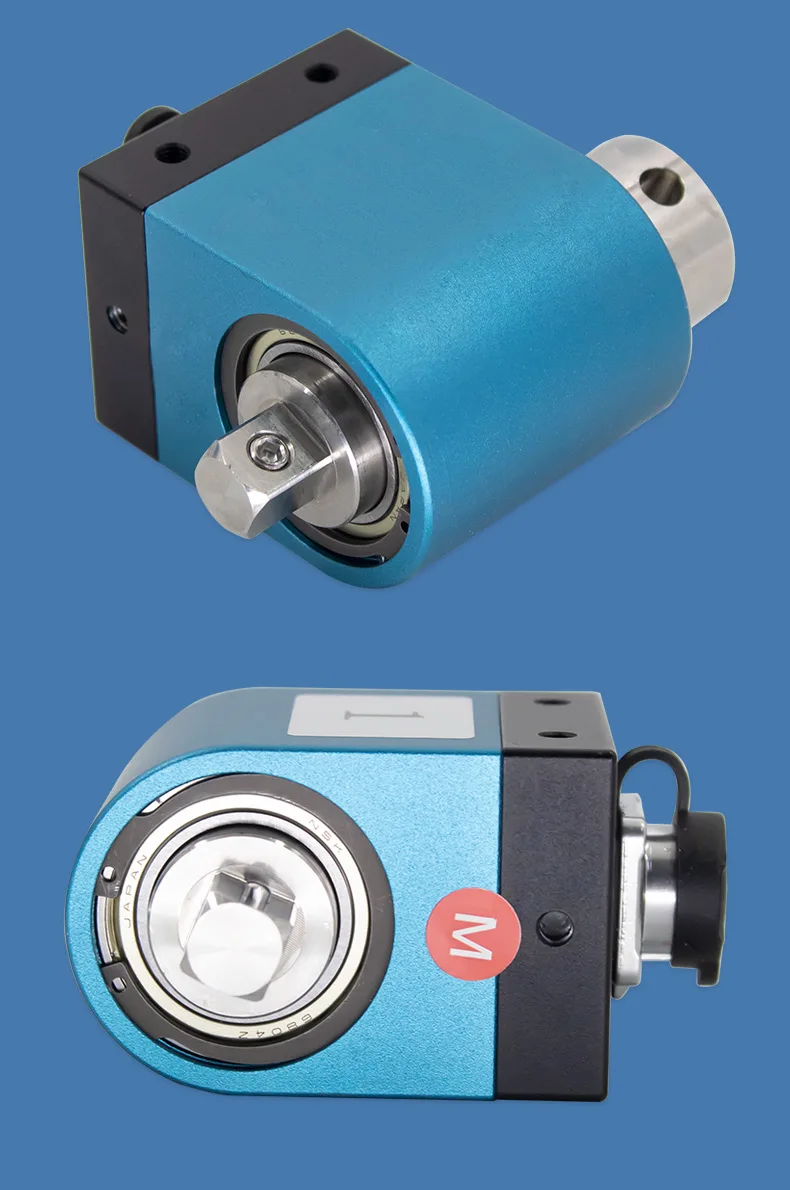

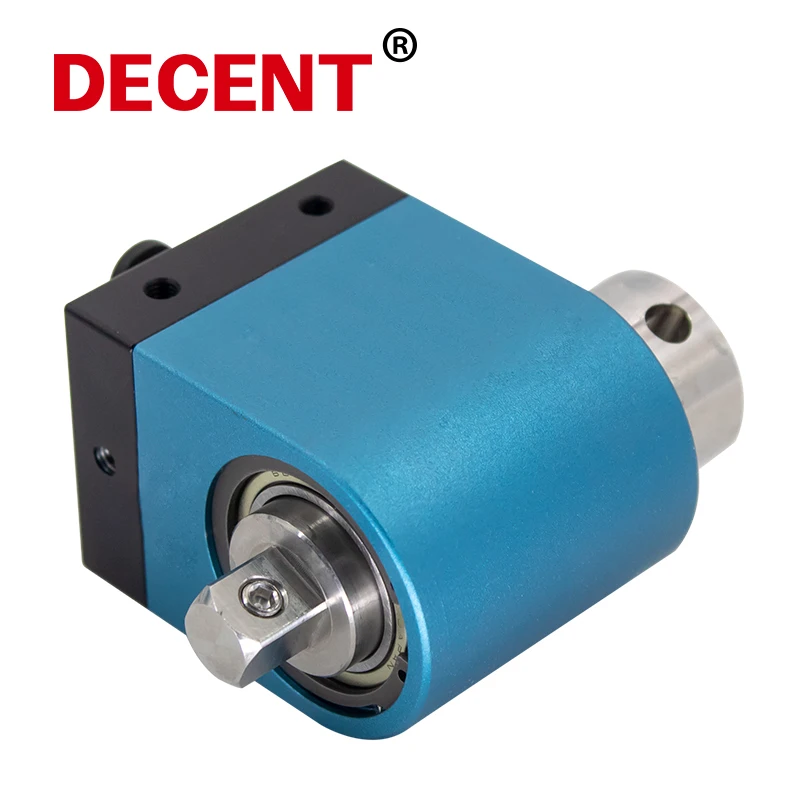

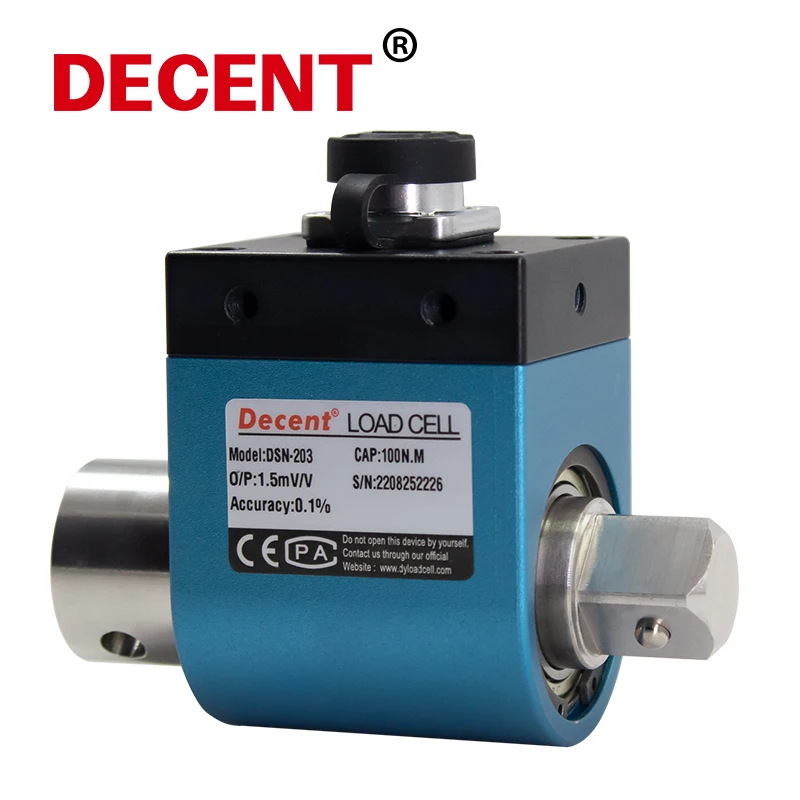

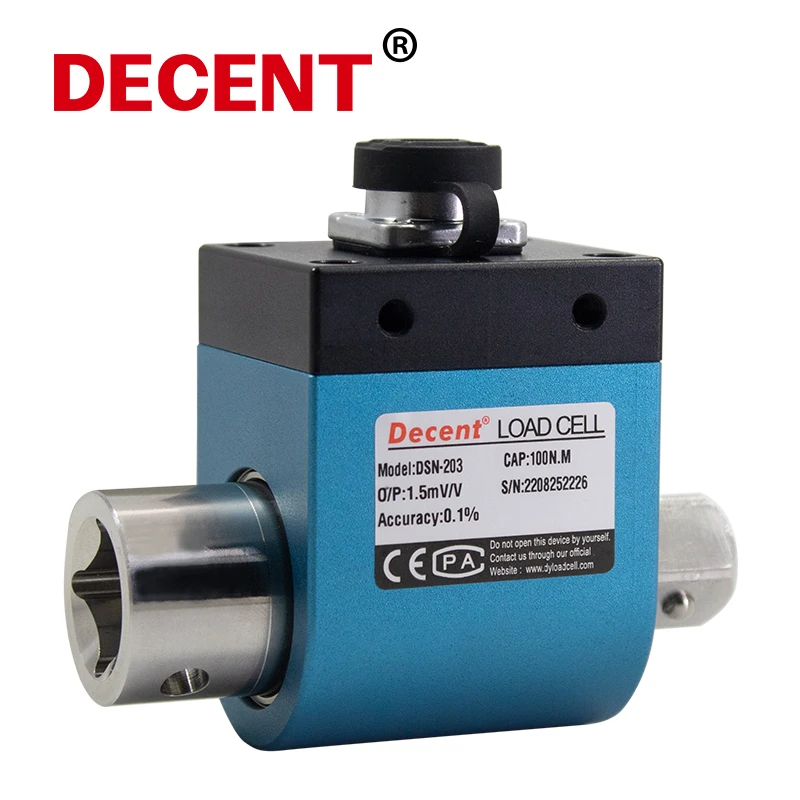

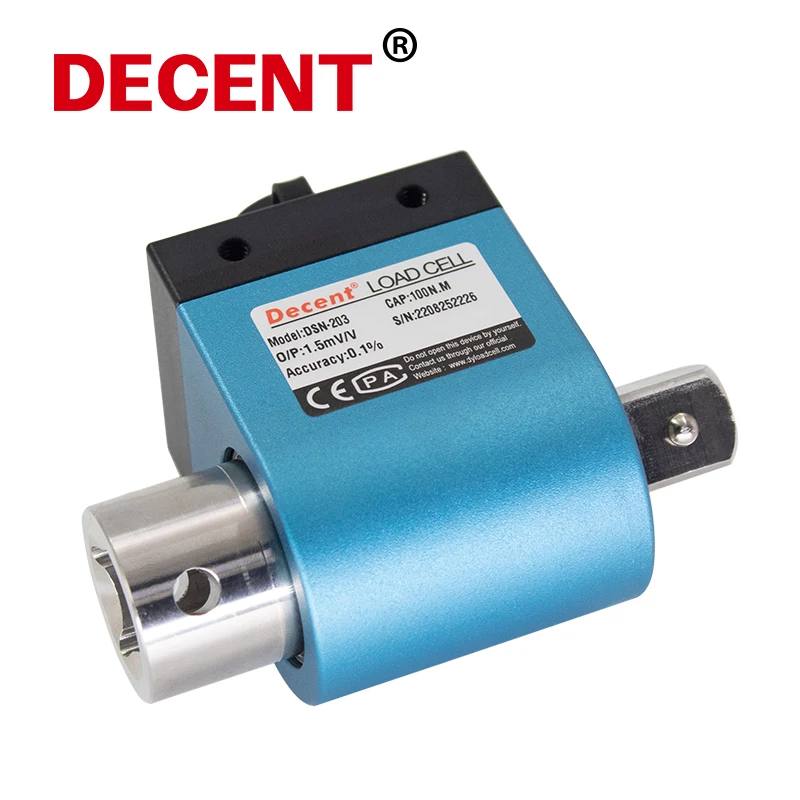

Precision Dynamic Torque Sensor Load Cell Rotation Test Bench Motor Sensor Small Size Strain Type
- Category: >>>
- Supplier: DST (shenzhen) Sensor Co. Ltd
Share on (1600618176775):
Product Overview
Description
Due to the different weight of the product, the freight will also be different, Specifically, please consult customer service to calculate according to your delivery address.

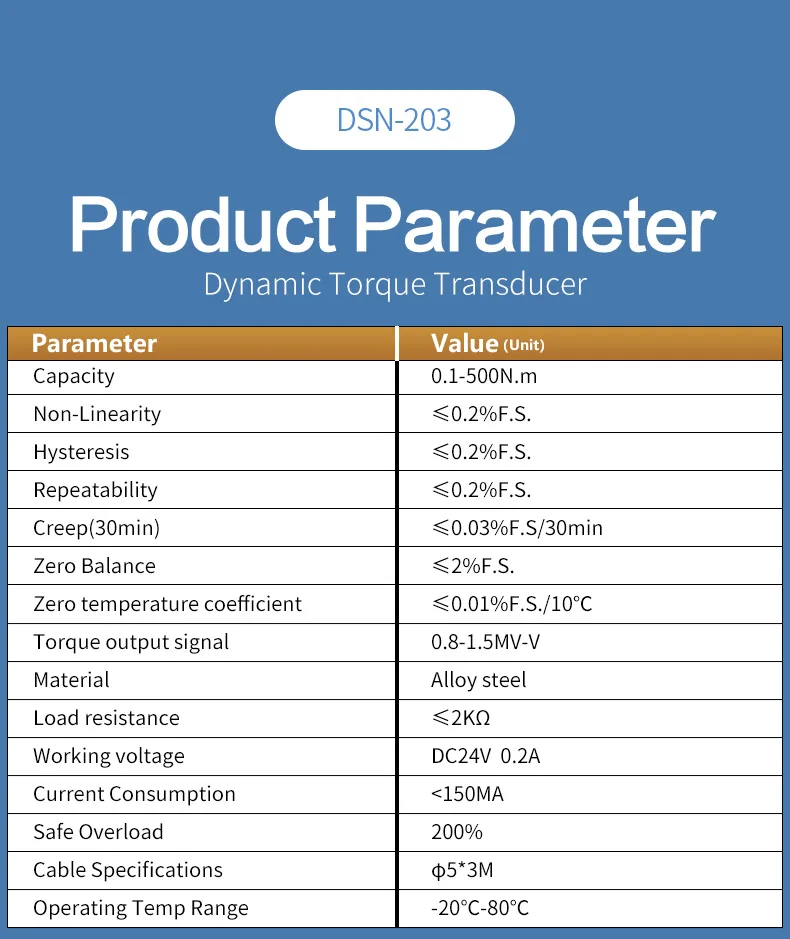

Specification | |||

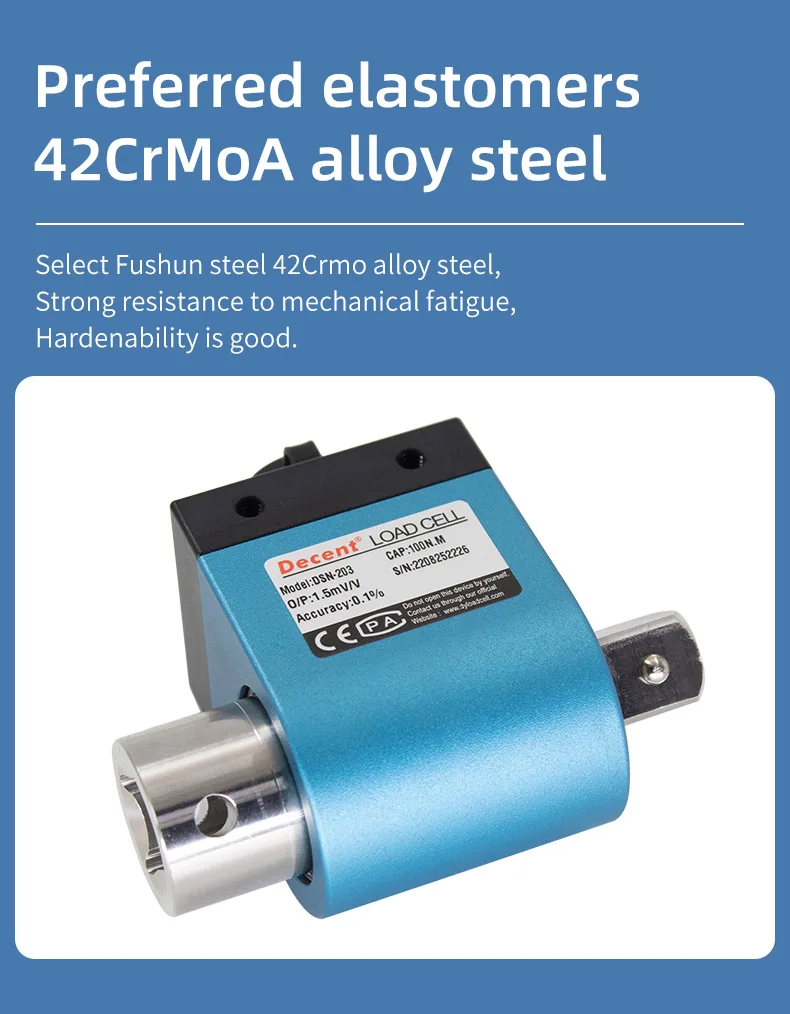

Capacity | 0.1-500N.m | Material | Alloy steel |
Non-Linearity | ≤0.2%F.S. | Load resistance | ≤2KΩ |
Hysteresis | ≤0.2%F.S. | Working voltage | DC24V 0.2A |
Repeatability | ≤0.2%F.S. | Current Consumption | <150MA |
Creep(30min) | ≤0.03%F.S/30min | Safe Overload | 200% |
Zero Balance | ≤2%F.S. | Cable Specifications | φ5*3M |
Zero temperature coefficient | ≤0.01%F.S./10℃ | Operating Temp Range | -20℃-80℃ |
Torque output signal | 0.8-1.5MV-V |
| |
