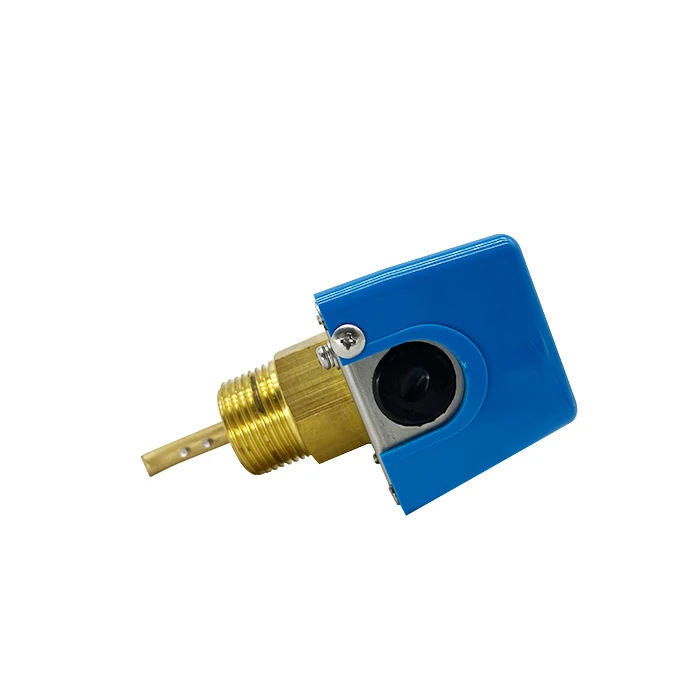

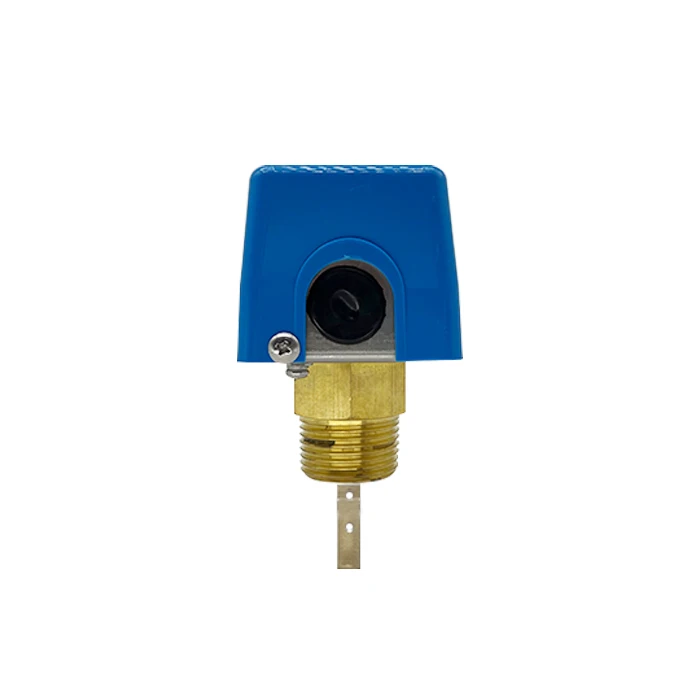

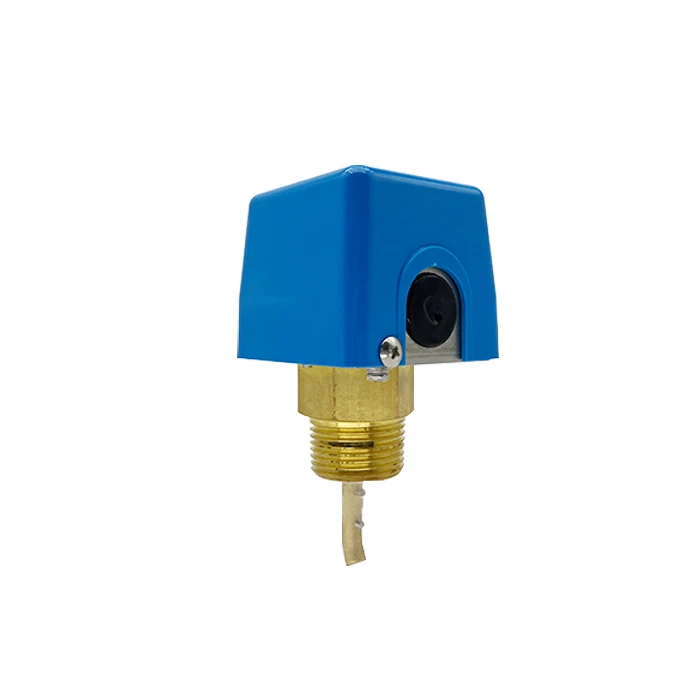

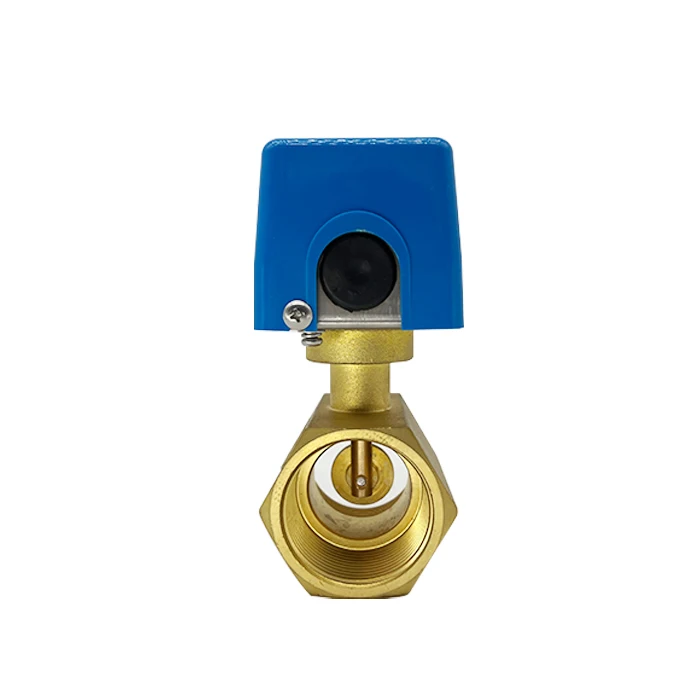

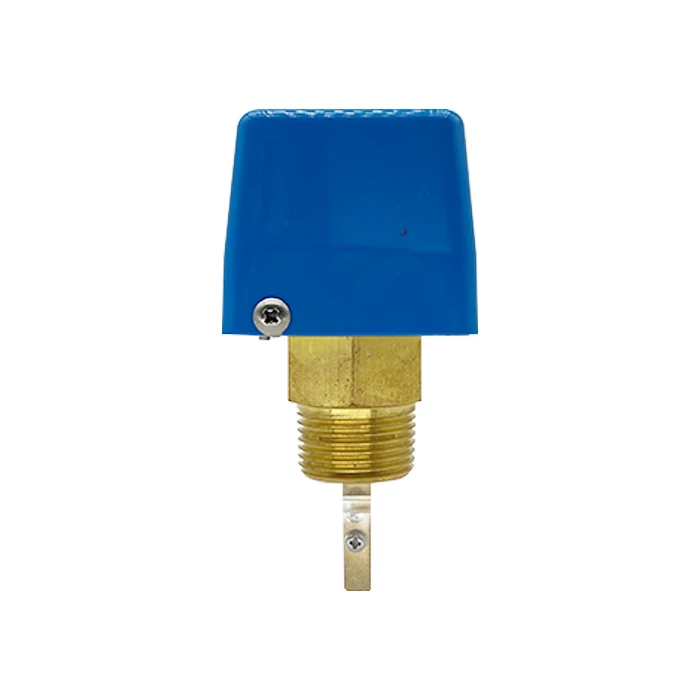

Pool Flow Switch For Water Water Flow Sensor Switch Straight through Baffle Flow Switch
- Category: >>>
- Supplier: Shanghai Kayuan Electronic Technology Co. Ltd.
Share on (1600618211660):
Product Overview
Description
SN41 Water Flow Switch
SN41 Series water flow switch is used to detect the liquid flow in the pipe line, when the flow reaches the set point, it sending a
trip signal to another device in the system, such as a pump, to protect it from damage and for circuit protection.
trip signal to another device in the system, such as a pump, to protect it from damage and for circuit protection.
SPECIFICATION | ||
Voltage | AC125-250, 50/60Hz | |
Control Type | Paddle | |
Maximum Static Pressure | 10kg/cm2, 20kg/cm2 | |
Medium Temperature | 0-100℃ | |
Ambient Temperature | -25...80℃ | |
Connection | Screw Terminal | |
Case | Plastic cover | |
IP Class | IP53 | |
Material of Paddle | SS | |
Material of Connection | Brass | |
Max. Working Pressure | 1.0MPa | |
Flow Range | 18-260L/Min | |
