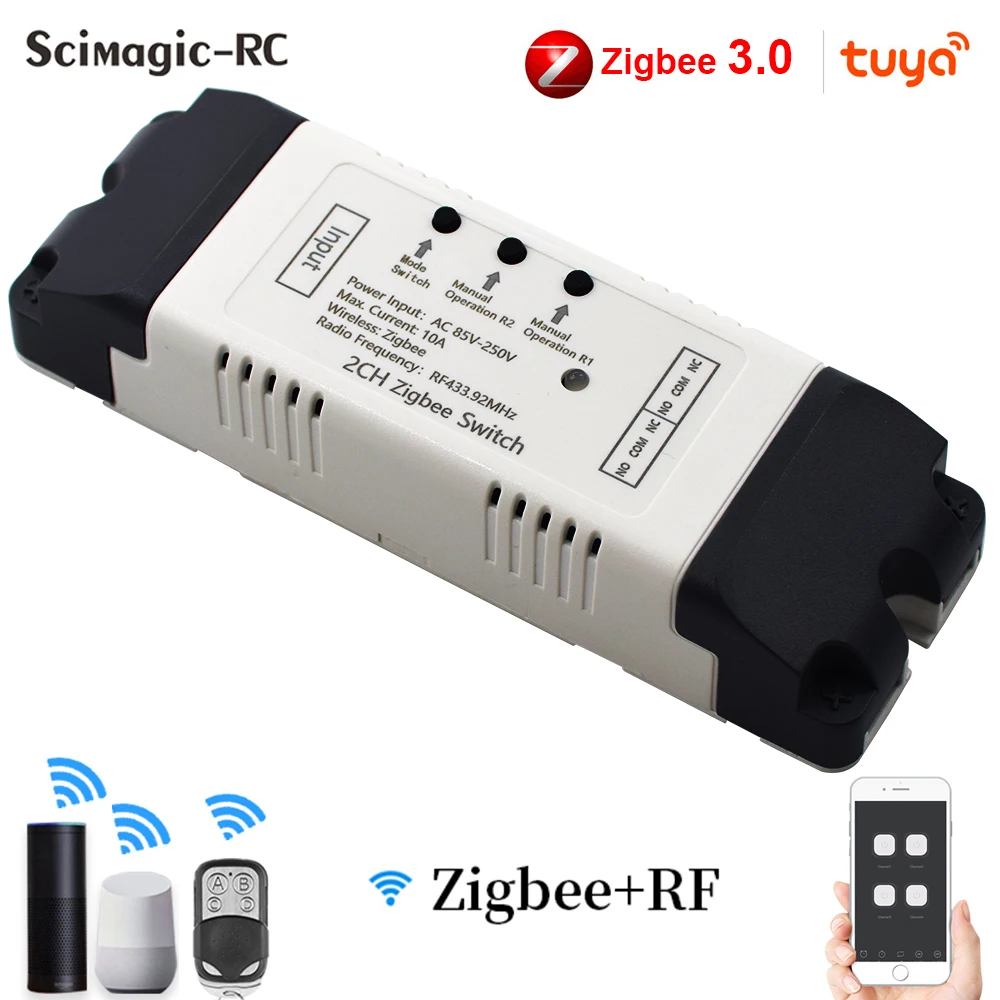

Zigbee 3.0 Gateway 2CH RF 433Mhz Smart Home Switch 220V WIFI Tuya Remote Control Light Switch 10A Self locking Inching Relay
- Category: >>>
- Supplier: Shenzhen Mixiyou Technology Co. Ltd.
Share on (1600618227545):
Product Overview
Description
Product Description
Zigbee 2CH WiFi Switch 85-250V Module Wireless 2 Relay Zibgee 3.0 APP Remote Control Smart Timer Smart Home Alexa Google Home
Use For
1.Remotely give a pulse signal to turn on/off Lights,Lamps.PC and other home appliance.
2.Remotely give a pulse signal to turn on/off Garage Door,Door Access
3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse
2.Remotely give a pulse signal to turn on/off Garage Door,Door Access
3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse

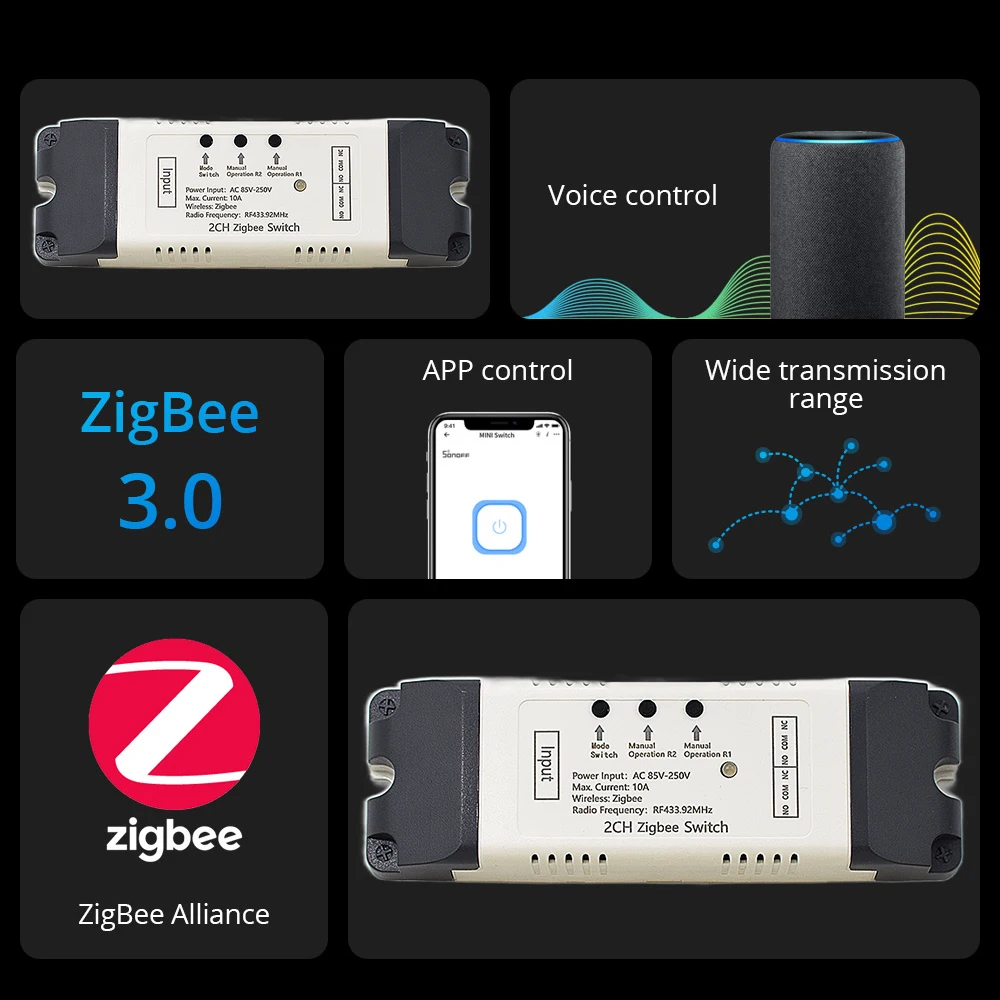

The switch is a micro/self-locking smart switch supporting ZigBee
Work with Zigbee 3.0 Gateway Hub Bridge.
The ZigBee3.0 protocol has obtained the switch and ZigBee. Quickly paired bridges.
The fire-retardant and flame-retardant shell ensures that the switch is safer to use in your home.
In addition, AES-128 encryption can ensure that the security is extended to the privacy of the data device without worrying about
the privacy of the device.
It can be used as a Zigbee router to help transmit ZigBee signals to ensure a stable connection when using multiple Zigbee devices
in your house.
The ZigBee3.0 protocol has obtained the switch and ZigBee. Quickly paired bridges.
The fire-retardant and flame-retardant shell ensures that the switch is safer to use in your home.
In addition, AES-128 encryption can ensure that the security is extended to the privacy of the data device without worrying about
the privacy of the device.
It can be used as a Zigbee router to help transmit ZigBee signals to ensure a stable connection when using multiple Zigbee devices
in your house.
Three Working Modes
1.Self-locking :
each channel could be switched on/off seperately.You can turn on/turn off all channel at the same time.
2.Interlocking mode :
Switch on any channel , other channels will be switched off automatically .
3.Inching mode :
Switch on one channel,the channel will be automatically closed after 0.5seconds .Other channel is same as the channel.
The inching time can't be changed.
each channel could be switched on/off seperately.You can turn on/turn off all channel at the same time.
2.Interlocking mode :
Switch on any channel , other channels will be switched off automatically .
3.Inching mode :
Switch on one channel,the channel will be automatically closed after 0.5seconds .Other channel is same as the channel.
The inching time can't be changed.
Parameters:
lnput voltage: AC 85-250V
Max.Current:2200W/10A
wireless Standard:Zigbee
Working temperature: -20℃~70℃
Size: 69*41*20mm
Max.Current:2200W/10A
wireless Standard:Zigbee
Working temperature: -20℃~70℃
Size: 69*41*20mm
Checklist before using the device
You need to have a Zigbee gateway.
Try to be close to the Zigbee gateway when pairing.
Try to be close to the Zigbee gateway when pairing.

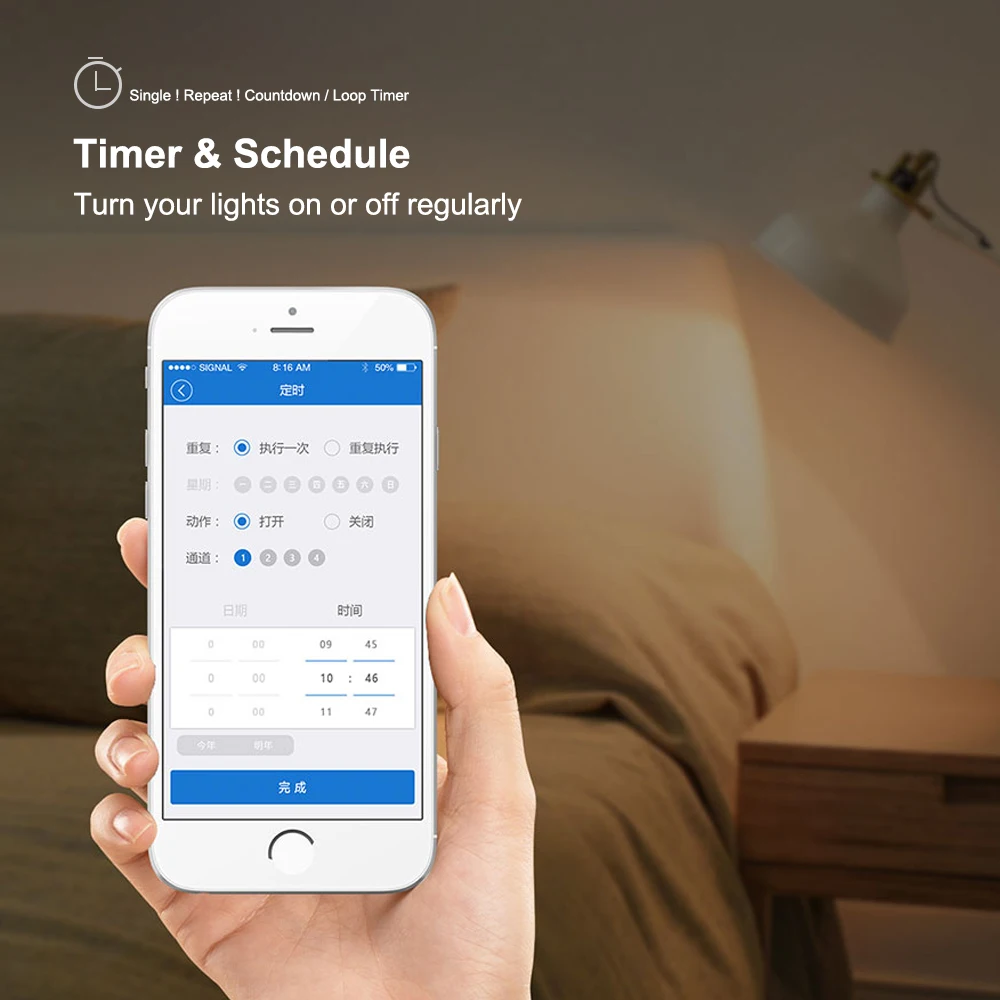

Timer
You could set a time schedule to turn on/turn off the device
Specification
item | value |
Certification | ce |
Network | wifi |
Customized support | no |
Whether the smart | Yes |
Place of Origin | China |
Guangdong | |
Brand Name | Scimagic-RC |
Model Number | zigbee 85-250V Receiver |
Operating Temperature | -20℃~70℃ |
Max. Current | 10A |
Max. Voltage | AC85~250V |
Compatibility | All Compatible |
State of Assembly | Ready-to-Go |
Camera Equipped | No |
Certification | CE,RoHS |
Wireless Protocol | ZigBee 3.0 |
Product type | ZigBee +RF Switch Module |
Applications | lighting/electronic curtain/motor |
RF | 433mhz ( no battery) |
Max.Current | 2200W/10A |
Size | 69*41*20mm |
Details Images
Recommend Products
Certifications
Company Profile
MIXIYOU Company is located in Shenzhen and is specialized in producing and developing wireless remote controls, receiver control
boards, receiver modules, photocell beam sensors and other products for automation many years.
boards, receiver modules, photocell beam sensors and other products for automation many years.
FAQ
1. How long will delivery take? Generally takes 4-5 working days shipped by DHL, Fdex, TNT, UPS, EMS......
2. How long forproduction?
For small orders will be dispatched in 2 working days. For orders more than 500pcs, it will take about 5 working days,
for customized or special order, will take 15-20 working days.
3. How will my order be sent?
Usually for small orders will be sentwith express (DHL, FEDEX, UPS, TNT......)
4.What’s your MOQ?
Our MOQ is 100 pcs per model for normal orders, mixed order isacceptable.
5. What is a compatible remote?
A compatible remote is an aftermarket remote not produced by the same manufacturer asthe original but will be compatible with your
motor.
6. How is the payment Tern?
T/T, Western Union Paypal for small orders or sample orders.
7. Can I customized?
Yes, you can send us details or sample, we can develop for you.
8. Are you a manufacture orsupplier only?
We are manufacture.
