Product Overview
Description
Products Description

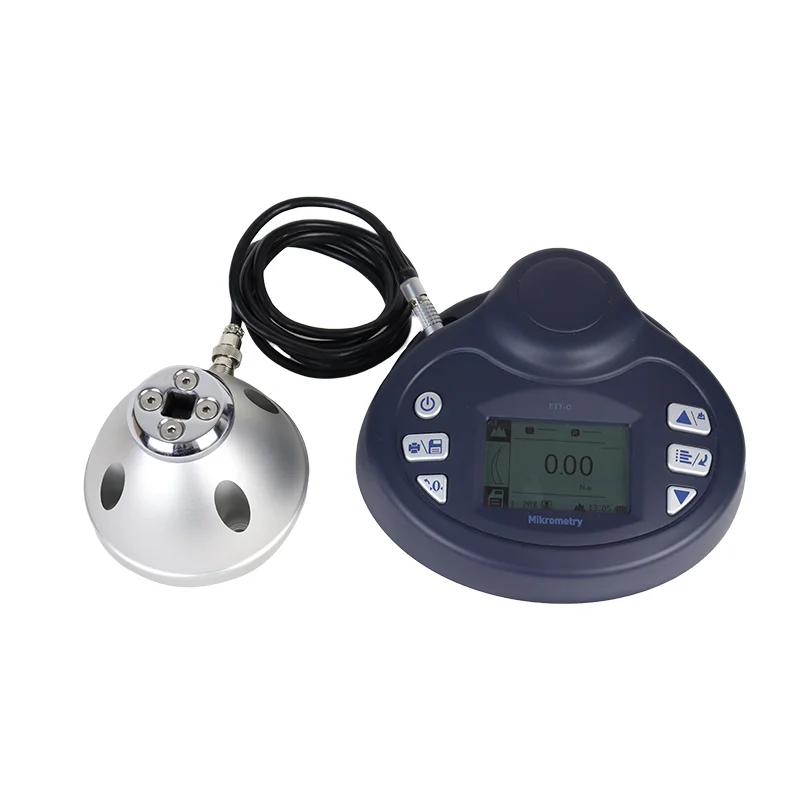

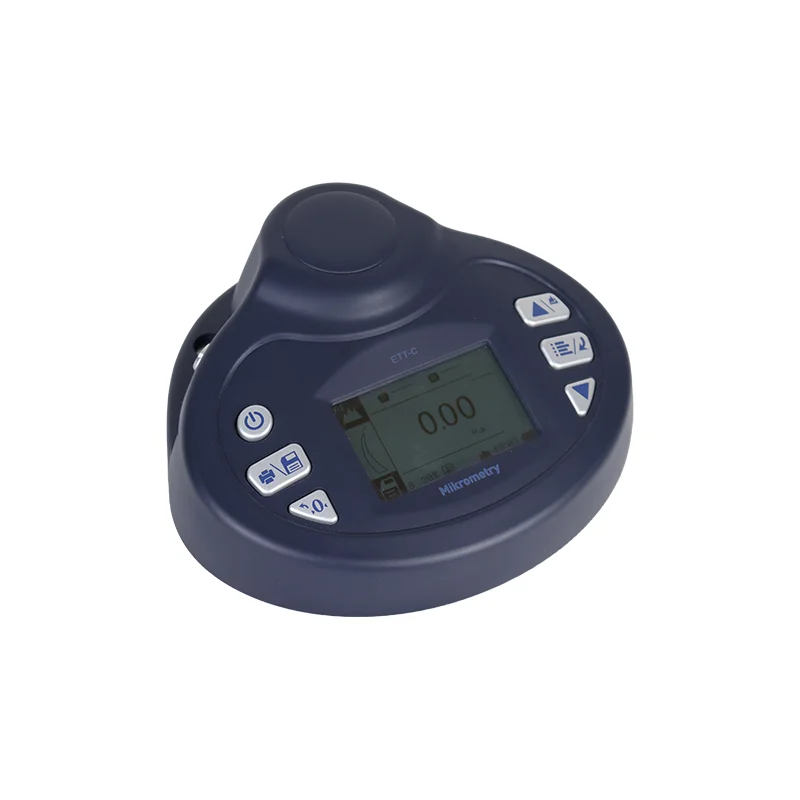

Mikrometry Torque Calibraiton Tester Loader Indicator is an intelligent multi-functional measuring instrument which is designed for testing various kinds of bottle lid torque. It main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. It’s widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.

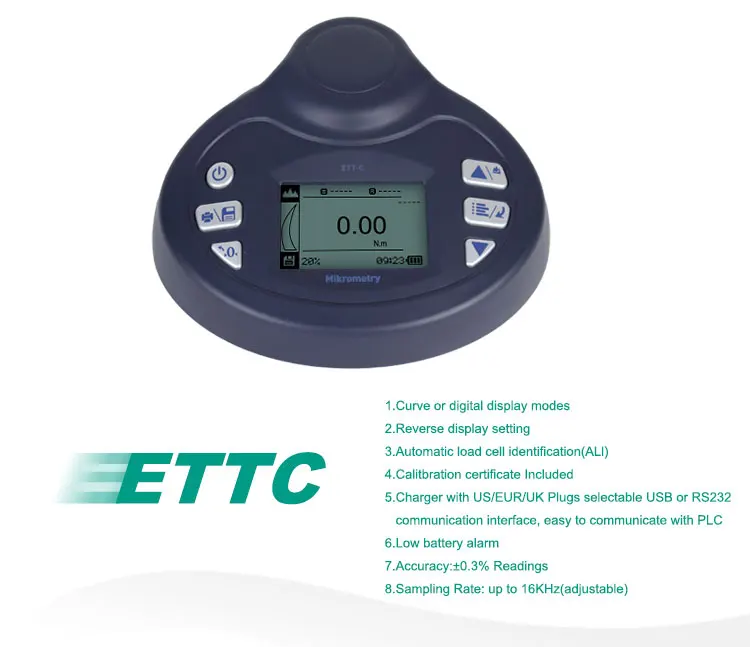

Features:
Curve or digital display modes
Reverse display setting

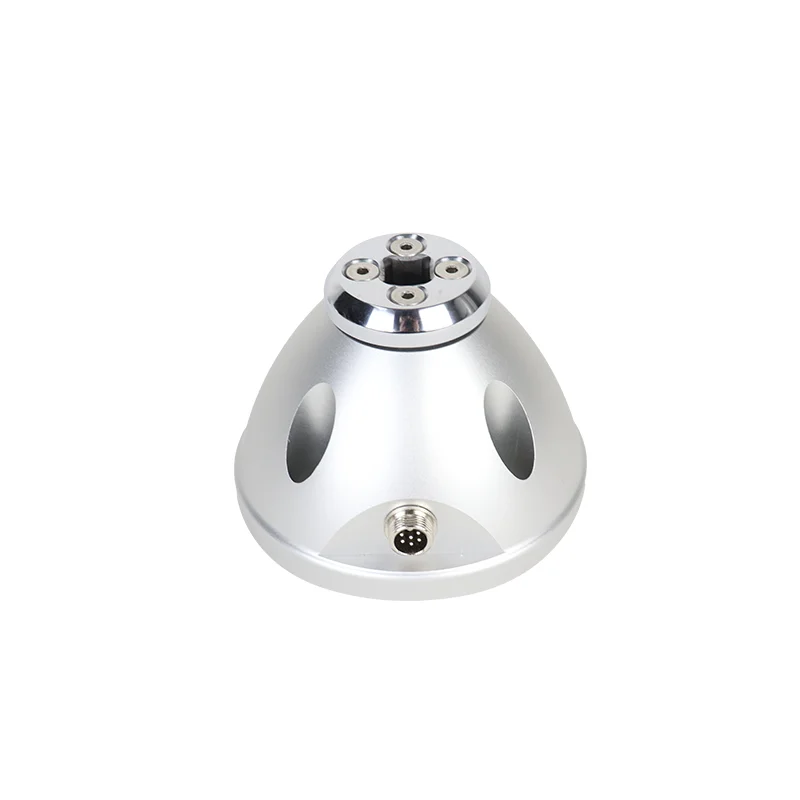

Automatic load cell identification（ALI）
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface, easy to communicate with PLC
Low battery alarm
Accuracy: ± 0.3% Readings
Sampling Rate: up to 16KHz (adjustable)
Reverse display setting
Automatic load cell identification（ALI）
Calibration certificate Included
Charger with US/EUR/UK Plugs selectable
USB or RS232 communication interface, easy to communicate with PLC
Low battery alarm
Accuracy: ± 0.3% Readings
Sampling Rate: up to 16KHz (adjustable)

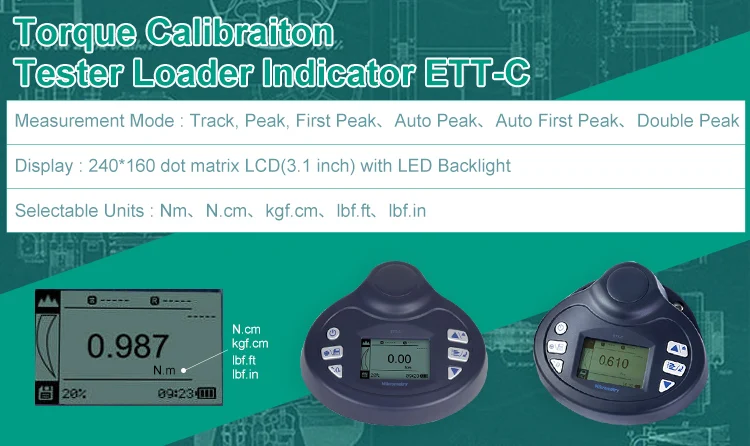

Product Paramenters
Accuracy | ± 0.3% Readings + sensor |
Selectable Units | N.m、N.cm、kgf.cm、lbf.ft、lbf.in |
Display | 240*160 dot matrix LCD(3.1 inch) with LED Backlight |
Overload Capacity | 120% of F.S. |
Measurement Mode | Track, Peak, First Peak、Auto Peak、Auto First Peak、Double Peak、Pulse |
Display Mode | Digital / Curve |
Data Sampling Rate | Up to 16KHz (adjustable) |
Memory | 1000 data |
Set Point | Programmable high and low limits |
Power | 3.6VDC 1600mAH Ni-Mh rechargeable batteries |
Battery Life | Approx. 25 hours for continuous use |
Charger / Adaptor | Universal USB/BM charger, Input:110~240VAC |
Temperature Effects | <0.03% FS per °C |

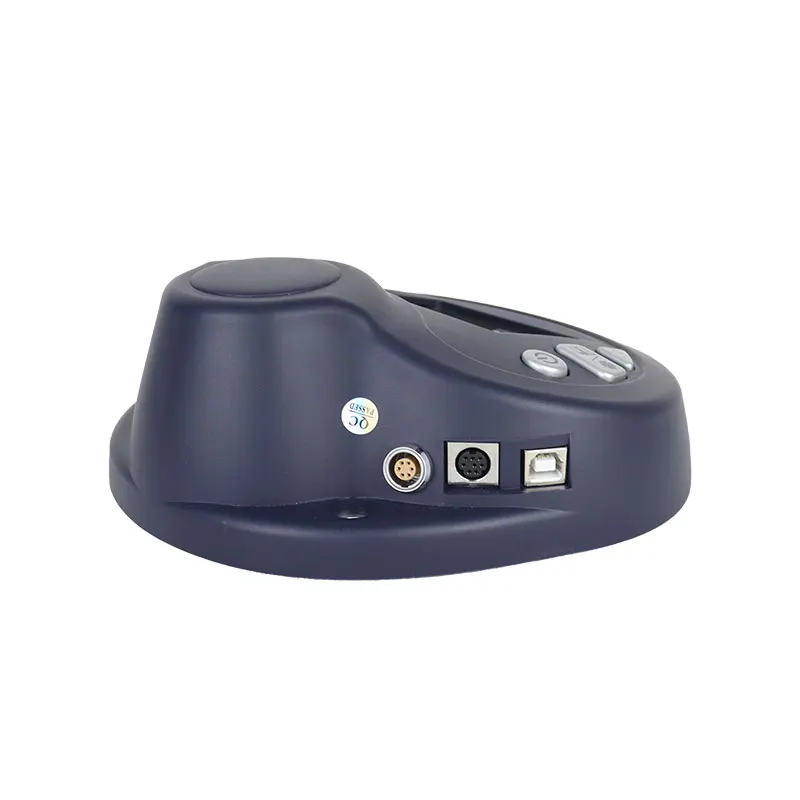

Communication | USB or RS-232 |
Software | Free software for USB communication |
Outputs | RS-232, "Within" set point output， "Under or over" set point output |
Operating environment | Temperature: -10 to 40°C |
Relative Humidity: 20 to 80% | |
Storage environment | Temperature: -20 to +50°C |
Relative Humidity: 5 to 90% | |

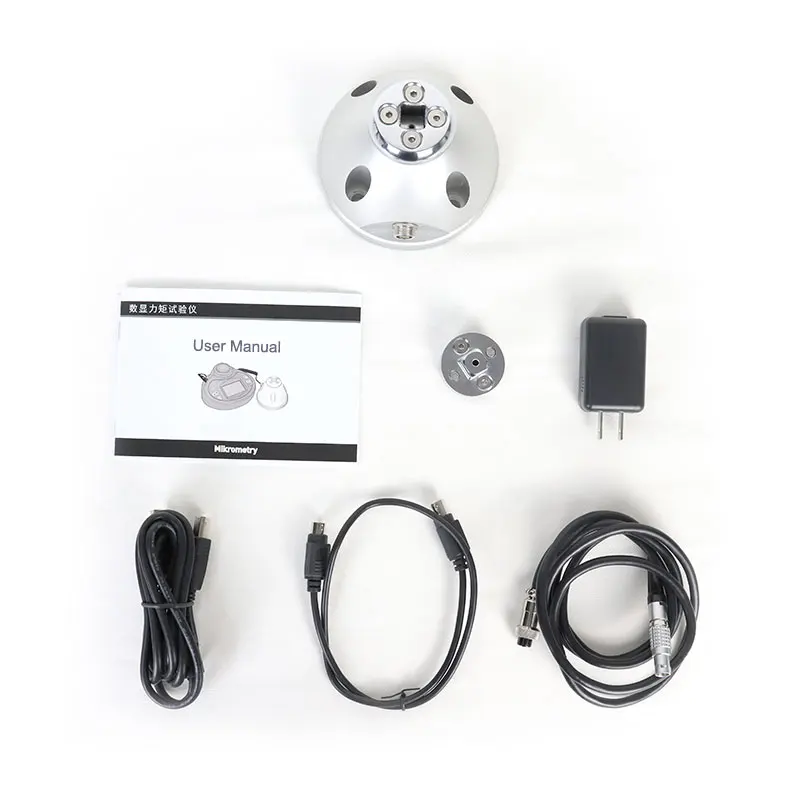

Accessories | AC adapter/charger, USB cable, Square drive adaptor |
Options | Mini-printer, RS-232 Cable, Rundown Adapter, ETS-TT1 Torque Test Stand, ETS-TT2 Torque Test Stand. |

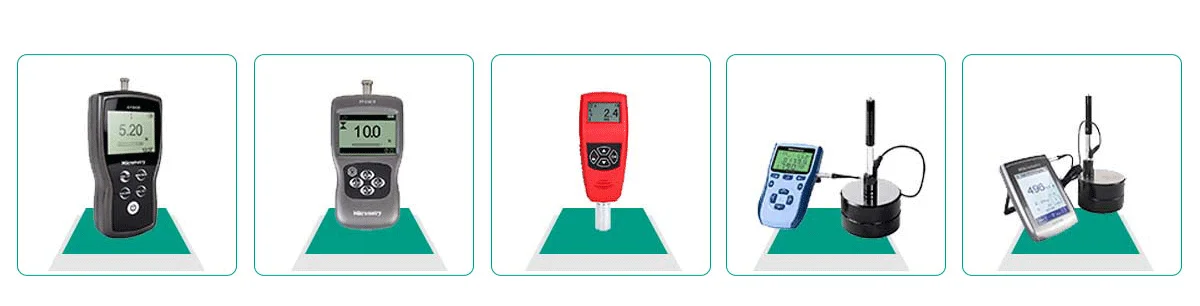

Recommend Products
Packing & Shipping
1. We guarantee to ship goods out within 3~5 working datys after payment confirmation except holiday.
2. We ship by DHL, FEDEX, TNT and so on, according to your choice when placing orders.
2. We ship by DHL, FEDEX, TNT and so on, according to your choice when placing orders.
Warranty
1. All items have 1 year guarantee. If your purchase do not meet mechantable quality, fitness for purpose or match the
description, we can make sure your issues are resolved.
2. For wrongly-shipped items, please contact us in 48 hours after delivery. We will arrange to deliver the correct items or return all your payment.
3. For defective or faulty products, please take photos or videos, we would resend or refund after confirmation.
description, we can make sure your issues are resolved.
2. For wrongly-shipped items, please contact us in 48 hours after delivery. We will arrange to deliver the correct items or return all your payment.
3. For defective or faulty products, please take photos or videos, we would resend or refund after confirmation.
Company Profile
About Us
Mikrometry Instrument Limited is a designer and manufacturer of height gauge, force and torque measurement products, portable
hardness tester and coating thickness gauge. Since our founding in 2007, our products have proven themselves in numerous
applications at companies in the automotive, machinery, electric product, film, medical device, textile, pharmaceutical, cosmetic,
packaging, food, and many other industries. We also offer optimized solutions for special requirements.
hardness tester and coating thickness gauge. Since our founding in 2007, our products have proven themselves in numerous
applications at companies in the automotive, machinery, electric product, film, medical device, textile, pharmaceutical, cosmetic,
packaging, food, and many other industries. We also offer optimized solutions for special requirements.
R & D
Mikrometry have more than 20 R& D engineers, and our products have more than 100 patents for inventions. From PCBA to firmware,
ID/MD. All the sensor and products are assembled and produced by Mikrometry.
ID/MD. All the sensor and products are assembled and produced by Mikrometry.
Integrated Manufacturing
Mikrometry products (Include sensors and key devices) are done in-house. Integrated manufacturing helps ensure high quality
standards and allows us to maintain extensive stock for quick shipment.
standards and allows us to maintain extensive stock for quick shipment.
Service & Support
We offer 7 x 24 hours online. And we have a technology team with more than 10 years experience, good technical skill, English
communication and project management.
communication and project management.
FAQ:
Q1. You are manufacturer or trading company?
A: We are manufacturer and exporter, our price is reasonable. Also we have great sales team providing professional service.
Q2. Do you provide OEM/ODM services?
A: We can do OEM/ODM.
Q3. How does your factory do regarding quality control?
A: Quality is priority. we always test one by one before produce or finished. We have got the CE, RoHS, so don't worry about quality
A: We are manufacturer and exporter, our price is reasonable. Also we have great sales team providing professional service.
Q2. Do you provide OEM/ODM services?
A: We can do OEM/ODM.
Q3. How does your factory do regarding quality control?
A: Quality is priority. we always test one by one before produce or finished. We have got the CE, RoHS, so don't worry about quality
