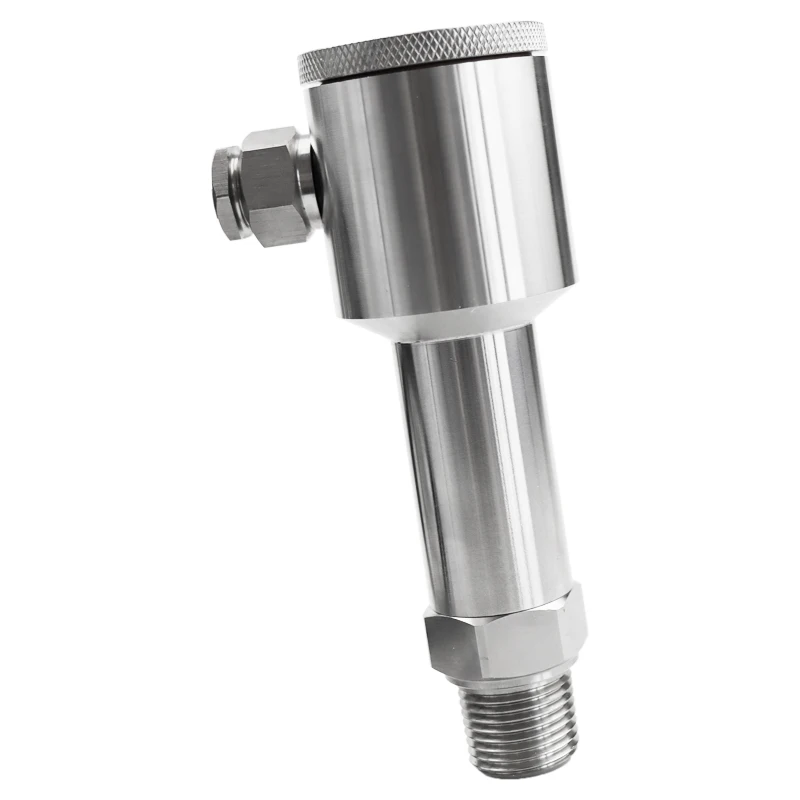

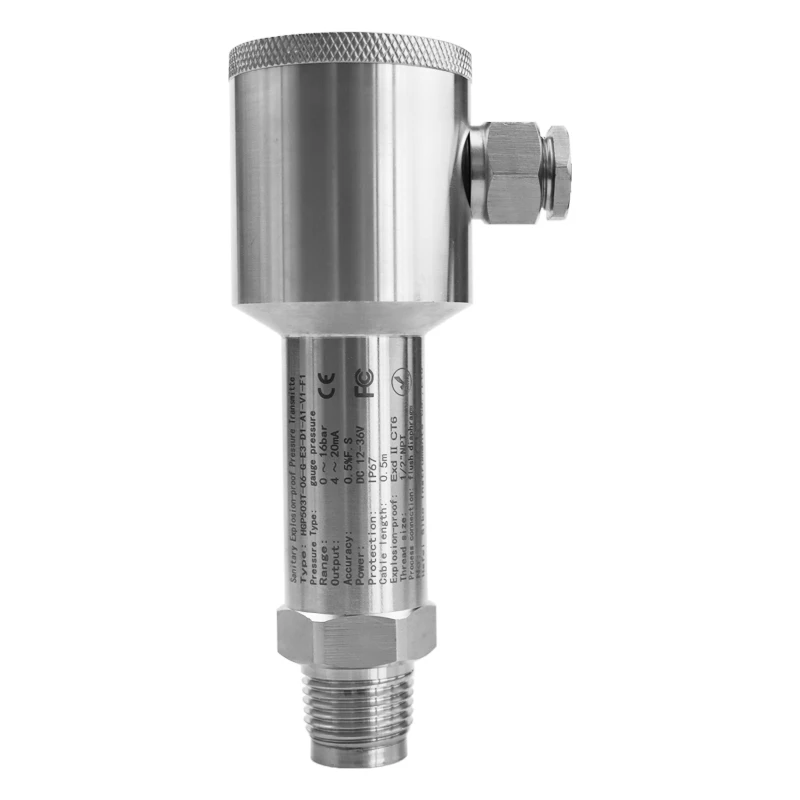

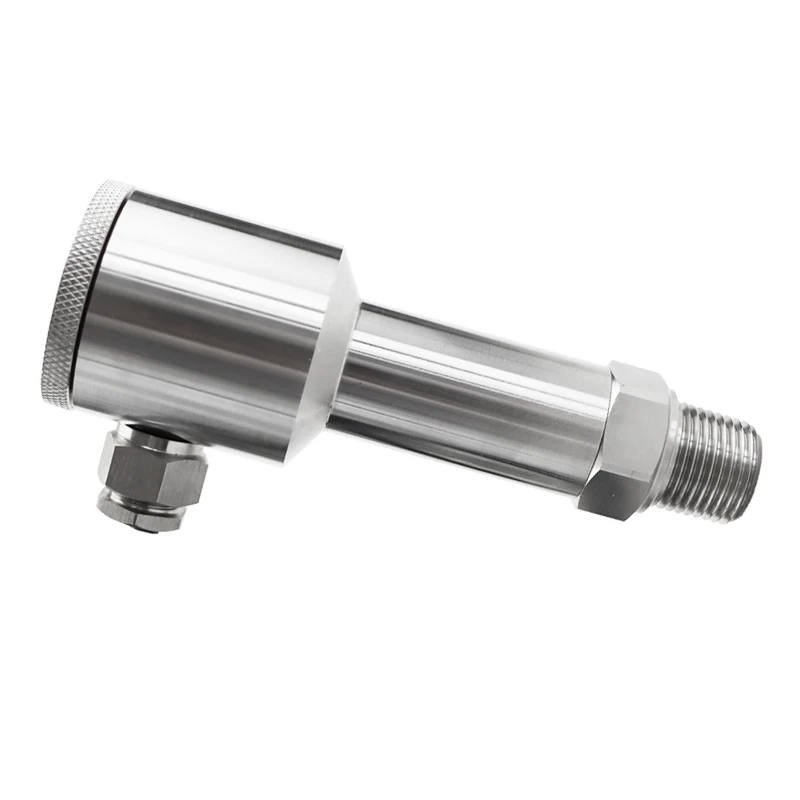

Analog 4 20mA Absolute Universal Explosion Proof Gas Pressure Transducer For Industrial Use
- Category: >>>
- Supplier: Hefei Siko Instruments Co. Ltd.
Share on (1600618280256):
Product Overview
Description

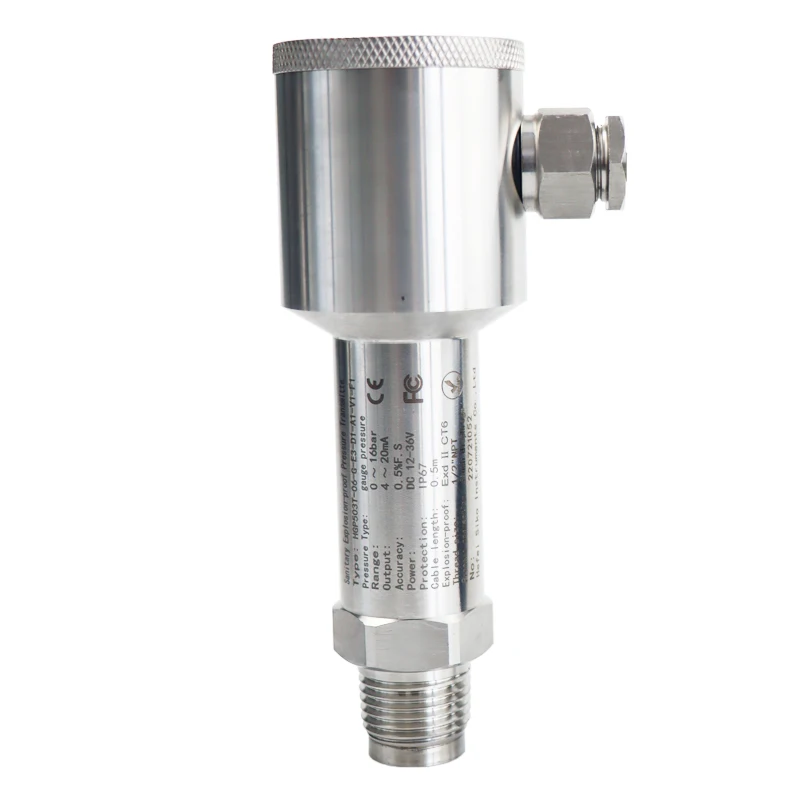

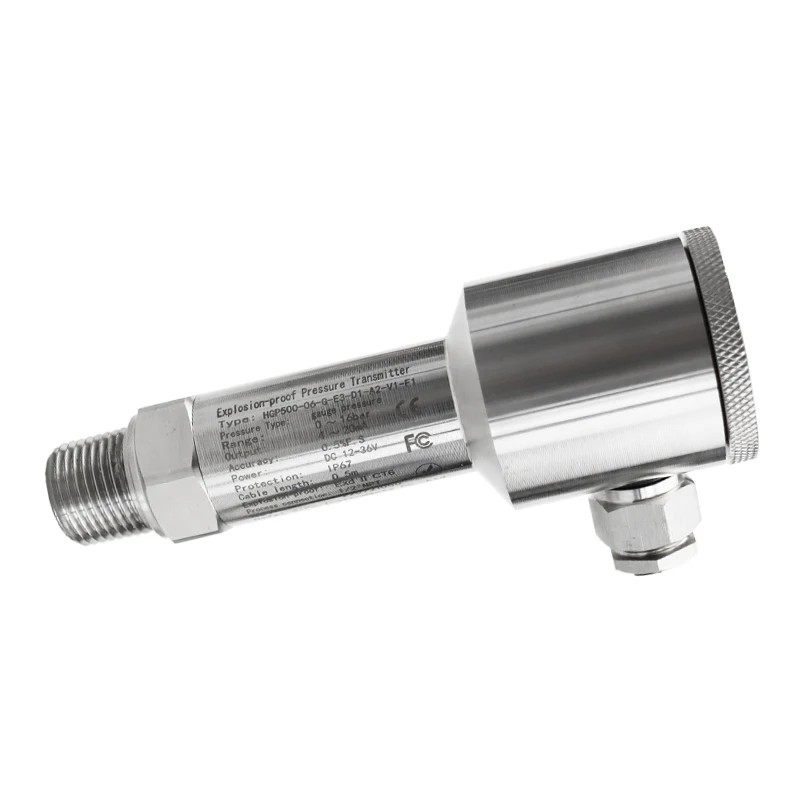

Analog 4-20mA Absolute Universal Explosion Proof Gas Pressure Transducer For Industrial Use
HGP-500 series pressure transmitter pressure sensitive core adopts high performance silicon piezo resistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or frequency signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC. Current output mode can be used for distance transmission. It has small volume, light weight, all stainless steel sealing structure and can work in corrosive environment.
The product is easy to install and has high anti-vibration and anti-impact performance. It is widely used in process control, aviation, aerospace, automobile, medical equipment, HVAC and other fields.
Features

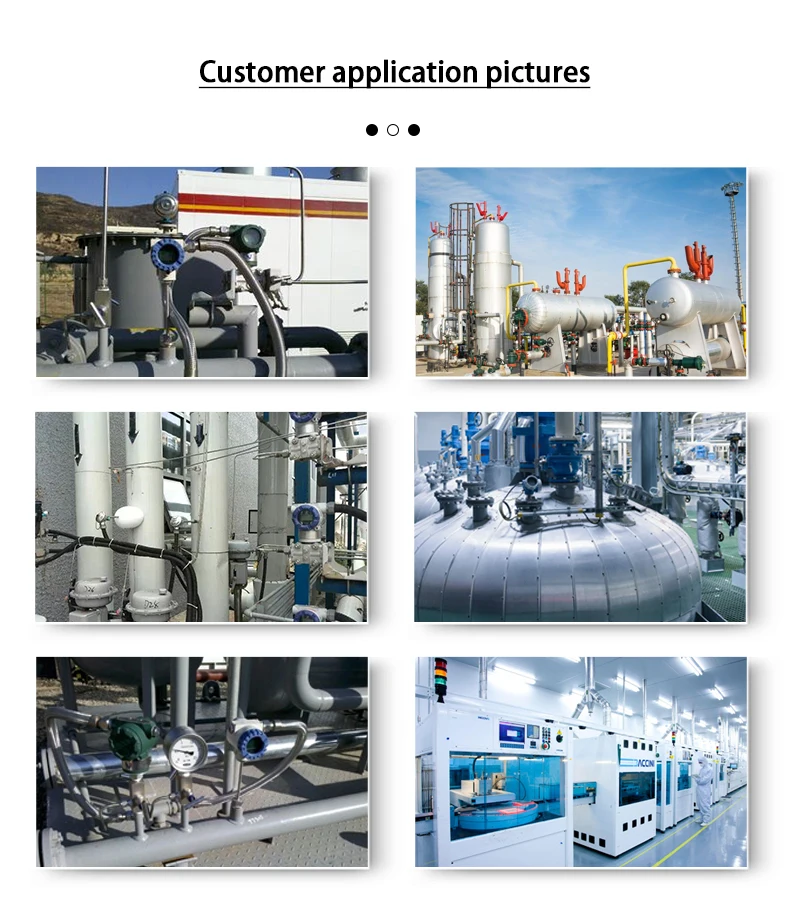

Application

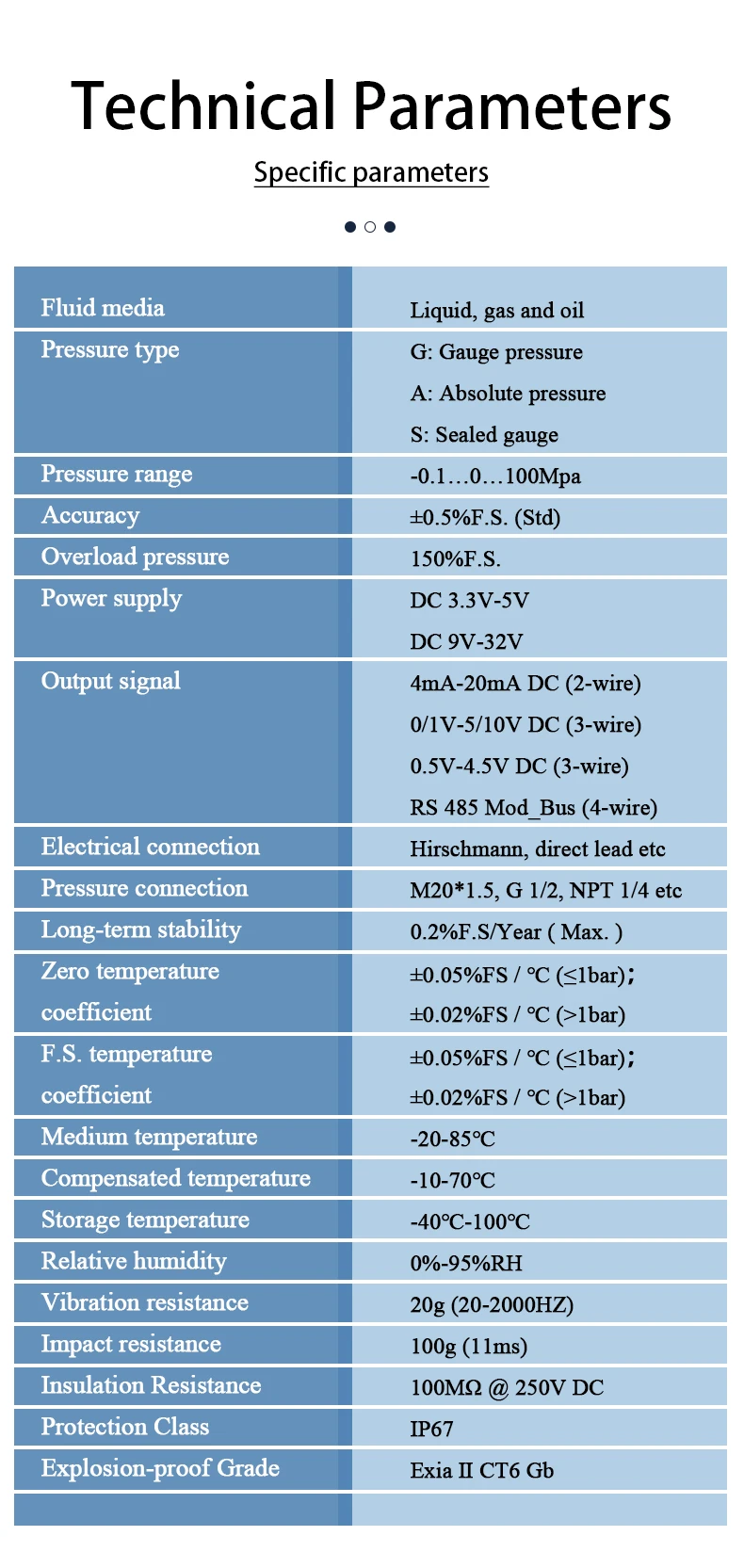

Technical Parameters

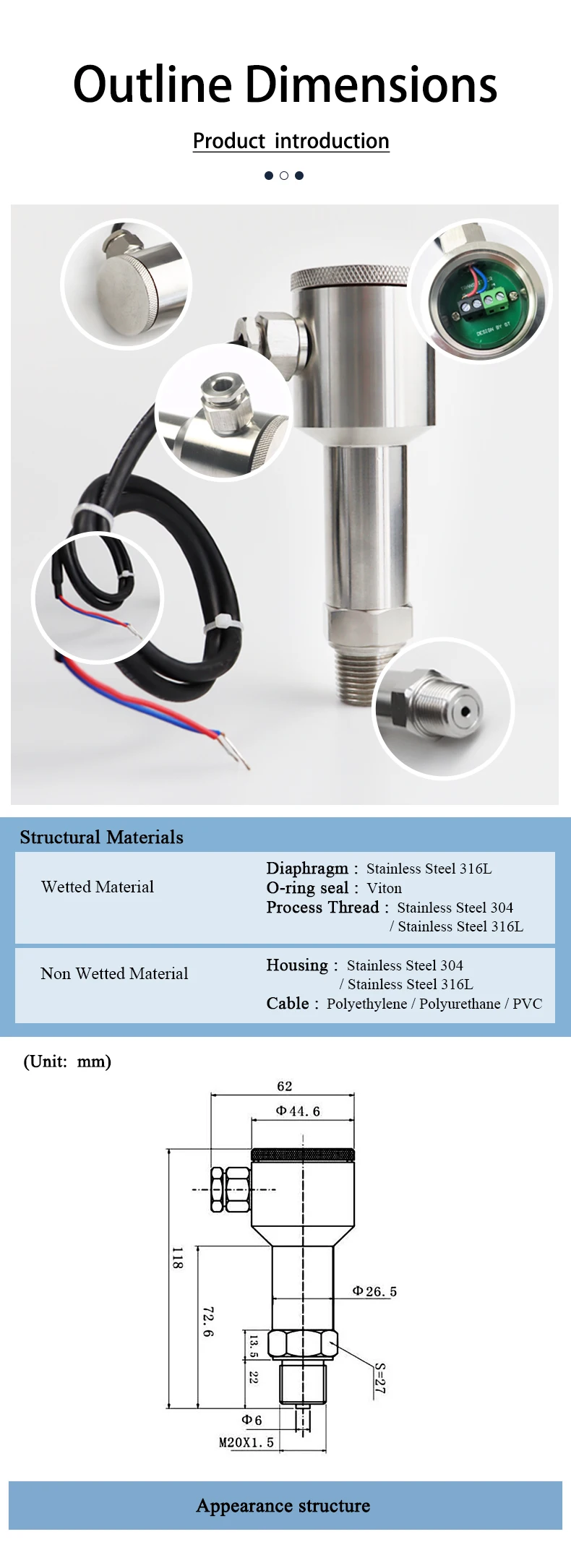

Drawing OF Dimension

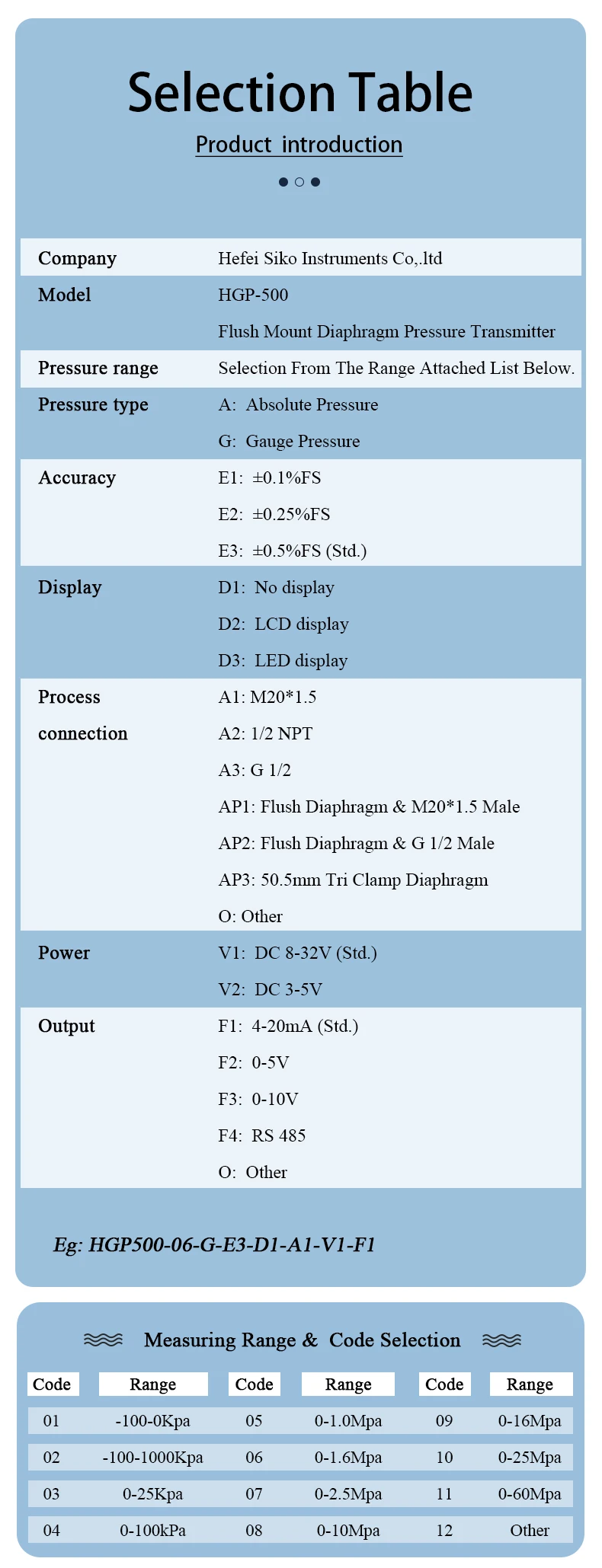

Selection Table
| Model | HGP-500 | ||||
| Pressure Range | Selection From The Range Attached List | ||||
| Pressure Type | A: Absolute Pressure | ||||
| G: Gauge Pressure | |||||
| Accuracy | E1: ±0.1%FS | ||||
| E2: ±0.25%FS | |||||
| E3: ±0.5%FS (Std.) | |||||
| Display | D1: No display | ||||
| D2: LCD display | |||||
| D3: LED display | |||||
Process Connection | A1: M20*1.5 | ||||
| A2: 1/2" NPT | |||||
| A3: G 1/2" | |||||
| A4: Other | |||||
| Power | V1: DC 8-32V (Std.) | ||||
| V2: DC 3-5V | |||||
| Output | F1: 4-20mA (Std.) | ||||
| F2: 0-5V | |||||
| F3: 0-10V | |||||
| F4: RS 485 | |||||
| F5: Other | |||||
Eg: HGP500-06-G-E3-D1-A1-V1-F1
| |||||
| Measuring Range & Code Selection | |||||
| Code | Range | Code | Range | Code | Range |
| 01 | -100-0Kpa | 05 | 0-1.0Mpa | 09 | 0-16MPa |
| 02 | -100-1000Kpa | 06 | 0-1.6Mpa | 10 | 0-25Mpa |
| 03 | 0-25Kpa | 07 | 0-2.5Mpa | 11 | 0-60Mpa |
| 04 | 0-100kPa | 08 | 0-10Mpa | 12 | Other |
Wiring Diagram
