Hot sale PET crusher machine plastic crusher with hydraulic system
- Category: >>>
- Supplier: Anhui Kaifeng Intelligent Equipment Co. Ltd.
Share on (1600618286485):
Product Overview
Description
Products Description

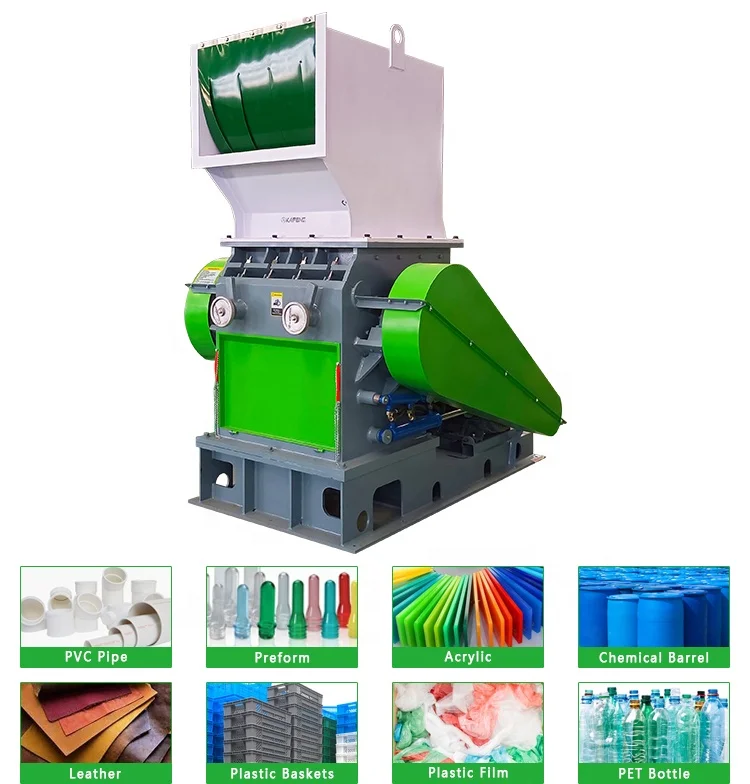

Heavy Duty Crusher
The heavy-duty crusher is designed to meet the production needs of high-volume crushing and one-time crushing of large materials.In addition, this series of crushing equipment is often used as secondary crushing after the shredder in various production lines.
In addition to the standard wear plates on both sides of the box, other key parts of the box can also be equipped with wear parts.
The wear-resistant layer can be surfacing around the knife roller and the fixed knife to ensure that this series is more suitable for materials such as broken glass fibers and sand-containing films that are likely to cause equipment wear.

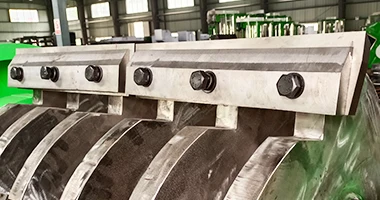

V-shaped Scissors Design
V-shaped scissor knife holder, standard DC53 knife, sharp edge, easy to replace, durable.

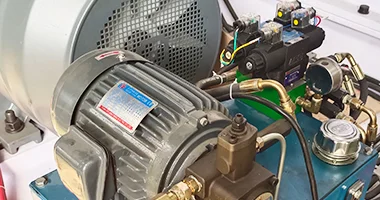

Hydraulically Driven

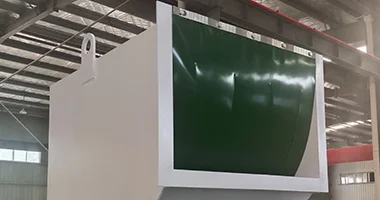

Hydraulically driven hopper and box opening for easy maintenance
Whole Machine Design
"Modular" design, easy dismantling of the entire body (including silo and screen)

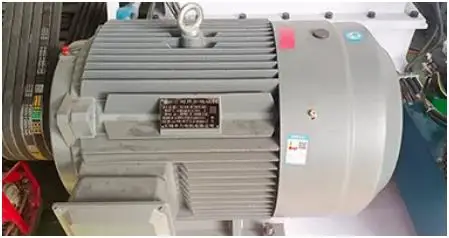

Motor
The motor adopts all copper wire motor，long life and durable.
Connection Schematic & Technology Data
Model | OSJ600 | OSJ800(small) | OSJ800(big) | OSJ1000 | OSJ1200 |
Motor Power | 22KW | 37KW | 55KW | 55/75KW | 75/90KW |
Feed Inlet | 600*450mm | 800*530mm | 800*710mm | 1000*800mm | 1200*1000mm |
Rotor Knives | 2*3 pcs | 2*3 pcs | 2*5 pcs | 2*5pcs | 2*5pcs |
Stator Knives | 2 pcs | 4 pcs | 4pcs | 4pcs | 4pcs |
Hydraulic Power | 1.1KW | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
Crushing Capacity | 300-350KG/H | 400-500KG/H | 600-800KG/H | 800-1000KG/H | 1000-1500KG/H |
Screen Mesh | 10-100mm | 10-100mm | 10-100mm | 10-100mm | 10-100mm |
Main Shaft length | 600mm | 800mm | 800mm | 1000mm | 1200mm |
Tactical diameter | 350mm | 450mm | 600mm | 600mm | 600mm |
Weight | 1760KG | 3150KG | 3150KG | 3850KG | 4580KG |
Welcome To KAIFENG
FAQ
Q: How many years have your factory been established?
A:Our factory established from 2010, but most of our engineers are working in this industry over 15 year.
Q:How to control the products quality?
A:We have always placed great emphasis on quality level is matintained. Moreover, the principle we always maintain is "to provide customers better quality, better price and better service".
Q: What is your standard delivery time?
A: For standard units with 380V/50Hz/3Phase, it's about 3~7 working days. Other voltages may take up to 15~20 working days. For customize unit may take up to 20~30 working days.
Q: What is the standard port of loading?
A: Standard sea freight delivery is ShangHai China.
Q: What is the standard warranty period?
A: One year on all the mechanical parts and three months of all consumable parts from the date of B/L.
