High Quality Cream Toothpaste Tube Filling Sealing Machine Factory Price Plastic Aluminum Tube Filling And Sealing Machine
- Category: >>>
- Supplier: Zhejiang Aligned Technology Co. Ltd.
Share on (1600618306193):
Product Overview
Description
PRODUCT DISPLAY

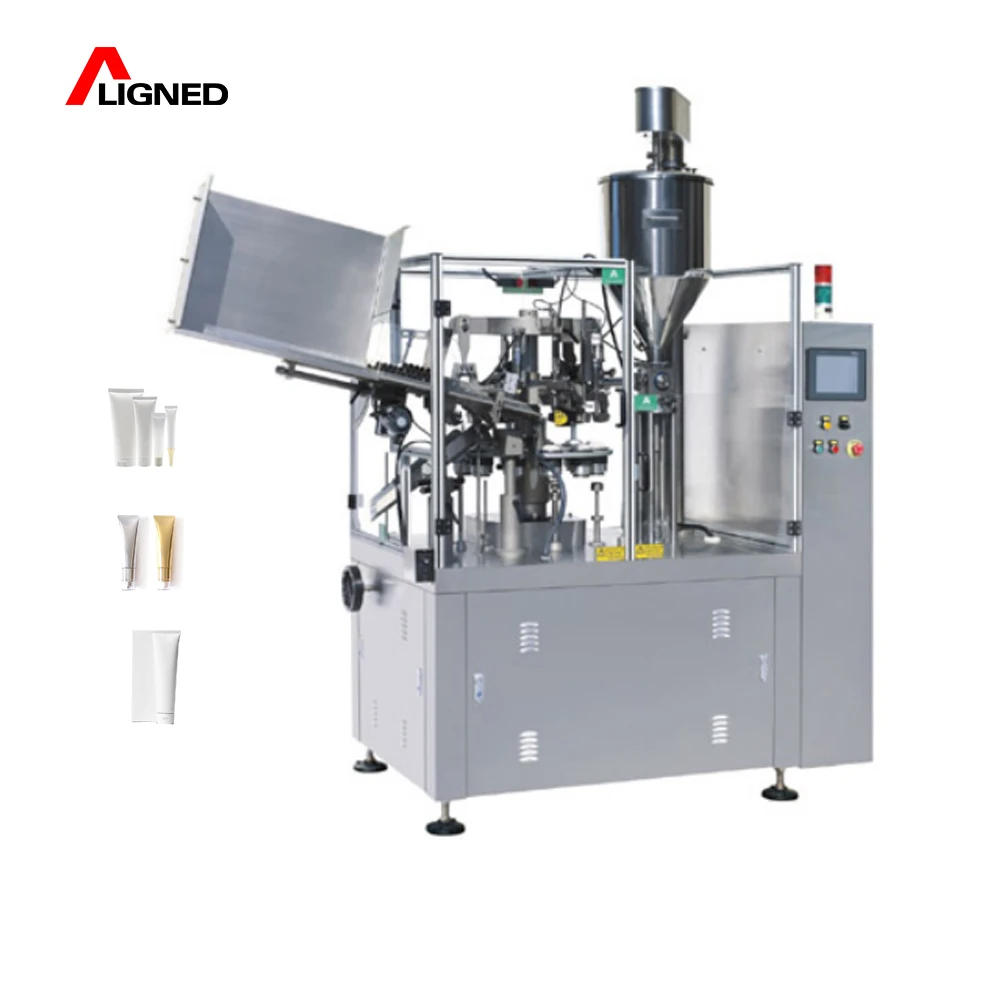

Model RGF-60A Tube Filling and Sealing Machine
The Machine can be used in the industries of pharmaceutics, foodstuffs, cosmetics , daily chemicals for smoothly and accurately filling all kinds of pasty and viscous fluid and the materials alike, into soft metal tubes and then carrying out tube end folding, sealing and lot number embossing.
Item | Parameter |
Model | RGF-60 |
Production Capacity | 30-50tubes/min (according to your material) |
Filling Range | 3-150ml |
Suitable Tube Length | 50-150mm |
Suitable Tube Diameter | 13-30mm |
Working Pressure | 0.5-0.6MPa |
Compressed Air Consumption | 1.1m³/min |
Power Supply | 50Hz/380V |
Main Motor | 1.1KW |
Hot Air Generator | 3KW |

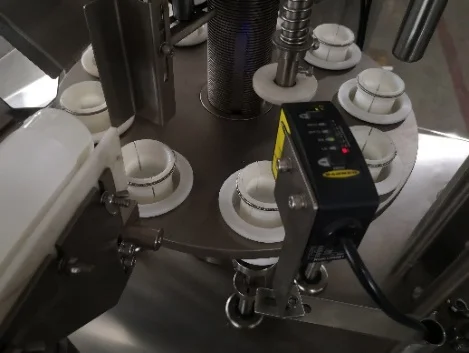

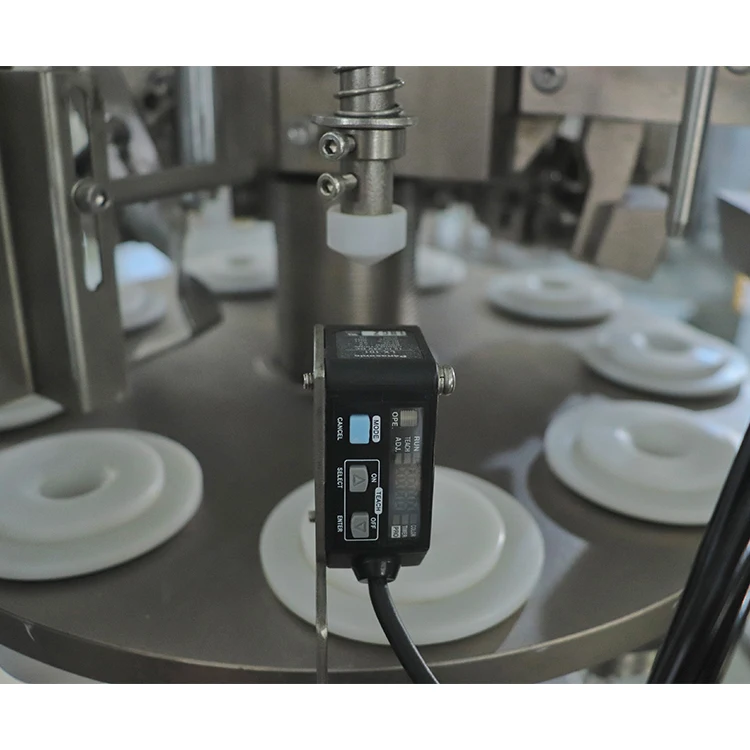

Photoelectric Benchmarking System
Using a precise detector and a traveling motor, adjust the direction of the hose and display it digitally. It is suitable for the production of multiple specifications and varieties of hoses.

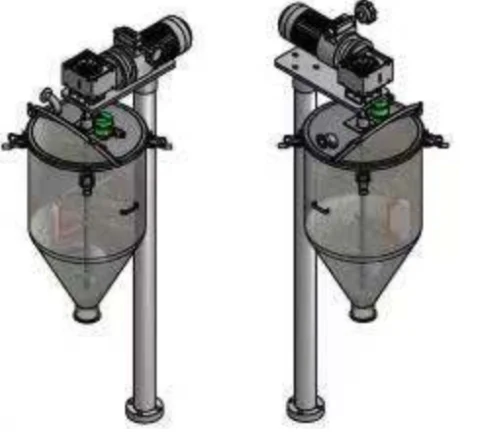

Double Barrel
The material is continuously stirred in the hopper to maintain the temperature.

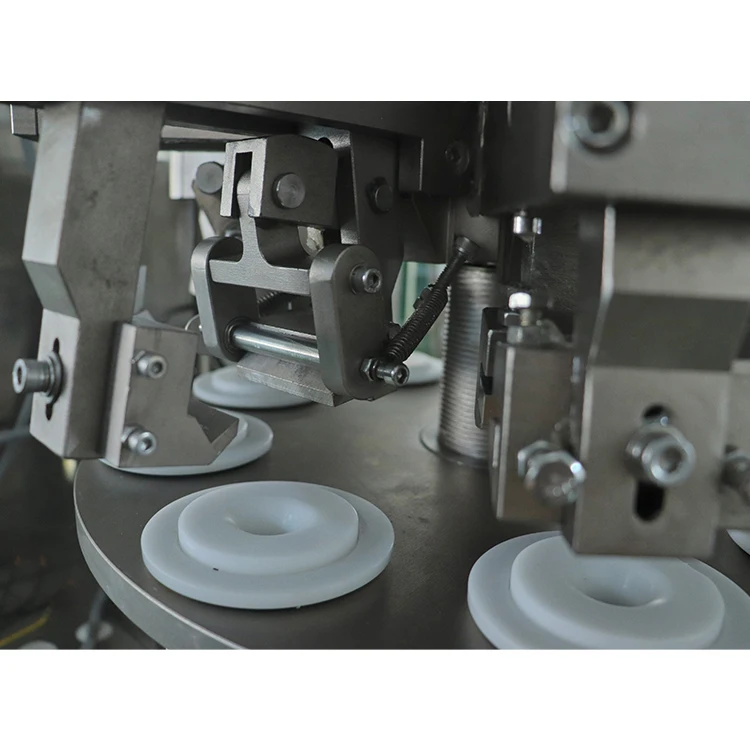

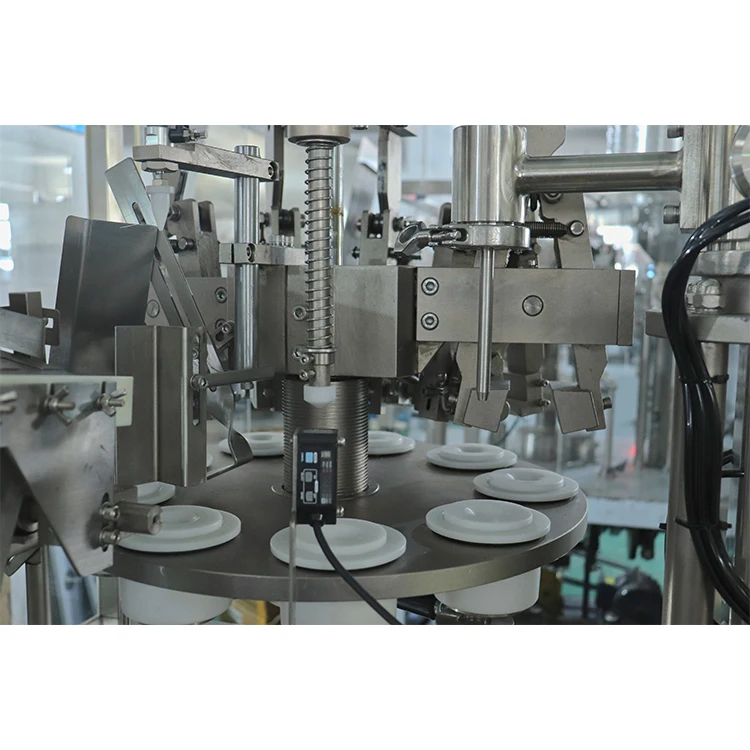

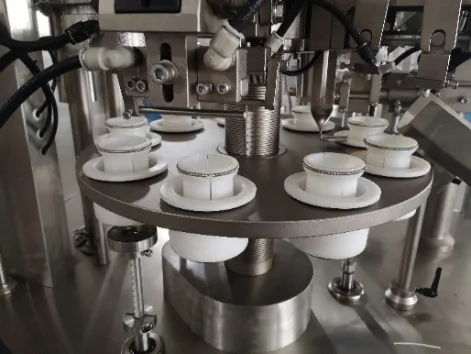

Turntable
It can changing different manipulators for the sealing process of plastic composite tube and aluminum tube.
WORKING PRINCIPLE
The working principle of the automatic hose filling and sealing machine is controlled by PLC program, automatic tube loading, color mark positioning, air cleaning of the inner space of the tube, filling of the injection nozzle deep into the tube, heating of the inner wall of the tube tail, and cooling of the outer wall of the tube tail (refrigeration). Water machine drainage cycle), hot-melt pressing and typing, tail shearing, and finished product discharge.
PERFORMANCE & FEATURES
1.The whole machine is equipped with a safety protection system to ensure the safety of the operator.
2.Optional servo-controlled loading system for automatic loading adjustment by touch screen.
3.Customisable with a wide range of tail sealing options.
4.Customisable insulated mixing hopper system for cold condensation-prone materials.
5.Optional air wash and vacuum function for empty pipes.
6.Optional customized automatic loading system with connection to raw material tanks.

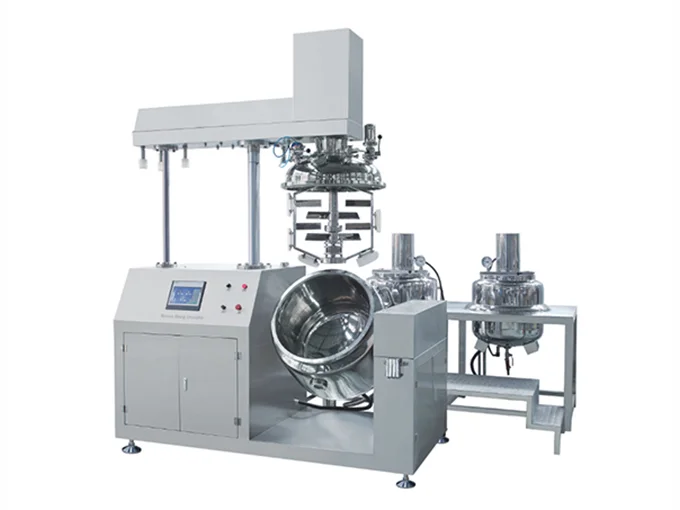

ALRJ Series Vacuum Mixing Emulsifier
