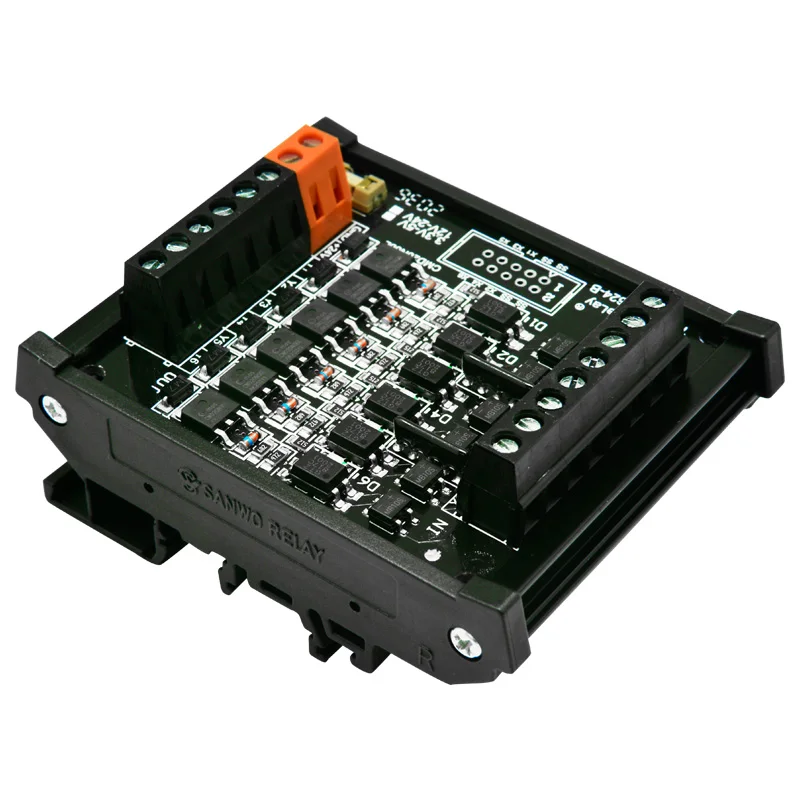

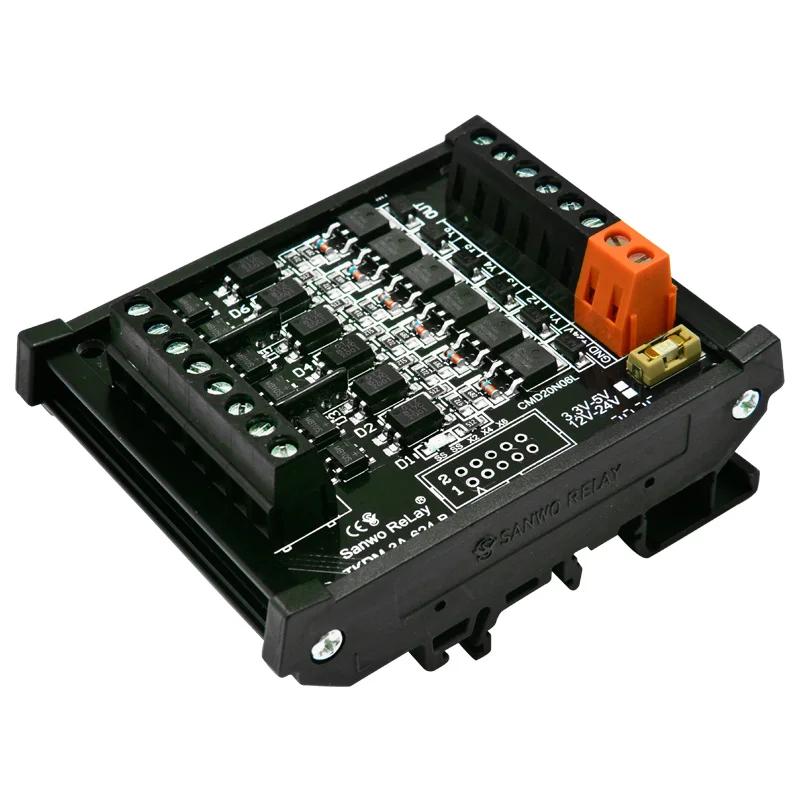

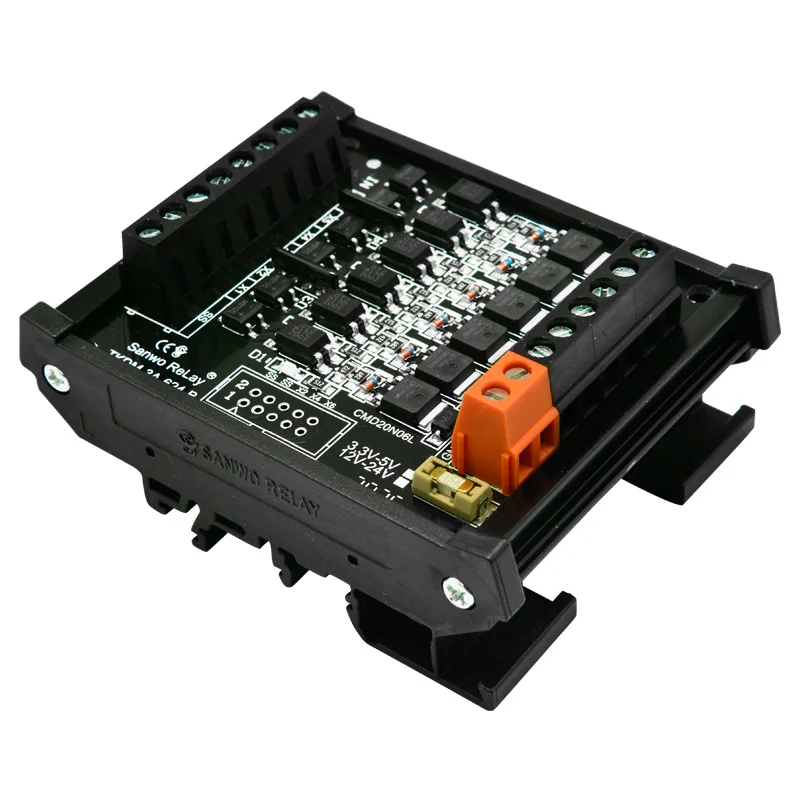

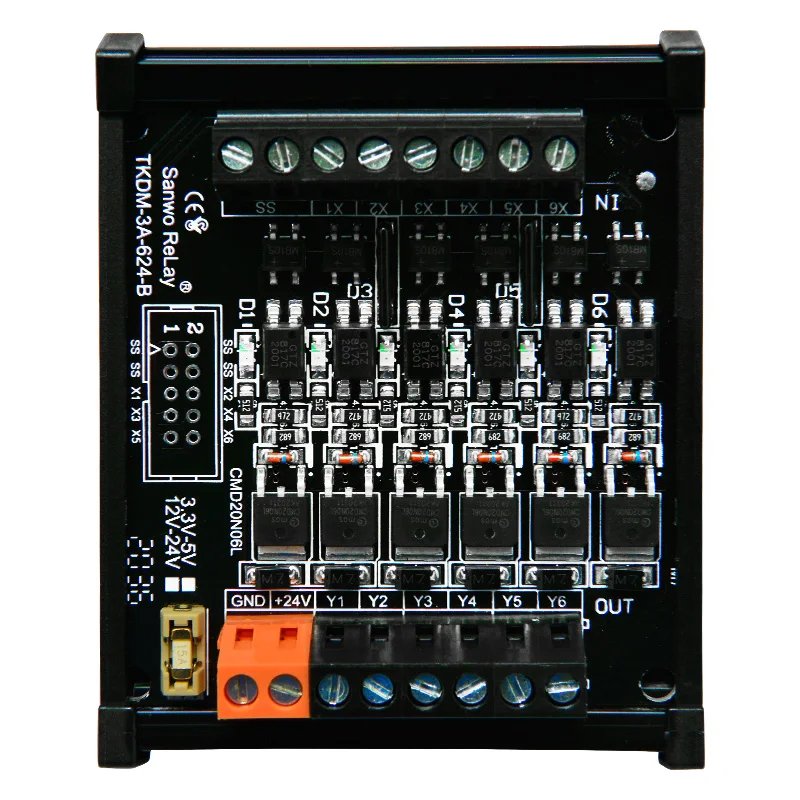

6 channels 3A Optocoupler Isolation Amplifier Relay Module with Safety Tube Solenoid Valve Single Chip Microcomputer Control Bo
6 channels 3A Optocoupler Isolation Amplifier Relay Module with Safety Tube Solenoid Valve Single Chip Microcomputer Control Bo
6 channels 3A Optocoupler Isolation Amplifier Relay Module with Safety Tube Solenoid Valve Single Chip Microcomputer Control Bo
6 channels 3A Optocoupler Isolation Amplifier Relay Module with Safety Tube Solenoid Valve Single Chip Microcomputer Control Bo
6 channels 3A Optocoupler Isolation Amplifier Relay Module with Safety Tube Solenoid Valve Single Chip Microcomputer Control Bo
6 channels 3A Optocoupler Isolation Amplifier Relay Module with Safety Tube Solenoid Valve Single Chip Microcomputer Control Bo

6 channels 3A Optocoupler Isolation Amplifier Relay Module with Safety Tube Solenoid Valve Single Chip Microcomputer Control Bo

Share on (1600618339263):


Price:US$ 3.00 - US$ 3.60

Quantity:


Product Overview

Description

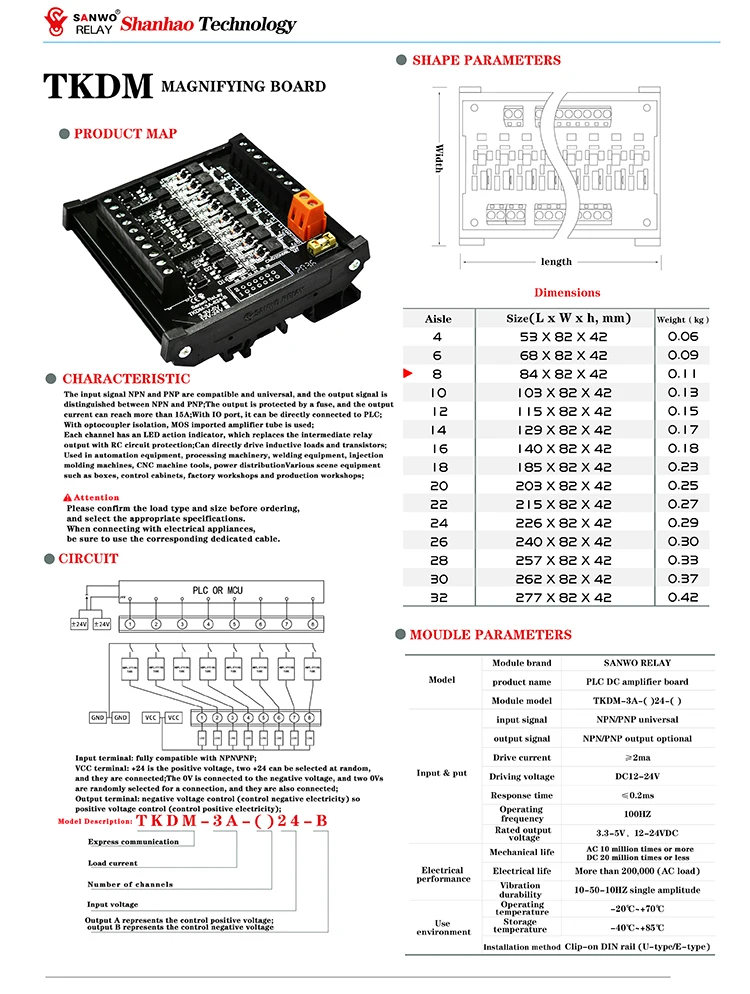

Product namePLC DC 3A amplifier board
Product modelTKDM-3A-()24()
Input signalNPN / PNP universal
output signalNPN / PNP output optional
Driving current≥2ma
driving voltageDC12V~24V
Corresponding time≤0.2ms
switching frequency100HZ
Output rated current3.3V~5V,12~24VDC
working temperature-20°C~+70°C
Storage temperature-40°C~+85°C
Installation modeC45 guide rail installation

TKDM3A--.jpg485()_01_01_023A_01.jpg3A_02.jpg3A_03.jpg3A_04.jpg3A_05.jpg3A_06.jpg3A_07.jpg3A_08.jpgmLyq6AxoXXaM-- (1)mLyq6AxoXXaM-- (2)jpg_.webpca.jpg_.webp
