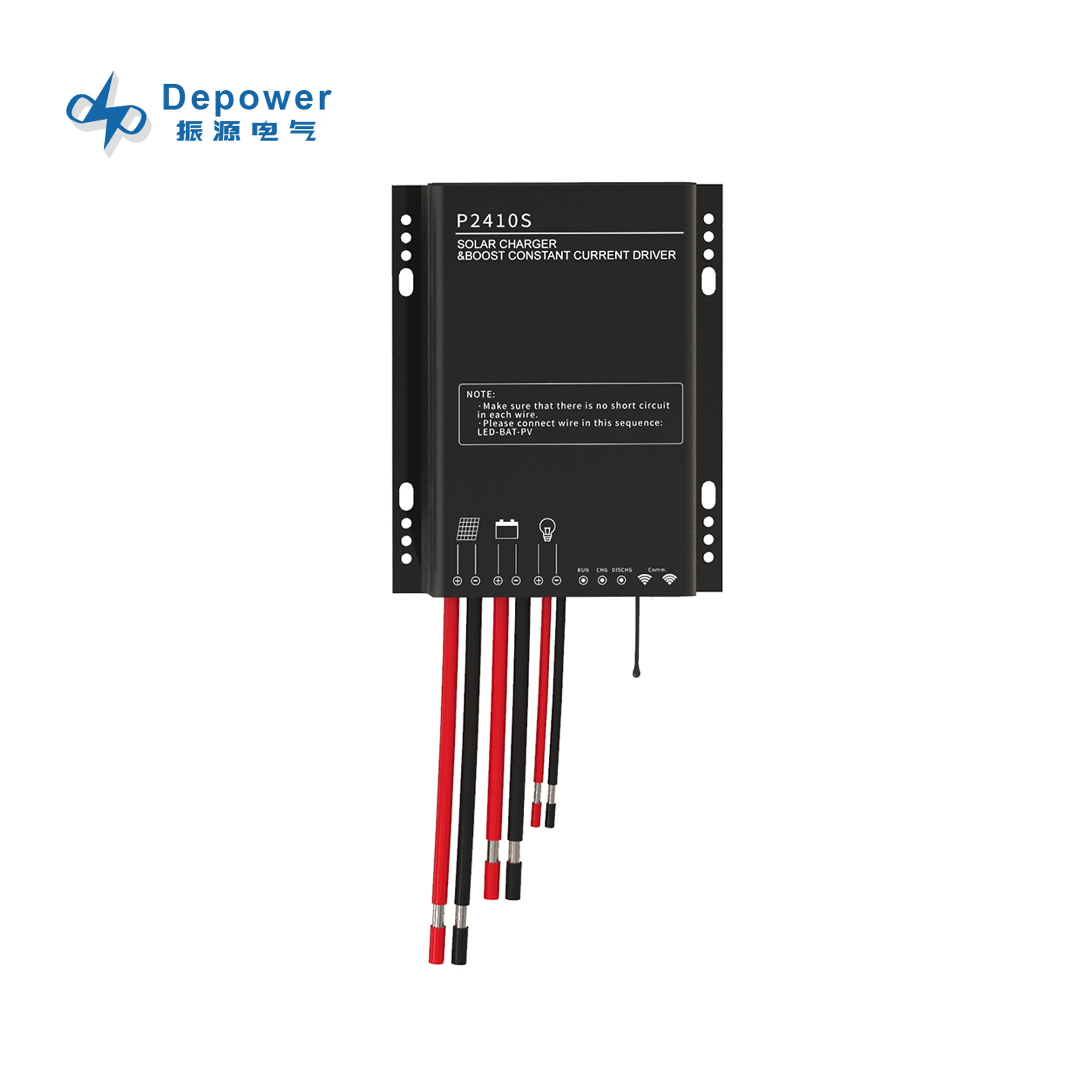

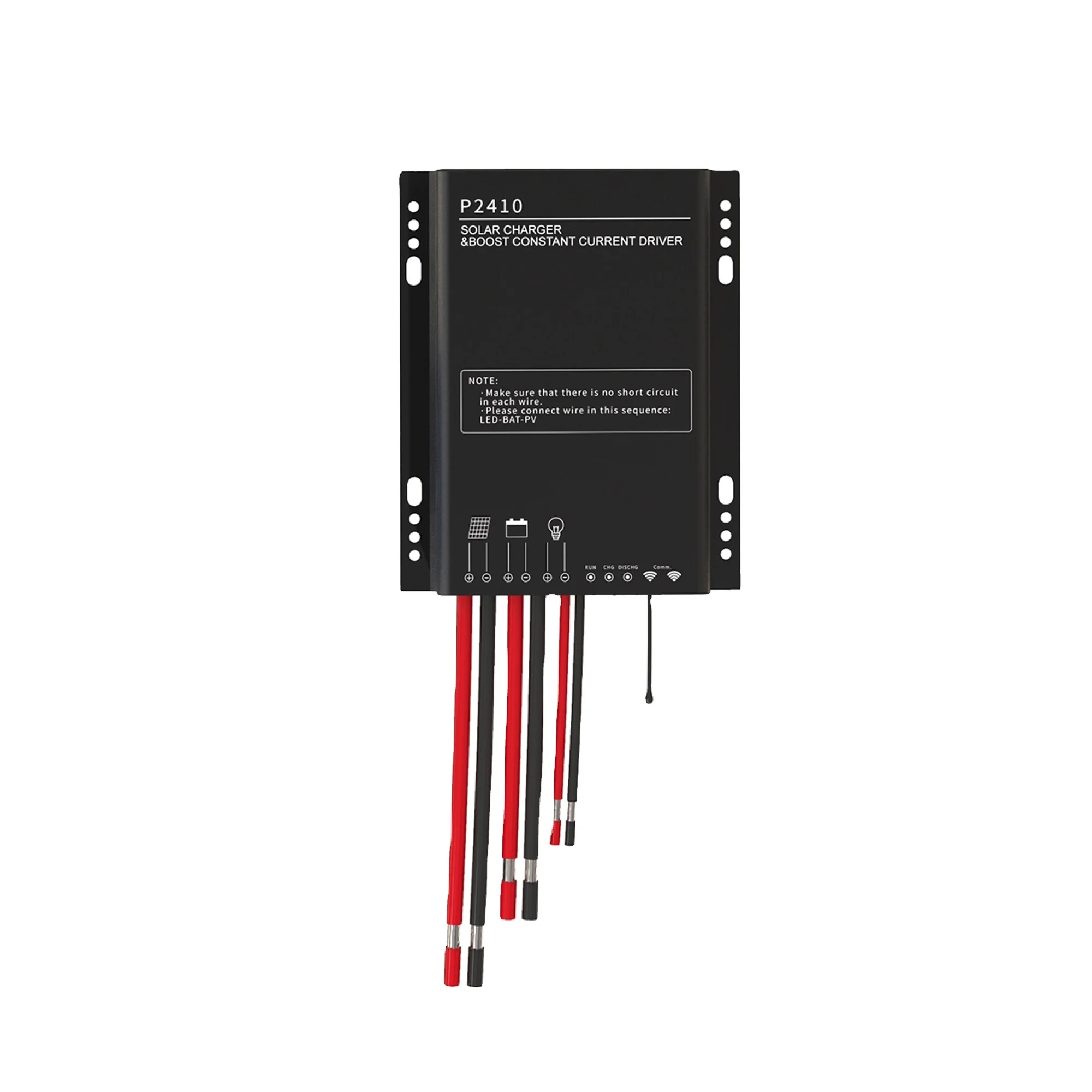

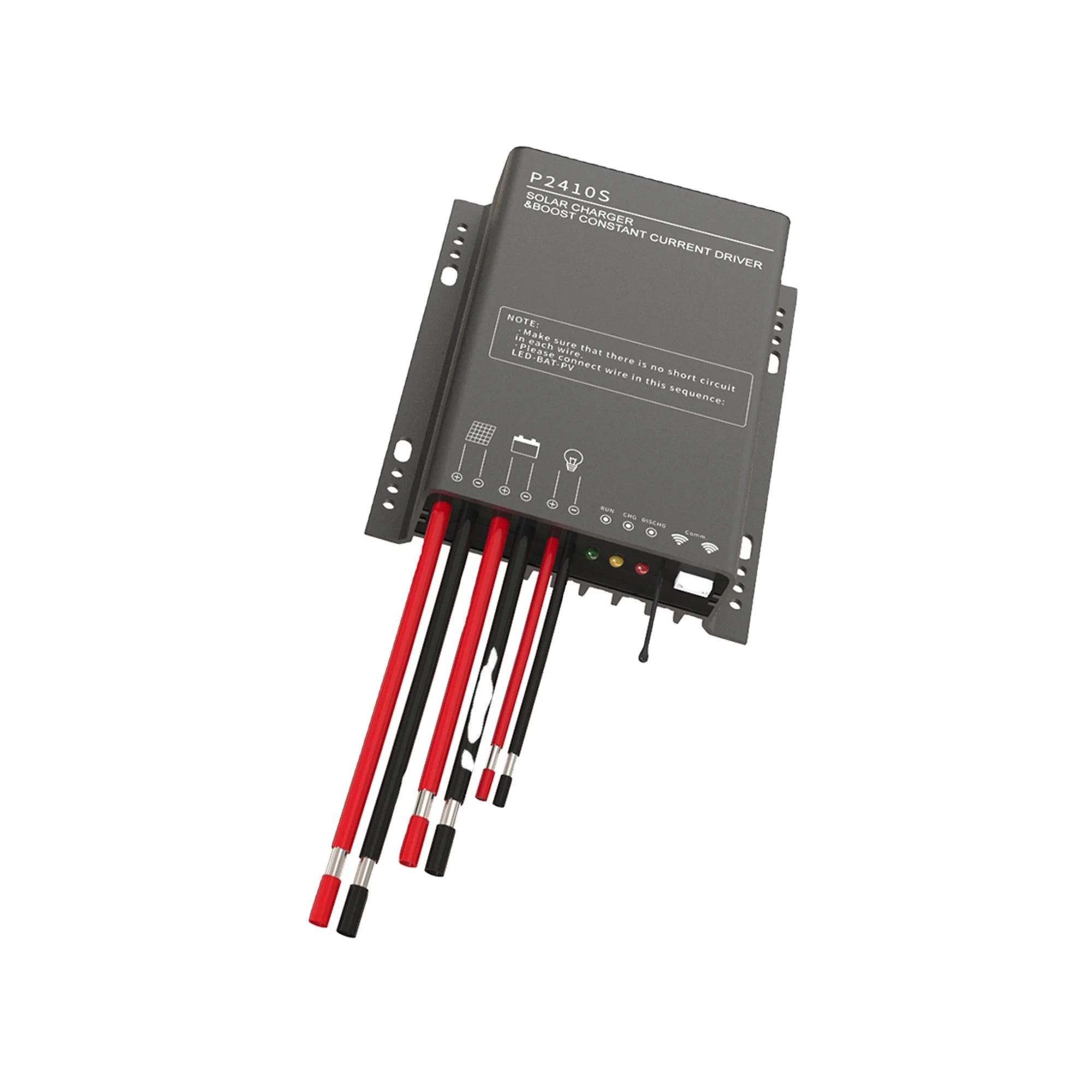

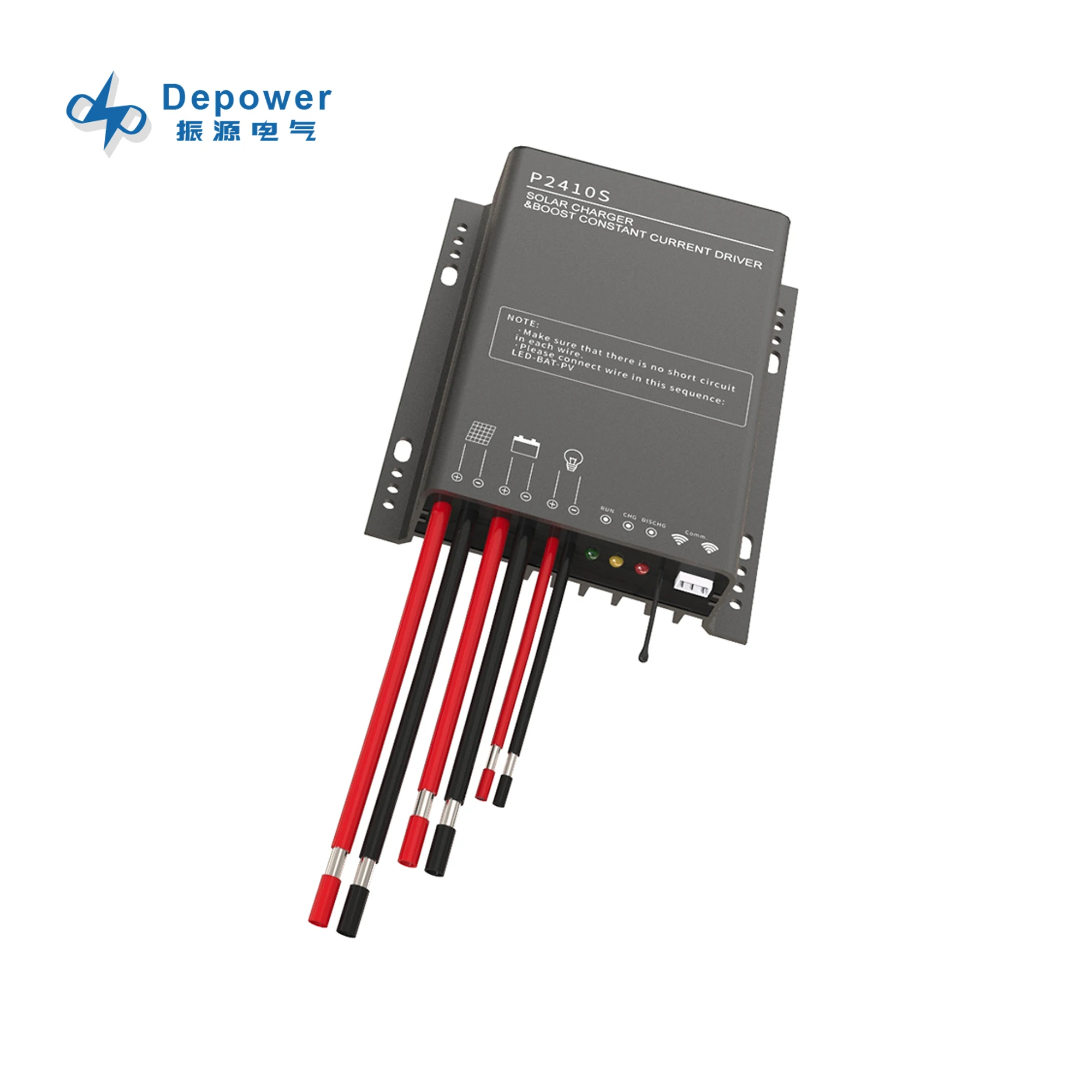

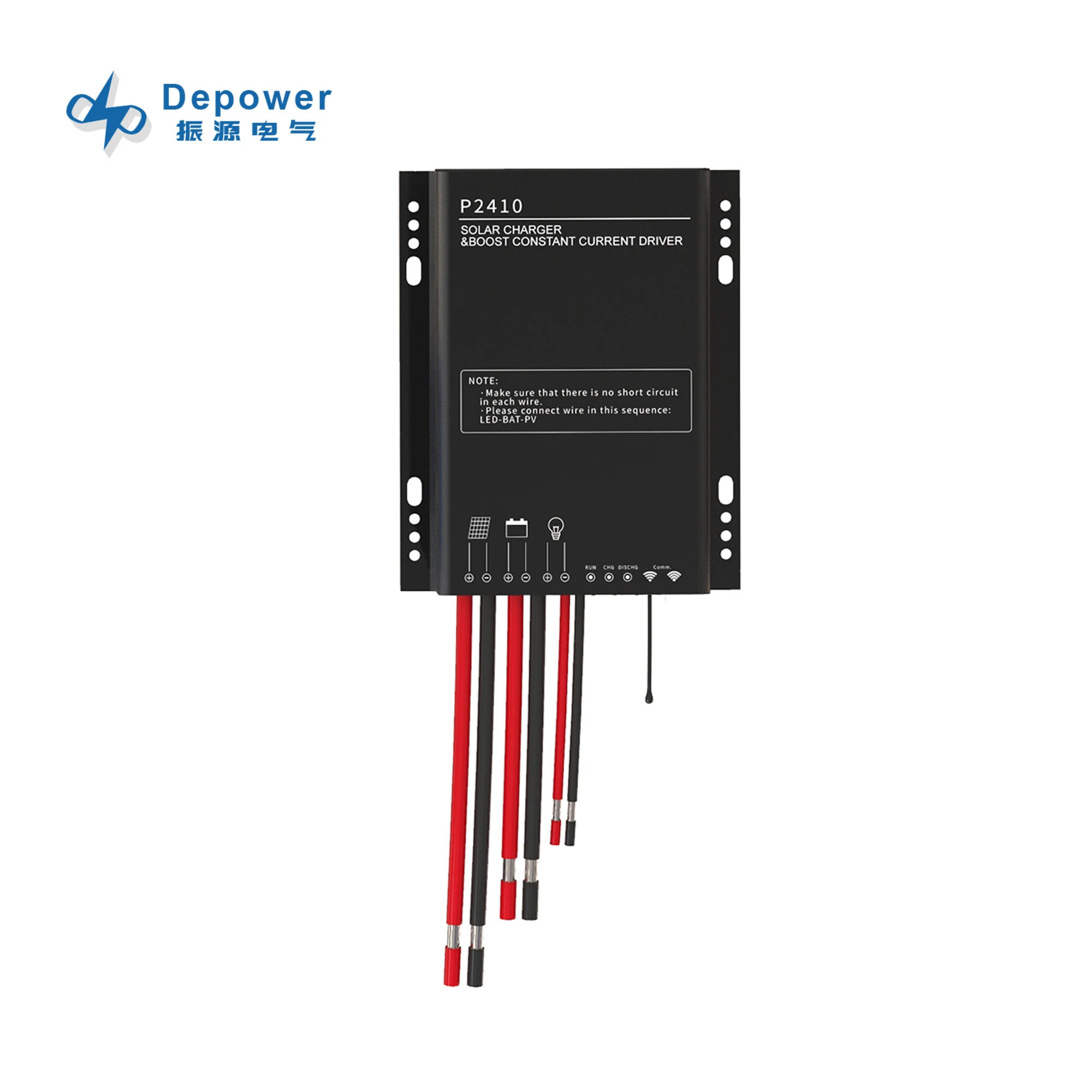

Depower P2410 10Amp Intelligent PWM Solar Street Light Charge Controller P2410 Solar Charge Controller 10A P2410
Depower P2410 10Amp Intelligent PWM Solar Street Light Charge Controller P2410 Solar Charge Controller 10A P2410
Depower P2410 10Amp Intelligent PWM Solar Street Light Charge Controller P2410 Solar Charge Controller 10A P2410
Depower P2410 10Amp Intelligent PWM Solar Street Light Charge Controller P2410 Solar Charge Controller 10A P2410
Depower P2410 10Amp Intelligent PWM Solar Street Light Charge Controller P2410 Solar Charge Controller 10A P2410
Depower P2410 10Amp Intelligent PWM Solar Street Light Charge Controller P2410 Solar Charge Controller 10A P2410
Depower P2410 10Amp Intelligent PWM Solar Street Light Charge Controller P2410 Solar Charge Controller 10A P2410

Depower P2410 10Amp Intelligent PWM Solar Street Light Charge Controller P2410 Solar Charge Controller 10A P2410

Share on (1600618351909):


Price:$18.00 - $25.00

Quantity:


Product Overview

Description





Technical Specification


Content
Model
P1230
P1240
P2410
P2410S
Battery type
Lead acid battery/Lithium battery
Rated system voltage
12V
12/24V Lead acid(auto identified); lithium(need to be set)
Max. charge current
6A
8A
10A
15A
Charge voltage range
0～15V
0～30V
Boost charge voltage(Settable)
14.4V
14.4(12V), 28.8(24V)
Float charge voltage (Settable)
13.8V
13.8(12V), 27.6(24V)
Low voltage disconnect(Settable)
11V
11(12V), 22(24V)
Low voltage reconnect(Settable)
12V
12(12V), 24(24V)
Temperature compensation coefficient
-4mV/℃/2V
Max. PV input voltage
25V
55V
Solar panel Max. Power
100W
130W
160W(12V), 320W(24V)
240W(12V), 480W(24V)
Turn on lamp PV voltage
5V
5V(12V),10V(24V)
Output current range
50～1000mA
50～2000mA
50～3000mA
Output voltage range
16～50V
16～50(12V), 32V～50(24V)
Max. output power
30W
40W
60W(12V), 100W(24V)
Output current accuracy
≤3%FS
Output mode
1.Five time periods control ; 2.Five time periods sensing
Output dimming range
0～100%
Max. output efficiency
92.70%
94.40%
96%
Self consumption current
≤0.24W
≤0.24W(12V)；≤0.52W(24V)
Communication
2.4G
Operating temperature range
-35～60℃
Relative humidity range
0～100%RH
Max. operating altitude
3000m
Degree of protection
IP67(1.5m,72h)
Certification
CQC,CE,RoHS
Weight
0.13±0.01KG
0.26±0.01KG
Dimensions
59*82*17/59*82*23.5mm
101*82*23.5mm
Package
72Pcs/Box
54Pcs/Box


Product Feature
1. Using international well-know brand semiconductor device such as IR.TI.ST.ON.NXP
2. Constant current drive LED efficiency up to 96%
3. PWM and CV charging modes, perfectly matched with lithium battery protection board
4. Dimming function, each time period can control different output power
5. Battery low voltage protection


P12 Series




Company Profile


Shenzhen Depowersupply Electric CO.,Ltd
Shenzhen Depowersupply Electric Co., Ltd. is committed to the application of power electronics in the new energy industry. The main products include MPPT solar charge controller, solar street light controller, solar off-grid inverter and so on. We rely on our own intellectual property and technology platforms to provide our customers with the best off-grid systems and product solutions.
Depowersupply has a highly qualified R&D team with an average age of 35 years. We have core cutting-edge power electronics platforms such as vector control technology, three-electrical level technology, LLC technology and SRC technology, and have obtained a number of national patents. Depowersupply adheres to the needs of customers and adheres to the design concept of “efficient, lightweight, reliable and easy to use” to develop products with industry-leading


FAQ


1. who are we?
We are a battery charger and solar charge controller manufacturer with more than 10 years experiences. Our products sell to Domestic Market(35.00%),Africa(20.00%),Southeast Asia(15.00%),Eastern Europe(10.00%),Northern Europe(5.00%),Mid East(5.00%),South America(5.00%),North America(5.00%). There are total about 100-150 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
Two year warranty.

3.what can you buy from us?
solar charge controller, solar inventer, Solar off grid system, solar charger, Solar system, baterry charger

4. why should you buy from us not from other suppliers?
Focused on the development, production and sales of new energy products in the new energy field. Obatained ISO9001:2015 Quality management certification system, CE and RoHS certification, and many national patent.

5. what services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, Express Delivery.
Accepted Payment Currency: USD, CNY.
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union.
