Wholesale Suppliers UHD Video Indoor Led Screen Front Service Led Display Screen 26pin

Product Overview

Description









Pixel pitch	1.25mm
Module size	300mm*168.75mm
Resolution of module	240*135 dots
LED Size	SMD1010
Best viewing distance	≥1.5m
Horizontal viewing angle	140º
Viewing angle	140º
Driving method	1/45 scan
Brightness	≥600cd/m2
Refresh rate	≥1920Hz(Max 3840Hz)
IP grade	IP20~IP43
Cabinet size	600mm *337.5mm* 45mm
Cabinet resolution	480*270 dots
Gross weight	7kg
Curve degree	—15°~15°
Max power consumption	113W/pcs
Avg power consumption	70W/pcs
Input voltage	AC110/220 ±10%
Storage temperature	—30°C~65°C
Working temperature	—20°C~55°C
MTBF	≥10,000 hours
Life span	≥100,000hours

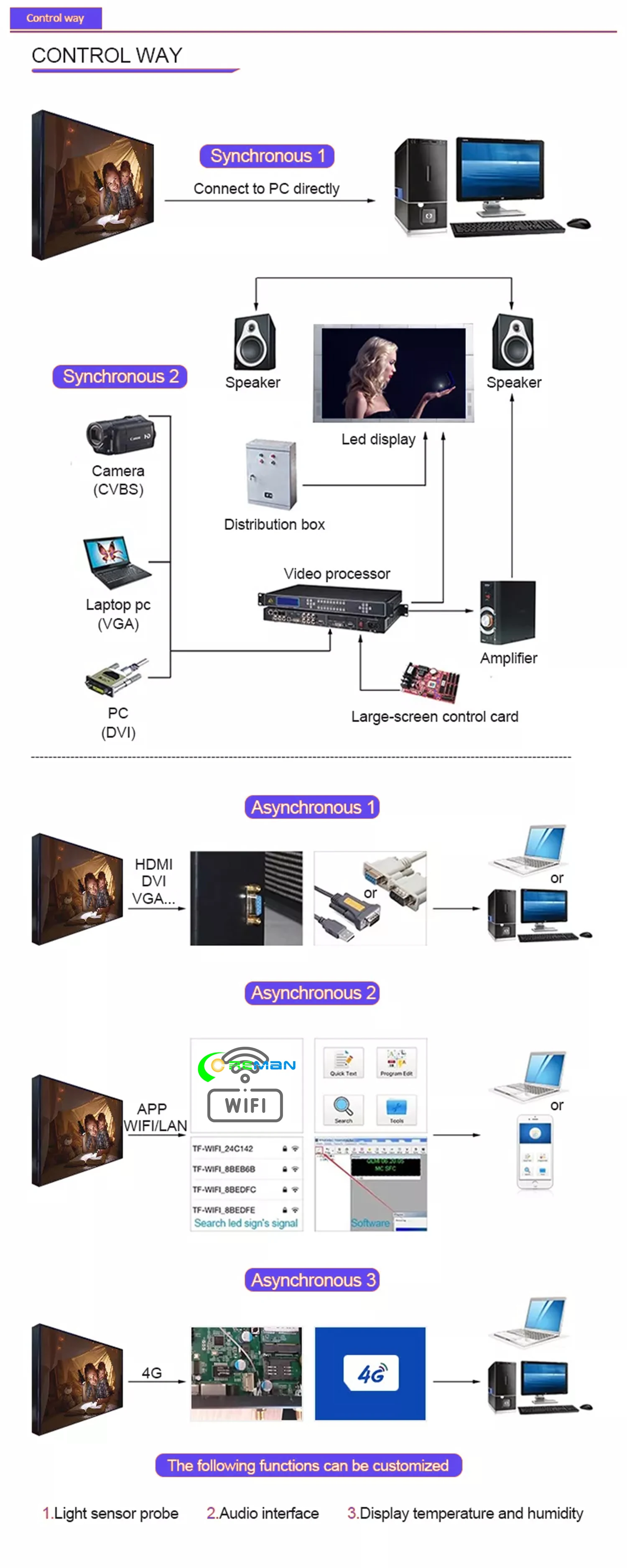

Control system	Nova/Linsn/Colorlight etc
Specification might be slight different based on the components

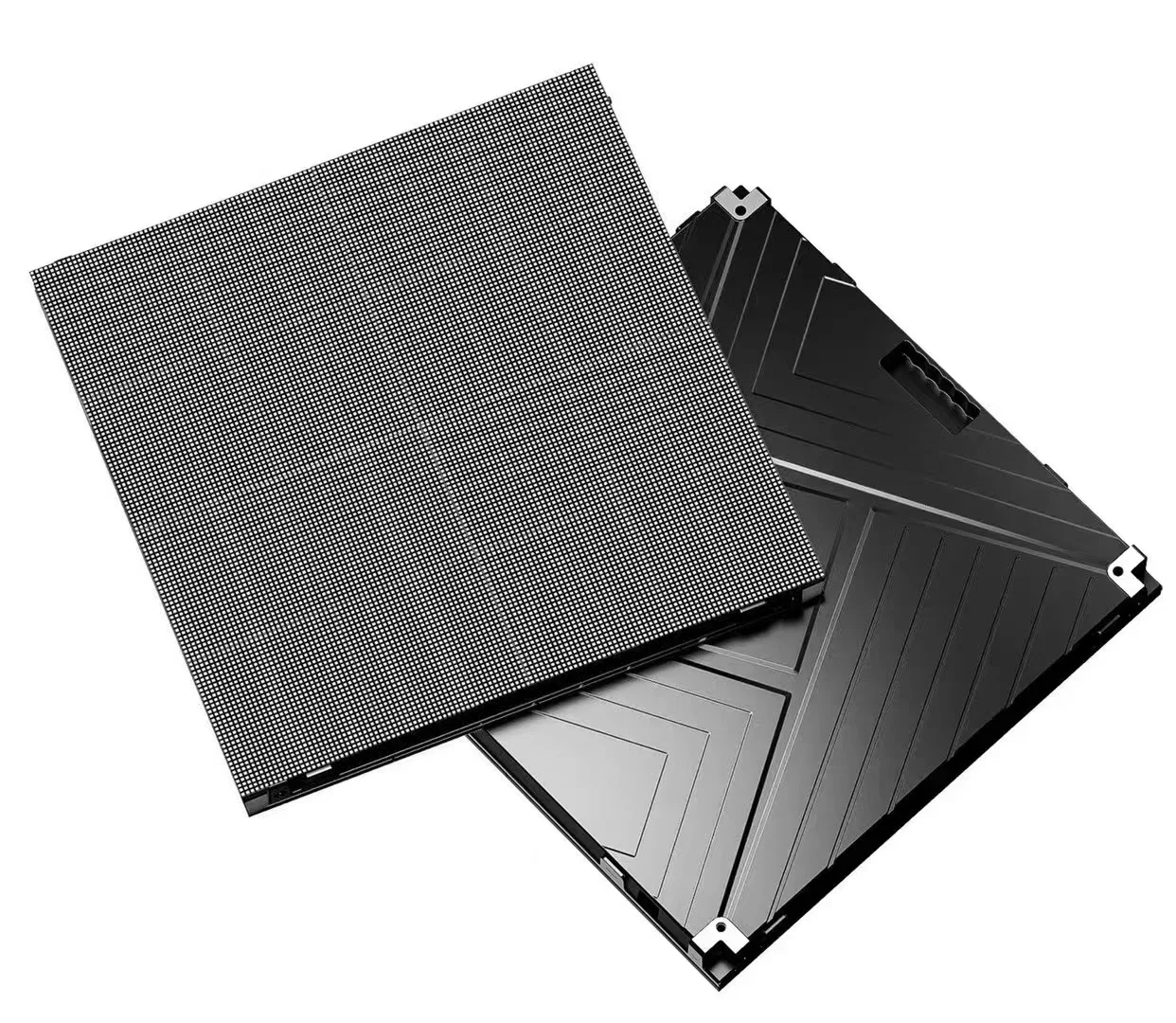

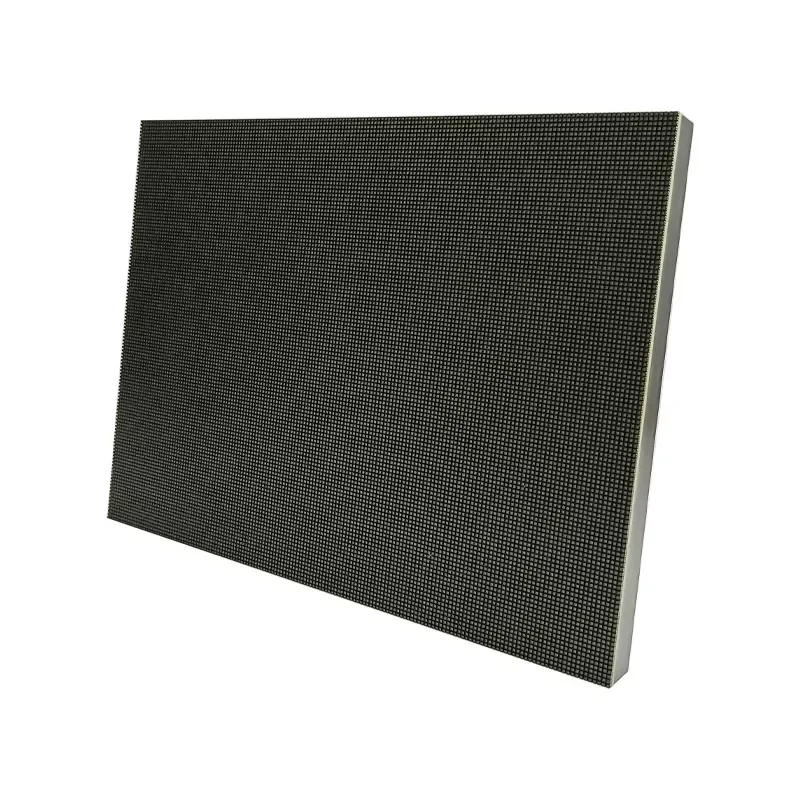

P1.25 indoor Module size : 300mm x 168.75mm

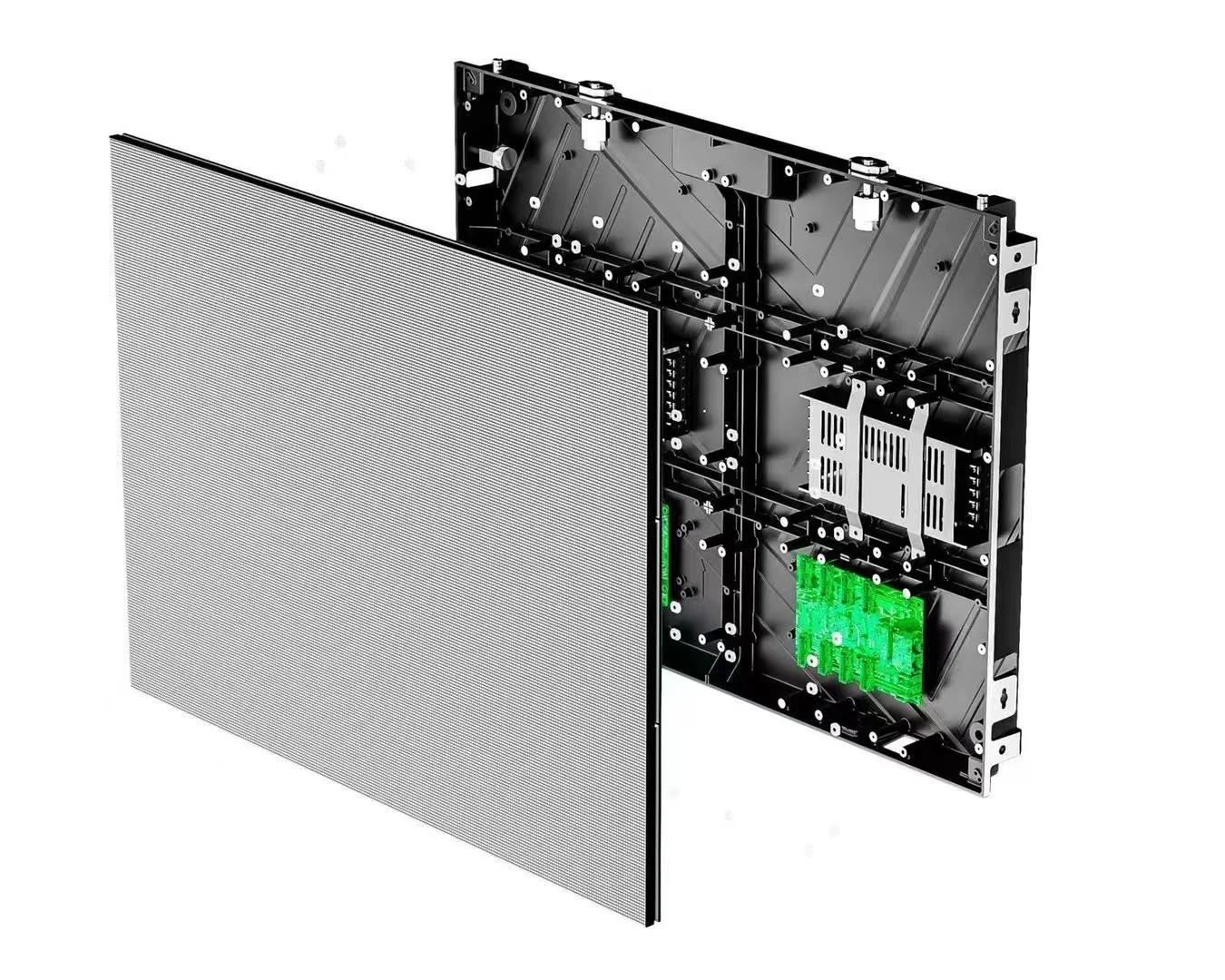

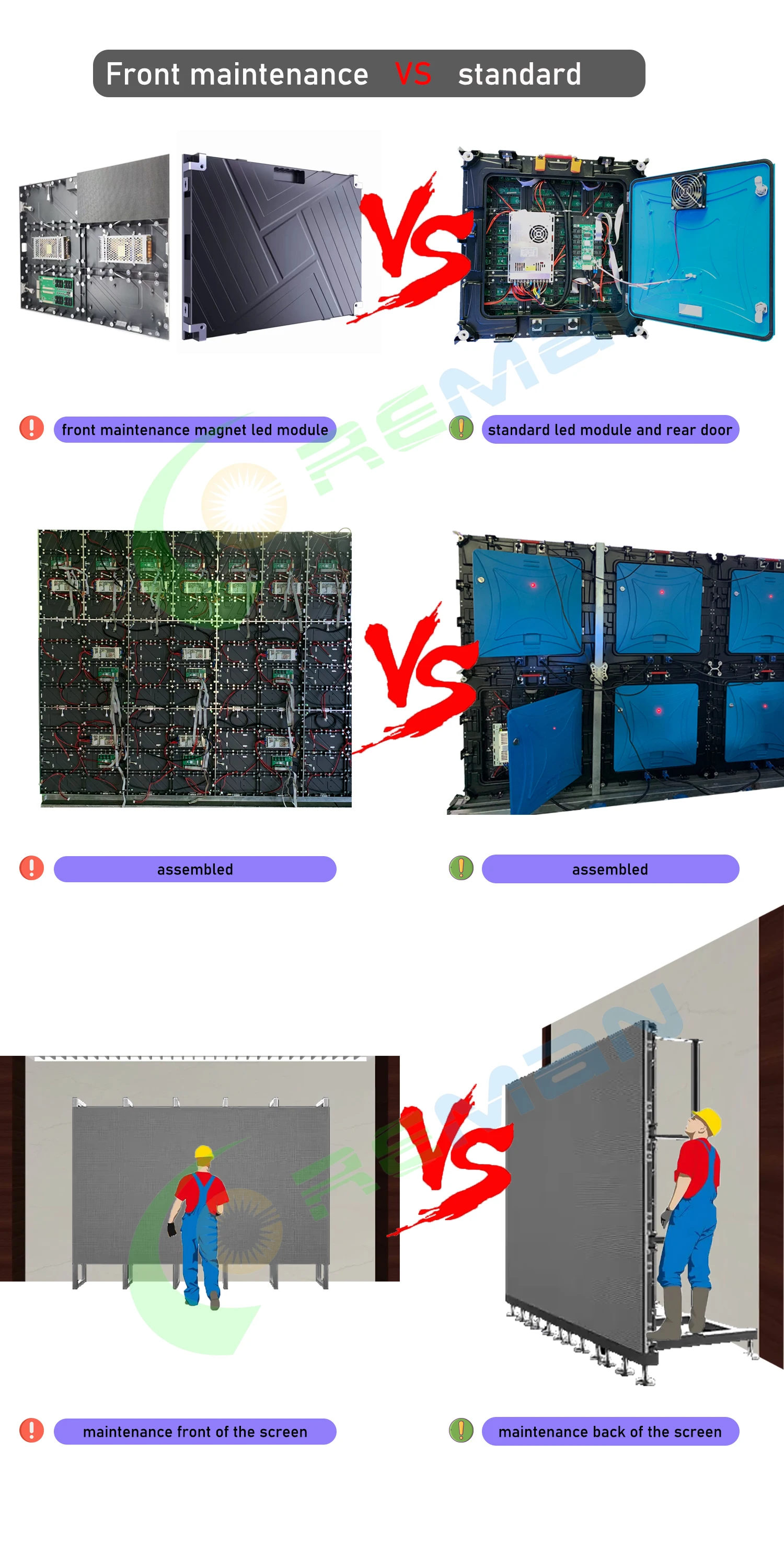

P1.25  Front maintenance cabinet size  : 600mm x 377.5mm

_{(Cabinet appearance might be different  based on update ,please contact us before placing order)}

















Features of cabinet





























1. We are available in 24 /7.
2. Provide free solution, free technical support and free training
3. Offer free sample or free shipping goods
4. Extend warranty free if excess certain amount
5. Refund if you are not satisfied with our product or service
6. Delivery with lowest cost& fastest shipping way
