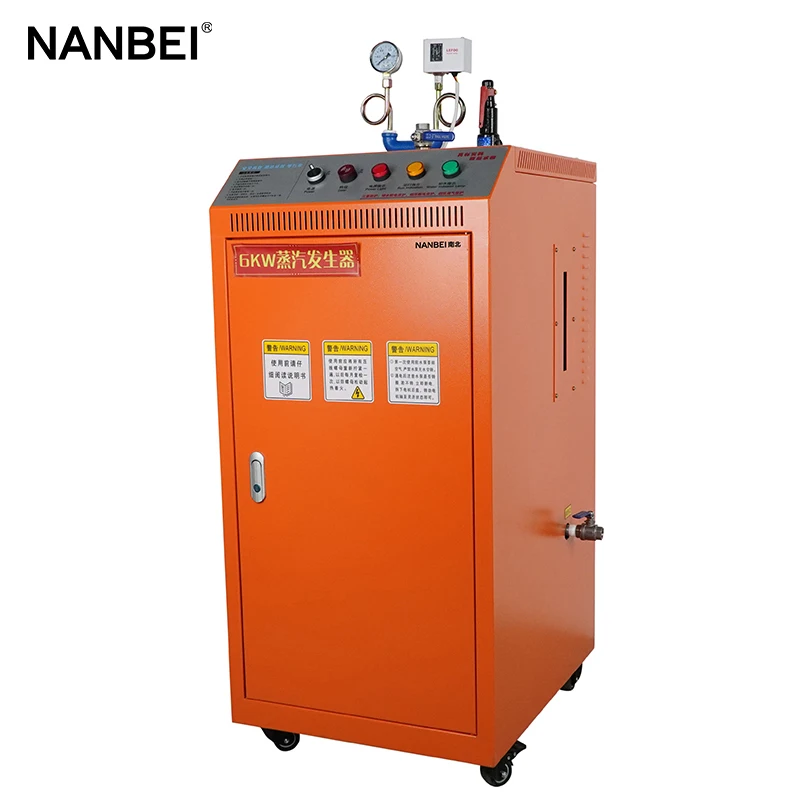

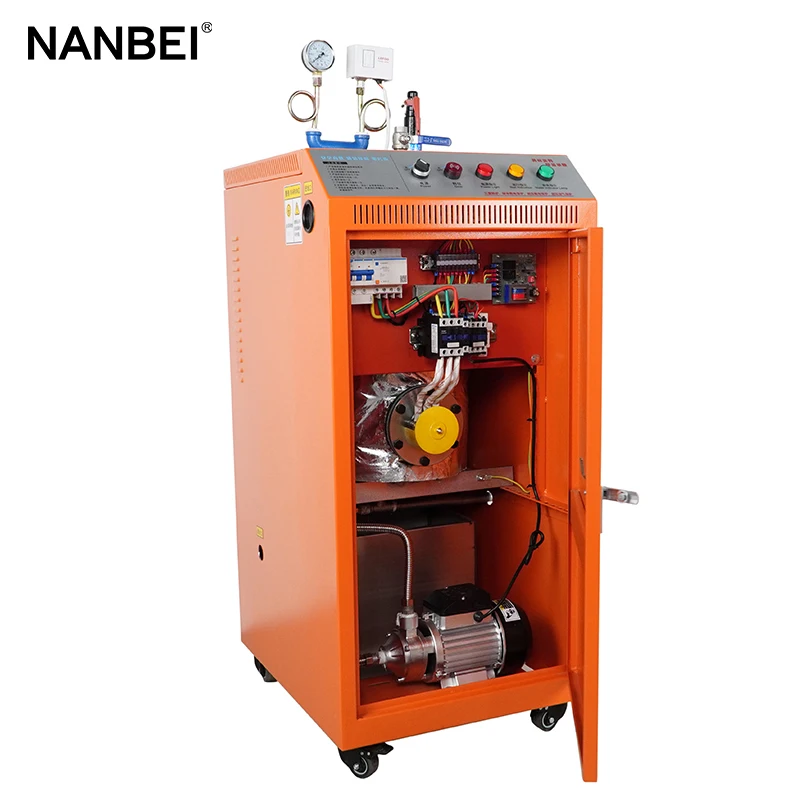

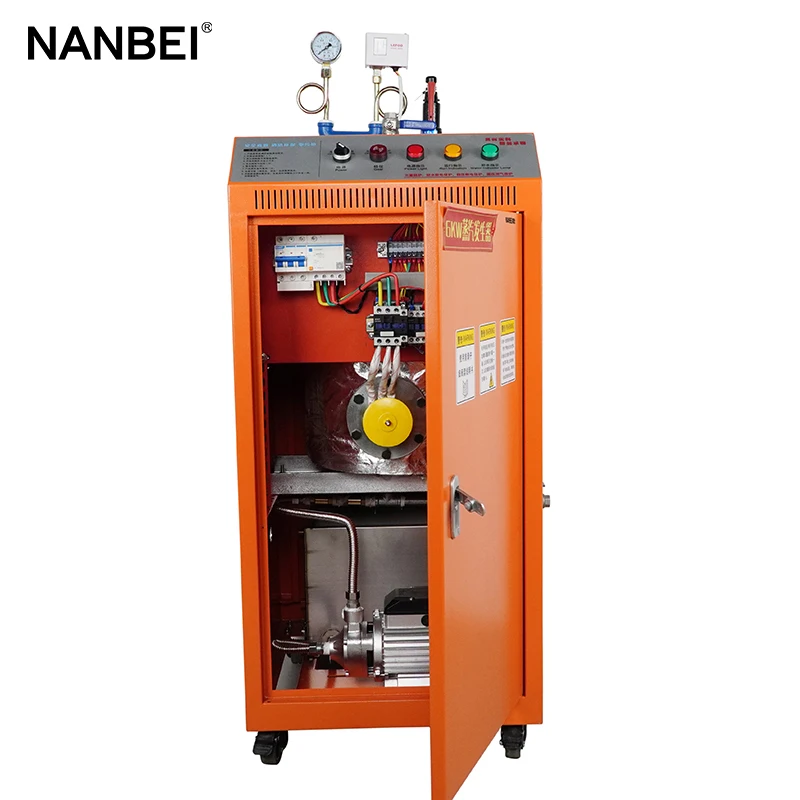

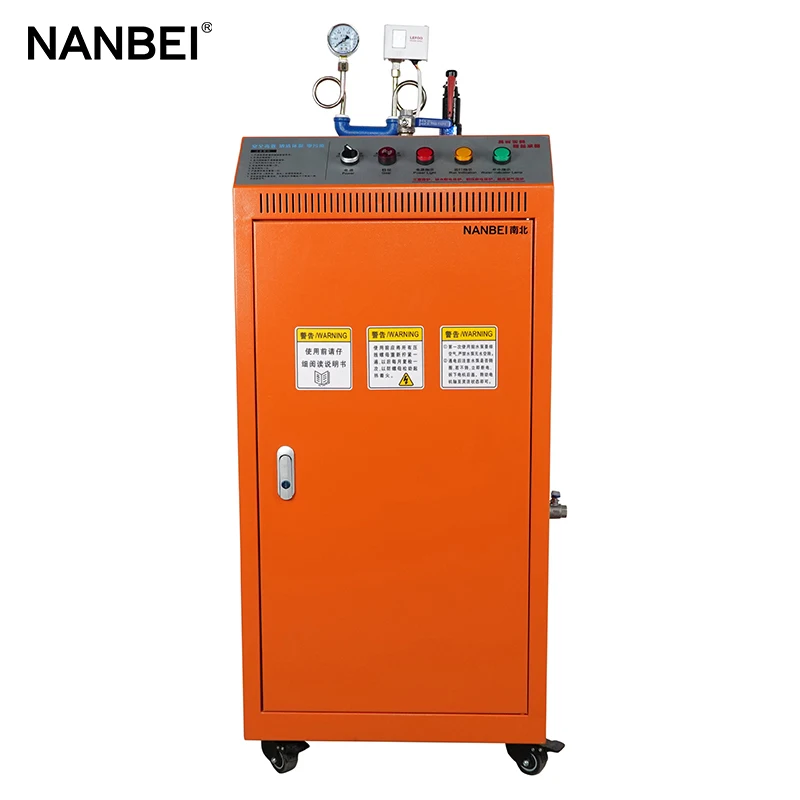

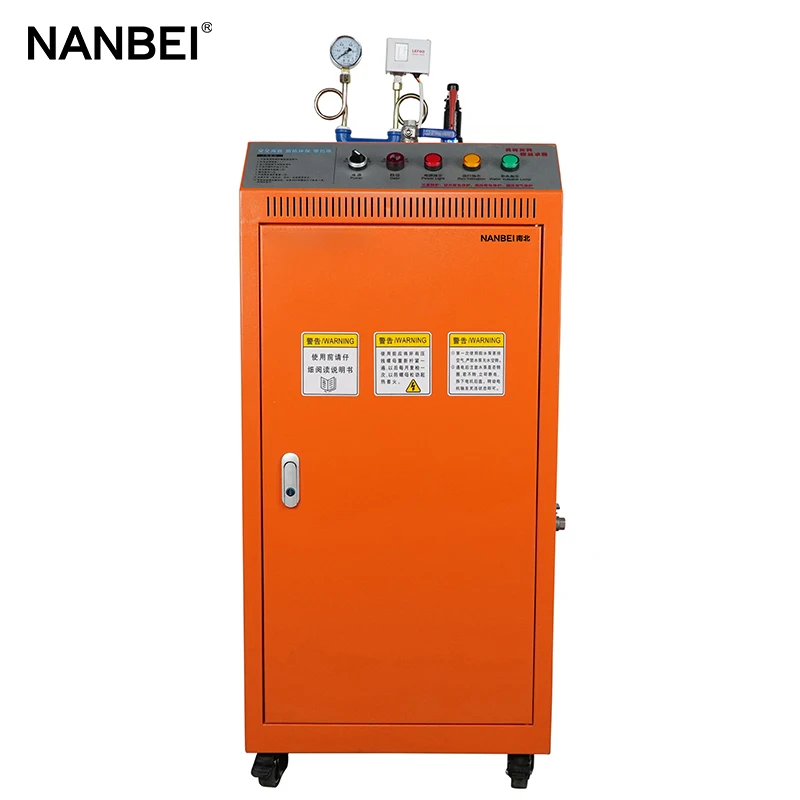

Small steam turbine generator electric water boiler for heating
This kind of electric steam can be widely applied in school biological laboratory, washing equipment (drycleaning machines, washing machines, ironing machine, iron, etc.), biological equipment (reactor, fermentation, sterilization tank), packaging machinery equipment (hotels, hostels, Schools, mixing station),
hot water supply, canteen steamed rice, food sterilization, legumes food processing, maintenance and other concrete surfaces.
hot water supply, canteen steamed rice, food sterilization, legumes food processing, maintenance and other concrete surfaces.
Feature
Small steam turbine generator electric water boiler for heating

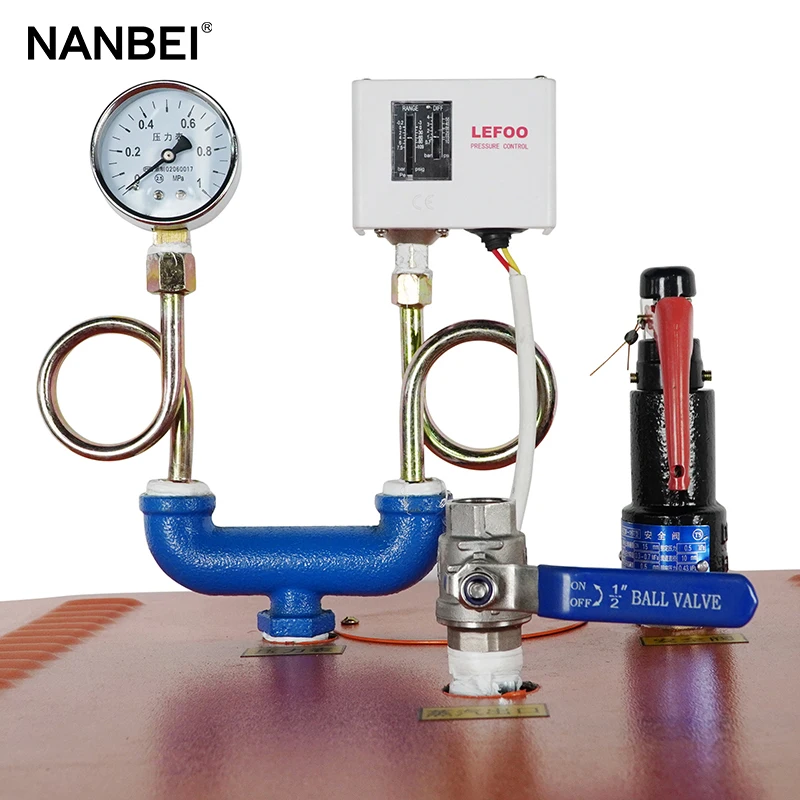

1. Products fitted with a safety valve by boiler inspection institute, even in the case where the control system is not flexible, when the pressure exceeds the set pressure, safety valve will open automatically to prevent the boiler explosion due to excessive pressure.
2. The product is equipped with low water protection, when water supply is stopped, the boiler will automatically stop working, to prevent the boiler dry electric heating element damage and even lead to burnout phenomenon.
3. The products contains leakage protection, even in the case of a short circuit caused by improper operation of the boiler, the boiler will drain automatically cut off the circuit, timely good control lines.
2. The product is equipped with low water protection, when water supply is stopped, the boiler will automatically stop working, to prevent the boiler dry electric heating element damage and even lead to burnout phenomenon.
3. The products contains leakage protection, even in the case of a short circuit caused by improper operation of the boiler, the boiler will drain automatically cut off the circuit, timely good control lines.
Specification
Model | Power | Evaporation capacity | Water volume | Temperature(℃) | Voltage | Pressure(Mpa) |
NB-6KW | 6KW | 10Kg | 16KG | 151/170 | 380V | 0.4/0.7 |
NB-9KW | 9KW | 16Kg | 16KG | 151/170 | 380V | 0.4/0.7 |
NB-12KW | 12KW | 22Kg | 20KG | 151/170 | 380V | 0.4/0.7 |
NB-18KW | 18KW | 33Kg | 20KG | 151/170 | 380V | 0.4/0.7 |
NB-24KW | 24KW | 40Kg | 24KG | 151/170 | 380V | 0.4/0.7 |
NB-36KW | 36KW | 48Kg | 24KG | 151/170 | 380V | 0.4/0.7 |
NB-48KW | 48KW | 66Kg | 29KG | 151/170 | 380V | 0.4/0.7 |
NB-72KW | 72KW | 102Kg | 29KG | 151/170 | 380V | 0.4/0.7 |
Operation
1. The operating system of boiler is automatic controlling, the water tank connected to the boiler comes, boiler power is connected, just press the key, the boiler will run automatically
2. The detailed installation methods, operating procedures, maintenance and other information please contact us to get the "automatic electric heating steam boiler operating instructions".
2. The detailed installation methods, operating procedures, maintenance and other information please contact us to get the "automatic electric heating steam boiler operating instructions".
