High Gain 10 dBi 2.4G WiFi Wall Mount Antenna
- Category: >>>
- Supplier: Suzhou Cowin Antenna Electronics Co. Ltd.
Share on (1600618366171):
Product Overview
Description
Omnidirectional transmission
360° no dead angle receiving and transmitting, the signal is stronger and more stable
High Gain
10 dBi High gain, long transmission distance, up to 100 meters, so that distance is not a problem

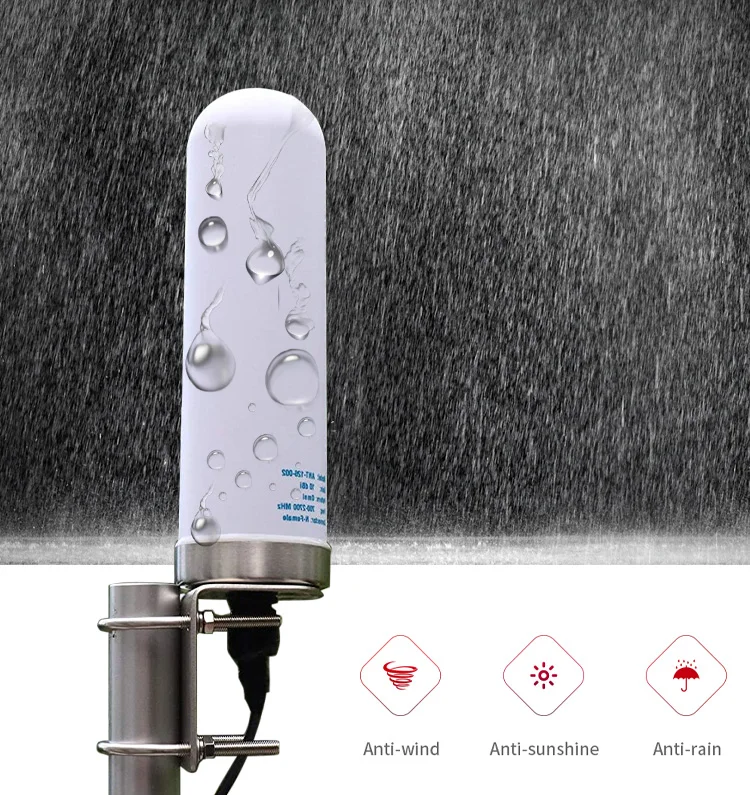

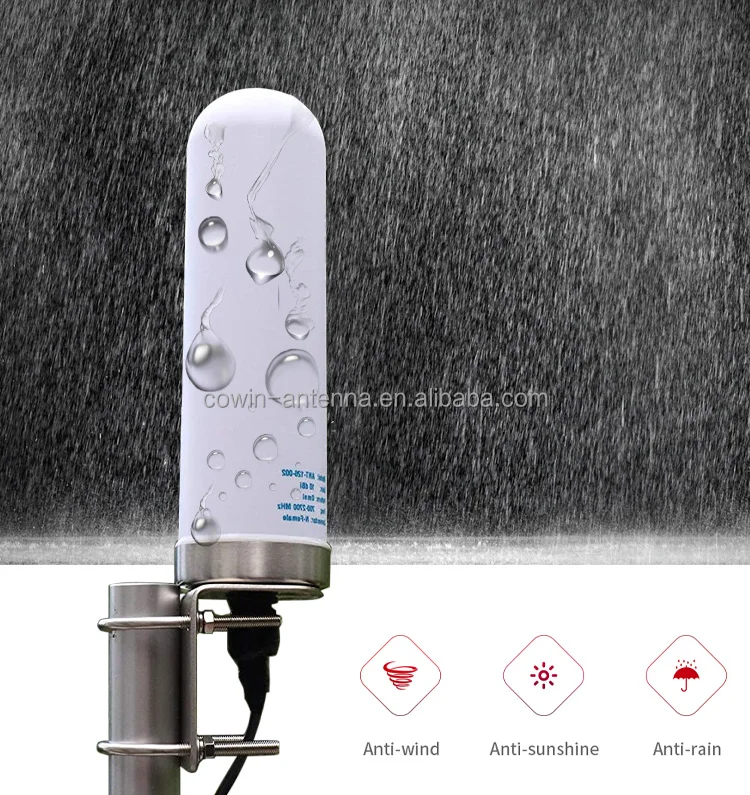

Super waterproof
Good sealing, outstanding waterproof effect

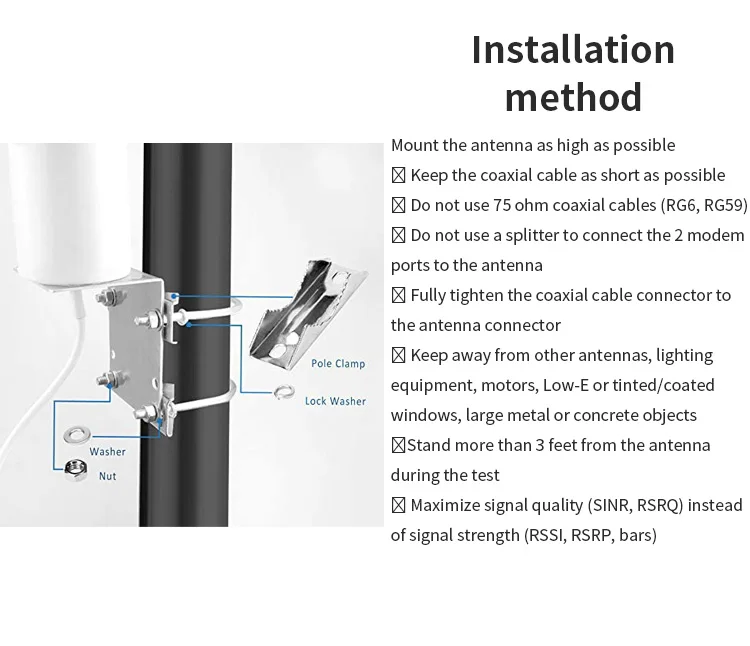

Installation
method
method
Mount the antenna as high as possible
Keep the coaxial cable as short as possible
Do not use 75 ohm coaxial cables (RG6,
Keep the coaxial cable as short as possible
Do not use 75 ohm coaxial cables (RG6,
RG59)
Do not use a splitter to connect the 2 modem
ports to the antenna
Fully tighten the coaxial cable connector to
the antenna connector
Keep away from other antennas, lighting
equipment, motors, Low-E or tinted/coated
windows, large metal or concrete objects
Stand more than 3 feet from the antenna
during the test
Maximize signal quality (SINR, RSRQ) instead
of signal strength (RSSI, RSRP, bars)
Do not use a splitter to connect the 2 modem
ports to the antenna
Fully tighten the coaxial cable connector to
the antenna connector
Keep away from other antennas, lighting
equipment, motors, Low-E or tinted/coated
windows, large metal or concrete objects
Stand more than 3 feet from the antenna
during the test
Maximize signal quality (SINR, RSRQ) instead
of signal strength (RSSI, RSRP, bars)
Product Description
Item | Specifications | ||
Antenna | Frequency Range | 2400-2500 MHz | |
Gain | 10 dBi | ||
V.S.W.R | ≤1.5 | ||
Impendance | 50Ω | ||

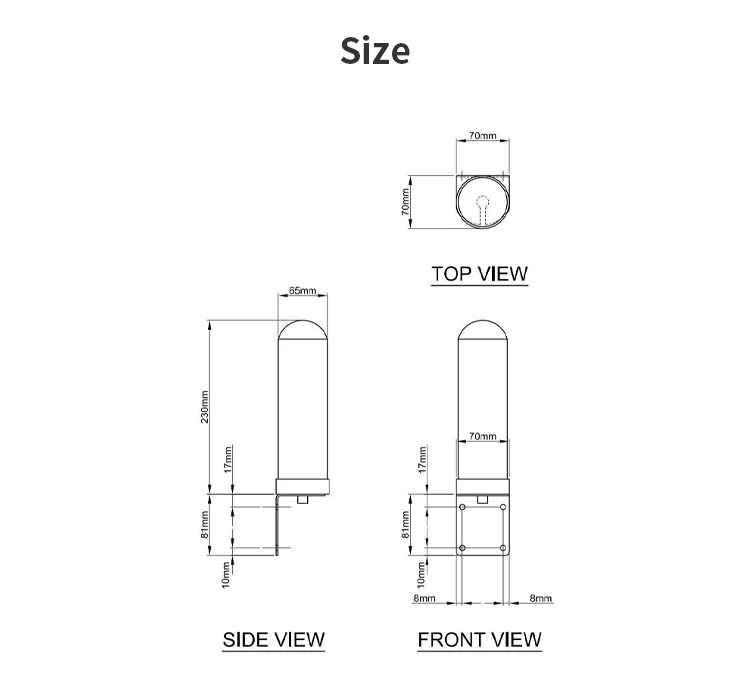

Antenna size | 3 x 3 x 10.6 inches | ||
Material | Polarization | Vertical | |

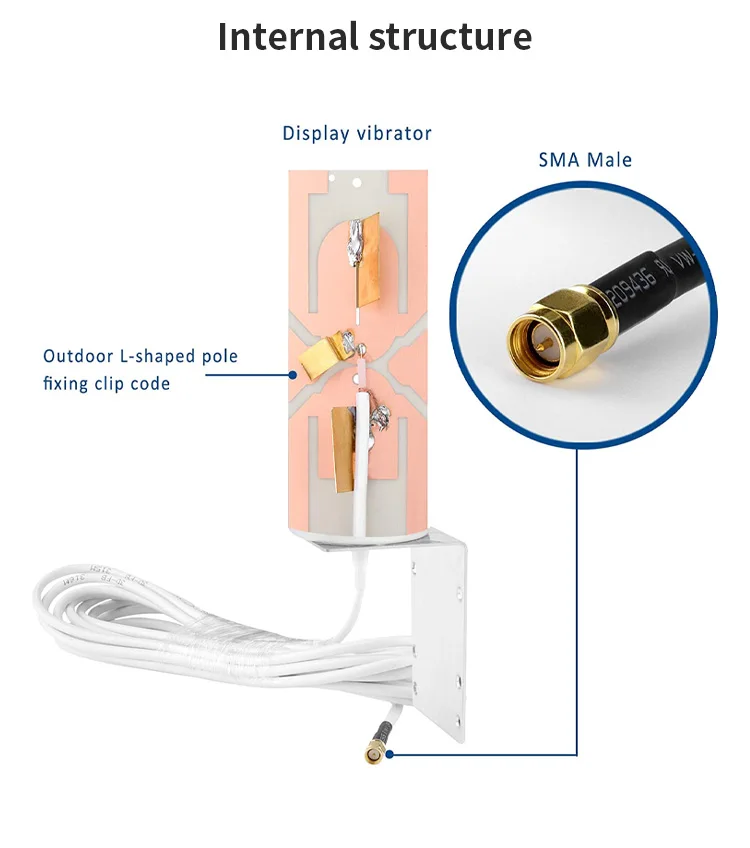

Mechanical | Inner Material | Copper tube | |

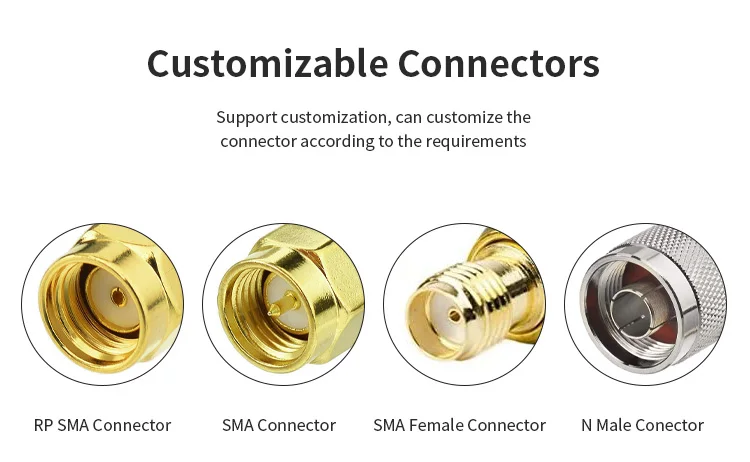

Connector type | N Female Connector or customizable | ||

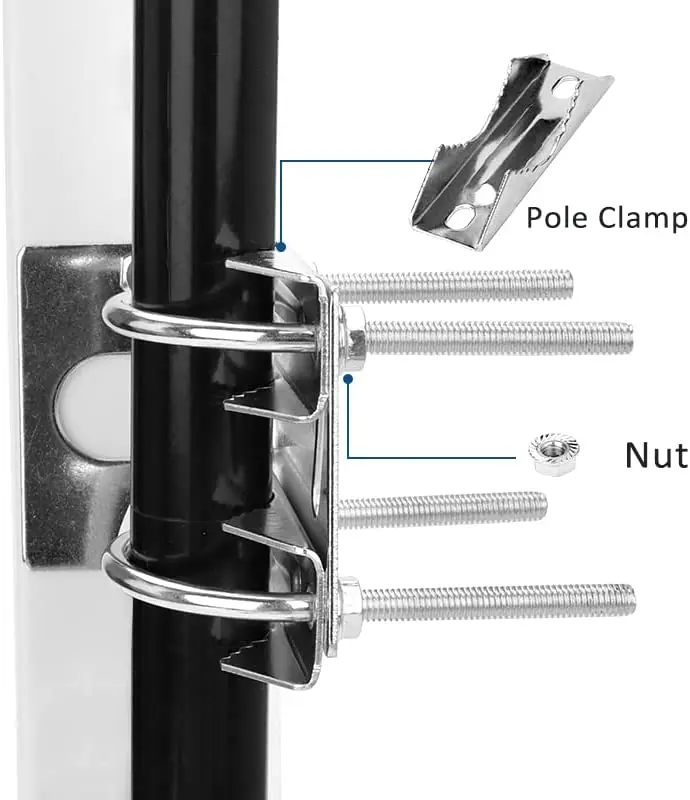

Mounting Method | Fixed Wall Mount | ||
Environmental | Operating Temperature | -40℃~+80℃ | |
Storage Temperature | -40℃~+85℃ | ||
Package | Environmentally Friendly | ROHS Compliant | |
High Gain 10 dBi 2.4G WiFi Antenna for Verizon AT&T T-Mobile
This antenna also supports both the 2.4 GHz and 5.8 GHz WiFi frequency bands.
The omni-directional design provides high gain without the cellular tower location and alignment hassles of directional antennas. Its powerful high efficiency radiating elements maximize the energy output of your radio device.

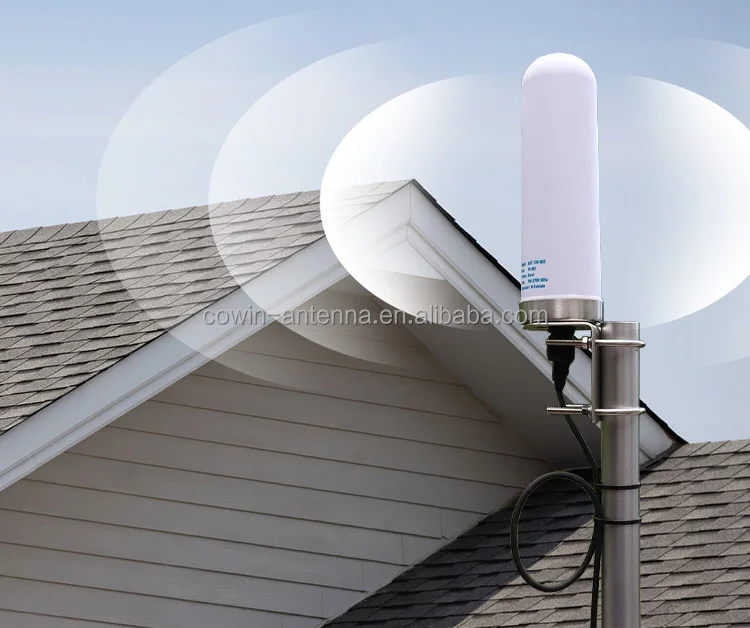

With its compact size, white finish and all stainless hardware, it is ideal for outdoor applications including rooftops, utility poles, surveillance trailers, well sites, meters, homes and offices.
With the appropriate adapter cable (not included), this antenna is compatible with USB cellular modems and Mi-Fi Hotspots, external 4G/5G cellular modems, routers and signal amplifiers from companies such as CalAmp, Cisco, Cradlepoint, Digi, MoFi, Netgear, Novatel, Pepwave, Proxicast, Sierra Wireless, SureCall, weBoost/Wilson and ZTE.
Requires a direct wired connection to an existing modem, router, amplifier/booster. WILL NOT boost reception of cell phones – they require a powered booster/amplifier.
Company Profile
Company profile :
15 years of antenna research and development
The CEO and engineers of Suzhou Cowin Antenna Electronics Co., Ltd have been researching and developing antennas for 15 years. With our rich experience in the field, we have developed many kinds of products including Cellular Antenna, 5G NR Antenna, 4G LTE Antenna, GSM GPRS 3G Antenna, WiFi Antenna, GNSS Antenna, GPS GSM combo Antenna,Waterproof antenna and a variety of RF Connectors and Antenna Cable Assemblies. These products are exported to USA, Europe, Asia, the Middle East, Africa and so on.
The CEO and engineers of Suzhou Cowin Antenna Electronics Co., Ltd have been researching and developing antennas for 15 years. With our rich experience in the field, we have developed many kinds of products including Cellular Antenna, 5G NR Antenna, 4G LTE Antenna, GSM GPRS 3G Antenna, WiFi Antenna, GNSS Antenna, GPS GSM combo Antenna,Waterproof antenna and a variety of RF Connectors and Antenna Cable Assemblies. These products are exported to USA, Europe, Asia, the Middle East, Africa and so on.
We serve a large number of high quality brand customers, such as ASTEELFLASH, BEL, Cambium Networks, Tongfang Co., Ltd.
Customized support with 20 Engineers, We have an R&D team with 20 engineers who can develop more than 5 kinds of new products for customer option by advanced R&D device, and complete projects according to clients' specifications within 15 days, it only need 7 days if product need small changes
Large Capacity With Fast Delivery, Our factory has five advanced production lines, has 200 skilled workers and a daily capacity of 20,000 units, delivery time can be as fast as 7 days.
Production process
Our equipment
Certifications
Our Advantages
Target market
Payment & Delivery
FAQ
What's your company MOQ?
Donot has any MOQ for common product, if they are customizable products, we will ask at least 1000-5000pcs, this we can negotiate.
What's your delivery time?
Products can send out once receive your deposit If we have stock, if they are customizable products, delivery time is around 7-12 working days.
Can your company accept customize?
Welcome OEM & ODM.
How do you solve after sale service?
Exchange goods without reasons within 7 days if products aren't OK for you, and 2 years quality warranty
Can you send samples for us to test?
Yes, we can provide free samples if they are our common products, shipping cost will be paid by you, you need to pay samples fee if they are customizable products.
Donot has any MOQ for common product, if they are customizable products, we will ask at least 1000-5000pcs, this we can negotiate.
What's your delivery time?
Products can send out once receive your deposit If we have stock, if they are customizable products, delivery time is around 7-12 working days.
Can your company accept customize?
Welcome OEM & ODM.
How do you solve after sale service?
Exchange goods without reasons within 7 days if products aren't OK for you, and 2 years quality warranty
Can you send samples for us to test?
Yes, we can provide free samples if they are our common products, shipping cost will be paid by you, you need to pay samples fee if they are customizable products.
