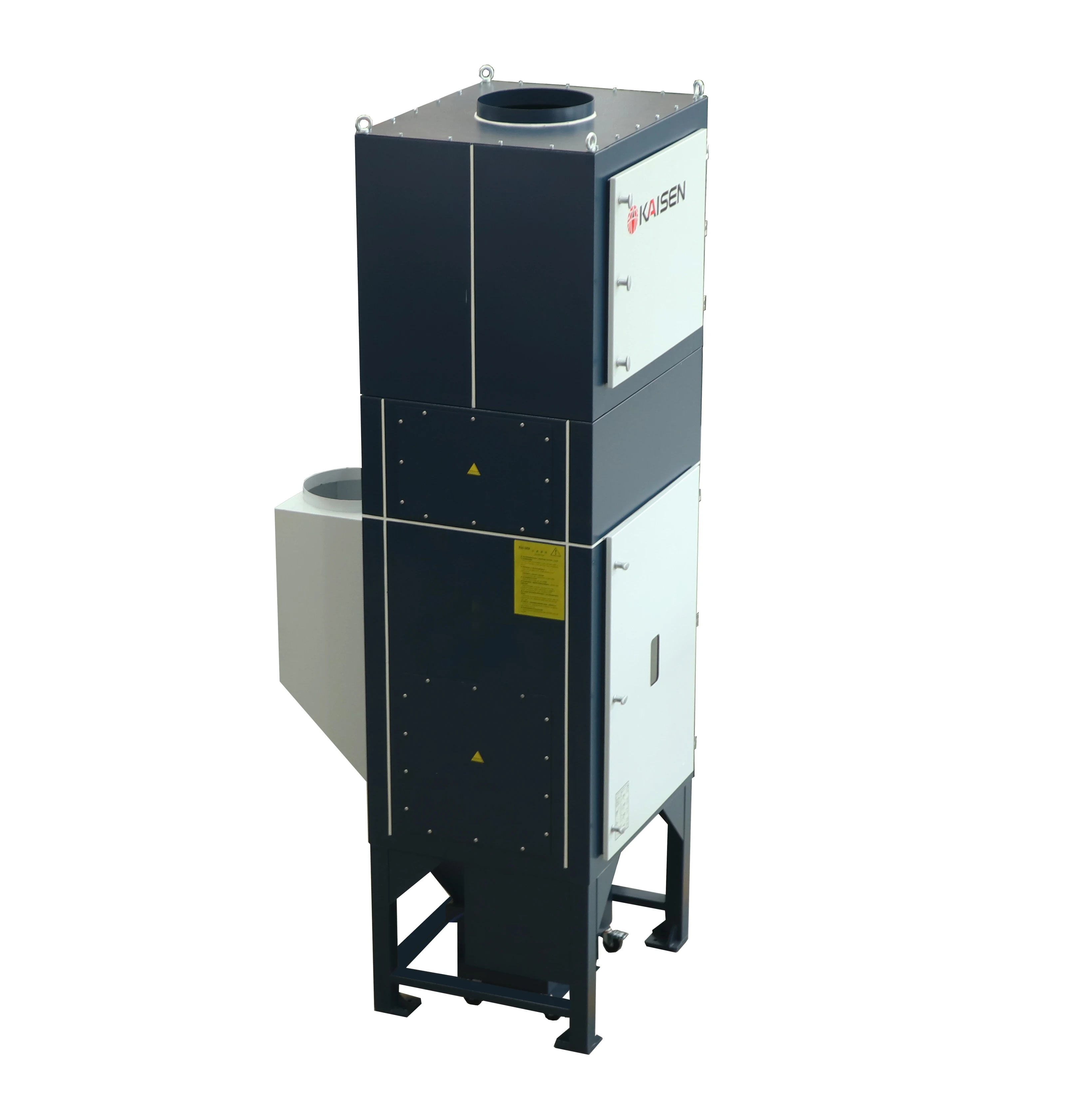

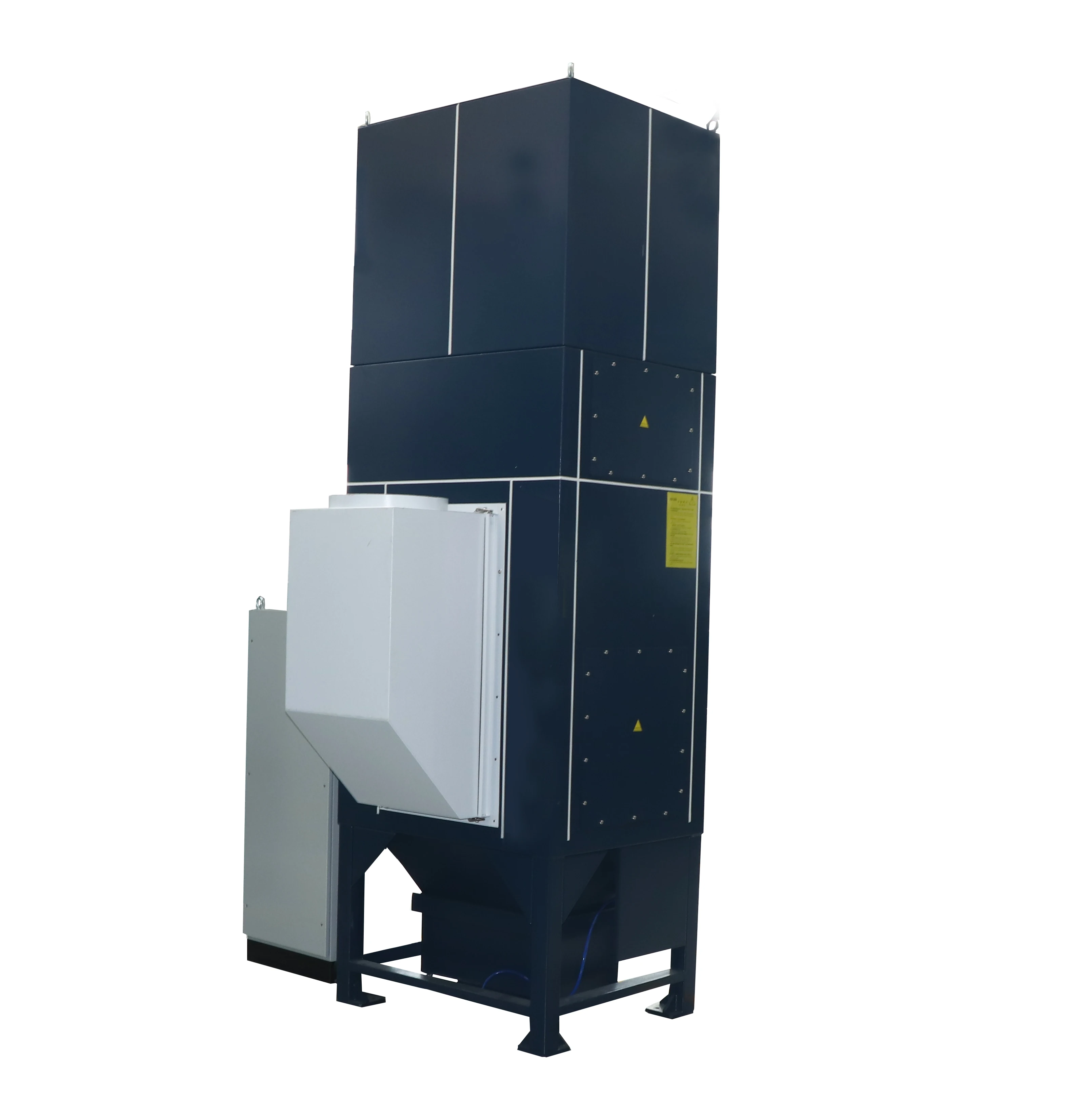

5.5 / 7.5 Kw Auto cleaning laser cutting fume extractor or dust collector with CE and RoHS certification

Product Overview

Description

5.5 / 7.5 Kw Auto cleaning laser cutting fume extractor or dust collector with CE and RoHS certification



Applications



1. Large amounts of fume and dust

2. Laser, plasma and flame cutting systems

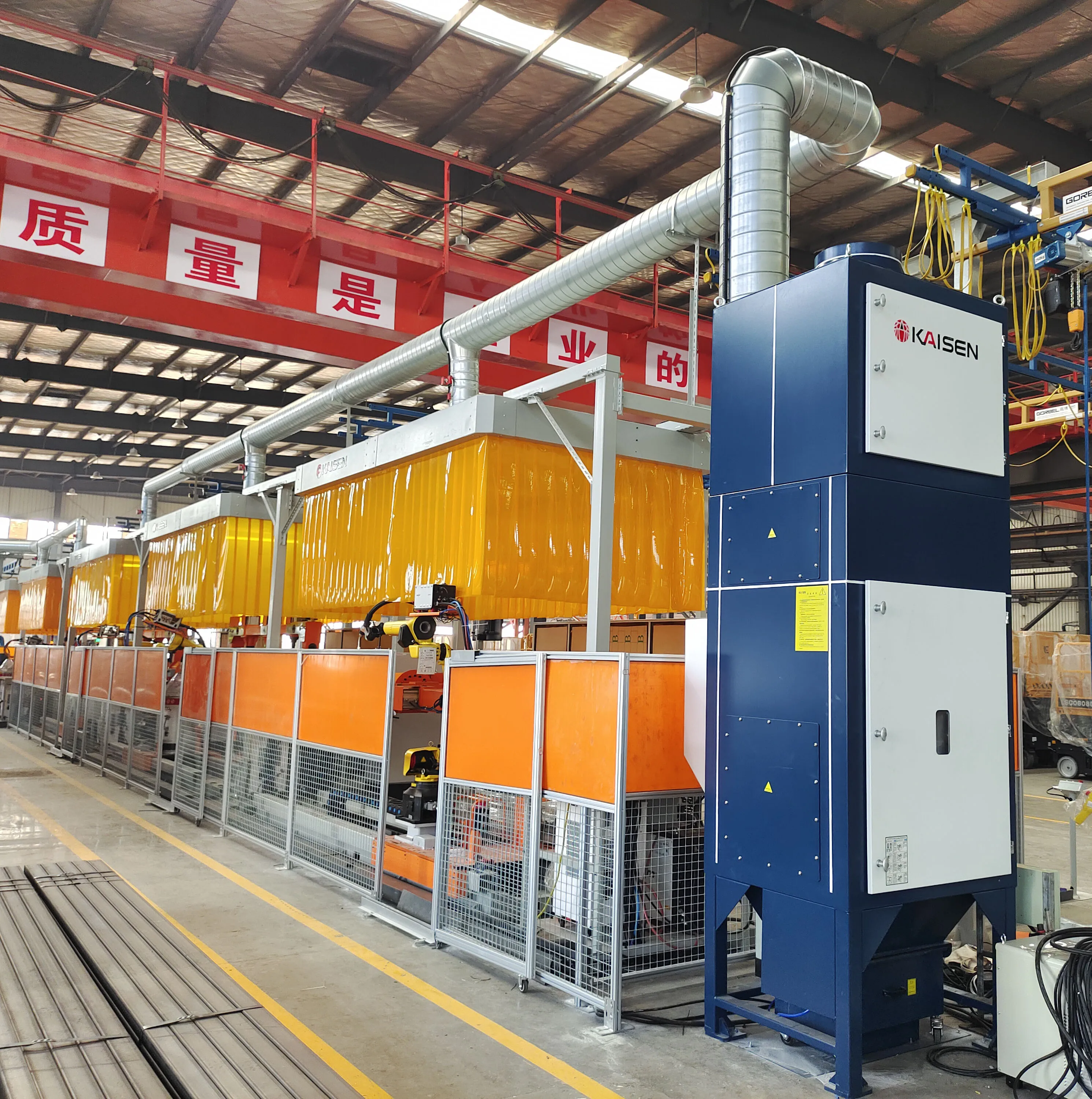

3. Multi-units welding station, grinding rooms

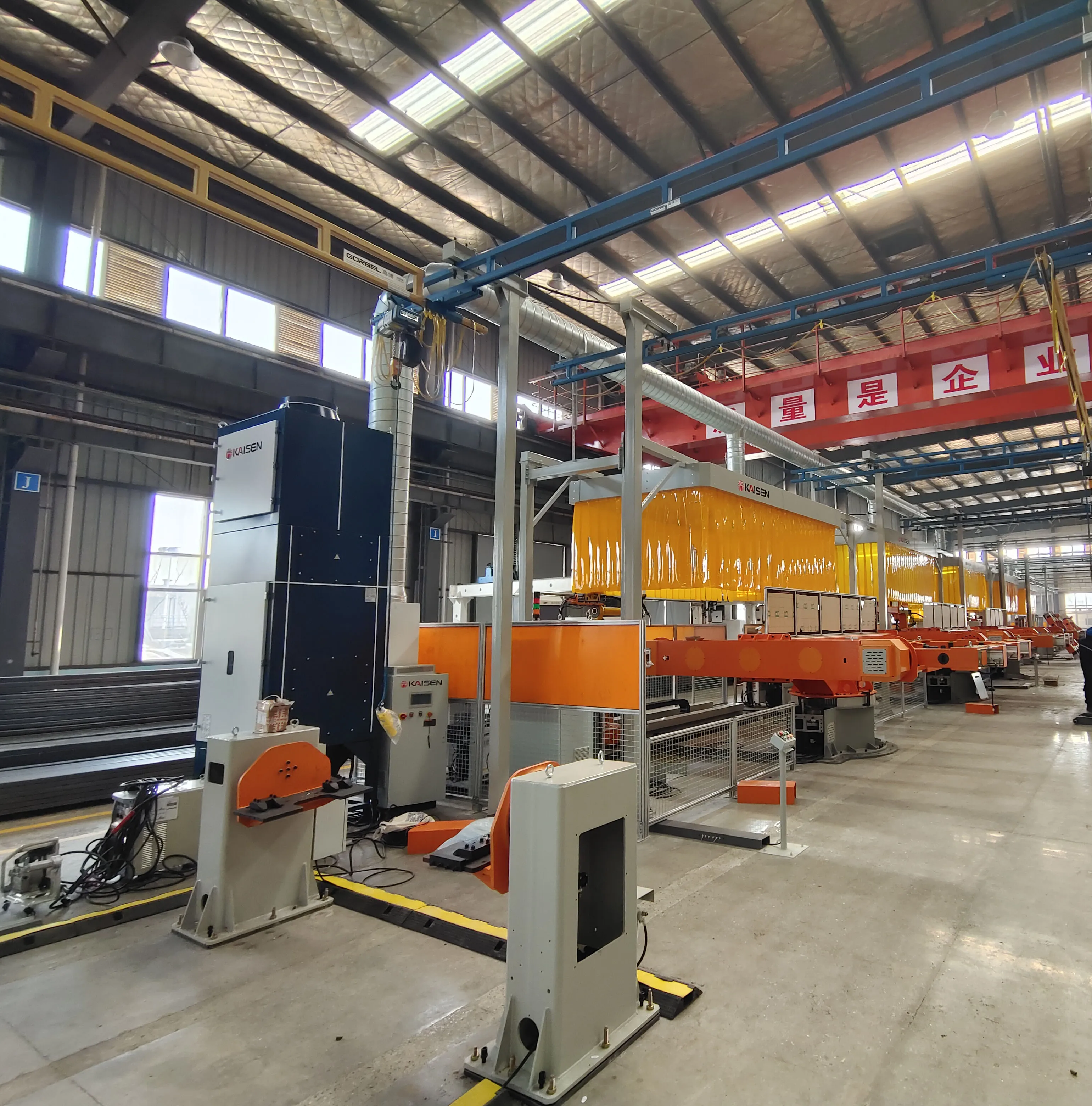

4. Training centres and robot welding lines

5. Workshop exhasut of Push-Pull system

6. It is avaialbe of installing outdoors



Features



Central Control system implements real-time monitoring and analysis on a number of important parameter of equipments in the operation and show them in the display, and it has self-diagnosis function, showing abnormal and error conditions in the operation of the equipment automatically. The central dust & fume purification system' s performance is controlled by PLC controlling system.

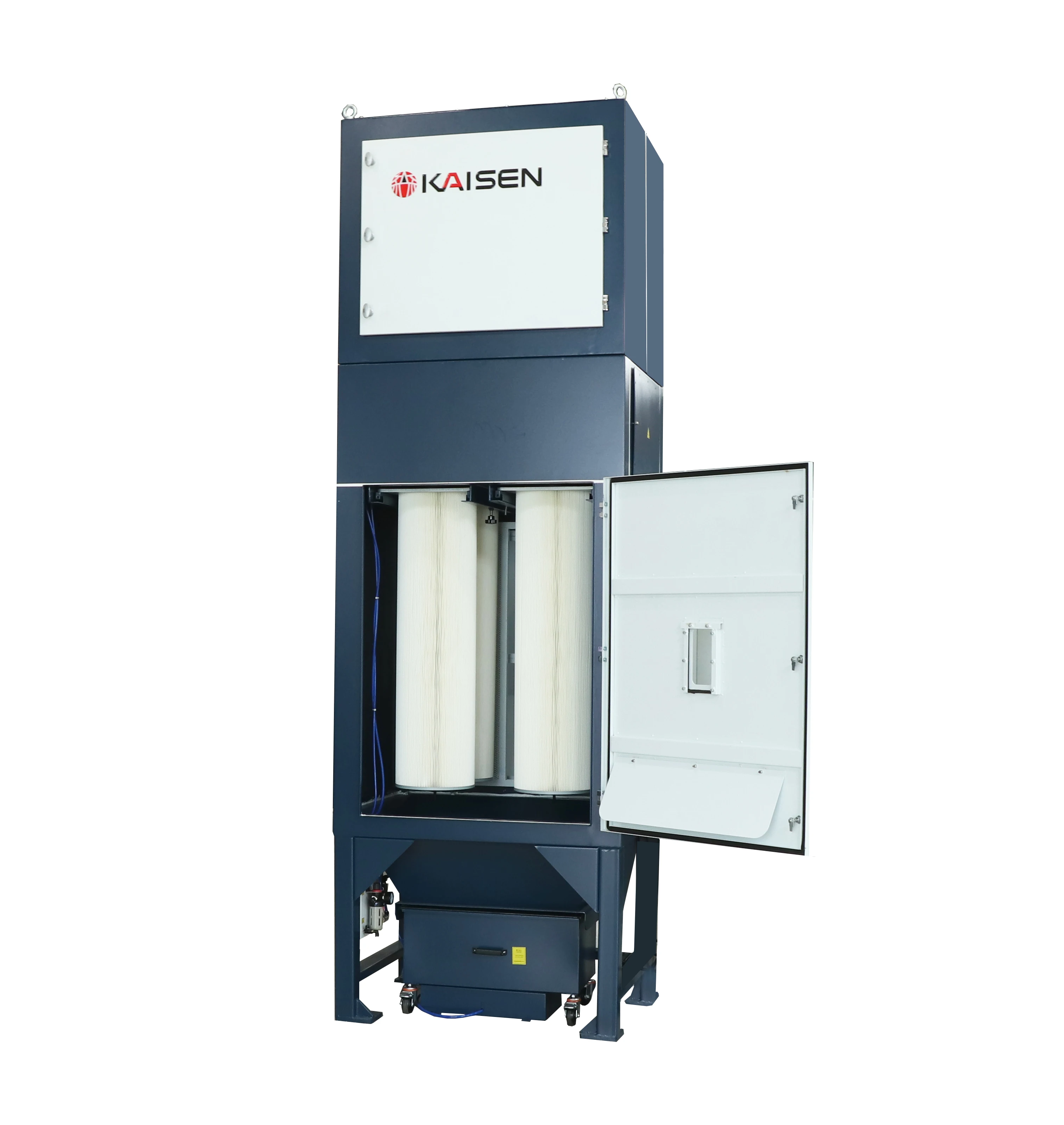

The functionality of a filter lies in the filter element's material, Kaisen's filter element is specially developed for the purification of fume and fine particles generated in welding and cutting, solved this industry's problem of low filtration precision and filter element's blocking. And the outer surface of the cartridge is covered by a  layer of  PTFE  film layer through heat treatment a special process.  Cartridge wall is thin   in structure and has high strength, and the surface film layer has a very uniform pores, making a network structure with a bore diameter of 0.3 microns below.



Rotary dust blowing device is inserted inside the filter cartridge, and very close to the cartridge's inner wall. When the solenoid valve opens, compressed air enter into two pipes drilled with nozzles, implementing rotary blowing to clean every part of the filter cartridge. Compared with externally placed blowing nozzles, rotary dust blowing "nozzles" blow force is even on every part of the cartridge, and have a thorough cleaning, avoid big noise and damage to the cartridge caused by instant huge blow impact of the externally placed blowing method.



To the position polluted by a little oil mist, the company's special spray device not only dilutes oil mist and prevents the dust from attaching to the filter surface to reduce its service life, but also plays a role in fire prevention.



Technology Data



Model	KSDC-12004	KSDC-12006	KSDC-12009
Inlet Air Flow	5500/10500m3/h	14000/17600 m3/h	20000/22000m3/h
Motor Power	5.5/7.5 kW	11/15 kW	18.5/22 kW
Working Voltage	3x 380V/50Hz	3x 380V/50Hz	3x 380V/50Hz
Filtering Material	Polyester + PTFE	Polyester + PTFE	Polyester + PTFE
Filtering Area	80 m²	120 m²	180 m²
Filtering Efficiency	>99.9%	>99.9%	>99.9%
Filter Cartridge	4 PCS	6 PCS	9 PCS
Cleaning Way	Automatic Cleaning	Automatic Cleaning	Automatic Cleaning
Compressed Air	0.5~0.6 MPa	0.5~0.6 MPa	0.5~0.6 MPa
Noise Level	≤75±5 dB	≤75±5 dB	≤75±5 dB
Dimension(WxDxH)	1160×960×3600 mm	1160×1320×3600 mm	1570×1320×3800 mm
Weight (kg)	860±20 kg	960/960/990±20 kg	1780±20 kg
