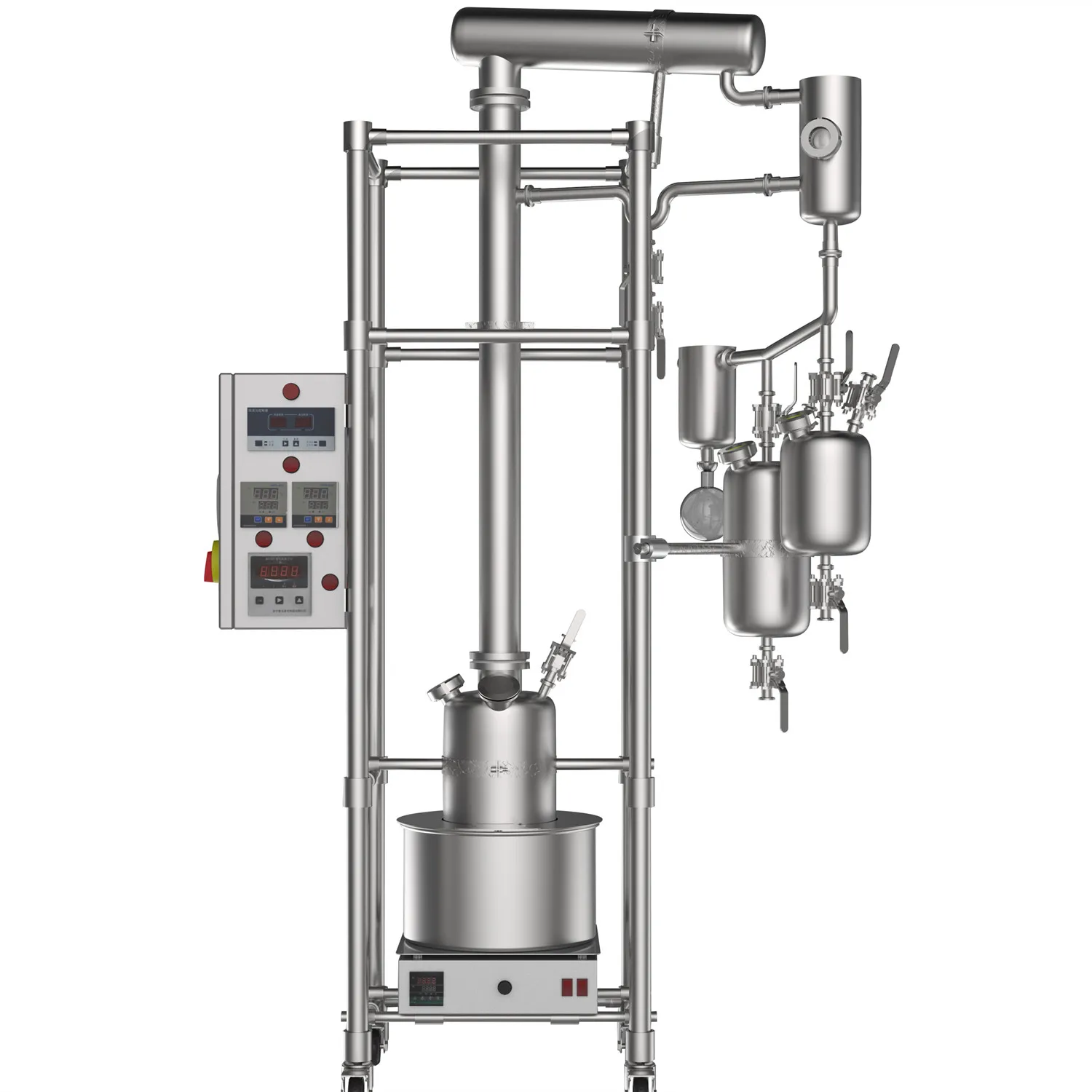

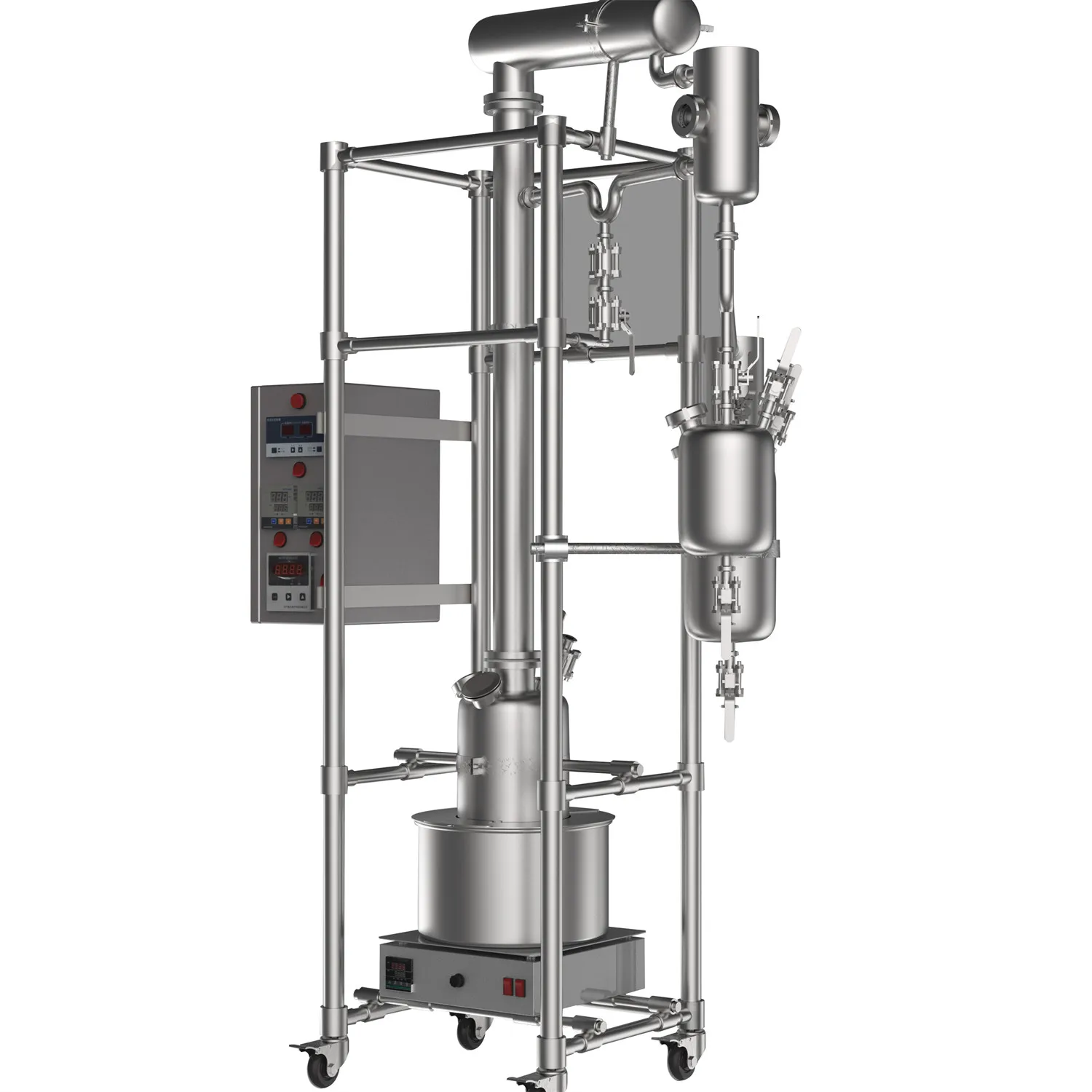

Valuen 20L Ethanol Extraction Machinery For Hemp Fractional Distillation Unit Stainless steel rectification
- Category: >>>
- Supplier: Shanghai Valuen Industrial Co. Ltd
Share on (1600618369891):
Product Overview
Description
Product Description
Stainless Steel Fractional Distillation (Rectification) Equipment Best Solution for Separating Components of Very Close Boiling Points High Purity Distillates Can Be Made Through Repeated Distillation in Distillation Column Various Fractions Can Be Received By Batch or Successive Distillation | ||||||||
Working Principle Fractional distillation (Rectification) For many cases, the boiling points of the components in the mixture will be sufficiently close that Raoult's law must be taken into consideration. Therefore, fractional distillation must be used in order to separate the components by repeated vaporization-condensation cycles within a packed distillation column. This separation, by successive distillations, is also referred to as rectification. | ||||||||
Model | VRR10S | VRR20S | |
Reaction Tank Capacity | 10L / 2.6Gal | 20L / 5.28Gal | |
Receiving Tank Capacity | 2L / 0.528Gal | 5L / 1.32Gal | |
Receving Tank Quantity | 1-4 pcs (quantity customizable as collected fractions) | ||
Stainless Steel Material | Sanitary Grade 304 Stainless Steel (Optional: Stainless Steel 316) | ||
Heating for the Tank | 2 Options: Oil Bath Heater or Circulation jacket with heating fluid | ||
Distillation Column Height | Height customizable as required theoretical plates quantity | ||
Distillation Column Diameter | 40mm, 50mm, 80mm or other cutstomizable size | ||
Heating for the Distillation Column (Optional) | Heating Jacket or Heating Tape | ||
Strring Mode | Magnetic Stirring via magnetic rotar or Top Head Stirrer (Magnetic or Mechnical Sealing) | ||
Working Temperature Range | Room Temperature to 300°C | ||
Control System | Digital Display Stirring speed controller, Time controller of reflux-receving dispenser, Heating temperature controller for heating jacket or tape, Heating temperature controller if tank heated by oil bath | ||
Utilities (Optional) | Cooling Circulator for Condenser, and Vacuum Pump | ||
Power Supply | 220V, 50/60Hz, Single Phase; 220V or 380V, 50/60HZ, 3 Phase | ||

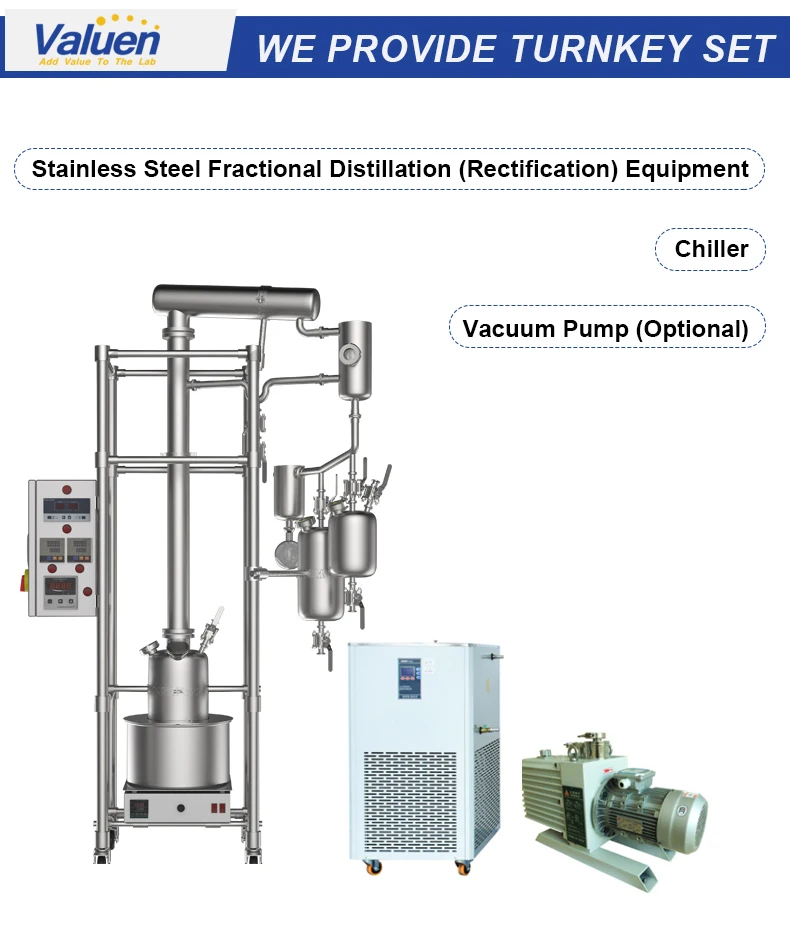

We Provide Turnkey Set Stainless Steel Fractional Distillation (Rectification) Equipment Chiller Vacuum Pump (Optional) | ||||||||

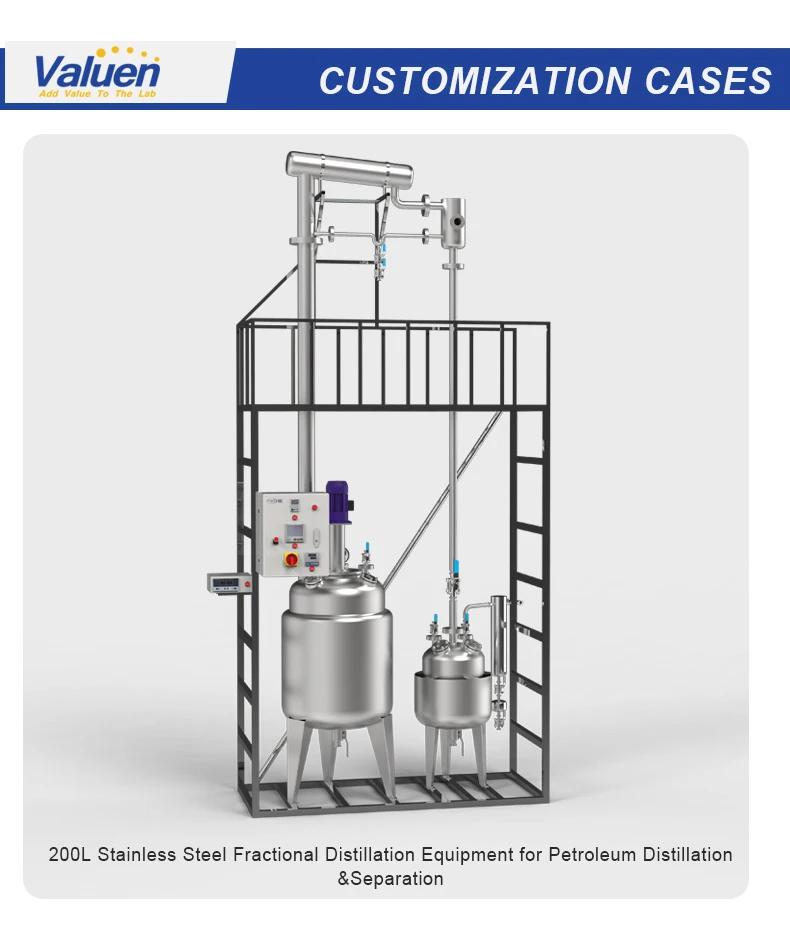

Value-added Service Besides providing equipment, our chemical engineering team can design customized fractional distillation equipment as per clients’ mixed material and target fractions. - Clients provides crude material name, mixed components and their required separation process, required processing quantity and target fractions, or testing report of contents of different components of their material via their lab research - Our chemical engineering team will design the fractional distillation equipment as clients’ material, required separation process, required processing quantity and target fractions Or our chemical engineer can advise proper separation process and made calculation of theoretical plates quantity to design the fractional distillation equipment fit for the clients’ requirement of components separation. | ||||||||
Company Profile
With more than 15 years’ industry experiences, Valuen team are experts in the design, development, and manufacture of premium quality products for chemists and chemical engineers in areas such as academia, pharmaceutical, chemical, food, flavor & fragrance, and petrochemical industries as well as many others. Our products cover a broad range of applications from distillation, concentration, reaction, extraction, isolation, purification, mixing, drying, and ancillary equipment for supporting those chemical process like heating, cooling and vacuum devices, both of lab and scale production.
FACTORY STRENGTH | ||||||||
