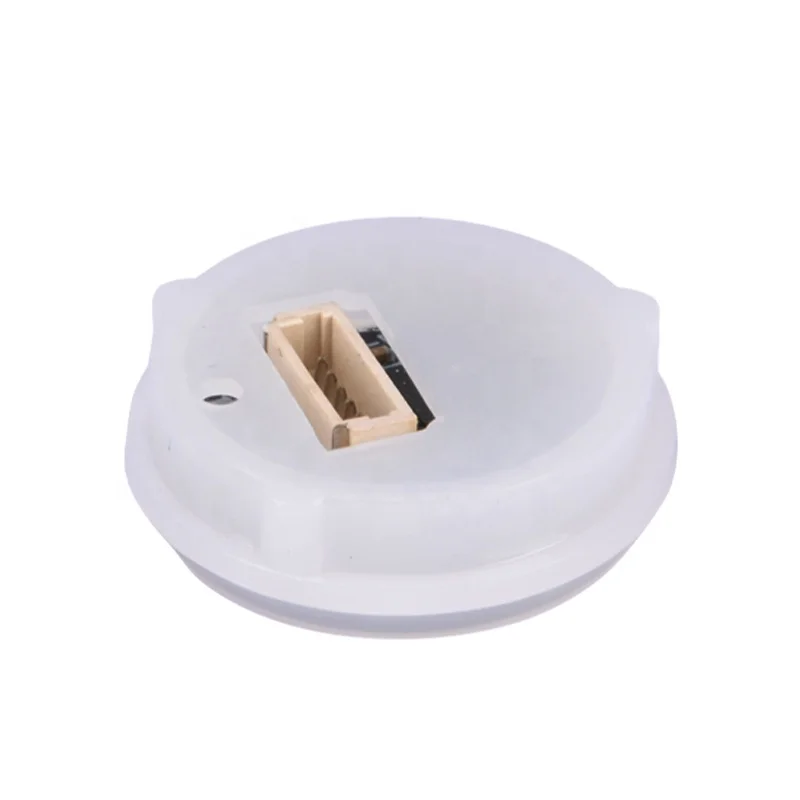

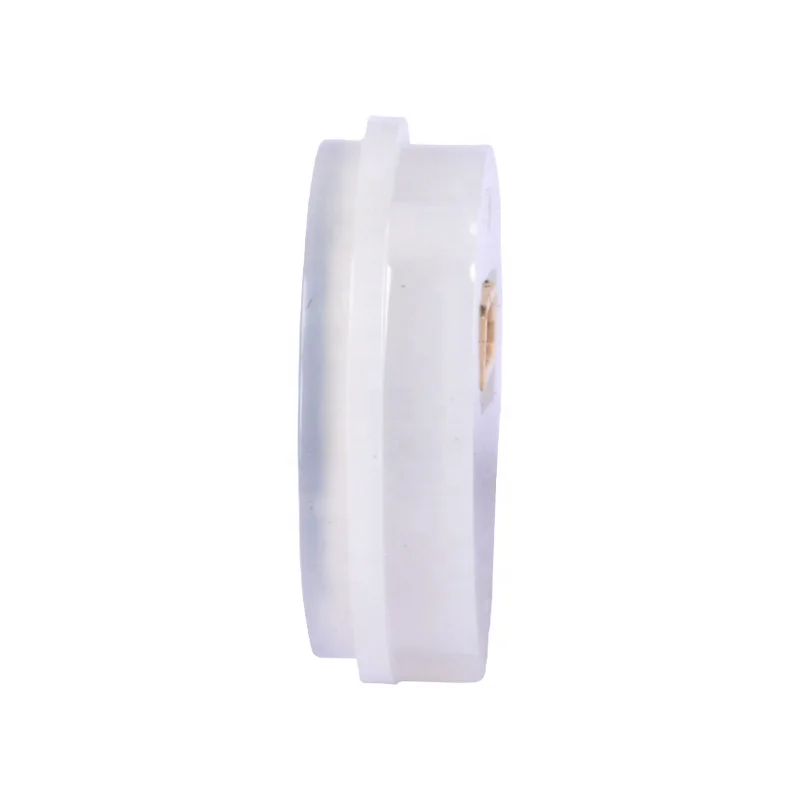

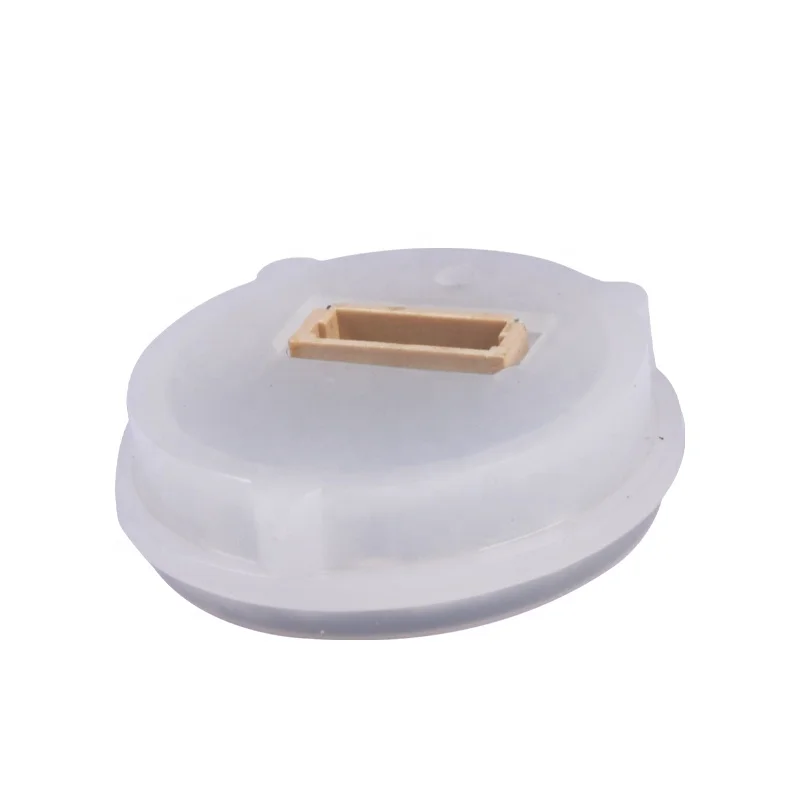

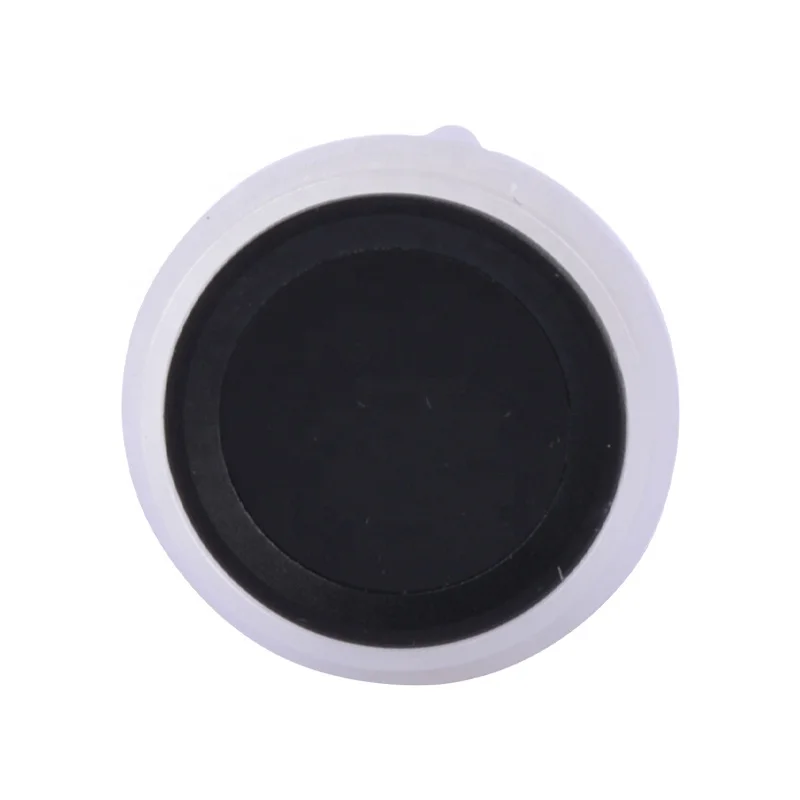

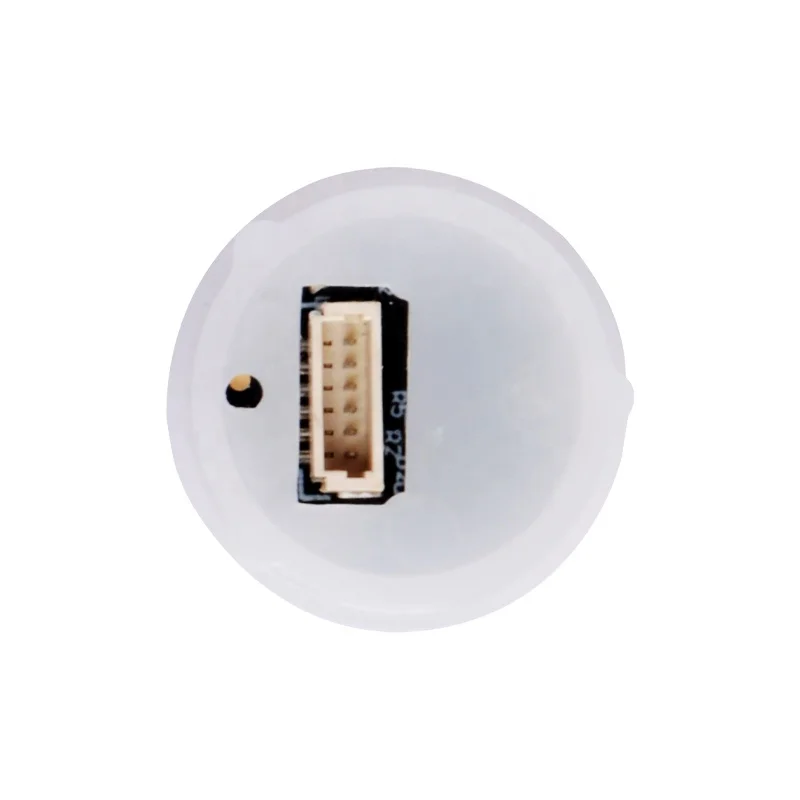

S120R Fingerprint Sensor Module Capacitive Semiconductor Fingerprint Sensor for Fingerprint Smart Lock Round with RGB LED Light
- Category: >>>
- Supplier: Guangzhou Gouku Technology Co. Ltd.
Share on (1600618407356):
Product Overview
Description
Product Description
The S120R is an integrated fingerprint module, which integrates capacitive fingerprint sensor and algorithm processor. Connected to host with UARTs , it implements many functionalities including image acquisition, feature extraction, template generation, fingerprint input, fingerprint matching, fingerprint deletion and others. The simple and easy to use control instruction set is very convenient for secondary development and can be quickly embedded in a variety of products that requiring fingerprint authentication.
Features
1. Fingerprint capacity : 100
2. RGB LED Light
3. UART
4. High ESD capability：contact: ±8K ,air: ±15KV
5. Capacitive semiconductor sensor, round and square packages are selectable
6. Protective coating
2. RGB LED Light
3. UART
4. High ESD capability：contact: ±8K ,air: ±15KV
5. Capacitive semiconductor sensor, round and square packages are selectable
6. Protective coating
Specification
item | value |
Sensor | Capacitive semiconductor fingerprint sensor |
Image Size | 120pixel*88pixel |
Size (L*W*H) | ɸ 21mm |
Finger Capacity | 100 |
Communication Interface | UART TTL,8bits, baud rate:9,600~115,200 bps |
Recognition Accuracy | FRR<3%, FAR<0.001% |
Operating Voltage | 3.3 v |
ESD | Contact: ±8K , Air: ±15KV |
Operating Environment | Temperature: -20 ℃ ~ 55 ℃ ,Relative Humidity: 40% RH~85% RH |
Storage Environment | Temperature: -40 ℃ ~ 85 ℃, Relative Humidity: <85% RH |
