Hantek Dpo6104b Digital Storage Oscilloscope 4 Channels 100mhz 1 Gsa/s Sample Rate Waveform Generator Spectrum Analyzer
The waveform capture rate of DPO6000/MPO6000 Fluorescent oscilloscope is up to 400,000 FPS.It has 256 grade color and color
temperature display.Standard equipped with up to 16 kinds of trigger functions, 5 kinds of serial decoding functions.It supplies
200 MHz, 100 MHz and 80 MHz bandwidth, its memory depth is up to 64M,16 channels logic analyzer plug and use, all standard
equipped with 2 channels waveform generator, standard equipped with touch screen. it is a useful commissioning instrument for
various fields such as communication, aerospace, defense, embedded systems, computers, research and education.
Six in one oscilloscope:4 channels oscilloscope+16 channels logic analyzer+2 channels waveform generator+digital voltmeter+serial
protocol analyzer+FFT spectral analysis.
60 000 wfms/s (dots display)/400,000 wfms/s (dots display quick acquisition mode)waveform capture rate.
Segmented acquisition function,support to capture up to 80,000 sections.256 grade color display.
Up to 16 kinds of trigger functions, including 5 kinds of protocol triggers.Supply 5 serial decoding option.
1 GSa/s real-time sample rate of the analog channels; 64 Mpts standardmemory depth.
2-channe signal source,13 kinds of waveforms inside,4 sets of arbitrary waveforms,200M sample rate,8Kpts waveform length.
1 GSa/s real-time sample rate of the digital channels.
200 MHz, 100 MHz and 80 MHz analog channel bandwidth.
Low base noise, 500uV/div to 10 V/div ultra-wide vertical dynamic range.

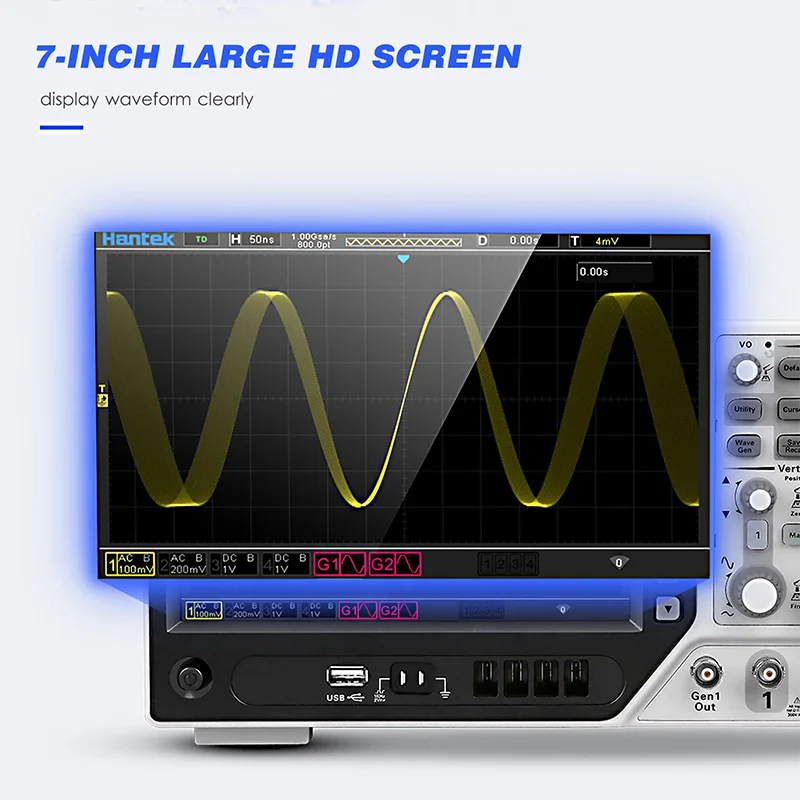

7 inch WVGA capacitive touch screen,(800*480) TFT , with ultra-wide screen, vivid picture, lowpower consumption and long service
life.
Auto measurement of 42 kinds of waveform parameters (with statistics).
Bode diagram function(the oscilloscopes with signal source function can use).
Multiple waveform math operation functions[MATH].Event search function.
Standard interfaces: USB Device, USB Host, LAN,Optional interfaces: HDMI ,UART
Conform to LXI CORE 2011 DEVICE class instrument standards; enable quick,economic and efficient creation and reconfiguration of
test system.Supports remote command control.
temperature display.Standard equipped with up to 16 kinds of trigger functions, 5 kinds of serial decoding functions.It supplies
200 MHz, 100 MHz and 80 MHz bandwidth, its memory depth is up to 64M,16 channels logic analyzer plug and use, all standard
equipped with 2 channels waveform generator, standard equipped with touch screen. it is a useful commissioning instrument for
various fields such as communication, aerospace, defense, embedded systems, computers, research and education.
Six in one oscilloscope:4 channels oscilloscope+16 channels logic analyzer+2 channels waveform generator+digital voltmeter+serial
protocol analyzer+FFT spectral analysis.
60 000 wfms/s (dots display)/400,000 wfms/s (dots display quick acquisition mode)waveform capture rate.
Segmented acquisition function,support to capture up to 80,000 sections.256 grade color display.
Up to 16 kinds of trigger functions, including 5 kinds of protocol triggers.Supply 5 serial decoding option.
1 GSa/s real-time sample rate of the analog channels; 64 Mpts standardmemory depth.
2-channe signal source,13 kinds of waveforms inside,4 sets of arbitrary waveforms,200M sample rate,8Kpts waveform length.
1 GSa/s real-time sample rate of the digital channels.
200 MHz, 100 MHz and 80 MHz analog channel bandwidth.
Low base noise, 500uV/div to 10 V/div ultra-wide vertical dynamic range.
7 inch WVGA capacitive touch screen,(800*480) TFT , with ultra-wide screen, vivid picture, lowpower consumption and long service
life.
Auto measurement of 42 kinds of waveform parameters (with statistics).
Bode diagram function(the oscilloscopes with signal source function can use).
Multiple waveform math operation functions[MATH].Event search function.
Standard interfaces: USB Device, USB Host, LAN,Optional interfaces: HDMI ,UART
Conform to LXI CORE 2011 DEVICE class instrument standards; enable quick,economic and efficient creation and reconfiguration of
test system.Supports remote command control.
