Product Overview

Description



Product Overview






Product details

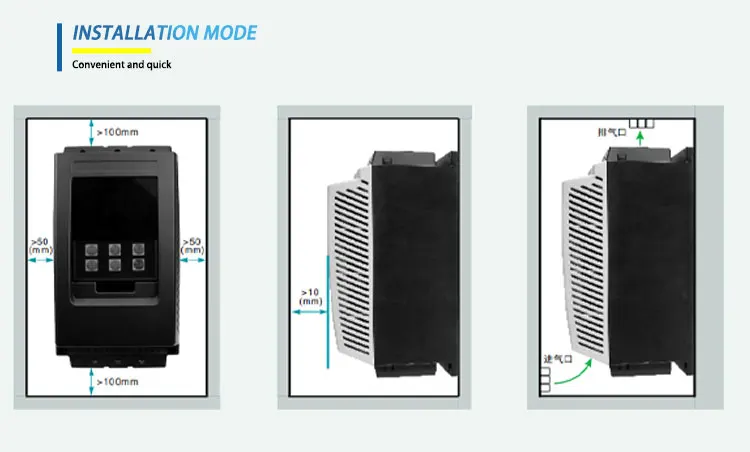

Installation mode
Soft start should be installed vertically, not upside down, obliquely or horizontally. Please install it on a firm structure with screws:

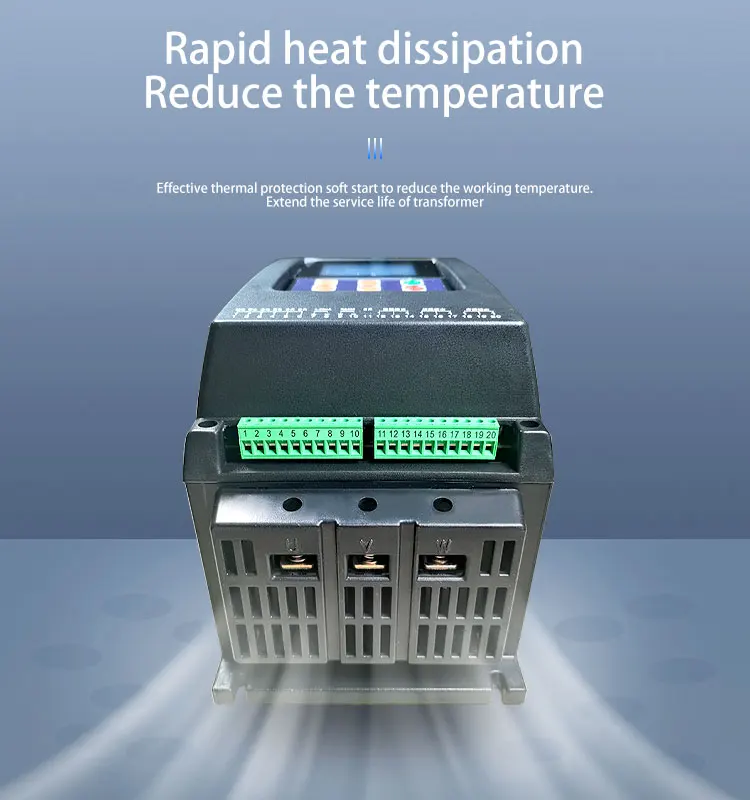

Heat should be generated during soft start operation. In order to ensure the passage of quasi-moving air, a certain space is reserved in the design. The generated heat is emitted upwards, so don't install it under heat-resistant equipment.










product model
rated power
（KW)
rated current
（A）

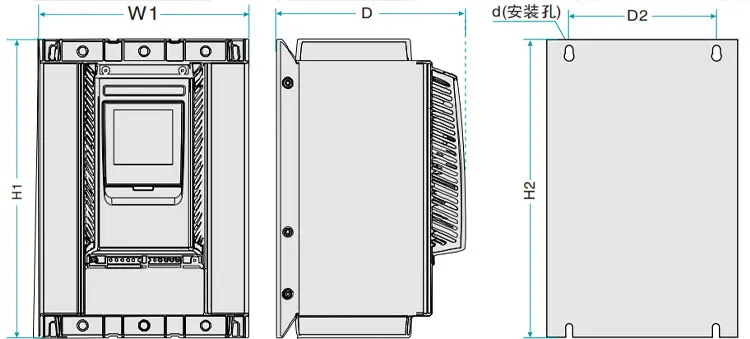

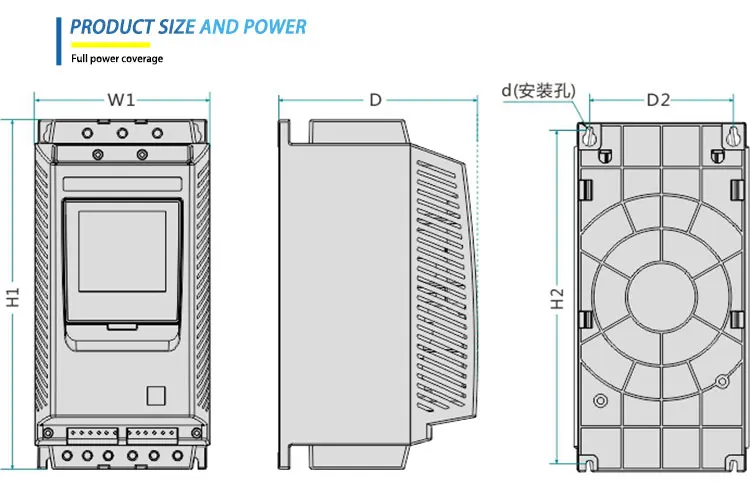

outline dimension
installation size
net weight

H1
W1
D
H2
W2
d
SFT30-15KW
15
32
310
155
175
296
127
M6
<5
SFT30-18.5KW
18.5
37
310
155
175
296
127
M6
<5
SFT30-22KW
22
45
310
155
175
296
127
M6
<5
SFT30-30KW
30
60
310
155
175
296
127
M6
<5
SFT30-37KW
37
75
310
155
175
296
127
M6
<5
SFT30-45KW
45
91
310
155
175
296
127
M6
<5
SFT30-55KW
55
112
310
155
175
296
127
M6
<5




product model
rated power
（KW)
rated current
（A）
outline dimension
installation size
net weight
H1
W1
D
H2
W2
d
SFT30-75KW
75
150
525
265
245
296
127
M6
<18
SFT30-90KW
90
180
525
265
245
296
127
M6
<18
SFT30-110KW
110
230
525
265
245
296
127
M6
<18
SFT30-132KW
132
260
525
265
245
296
127
M6
<18
SFT30-160KW
160
320
525
265
245
296
127
M6
<18
SFT30-185KW
185
370
525
265
245
296
127
M6
<18
SFT30-200KW
200
400
525
265
245
296
127
M6
<18
SFT30-250KW
250
500
560
290
250
460
260
M10
<23
SFT30-280KW
280
560
561
290
250
460
260
M10
<23
SFT30-320KW
320
630
562
290
250
460
260
M10
<23
SFT30-400KW
400
800
580
330
250
500
300
M10
<30
SFT30-450KW
450
900
580
330
270
500
300
M10
<30
SFT30-500KW
500
1000
660
410
280
550
370
M10
<35
SFT30-630KW
600
1200
660
410
280
550
370
M10
<35


Item
Item Description
Input Power Supply
Input Voltage
Three Phase 380V/Three Phase 660V
Frequency
50/60Hz
Adaptive Motor
Squirrel-cage three-phase asynchronous motor
Starting Times
It is recommended not to exceed 20 times per hour.
Control Mode

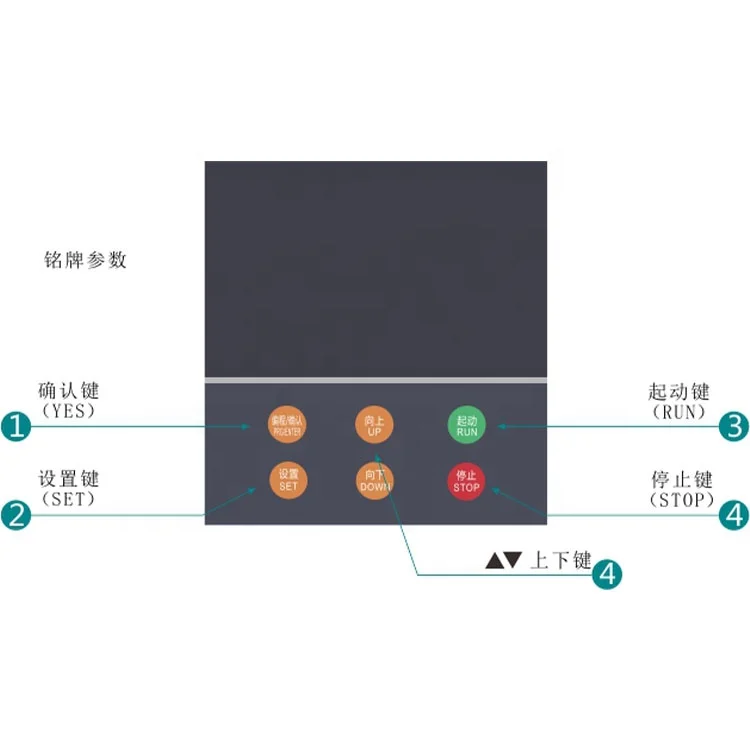

1) Operation panel control;
2) Operation panel + external control;
3) External control;
4) External control + COM control;
5) Operation panel + external + COM control;
6) Operation panel + COM control;
7) COM control; 8) No start or stop operation.
Start Mode

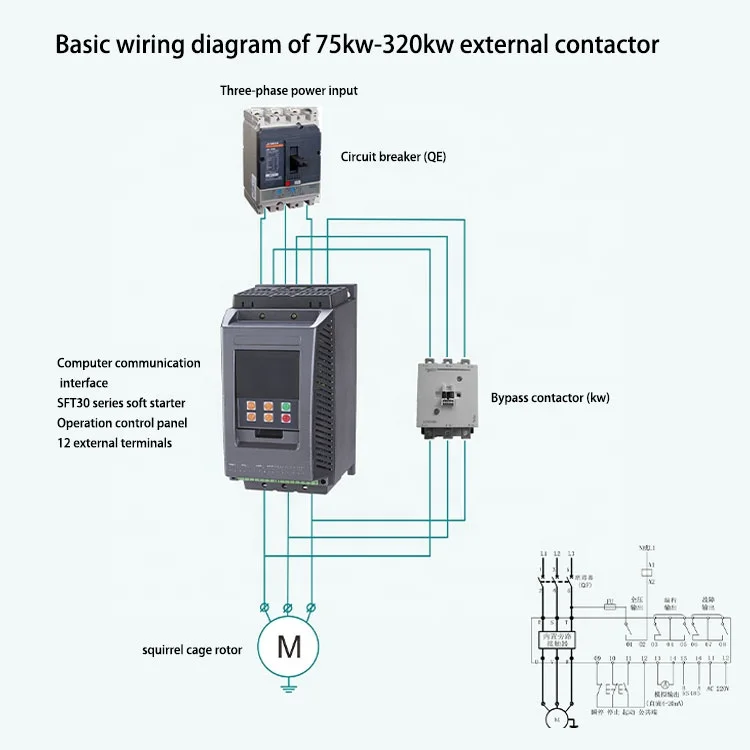

1) External bypass contactor;
2) limited current starting;
3) voltage ramp starting;
4) the sudden jump mode is started;
5)starting the current ramp;
 6) Double closed-loop start of voltage current limiting;
7) Full voltage start-up;
8) Soft stop;
9)Stop freely;
10) programmable relay output;
11)4~20mA DC analog output;
 12) input and output of RS485 communication;
Stop Mode
1) Soft stop; 2) Free stop.
Protective Function
1) overheat protection of soft starter;
2) Input open-phase protection
 3) Output open-phase protection
4) Three-phase unbalanceprotection;
5) starting the overcurrent protection;
6) Run overload protection;
7) Undervoltage protection of power supplyvoltage;
 8) overvoltage protection of power supply voltage;
9) Load short-circuit protection;
10) protection for too long startuptime;
11) setting protection fault parameters;
12) automatic restart or wrong wiring protection;
 13) Wrong wiring protection ofexternal control stop terminal;
Ambient
Place to be used
Indoor location with good ventilation free from corrosive gas and conductive dust.
Altitude
Below 3000M. It have to rise the rate power when the altitude is more than 3000M.
Ambient Temperature
-25~+70℃
Ambient Humidity
≤90%RH without dew condensation.
Vibration
<0.5G
Structure
Protection Class
IP20
Cooling Pattern
Natural wind cooling

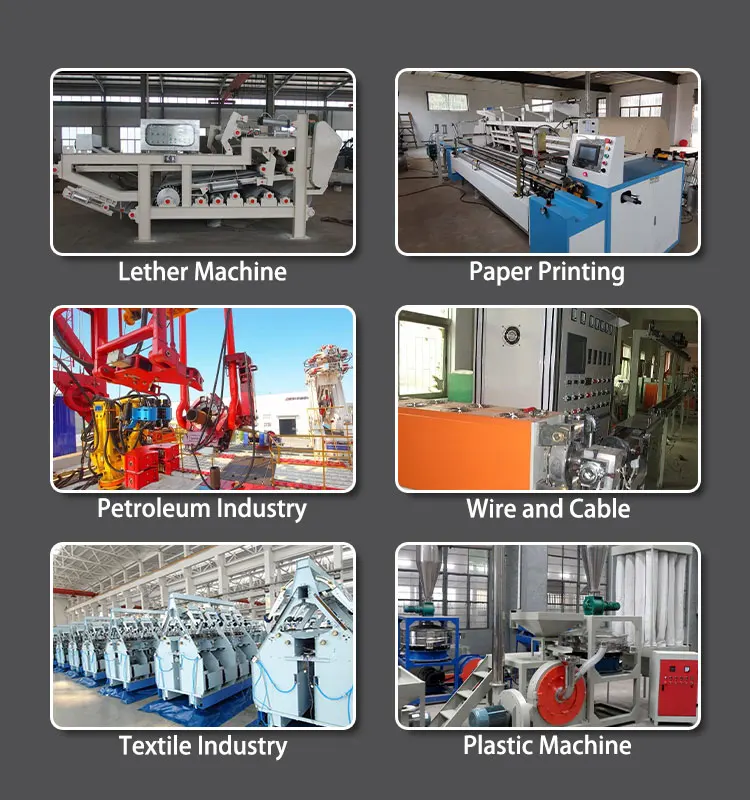

Application scenarios






Successful Project






Product application in various countries
National product exchange meeting


Our Factory






Exhibition




Packing & Delivery




FAQ


Q1. what's the payment term?
A1.We accept T/T, L/C, D/P, WEST UNION, PAYPAL, CASH,OA

Q2. What is the standard of package?
A1、Below 70kw, it's carton package
A2、90kw and above,it's wooden package.

Q3. Do you accept OEM business?
 A1.We accept OEM with your authorization.

Q4.How is the after-sale service?
A1. We offer spare parts accordingly and English-speaking engineer offer online service.

Q5. What’s voltage range and power range can support?
A1、voltage range：Single-phase and Three-phase 220v input, three-phase 220v output;Single-phase 3800v input, three-phase 380v output;
A2、 power range：0.75kw to 500kw

Q6.Do you support urgent orders?
A1. Sure. We have an ERP management system. Once there is an inventory warning,
A2. we will prepare materials in advance to meet the urgent needs of customers

Q7.How to ensure product quality?
A1. Our production strictly follow ISO9001 quality control system and CE certification.
