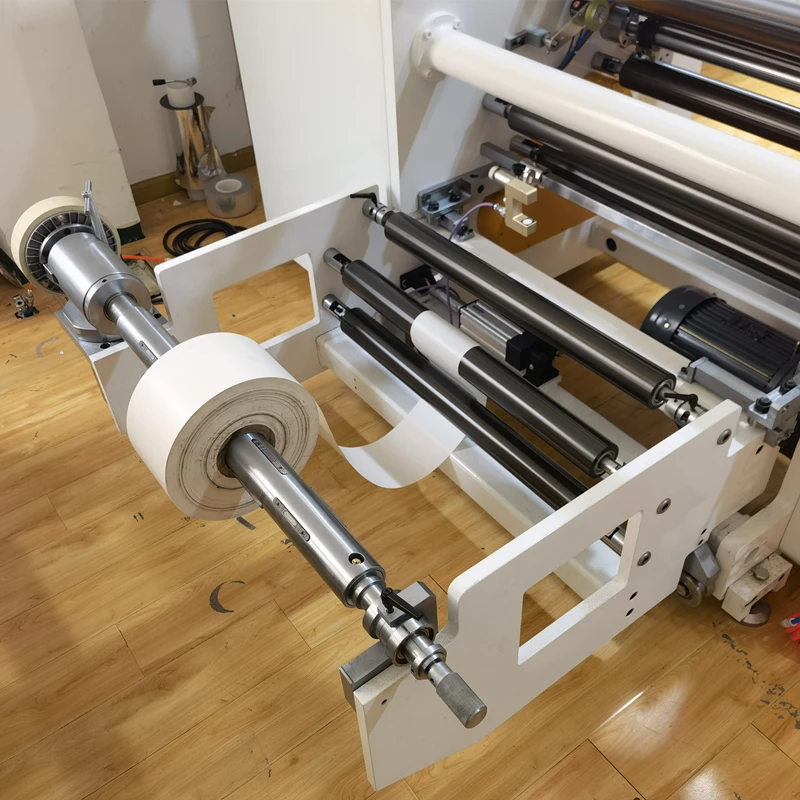

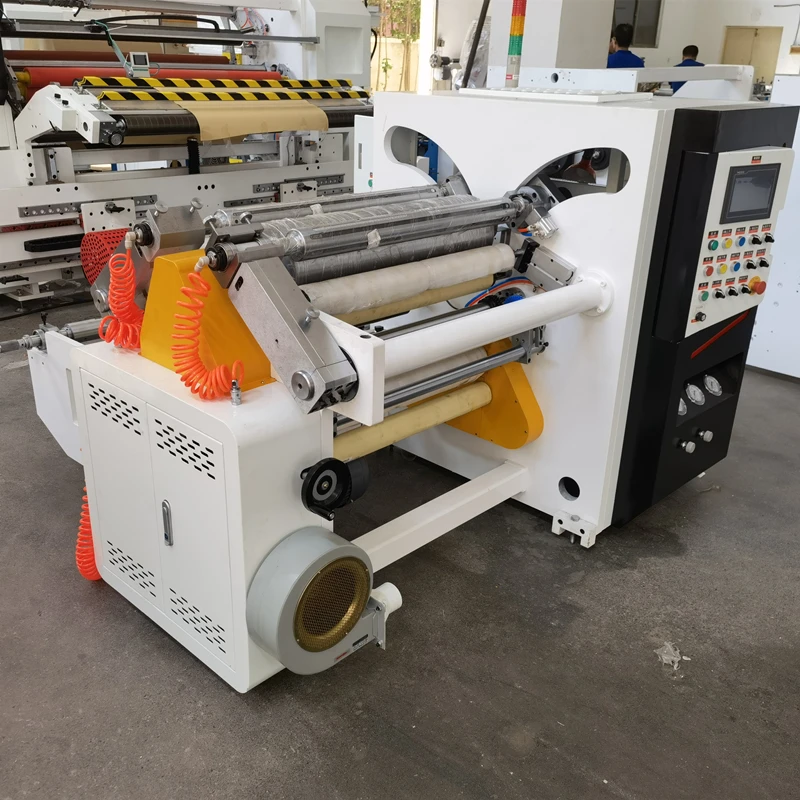

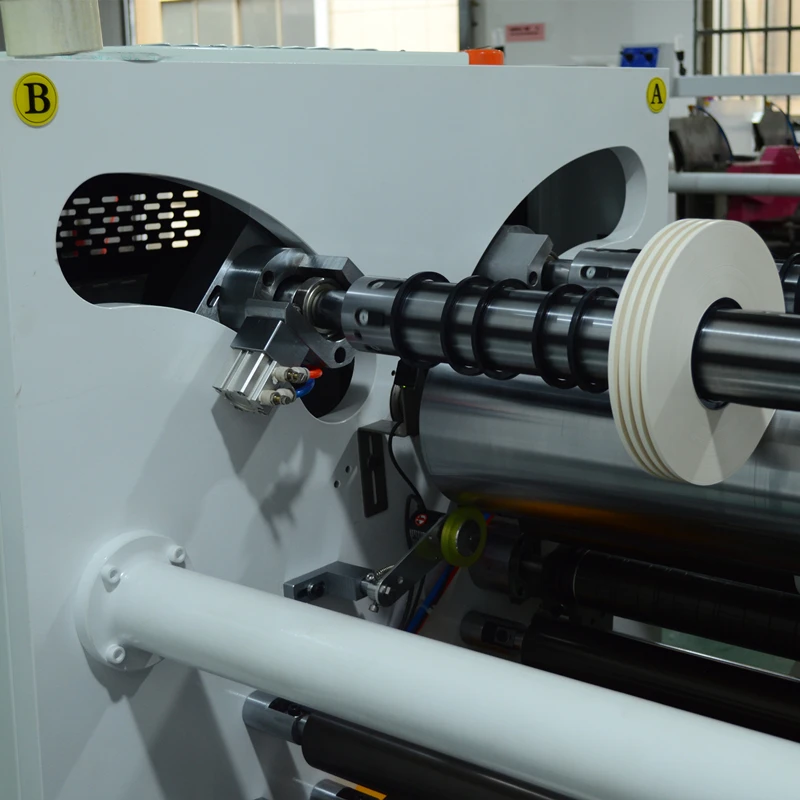

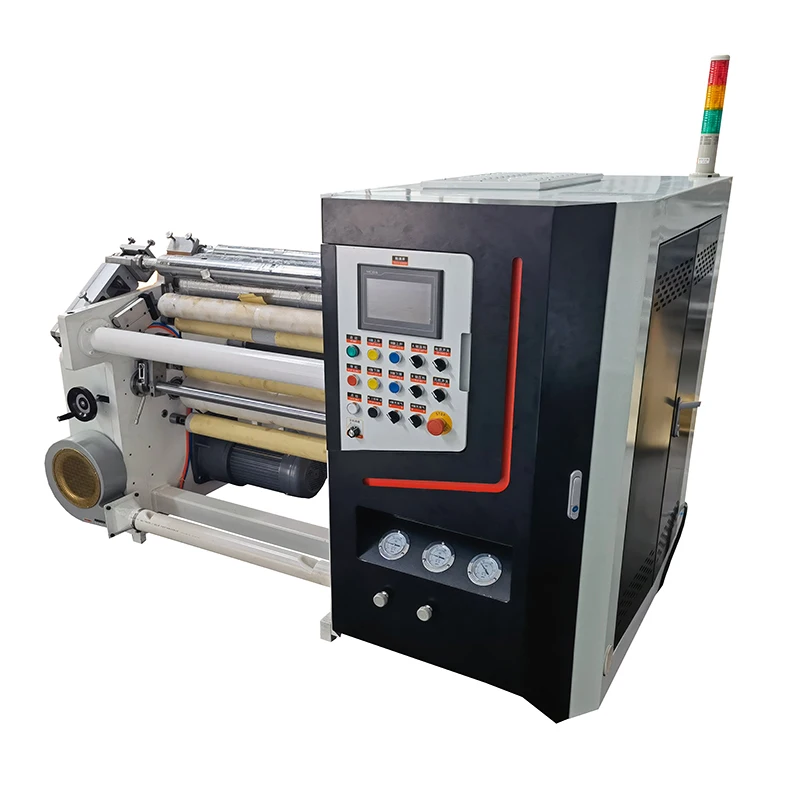

Insulation paper tape pvc film slitting rewinding machine
- Category: >>>
- Supplier: Kunshan Hexin Precise Machinery Co. Ltd.
Share on (1600618447033):
Product Overview
Description
Product Description
Features:
It is suitable for slitting of 3M, Mylar, aluminum foil, copper foil, EVA, protective
film, BOPP, PET, masking paper, foam tape, double-sided tape, kraft paper tape, cloth base and other materials.
It is suitable for slitting of 3M, Mylar, aluminum foil, copper foil, EVA, protective
film, BOPP, PET, masking paper, foam tape, double-sided tape, kraft paper tape, cloth base and other materials.
Feature
TECHNICAL PARAMETER | Film type | BOPP.CPP.POF.PVC.PET and printing composite film |
Film Thickness | 20-150um | |
Roll width | 650mm | |
Mechanical speed | 150m／min | |
Slitting speed | 130m／min | |
Unwinding diameter | 800mm | |
Min. Slitting Width | 3mm | |
Max. Rewinding diameter | 600mm | |
Voltage | 380V±10% |
Effective width | 650mm | Slitting width | 3mm~650mm |
Maximum unwinding diameter | 600mm | Rewinding core | 76mm |
Voltage | 380V 50HZ | Air pressure | 0.4-0.7MPa |
Overall dimension | 1900*1850*1350mm |
Name | Description & specification | Qty |
Main body | Made of 35mm steel plate with square tube support | 1 set |
Operation panel | Angle adjustable panel | 1 set |
Rewinding shaft | 3”inch diameter, air shaft | 2 pieces |
Unwinding shaft | 3”inch diameter, air shaft | 1 piece |
Feed roller | PU | 1 set |

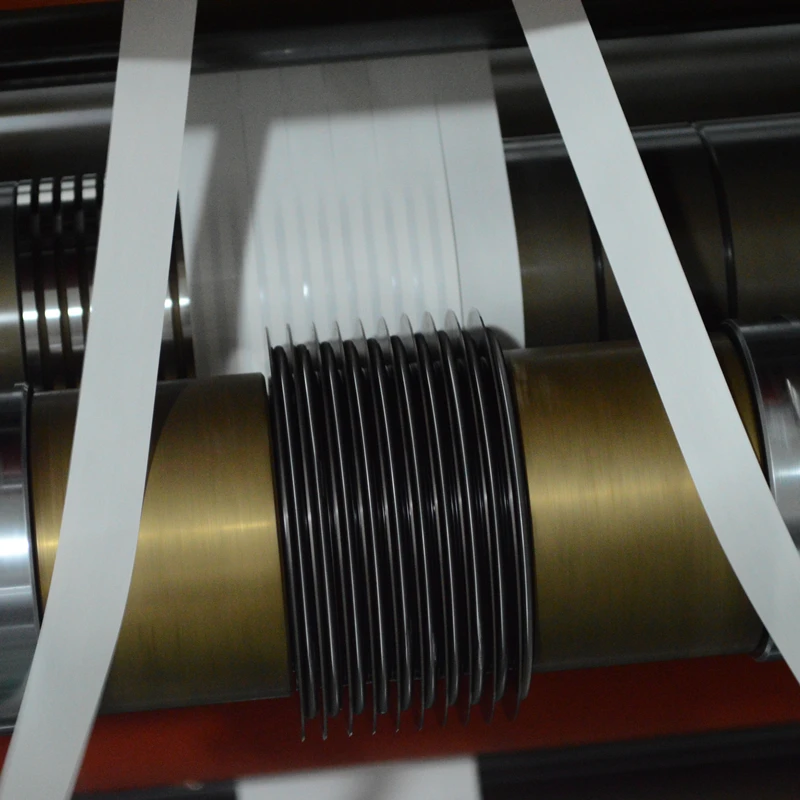

Upper circular blade | φ90mmXφ48X5 | |
Lower circular blade | Φ70mmXΦ45X(5X3) | |
EPC | 1 set |
Name | Description & specification | Qty | Brand |
Operation panel | 7”touch screen | 1 set | MCGS |
Control system | PLC programmable controller + analog module | 1 set | MITSUBISHI, Japan |
Frequency converter | 4KW | 1 set | SCHNAIDER, France |
low-voltage apparatus | Start and stop buttons, contactors, relays, etc. | 1 set | SCHNAIDER, France |
EPC | 1 set | ||
Magnetic powder clutch | 1 set | ||
Pneumatic component | Cylinders, solenoid valves, gas pipe connectors, etc. | 1 set | Airtac, Taiwan |
Motor | 3.7KW | 1 set | Liming, Taiwan |
Optoelectronic switch | E3Z-T61-L+E3Z-T61-D | 2 sets | OMRON, Japan |
Switch | PMT-24V350W2BM | 1 piece | DELTA, Taiwan |
Characteristics
1 | This machine employs microcomputer controller to set belt cutting length. | ||||||
2 | The cutting length is accurate. | ||||||
3 | Operation is easy. | ||||||
4 | Waste rate is low. | ||||||
5 | Manufacturing experience: 20 years | ||||||
6 | Export experience: 12 years | ||||||
Related Products
Company Introduction
We are a team of industry professionals with strong backgrounds in cutting, die cutting,
slitting, laminating and rolling. Other related machines in our fields can be customized based on your specific requirements.
Kunshan Hexin Precise Machinery Co.ltd is located in Kunshan city,Jiangsu province. We are near Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train.
Established in 2007, we have been dedicated on converting machines which are used before and after printing for over 10 years.
Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers reliable products,
perfect service.Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials,
insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and
cap line and plastic and rubber line.
slitting, laminating and rolling. Other related machines in our fields can be customized based on your specific requirements.
Kunshan Hexin Precise Machinery Co.ltd is located in Kunshan city,Jiangsu province. We are near Shanghai,40 minutes away from Shanghai Hongqiao airport by car and 18 minutes by high speed train.
Established in 2007, we have been dedicated on converting machines which are used before and after printing for over 10 years.
Our belief is “people-oriented, technology-first, integrity-centered and brand idea” to provide customers reliable products,
perfect service.Our products are widely applied in laminating, slitting and die cutting for shield materials, sticky materials,
insulating materials, conductive materials, electronic materials. Sizing cutting for strings, belts, rolls in bag line, shoe and
cap line and plastic and rubber line.
