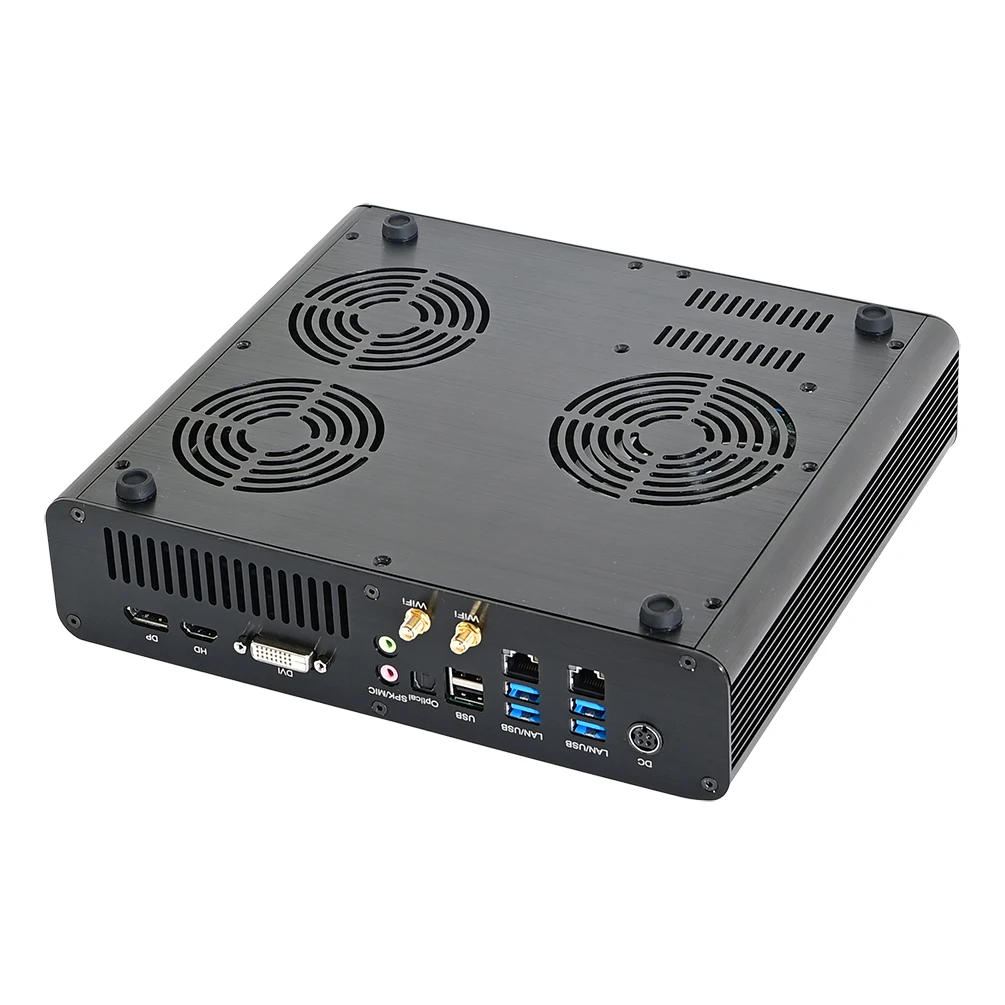

8K Mini PC, Gaming Computer, HTPC, Intel Core I7 7700HQ Windows 11 or Linux Ubuntu, GeForce1060 3G DDR5 4K DP1.4, HD2.0, DVI D
- Category: >>>
- Supplier: Shenzhen Yiyun Electronic Limited Company
Share on (1600618496502):
Product Overview
Description
Product features
1. Enjoy dual 4K display,HD movies/TV Broadcast/3D games/Photo design/Edit video/Living in Cinema.
2. 2*RTL 8111DL 1000LAN+Intel3160AC+BT 4.0 Dual Antennas

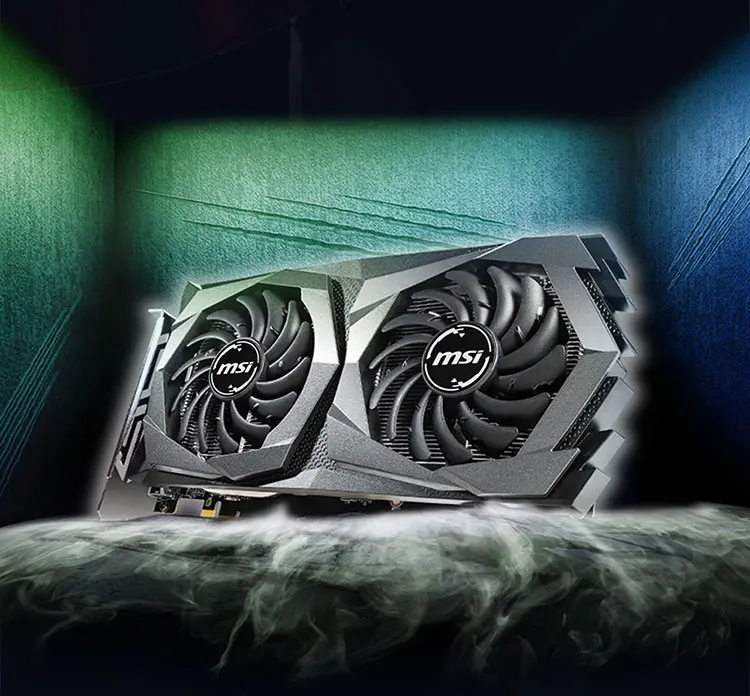

3. Dedicated graphics card GTX 1060 GDDR5 3GB makes the PC more smoother. Deliver excellent User experience.
4. 3 Strong Fans for heat-dissipation.Don’t crush,shutter,delay
5. Rich I/O Ports meet all your needs.
6. - Support Four Display: 1 x HD2.0 + 1 x Mini-DP+1*DVI-D.
Product parameter
| Basic Information: | |||
| CPU | Intel Core I7 7700HQ Quad-core 8Threads 2.8Ghz up to 3.8Ghz Cache 6MB Intel HD Graphics 630 | ||
| TDP | 45W | ||
| Motherboard Size | 200 x 142mm customized size | ||
| Chipset | Kaby Lake | ||
| Memory | 2 x SO-DIMM DDR4 SlotSupport 4GB/8GB/16GB/32GB/64GBDDR4-2666 MHz, 3200 MHz | ||
| OS | Windows8/10, WES10, LINUX | ||
| Network | 2 x Onboard RTL8111D 10/100/1000 Baset LAN | ||
| Video | Nvidia GeForce GTX1060 3GB DDR5 + Intel® HD Graphics 630 | ||
| Storage: | |||
| M.2 | 1 x M.2 2280 SATA / NVME SSD | ||
| SATA | 1x 2.5inch SATA SSD Or HDD support 6Gb/s. | ||
| Wi-Fi: | |||
| Module | 1 x M.2 PCIE slot for Wi-Fi module | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||

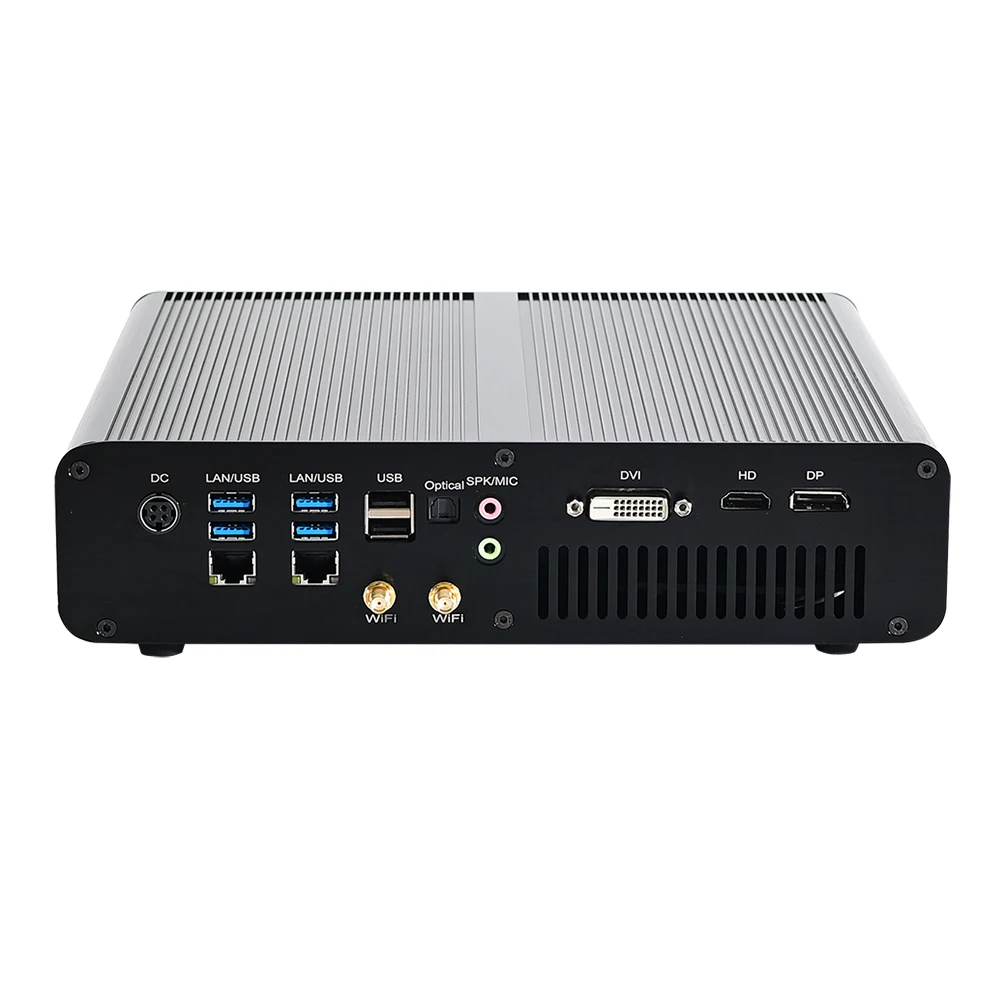

| Input/output port: | |||
| Switch | 1 x Power On/Of f Switch | ||
| Power | 1 x 19V DC In | ||
| LED | 2 x LED | ||
| Type-C | 1 x Type-C for USB | ||
| USB | 2 x USB2.0, 6 x USB3.0 | ||
| USB | 4 x USB3.2, 4 x USB2.0 | ||
| Display | 1 x HDMI2.0 + 1 x Mini-DP+1*DVI-D. | ||
| LAN | 2 x RJ45 Giga LAN | ||
| Optical | 1 x Optical | ||
| Audio | 1 x MIC, 1 x SPK | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | DC +12V~+19V, recommend 19V/7.1A | ||
| Operating Temperature | 0/+70 Centigrade | ||
| Storage Temperature | -30/+ 80 Centigrade | ||
| Relative Humidity | 0%~90% (non-condensing) | ||
| Product Dimension & Details: | |||
| Functions | PXE, Auto Power On, RTC, Wake On LAN | ||
| Size | L 270*W 240*H 65mm | ||
| Weight | Net 2.2kg, Gross 2.5kg | ||
| Shell | Black color aluminum alloy | ||
| Cooling Mode | All-copper turbo fan | ||
| Package Content: | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
| Optional | 1xHDMI cable, 1xUser Manual | ||

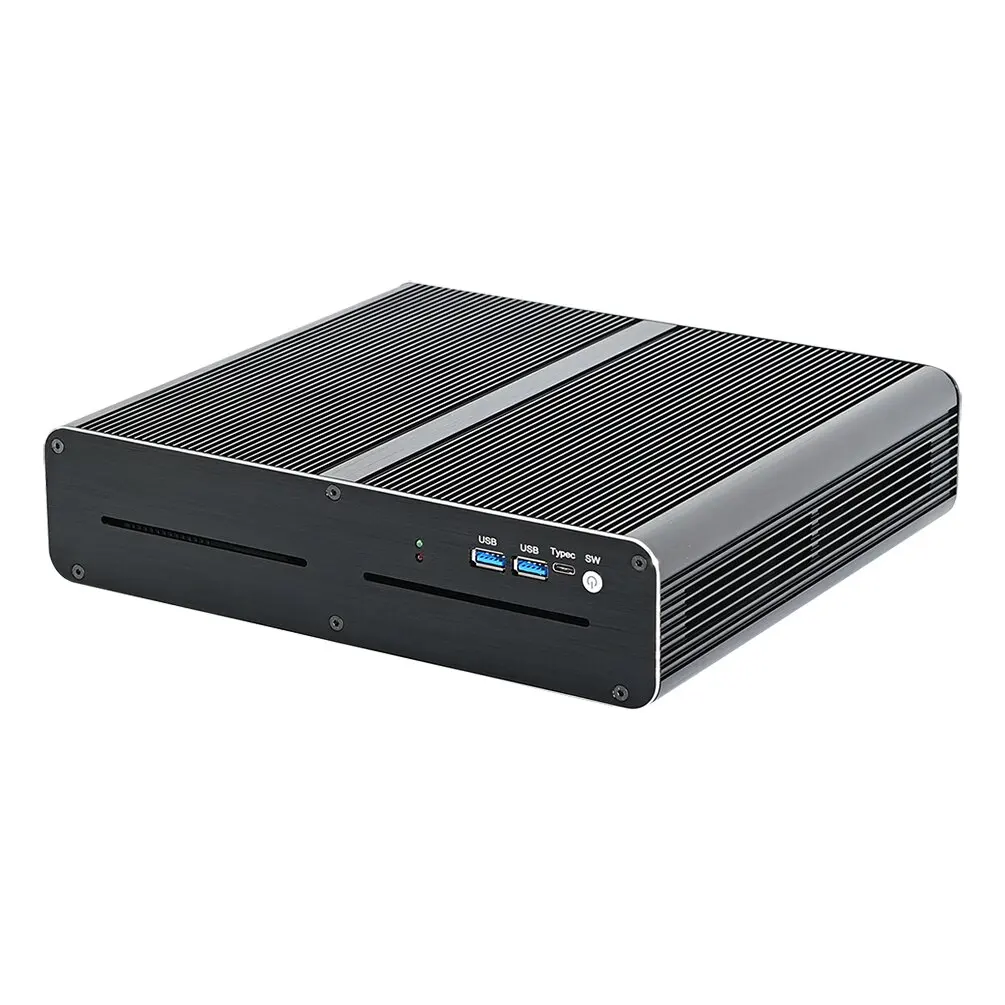

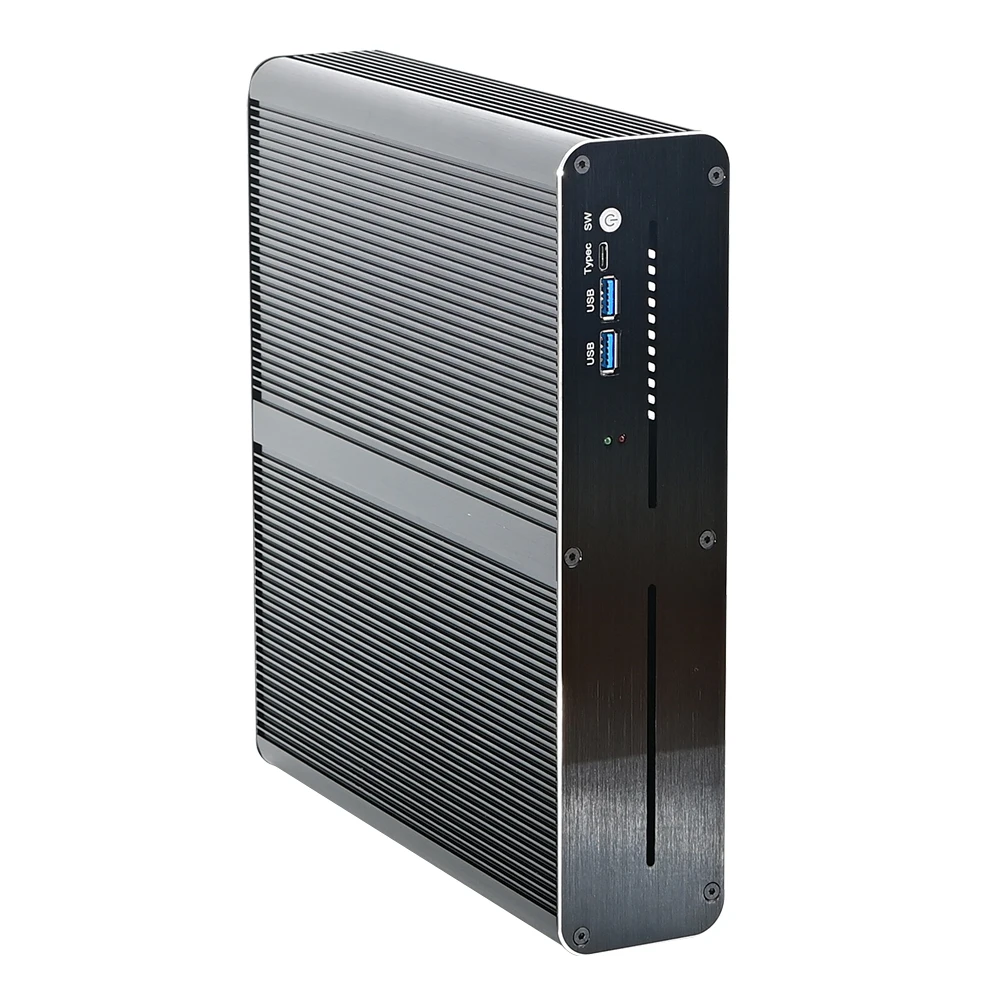

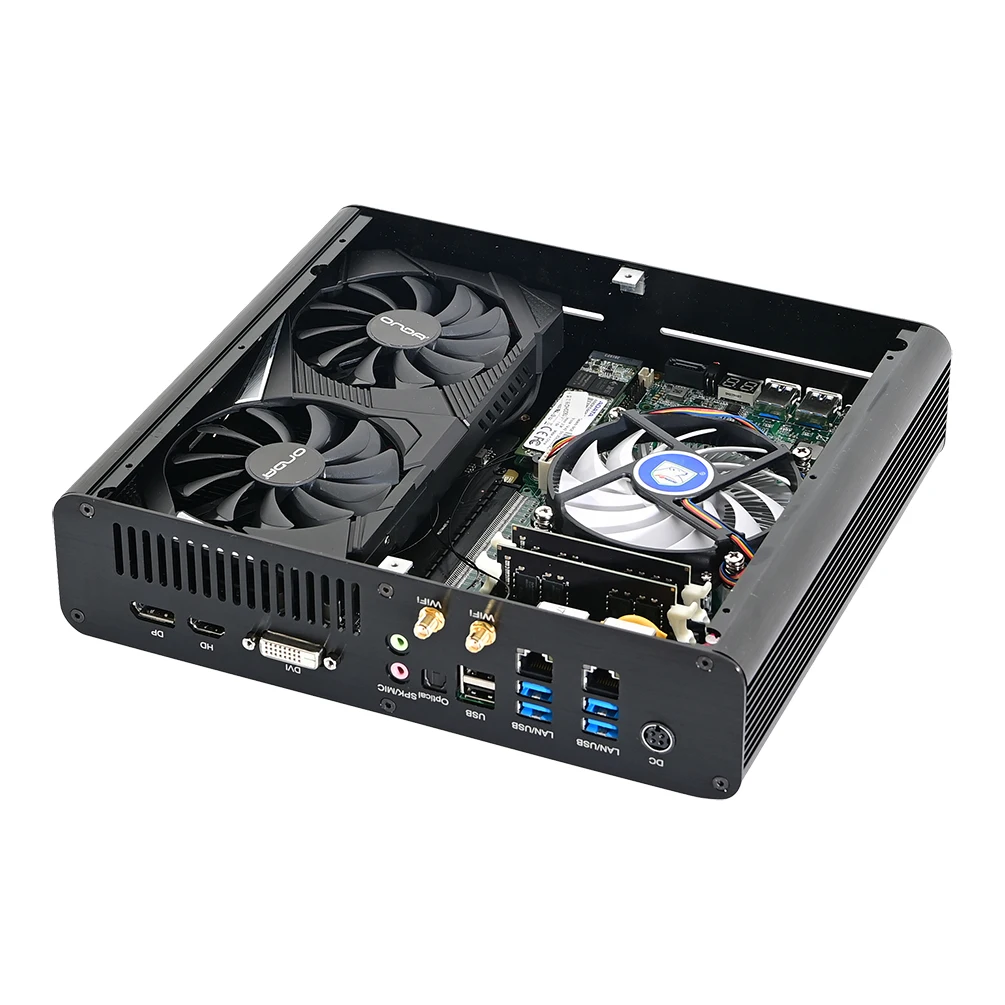

Product images
Application Area:
Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect;
Design work: Photoshop, CorelDraw, Dreamweaver, iIIustrator, Flash, InDesign and all others
Game playing: support most online games and PC games, like War craft, Counter-Strike (CS), support 3D games.
Entertainment: support ultra HD 4K resolution, support XBMC and others program that support Windows and Linuxs
Used as server, used at industrial machine, hospital,etc
Applied in Digital signage, KIOSK, Advertising Machine, Self-service Terminal,Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance
Parking Pay Station, Channel System, Medical electronic etc .

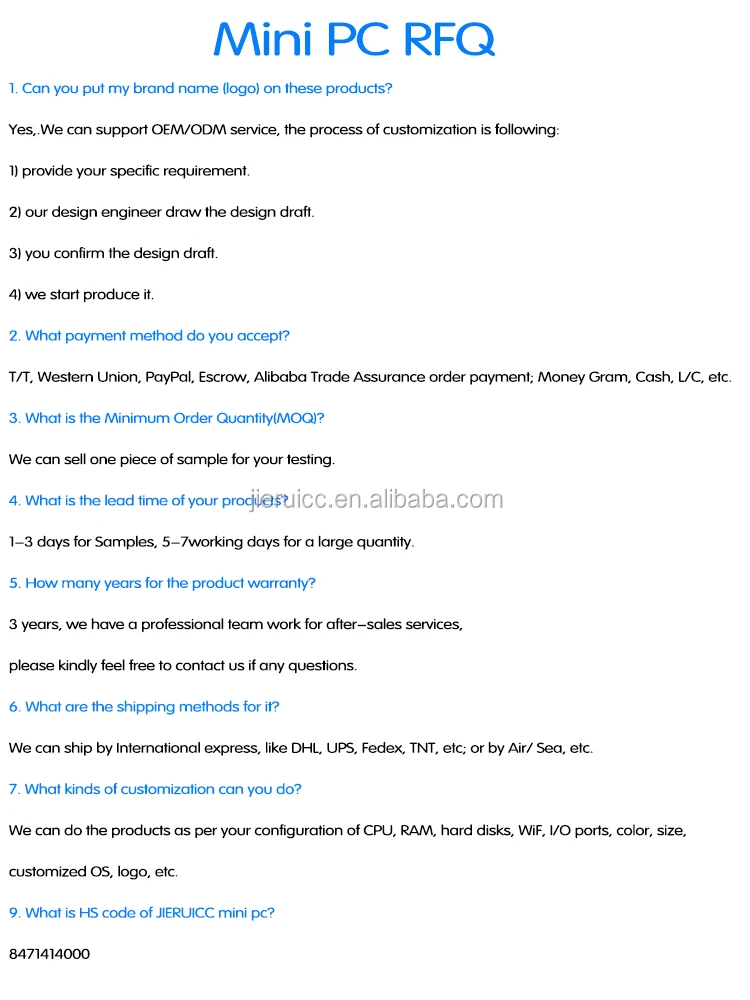

Notice: How to get a complete quotation?
1. Processor option:
intel Core i7 7700HQ
2. RAM: 4GB RAM, 8GB RAM, 16GB RAM,32GB.
3. SSD: M.2 2280 32GB SSD, 64GB SSD,128GB SSD, 256GB SSD, 256GB SSD, 512GB SSD, 1TB SSD.
4. HDD: 2.5inch 500GB HDD, 1TB HDD, 2TB HDD.
For example: I want to buy 10units Core i7 7700HQ with 8GB RAM 256GB SSD, Please give me a quotation.
Company Information
Shenzhen Greenthinpc Technology Limited(Shenzhen Yiyun Electronic Limited) Established in 2010, Greenthinpc is a creative, professional, and enthusiastic manufacturer which has rich experience in designing, producing Mini Computer,Industrial Mini PC,Industrial Panel PC.All in one pc,Thin Client, Zero Client
With rich experienced employees. Professional Strictly QC team/R&D Team/Service Team and Advanced Workshop to support all of our customers with good services/on time delivery.The objectives of Greenthinpc are to provide sustainable, high-quality products at reasonable prices and environmental friendly products as well as comprehensive solutions.
